Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01

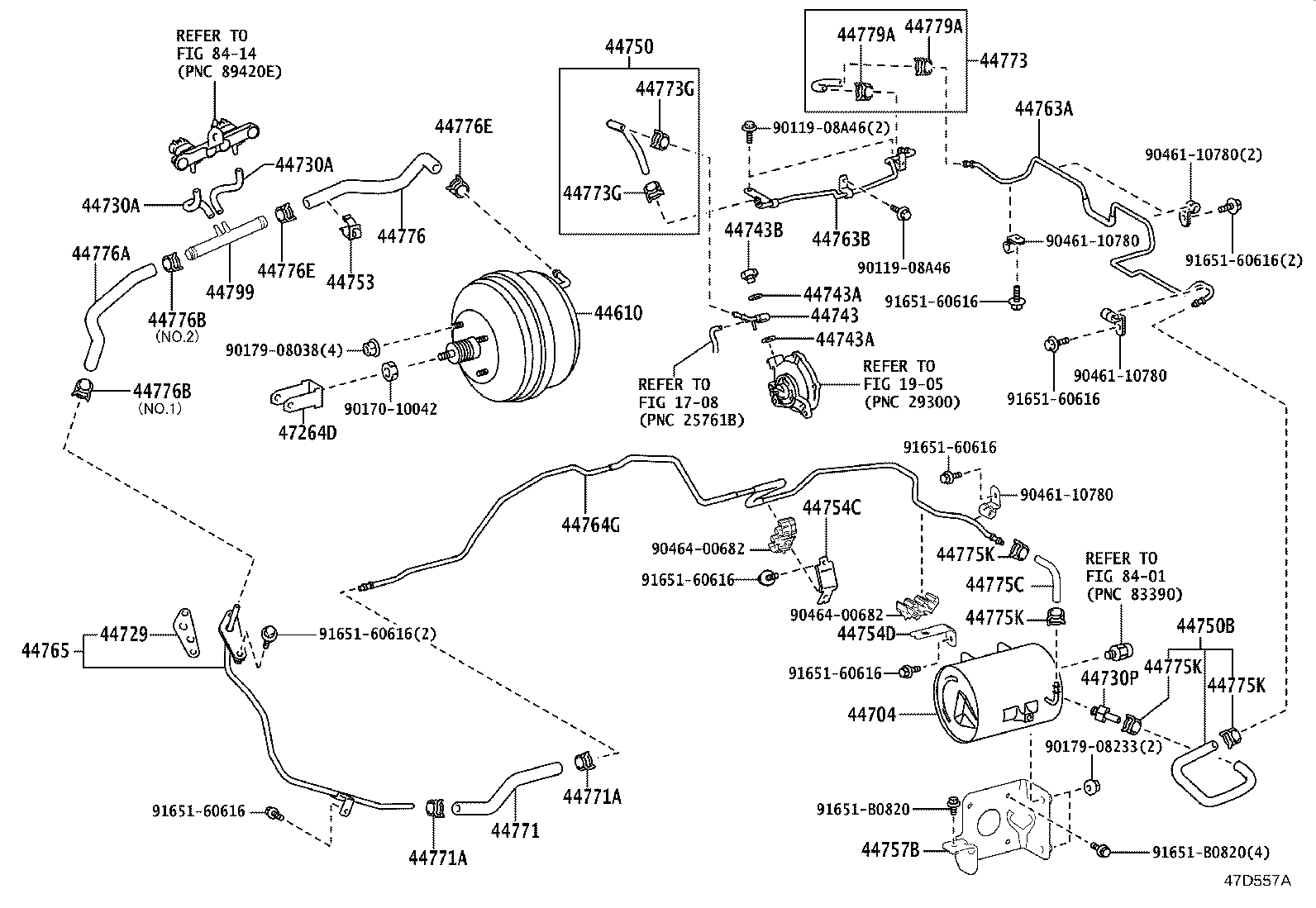

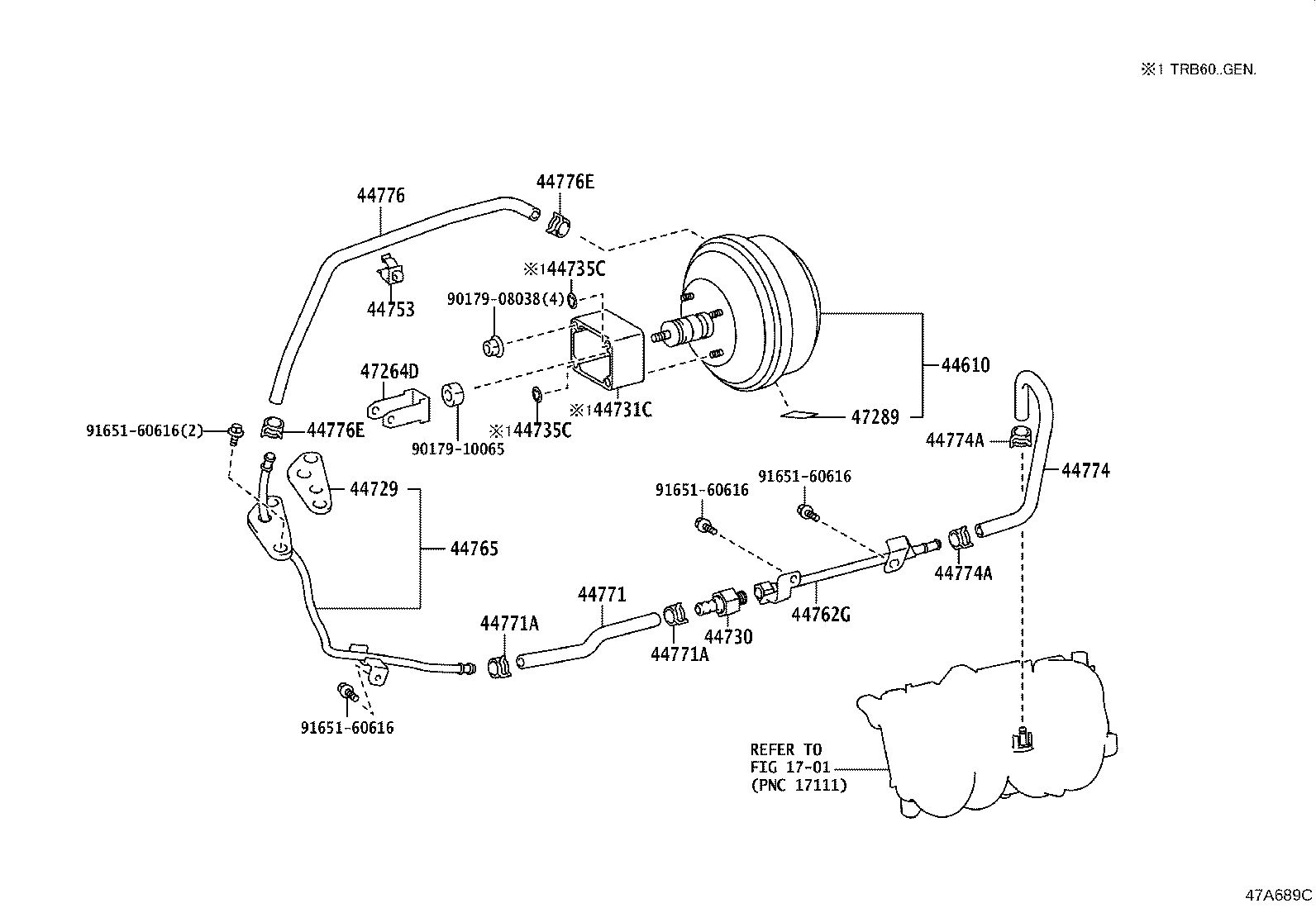

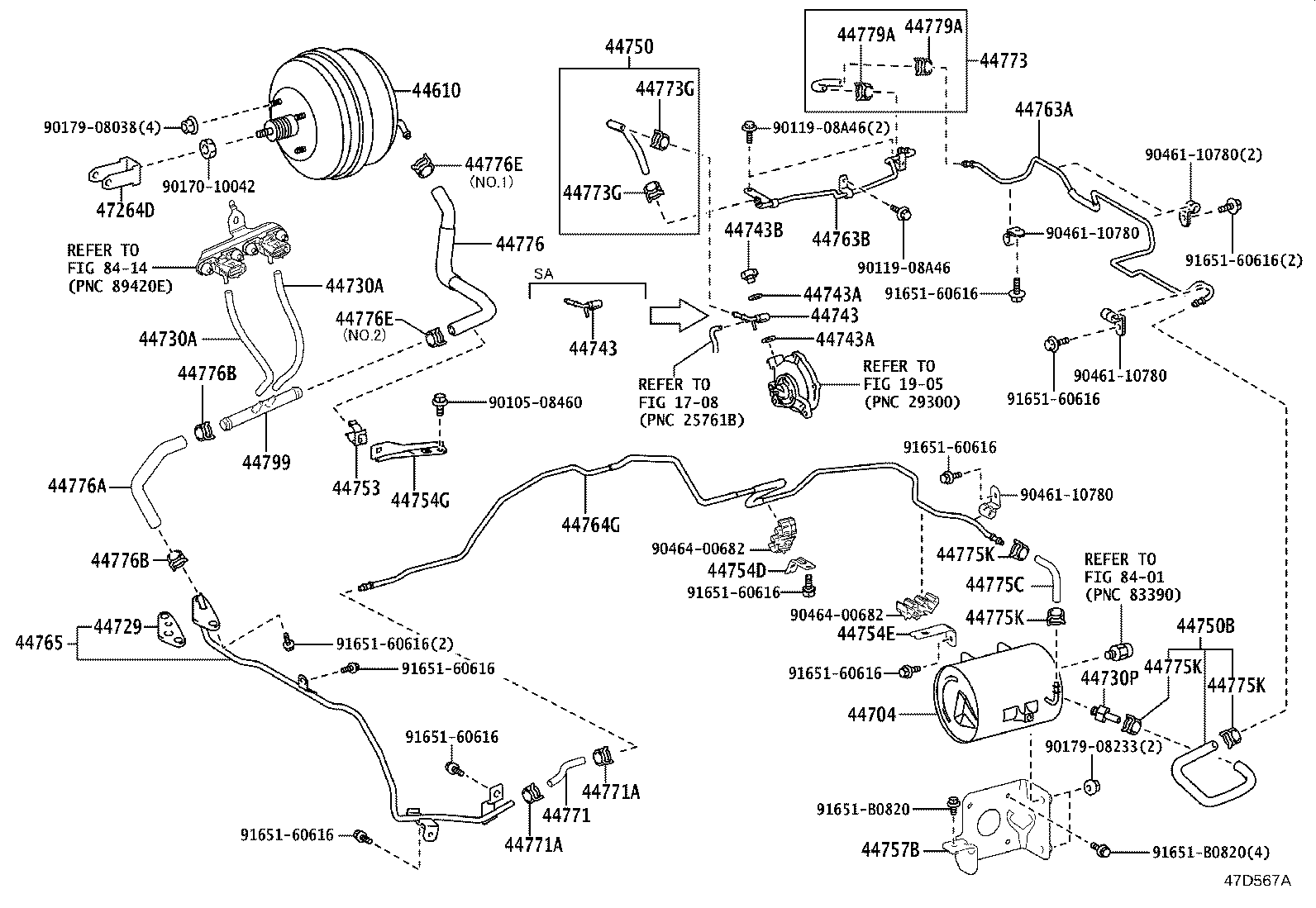

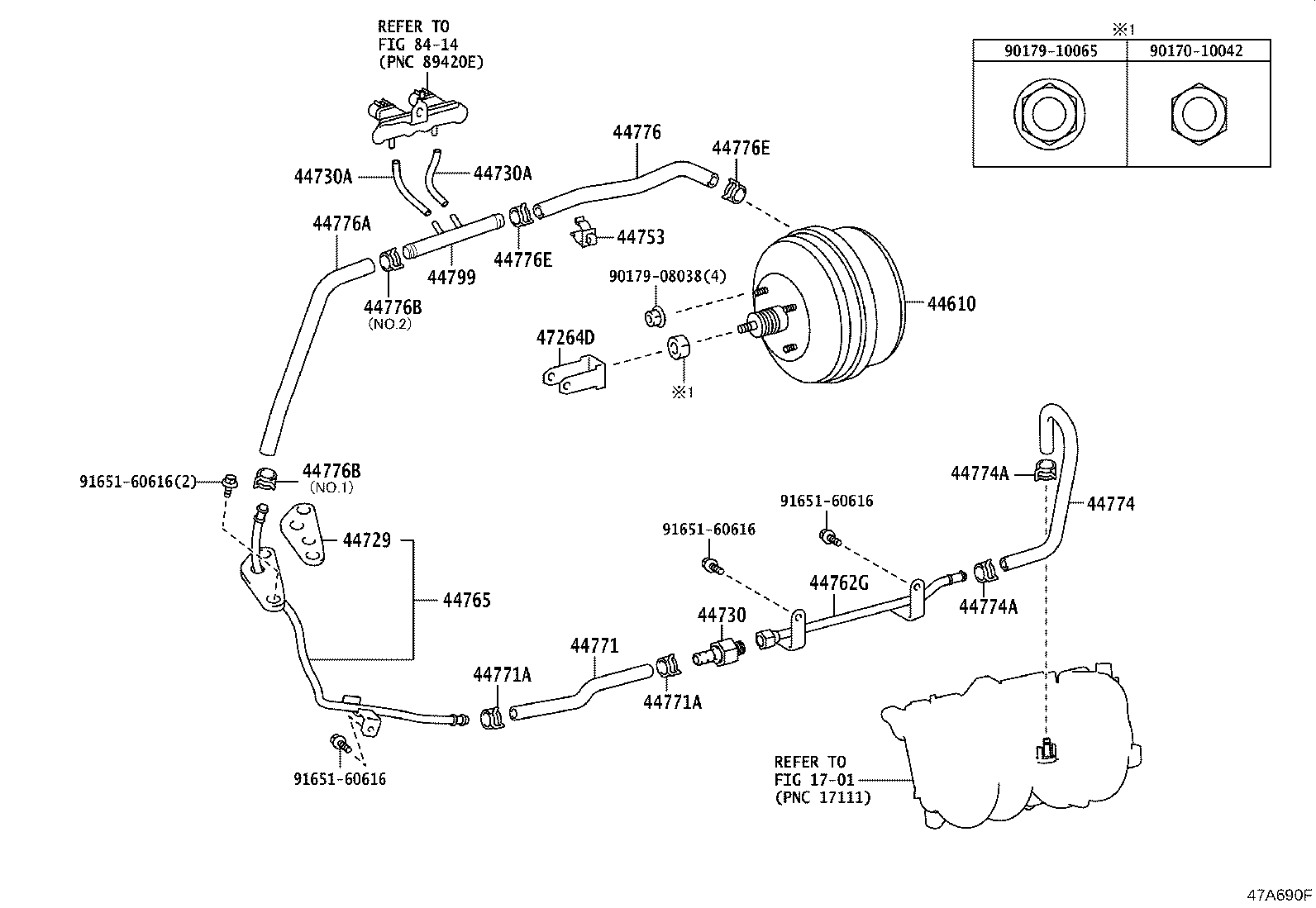

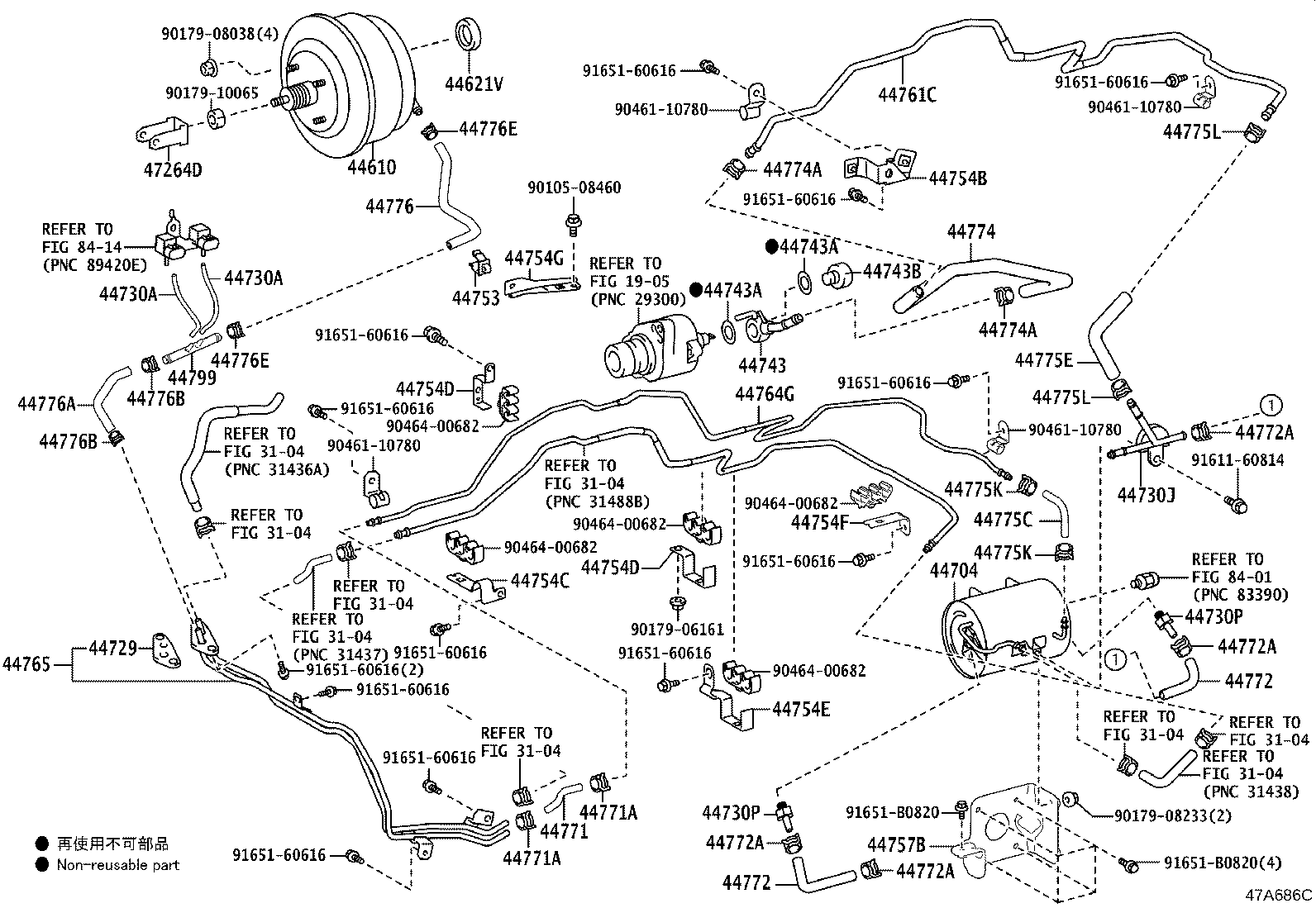

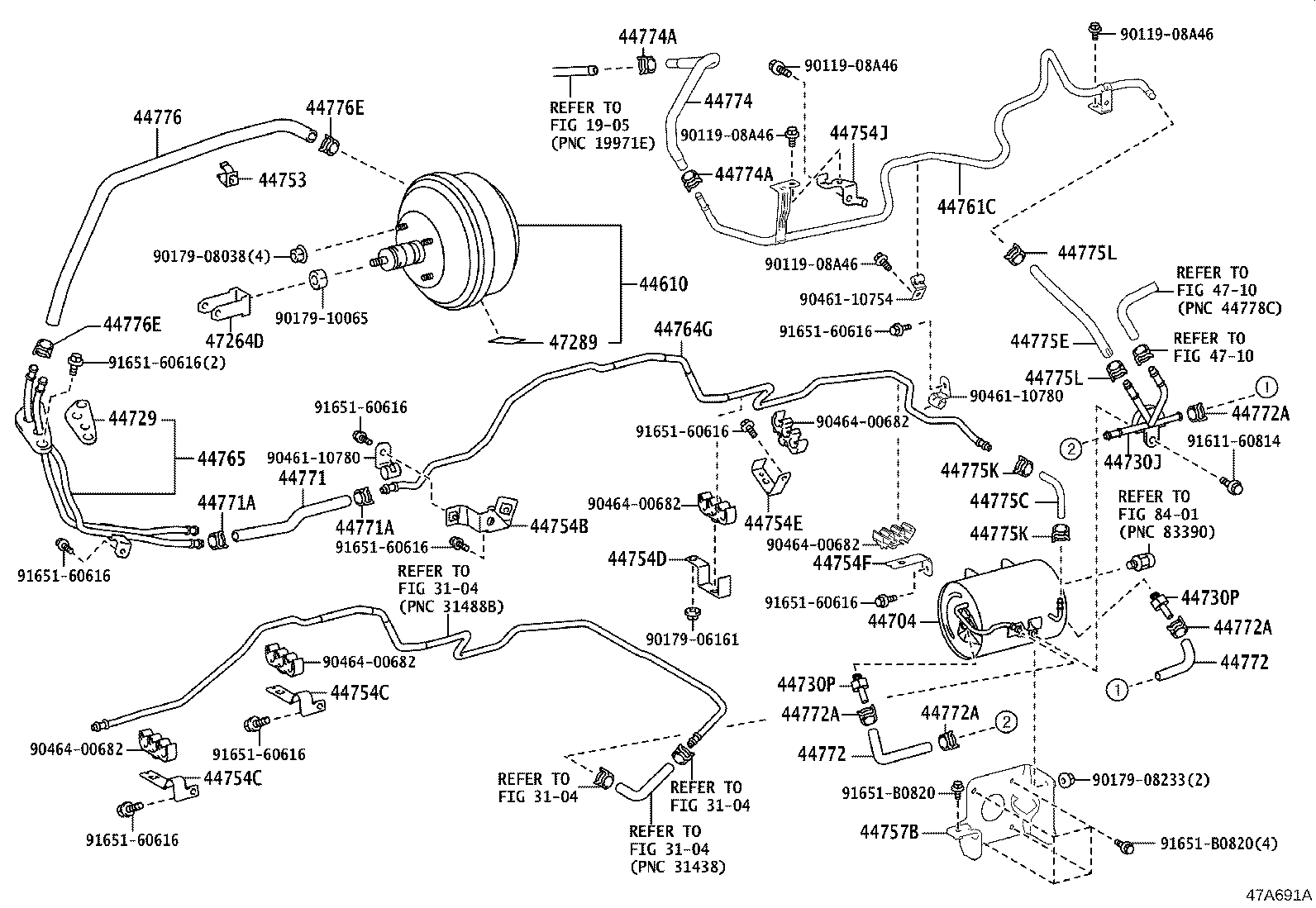

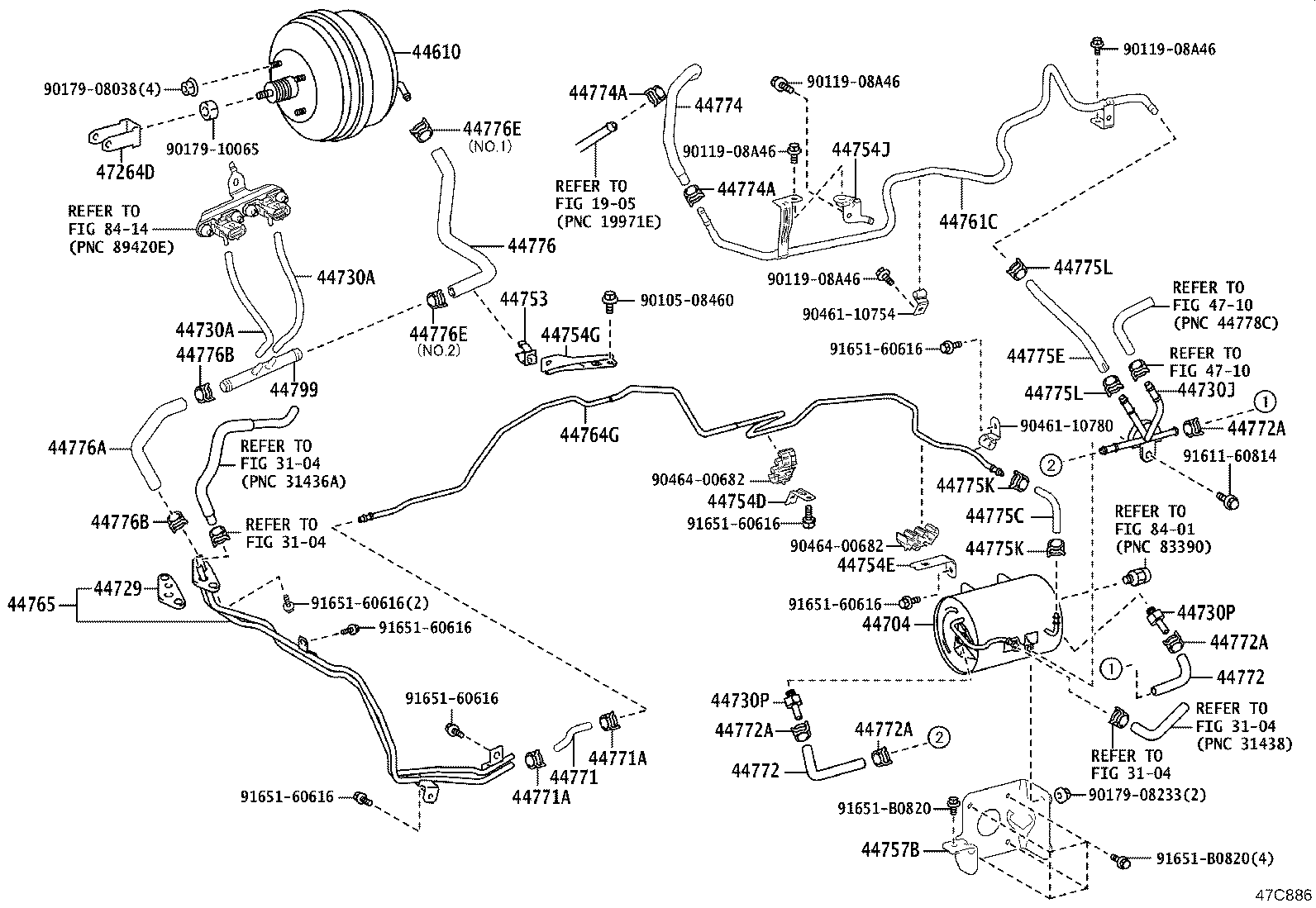

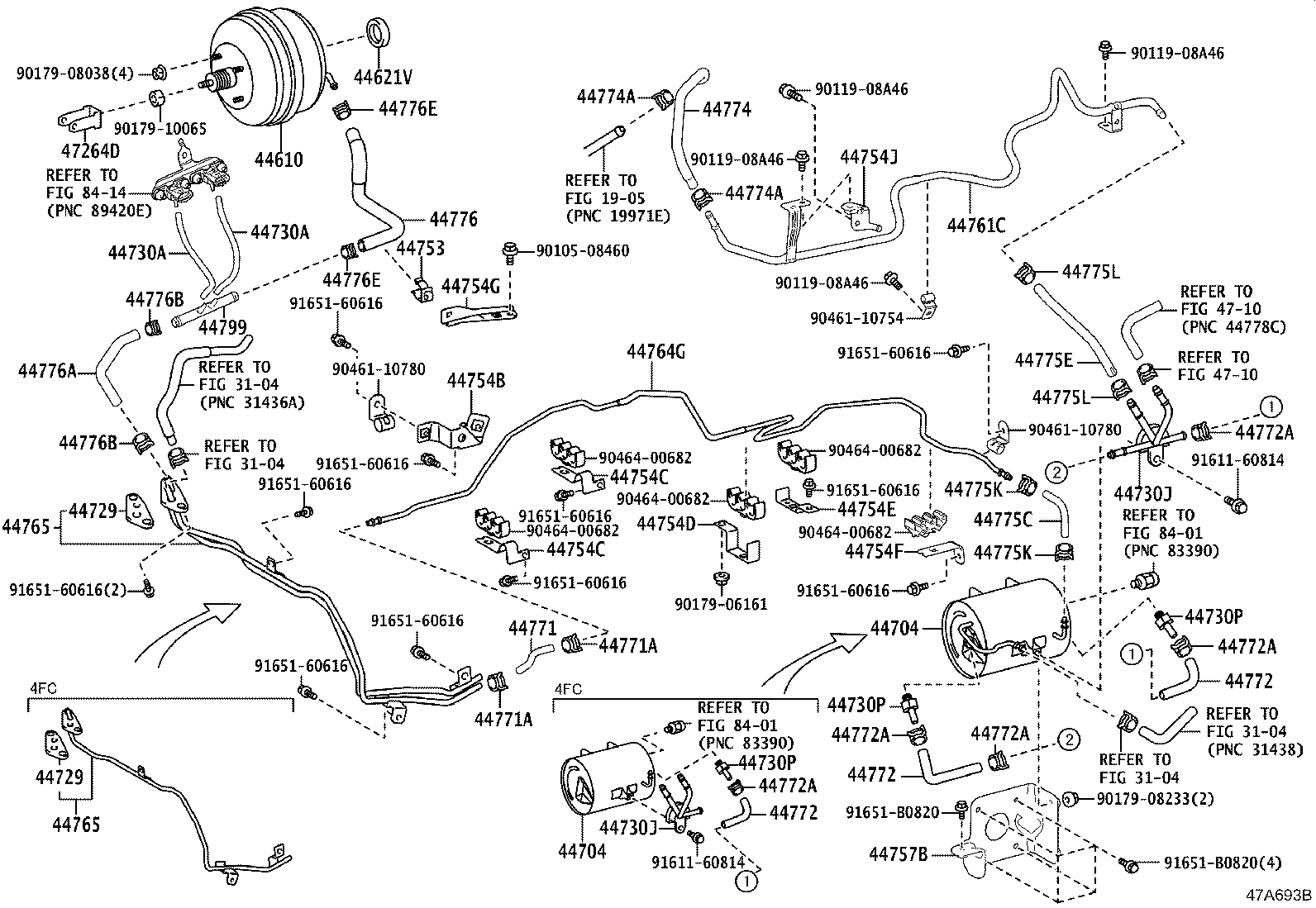

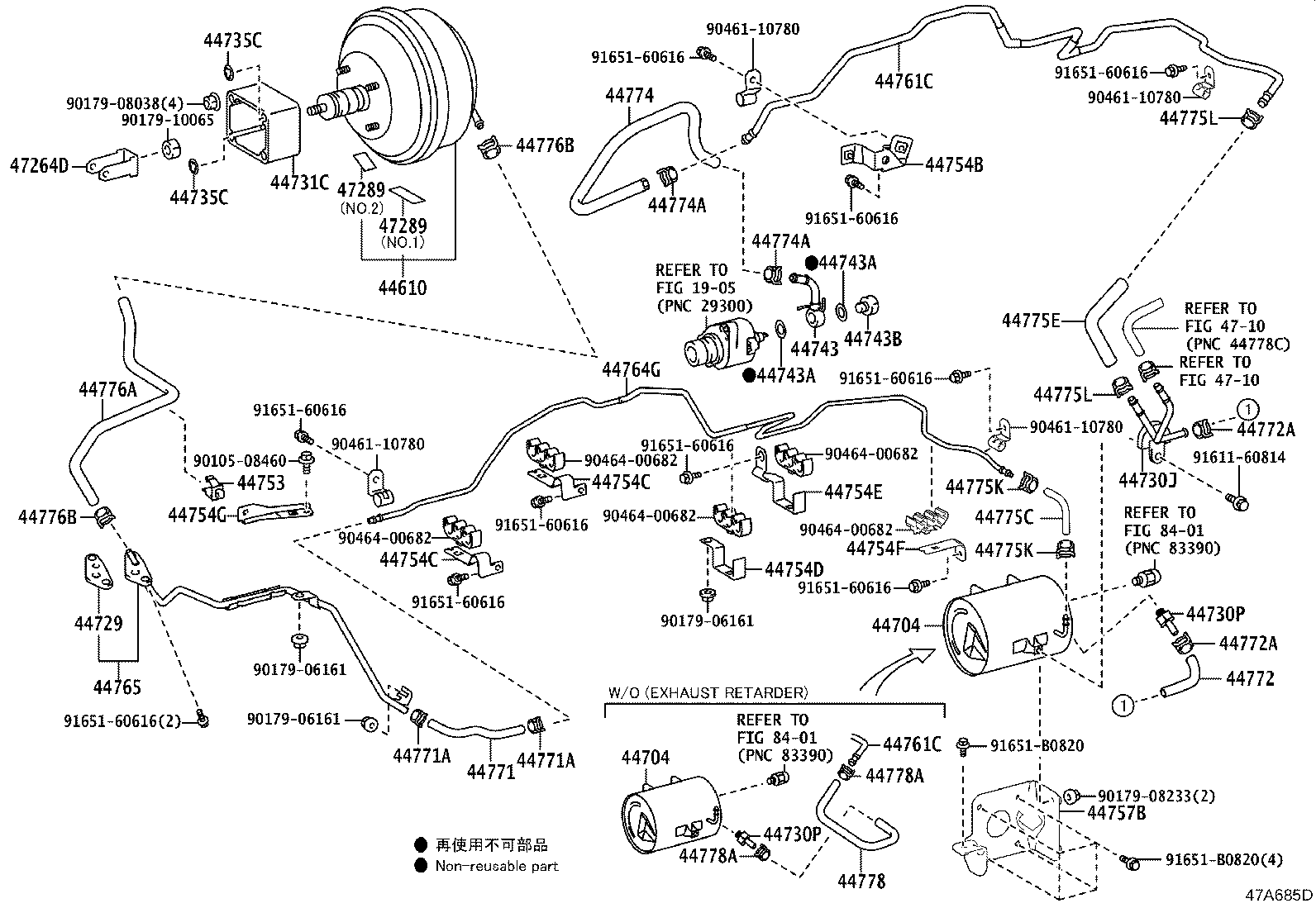

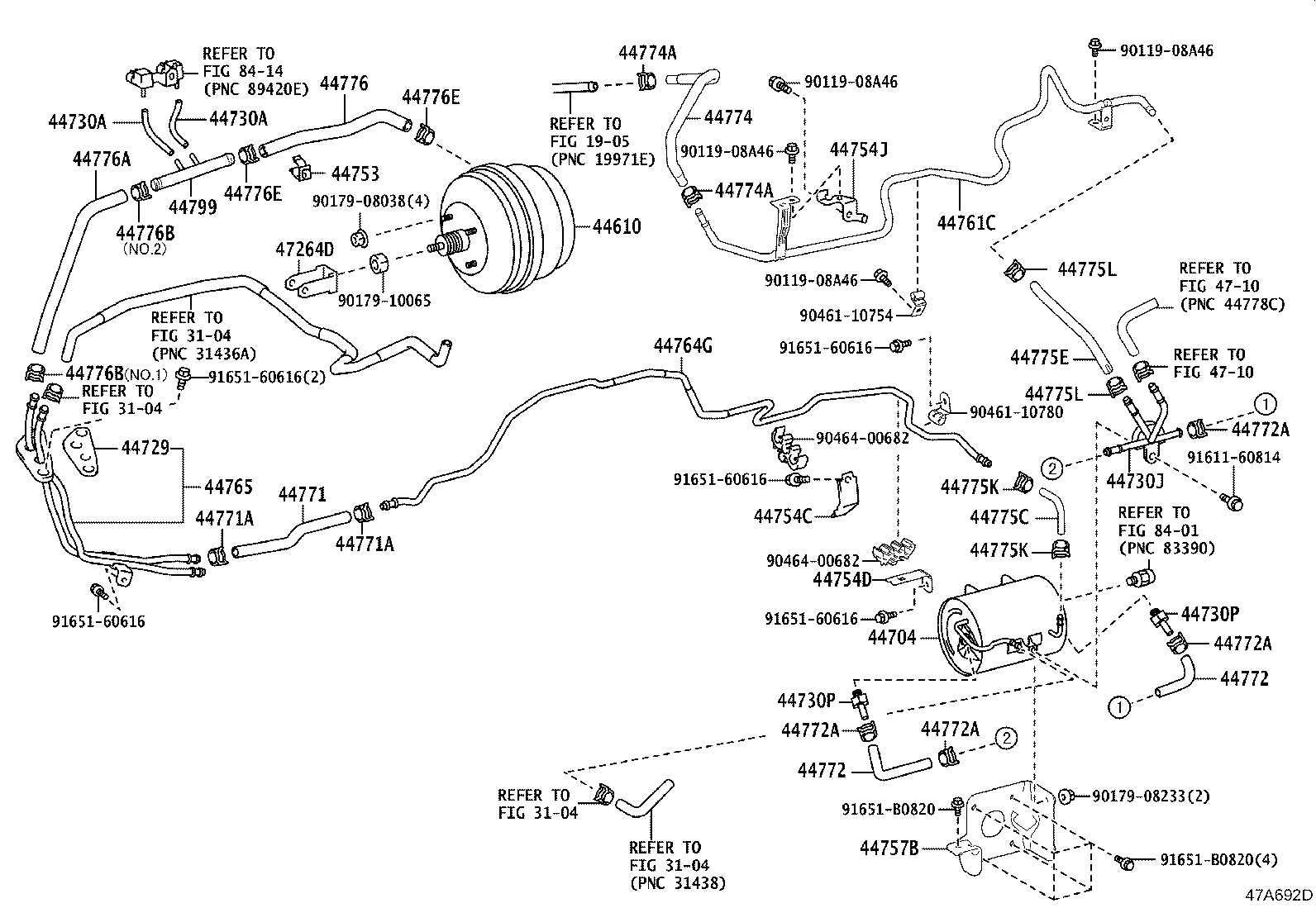

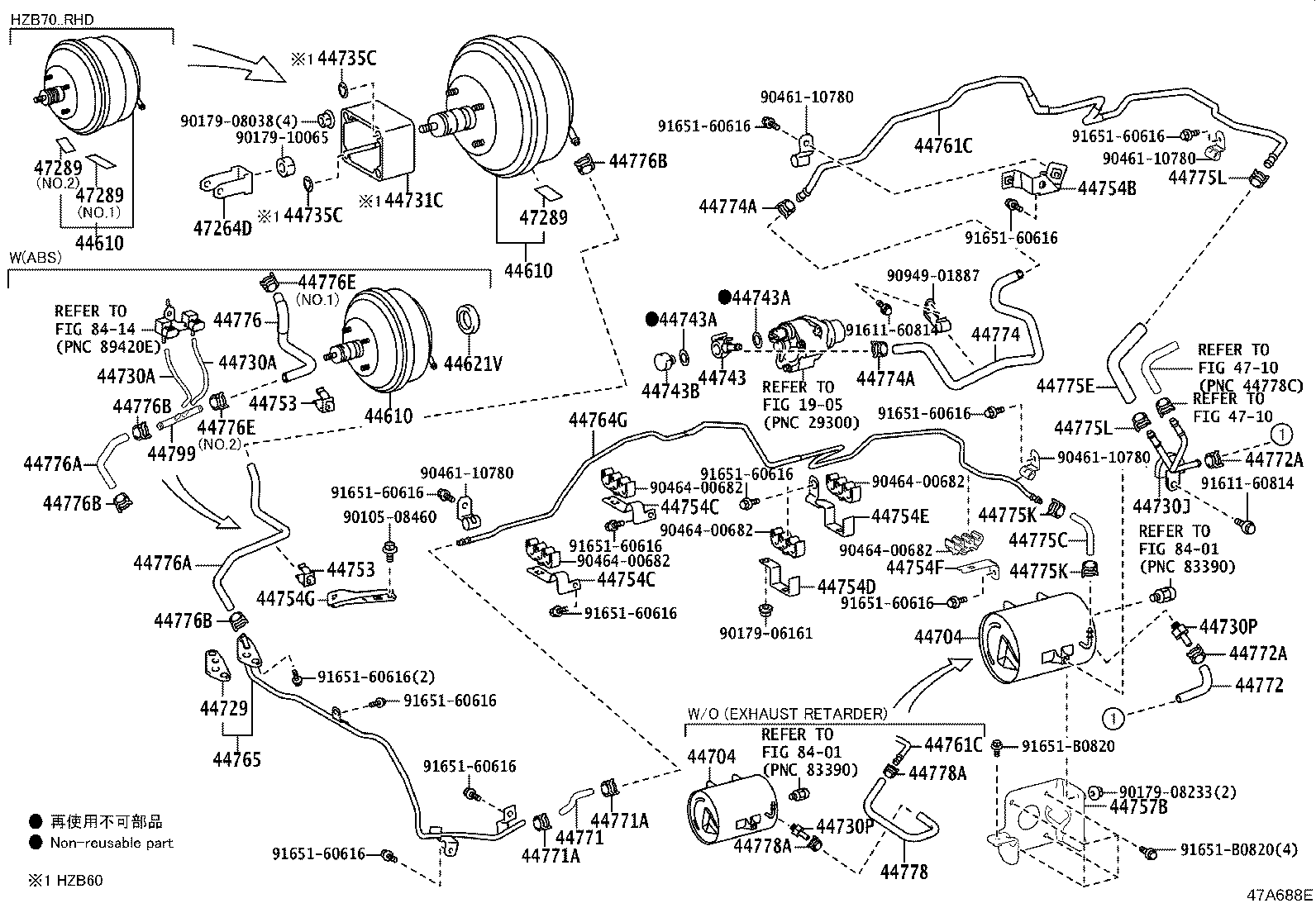

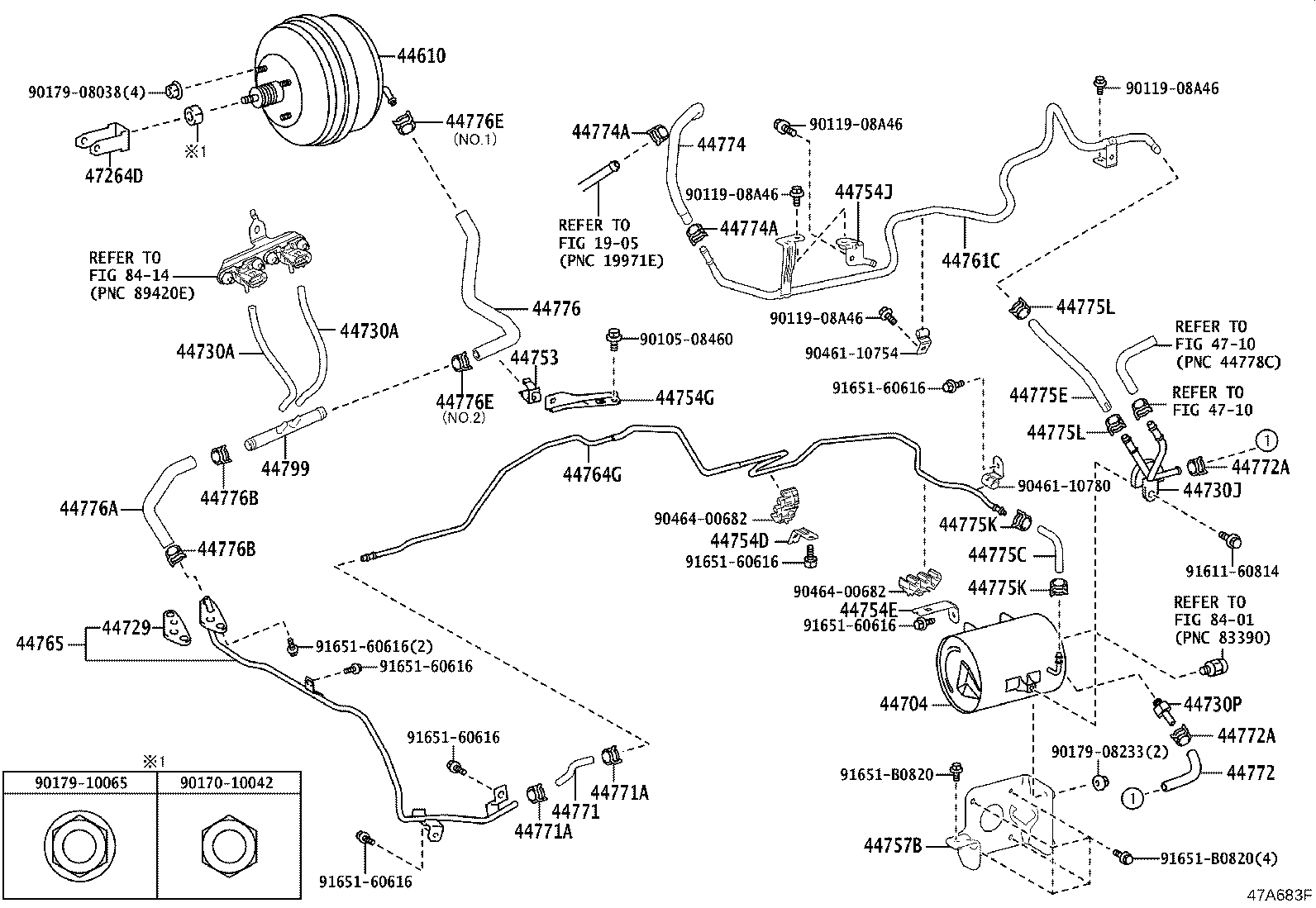

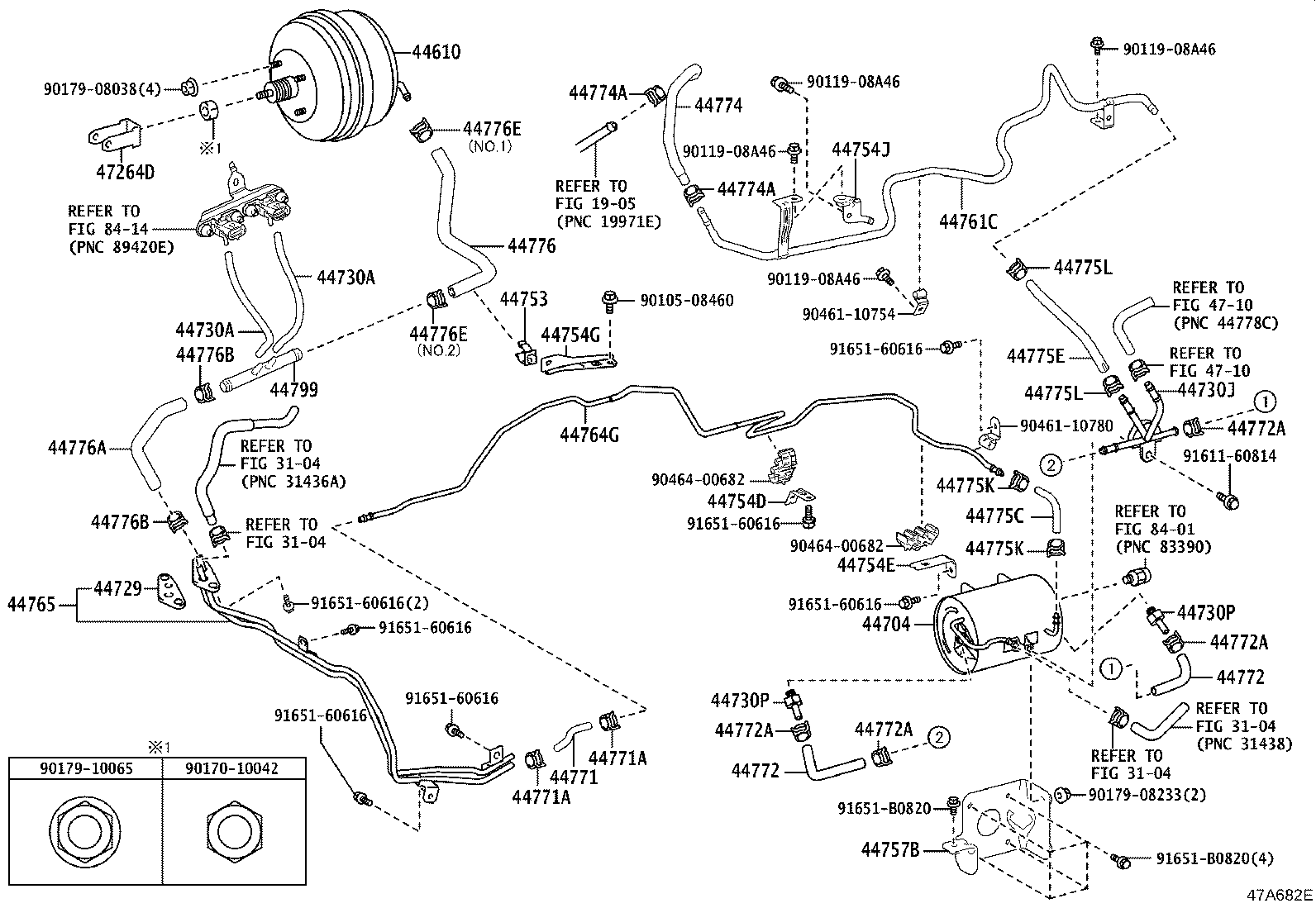

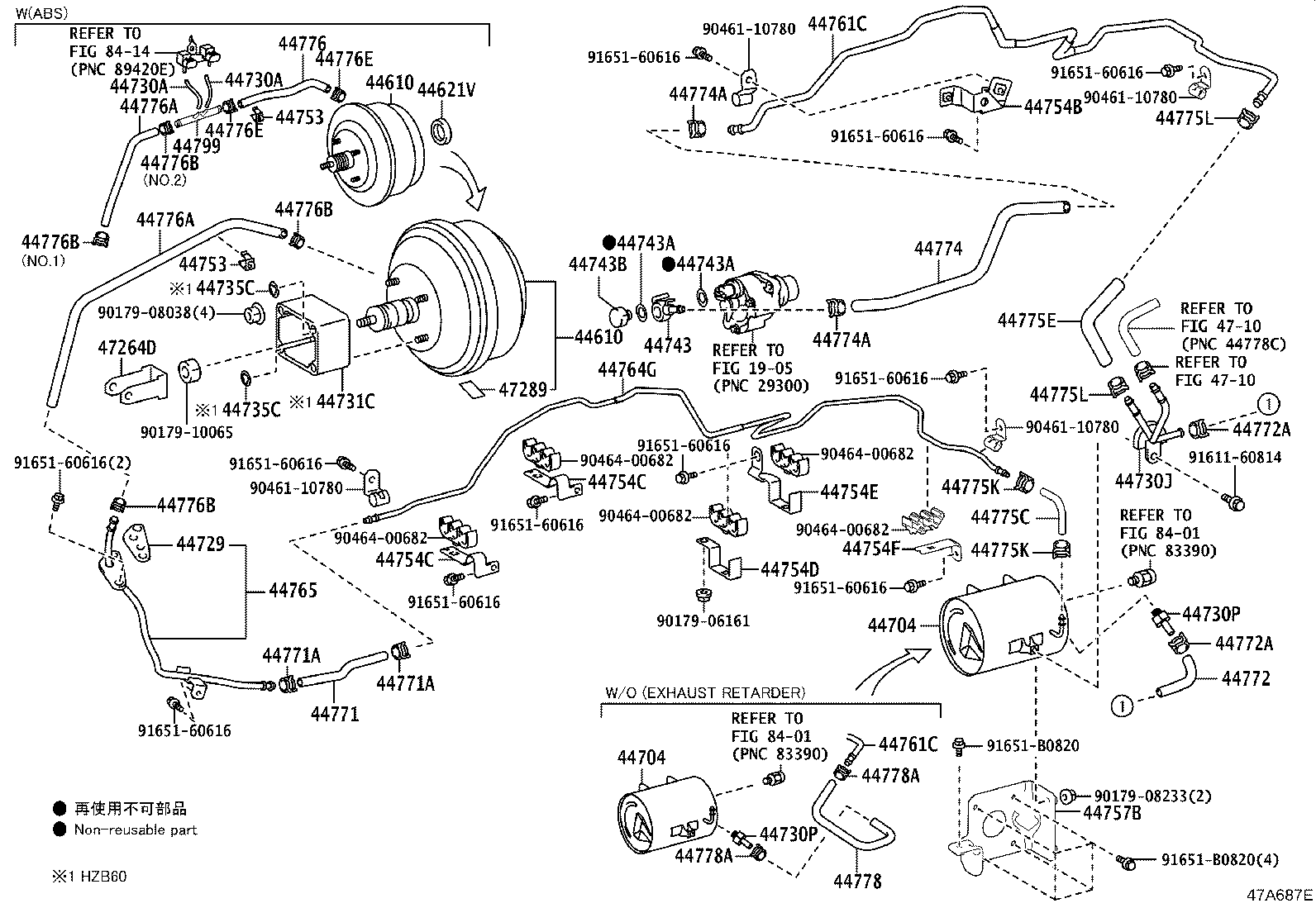

Brake Booster & Vacuum Tube
52 part groups · 15 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44621V | Seal, Booster Body |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44729 | Gasket, Vacuum Tube |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730A | Hose, Vacuum, NO.1 |
| 44730J | Way(FOR BOOSTER VACUUM) |
| 44730P | Valve Assy, Vacuum Check, NO.1 |
| 44731C | Bracket, Brake Booster |
| 44735C | Ring, Booster Bracket Stopper |
| 44743 | Union(FOR VACUUM PUMP) |
| 44743A | Gasket(FOR VACUUM PUMP UNION) |
| 44743B | Bolt, Union(FOR VACUUM PUMP UNION) |
| 44750 | Hose Assy, Vacuum |
| 44750B | Hose Assy, Vacuum, NO.2 |
| 44753 | Clamp, Vacuum Reservoir, NO.2 |
| 44754B | Bracket, Vacuum Tube |
| 44754C | Bracket, Vacuum Tube, NO.1 |
| 44754D | Bracket, Vacuum Tube, NO.2 |
| 44754E | Bracket, Vacuum Tube, NO.3 |
| 44754F | Bracket, Vacuum Tube, NO.4 |
| 44754G | Bracket, Vacuum Tube, NO.5 |
| 44754J | Bracket, Vacuum Tube, NO.6 |
| 44757B | Bracket, Vacuum Tank Clamp, NO.2 |
| 44761C | Tube, Vacuum Pump TO Connector |
| 44762G | Tube, Vacuum Check Valve TO Connector |
| 44763A | Tube, Hose TO Hose, NO.1 |
| 44763B | Tube, Tube Connector TO Tube Connector |
| 44764G | Tube, Connector TO Brake Booster |
| 44765 | Tube, Connector TO Brake Booster, NO.2 |
| 44771 | Hose, Vacuum Tube Connector |
| 44771A | Clip(FOR VACUUM TUBE CONNECTOR HOSE) |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44772A | Clip(FOR CHECK VALVE TO CONNECTOR TUBE) |
| 44773 | Hose, Vacuum, NO.2 |
| 44773G | Clip(FOR UNION TO CHECK VALVE HOSE) |
| 44774 | Hose, Union TO Connector Tube |
| 44774A | Clip(FOR UNION TO CONNECTOR TUBE HOSE) |
| 44775C | Hose, Connector TO Way |
| 44775E | Hose, Way TO Connector |
| 44775K | Clip(FOR CONNECTOR TO 3 WAY HOSE) |
| 44775L | Clip(FOR 3 WAY TO CONNECTOR HOSE) |
| 44776 | Hose, Brake Booster |
| 44776A | Hose, Vacuum Reservoir TO Brake Booster |
| 44776B | Clip(FOR VACUUM RESERVOIR TO BRAKE BOOSTER) |
| 44776E | Clip(FOR BRAKE BOOSTER HOSE) |
| 44778 | Hose, Connector TO Check Valve |
| 44778A | Clip(FOR CONNECTOR TO CHECK VALVE HOSE) |
| 44779A | Clip(FOR UNION TO CONNECTOR HOSE) |
| 44799 | Way, Brake Vacuum Hose |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
| 47289 | Label, Brake Master Cylinder Adjust Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
