Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01
Front Disc Brake Caliper & Dust Cover
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|

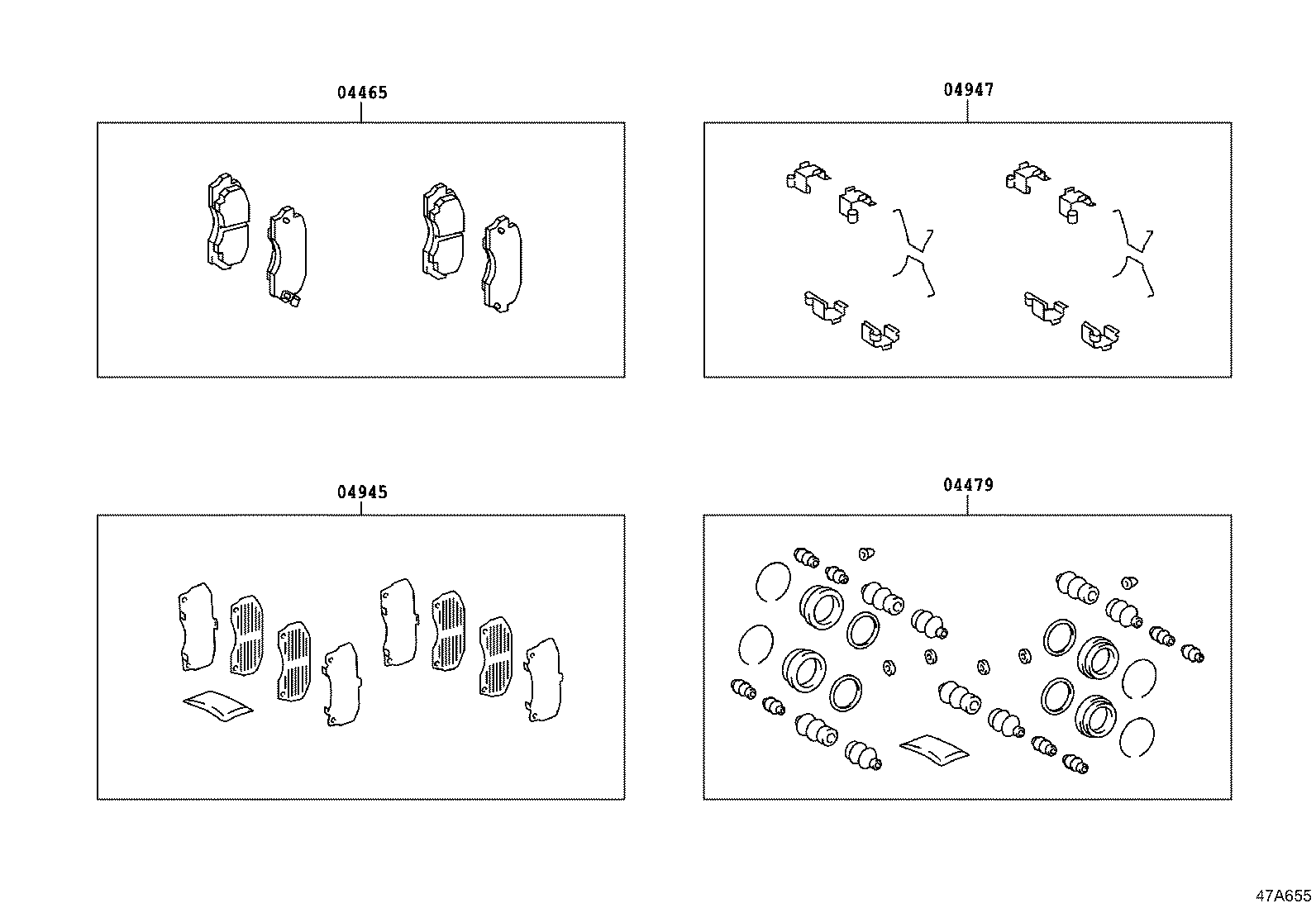

| 04465 | Pad Kit, Disc Brake, Front |
| 04479 | Cylinder Kit, Disc Brake, Front |
| 04945 | Shim Kit, Anti Squeal, Front |
| 04947 | Fitting Kit, Disc Brake, Front |
| 31478B | Cap, Bleeder Plug(FOR FRONT DISC BRAKE) |
| 47547B | Plug, Bleeder(FOR FRONT DISC BRAKE) |
| 47703 | Cover Sub-assy, Disc Brake Dust, Front RH |
| 47704 | Cover Sub-assy, Disc Brake Dust, Front LH |
| 47715B | Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE) |
| 47716 | Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE) |
| 47717 | Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE) |
| 47721 | Mounting, Front Disc Brake Cylinder, RH |
| 47722 | Mounting, Front Disc Brake Cylinder, LH |
| 47730 | Cylinder Assy, Front Disc Brake, RH |
| 47731 | Piston, Front Disc Brake |
| 47731A | Ring, Set(FOR FRONT DISC BRAKE PISTON) |
| 47737 | Seal, Front Disc Brake Cylinder Piston |
| 47743A | Spring, Anti-squeal(FOR FRONT DISC BRAKE) |
| 47750 | Cylinder Assy, Disc Brake, LH |
| 47769 | Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE) |
| 47775B | Boot, Bush Dust, NO.1 |
| 47775C | Boot, Bush Dust, NO.2 |
| 47779 | Bush, Cylinder Slide, NO.2(FOR FRONT DISC BRAKE) |
| 47781D | Nut(FOR DUST COVER SETTING) |
| 47781L | Bolt(FOR STEERING KNUCKLE ARM TO DUST COVER RH) |
| 47781M | Bolt(FOR STEERING KNUCKLE ARM TO DUST COVER LH) |
| 47781N | Bolt(FOR STEERING KNUCKLE TO DUST COVER RH) |
| 47781P | Bolt(FOR STEERING KNUCKLE TO DUST COVER LH) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
