Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

96 part groups · 39 illustrations

Illustrations

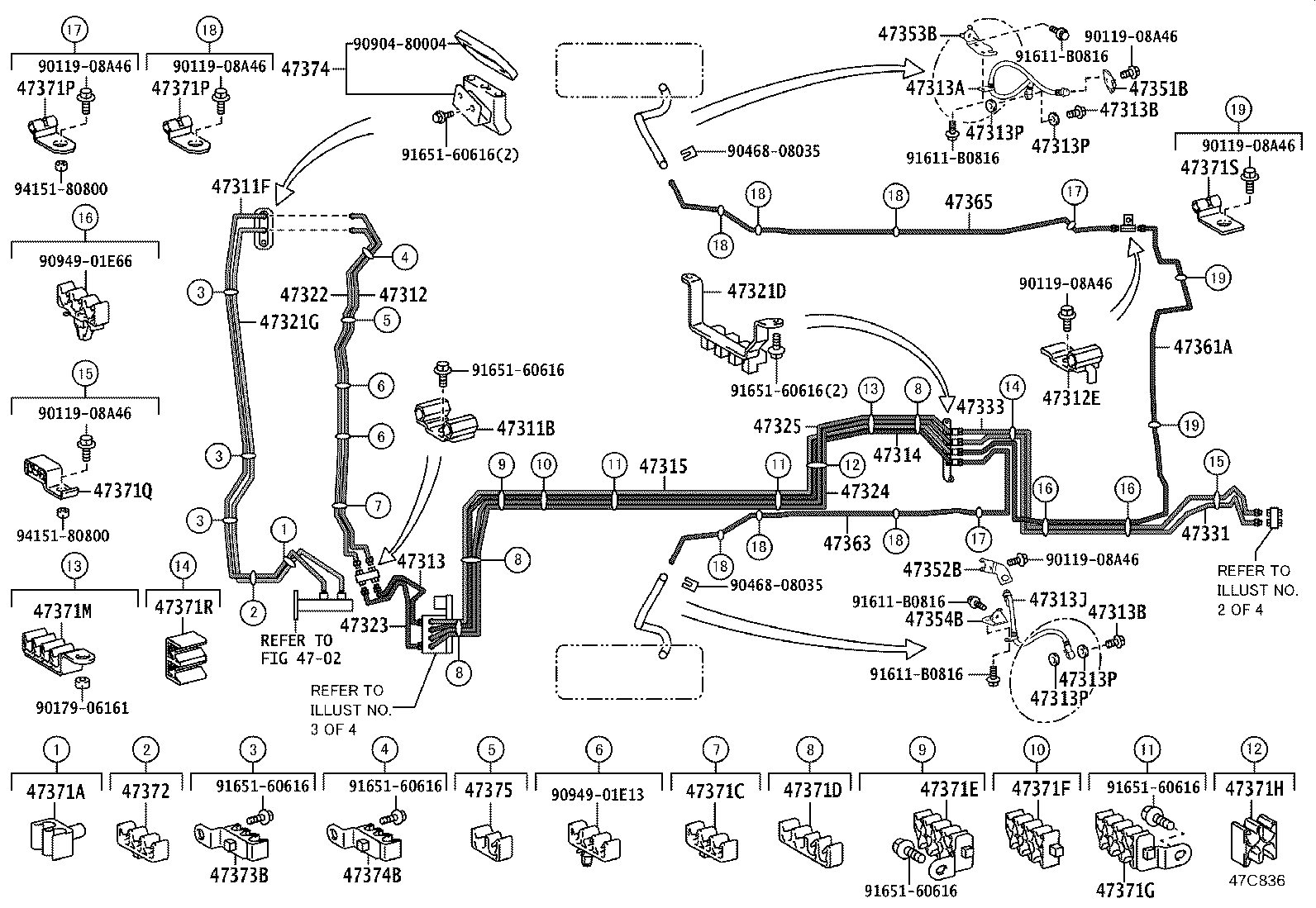

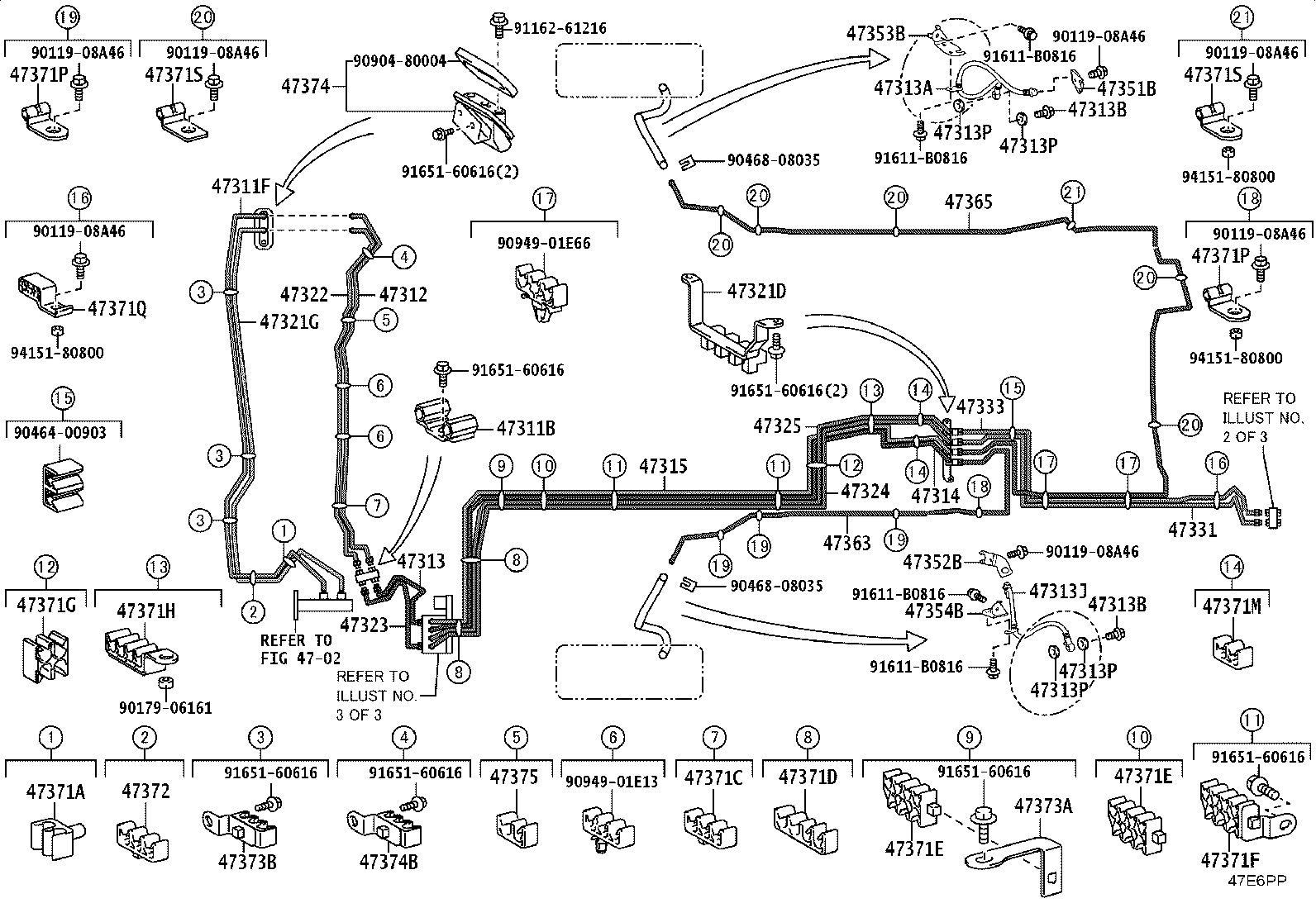

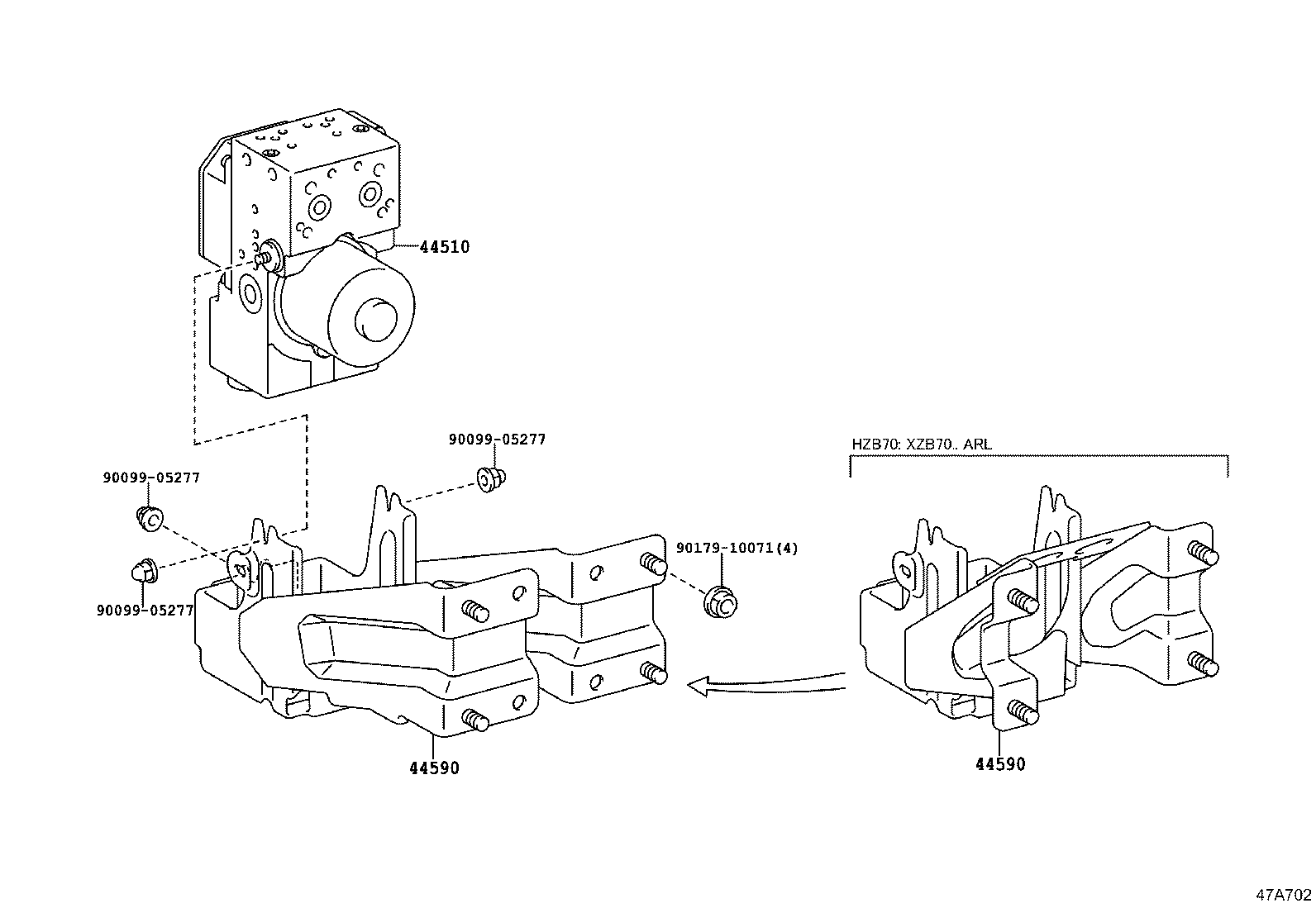

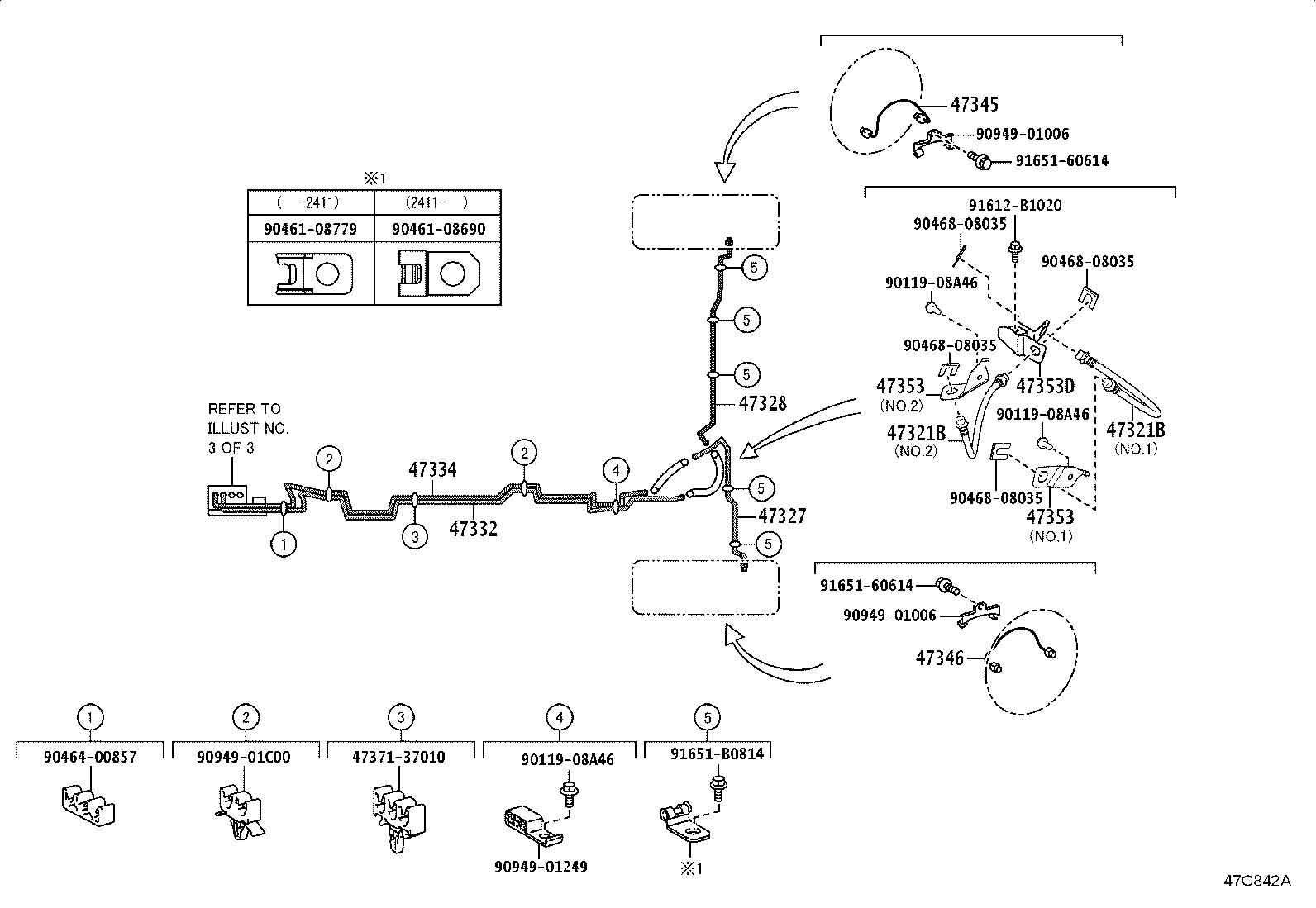

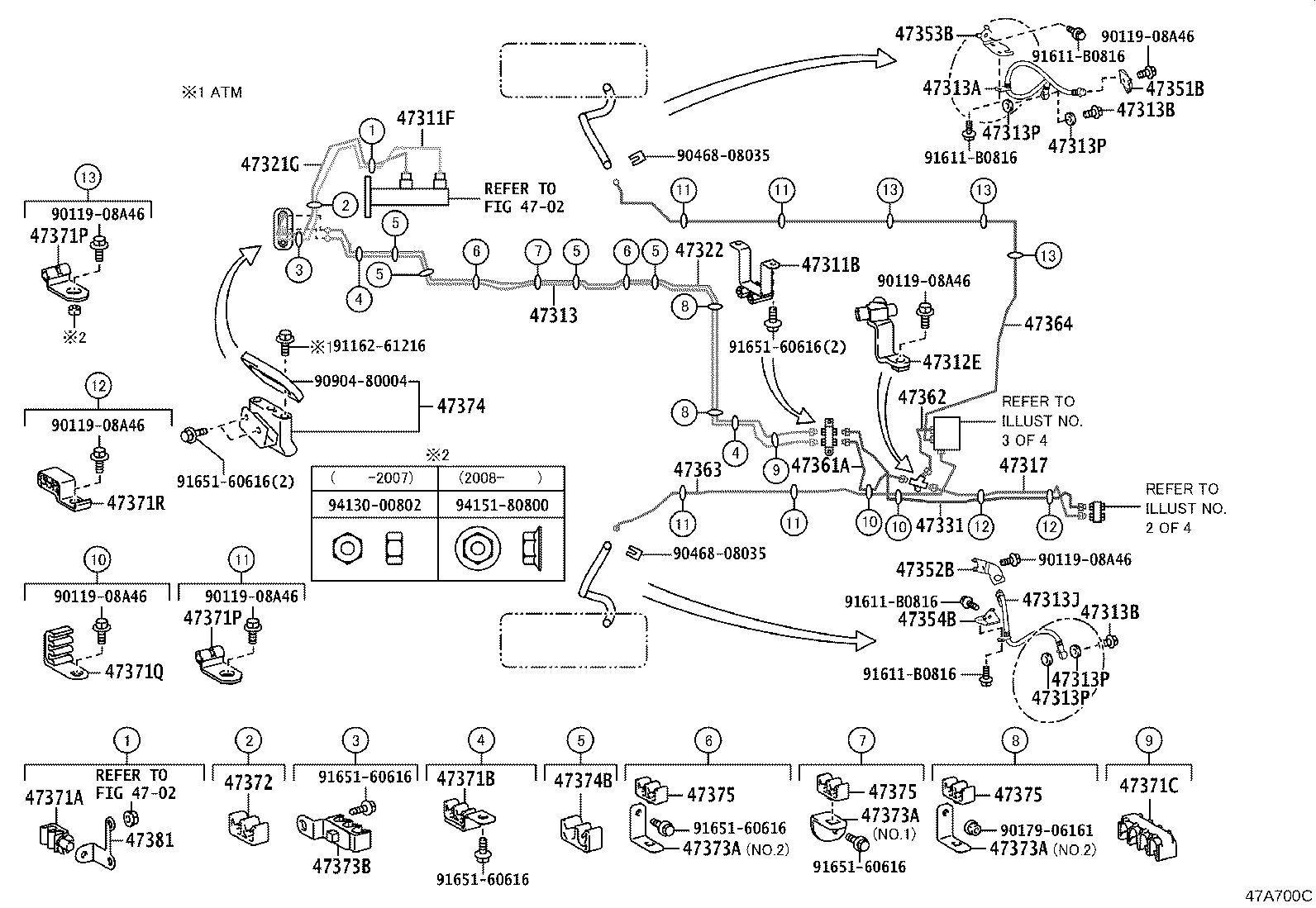

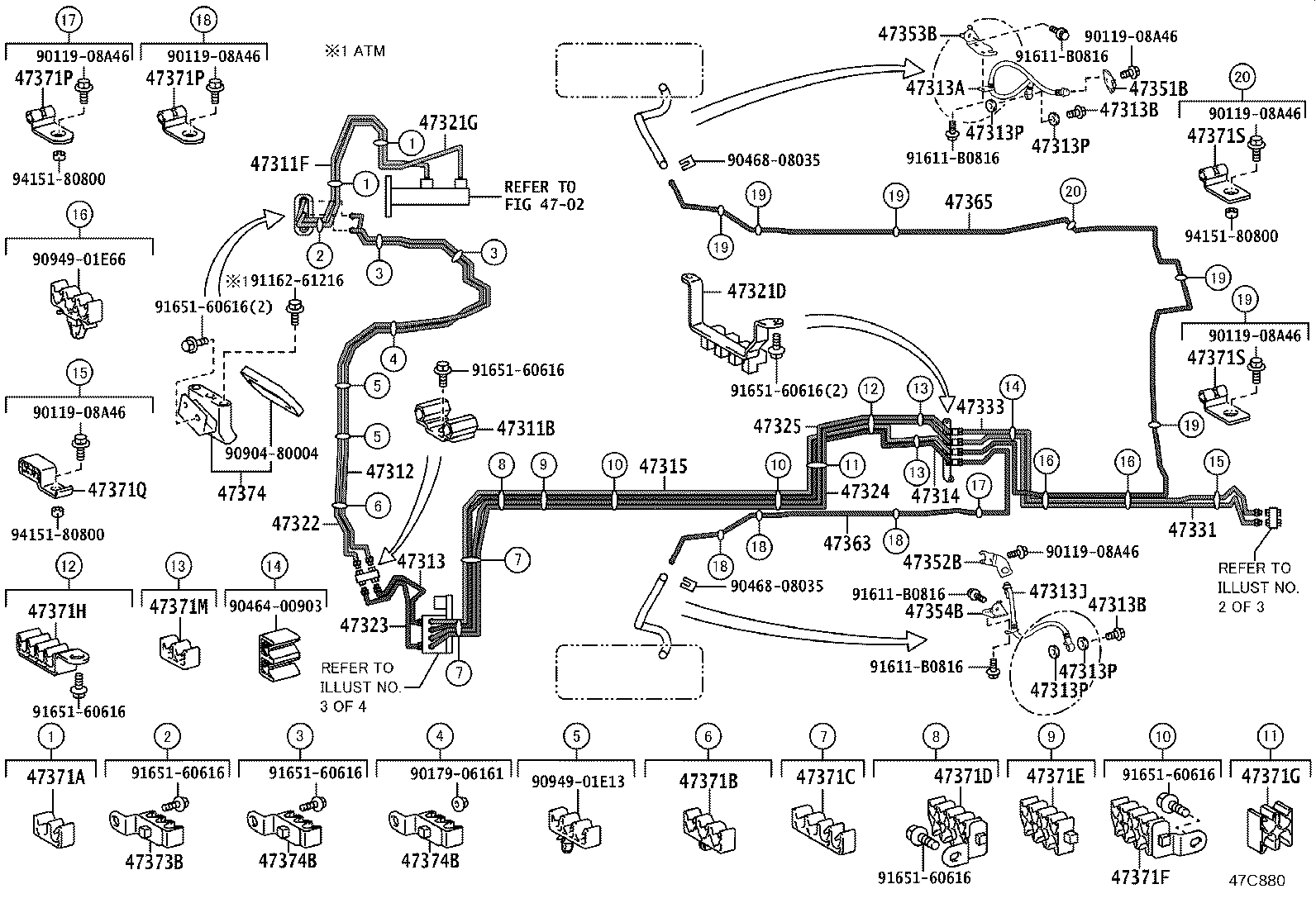

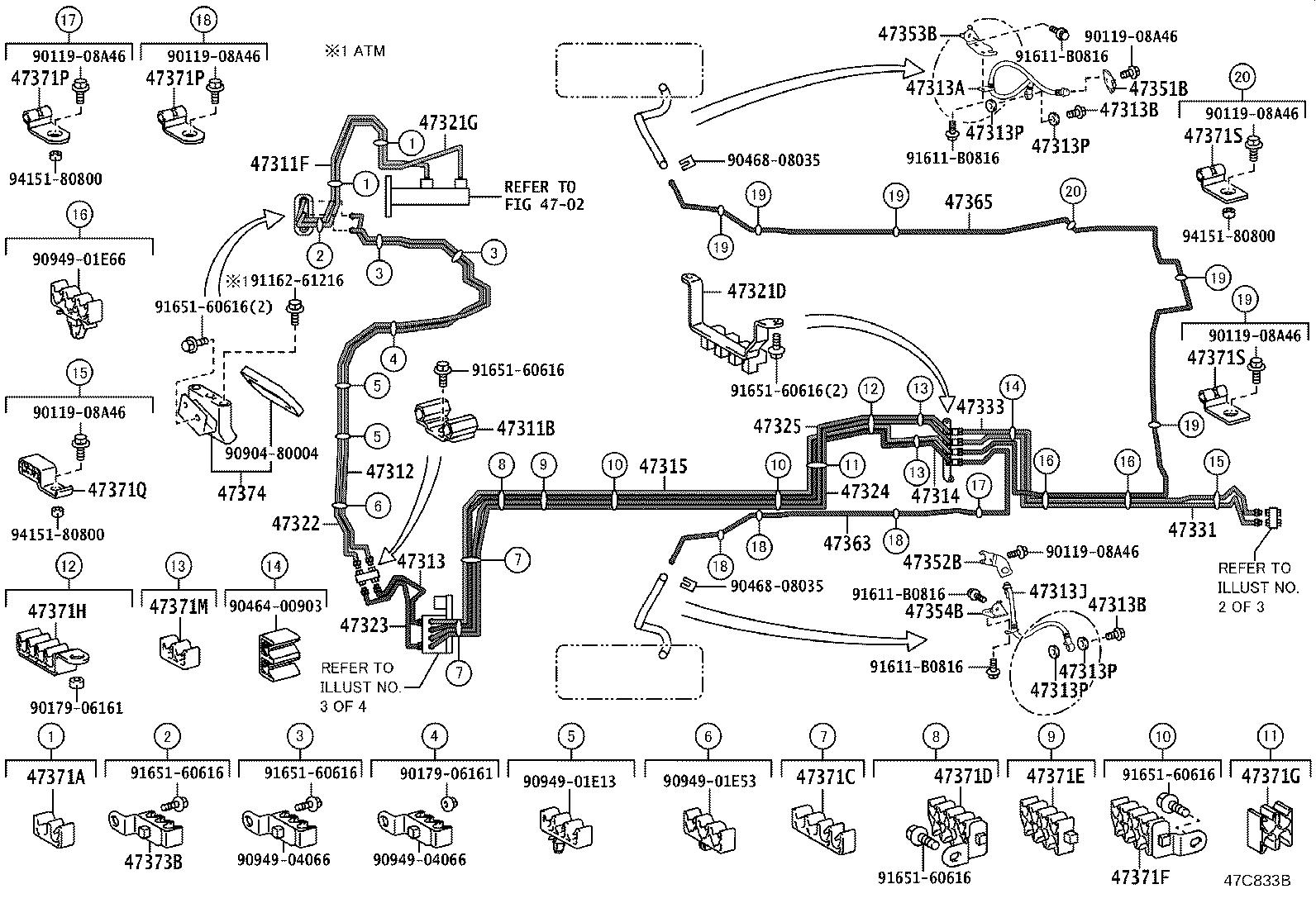

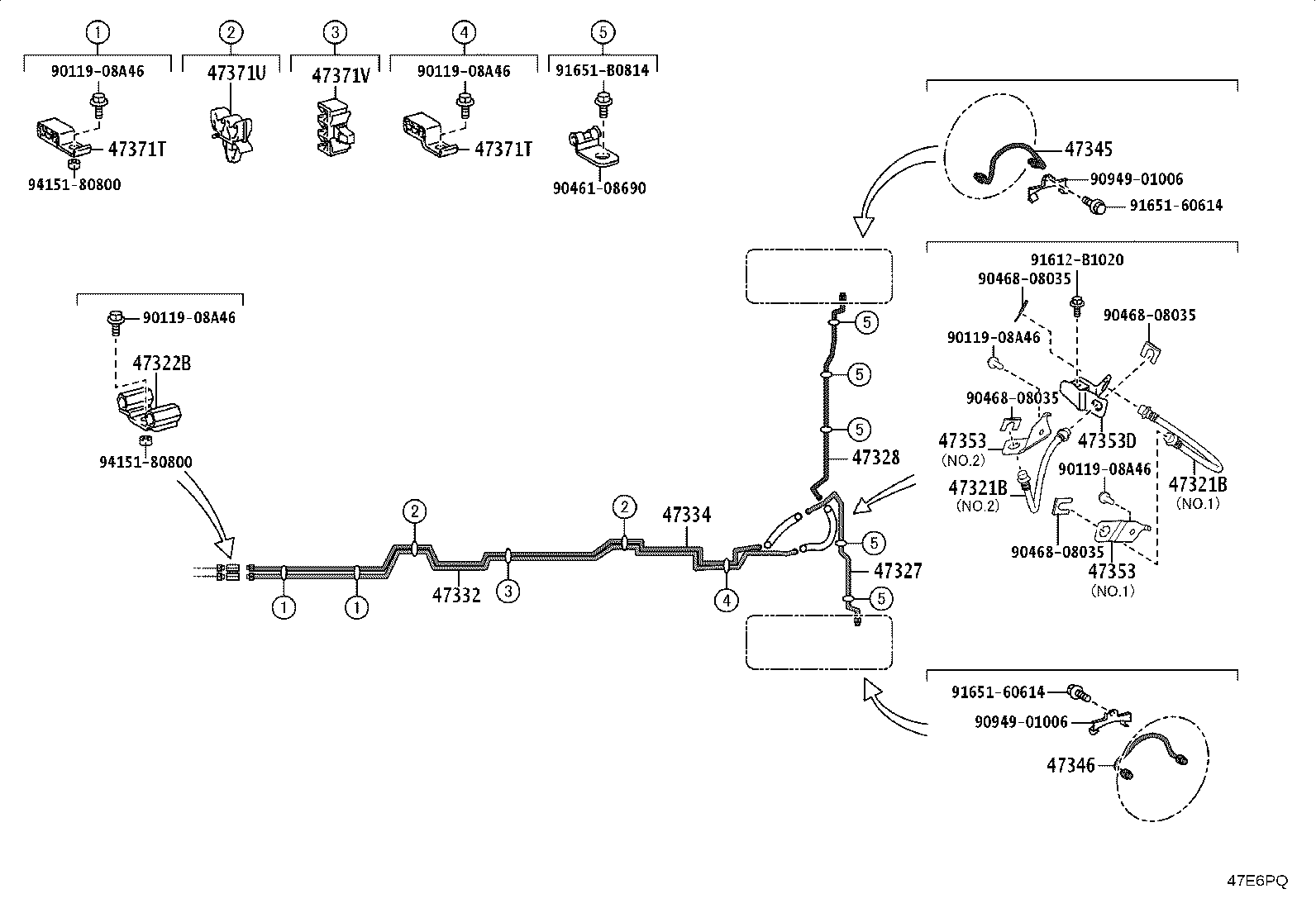

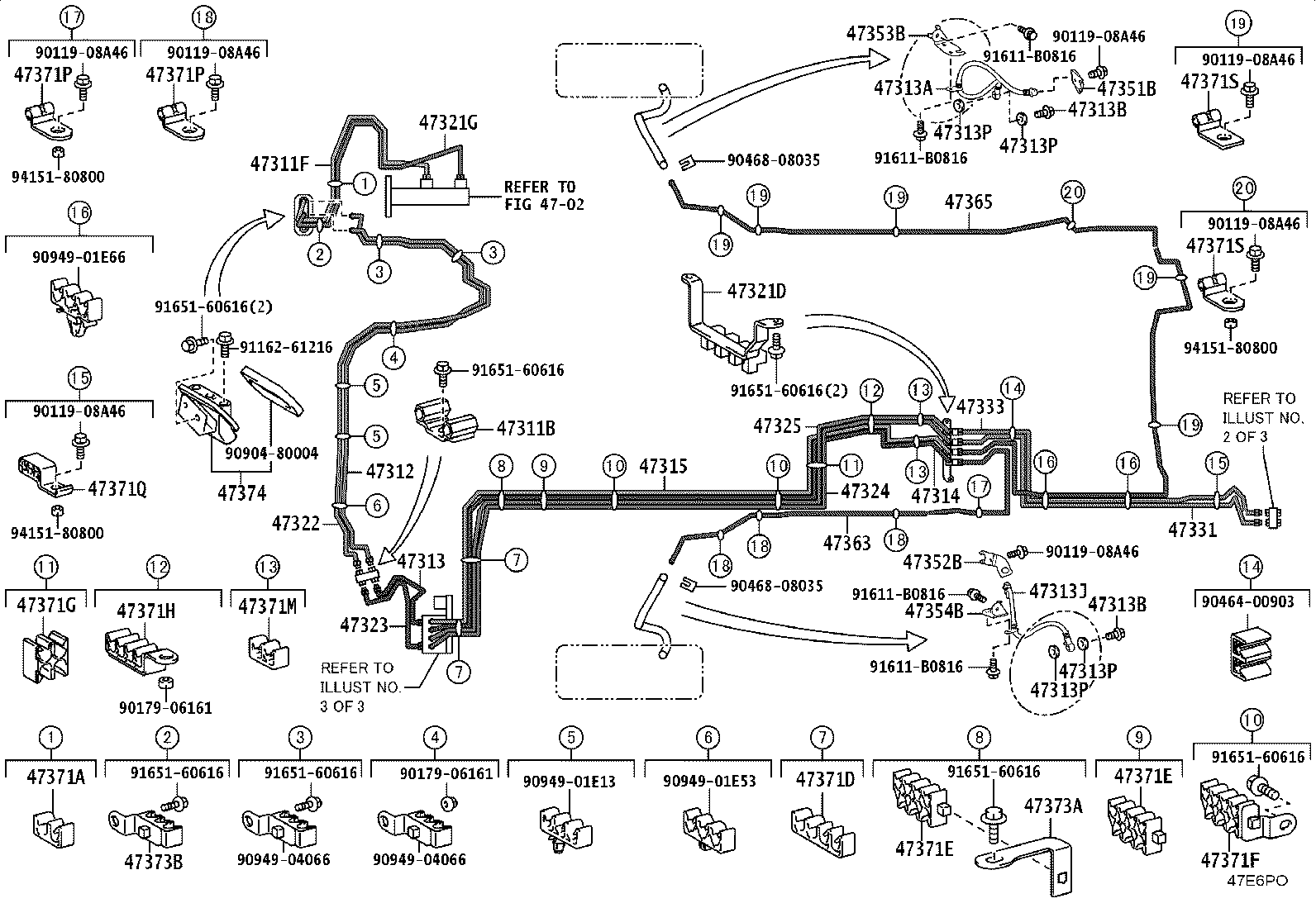

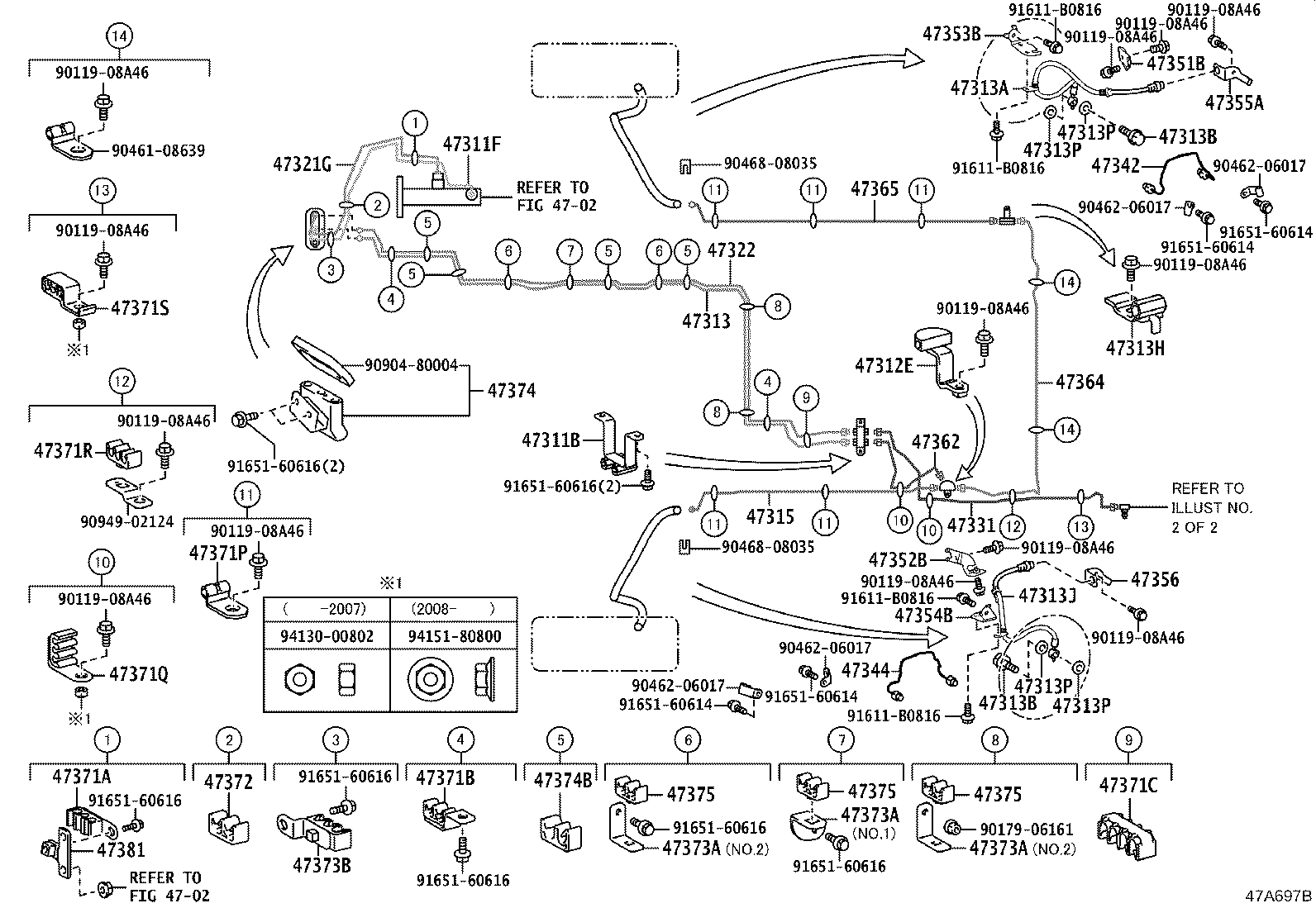

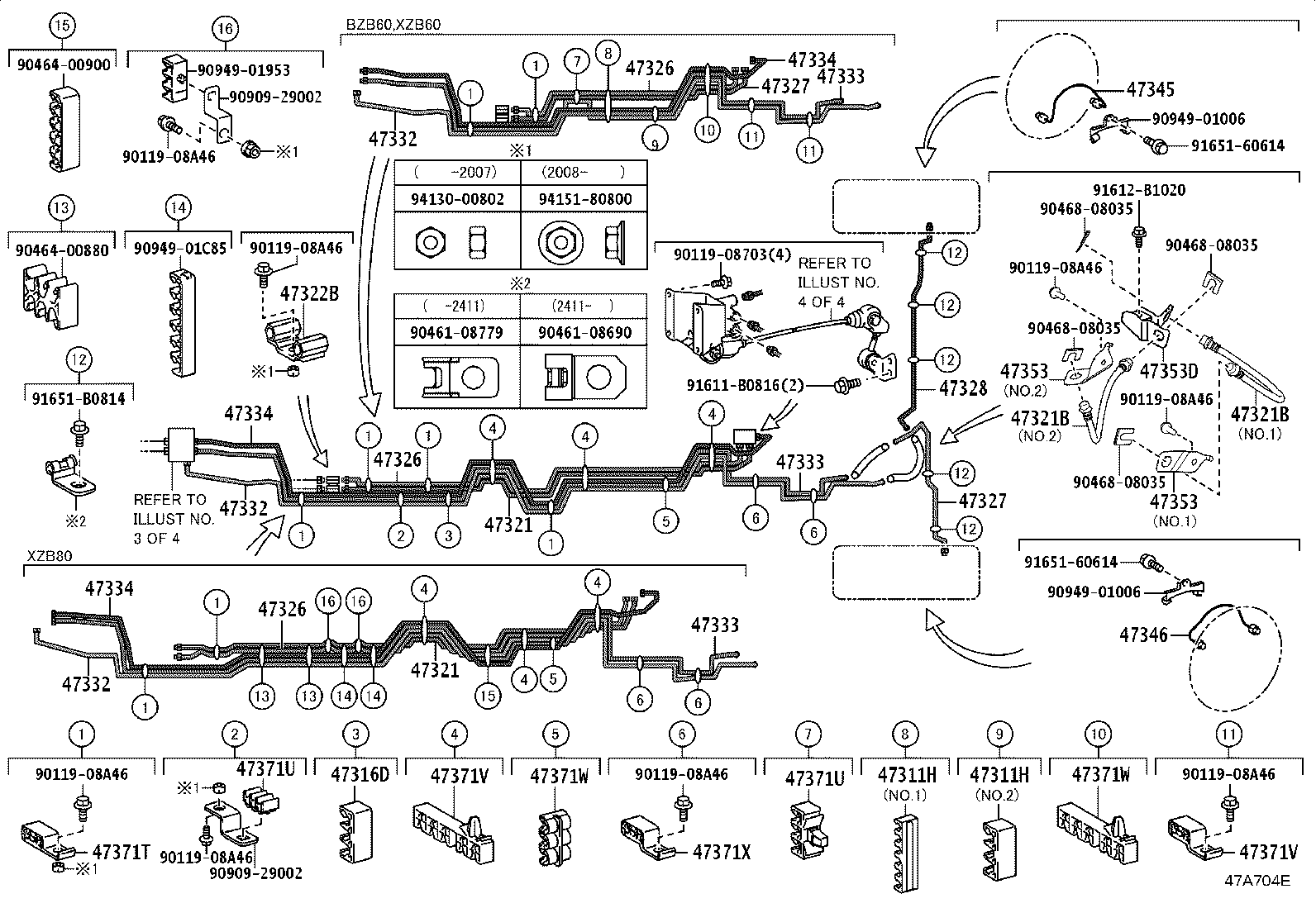

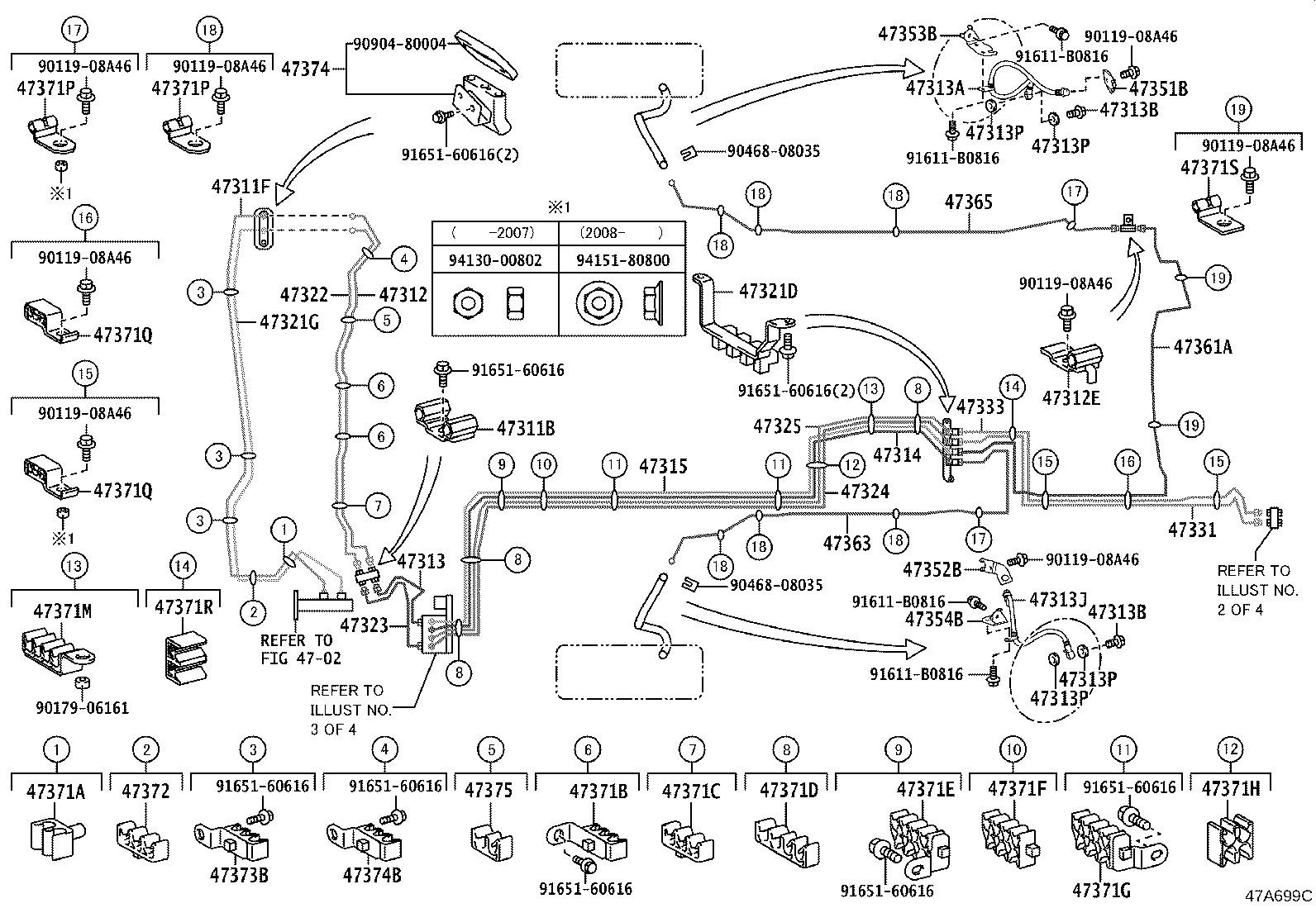

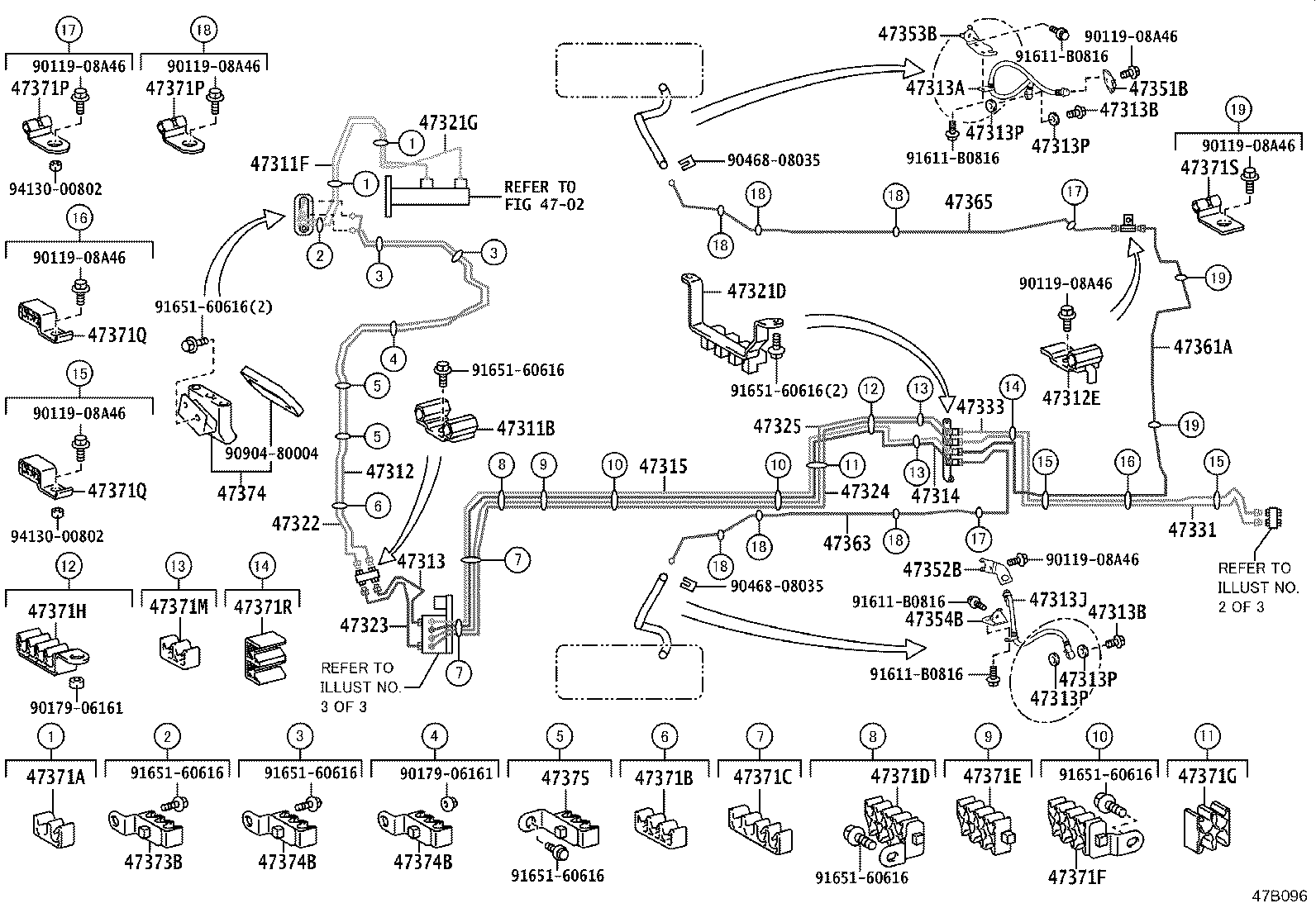

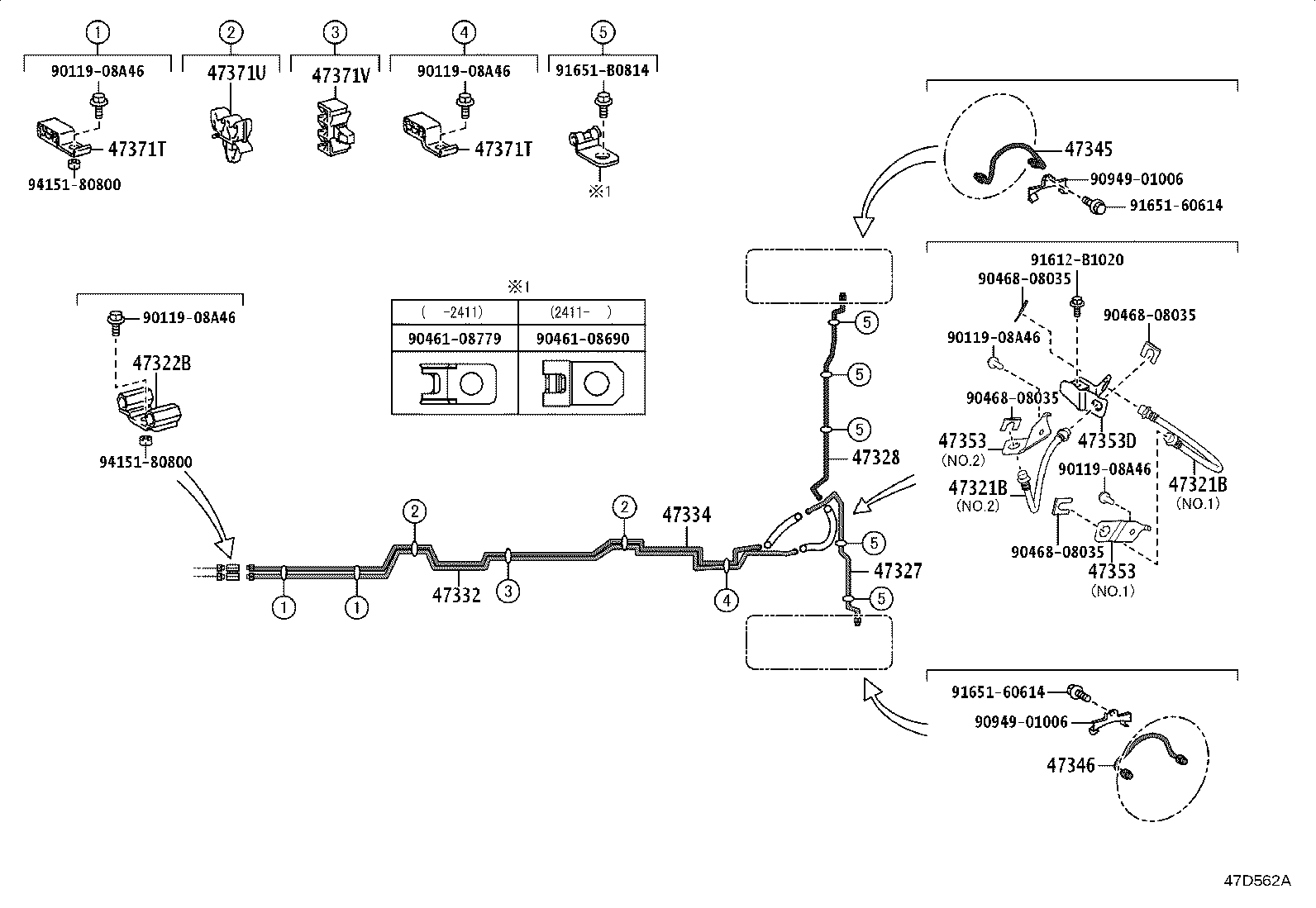

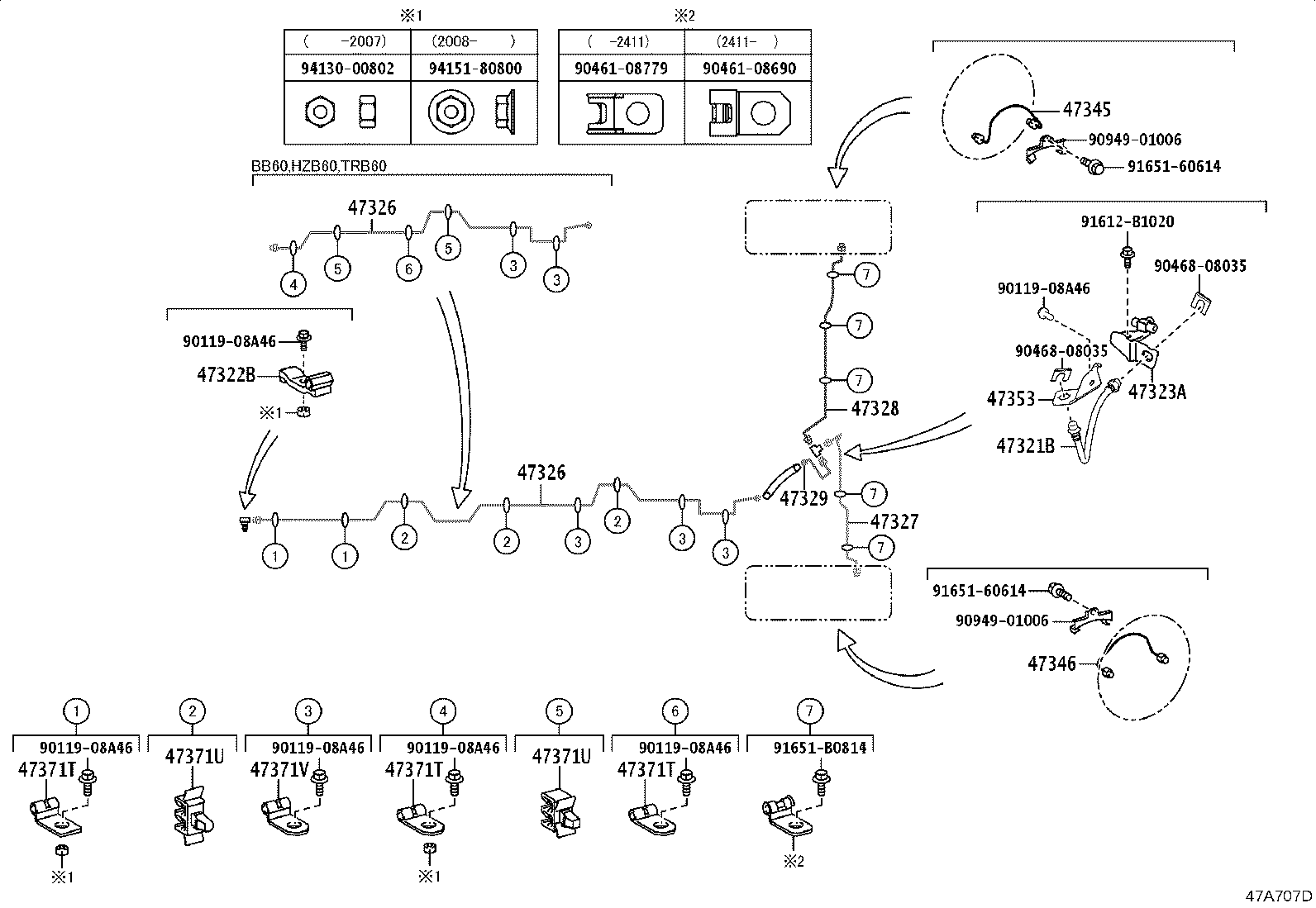

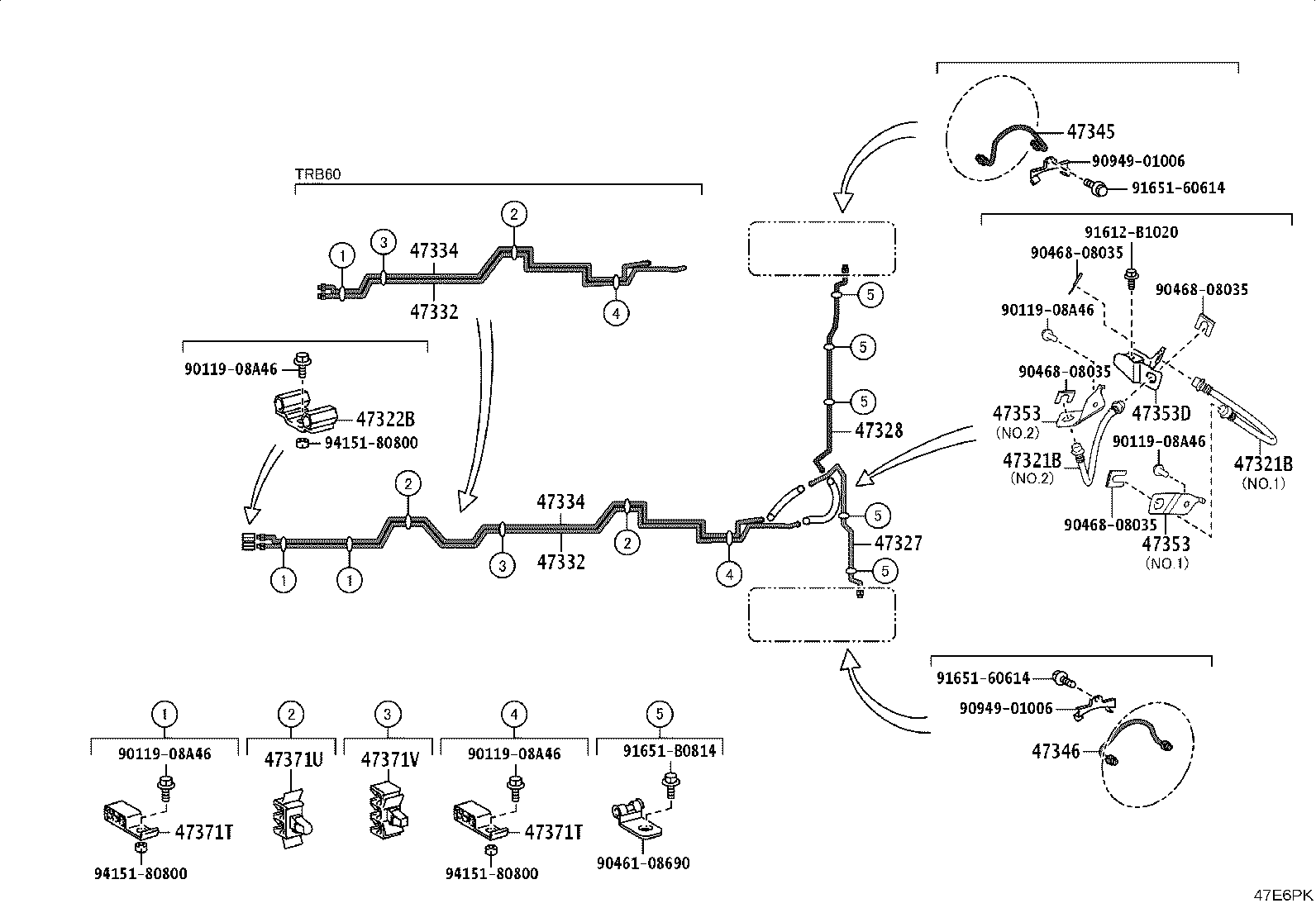

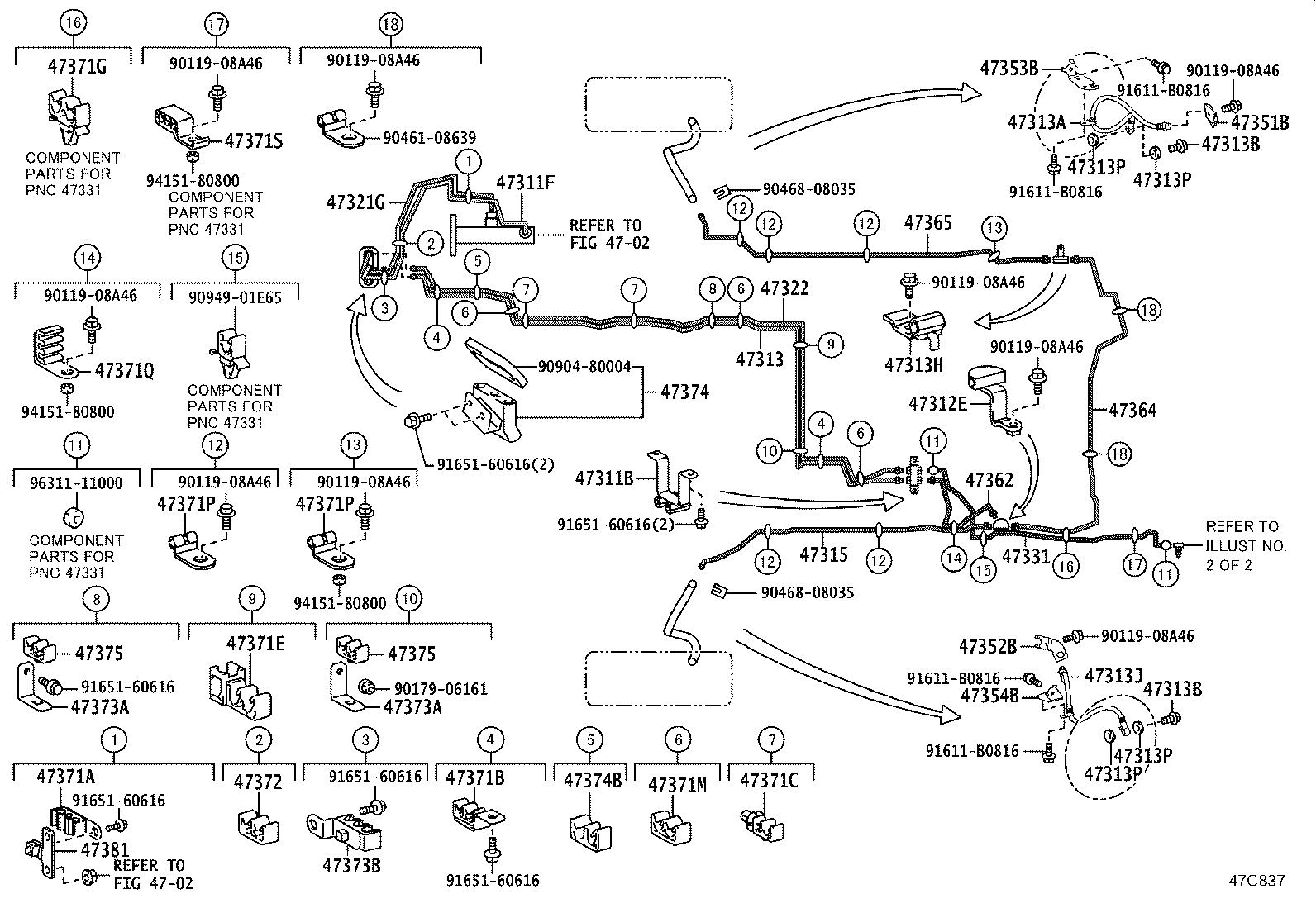

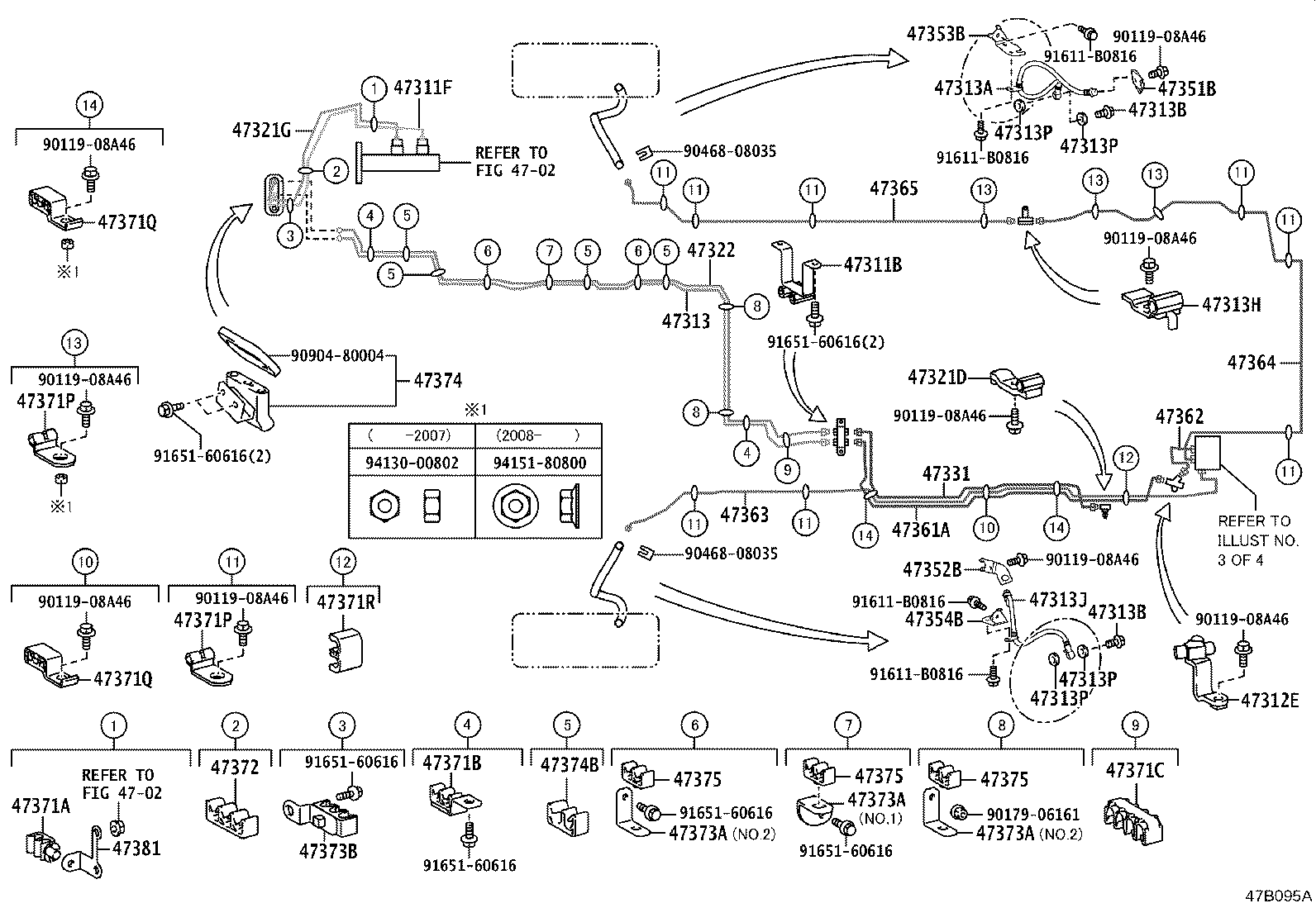

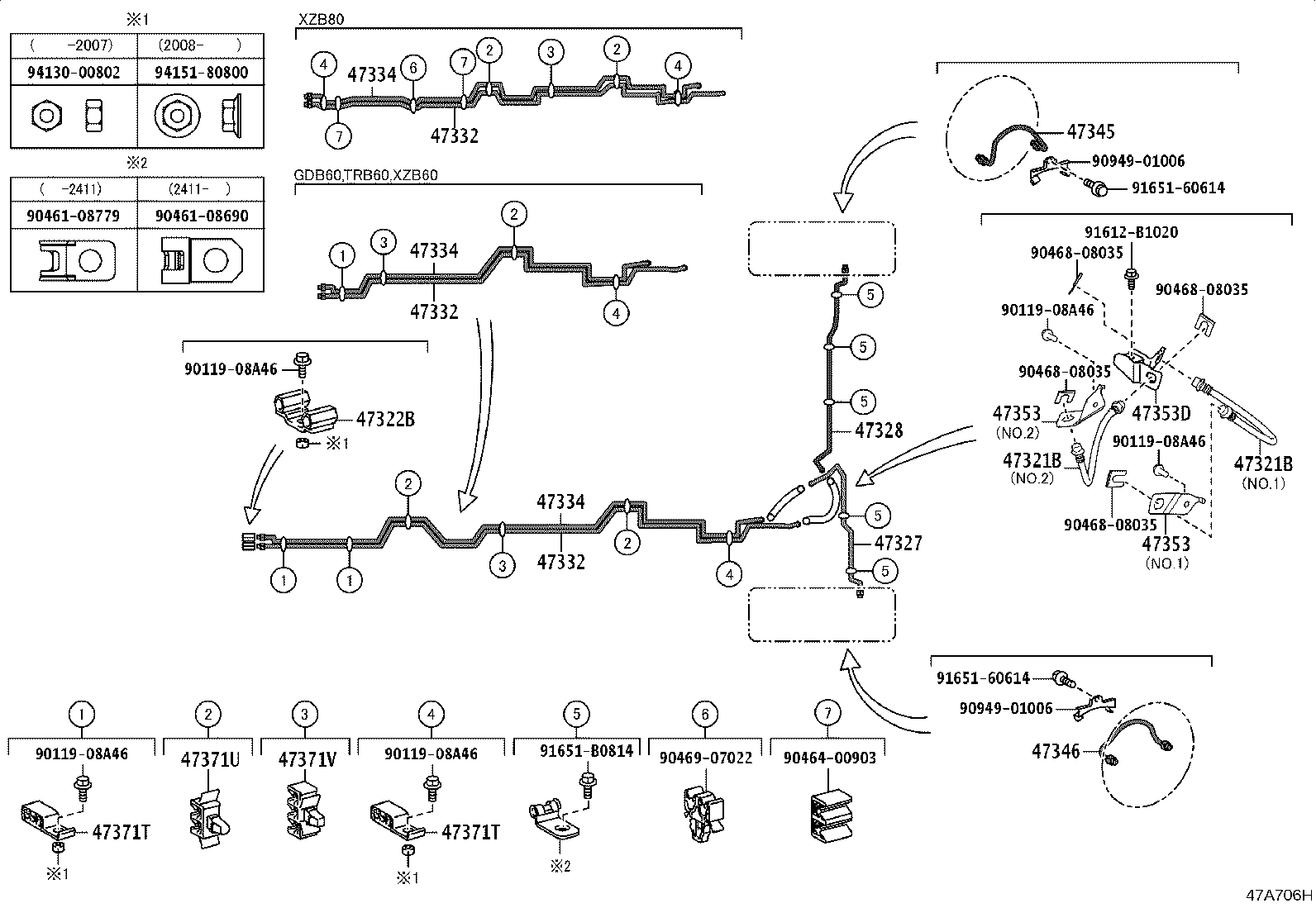

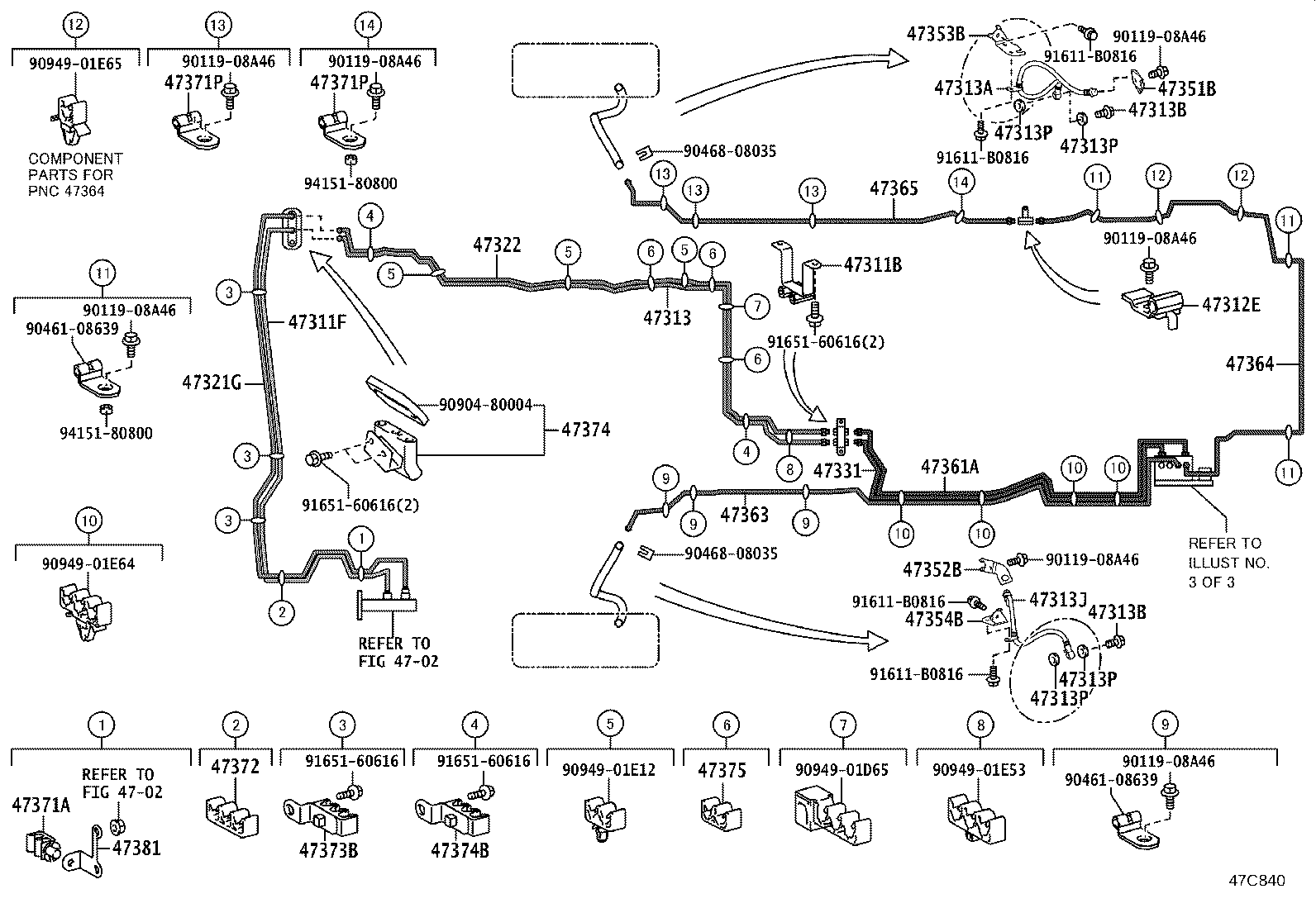

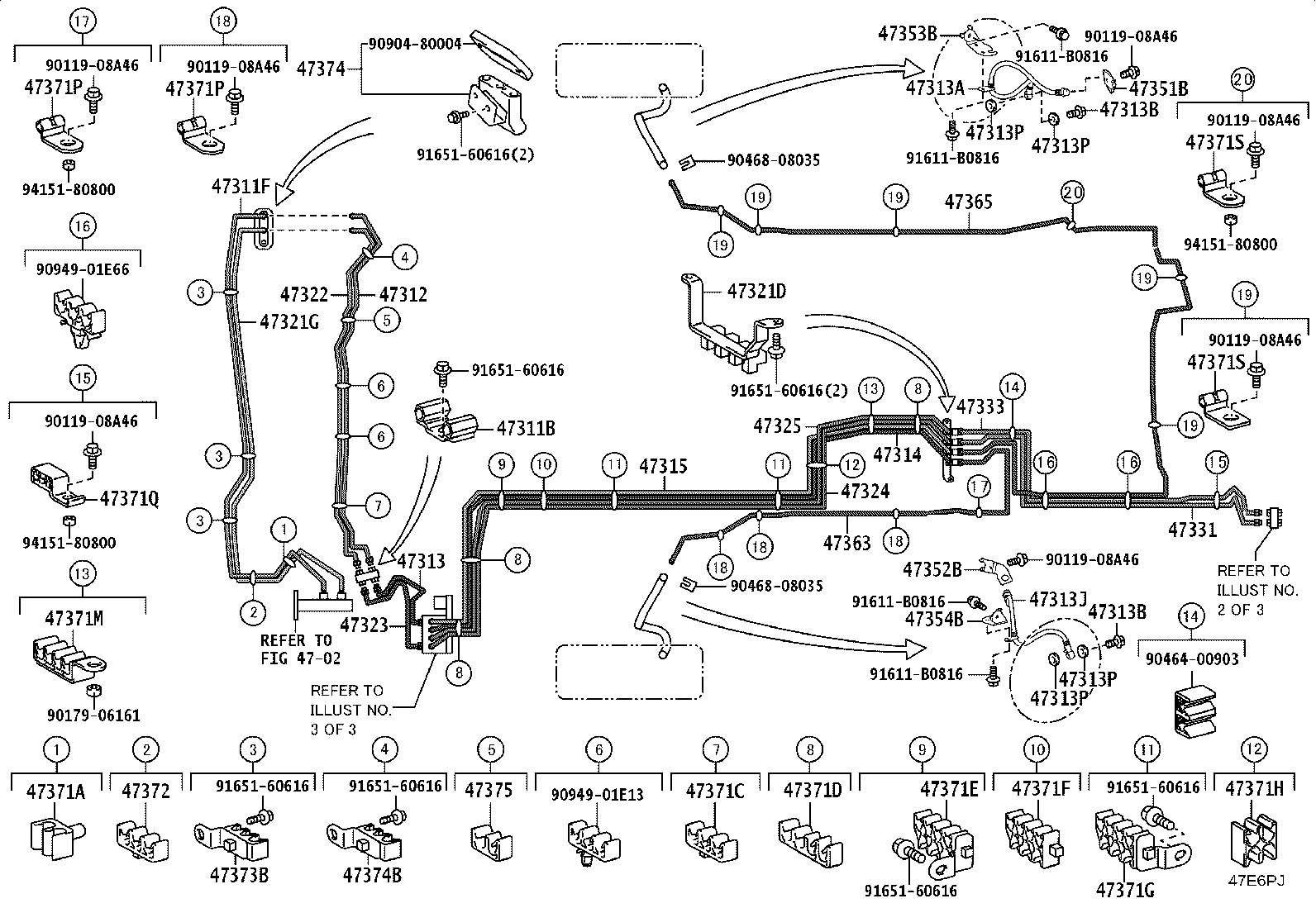

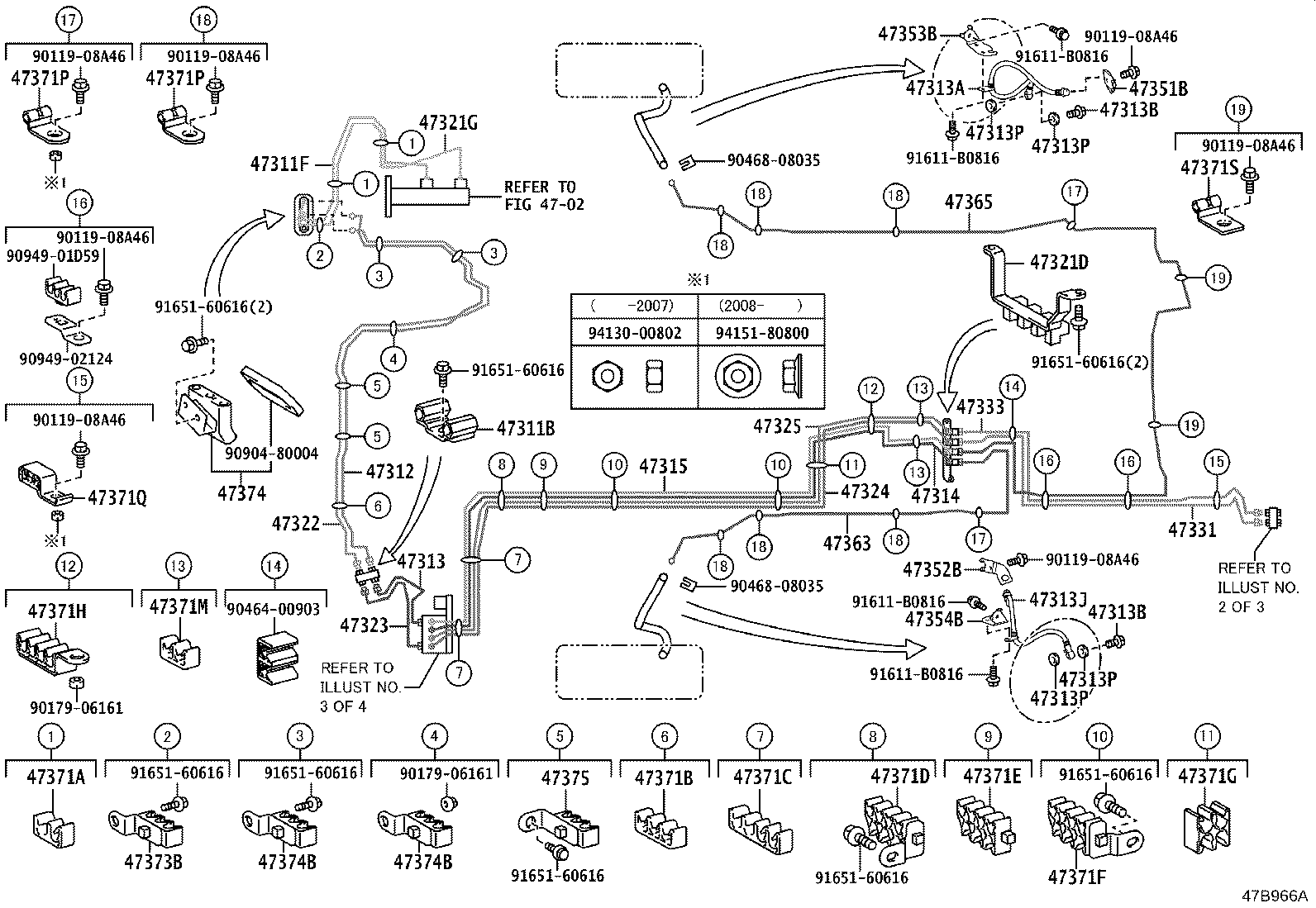

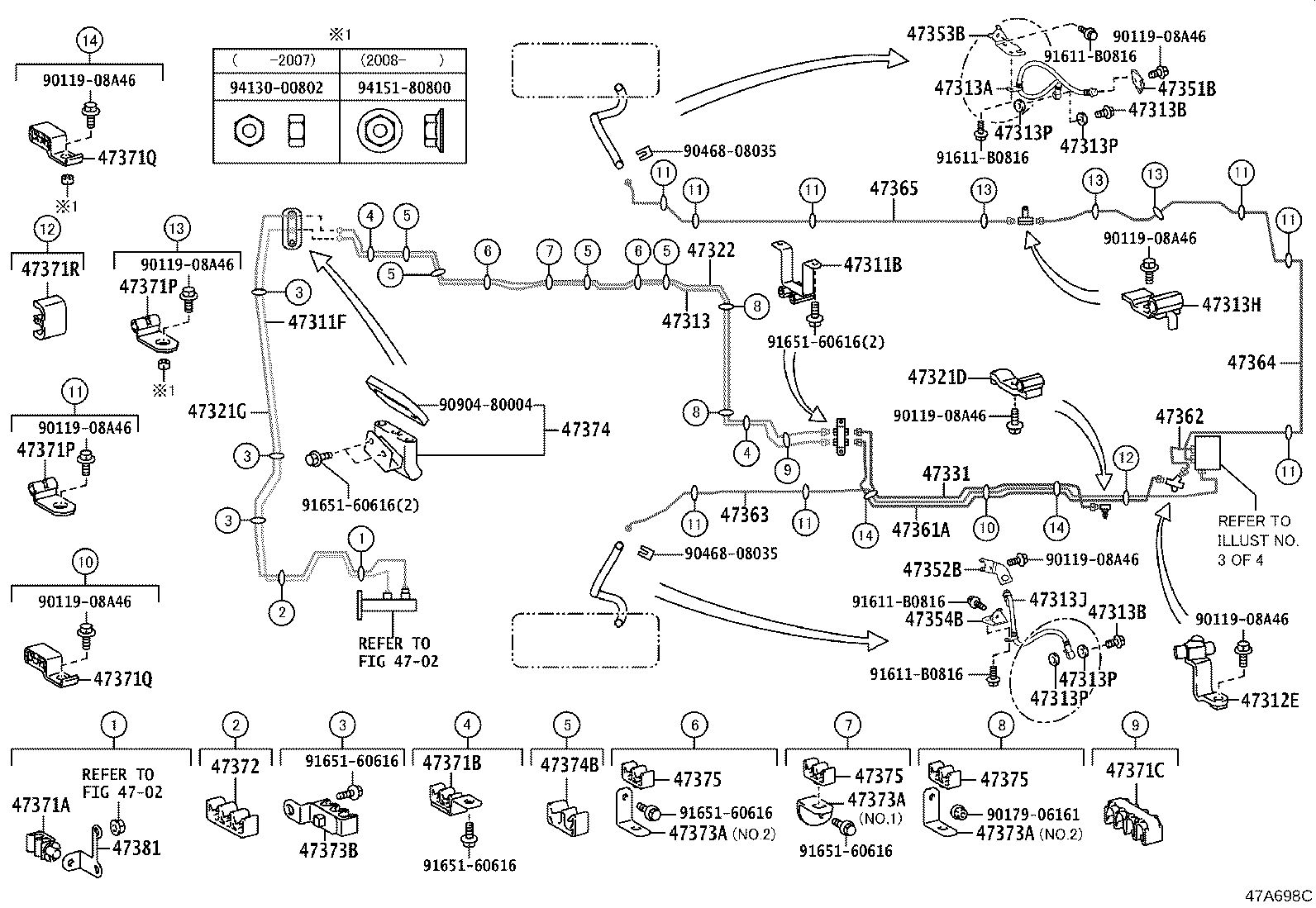

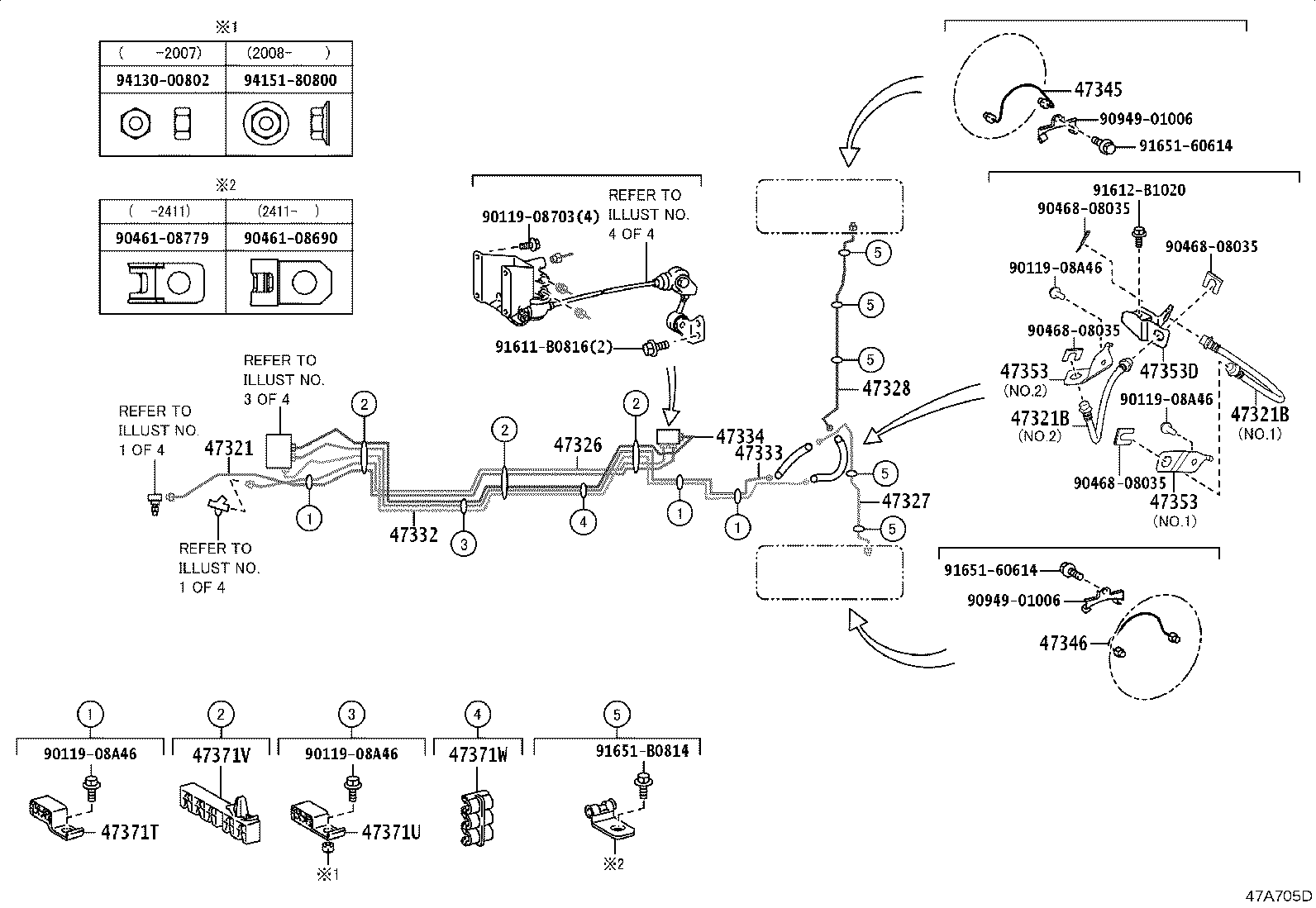

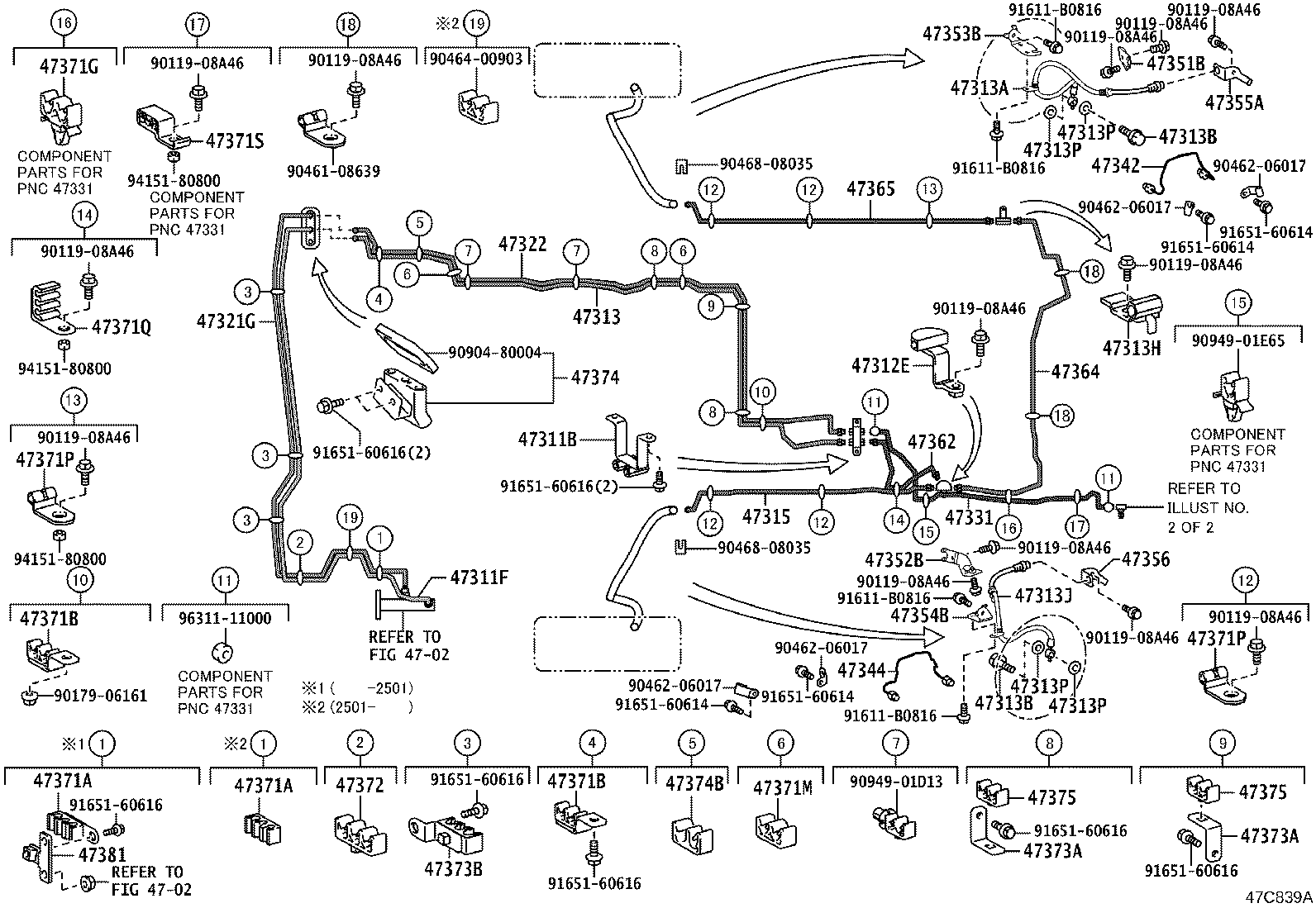

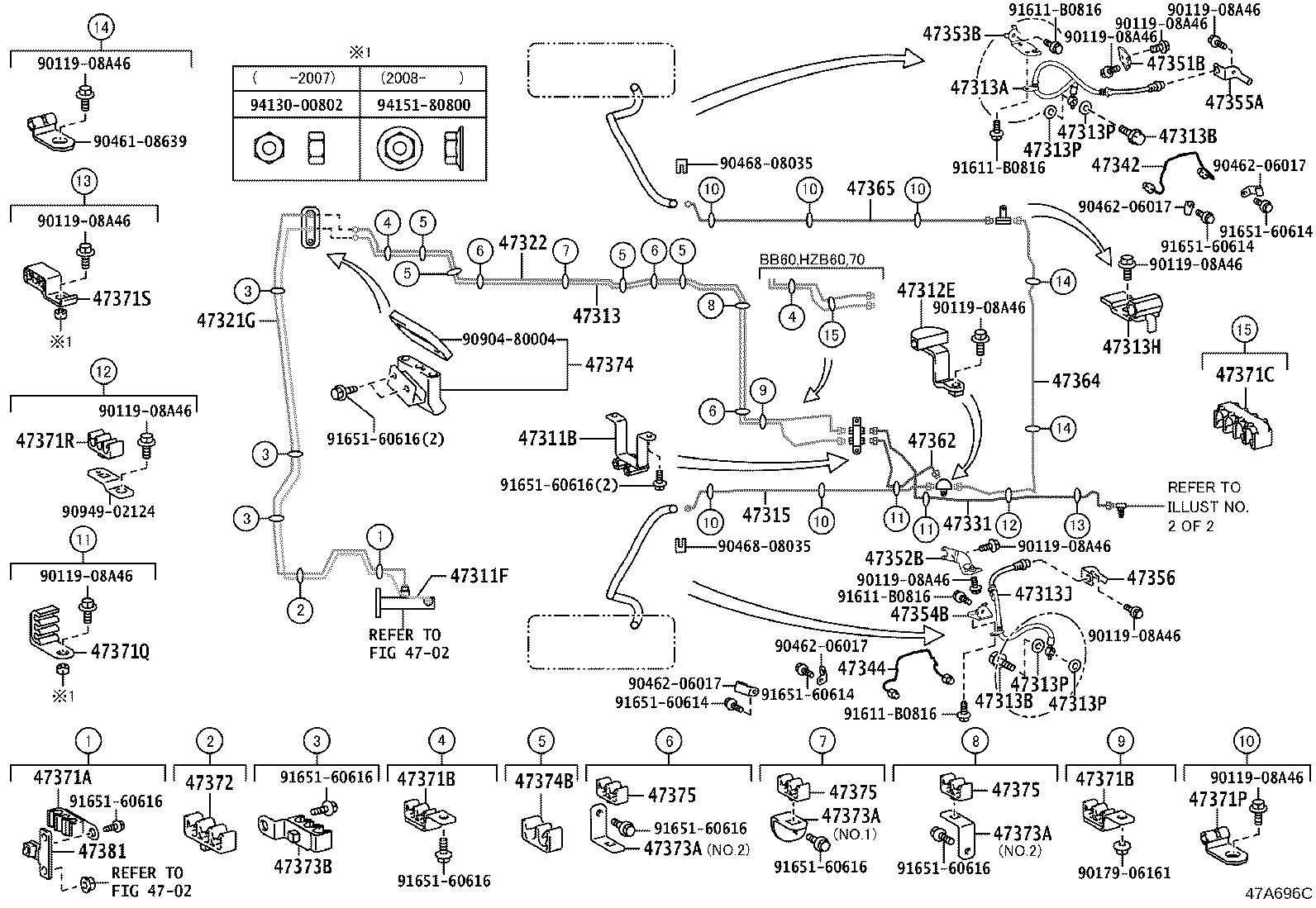

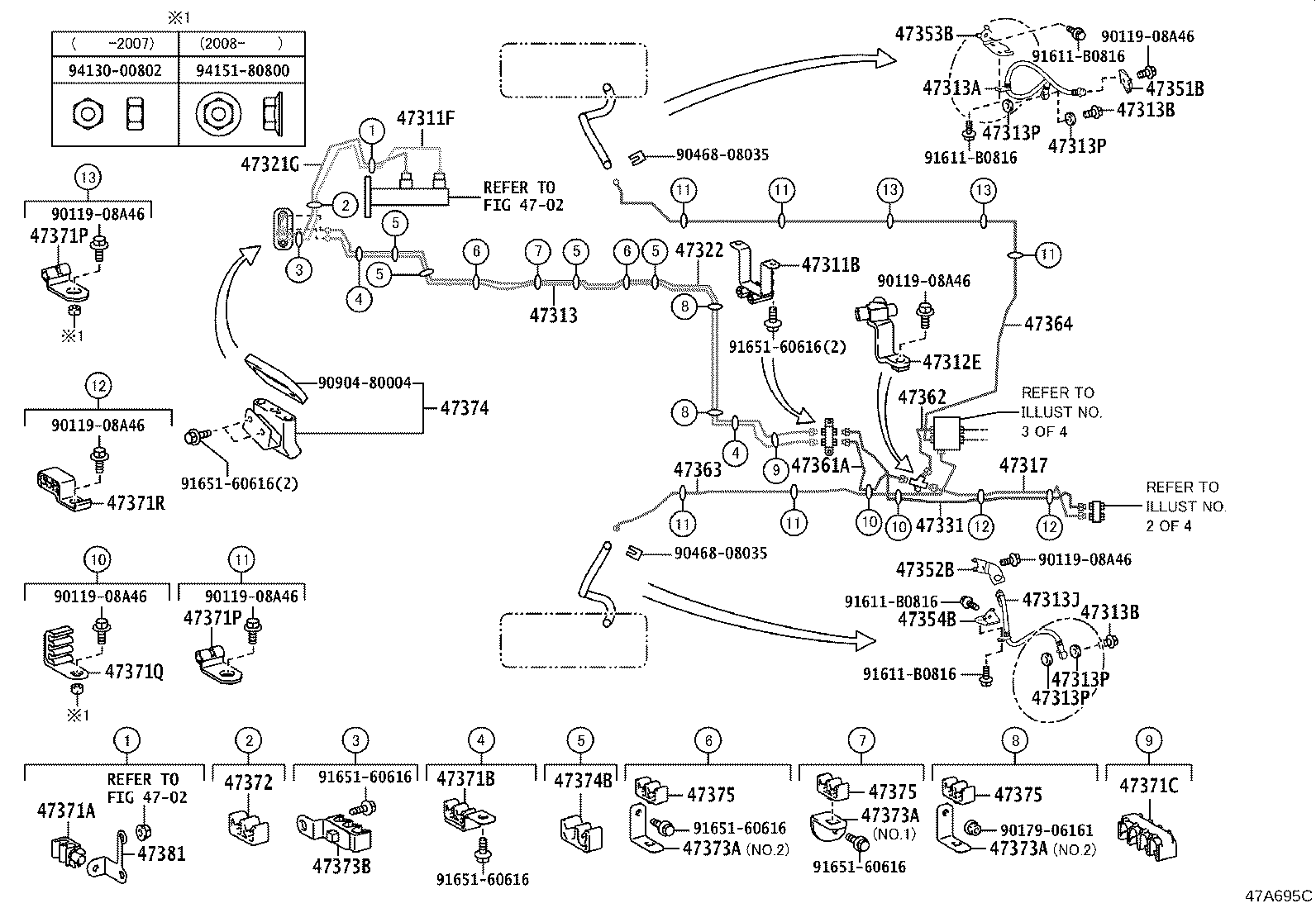

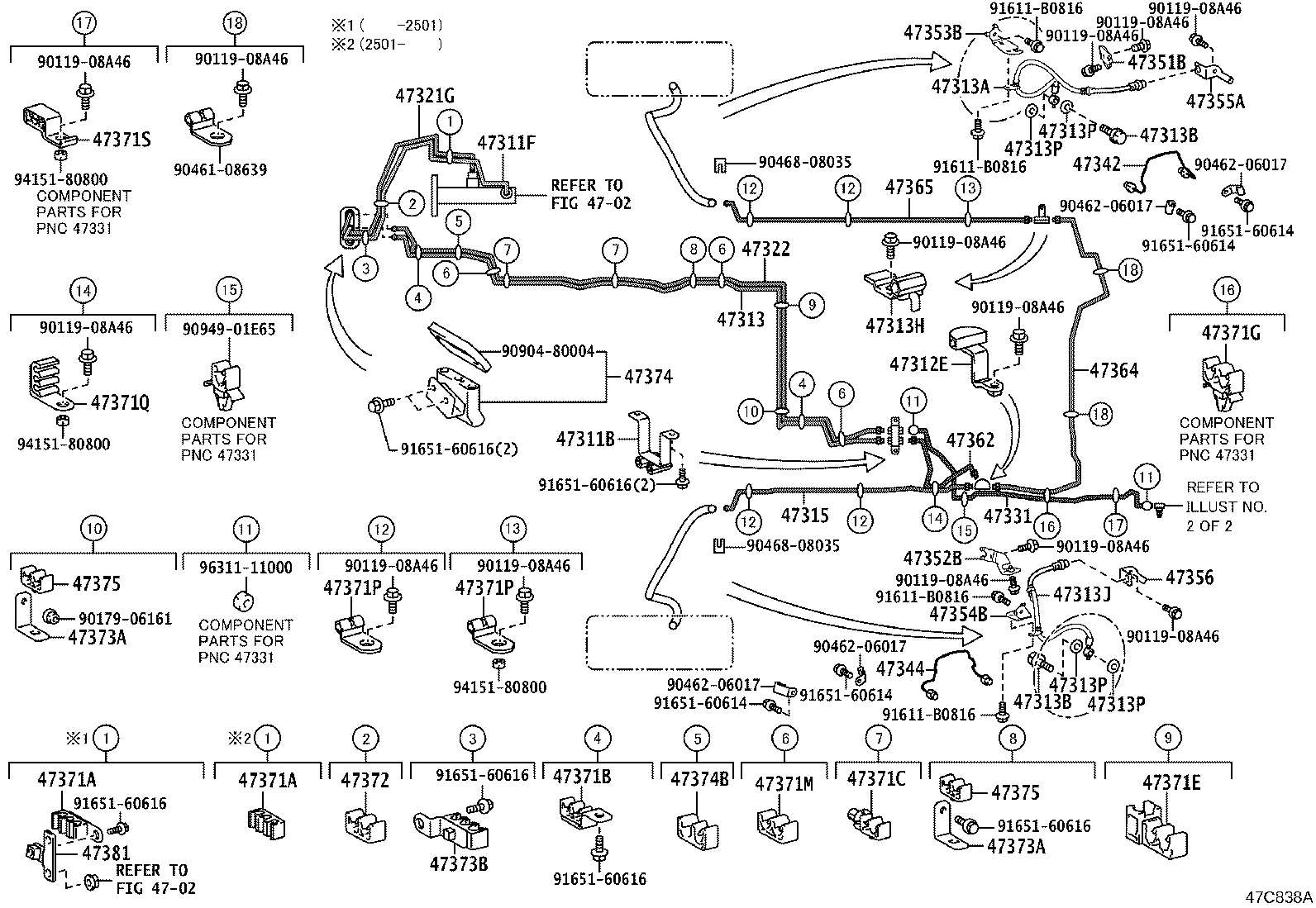

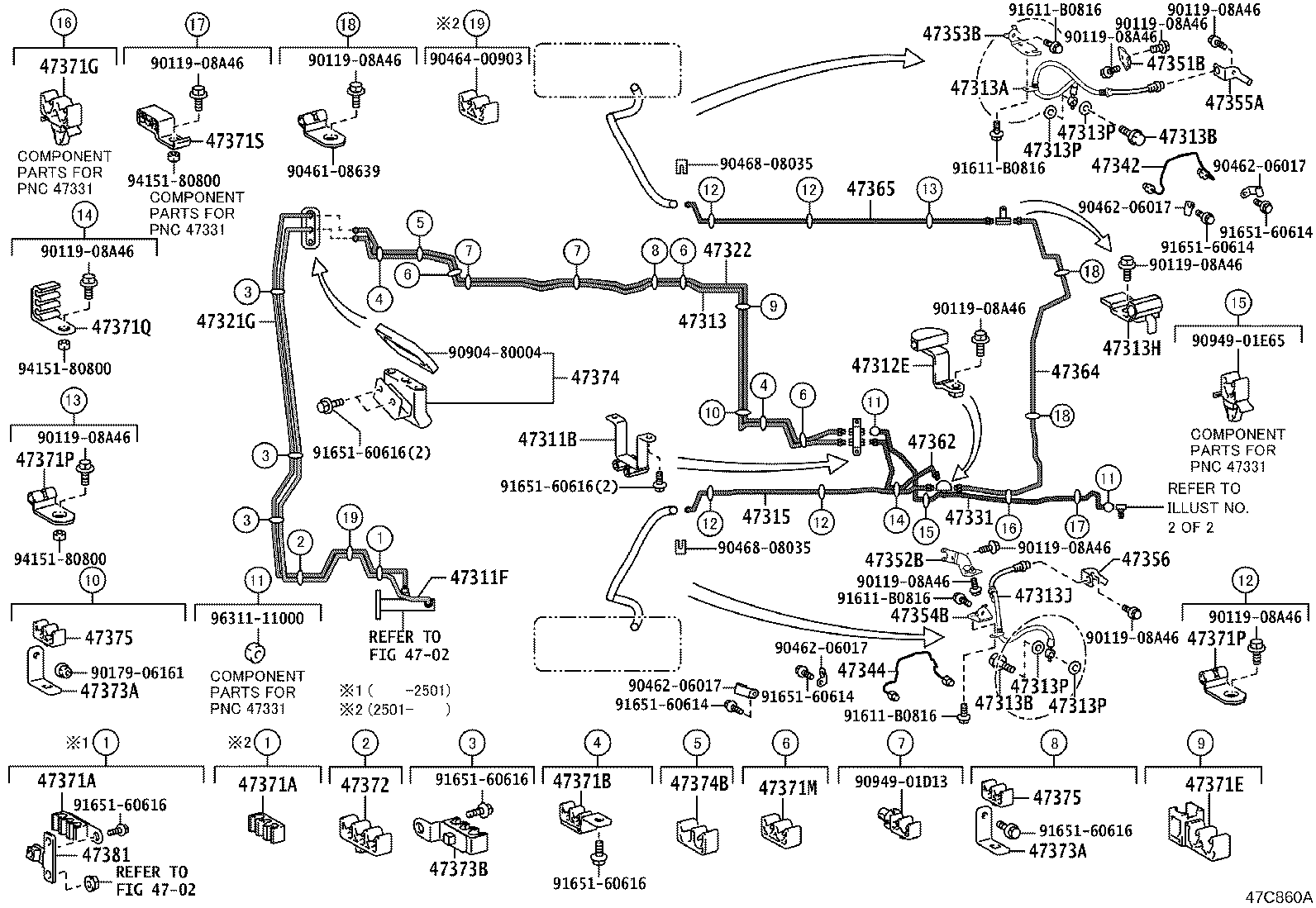

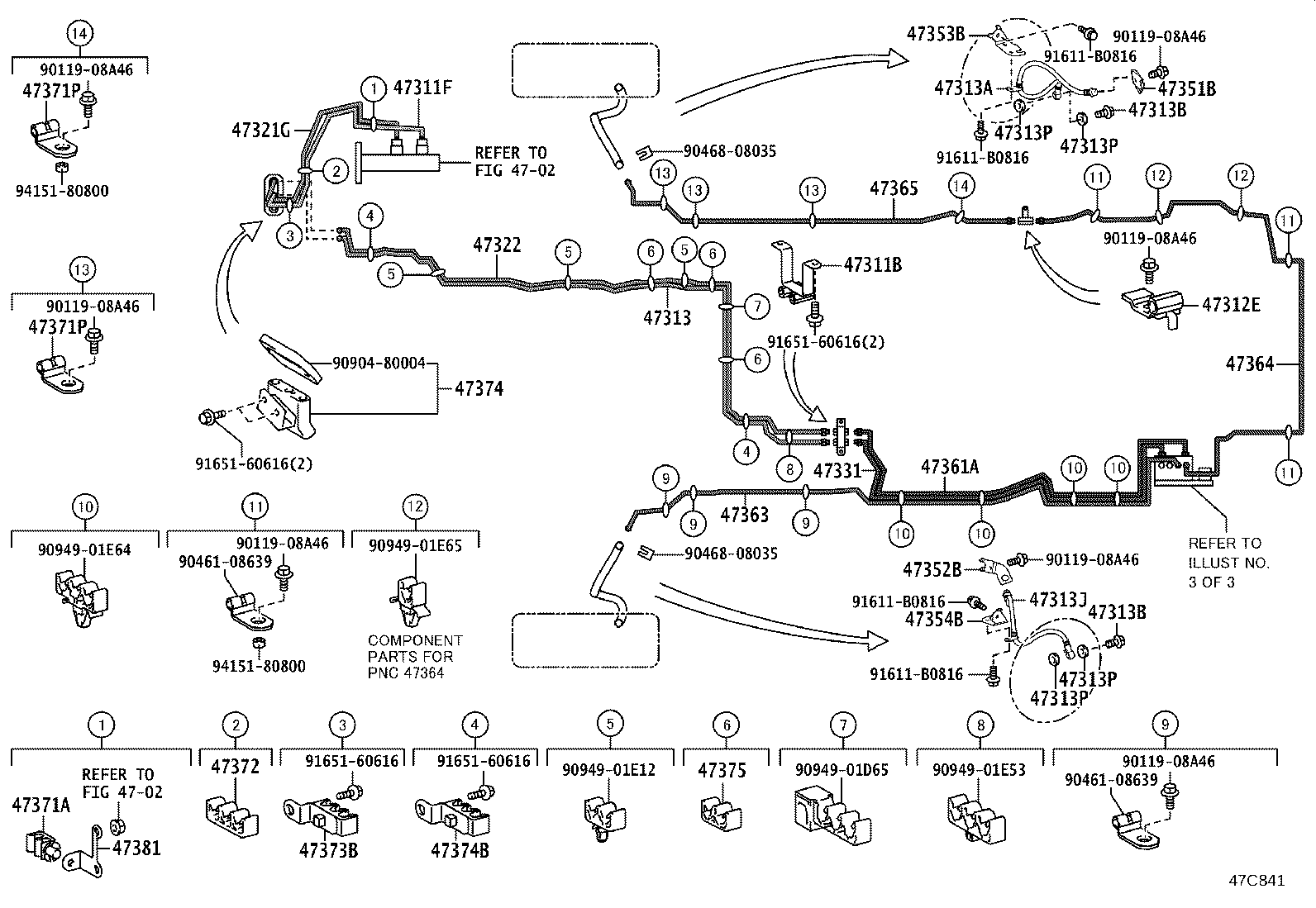

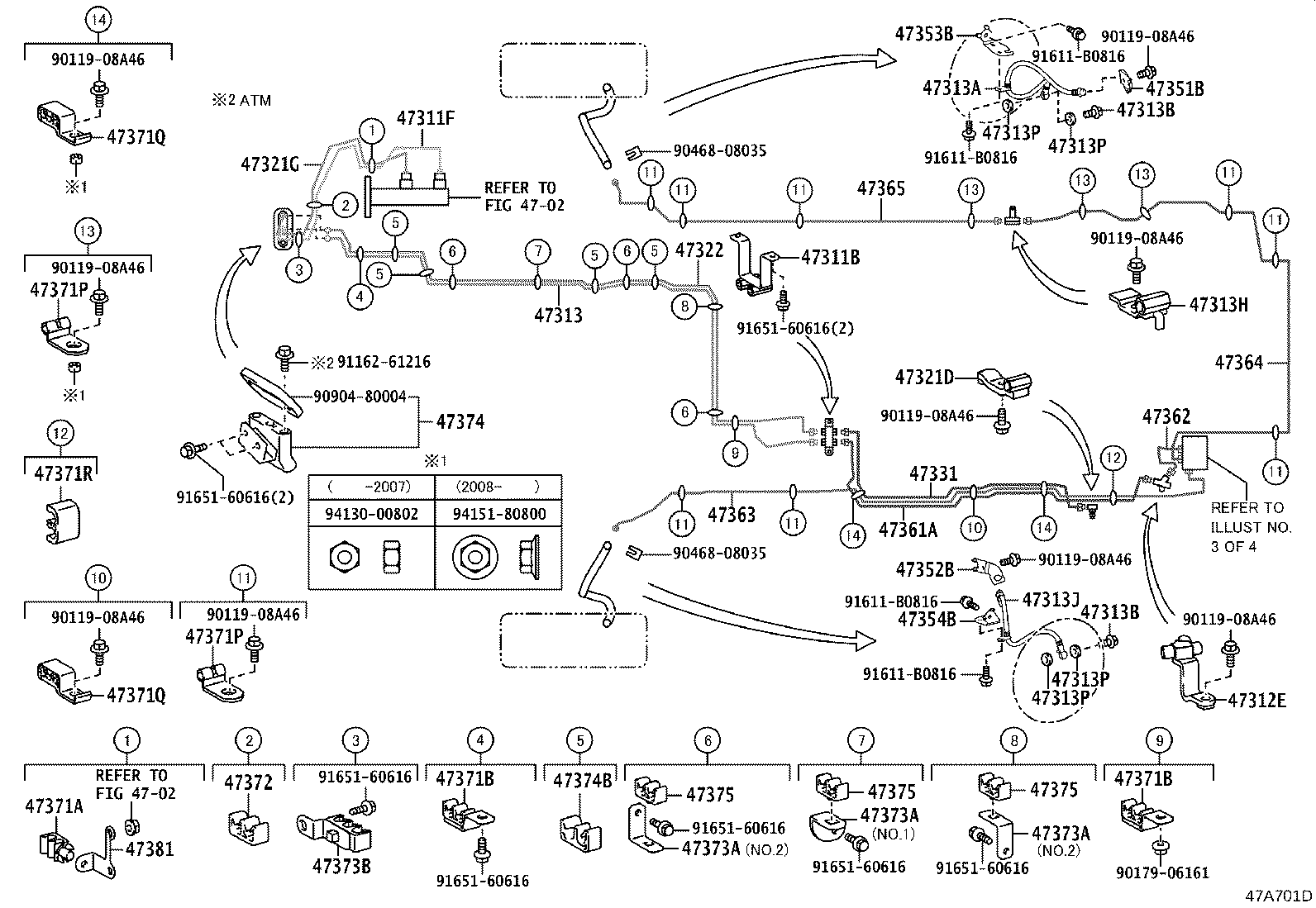

Figure 47A694B 47A694B 2017-01 → — Figure 47C837 47C837 2021-01 → — Figure 47A697B 47A697B 2017-01 → — Figure 47C838A 47C838A 2021-01 → — Figure 47A696C 47A696C 2017-01 → — Figure 47C839A 47C839A 2021-01 → — Figure 47C860A 47C860A 2021-01 → — Figure 47A695C 47A695C 2017-01 → — Figure 47A698C 47A698C 2017-01 → — Figure 47C840 47C840 2021-01 → — Figure 47B095A 47B095A 2017-01 → — Figure 47C841 47C841 2021-01 → — Figure 47A701D 47A701D 2017-01 → — Figure 47A699C 47A699C 2017-01 → — Figure 47C836 47C836 2021-01 → — Figure 47A700C 47A700C 2017-01 → — Figure 47B096 47B096 2018-01 → 2019-08 Figure 47B966A 47B966A 2019-08 → — Figure 47C833B 47C833B 2021-01 → — Figure 47C880 47C880 2021-01 → — Figure 47D561 47D561 2022-01 → — Figure 47D563 47D563 2022-01 → — Figure 47E6PO 47E6PO 2025-01 → — Figure 47E6PJ 47E6PJ 2025-01 → — Figure 47E6PP 47E6PP 2025-01 → — Figure 47A707D 47A707D 2017-01 → — Figure 47A704E 47A704E 2017-01 → — Figure 47A705D 47A705D 2017-01 → — Figure 47C842A 47C842A 2021-01 → — Figure 47A706H 47A706H 2017-01 → — Figure 47A706H 47A706H 2017-01 → — Figure 47D562A 47D562A 2022-01 → — Figure 47E6PK 47E6PK 2025-01 → — Figure 47E6PQ 47E6PQ 2025-01 → — Figure 47A702 47A702 2017-01 → — Figure 47C843 47C843 2021-01 → — Figure 47A703 47A703 2017-01 → — Figure 47E6PL 47E6PL 2025-01 → — Figure 47A804B 47A804B 2017-01 → —

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
31478D Cap, Bleeder Plug(FOR LSPV)

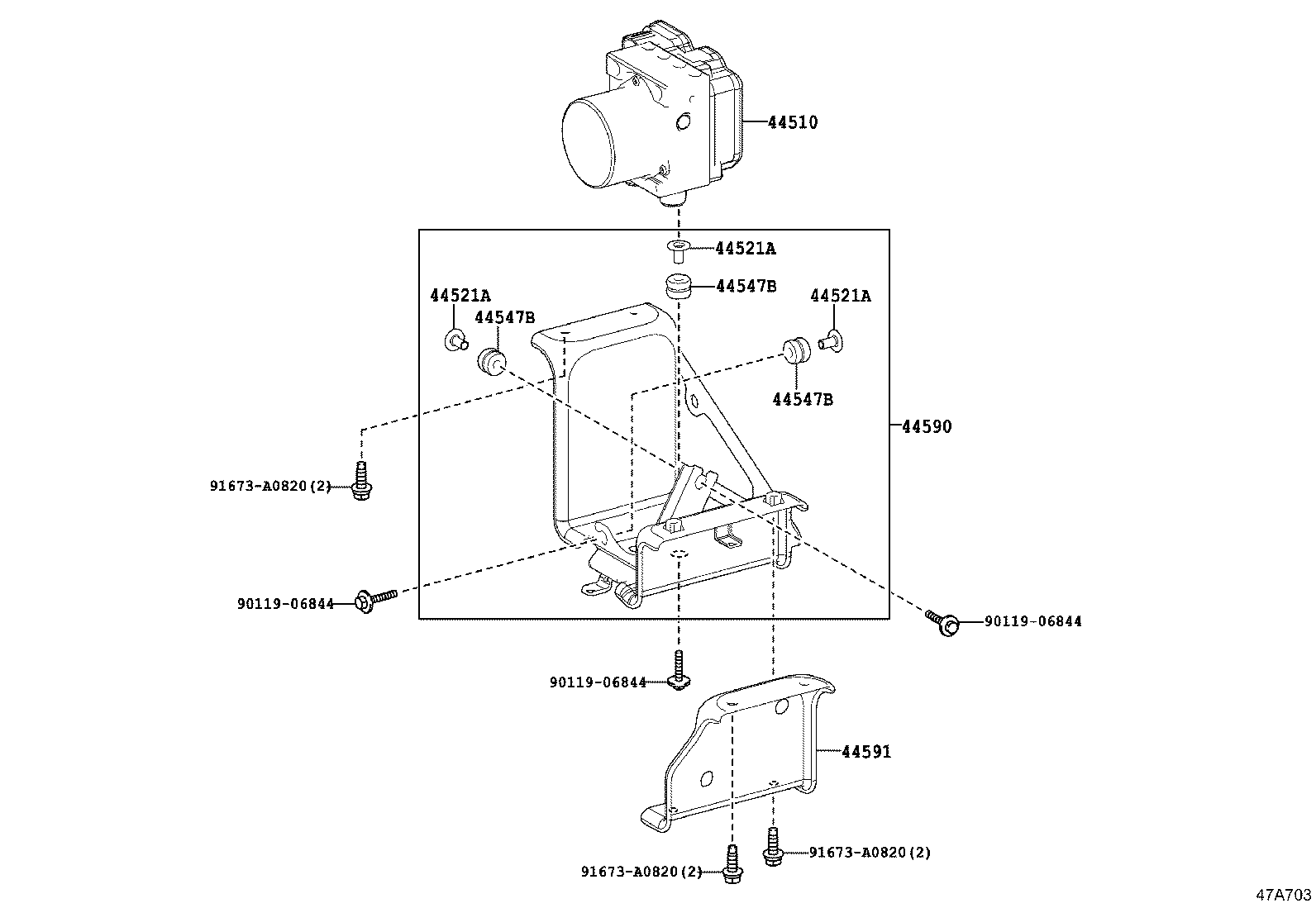

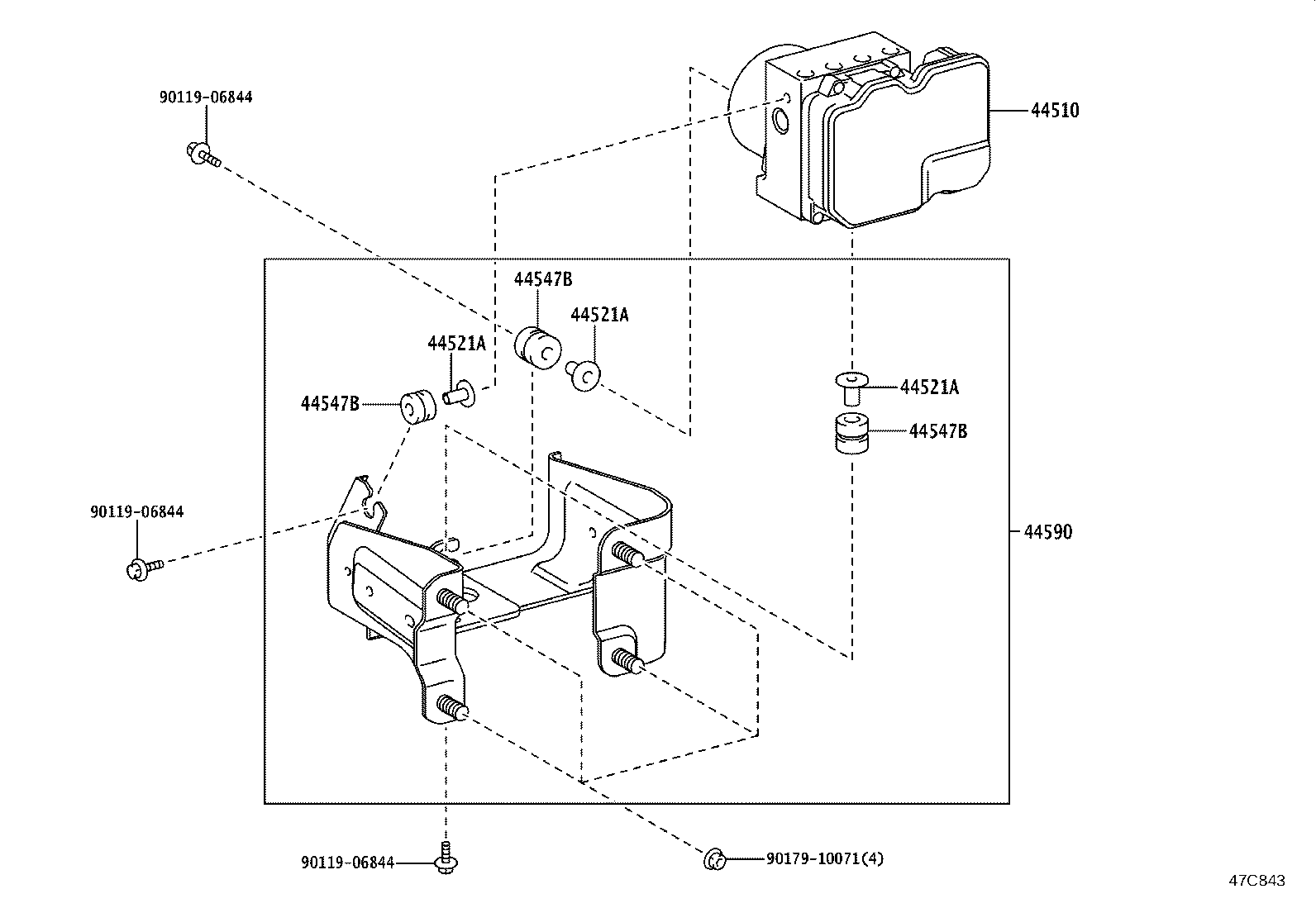

44510 Actuator Assy, Brake
44521A Collar, Brake Actuator Case, NO.1
44547B Cushion, Brake Actuator Bracket
44590 Bracket Assy, Brake Actuator
44591 Bracket, Brake Actuator, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47311F Tube, Front Brake, Frame NO.1
47311H Grommet(FOR BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313H Way, NO.3(FOR FRONT BRAKE TUBE)
47313J Hose, Flexible, NO.2(FOR FRONT)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316D Grommet(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47321 Tube, Rear Brake, NO.1
47321B Hose, Flexible(FOR REAR BRAKE TUBE)
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47321G Tube, Rear Brake, Frame NO.1
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47323A Way, NO.3(FOR REAR BRAKE TUBE)
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47331 Tube, Rear Brake, NO.10
47332 Tube, Rear Brake, NO.11
47333 Tube, Rear Brake, NO.12
47334 Tube, Rear Brake, NO.13
47342 Tube, Wheel Cylinder, Front RH NO.2
47344 Tube, Wheel Cylinder, Front LH NO.2
47345 Tube, Wheel Cylinder, Rear RH
47346 Tube, Wheel Cylinder, Rear LH
47351B Bracket, Flexible Hose, NO.1
47352B Bracket, Flexible Hose, NO.2
47353 Bracket, Flexible Hose(FOR REAR)
47353B Bracket, Flexible Hose, NO.3
47353D Bracket, Flexible Hose, NO.7
47354B Bracket, Flexible Hose, NO.4
47355A Bracket, Flexible Hose, NO.5
47356 Bracket, Flexible Hose, NO.6
47361A Tube, Front Brake, NO.10
47362 Tube, Front Brake, NO.11
47363 Tube, Front Brake, NO.12
47364 Tube, Front Brake, NO.13
47365 Tube, Front Brake, NO.14
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47371E Clamp, Brake Tube, NO.9
47371F Clamp, Brake Tube, NO.10
47371G Clamp, Brake Tube, NO.11
47371H Clamp, Brake Tube, NO.12
47371M Clamp, Brake Tube, NO.13
47371P Clamp, Brake Tube, NO.14
47371Q Clamp, Brake Tube, NO.15
47371R Clamp, Brake Tube, NO.16
47371S Clamp, Brake Tube, NO.17
47371T Clamp, Brake Tube, NO.18
47371U Clamp, Brake Tube, NO.19
47371V Clamp, Brake Tube, NO.20
47371W Clamp, Brake Tube, NO.21
47371X Clamp, Brake Tube, NO.22
47372 Clamp, Brake Tube, NO.2
47373A Bracket, Tube Clamp
47373B Clamp, Brake Tube, NO.3
47374 Connector, Tube
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47381 Bracket, Brake Tube Clamp NO.1
47910 Valve Assy, Load Sensing Proportioning
47910B Plug, Bleeder
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47931 Bracket, Load Sensing Valve
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47935B Bush(FOR LOAD SENSING SPRING SHACKLE)
47935C Retainer(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
