Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Brake Tube & Clamp

12 part groups · 3 illustrations

Illustrations

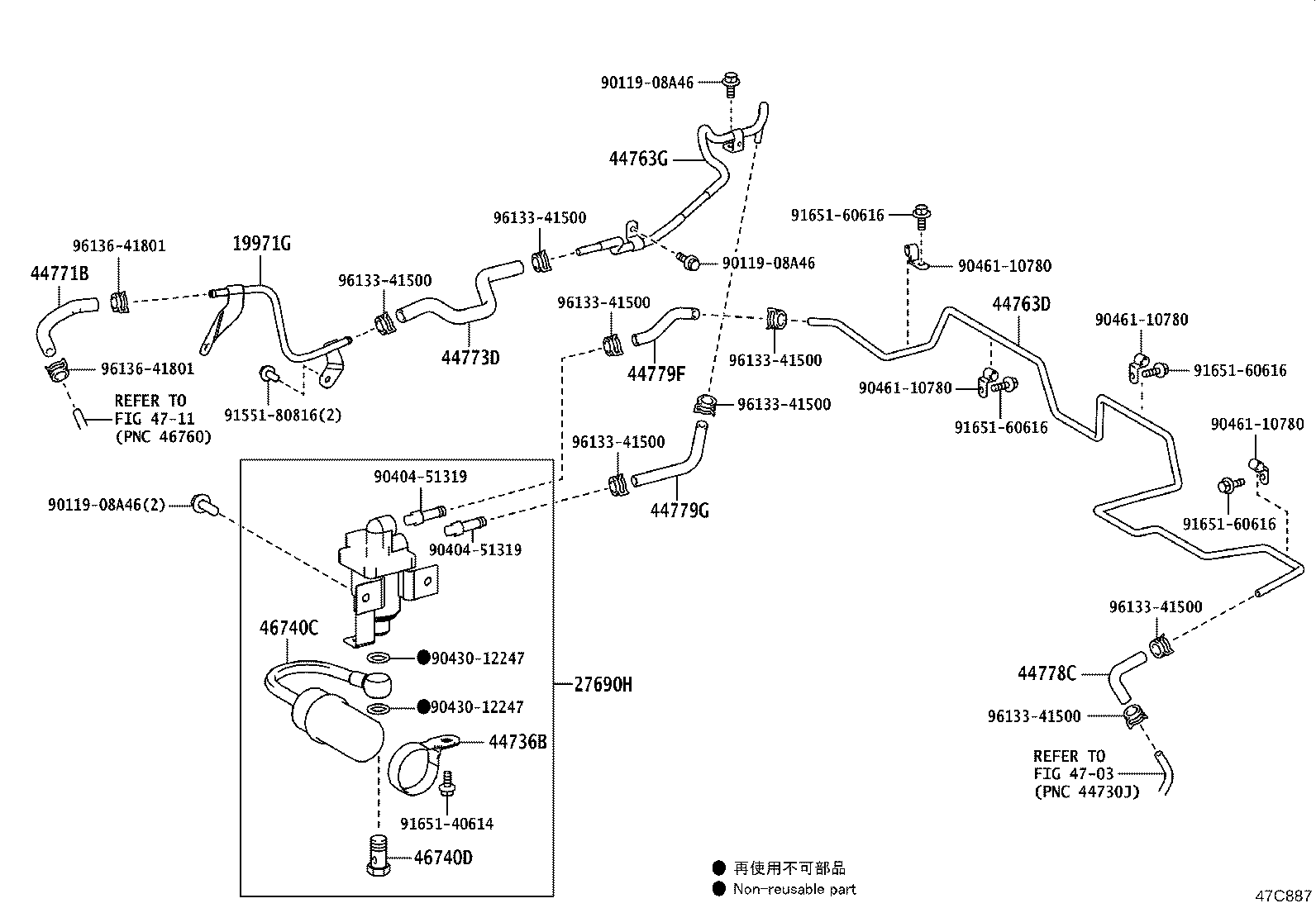

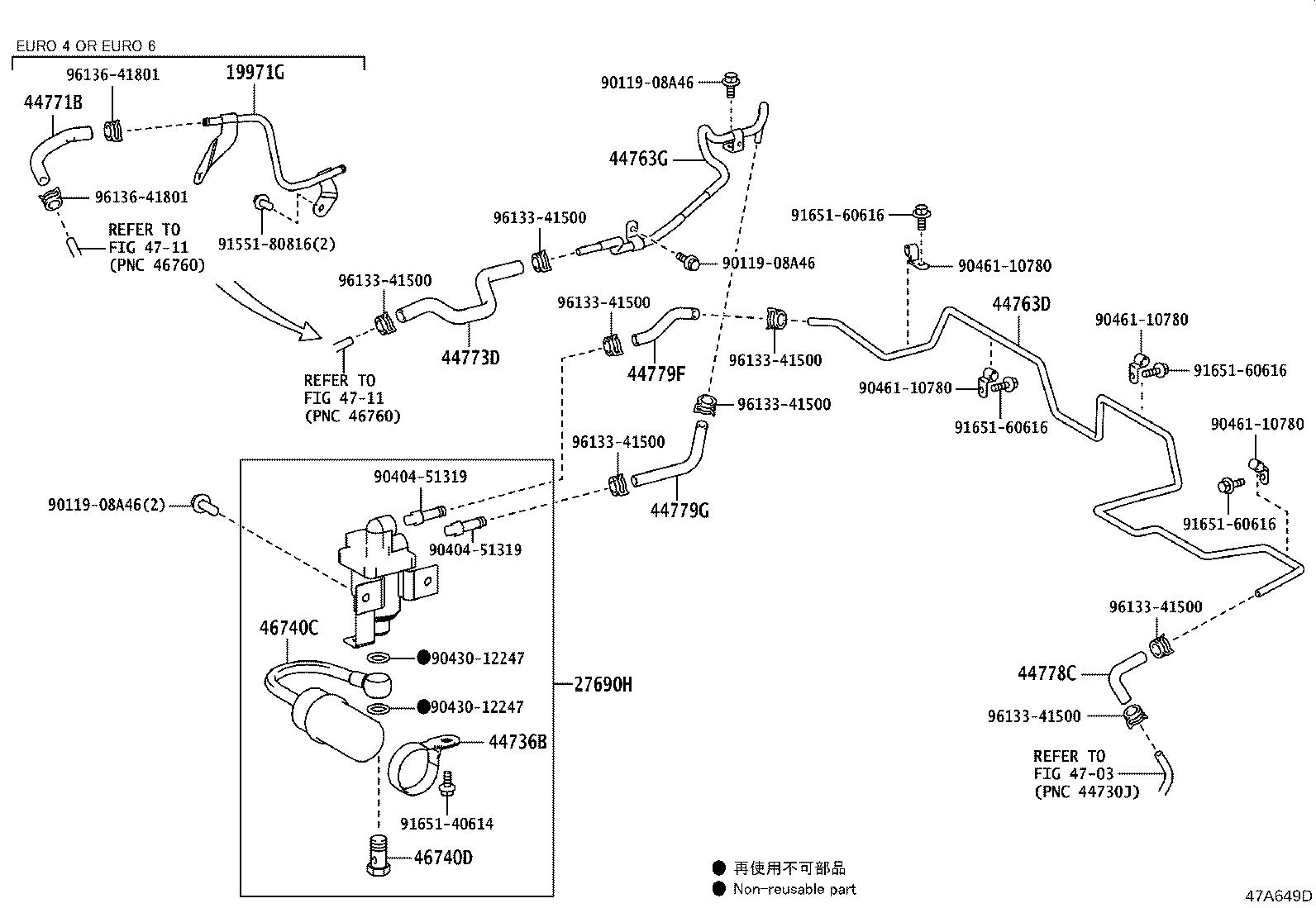

Figure 47A648B 47A648B 2017-01 → — Figure 47A649D 47A649D 2017-01 → — Figure 47C887 47C887 2021-01 → —

Part groups

PNCDescription
19971G Pipe, Vacuum
27690H Solenoid Assy, W/Bracket(FOR EXHAUST BRAKE)
44736B Bracket, Air Cleaner
44763D Tube, Hose TO Hose, NO.1
44763G Tube, Hose TO Hose, NO.2
44771B Hose, Vacuum Tube Connector
44773D Hose, Solenoido TO Retarder
44778C Hose, Connector TO Vacuum Reservoir
44779F Hose, Connector Tube TO Solenoid, NO.1
44779G Hose, Connector Tube TO Solenoid, NO.2
46740C Cleaner Assy, Exhaust Retarder Air
46740D Bolt, Union(FOR EXHAUST RETARDER AIR CLEANER ASSY)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
