Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

5 part groups · 3 illustrations

Illustrations

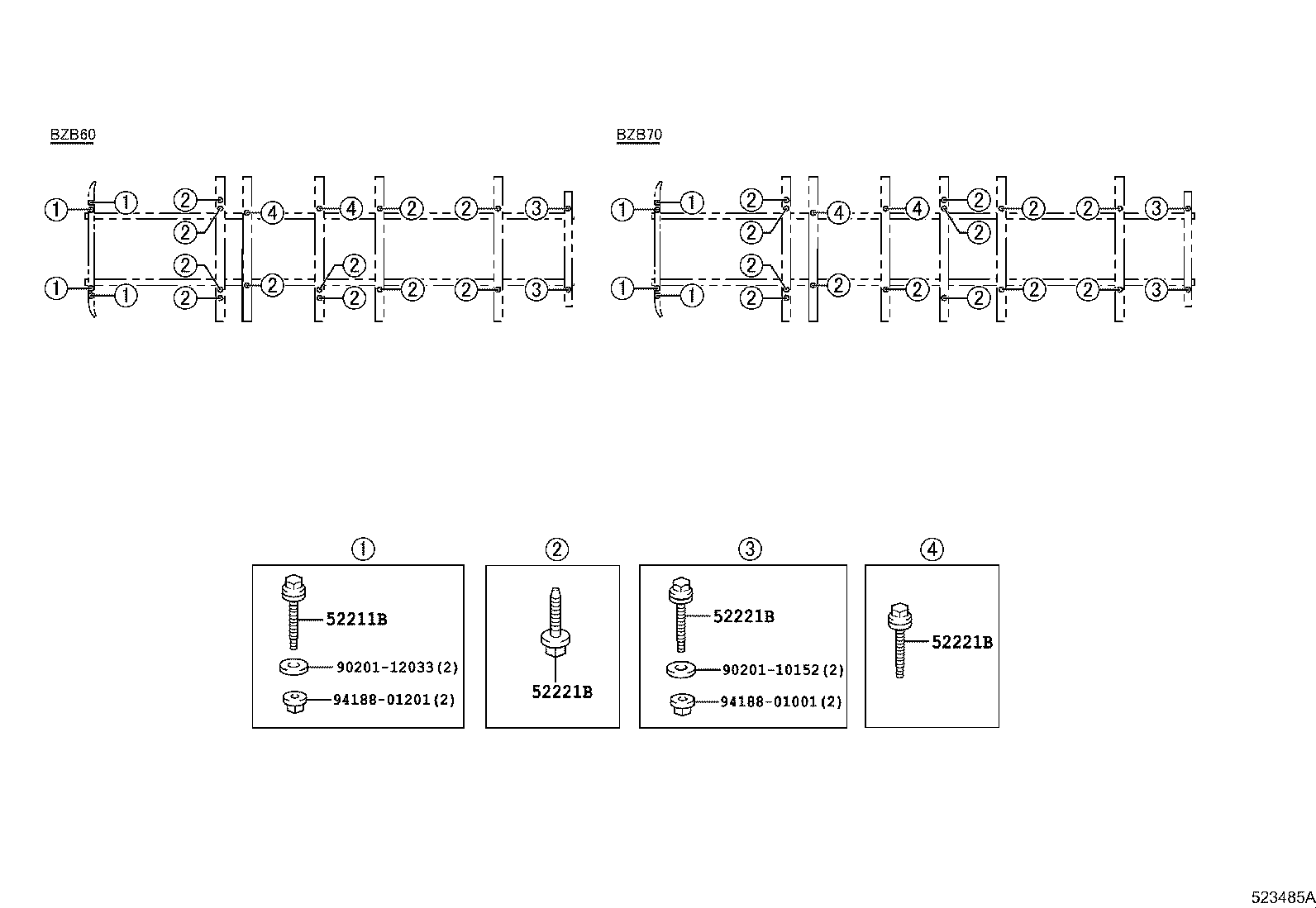

Figure 523484C 523484C 2017-01 → — Figure 523485A 523485A 2017-01 → — Figure 524023 524023 2019-08 → —

Part groups

PNCDescription
52211 Cushion, Body Mounting, NO.1 Upper
52211B Bolt(FOR BODY MOUNTING NO.1 CUSHION)
52221B Bolt(FOR BODY MOUNT NO.2 CUSHION)
52231B Bolt(FOR BODY MOUNT NO.3 CUSHION)
52239 Plate, Body Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
