Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

54 part groups · 14 illustrations

Illustrations

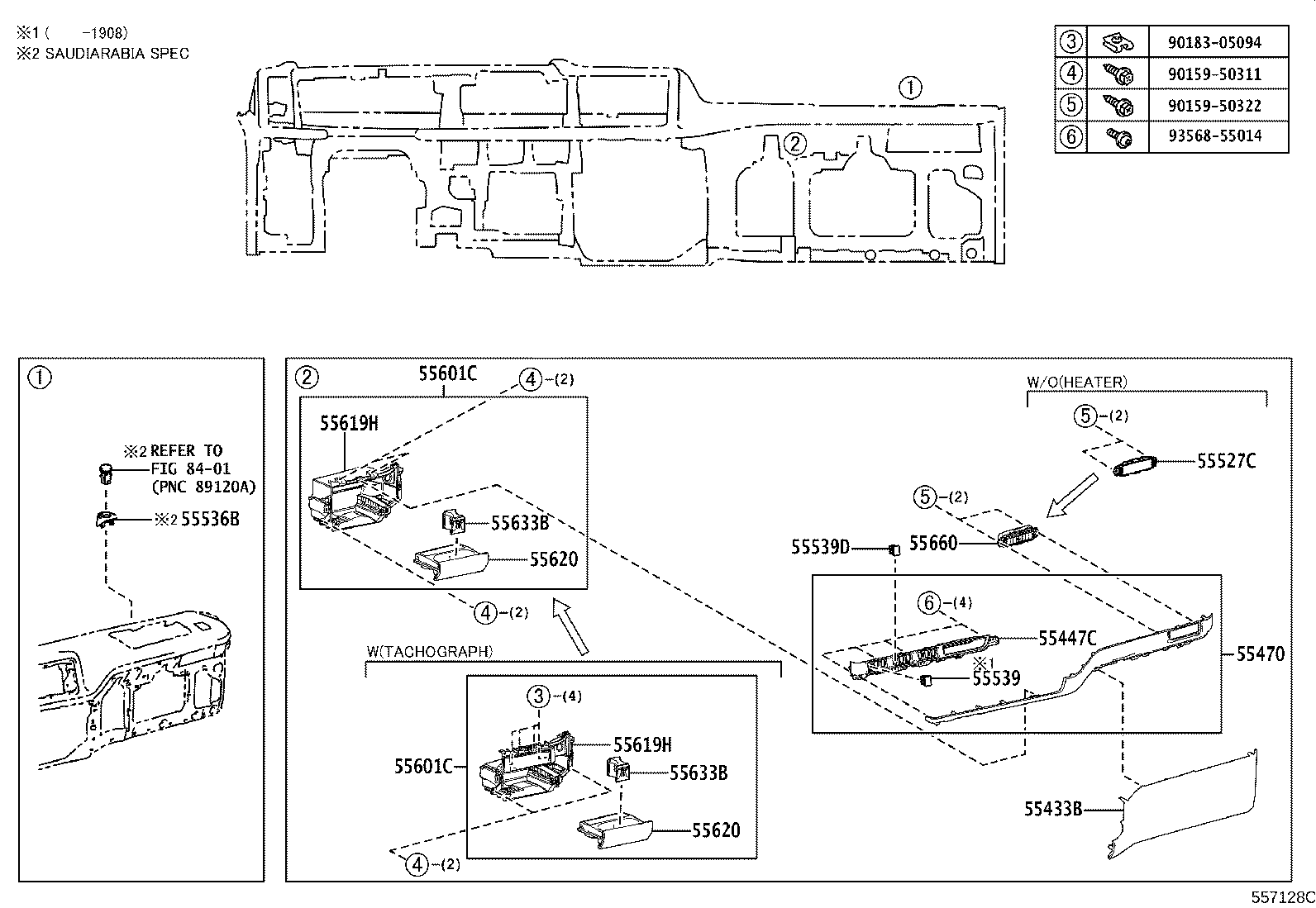

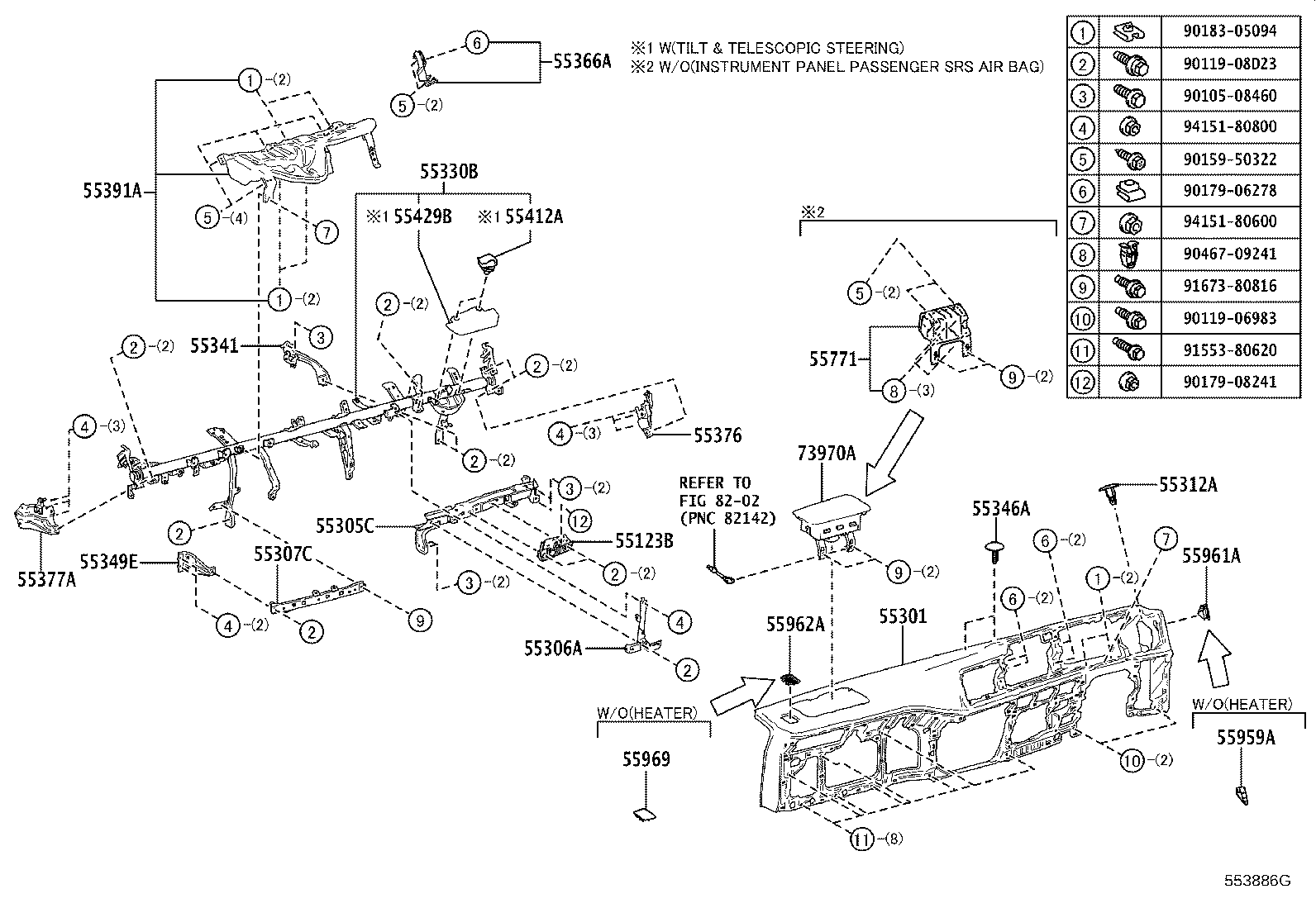

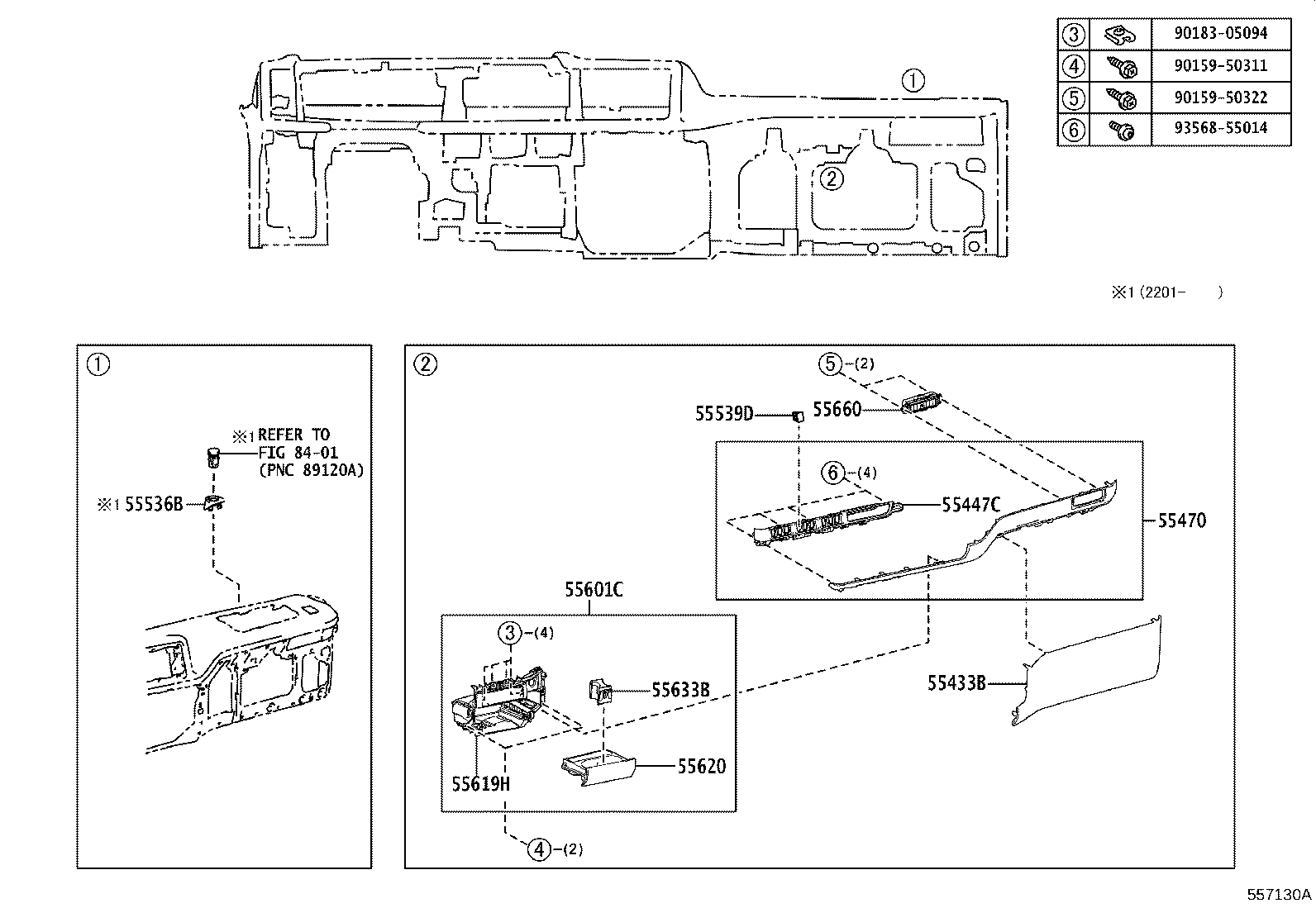

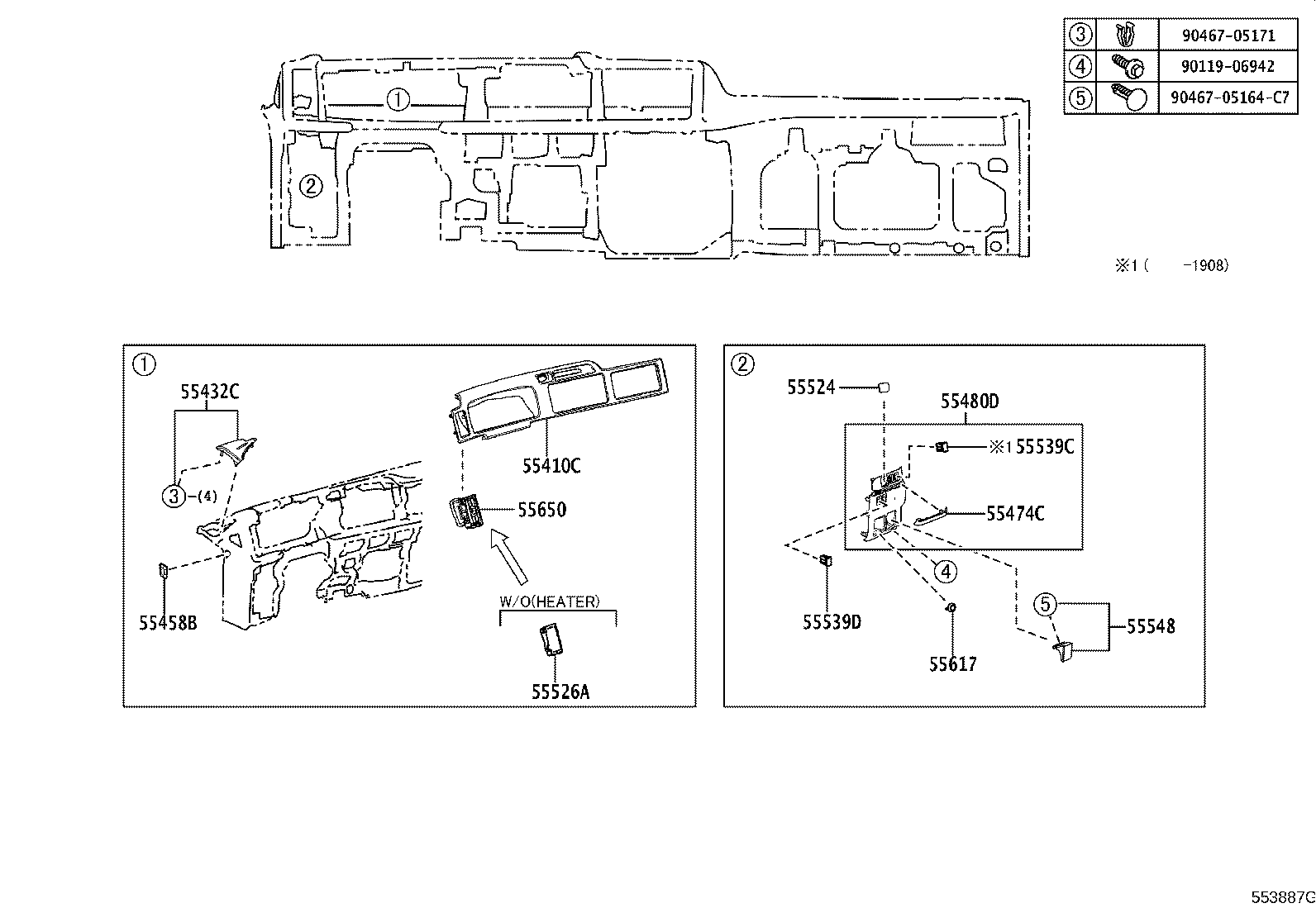

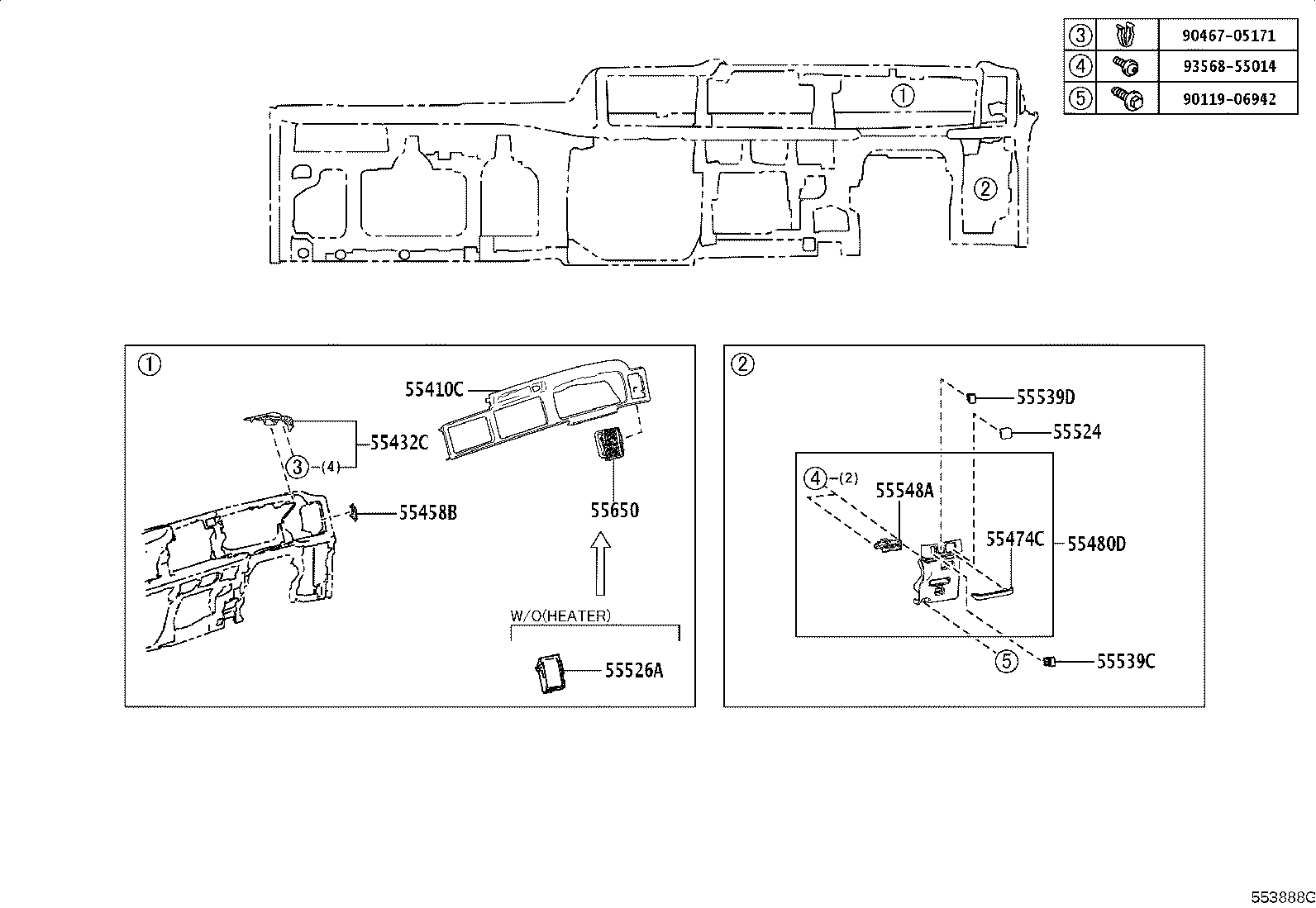

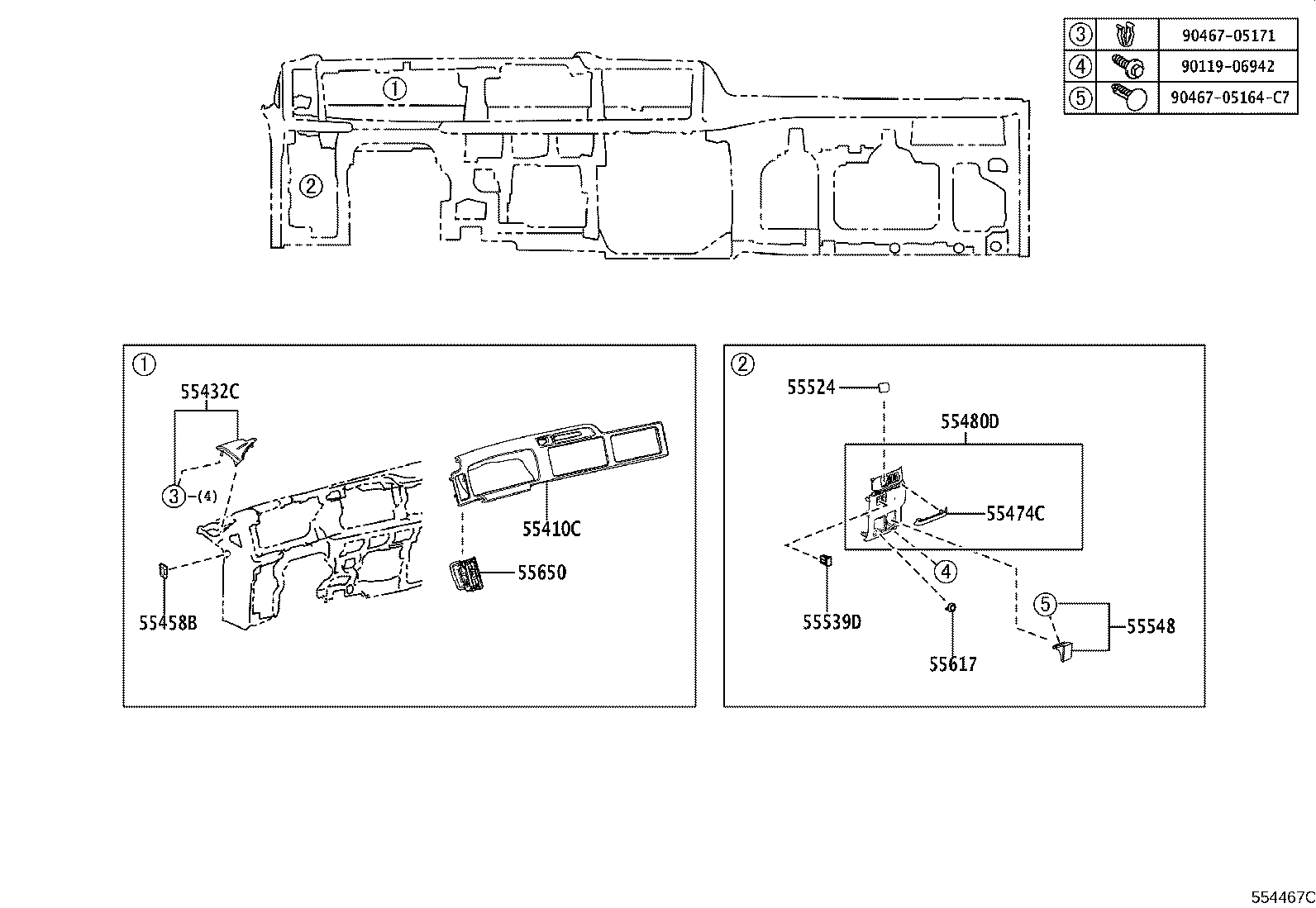

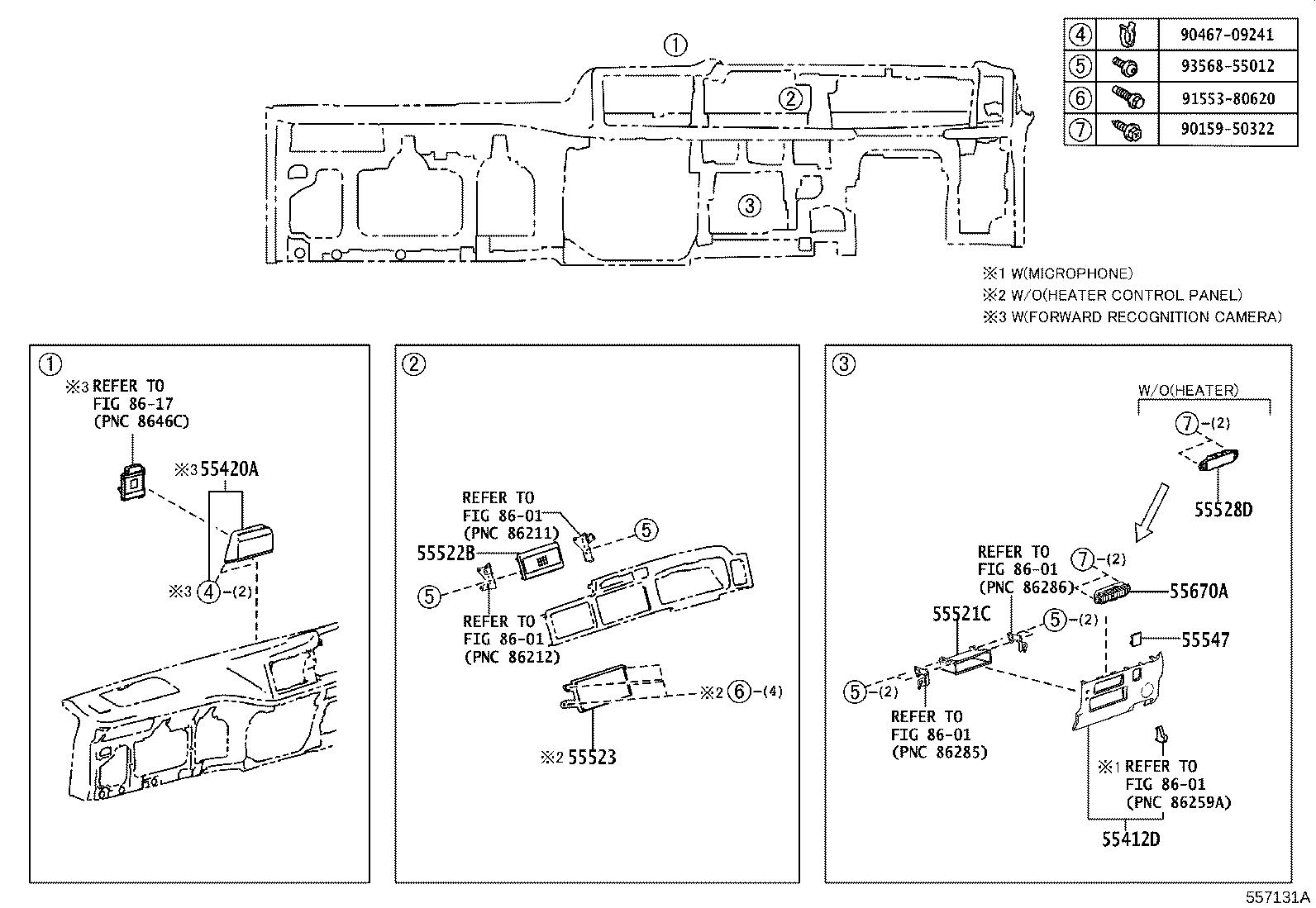

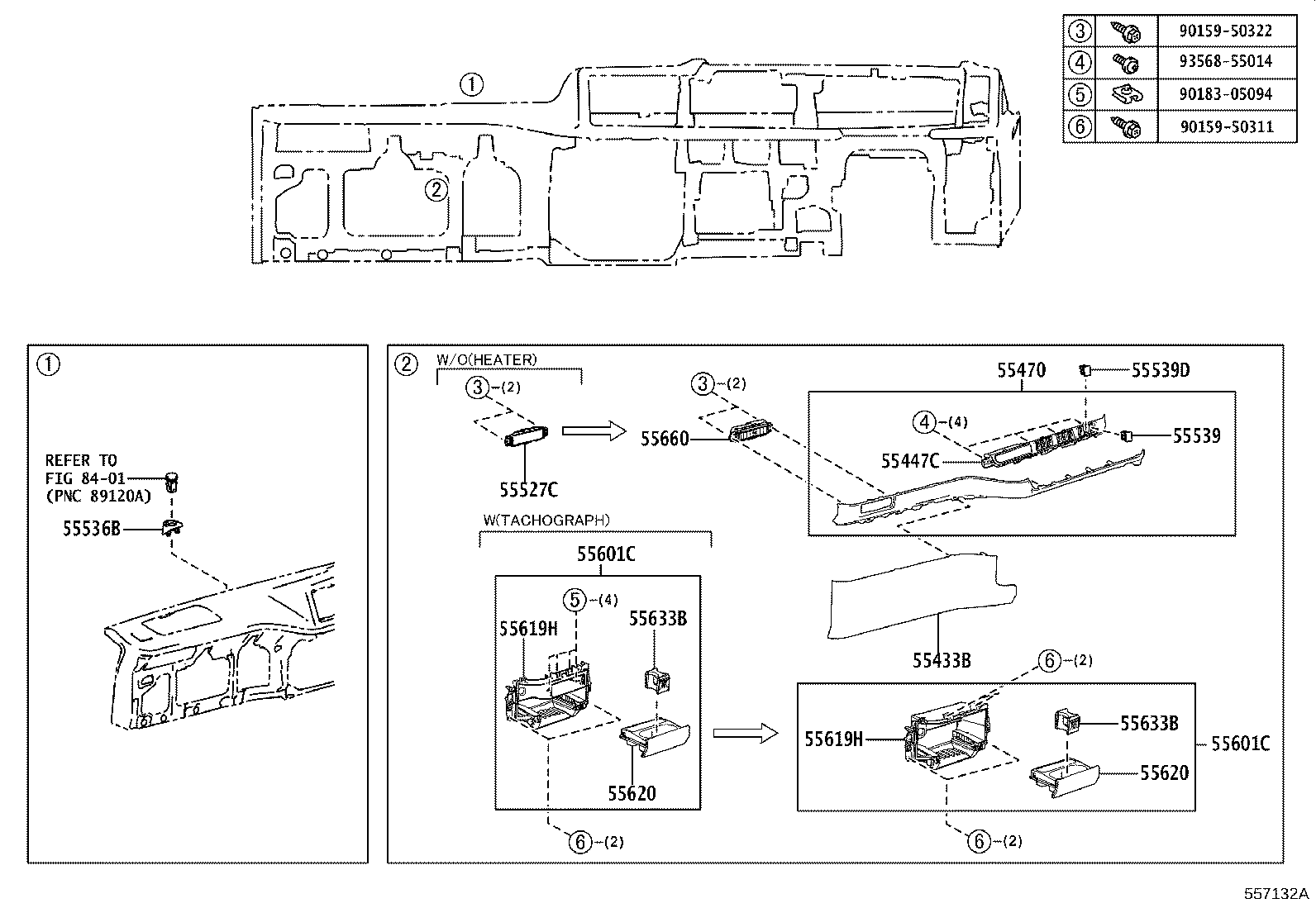

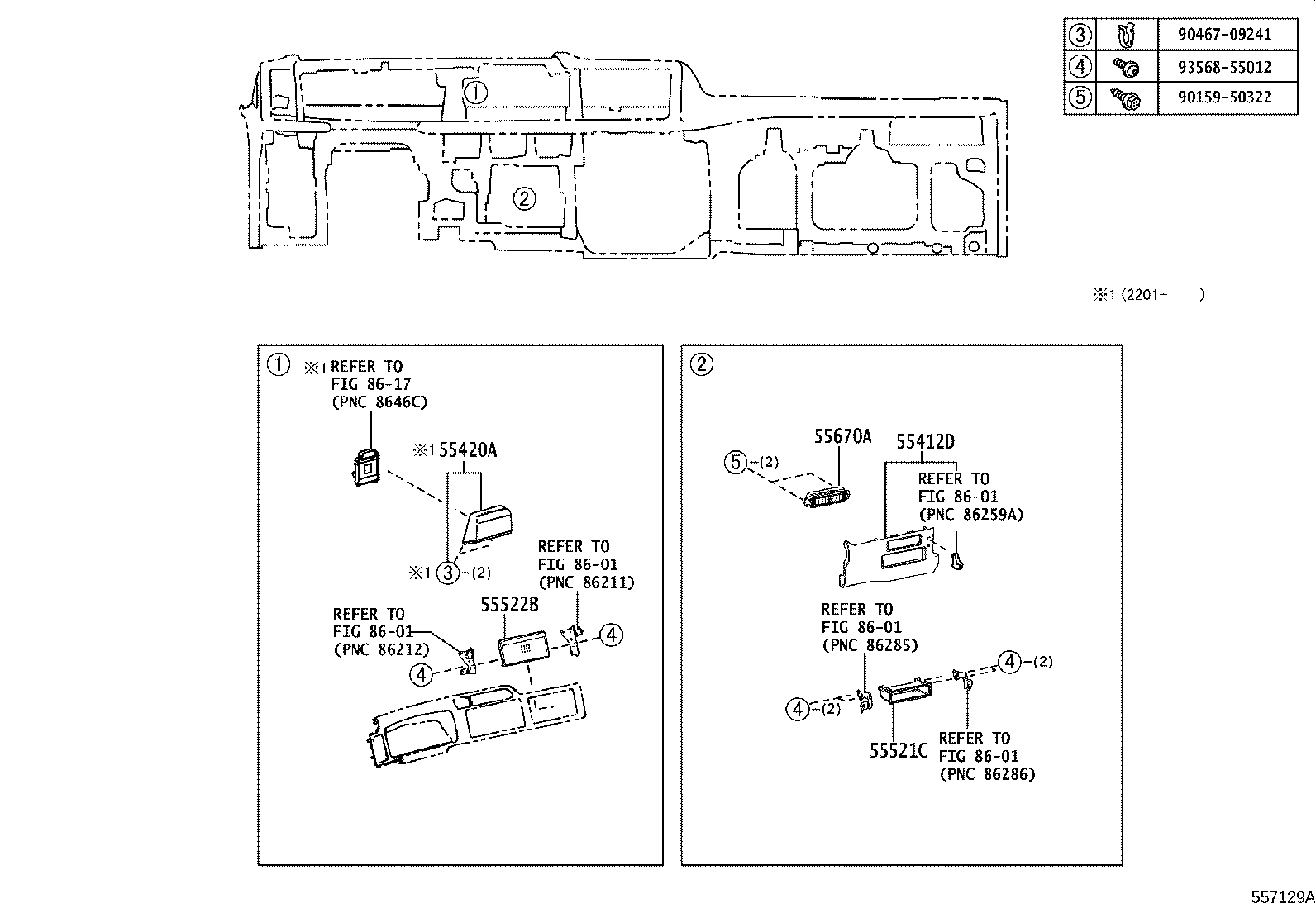

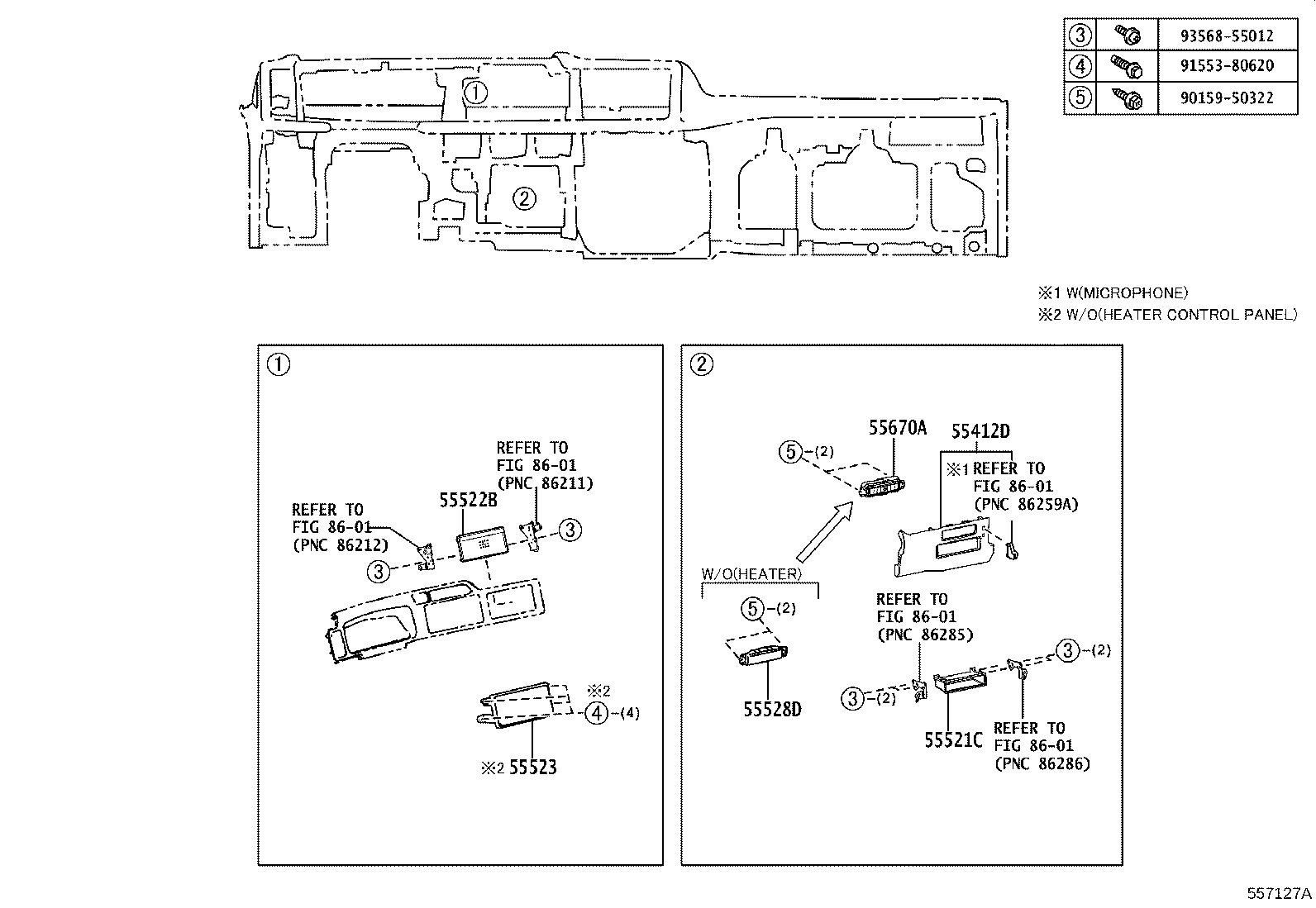

Figure 553885H 553885H 2017-01 → — Figure 553886G 553886G 2017-01 → — Figure 553887G 553887G 2017-01 → 2019-08 Figure 553887G 553887G 2019-08 → — Figure 557127A 557127A 2017-01 → 2019-08 Figure 557127A 557127A 2019-08 → — Figure 557128C 557128C 2017-01 → 2019-08 Figure 557128C 557128C 2019-08 → — Figure 554467C 554467C 2019-08 → — Figure 557129A 557129A 2019-08 → — Figure 557130A 557130A 2019-08 → — Figure 553888G 553888G 2017-01 → — Figure 557131A 557131A 2017-01 → — Figure 557132A 557132A 2017-01 → —

Part groups

PNCDescription
55123B Reinforcement, Steering Support
55301 Panel Sub-assy, Instrument
55305C Reinforcement Sub-assy, Instrument Panel
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55312A Clip, Instrument Panel
55330B Reinforcement Assy, Instrument Panel
55341 Brace, Instrument Panel, NO.1
55346A Clip, Instrument Panel, NO.2
55349E Bracket, Instrument Panel Brace Mounting, Lower
55366A Bracket, Radio Mounting, NO.1
55376 Bracket, Instrument Panel Mounting, NO.1
55377A Bracket, Instrument Panel Mounting, NO.2
55391A Panel, Instrument Panel Reinf, Inner NO.1
55410C Panel Assy, Instrument Cluster Finish
55412A Clip, Panel, Instrument Cluster Finish, End
55412D Panel, Instrument Cluster Finish, Center
55420A Panel Assy, Instrument Cluster Finish, Center
55429B Protector, Instrument Cluster Finish Panel
55432C Door, Reservoir Tank
55433B Panel, Instrument Panel Finish, Lower NO.2
55447C Base, Switch Hole, NO.2
55458B Cover, Instrument, Lwr
55470 Garnish Assy, Instrument Cluster Finish Panel
55474C Garnish, Instrument Cluster Finish Panel, NO.1
55480D Panel Assy, Instrument Panel Finish, Lwr
55521C Cover, Stereo Opening
55522B Cover, Radio Tuner Opening
55523 Cover, Heater Control Opening
55524 Cover, Switch Bace Hole
55526A Cover, Instrument Panel Register Opening, NO.1
55527C Cover, Instrument Panel Register Opening, NO.2
55528D Cover, Instrument Panel Register Opening, NO.3
55536B Cover, Light Control Switch Hole
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55547 Cover, Remote Control Mirror Hole
55548 Cover, Fuel Lid Opener Opening
55548A Cover, Instrument Panel Hole
55601C Tray Sub-assy, Instrument Panel Under
55617 Cover, Defogger Knob Hole
55619H Holder, Instrument Panel Cup, NO.2
55620 Holder Assy, Instrument Panel Cup
55633B Support, Instrument Panel Cup Holder
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670A Register Assy, Instrument Panel, Center
55771 Bracket, Instrument Panel, Upper
55959A Cover, Defroster Nozzle Opening, NO.1
55961A Nozzle, Side Defroster, RH
55962A Nozzle, Side Defroster, LH
55969 Cover, Defroster Nozzle Opening, NO.2
73970A Airbag Assy, Instrument Panel Passenger
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
