Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01
Inside Trim Board
135 part groups · 38 illustrations
Illustrations
644090B

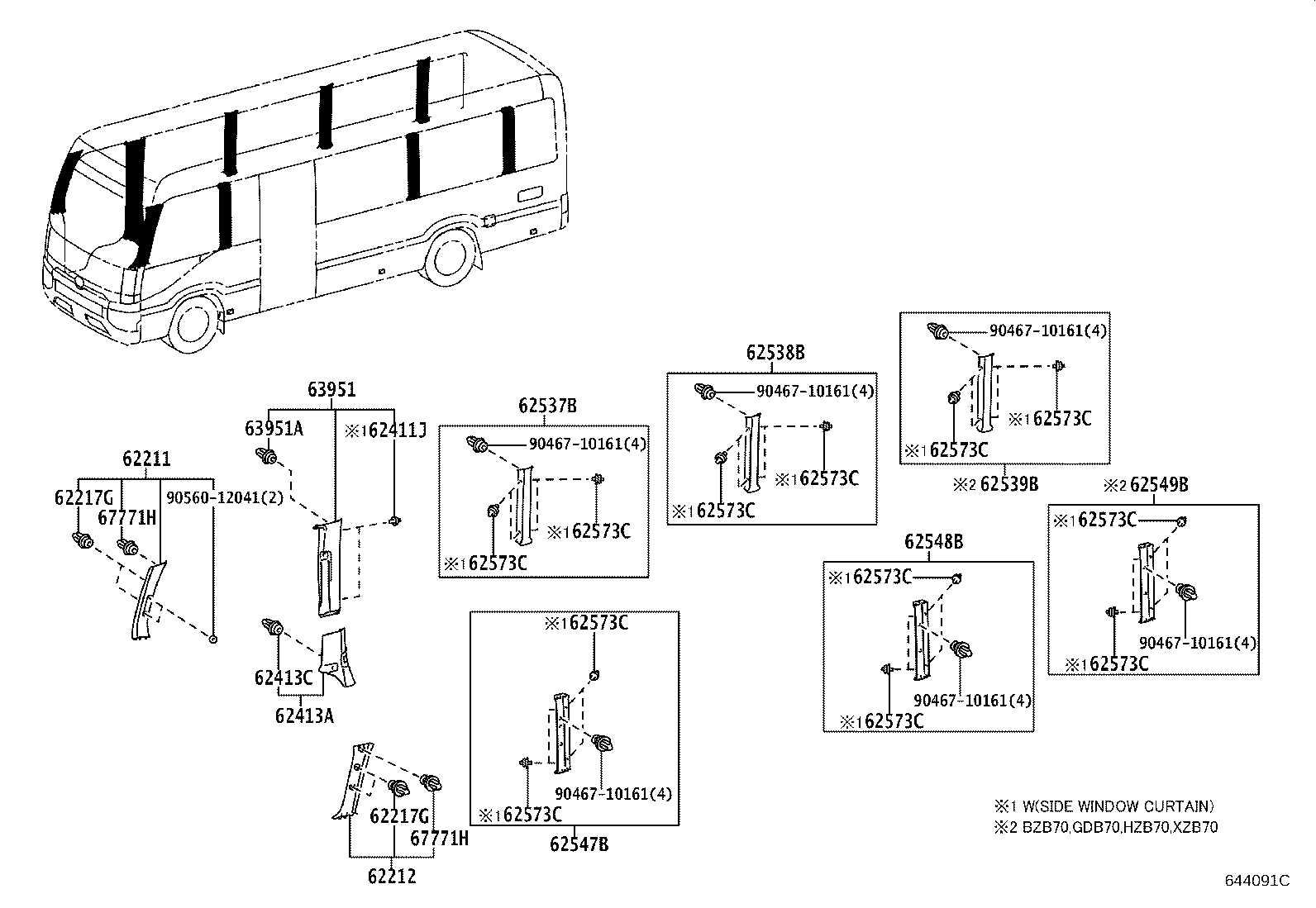

644091C

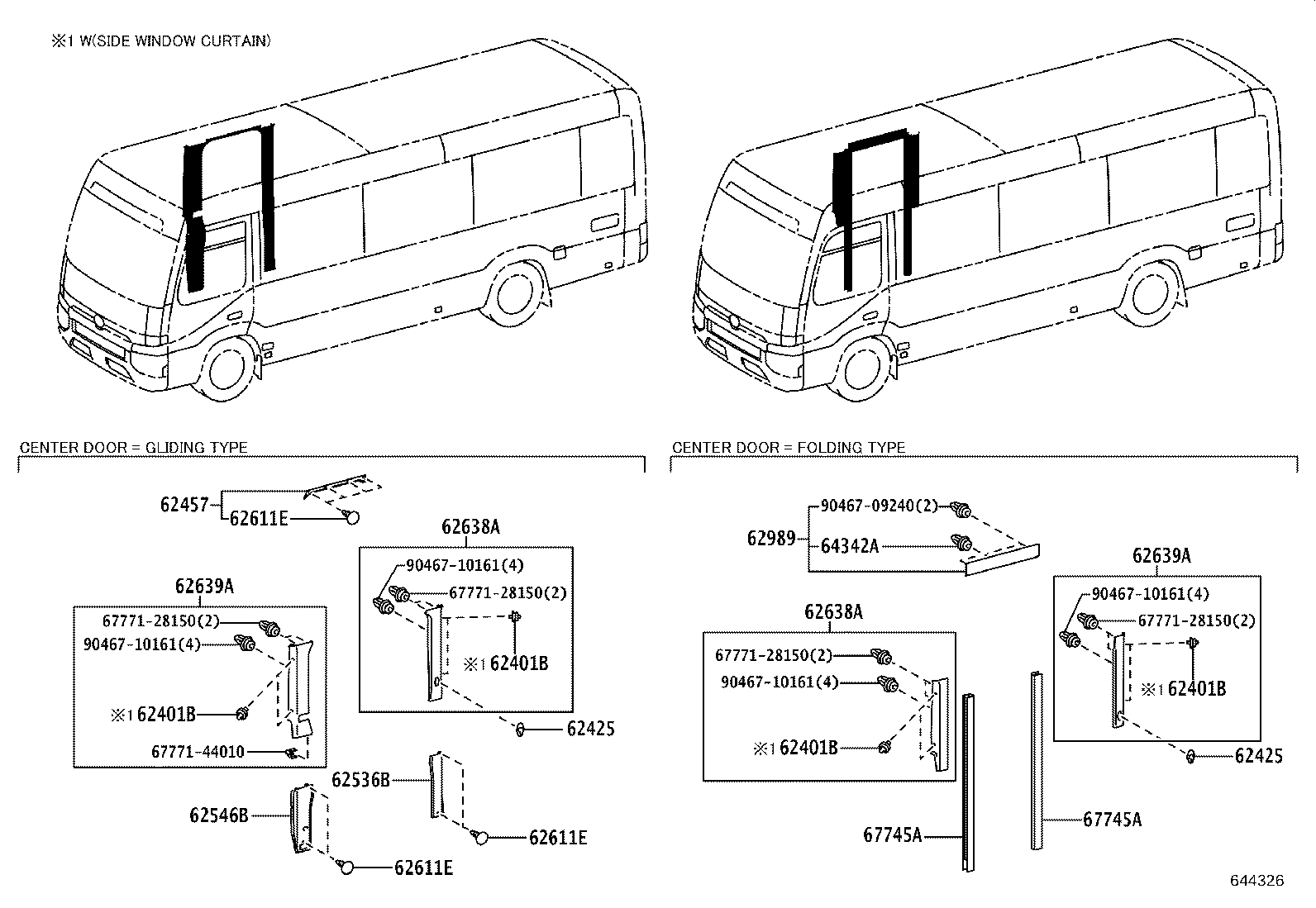

644326

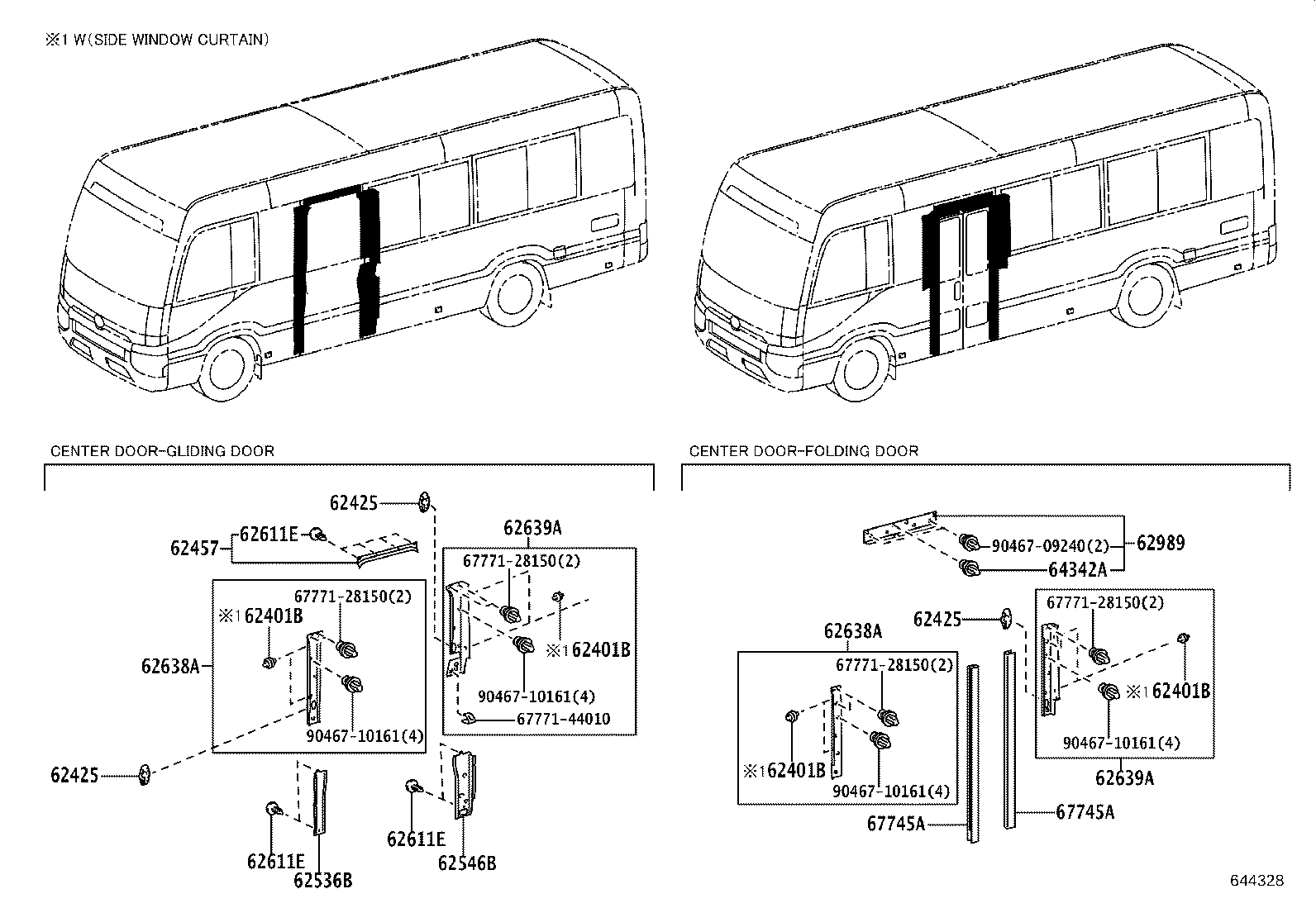

644328

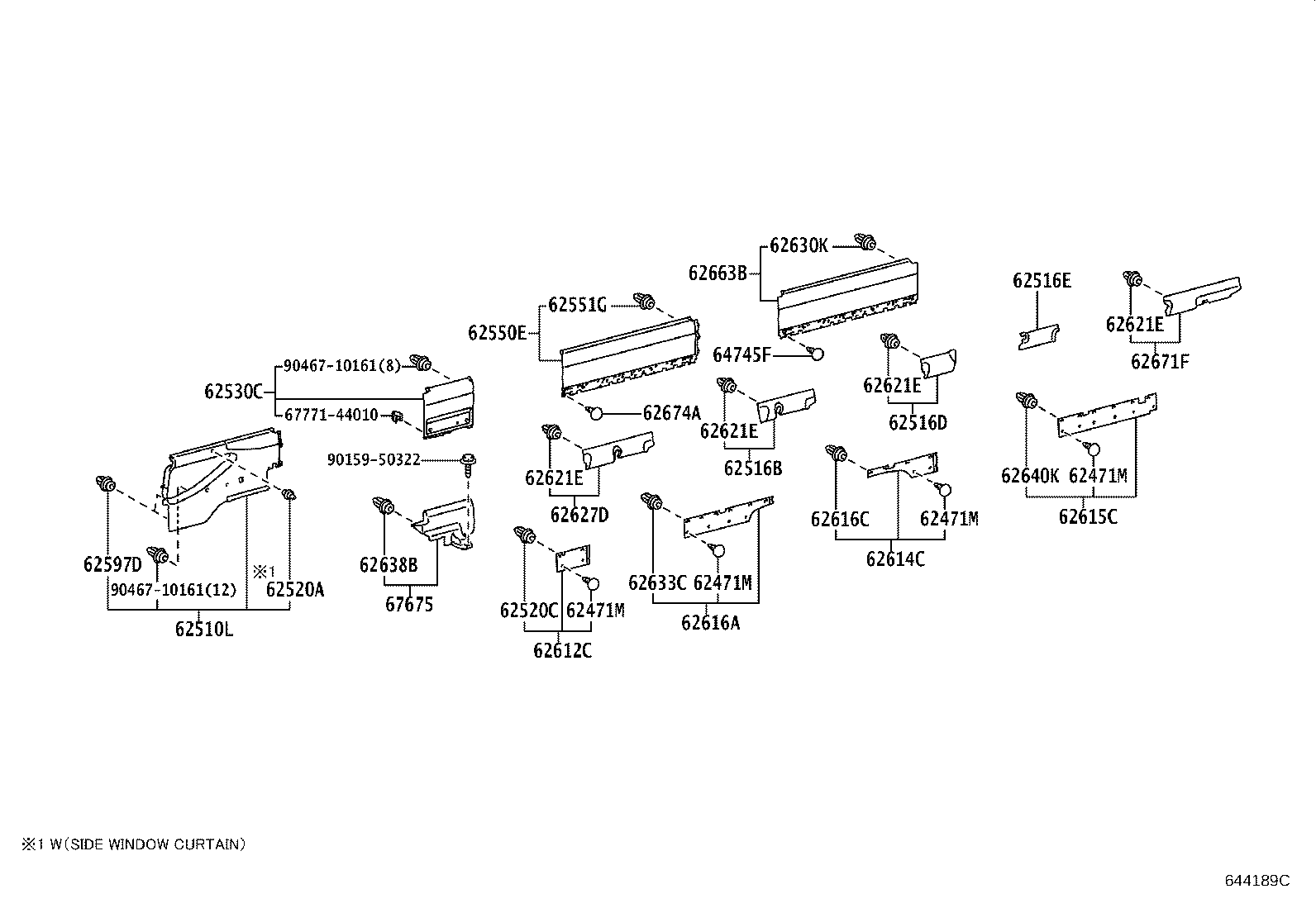

644189C

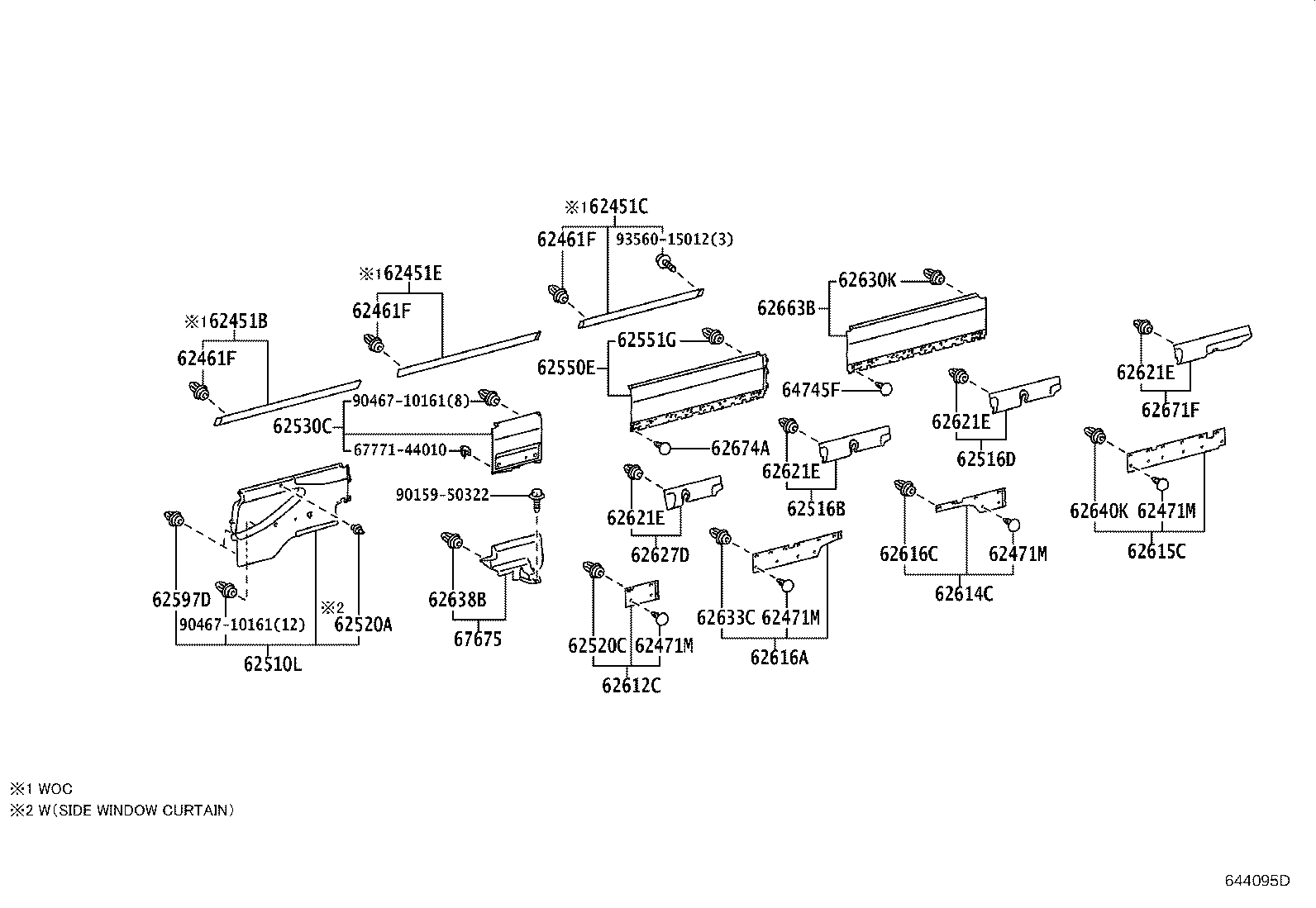

644095D

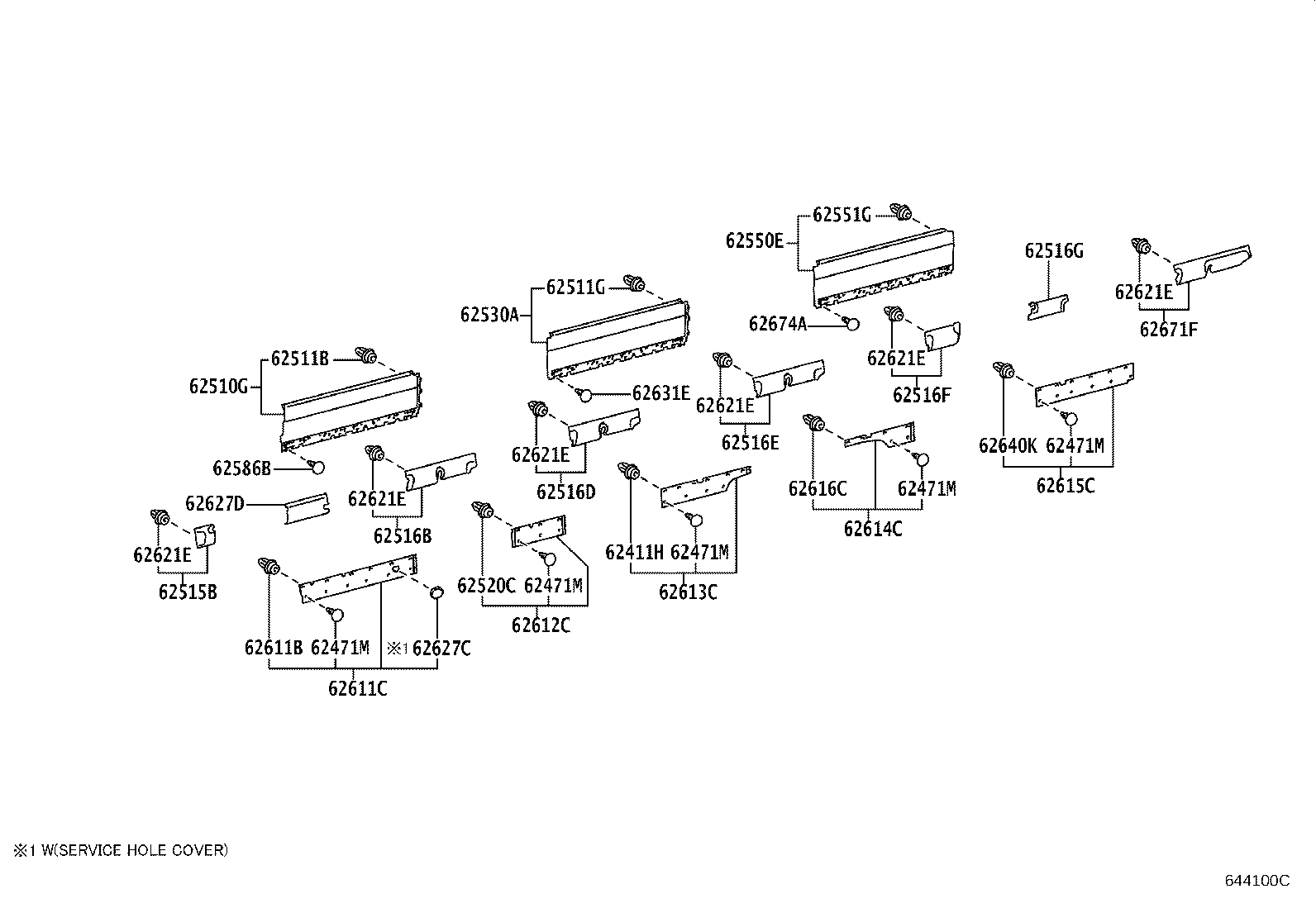

644100C

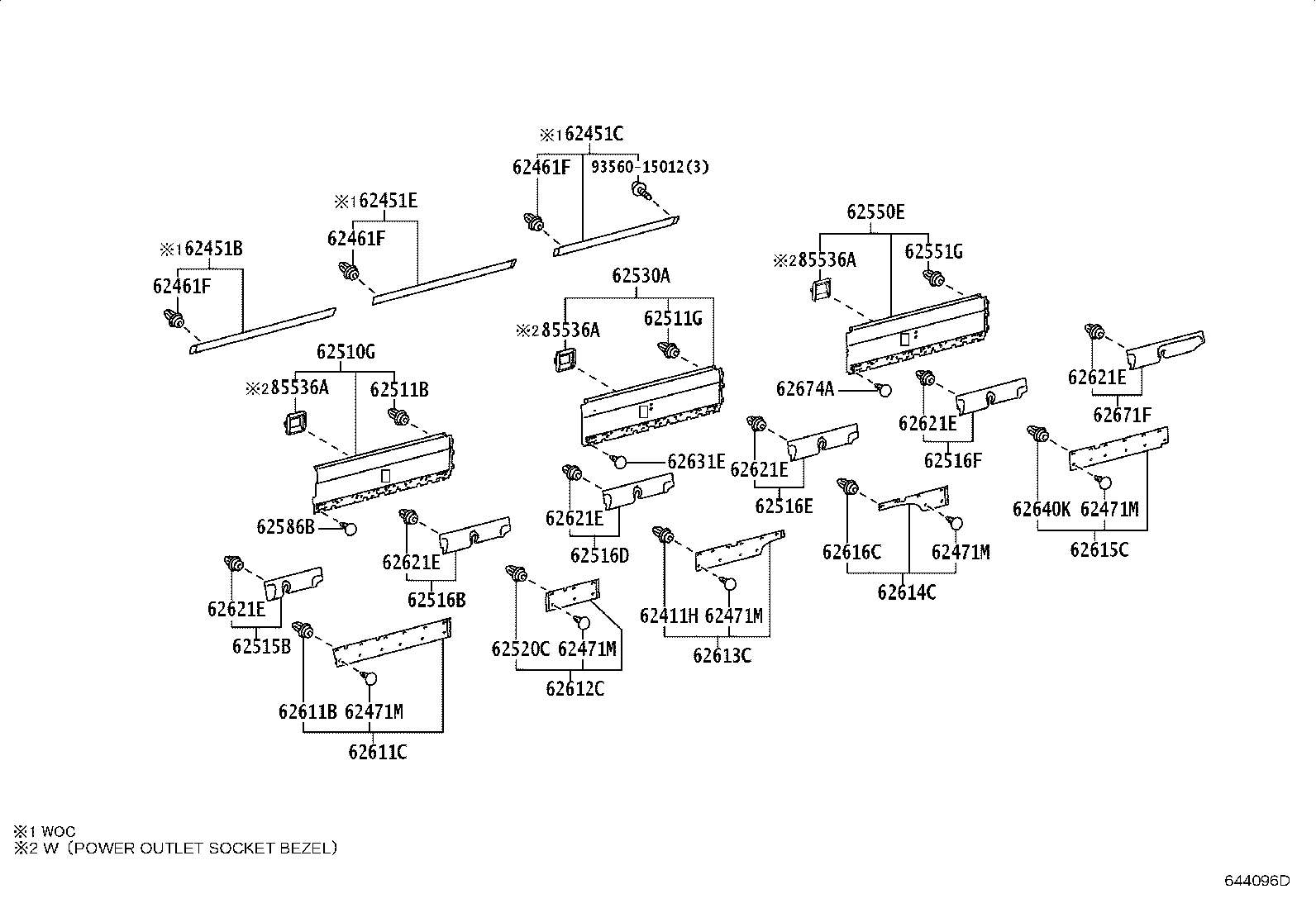

644096D

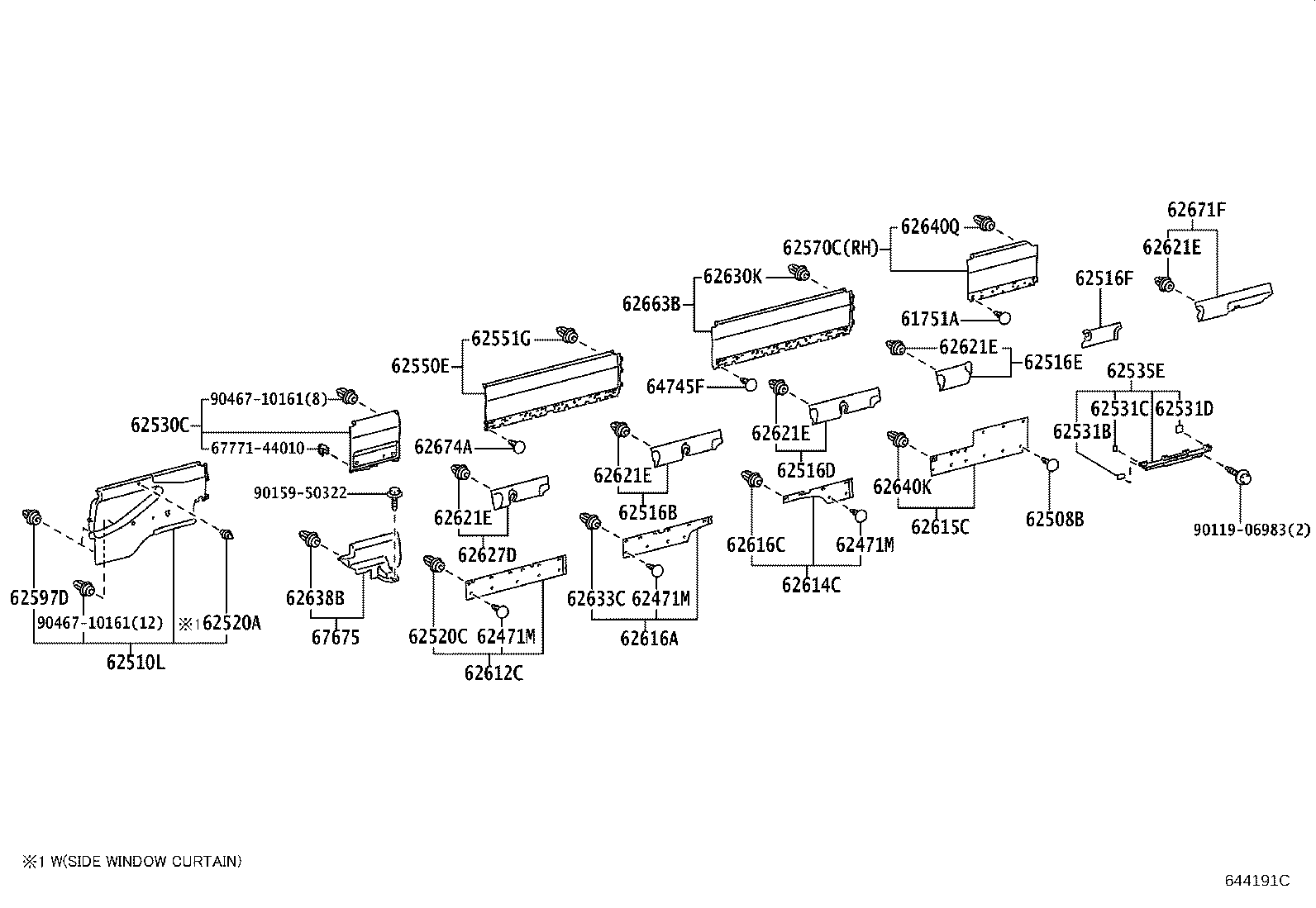

644191C

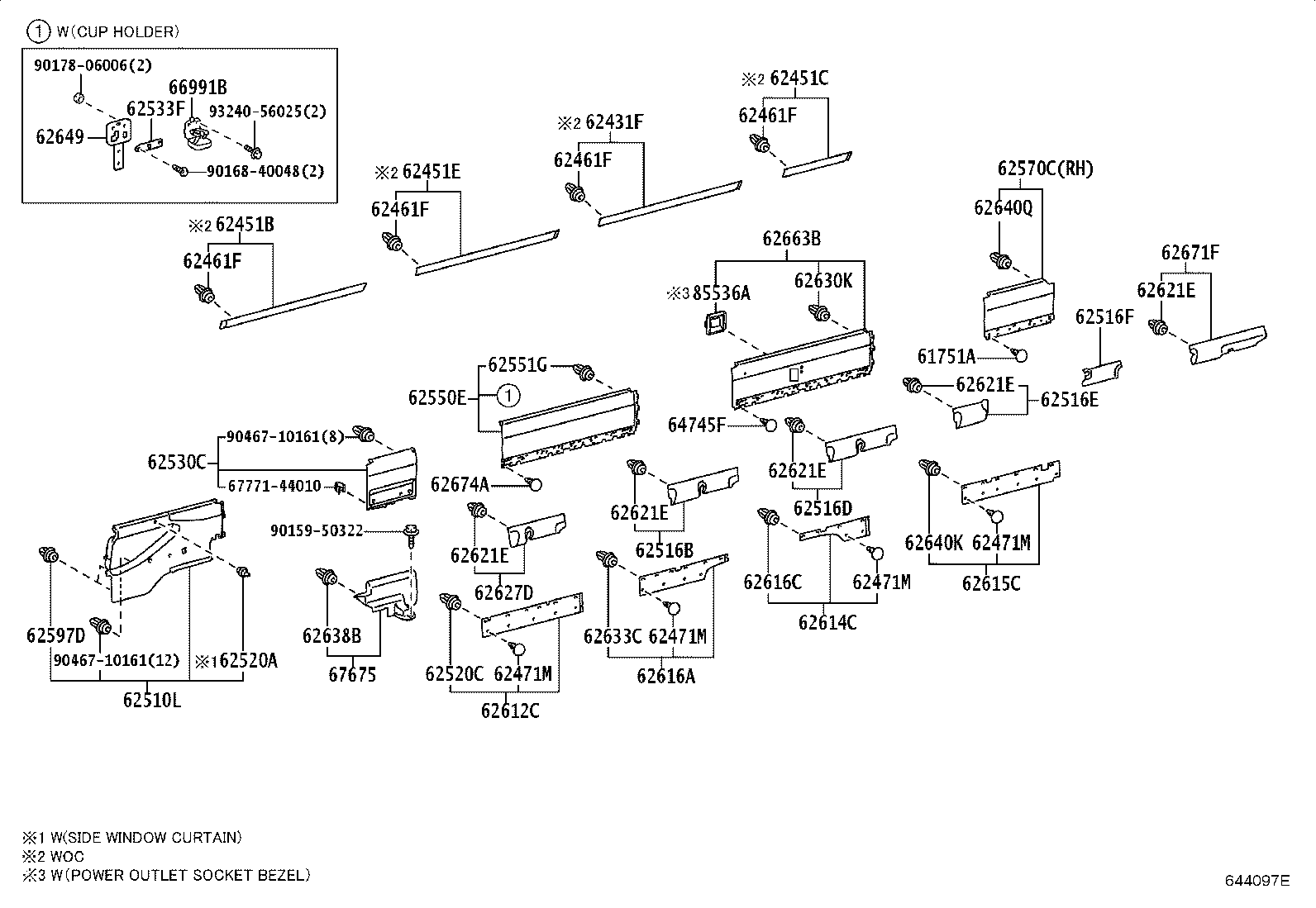

644097E

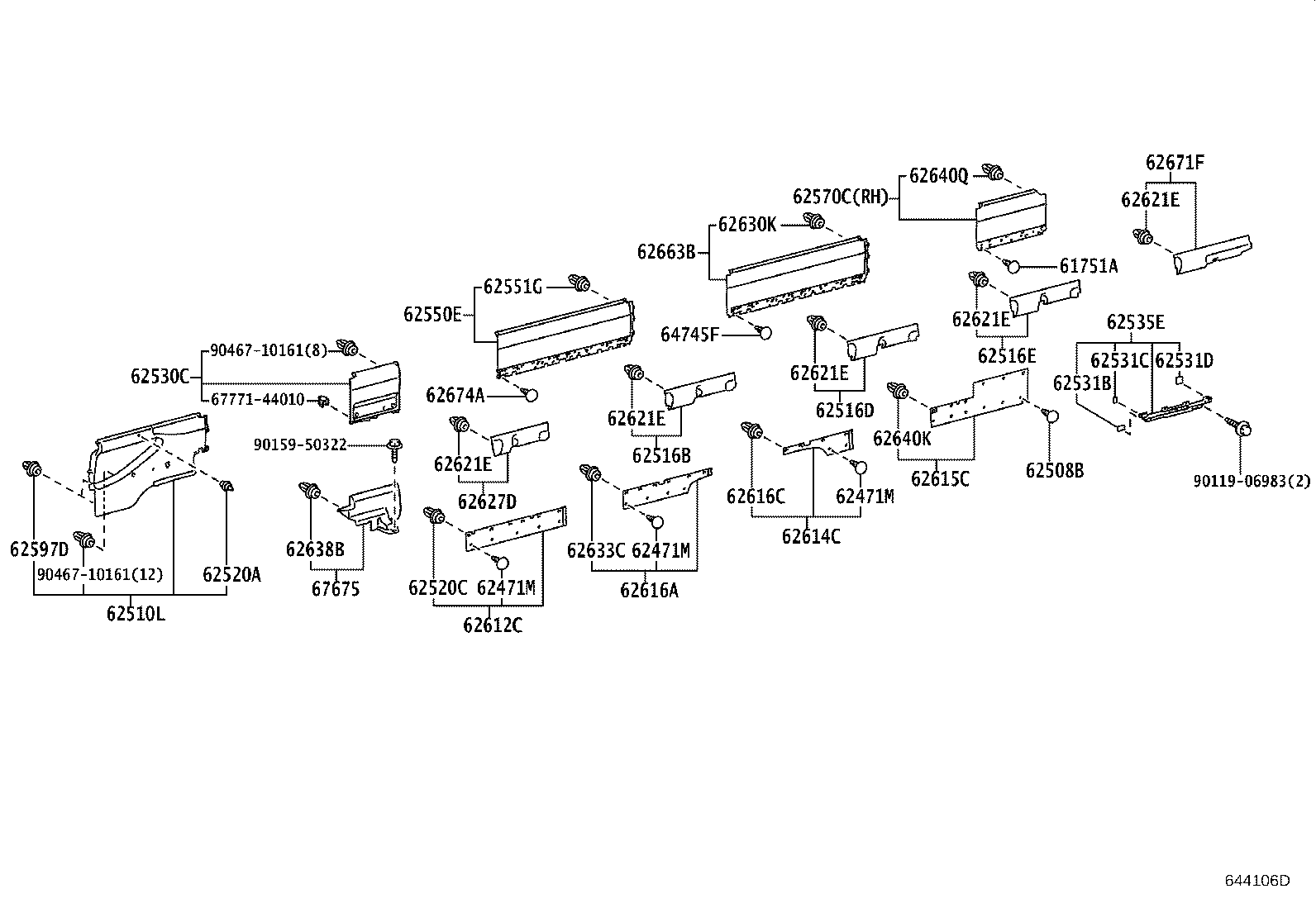

644106D

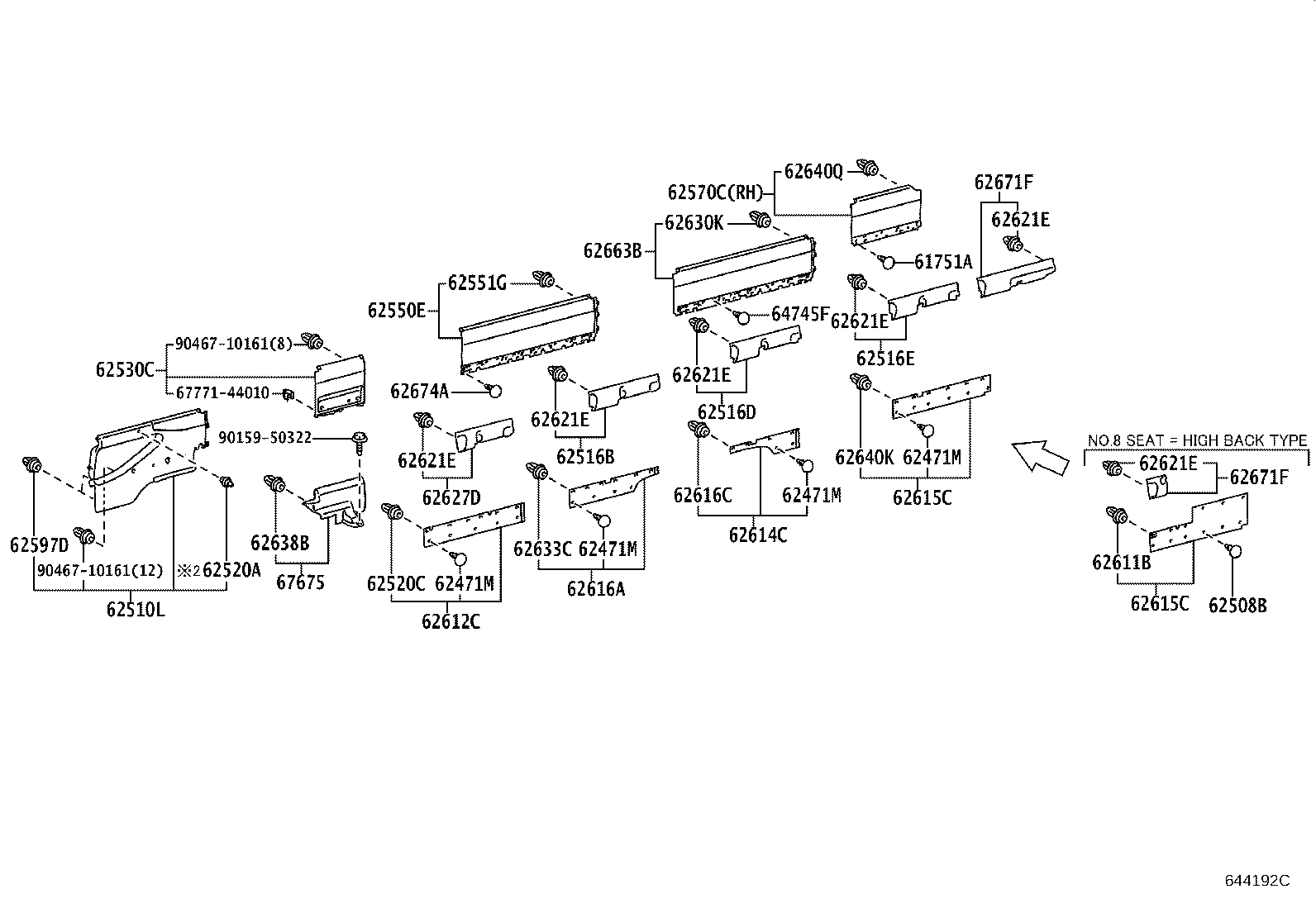

644192C

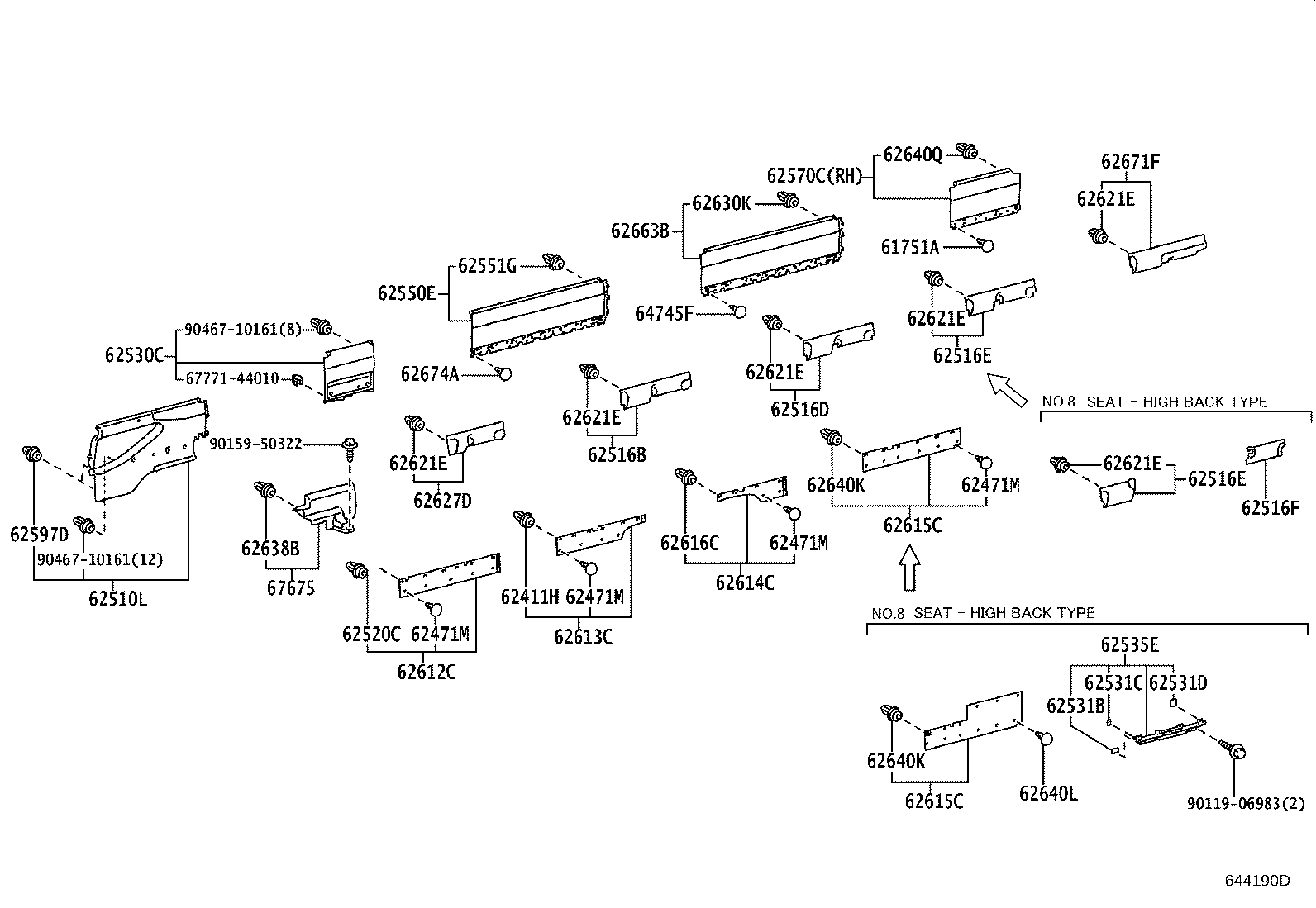

644190D

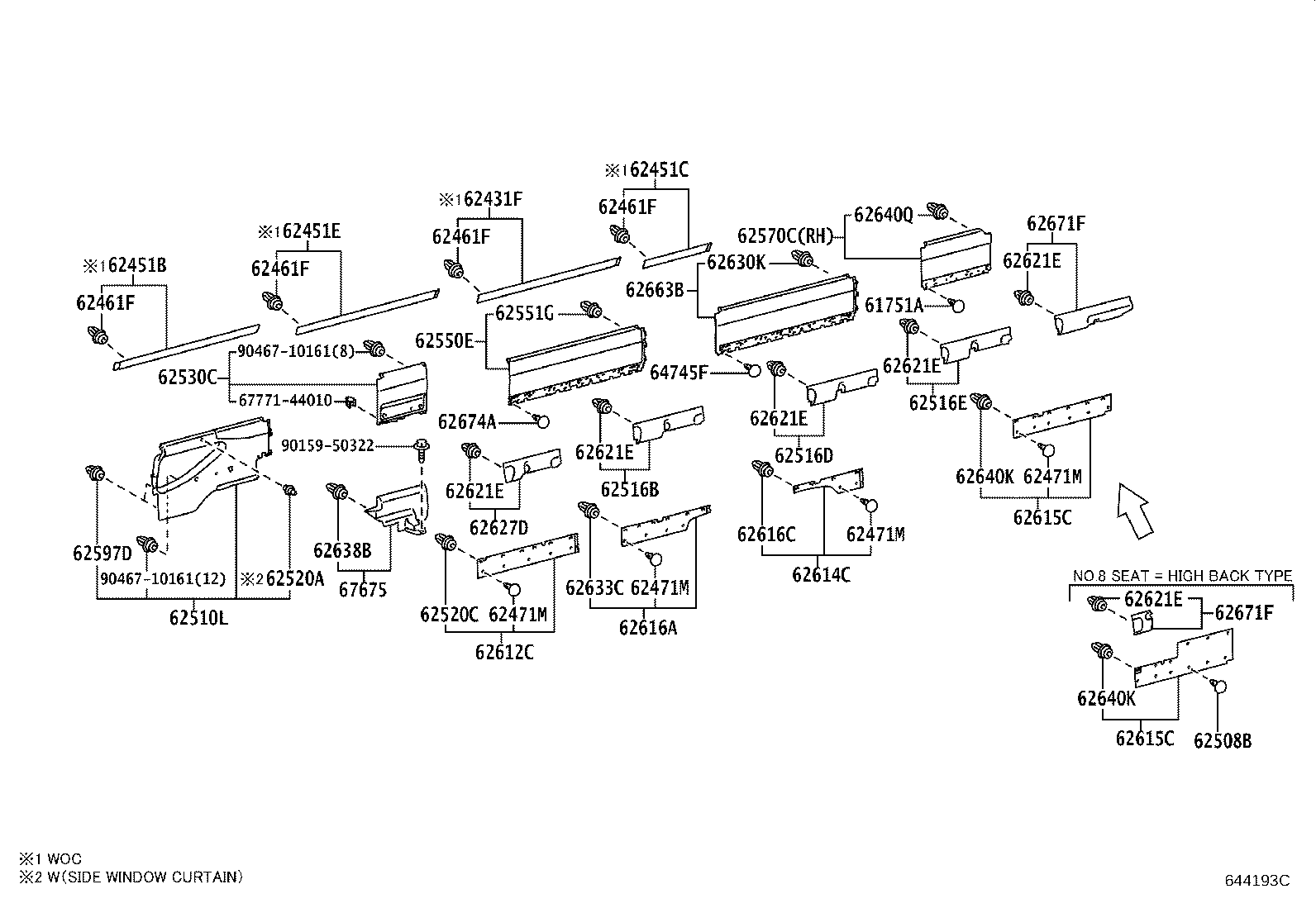

644193C

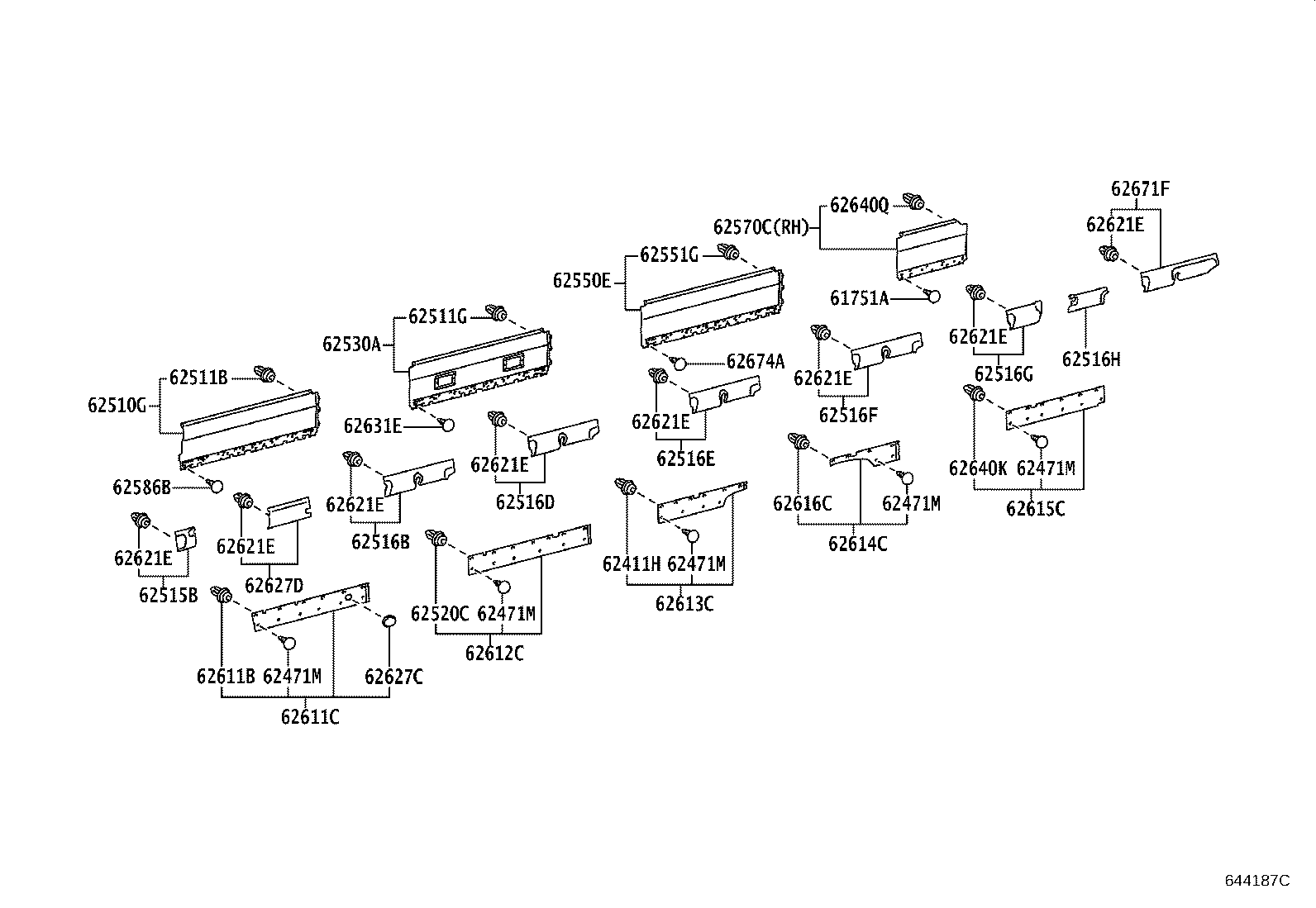

644187C

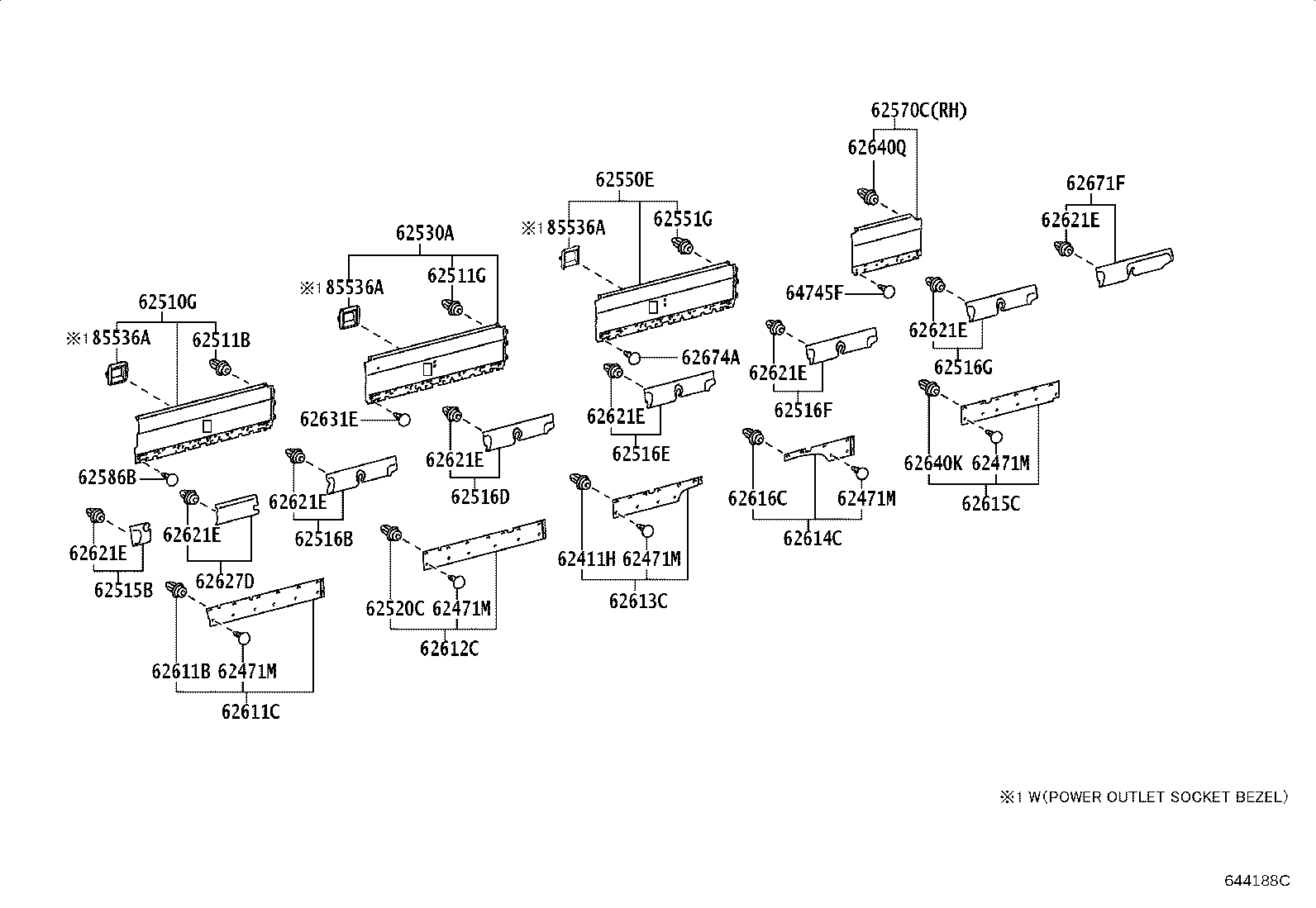

644188C

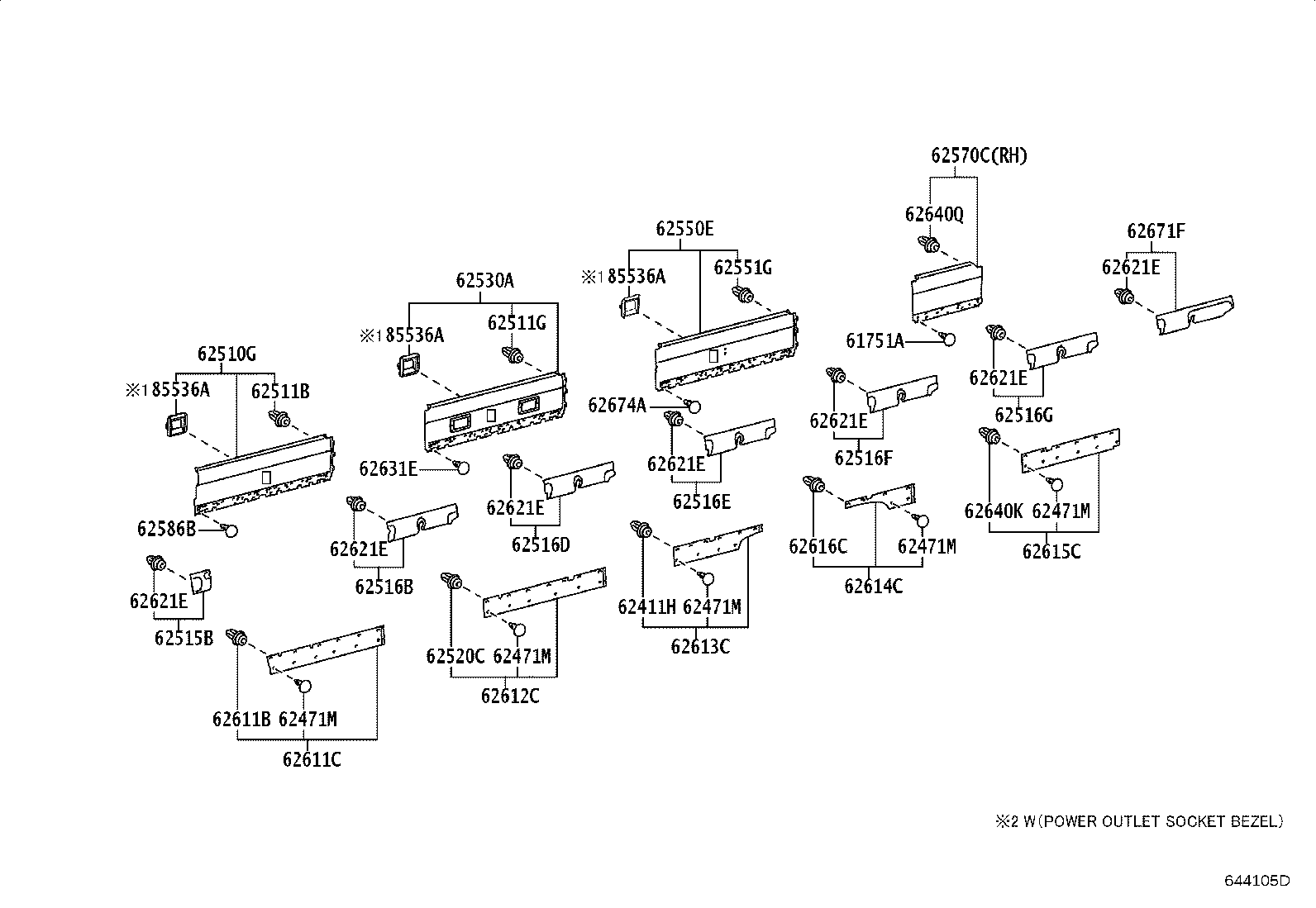

644105D

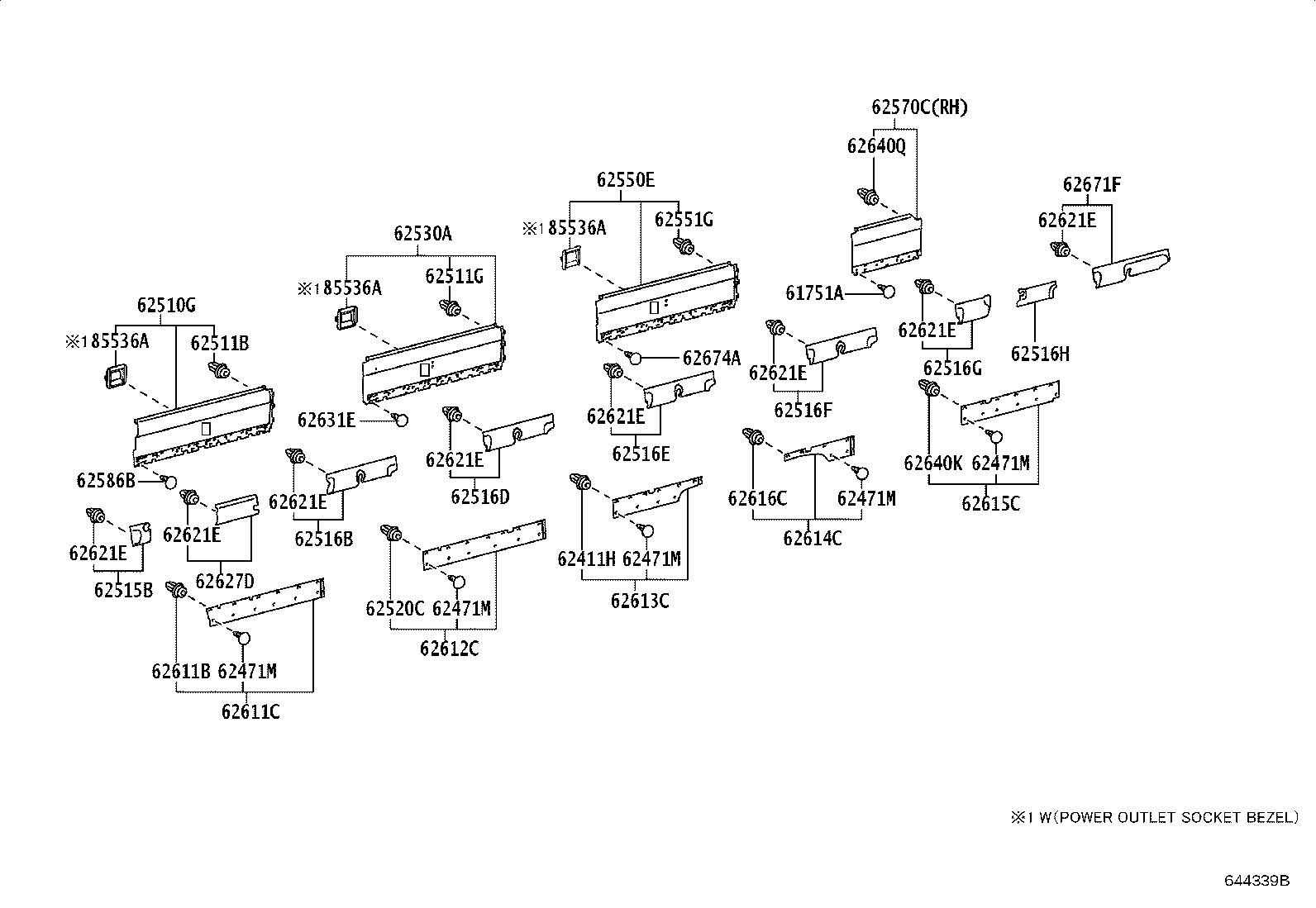

644339B

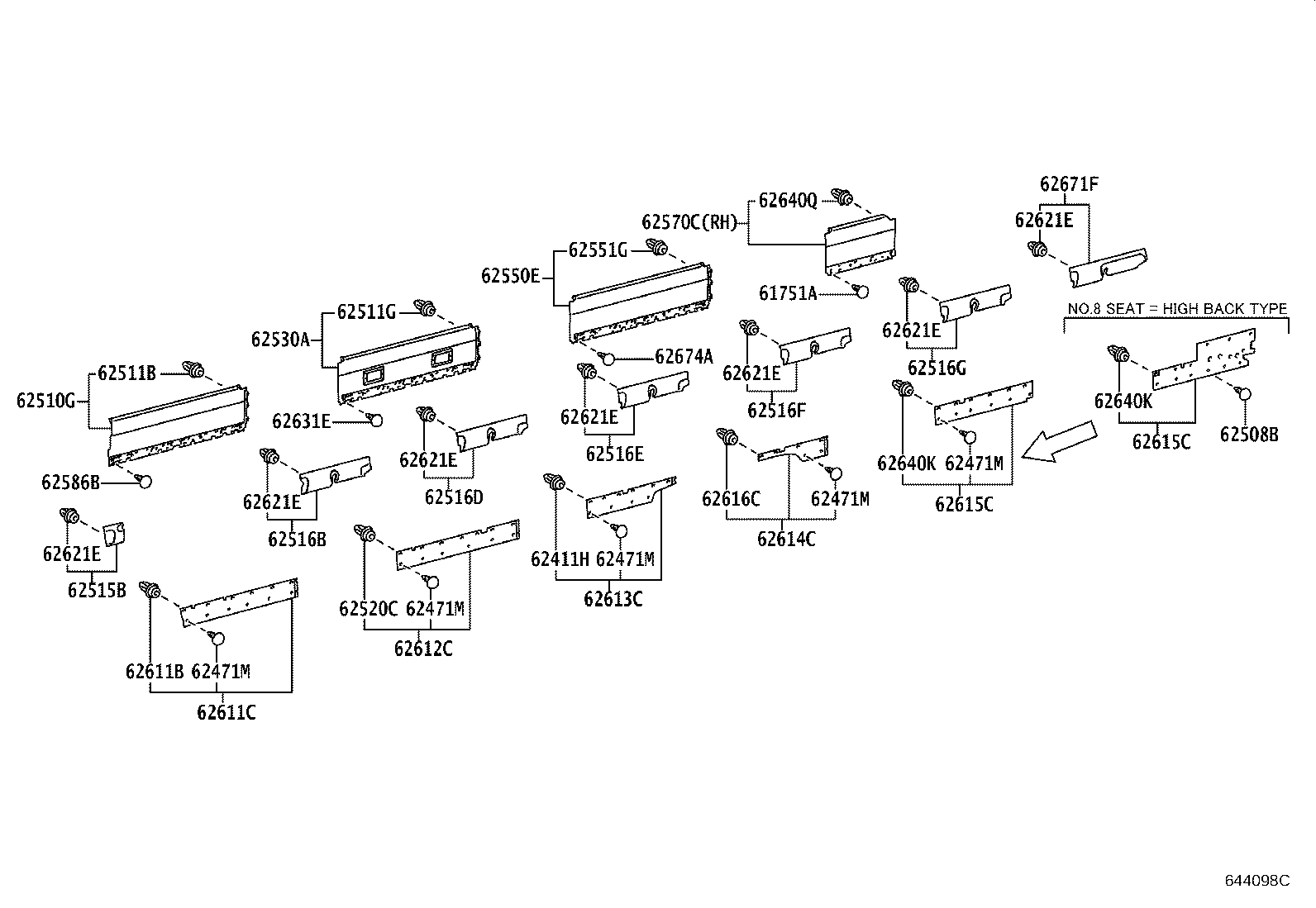

644098C

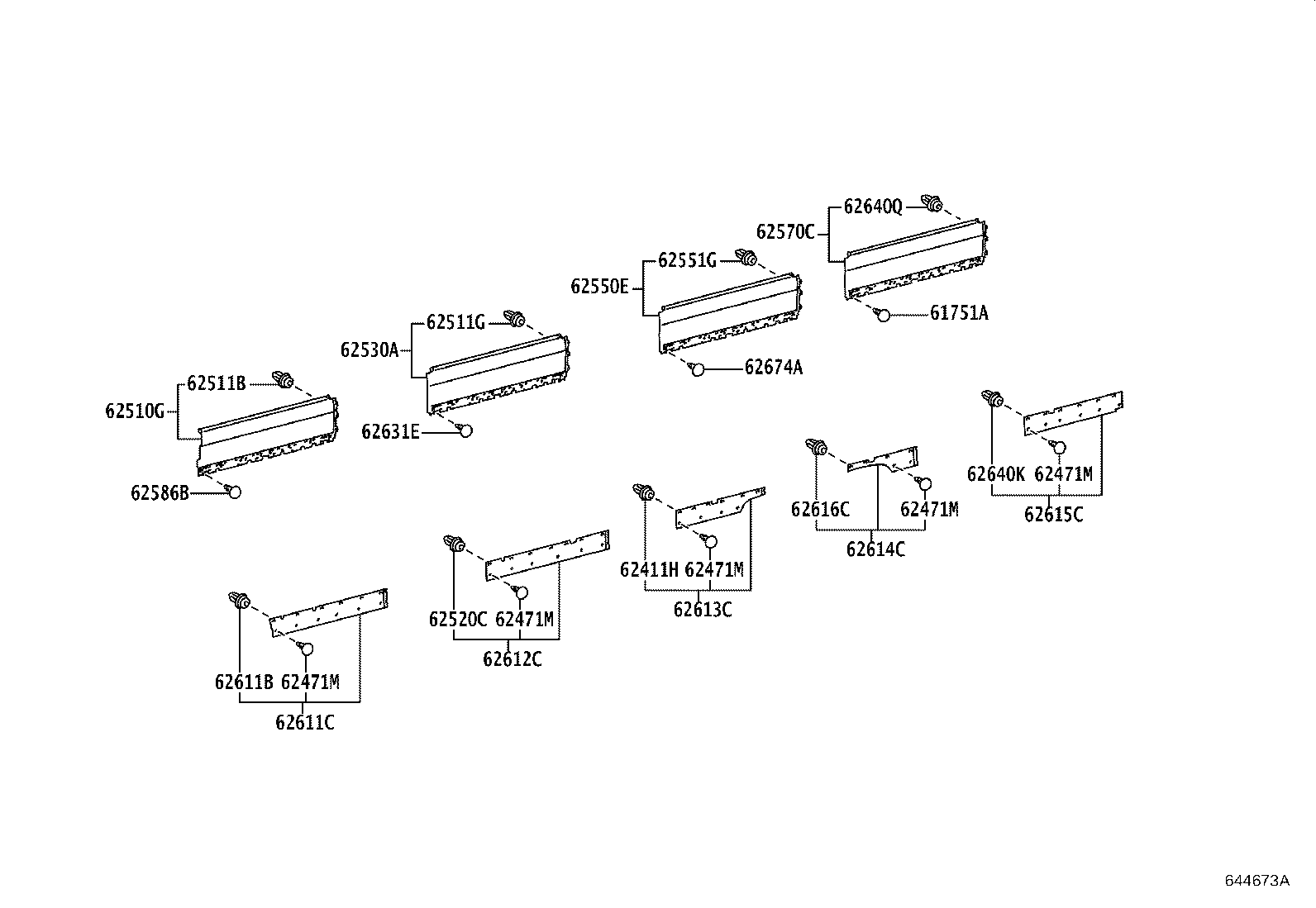

644673A

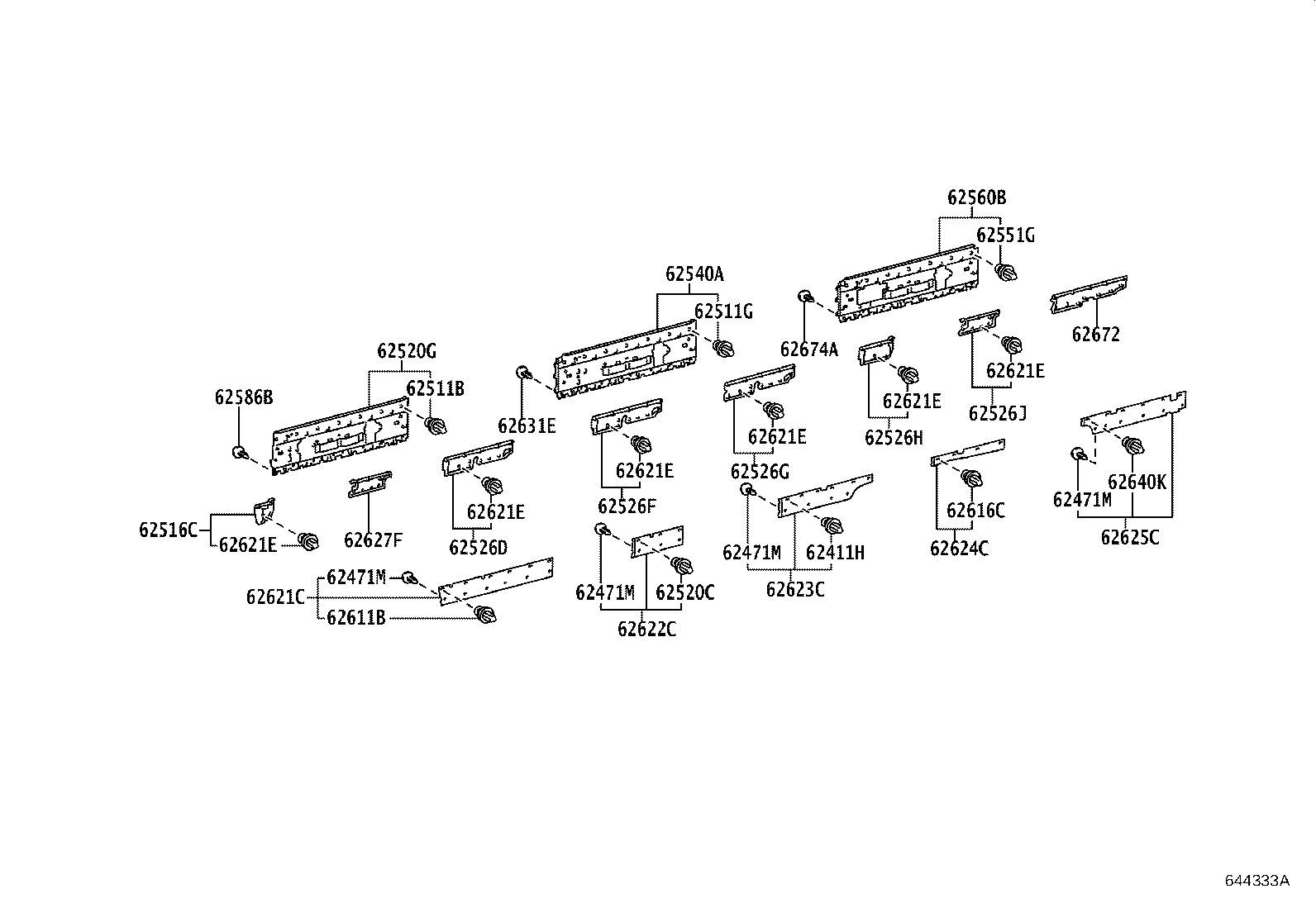

644333A

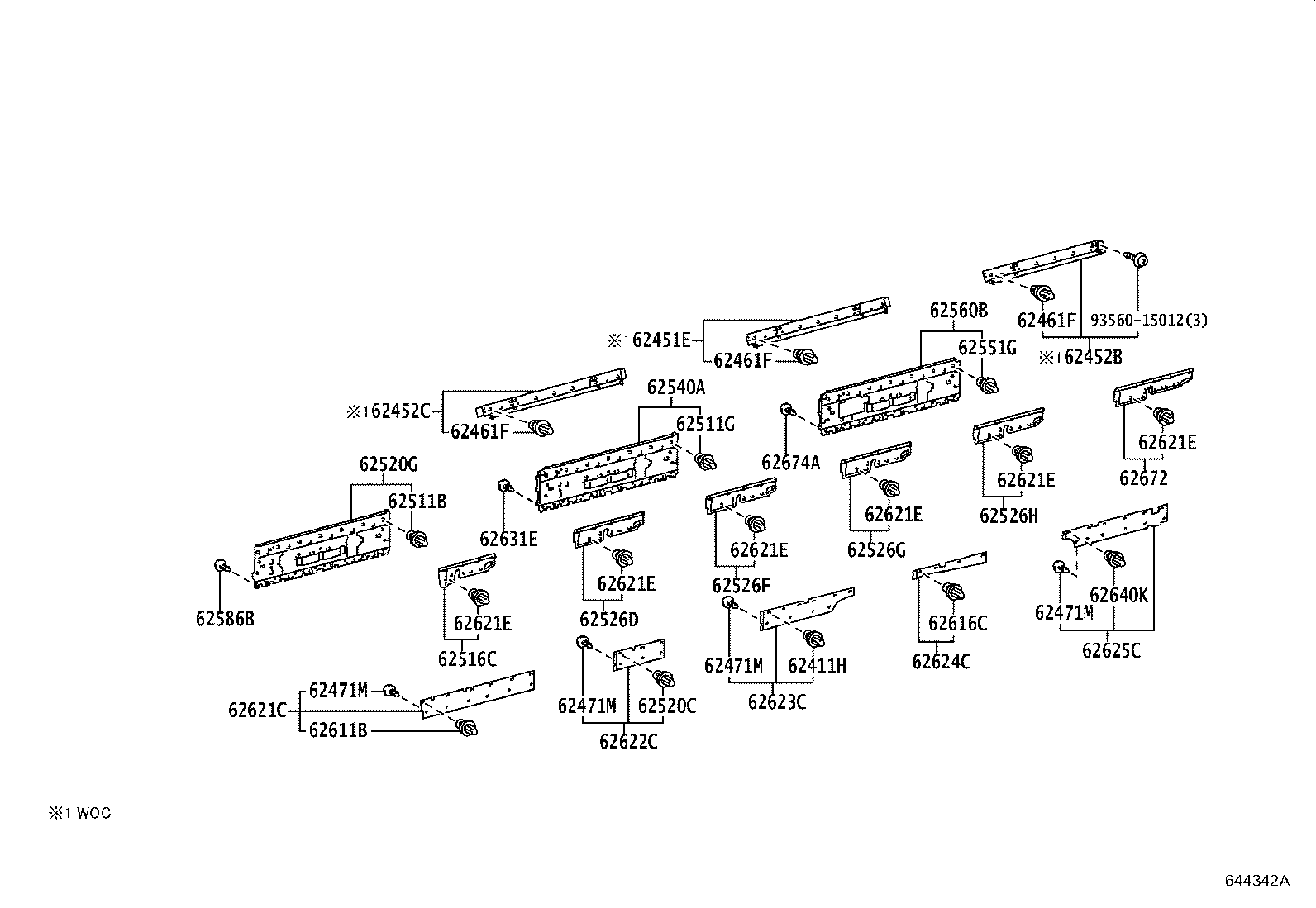

644342A

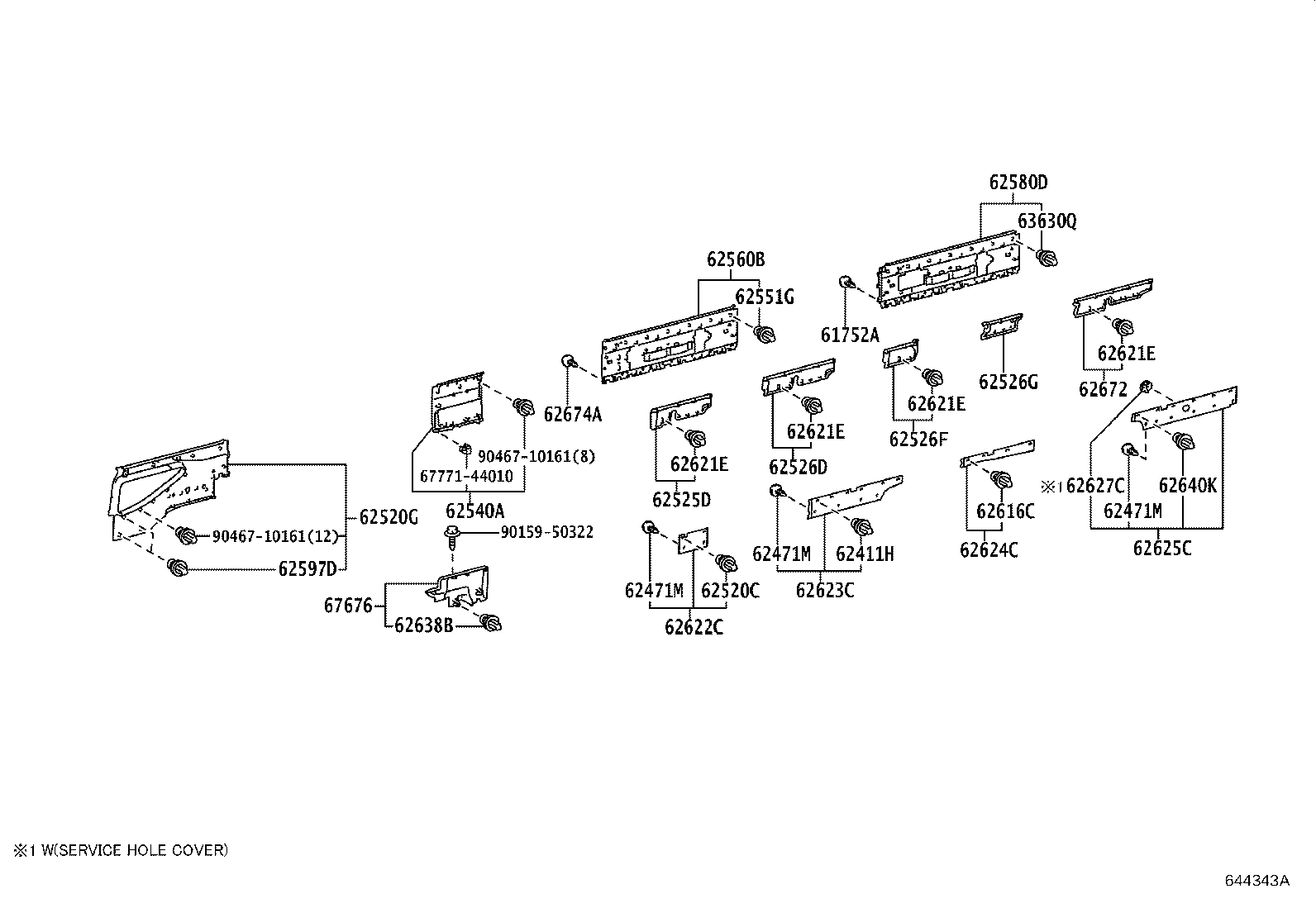

644343A

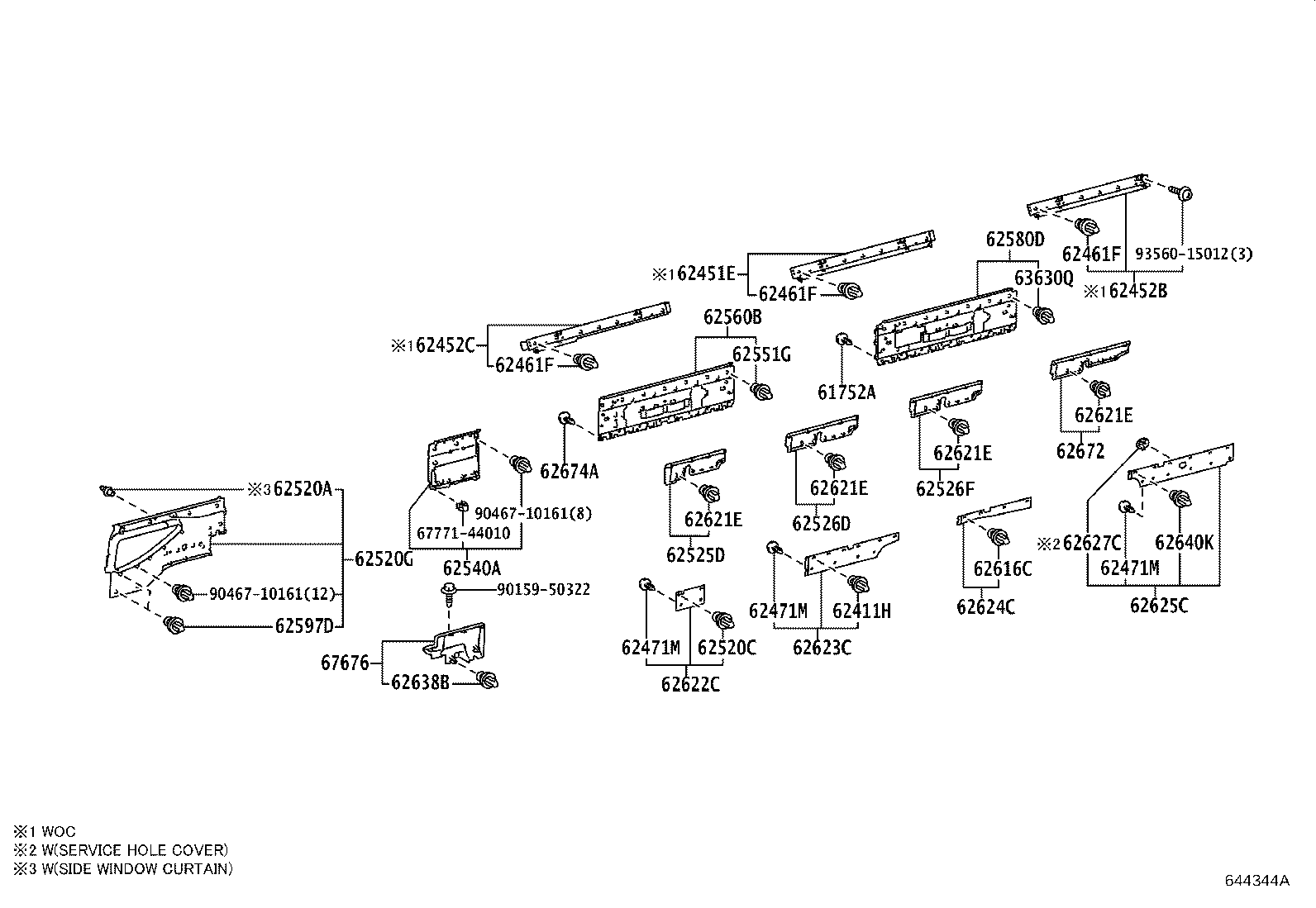

644344A

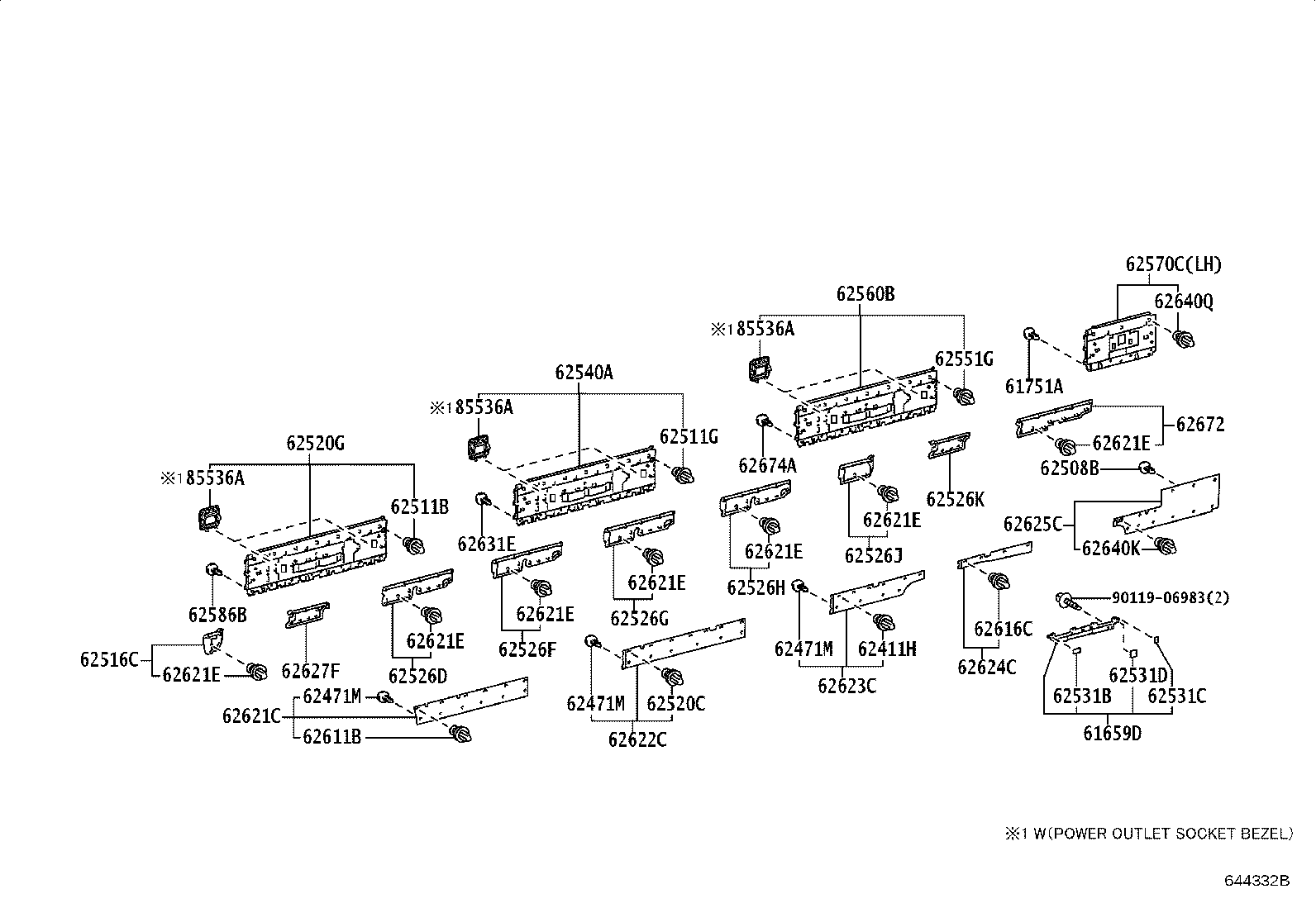

644332B

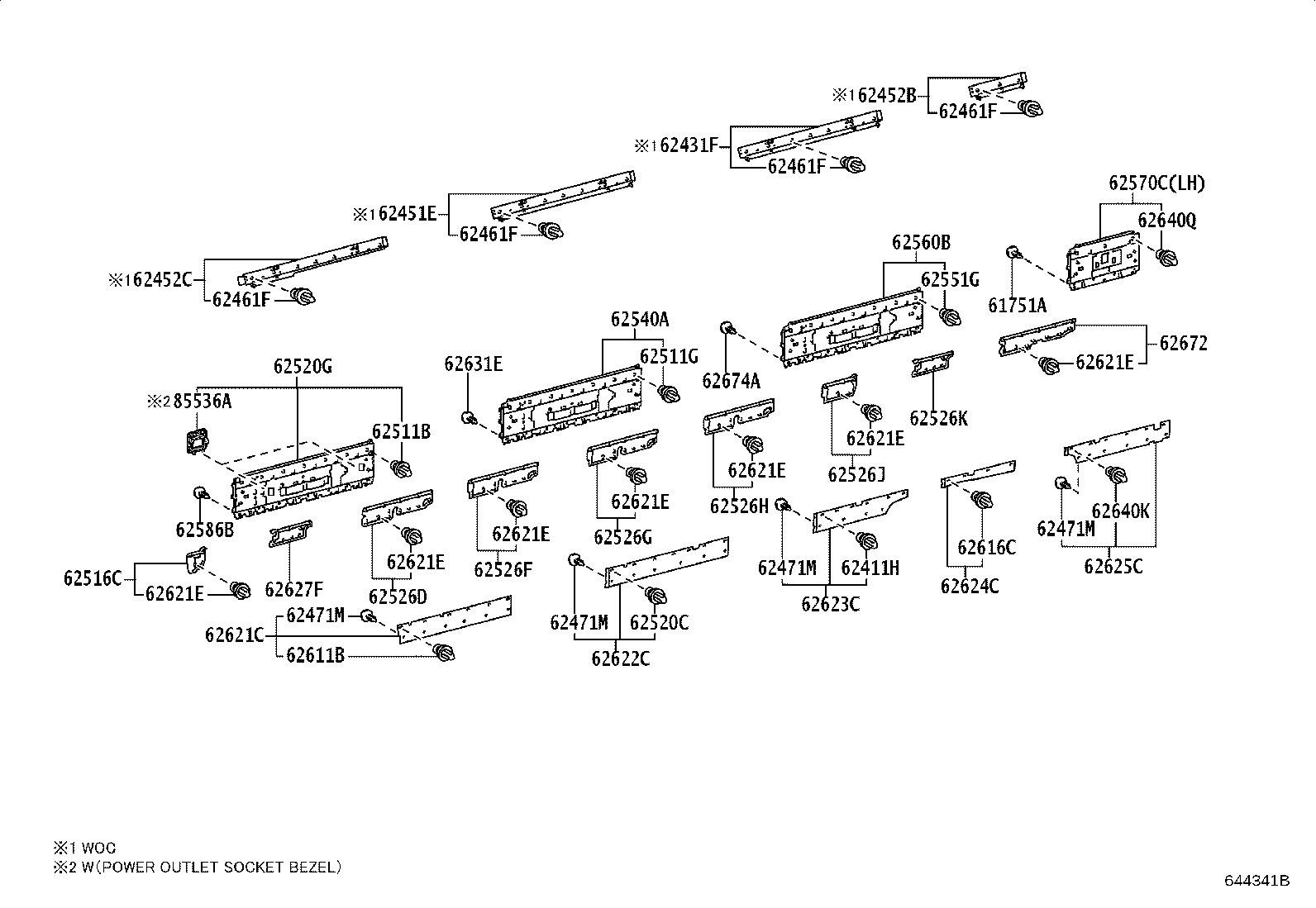

644341B

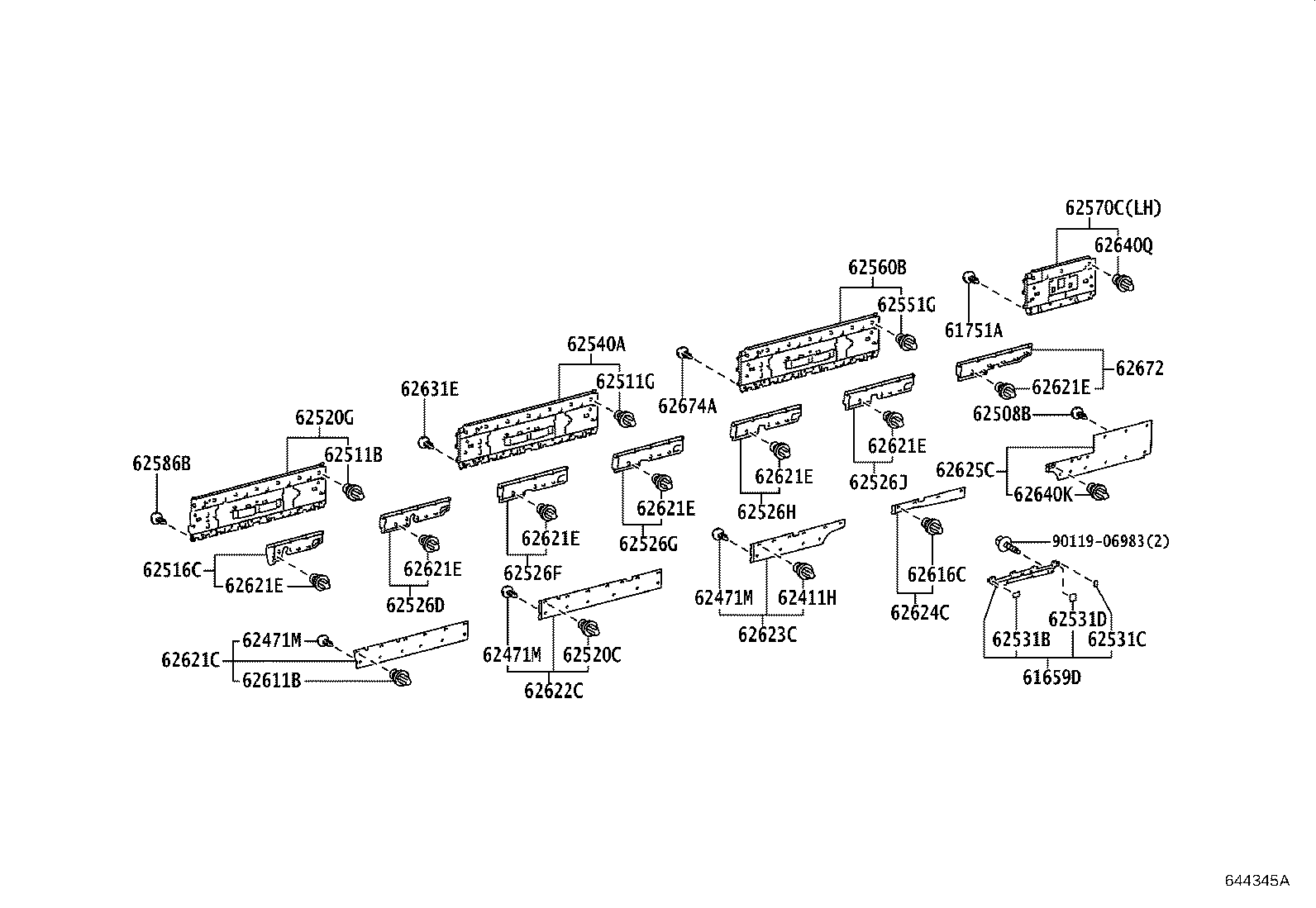

644345A

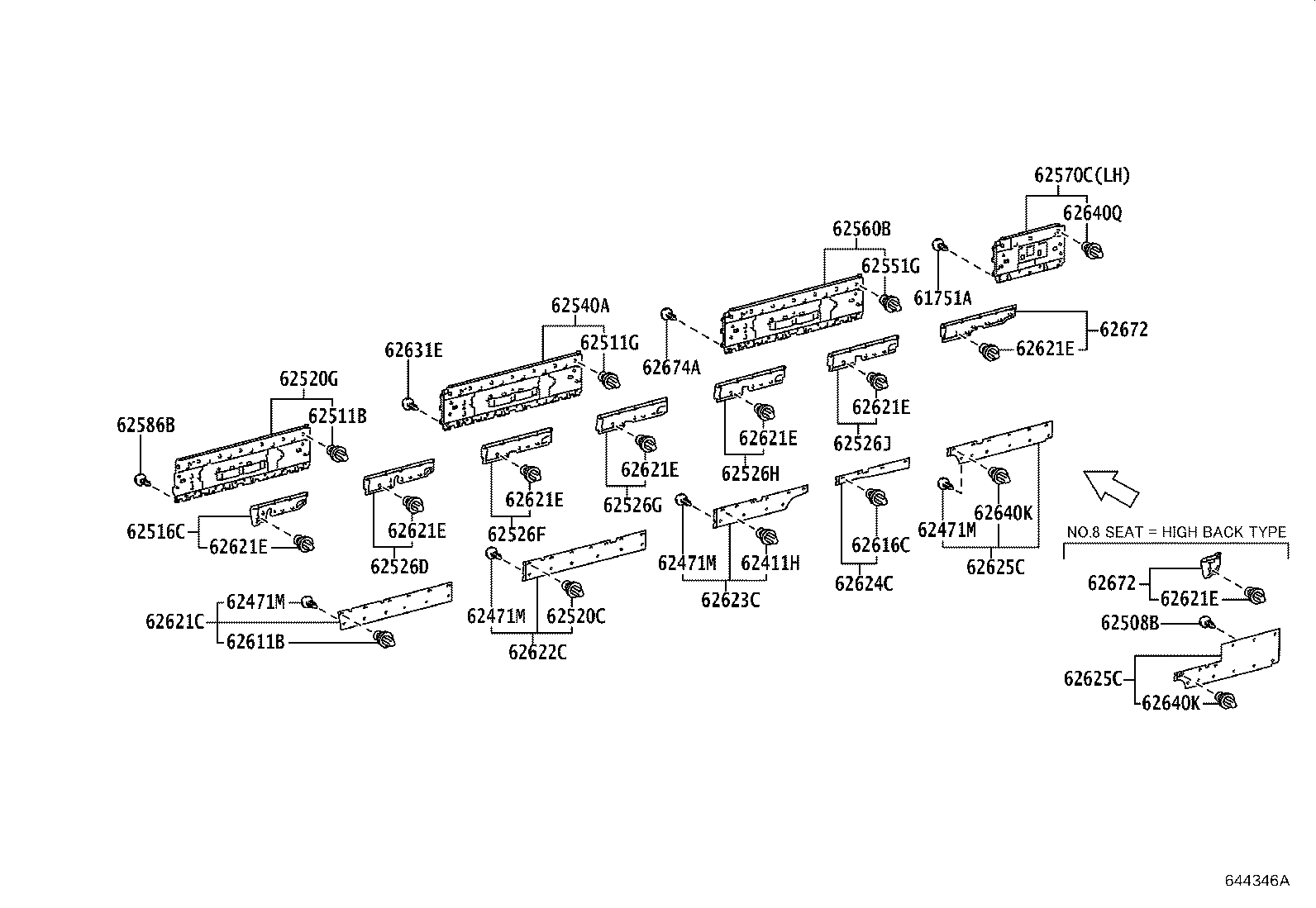

644346A

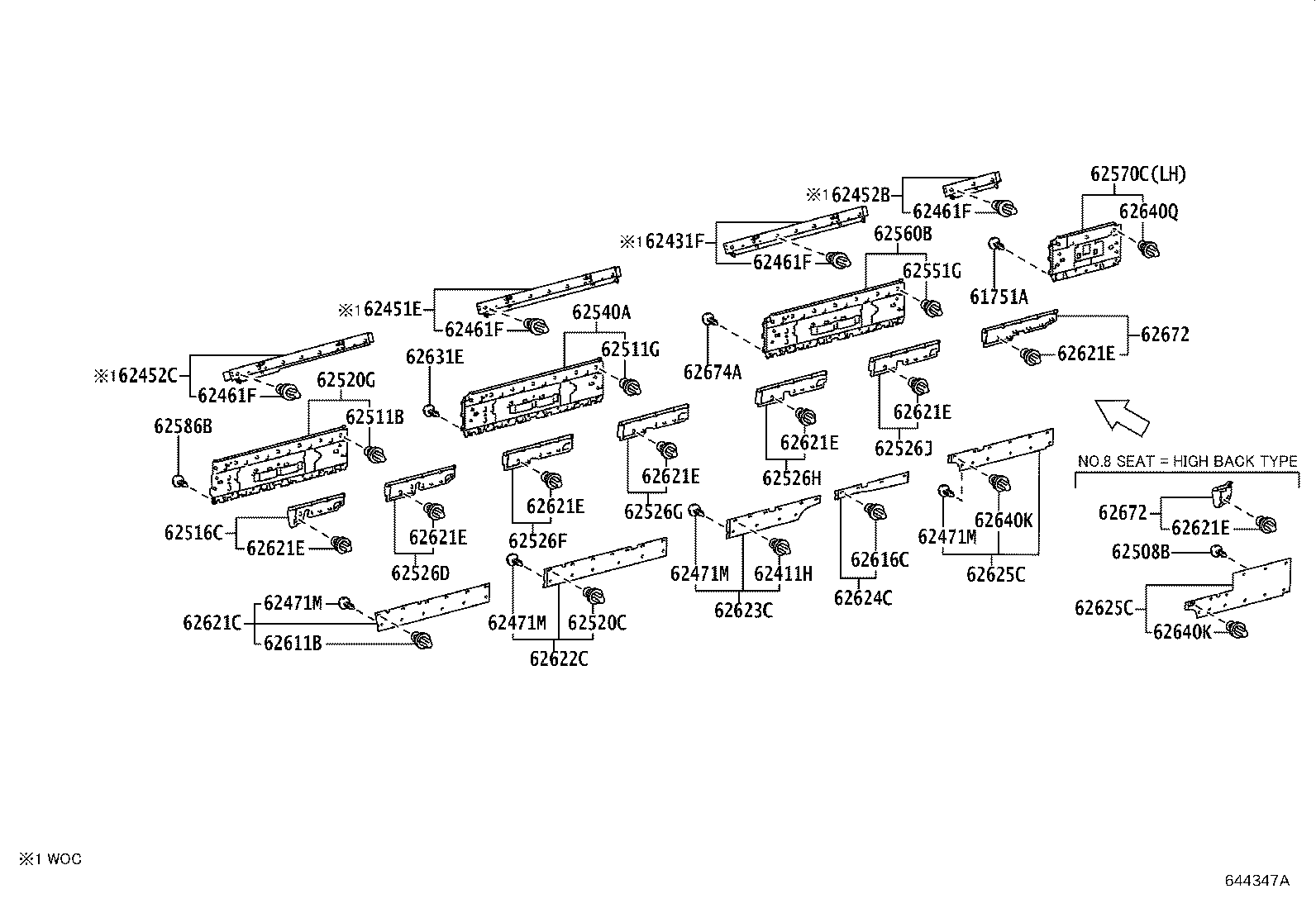

644347A

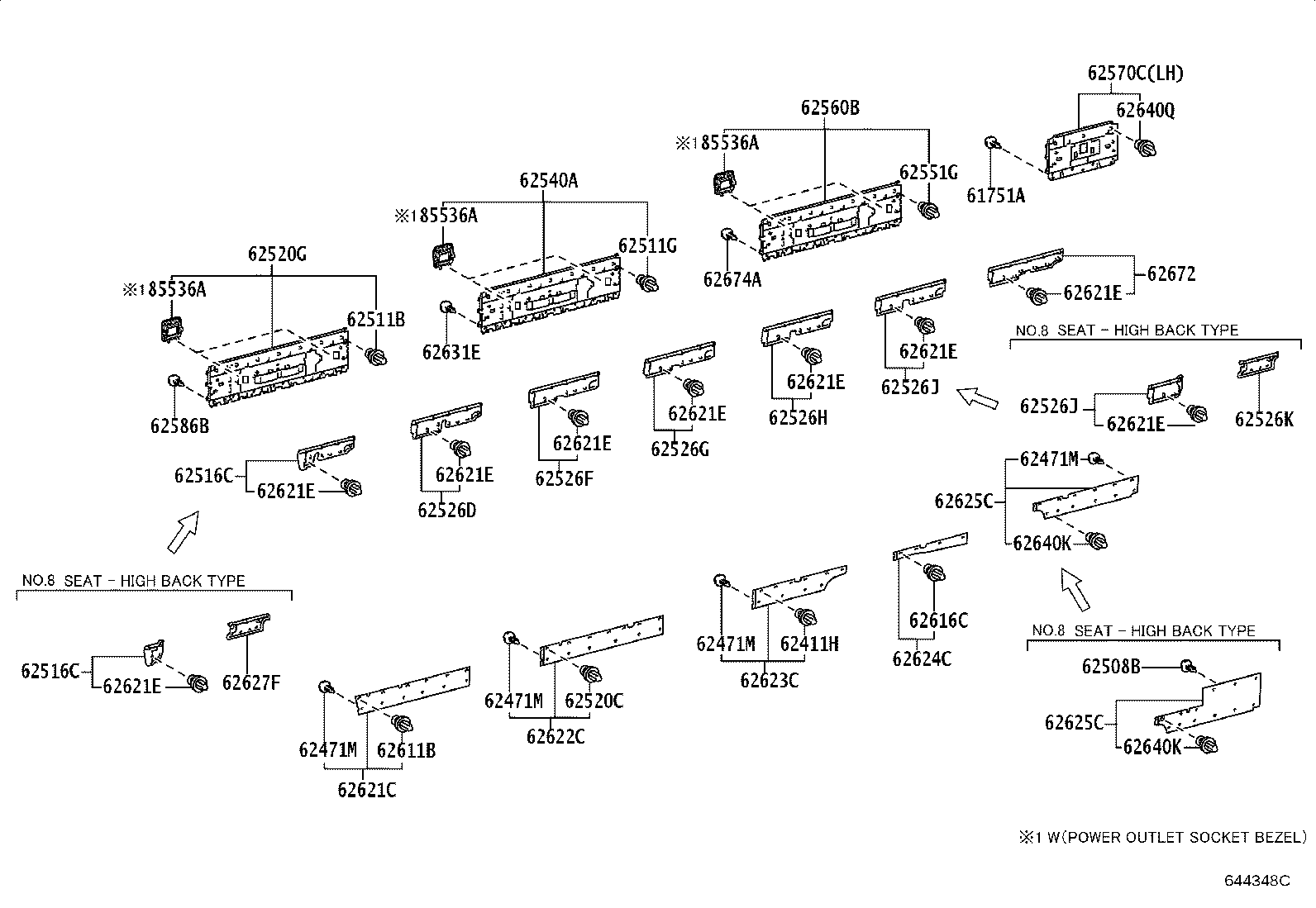

644348C

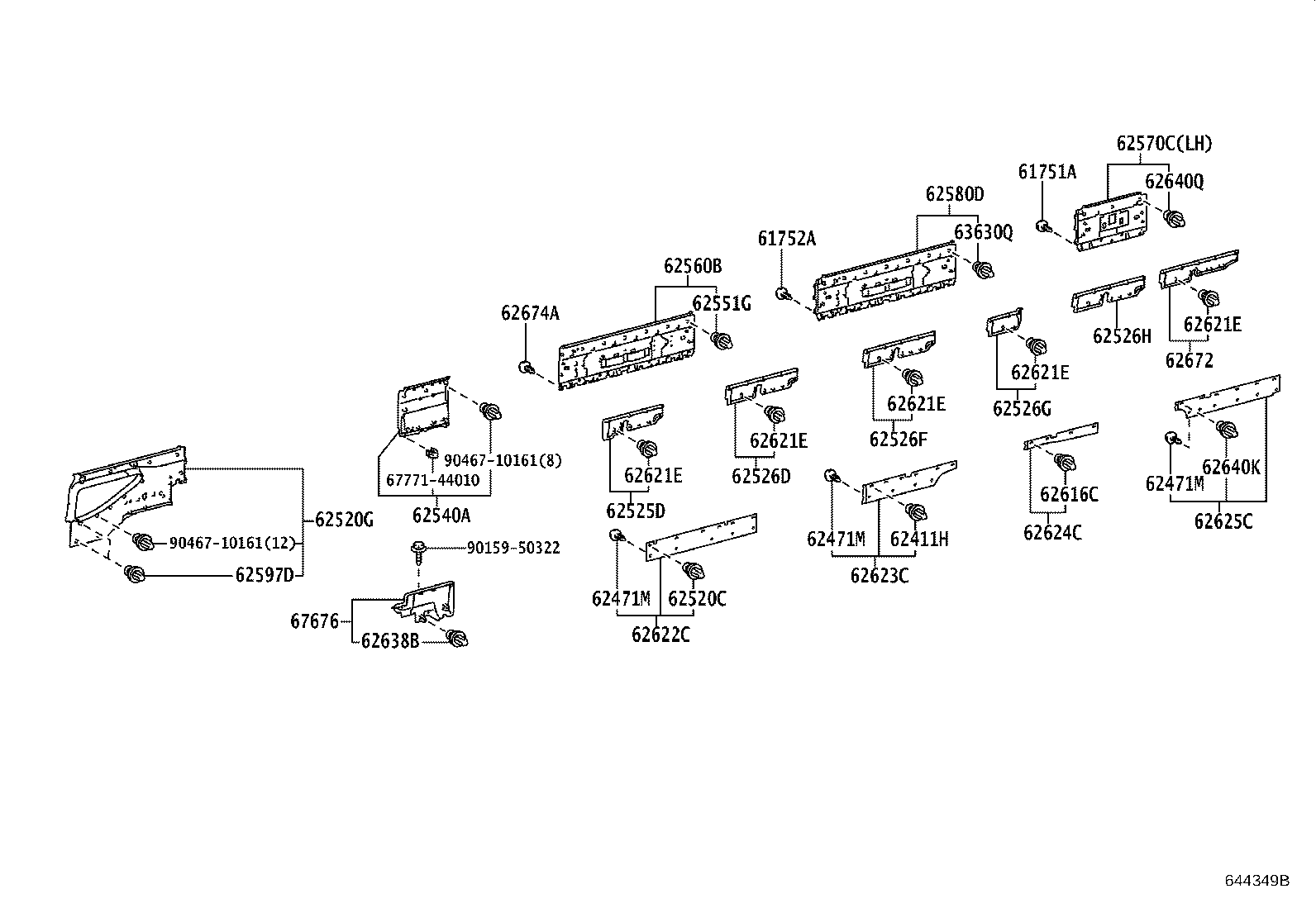

644349B

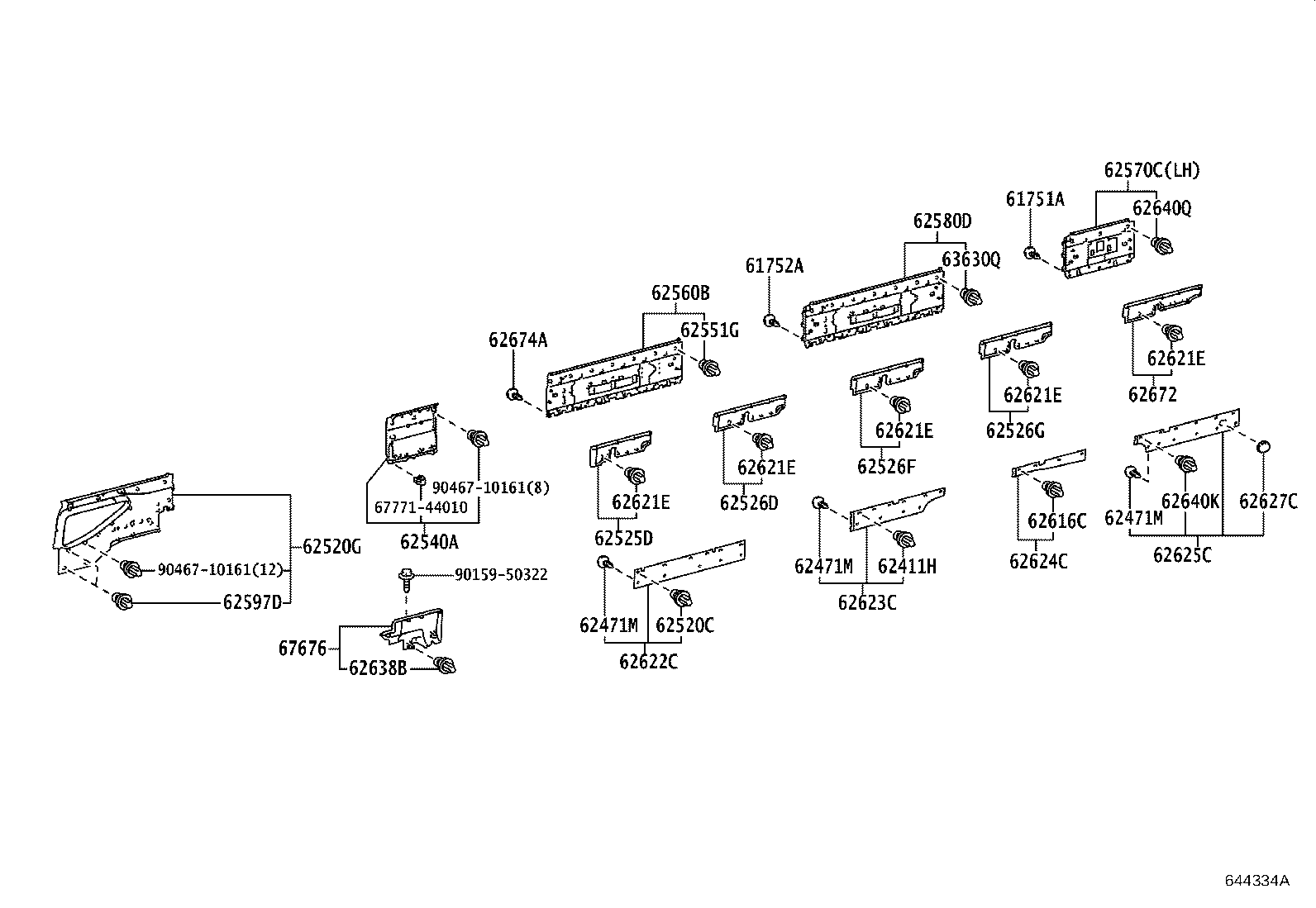

644334A

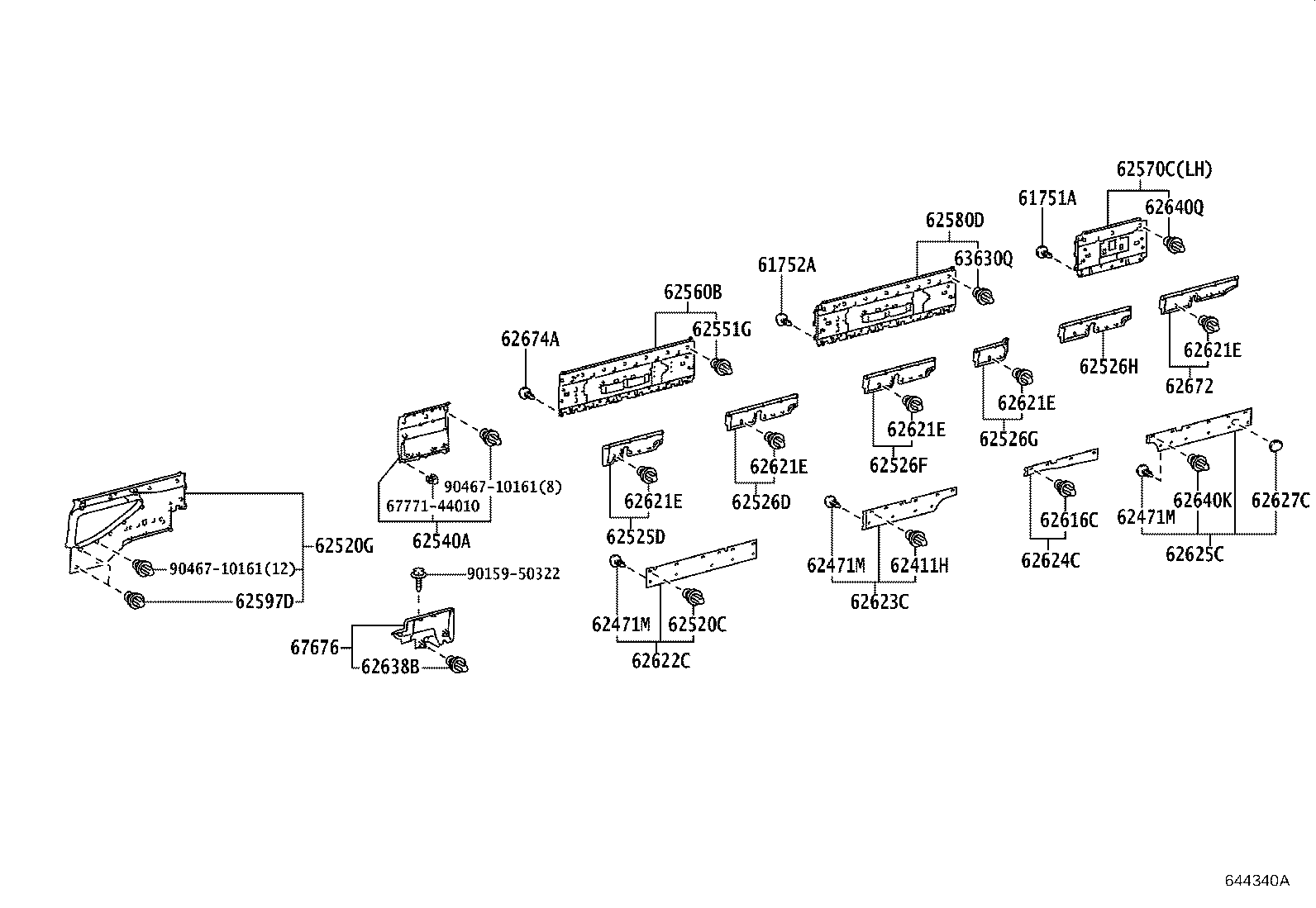

644340A

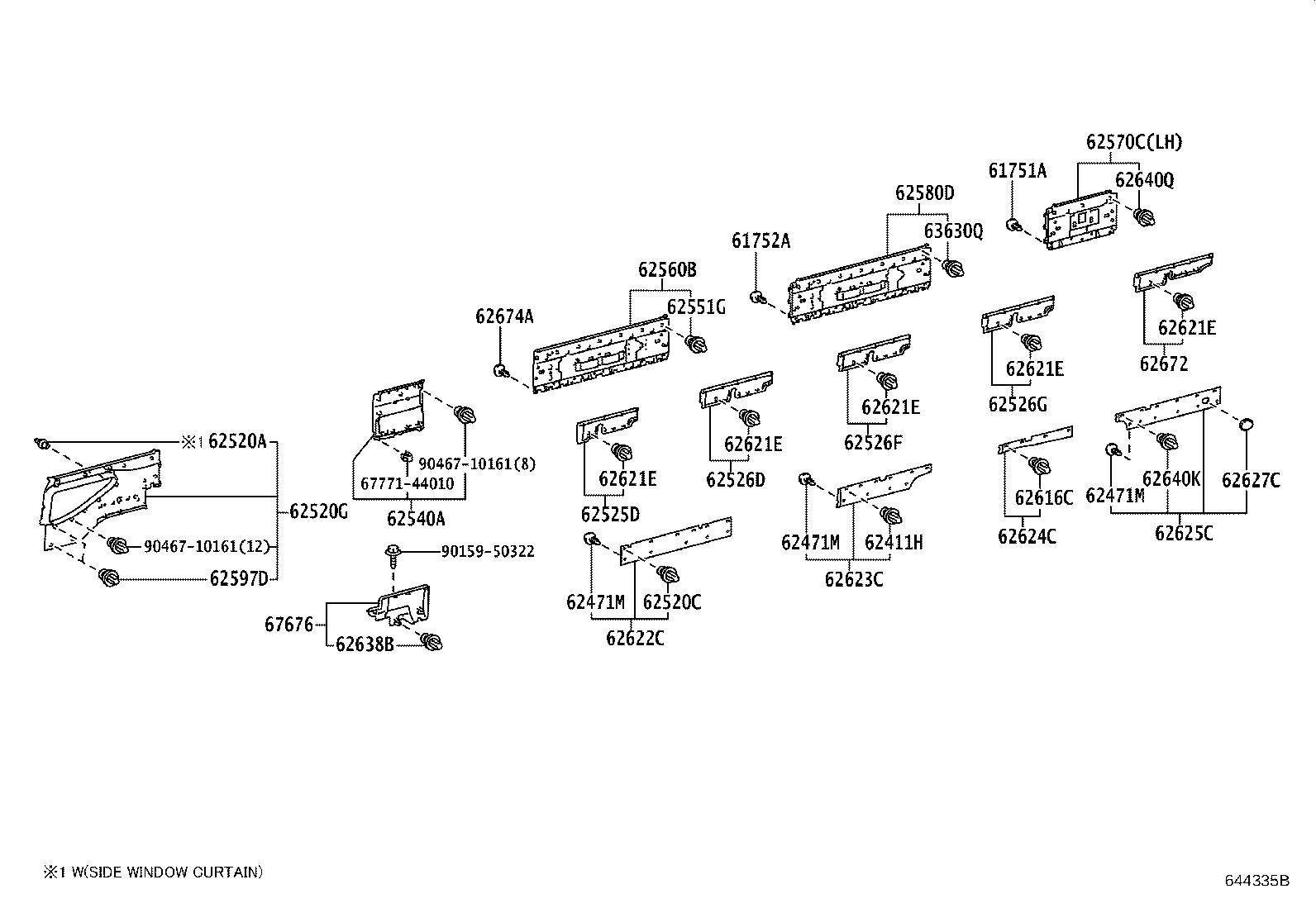

644335B

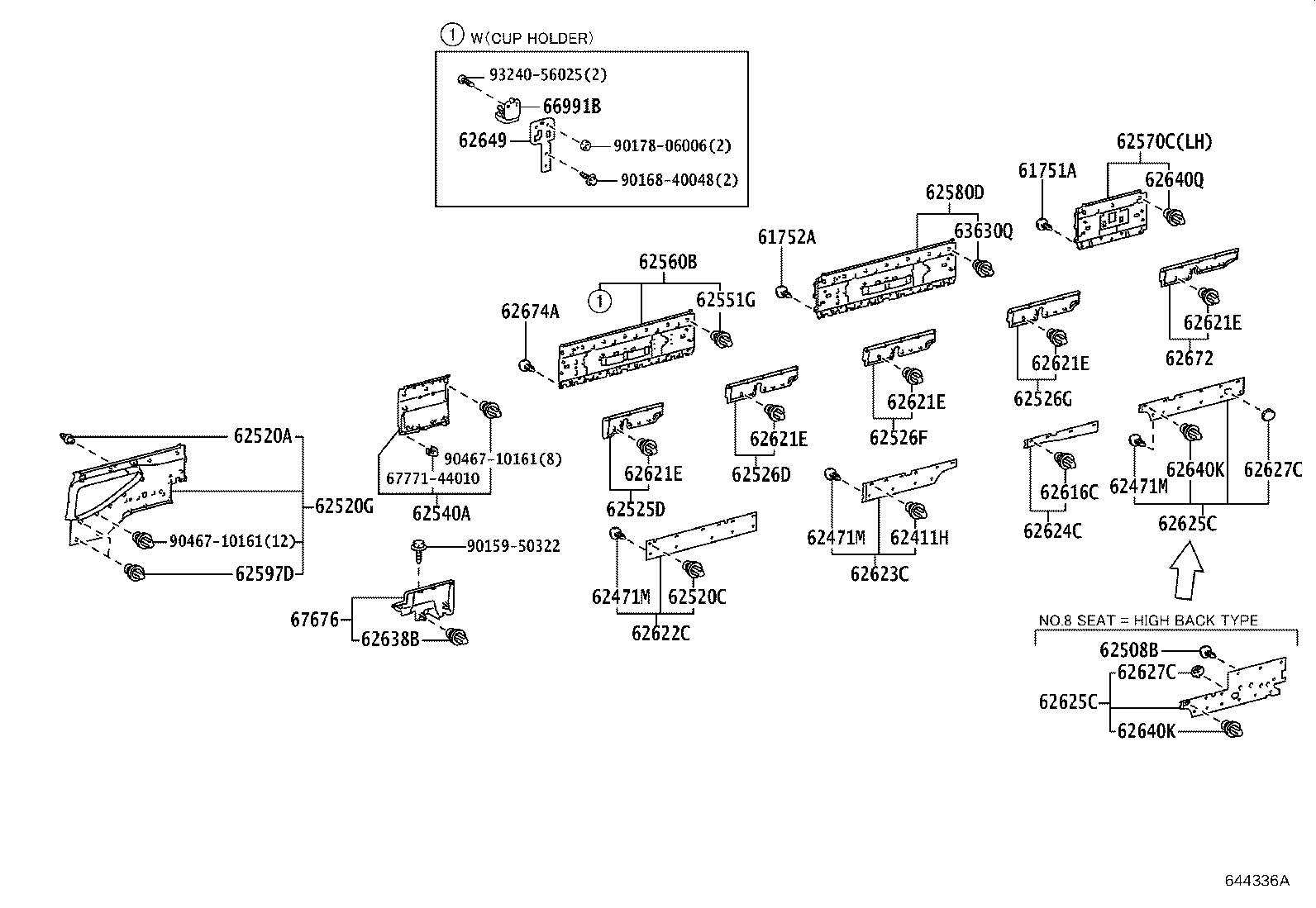

644336A

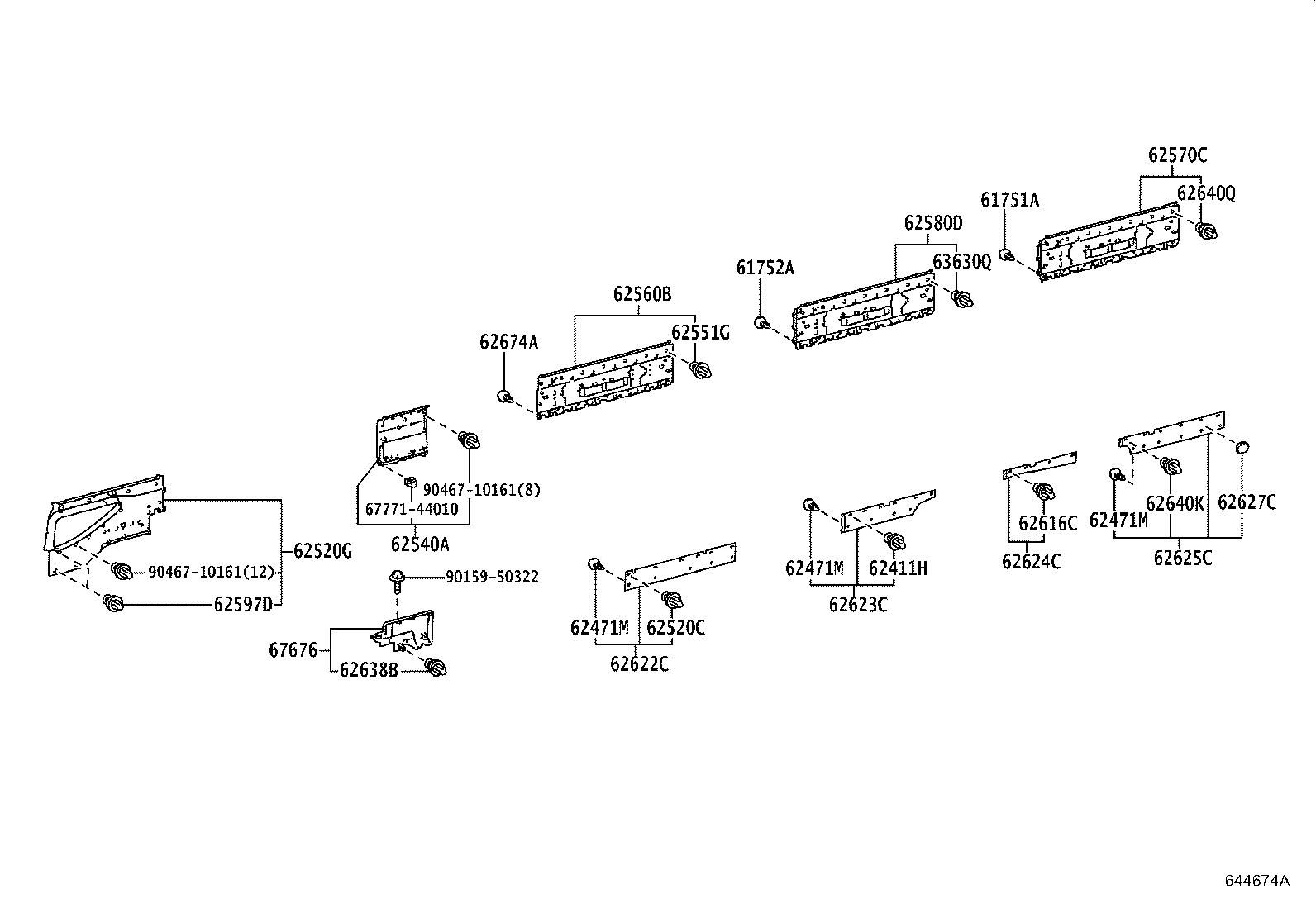

644674A

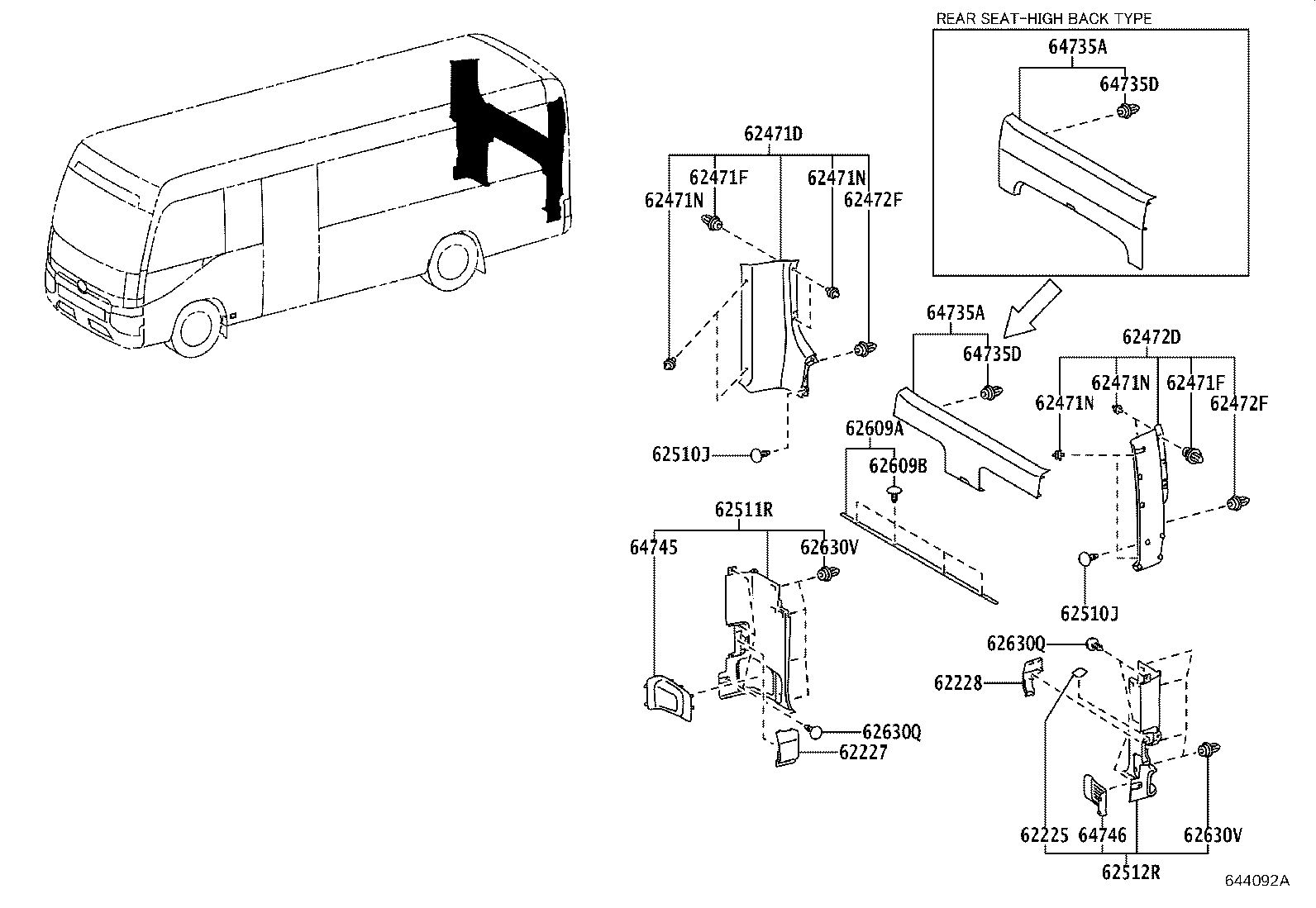

644092A

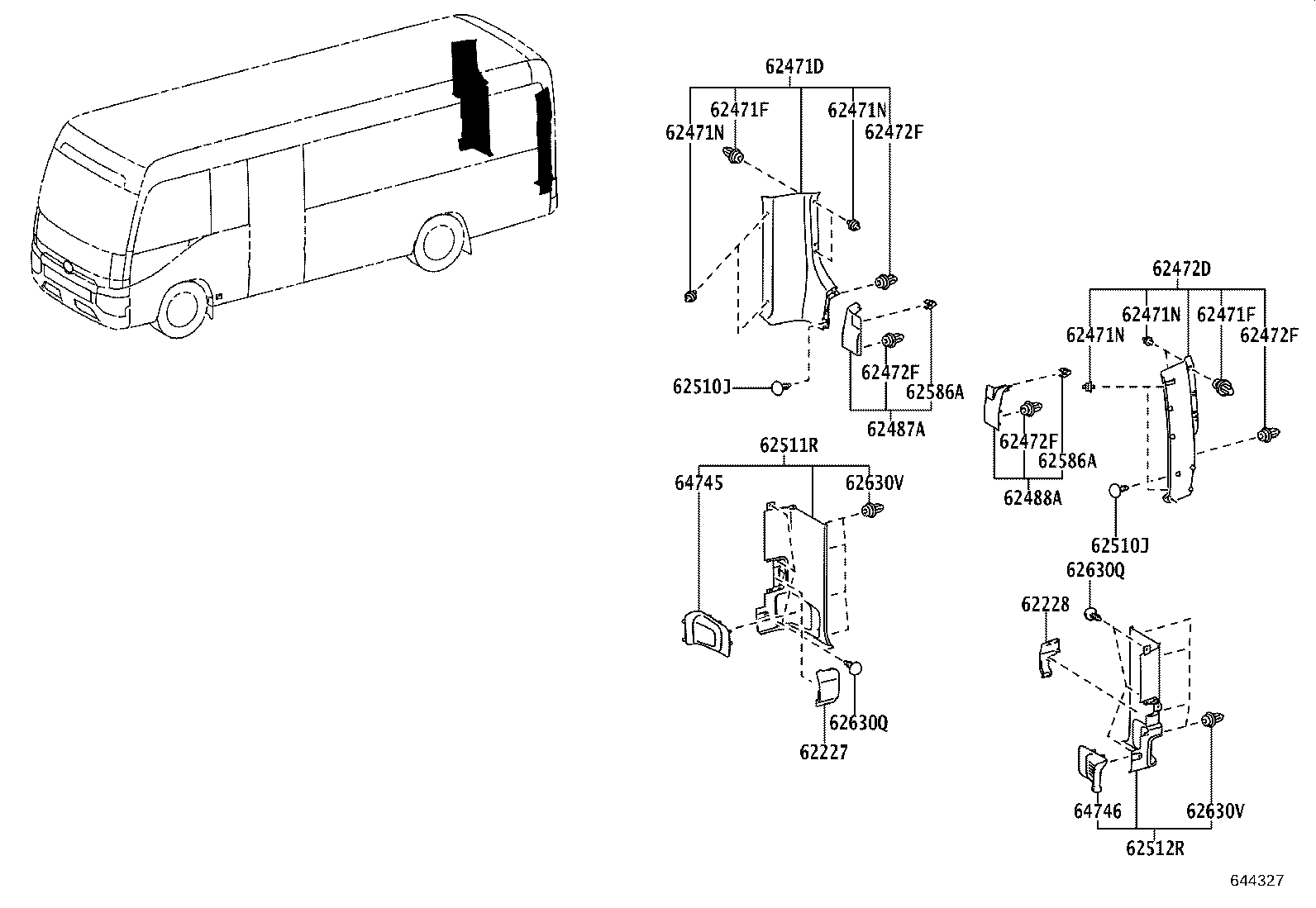

644327
Part groups
| PNC | Description |
|---|---|
| 61659D | Bracket, Deck Side Trim Lower, NO.3 |
| 61751A | Retainer, Quarter Trim, RH |
| 61752A | Retainer, Quarter Trim, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62225 | Cover, Quarter Inner |
| 62227 | Cover, Quarter Pillar, Lower, RH |
| 62228 | Cover, Quarter Pillar, Lower LH |
| 62401B | Fastener, Hook |
| 62411H | Clip |
| 62411J | Fastener(FOR CENTER PILLAR GARNISH) |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62425 | Cover, Center Pillar Garnish |
| 62431F | Garnish, Roof Side Rail |
| 62451B | Garnish, Roof Side Rail, NO.3 RH |
| 62451C | Garnish, Roof Side Rail, Rear RH |
| 62451E | Garnish, Roof Side Rail, Rear |
| 62452B | Garnish, Roof Side Rail, NO.3 LH |
| 62452C | Garnish, Roof Side Rail, Rear LH |
| 62457 | Cover, Roof Side Rail Garnish |
| 62461F | Clip (FOR ROOF SIDE TRIM GARNISH) |
| 62471D | Garnish, Rear Pillar, Upper RH |
| 62471F | Clip (FOR ROOF SIDE, INNER UPPER GARNISH) |
| 62471M | Clip |
| 62471N | Fastener(FOR REAR PILLAR GARNISH) |
| 62472D | Garnish, Rear Pillar, Upper LH |
| 62472F | Clip(FOR REAR PILLAR GARNISH) |
| 62487A | Cover, Roof Side Inner Garnish, RH |
| 62488A | Cover, Roof Side Inner Garnish, LH |
| 62508B | Clip |
| 62510G | Trim Assy, Side NO.1, RH |
| 62510J | Retainer, Quarter Trim |
| 62510L | Trim Assy, Side NO.1 |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511G | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511R | Trim, Rear Body Inside, Rear RH |
| 62512R | Trim, Rear Body Inside, Rear LH |
| 62515B | Cover, Side Trim Base, NO.1 RH |
| 62516B | Cover, Side Trim Base, NO.2 RH |
| 62516C | Cover, Side Trim Base, NO.1 LH |
| 62516D | Cover, Side Trim Base, NO.3 RH |
| 62516E | Cover, Side Trim Base, NO.4 RH |
| 62516F | Cover, Side Trim Base, NO.5 RH |
| 62516G | Cover, Side Trim Base, NO.6 RH |
| 62516H | Cover, Side Trim Base, NO.7 RH |
| 62520A | Fastener, Hook |
| 62520C | Clip, Quarter Trim Board, NO.1 |
| 62520G | Trim Assy, Side NO.1, LH |
| 62525D | Cover, Side Trim Base, NO.1 LH |
| 62526D | Cover, Side Trim Base, NO.2 LH |
| 62526F | Cover, Side Trim Base, NO.3 LH |
| 62526G | Cover, Side Trim Base, NO.4 LH |
| 62526H | Cover, Side Trim Base, NO.5 LH |
| 62526J | Cover, Side Trim Base, NO.6 LH |
| 62526K | Cover, Side Trim Base, NO.7 LH |
| 62530A | Trim Assy, Side NO.2, RH |
| 62530C | Trim Assy, Side NO.2 |
| 62531B | Pad, Side Trim Base, NO.1 |
| 62531C | Pad, Side Trim Base, NO.2 |
| 62531D | Pad, Side Trim Base, NO.3 |
| 62533F | Bracket, Quarter Trim Panel, NO.1 RH |
| 62535E | Bracket, Side Trim, NO.3 |
| 62536B | Garnish, Pillar NO.2, RH |
| 62537B | Garnish, Pillar NO.3, RH |
| 62538B | Garnish, Pillar NO.4, RH |
| 62539B | Garnish, Pillar NO.5, RH |
| 62540A | Trim Assy, Side NO.2, LH |
| 62546B | Garnish, Pillar NO.2, LH |
| 62547B | Garnish, Pillar NO.3, LH |
| 62548B | Garnish, Pillar NO.4, LH |
| 62549B | Garnish, Pillar NO.5, LH |
| 62550E | Trim Assy, Side NO.3, RH |
| 62551G | Clip |
| 62560B | Trim Assy, Side, NO.3 LH |
| 62570C | Trim Assy, Side NO.4 |
| 62573C | Fastener(FOR CENTER PILLAR GARNISH) |
| 62580D | Trim Assy, Side NO.4 LH |
| 62586A | Retainer, Quarter Trim |
| 62586B | Retainer, Quarter Trim, NO.2 |
| 62597D | Clip |
| 62609A | Board Sub-assy, Luggage Partition |
| 62609B | Clip (FOR LUGGAGE PARTITION BOARD) |
| 62611B | Clip (FOR SIDE TRIM BOARD) |
| 62611C | Board, Side Trim NO.1, RH |
| 62611E | Retainer, Door Trim |
| 62612C | Board, Side Trim NO.2, RH |
| 62613C | Board, Side Trim NO.3, RH |
| 62614C | Board, Side Trim NO.4, RH |
| 62615C | Board, Side Trim NO.5, RH |
| 62616A | Board, Side Trim NO.6 |
| 62616C | Clip |
| 62621C | Board, Side Trim NO.1, LH |
| 62621E | Clip |
| 62622C | Board, Side Trim NO.2, LH |
| 62623C | Board, Side Trim NO.3, LH |
| 62624C | Board, Side Trim NO.4, LH |
| 62625C | Board, Side Trim NO.5, LH |
| 62627C | Cover, Side Trim, NO.1 |
| 62627D | Cover, Side Trim, RH |
| 62627F | Cover, Side Trim, NO.1 LH |
| 62630K | Clip(FOR QUARTER TRIM REAR PANEL) |
| 62630Q | Clip (FOR QUARTER TRIM) |
| 62630V | Clip (FOR QUARTER REAR TRIM) |
| 62631E | Retainer, Quater Trim |
| 62633C | Clip (FOR QUARTER TRIM GARNISH) |
| 62638A | Garnish, Quarter Pillar, RH |
| 62638B | Clip |
| 62639A | Garnish, Quarter Pillar, LH |
| 62640K | Clip(FOR QUARTER TRIM REAR PANEL) |
| 62640L | Clip(FOR QUARTER TRIM) |
| 62640Q | Clip (FOR QUARTER TRIM REAR PANEL) |
| 62649 | Bracket, Side Trim |
| 62663B | Trim, Side Board, NO.3 |
| 62671F | Cover, Side Trim Board, NO.1 RH |
| 62672 | Cover, Side Trim Board, NO.1 LH |
| 62674A | Retainer, Quarter Trim Set |
| 62989 | Cover, Center Door Lock |
| 63630Q | Clip |
| 63951 | Cover, Cooler Pipe |
| 63951A | Clip(FOR COOLER PIPE COVER) NO.1 |
| 64342A | Clip |
| 64735A | Garnish, Center Back Rail Inner |
| 64735D | Clip(FOR CENTER BACK RAIL INNER GARNISH) |
| 64745 | Cover, Rear Combination Lamp Service, RH |
| 64745F | Retainer, Door Trim |
| 64746 | Cover, Rear Combination Lamp Service, LH |
| 66991B | Holder, Cup, NO.1 |
| 67675 | Cover, Side Trim Board, Front RH |
| 67676 | Cover, Side Trim Board, Front LH |
| 67745A | Moulding, Center Door Trim |
| 67771H | Retainer, Door Trim |
| 85536A | Bezel, Power Outlet Socket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
