Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Room Curtain & Room Rack

22 part groups · 13 illustrations

Illustrations

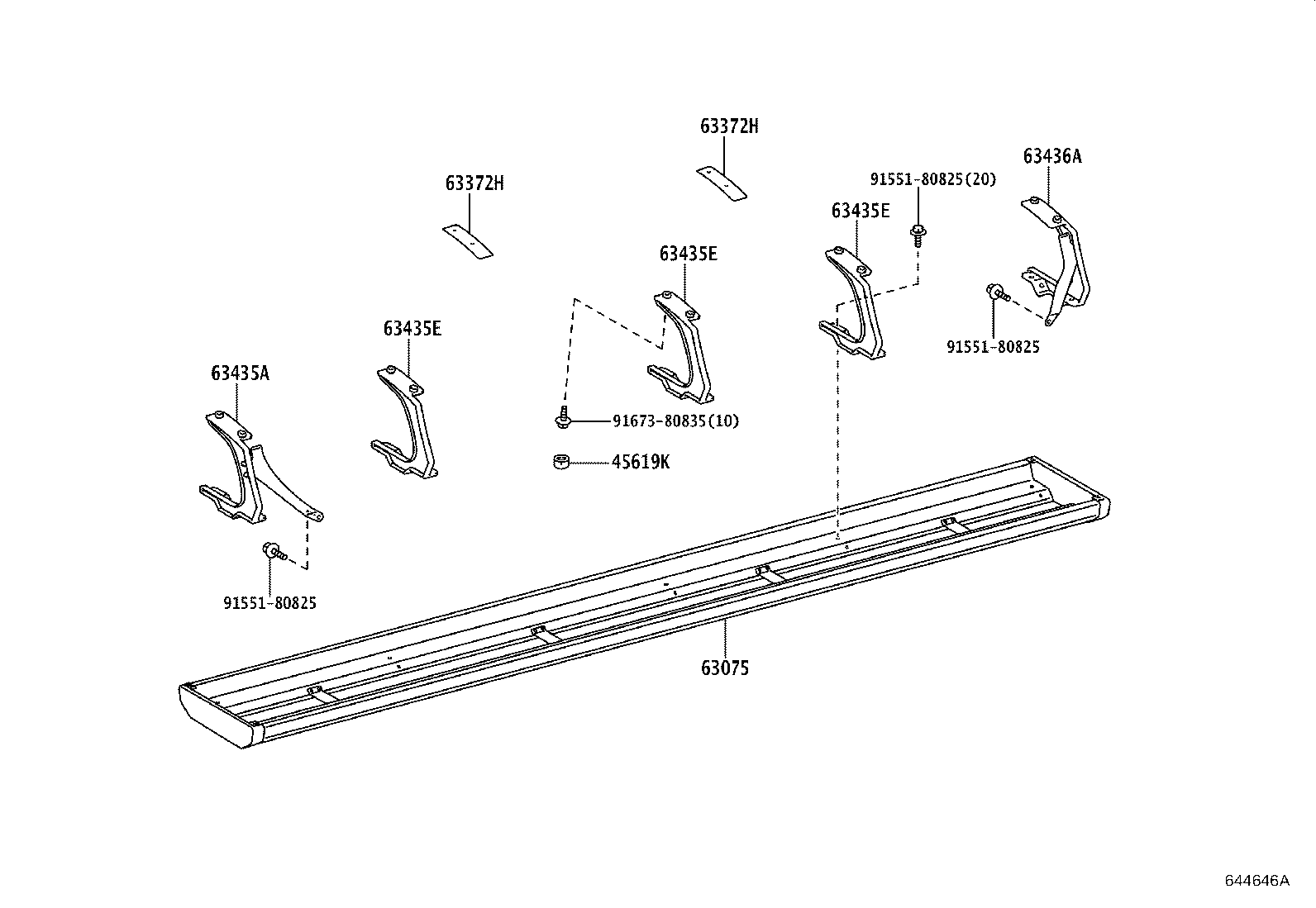

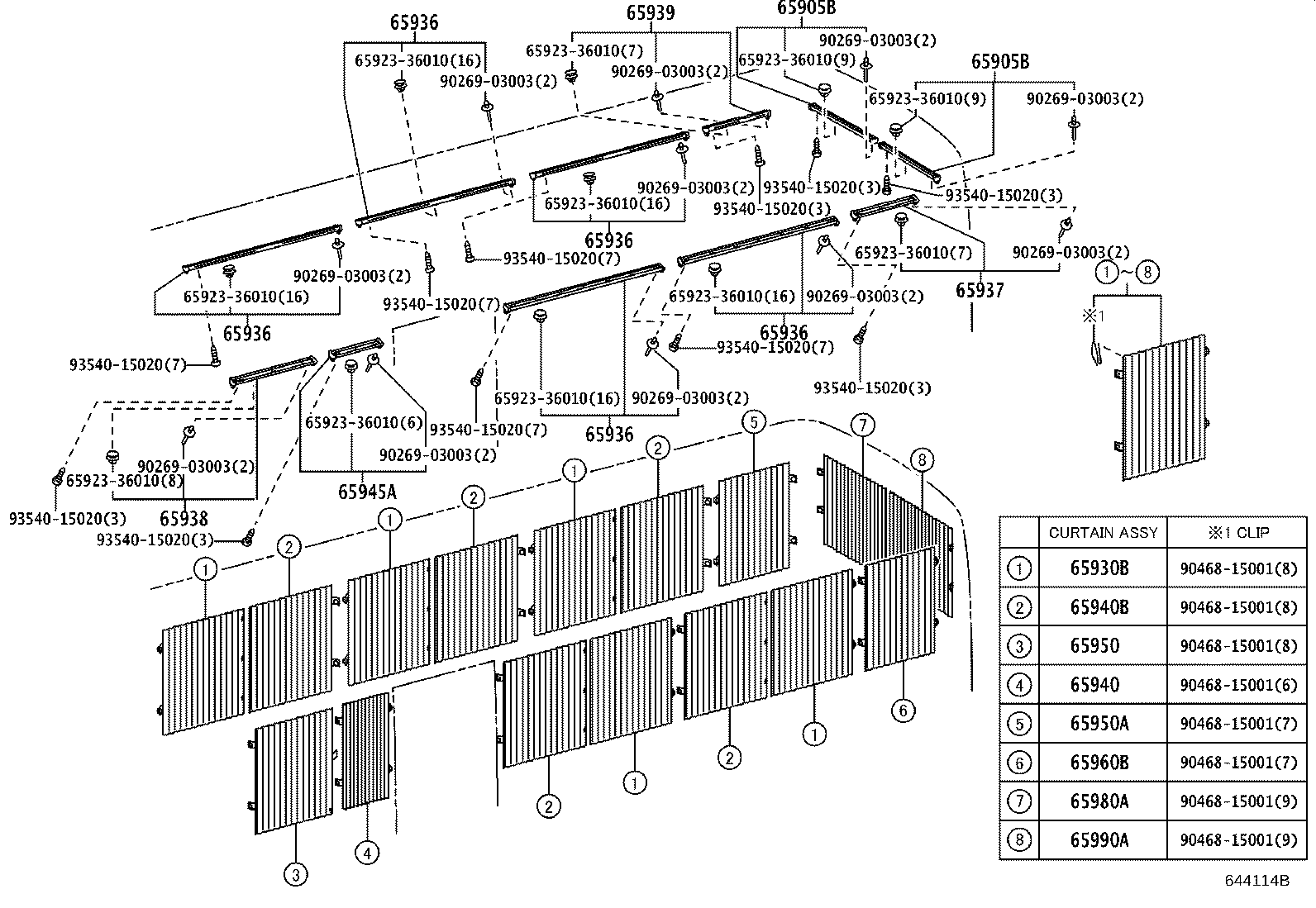

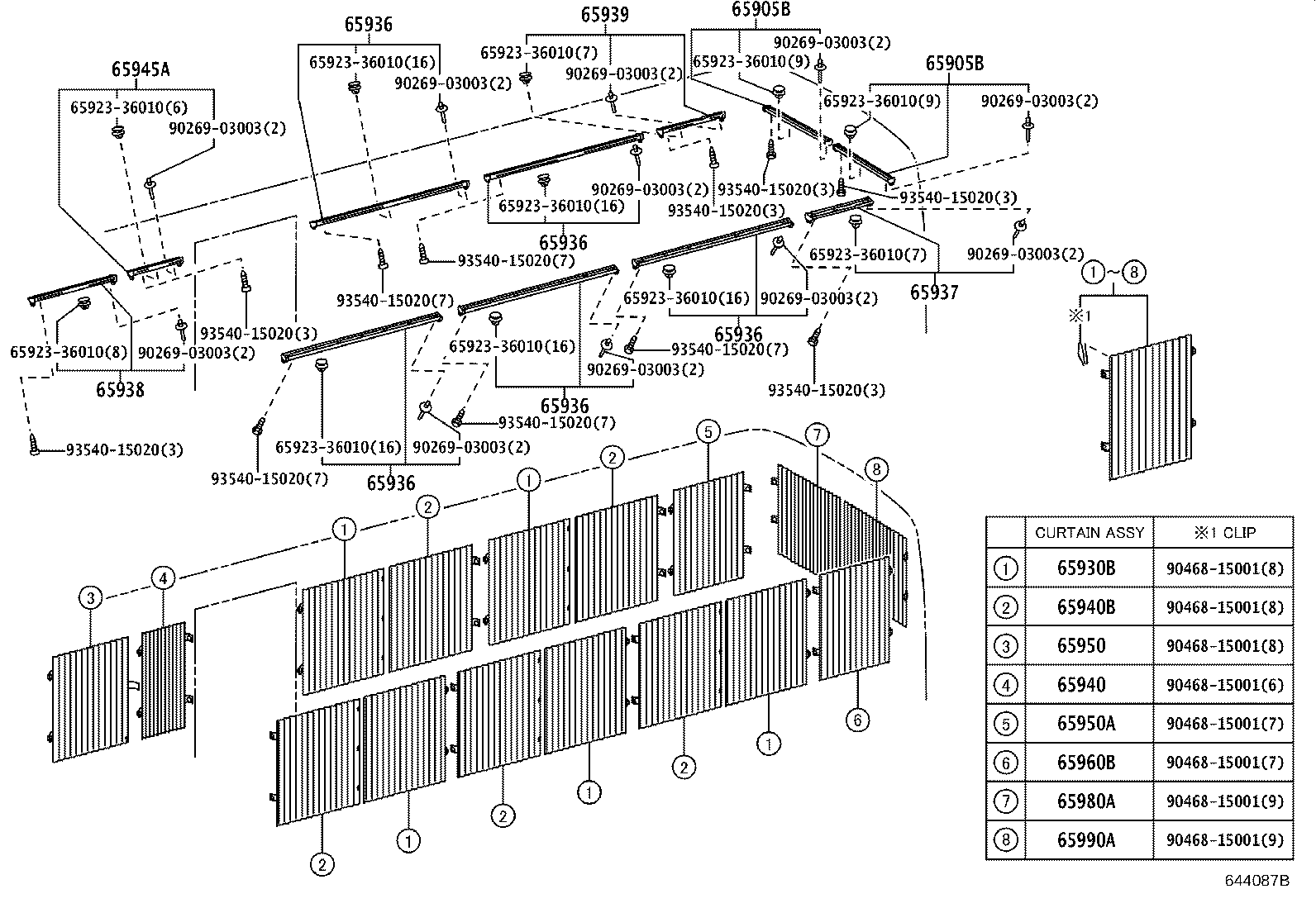

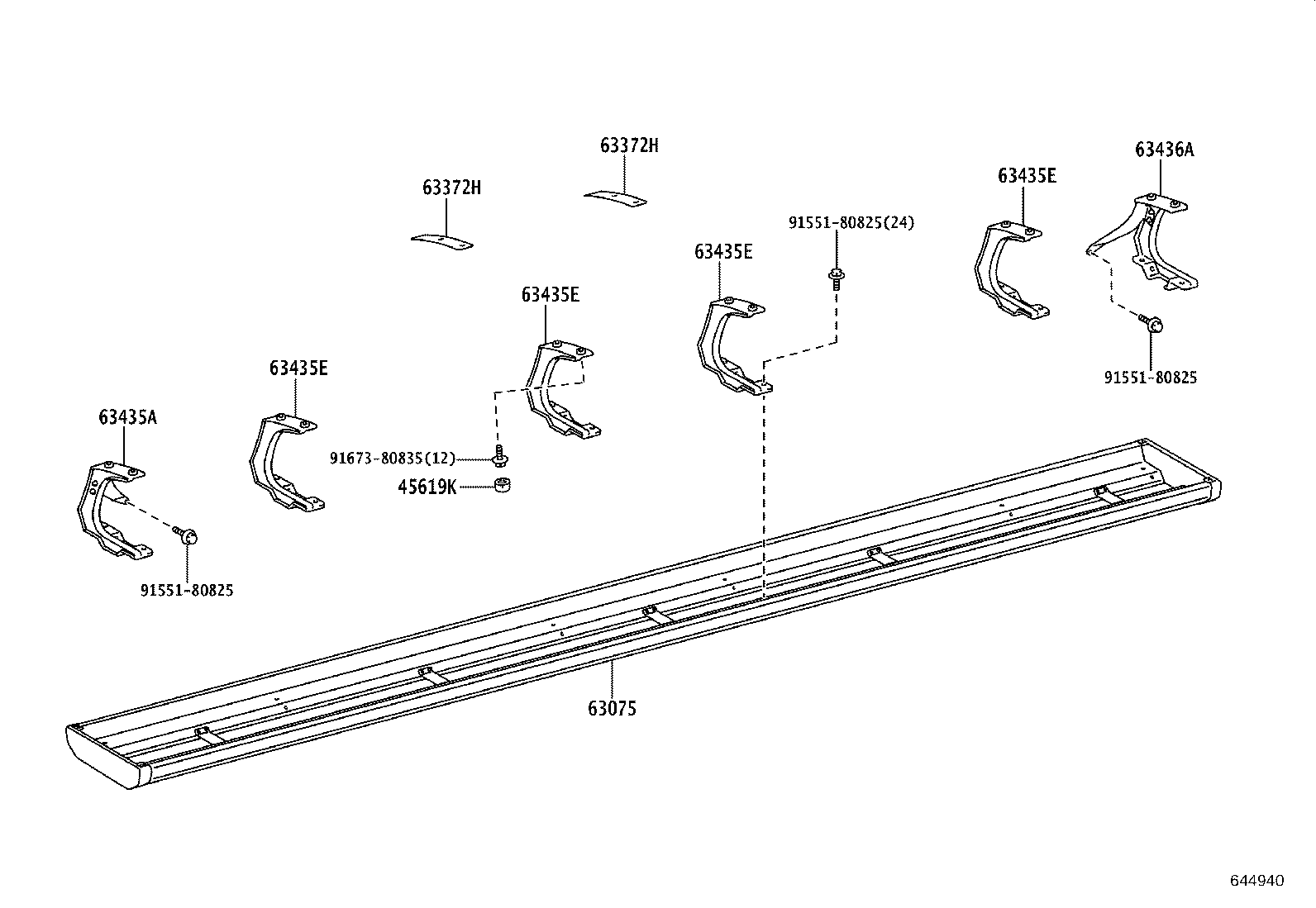

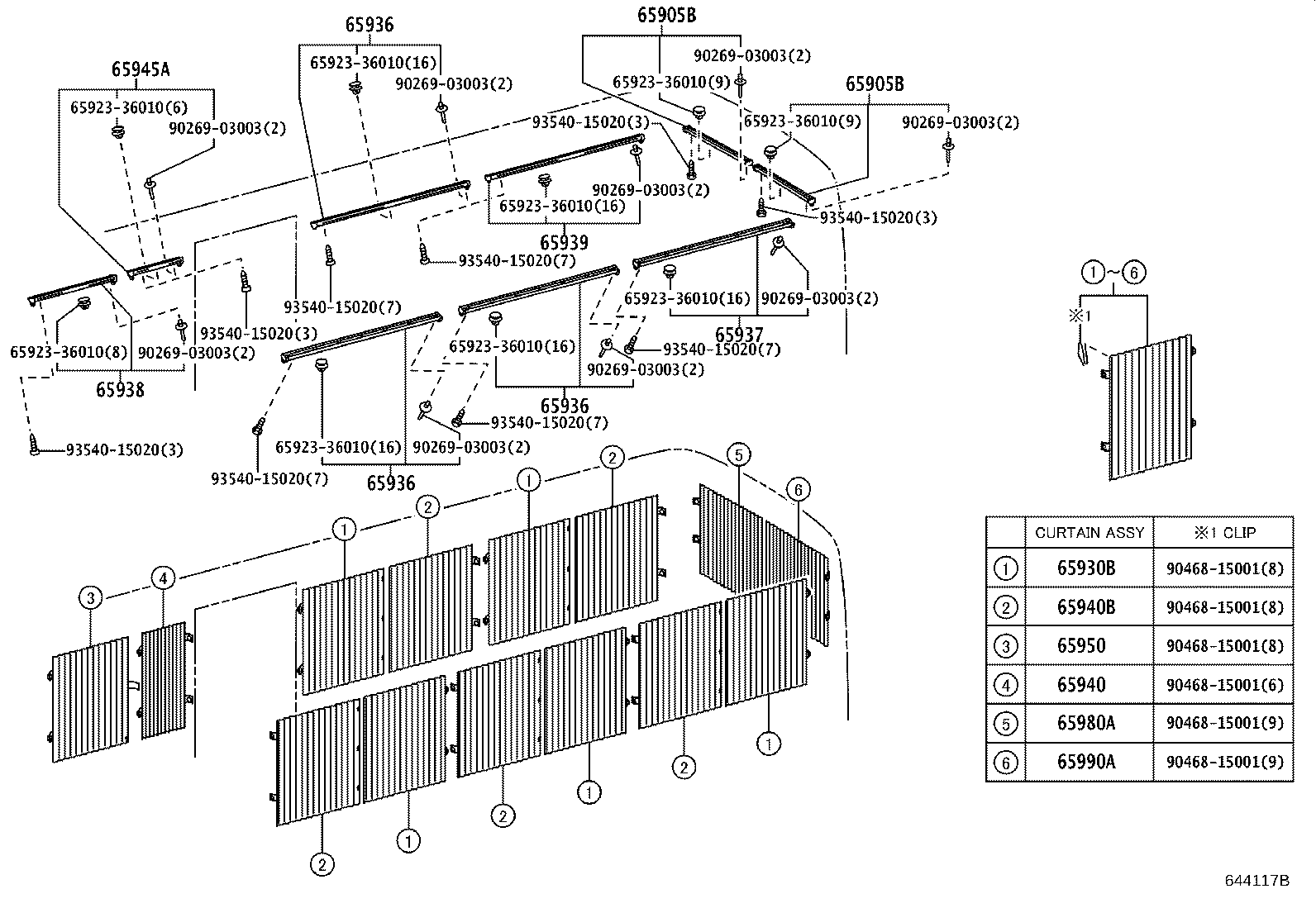

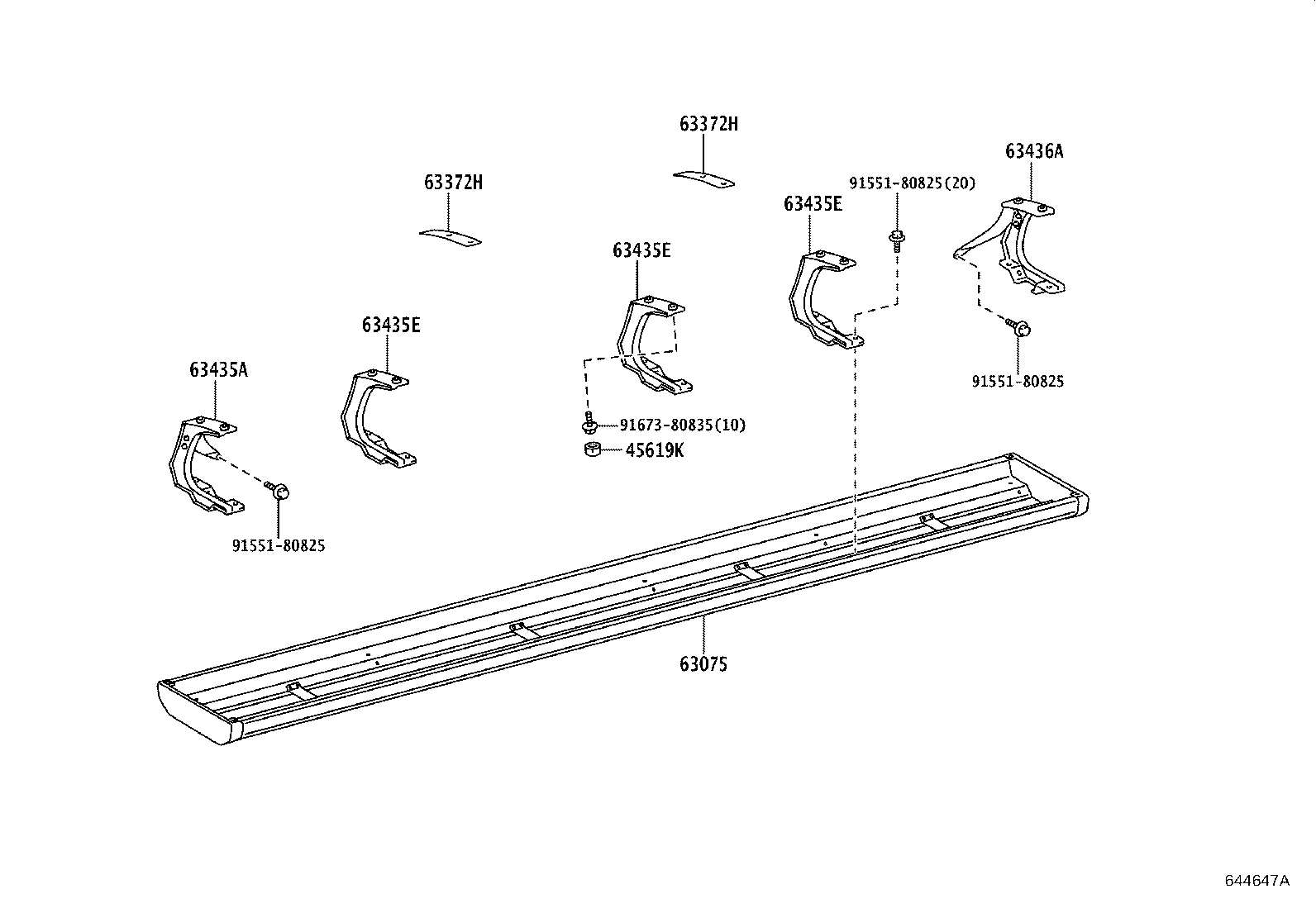

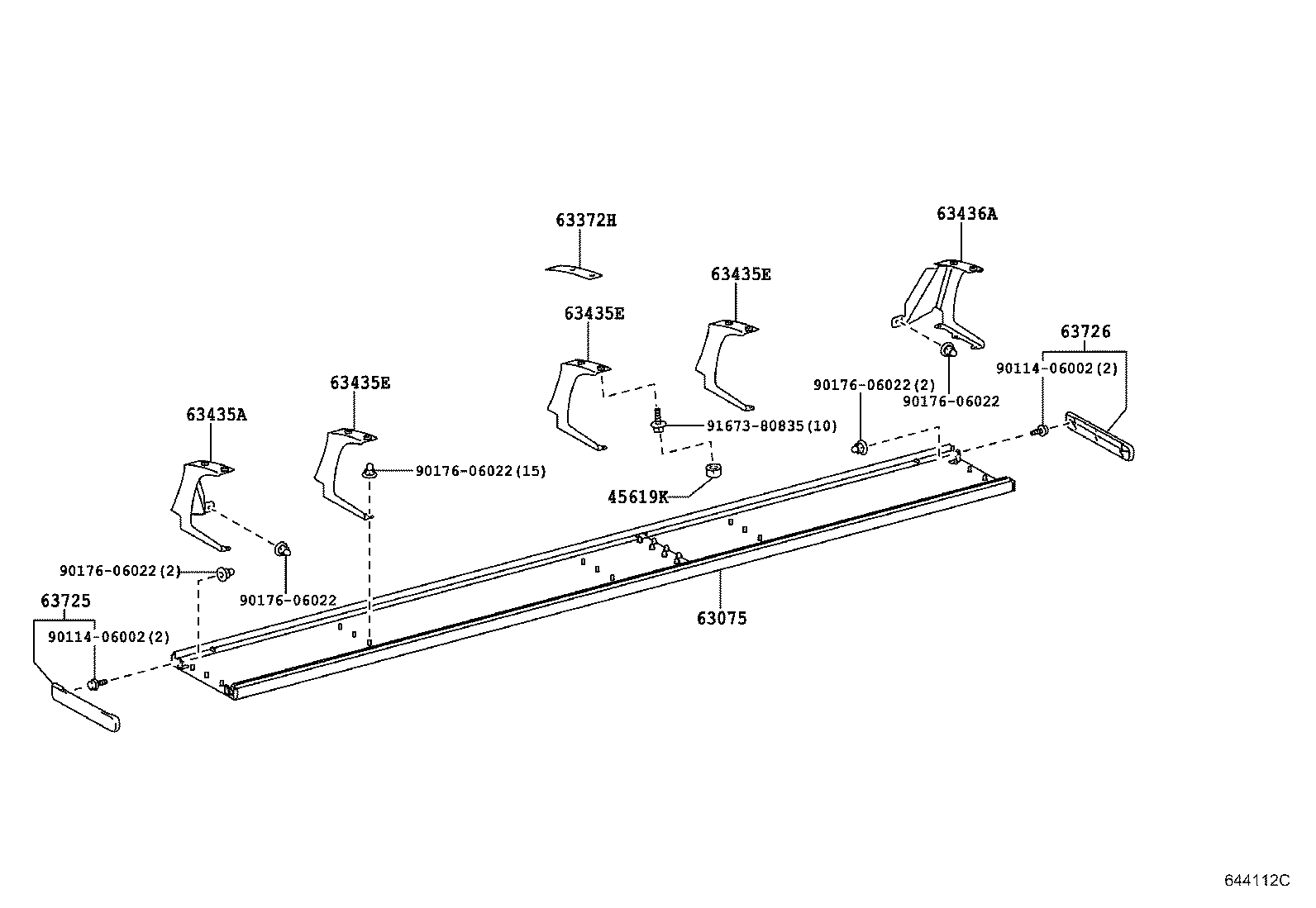

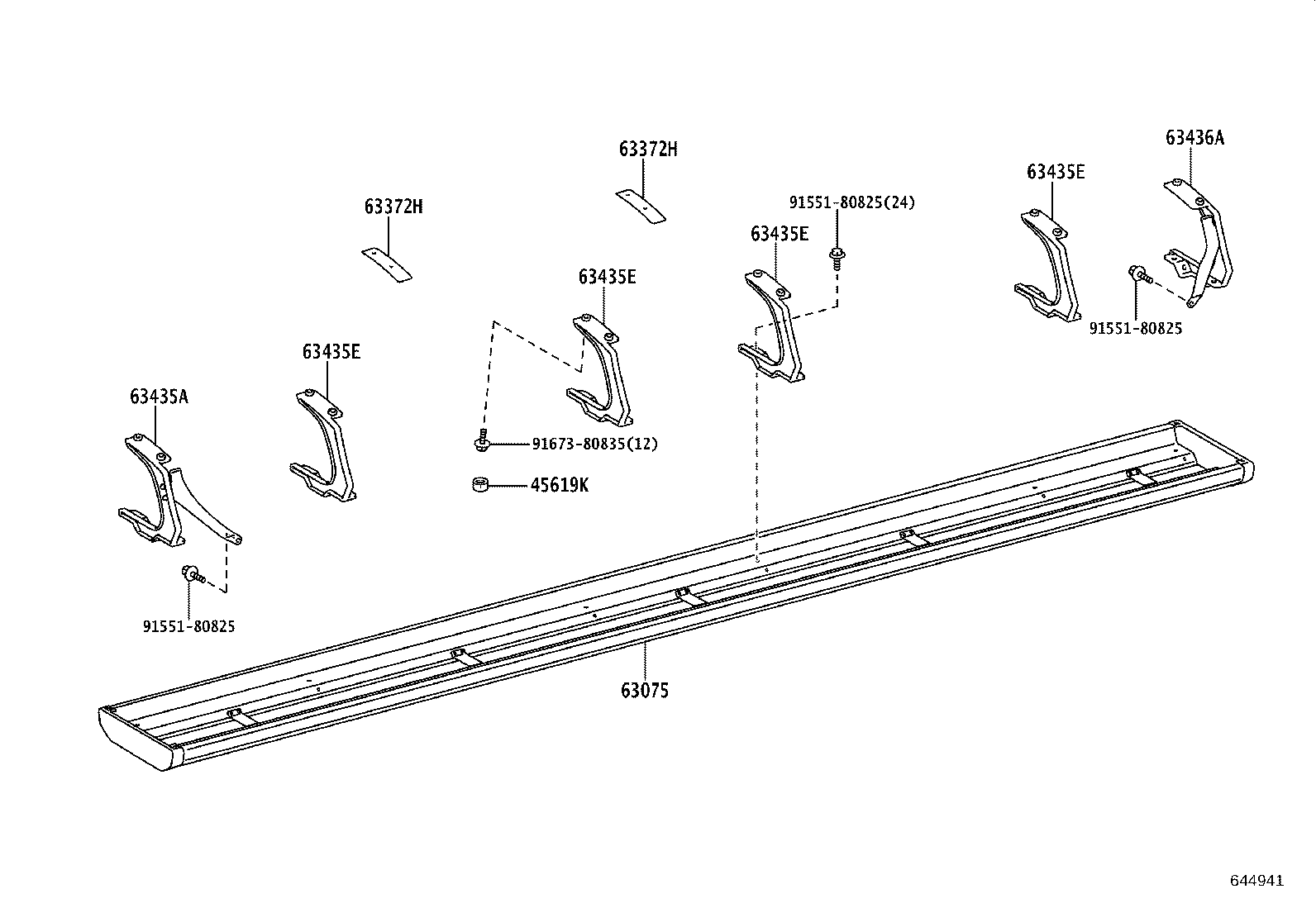

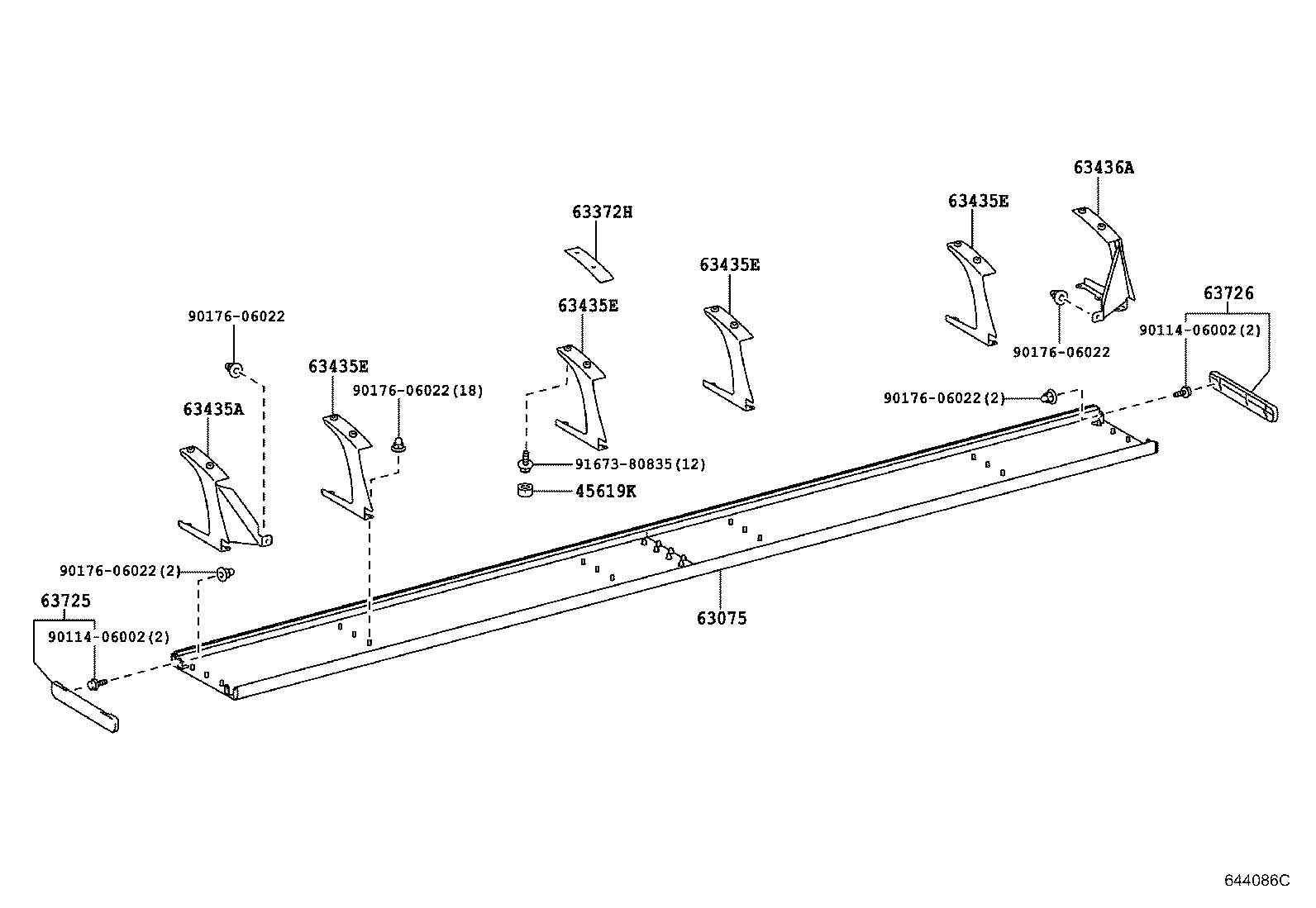

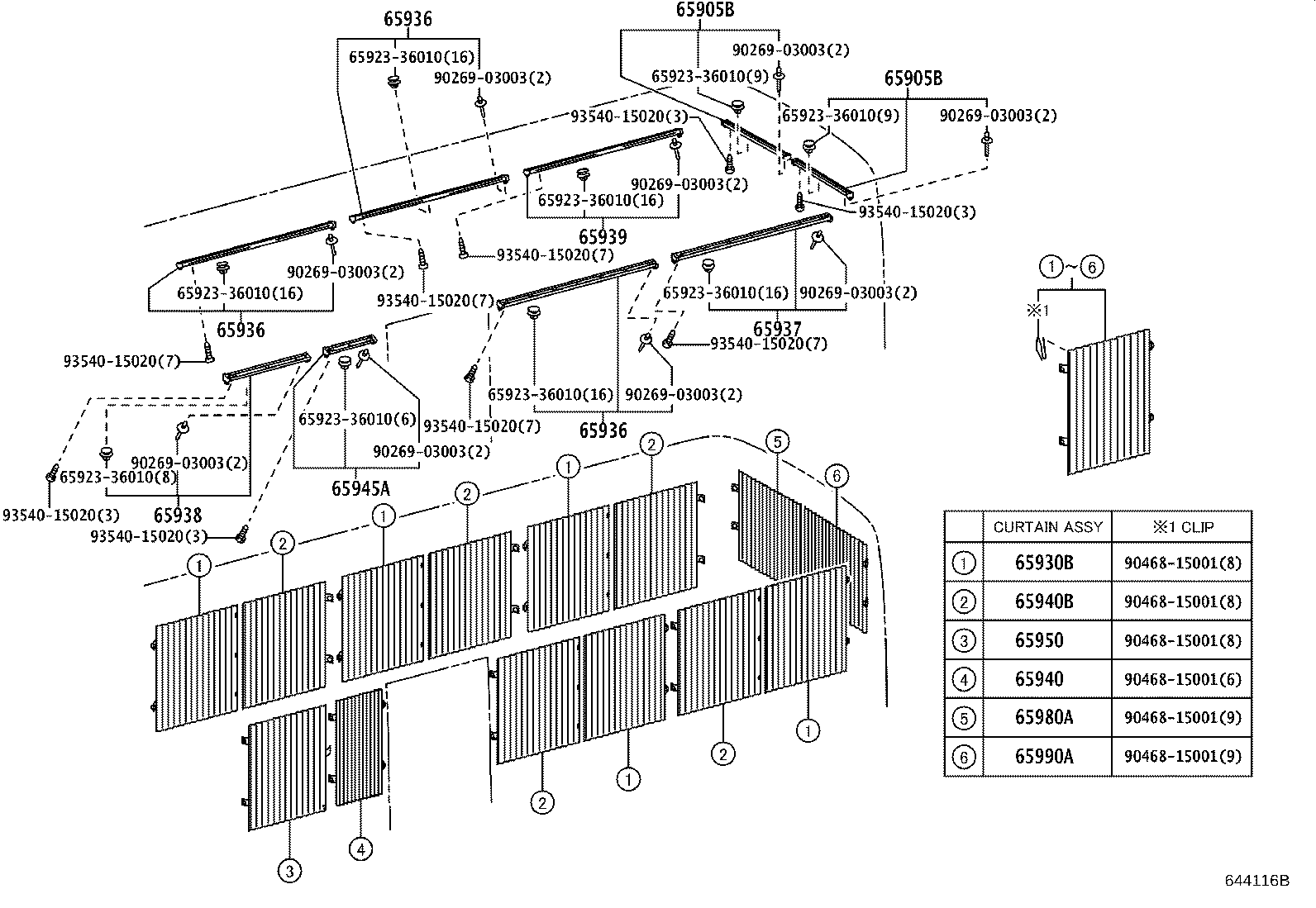

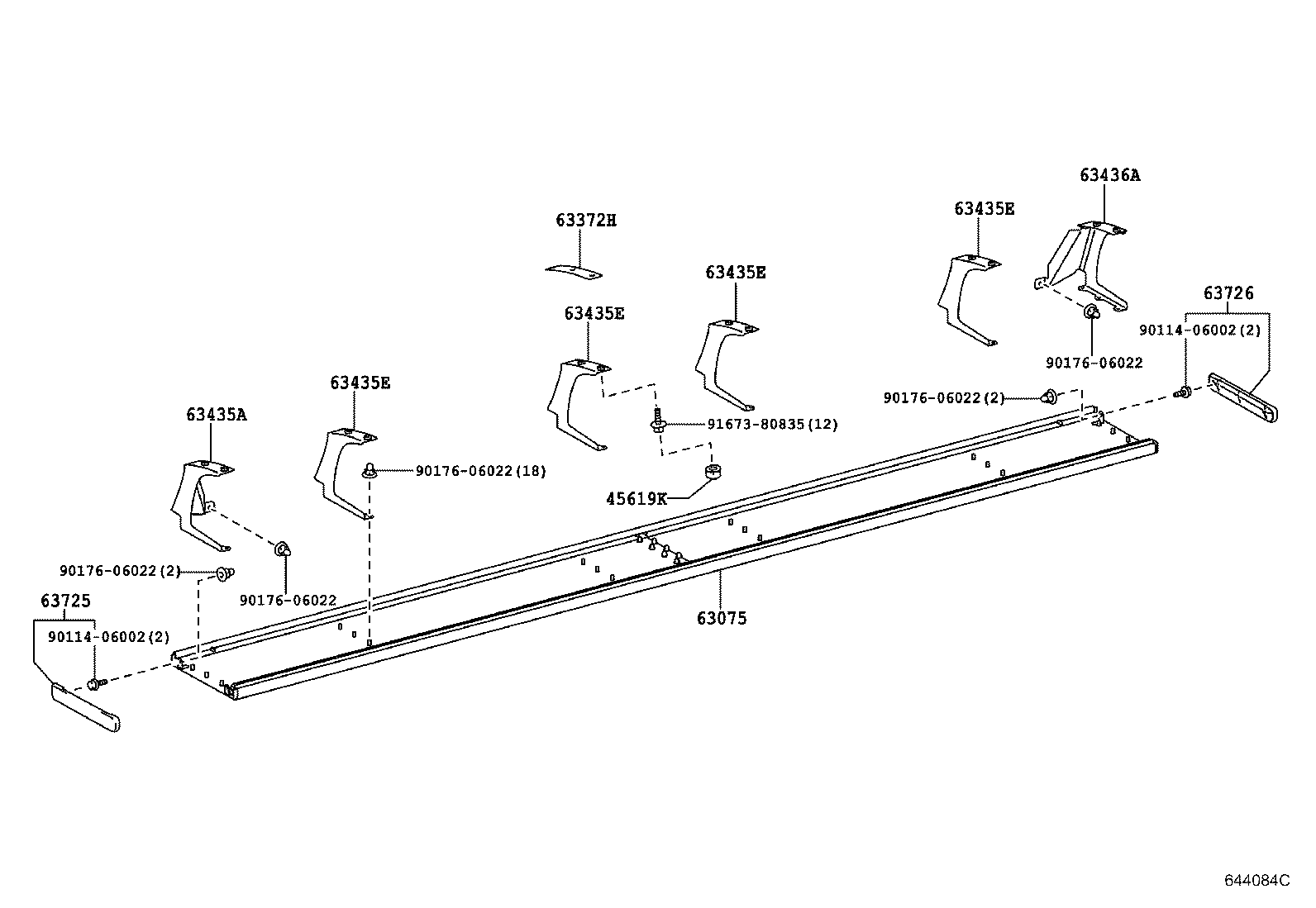

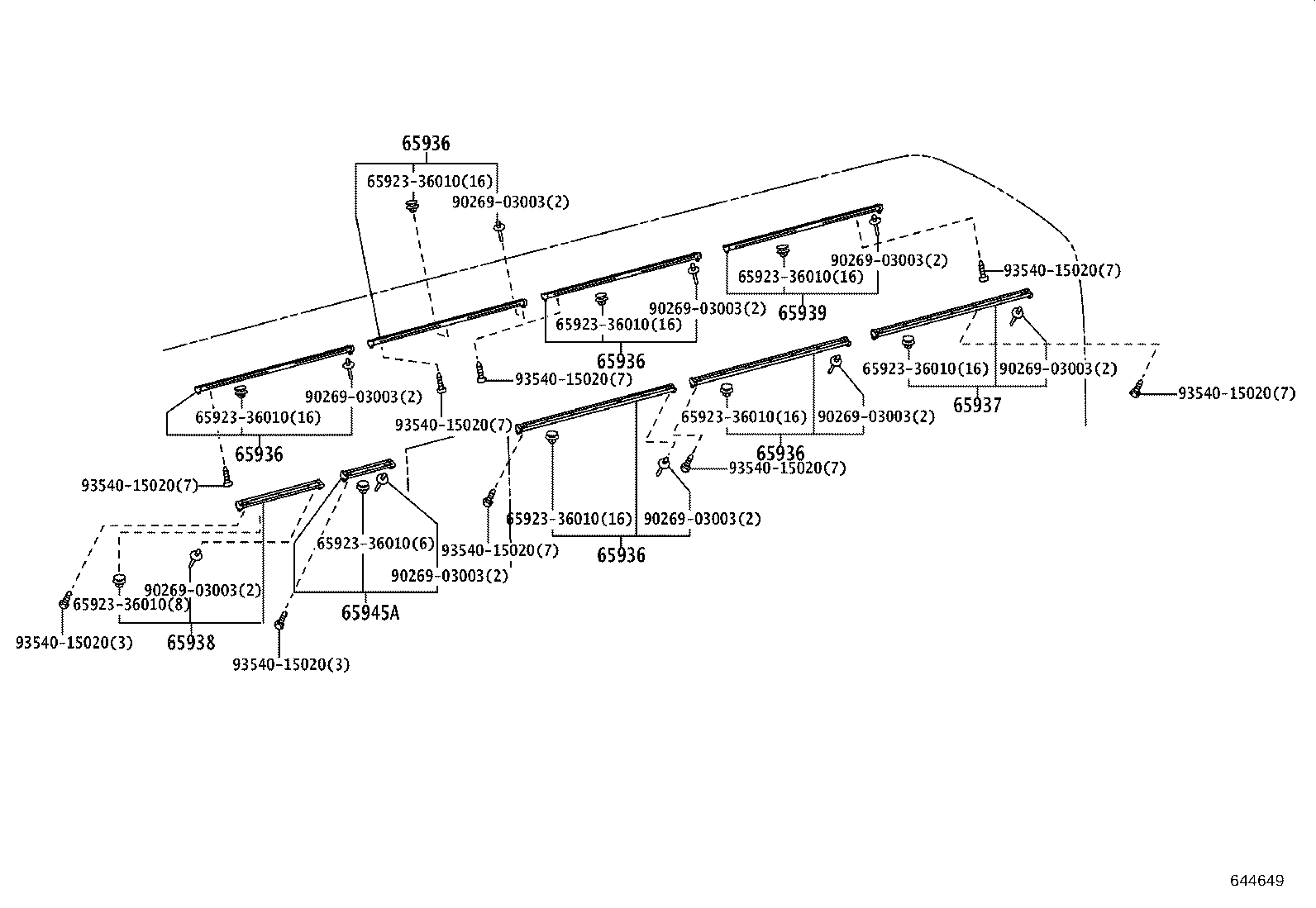

Figure 644113C 644113C 2017-01 → — Figure 644086C 644086C 2017-01 → 2019-08 Figure 644941 644941 2019-08 → — Figure 644112C 644112C 2017-01 → — Figure 644646A 644646A 2019-08 → — Figure 644647A 644647A 2019-08 → — Figure 644084C 644084C 2017-01 → 2019-08 Figure 644940 644940 2019-08 → — Figure 644117B 644117B 2017-01 → — Figure 644087B 644087B 2017-01 → — Figure 644116B 644116B 2017-01 → — Figure 644114B 644114B 2017-01 → — Figure 644649 644649 2019-08 → —

Part groups

PNCDescription
45619K Cover, Knuckle Stopper
63075 Cover Sub-assy, Room Rack
63372H Moulding, Roof Board Set
63435A Frame, Room Rack, NO.1
63435E Frame, Room Rack, NO.1
63436A Frame, Room Rack, NO.2
63725 Plate, Room Rack Cover, Front
63726 Plate, Room Rack Cover, Rear
65905B Rail Sub-assy, Window Curtain
65930B Curtain Assy, Side Window, Front RH
65936 Rail, Curtain, NO.1
65937 Rail, Curtain, NO.2
65938 Rail, Curtain, NO.3
65939 Rail, Curtain, NO.4
65940 Curtain Assy, Side, Front RH
65940B Curtain Assy, Side Window, Front LH
65945A Rail, Curtain, NO.5
65950 Curtain Assy, Side, Front LH
65950A Curtain Assy, Side Window, Rear RH
65960B Curtain Assy, Side Window, Rear LH
65980A Curtain Assy, Back Window, RH
65990A Curtain Assy, Back Window, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
