Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01

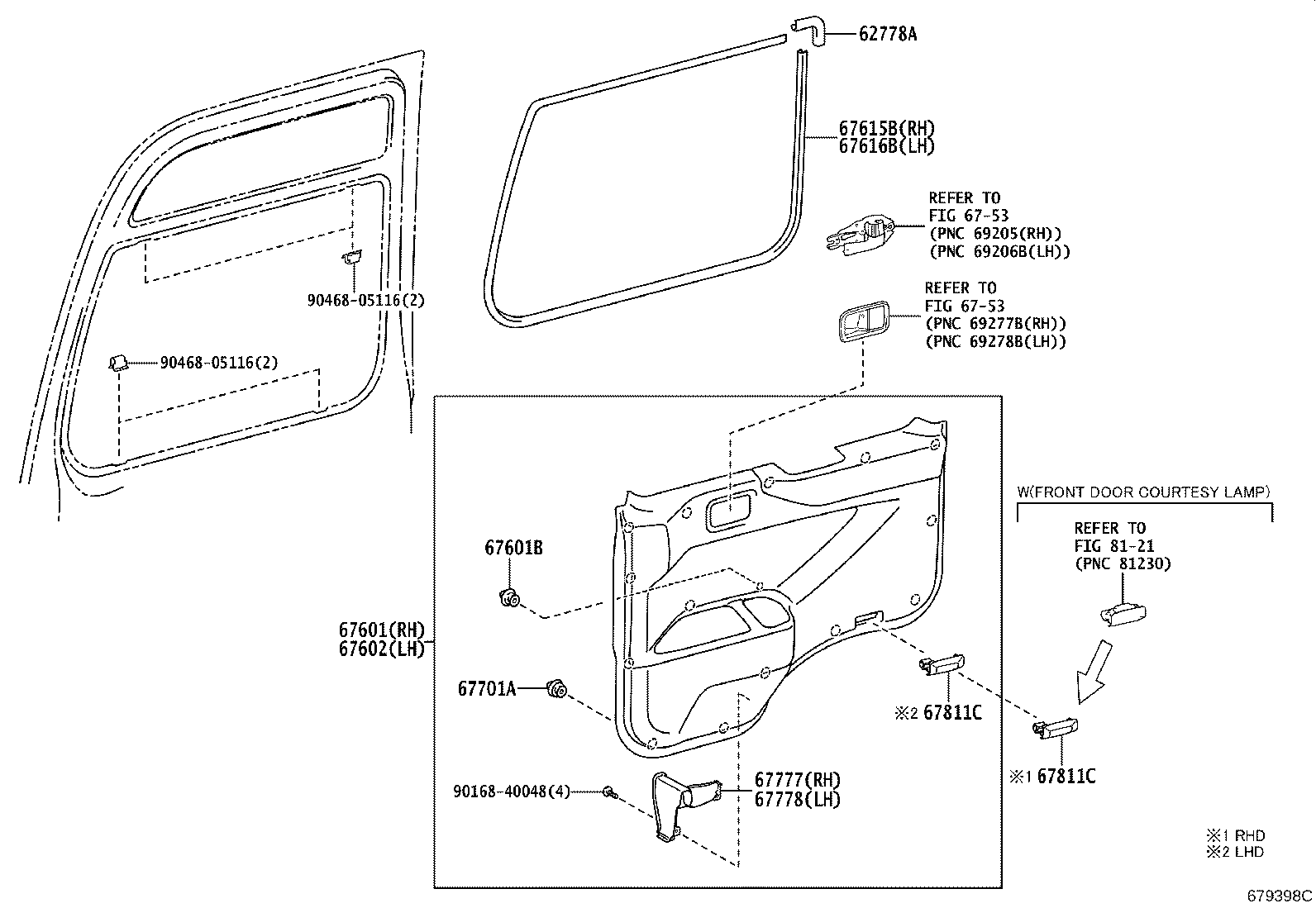

Front Door Panel & Glass
61 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62035A | Frame Sub-assy, Front Door Window, Outer RH |
| 62039 | Frame Sub-assy, Front Door Window, Center RH |
| 62045A | Frame Sub-assy, Front Door Window, Outer LH |
| 62049 | Frame Sub-assy, Front Door Window, Center LH |
| 62229D | Packing, Front Door Window |
| 62269E | Film, Front Door Window Frame, RH |
| 62269M | Film, Front Door Window Frame, LH |
| 62311C | Weatherstrip, Front Door Opening Trim, RH |
| 62312C | Weatherstrip, Front Door Opening Trim, LH |
| 62315D | Glass, Front Door Window, Front RH |
| 62317 | Glass, Front Door Window, Rear RH |
| 62325B | Glass, Front Door Window, Front LH |
| 62327A | Glass, Front Door Window, Rear LH |
| 62385A | Seal, Front Door Window, NO.1 |
| 62385C | Seal, Side Window, NO.1 |
| 62411K | Run, Front Door Window, RH |
| 62421D | Run, Front Door Window, LH |
| 62746G | Packing, Quarter Window |
| 62777U | Cap, Front Door Window Center Sash, RH |
| 62777X | Cap, Front Door Window Center Sash, LH |
| 62778A | Cap, Side Window Front Sash |
| 62792F | Packing, Side Window Lock |
| 62793G | Retainer, Side Window Lock |
| 62910L | Lock Assy, Side Window |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67120D | Stopper, Front Door Window |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67615B | Trim, Front Door, Upper RH |
| 67616B | Trim, Front Door, Upper LH |
| 67701A | Clip(FOR FRONT DOOR TRIM COVER) |
| 67777 | Pocket, Front Door Trim, RH |
| 67778 | Pocket, Front Door Trim, LH |
| 67811C | Cover, Front Door Hole |
| 67831C | Cover, Front Door Service Hole |
| 67835B | Cover, Front Door Service Hole Sub |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67863H | Weatherstrip, Front Door, NO.2 RH |
| 67864H | Weatherstrip, Front Door, NO.2 LH |
| 67867A | Clip, Door Weatherstrip(FOR FRONT DOOR) |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67867G | Retainer, Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67868L | Retainer, Door Weatherstrip, LH |
| 68610 | Check Assy, Front Door |
| 75921C | Tape, Black Out, NO.1 RH |
| 75922M | Tape, Black Out, NO.1 LH |
| 75923B | Tape, Black Out, NO.2 RH |
| 75924B | Tape, Black Out, NO.2 LH |
| 75925B | Tape, Black Out, NO.3 RH |
| 75926A | Tape, Black Out, NO.3 LH |
| 75927B | Tape, Black Out, NO.4 RH |
| 75928B | Tape, Black Out, NO.4 LH |
| 75955B | Tape, Black Out Front Door, Outer Upper RH |
| 75956B | Tape, Black Out Front Door, Outer Upper LH |
| 75957C | Tape, Black Out Front Door, Outer Rear RH |
| 75958B | Tape, Black Out Front Door, Outer Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
