Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Door Lock & Hinge

46 part groups · 7 illustrations

Illustrations

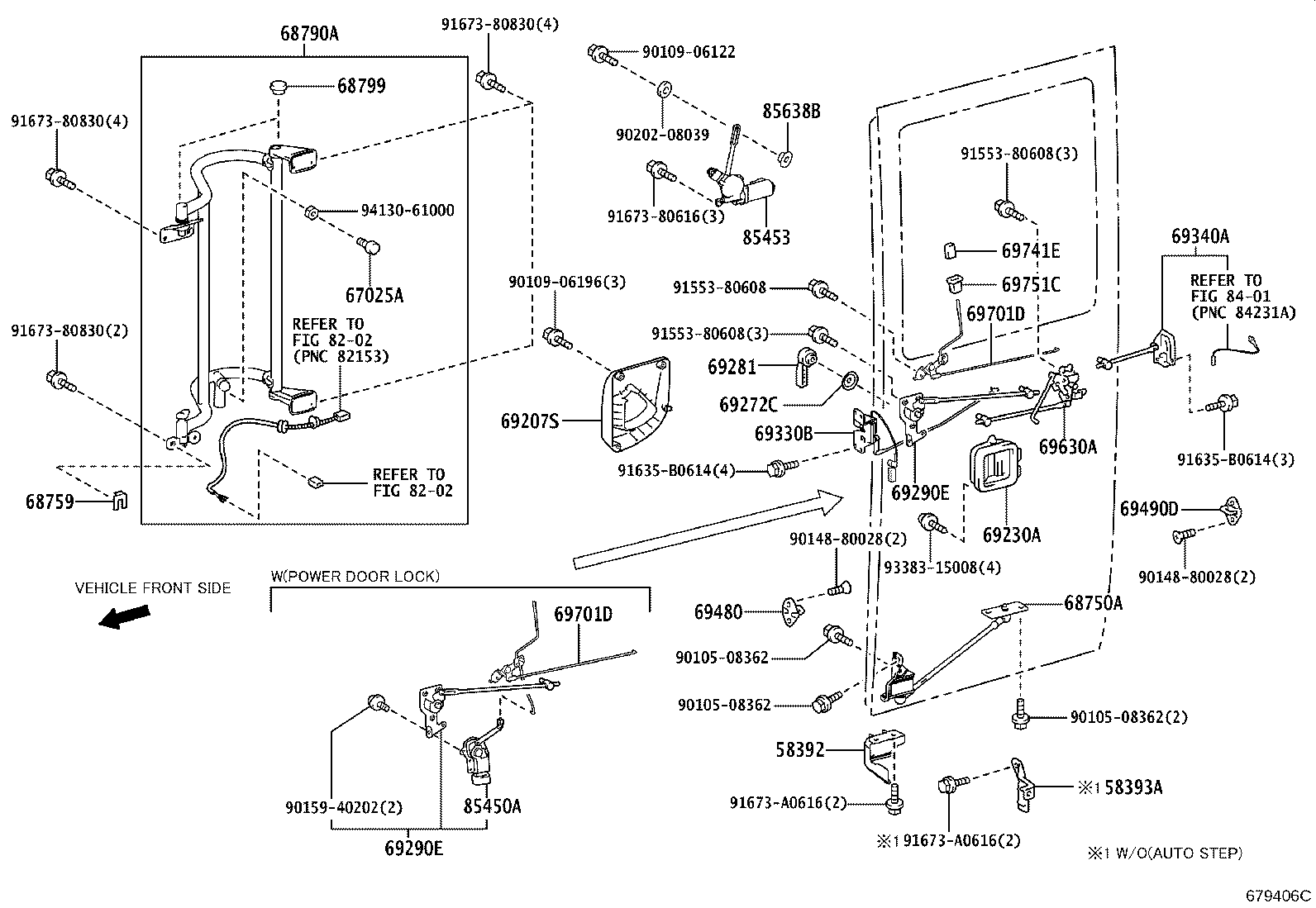

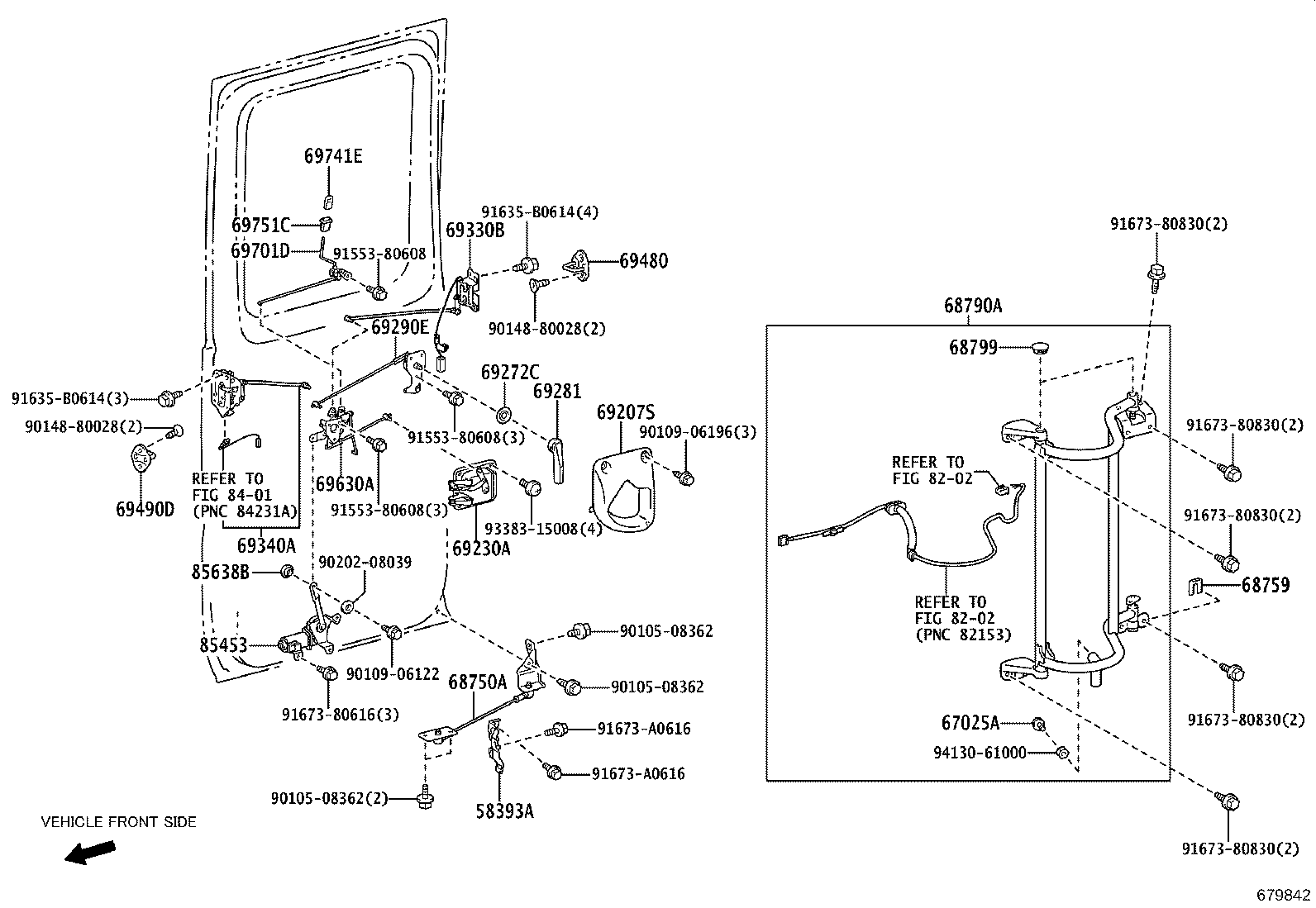

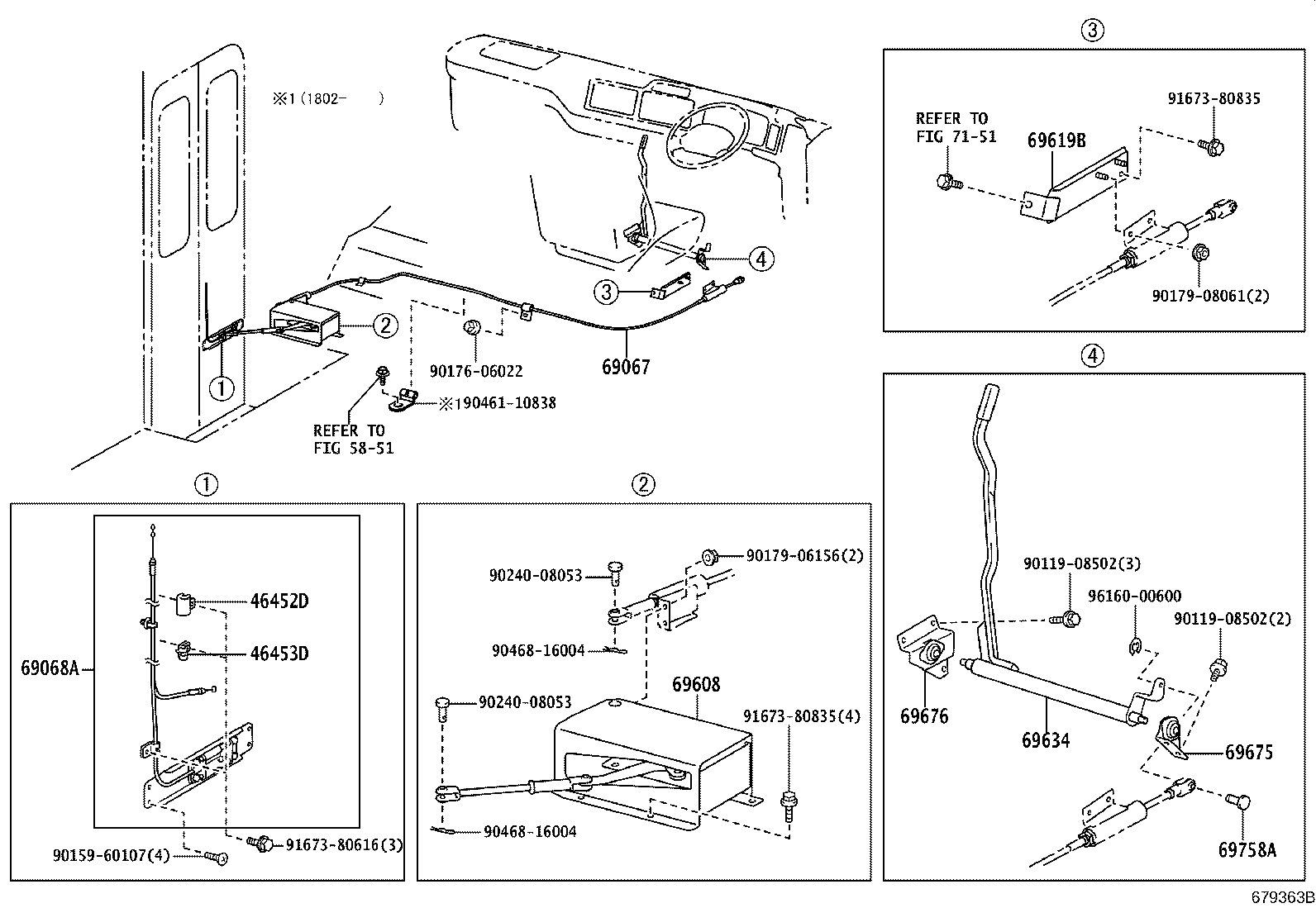

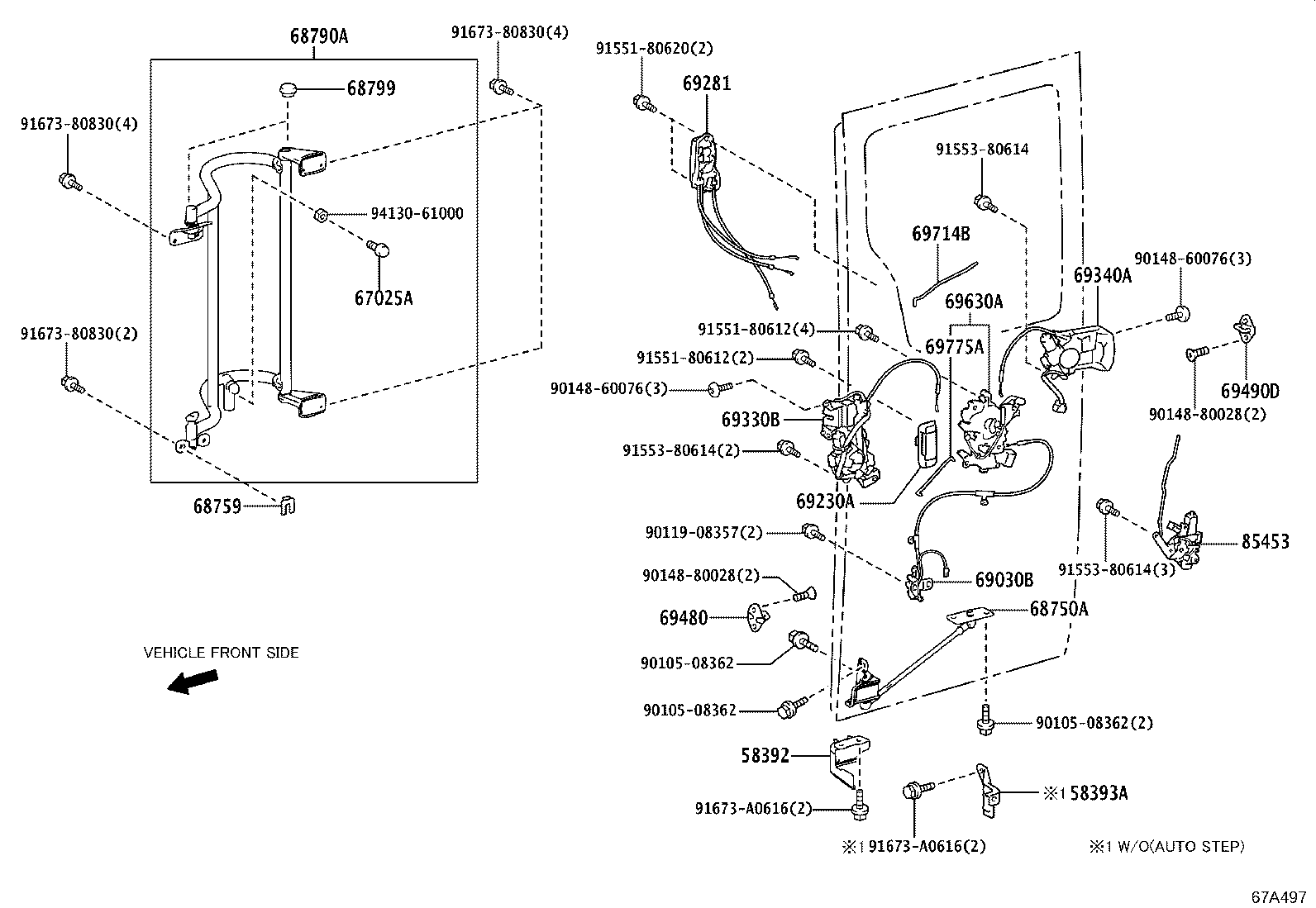

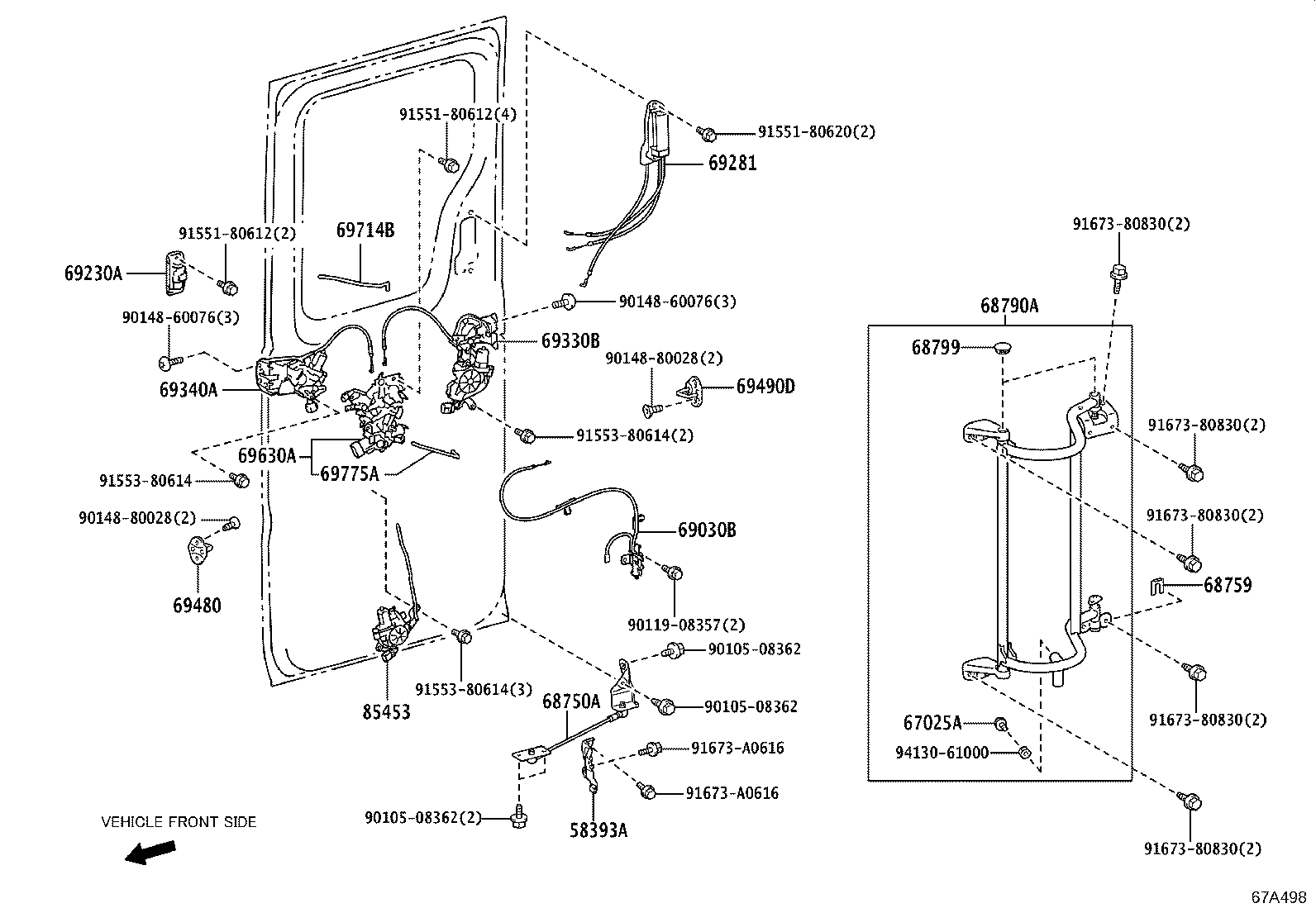

Figure 679362D 679362D 2017-01 → — Figure 679363B 679363B 2017-01 → — Figure 679406C 679406C 2017-01 → 2019-08 Figure 679406C 679406C 2021-01 → — Figure 679842 679842 2018-01 → 2019-08 Figure 67A497 67A497 2019-08 → — Figure 67A498 67A498 2019-08 → —

Part groups

PNCDescription
46452D Bracket, Cable Support, NO.1
46453D Bracket, Cable Support, NO.2
58392 Mudguard, Glide Door Link, Front
58393A Mudguard, Glide Door Link, Rear
62989A Cover, Center Door Lock
67025A Stopper Sub-assy, Slide Door, Front
67155B Reinforcement, Center Door, Front Upper
67232 Stopper, Center Door Open
68750A Link Assy, Glide Door
68759 Spacer, Glide Door Arm
68790A Arm Assy, Glide Door
68799 Cap, Glide Door Arm
69030B Lock Assy, Glide Door Open
69067 Cable Sub-assy, Center Door Remote Control, NO.1
69068A Cable Sub-assy, Center Door Remote Control, NO.2
69207S Cover(FOR REAR DOOR INSIDE HANDLE)
69230A Handle Assy, Glide Door Outside
69272C Plate, Glide Door Inside Handle
69277F Bezel, Door Inside Handle, NO.1 RH
69278 Bezel, Door Inside Handle, NO.1 LH
69281 Handle, Glide Door Inside
69290E Base Assy, Glide Door Inside Handle
69297 Bezel, Door Inside Handle, NO.2 RH
69298F Bezel, Door Inside Handle, NO.2 LH
69302B Lock Sub-assy, Center Door Inside Handle
69303B Handle Sub-assy, Center Door Lock, Outside
69330B Lock Assy, Glide Door, Front
69340A Lock Assy, Glide Door, Rear
69405C Stopper Sub-assy, Center Door Inside Look
69480 Plate Assy, Glide Door Lock Striker, Front
69490D Plate Assy, Glide Door Lock Striker, Rear
69608 Link Sub-assy, Center Door Remote Control
69619B Retainer, Door Lock Remote Control Base
69630A Control Assy, Glide Door Lock Remote
69634 Rod, Center Door Remote Control
69675 Base, Center Door Remote Control, NO.1
69676 Base, Center Door Remote Control, NO.2
69701D Bellcrank Sub-assy, Door Lock Control, Upper
69714B Link, Rear Door Open Control
69741E Knob, Door Lock Control
69751C Holder, Door Lock Control Knob(FOR GLIDE DOOR)
69758A Pin, Center Door Lock Control Link
69775A Link, Door Lock Control Locking
85450A Motor Assy, Door Control
85453 Motor, Door Control
85638B Spacer, Automatic Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
