Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01

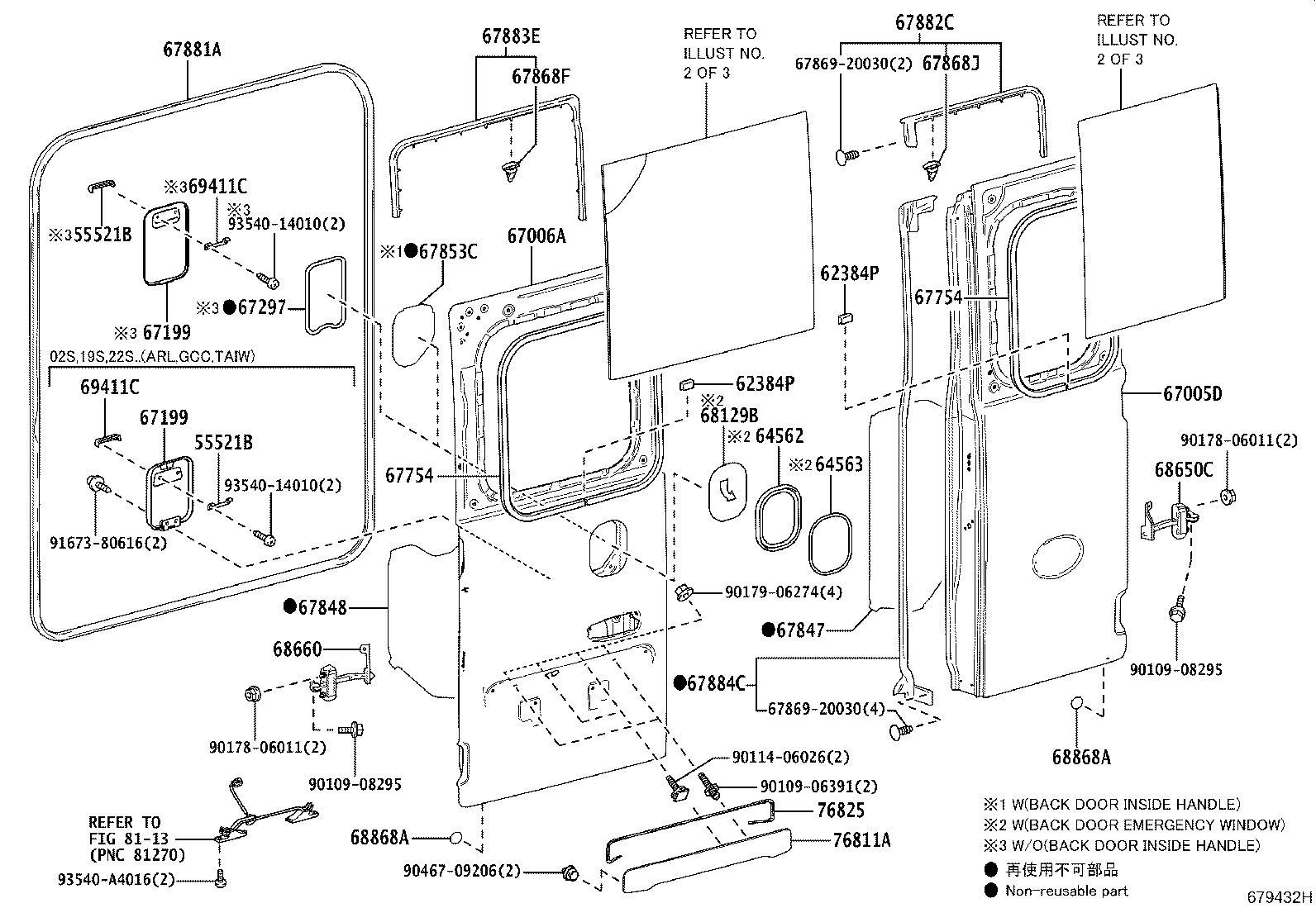

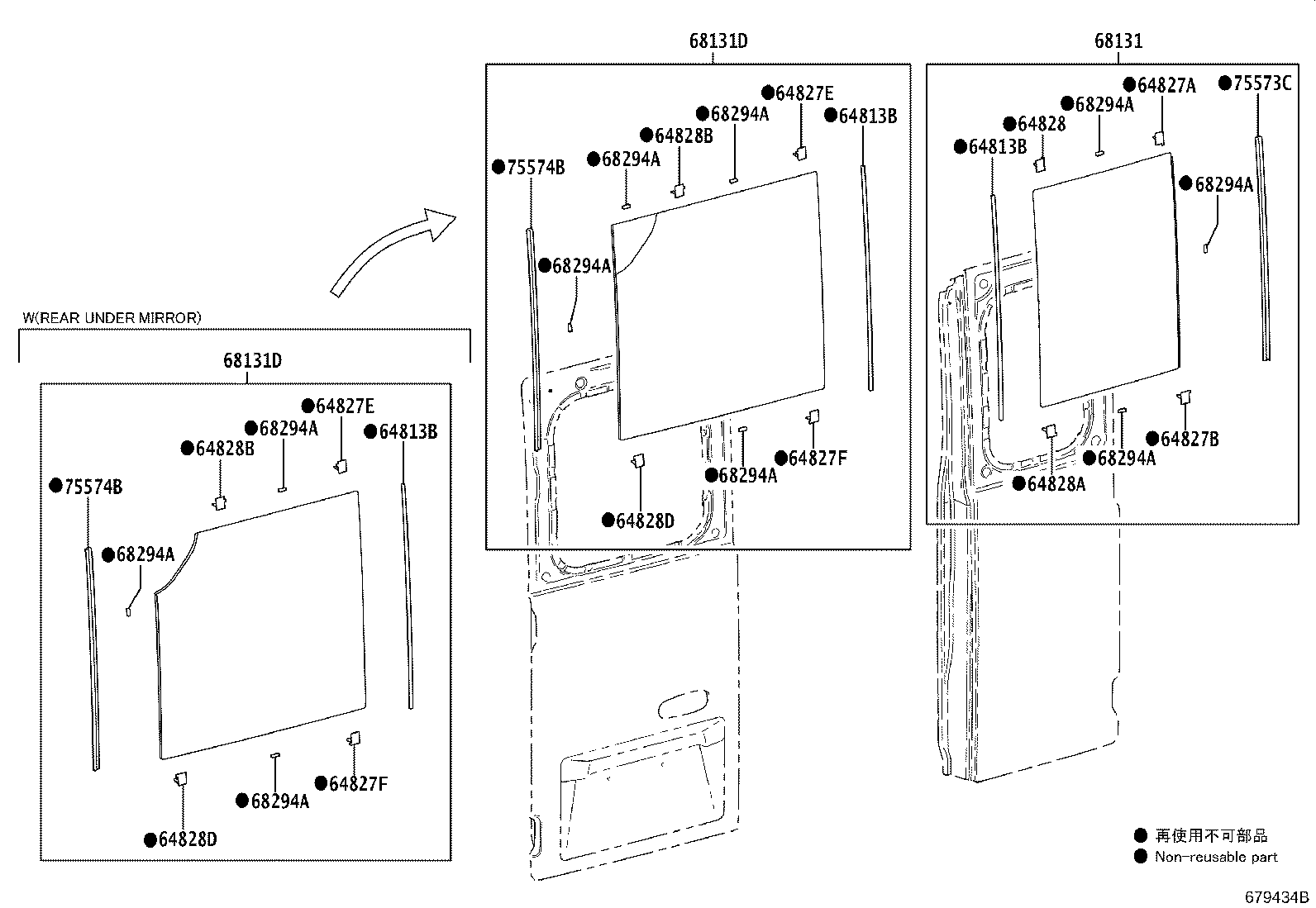

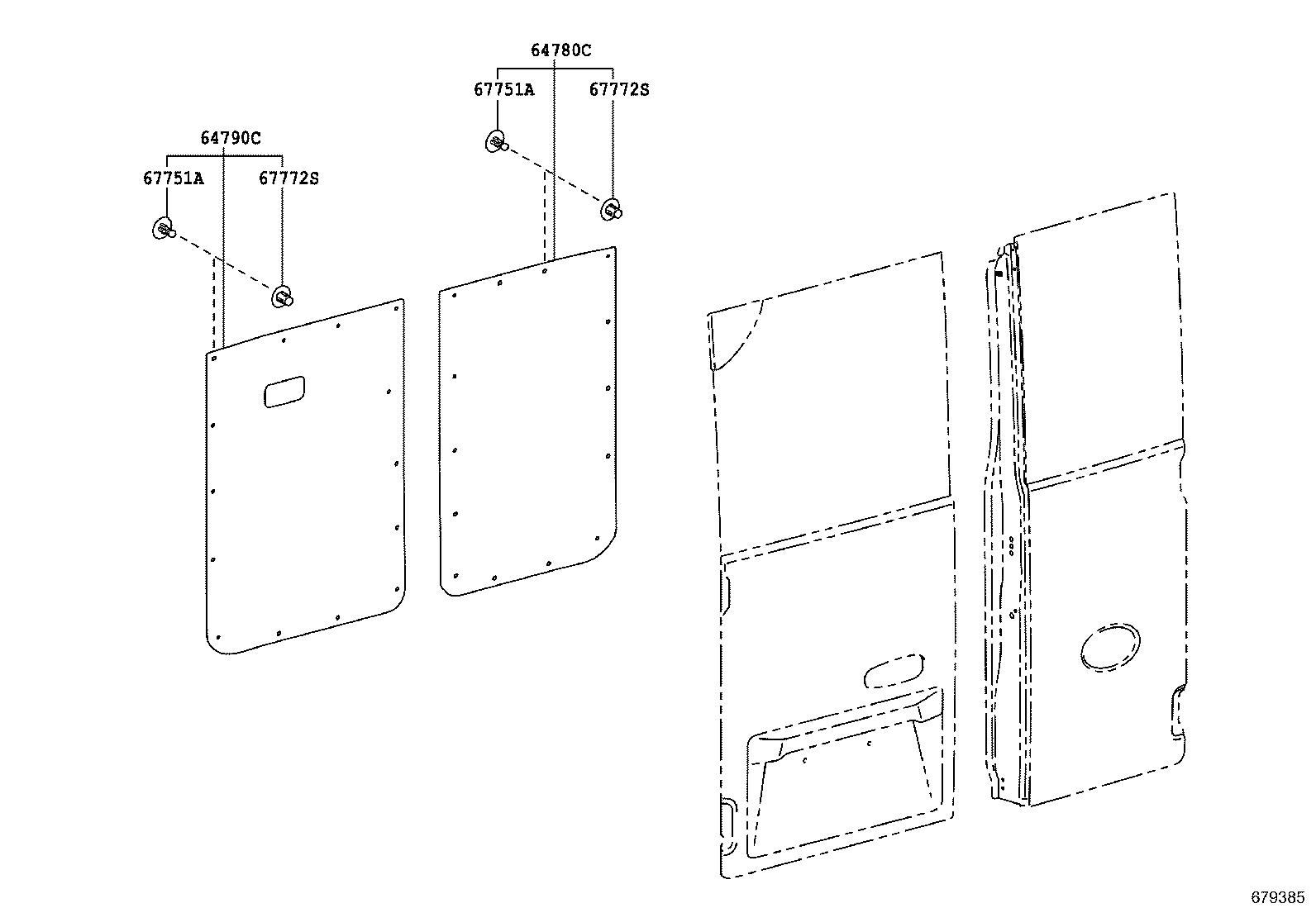

Back Door Panel & Glass
47 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55521B | Knob, Back Door Handle Cover |
| 62384P | Cap, Side Window Clip |
| 64562 | Weatherstrip, Back Door Window Emergency Glass, Outer |
| 64563 | Weatherstrip, Back Door Window Emergency Glass, Inner |
| 64780C | Panel Assy, Back Door Trim, RH |
| 64790C | Panel Assy, Back Door Trim, LH |
| 64813B | Dam, Back Window Glass Adhesive |
| 64827A | Clip, Back Window Glass, RH |
| 64827B | Clip, Back Window Glass, RH |
| 64827E | Clip, Back Window Glass, RH |
| 64827F | Clip, Back Window Glass, RH |
| 64828 | Clip, Back Window Glass, LH |
| 64828A | Clip, Back Window Glass, LH |
| 64828B | Clip, Back Window Glass, LH |
| 64828D | Clip, Back Window Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67005D | Panel Sub-assy, Back Door, RH |
| 67006A | Panel Sub-assy, Back Door, LH |
| 67115 | Panel, Back Door, Outer |
| 67199 | Cover, Back Door Handle |
| 67297 | Weatherstrip, Back Door Cover |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67754 | Moulding, Back Door Trim |
| 67772S | Cap, Door Trim Retainer |
| 67847 | Cover, Back Door Service Hole, RH |
| 67848 | Cover, Back Door Service Hole, LH |
| 67853C | Cover, Back Door Service Hole, NO.3 |
| 67868F | Retainer, Door Weatherstrip, LH |
| 67868J | Retainer, Door Weatherstrip |
| 67881A | Weatherstrip, Back Door |
| 67882C | Weatherstrip, Back Door, NO.2 |
| 67883A | Retainer, Back Door Weatherstrip |
| 67883E | Weatherstrip, Back Door, NO.3 |
| 67884C | Weatherstrip, Back Door, Lower LH |
| 68129B | Window, Back Door Emergency |
| 68131 | Glass, Back Door |
| 68131D | Glass, Back Door, LH |
| 68281A | Retainer, Back Door Weatherstrip |
| 68294A | Dam, Back Door Glass Adhesive |
| 68650C | Check Assy, Back Door, RH |
| 68660 | Check Assy, Back Door, LH |
| 68868A | Seal, Back Door Hinge |
| 69411C | Catch, Back Door |
| 75573C | Moulding, Back Window, Outside |
| 75574B | Moulding, Back Window, Outside LH |
| 76811A | Garnish, Back Door, Outside |
| 76825 | Protector, Back Door Outside Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
