Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01

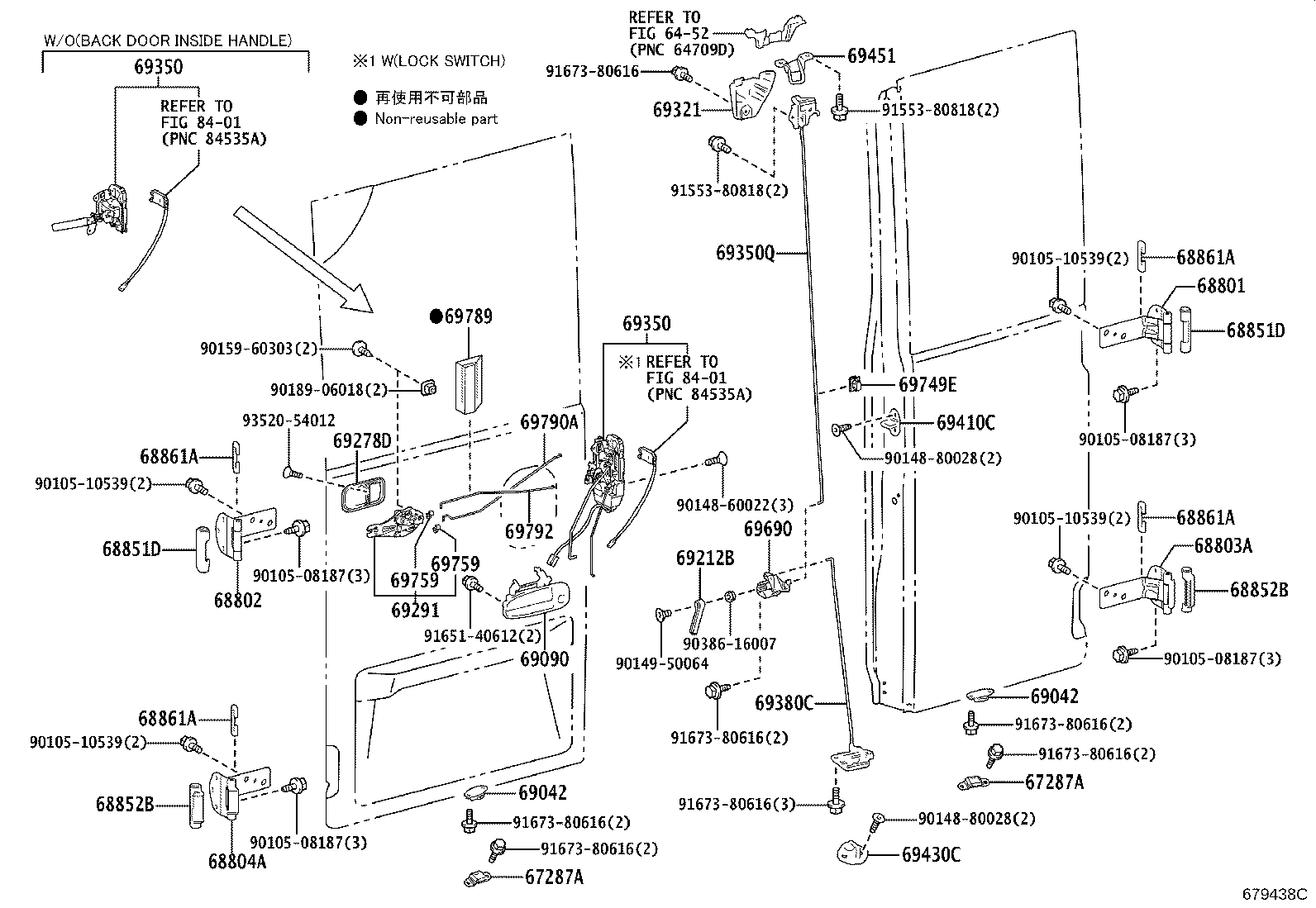

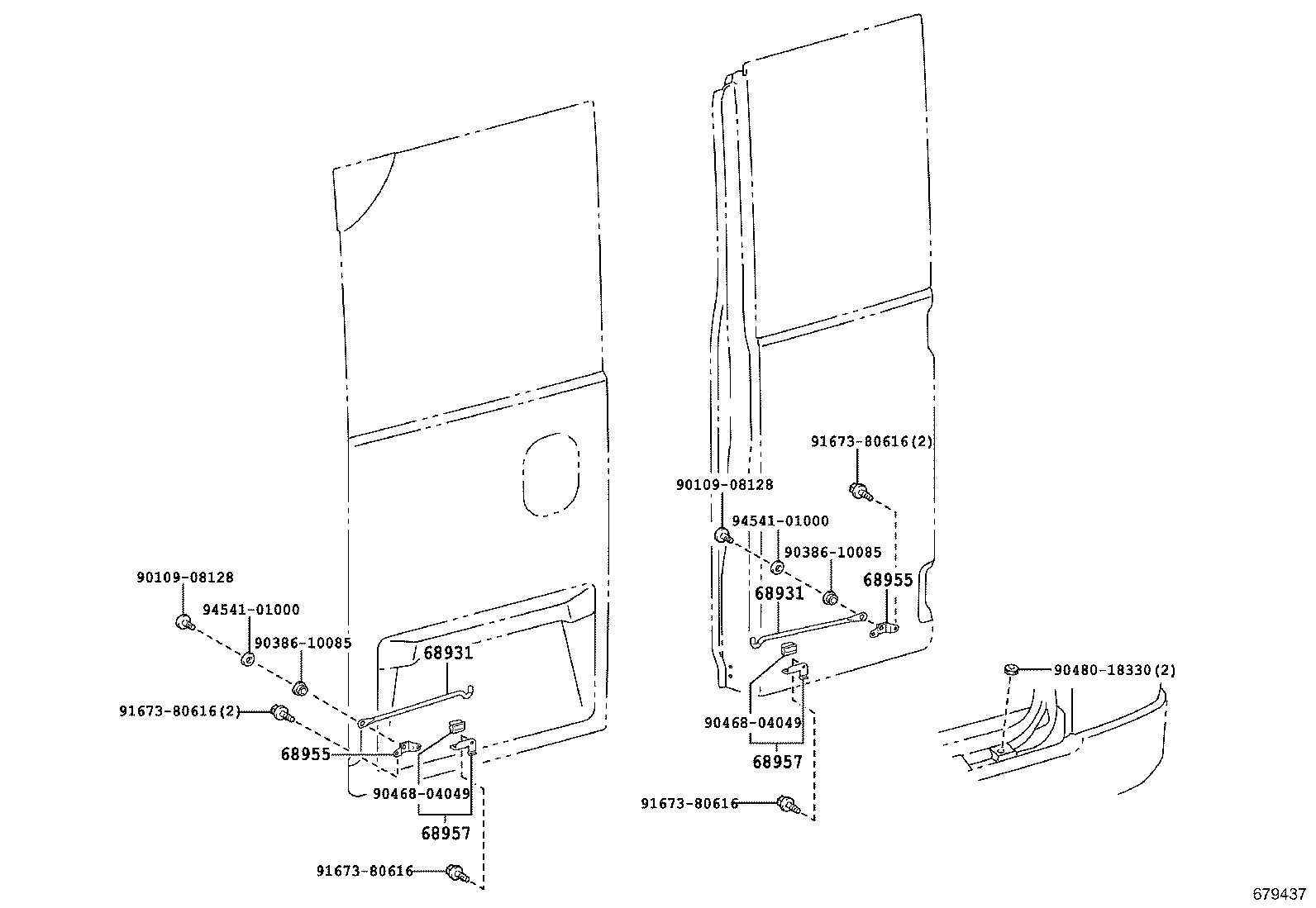

Back Door Lock & Hinge
37 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67287A | Anti-rattle, Back Door, Lower |
| 68801 | Hinge Sub-assy, Back Door, Upper RH |
| 68802 | Hinge Sub-assy, Back Door, Upper LH |
| 68803A | Hinge Sub-assy, Back Door, Lower RH |
| 68804A | Hinge Sub-assy, Back Door, Lower LH |
| 68830 | Hinge Assy, Back Door, RH |
| 68840 | Hinge Assy, Back Door, LH |
| 68851D | Cover, Back Door Hinge, Upper |
| 68852B | Cover, Back Door Hinge, Lower |
| 68861A | Pad, Back Door Hinge |
| 68931 | Stay, Back Door, NO.1 |
| 68945 | Bracket, Back Door Damper Stay, Upper RH |
| 68946 | Bracket, Back Door Damper Stay, Upper LH |
| 68950C | Stay Assy, Back Door, RH |
| 68955 | Bracket, Back Door Stay |
| 68957 | Bracket, Back Door Stay |
| 68960 | Stay Assy, Back Door, LH |
| 68961 | Bolt, Back Door Stay |
| 69042 | Stopper Sub-assy, Back Door, Lower |
| 69090 | Handle Assy, Back Door, Outside |
| 69212B | Handle, Back Door Inside |
| 69278D | Bezel, Door Inside Handle, LH |
| 69291 | Handle Assy, Back Door Inside |
| 69321 | Cover, Back Door Lock |
| 69350 | Lock Assy, Back Door |
| 69350Q | Lock Assy, Back Door, Upper |
| 69380C | Lock Assy, Back Door, Lower |
| 69410C | Plate Assy, Back Door Lock Striker |
| 69430C | Striker Assy, Back Door Lock |
| 69451 | Striker, Back Door Upper Lock |
| 69478 | Cushion, Back Door Lower Stopper |
| 69690 | Control Assy, Back Door Remote |
| 69749E | Clamp, Back Door Lock Link |
| 69759 | Snap, Door Lock Control Link, NO.1 |
| 69789 | Silencer, Back Door Lock Control Link |
| 69790A | Link Assy, Back Door Lock Control |
| 69792 | Link, Back Door Lock Locking |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
