Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01

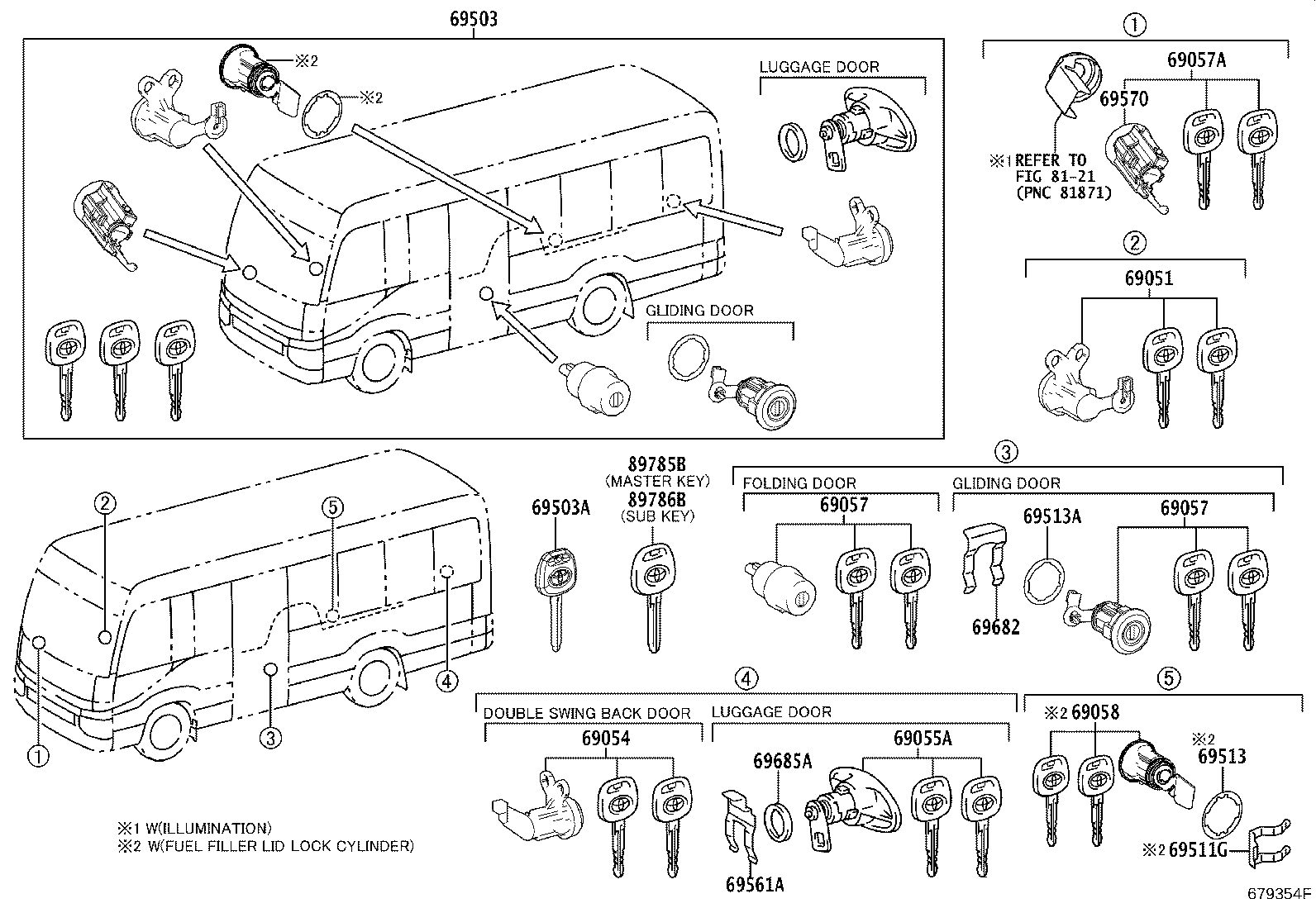

Lock Cylinder Set
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69054 | Cylinder & Key Set, Back Door Lock |
| 69055A | Cylinder & Key Set, Luggage Compartment Lock |
| 69057 | Cylinder & Key Set, Center Door Lock |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69058 | Cylinder & Key Set, Fuel Filler Lid |
| 69058D | Cylinder & Key Set, Fuel Tank Filler |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69511G | Retainer, Fuel Filler Opening Cylinder |
| 69513 | Pad, Fuel Filler Lid Lock Cylinder |
| 69513A | Pad, Door Cylinder |
| 69561A | Retainer, Luggage Compartment Lock Cylinder |
| 69570 | Cylinder Assy, Ignition Switch Lock |
| 69682 | Retainer, Lock Cylinder |
| 69685A | Pad, Lock Cylinder |
| 89785B | Transmitter, Transponder Key Master |
| 89786B | Transmitter, Transponder Key Sub |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
