Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01
Seat & Seat Track
502 part groups · 74 illustrations
Illustrations
71A599B

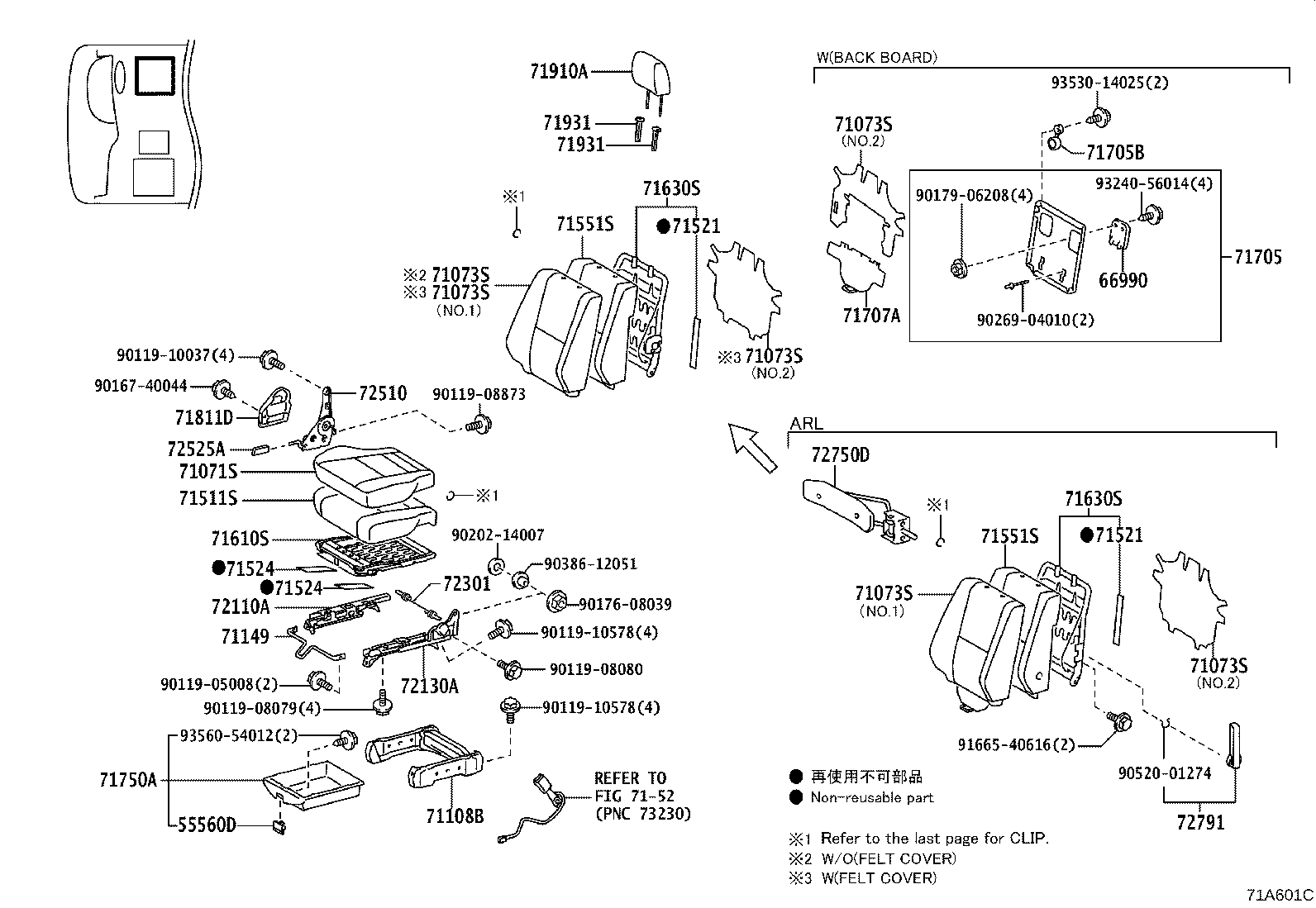

71A601C

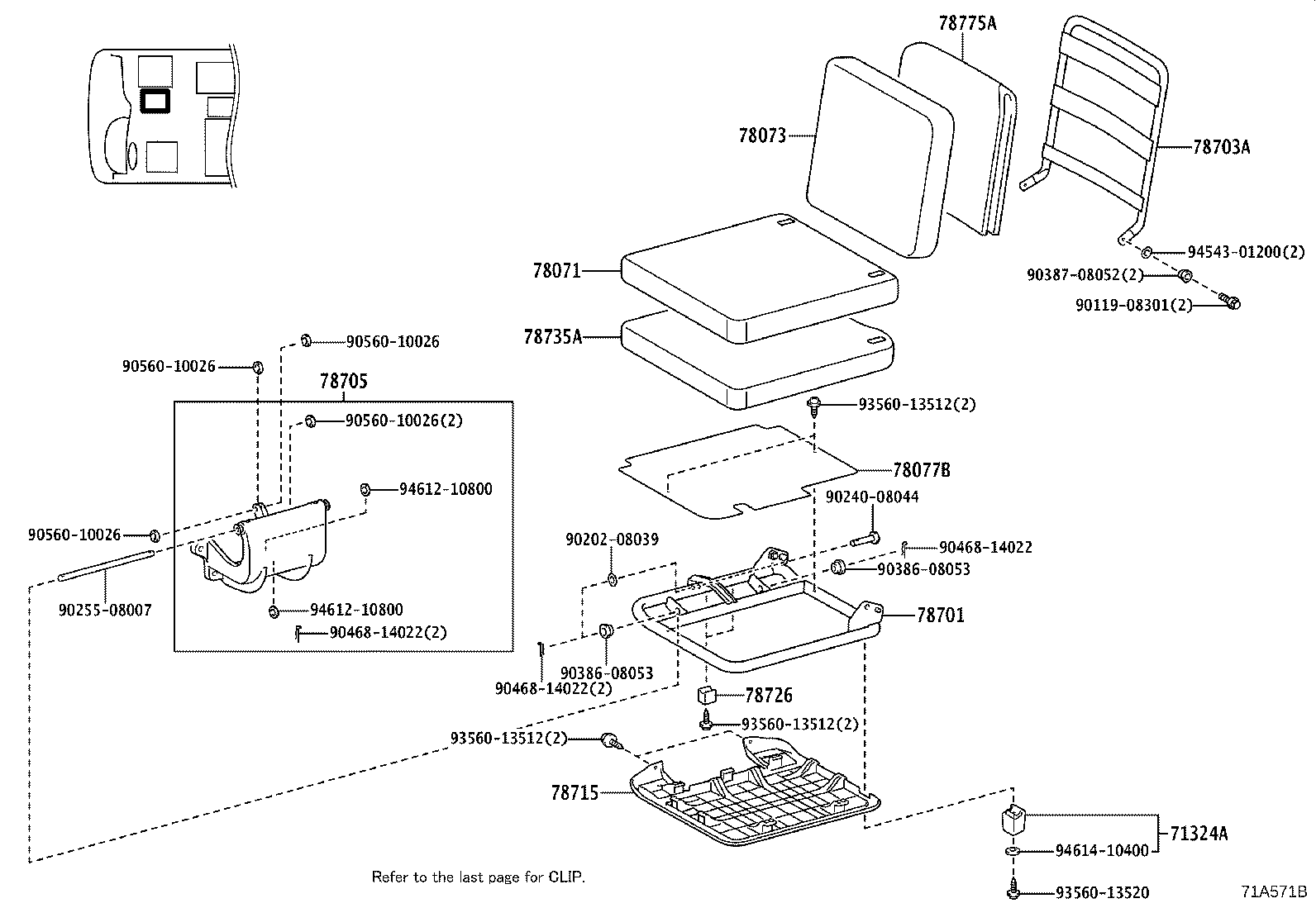

71A571B

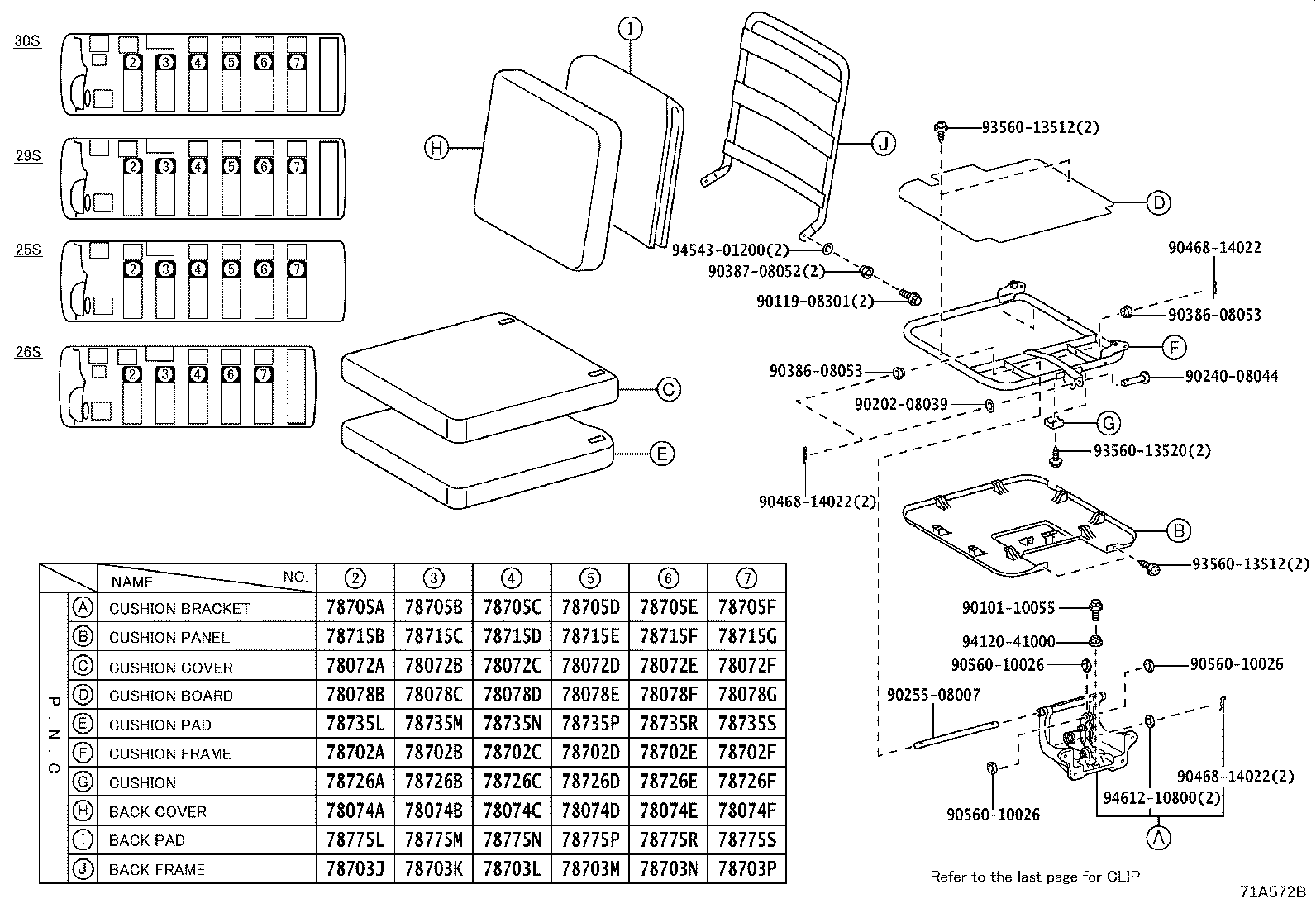

71A572B

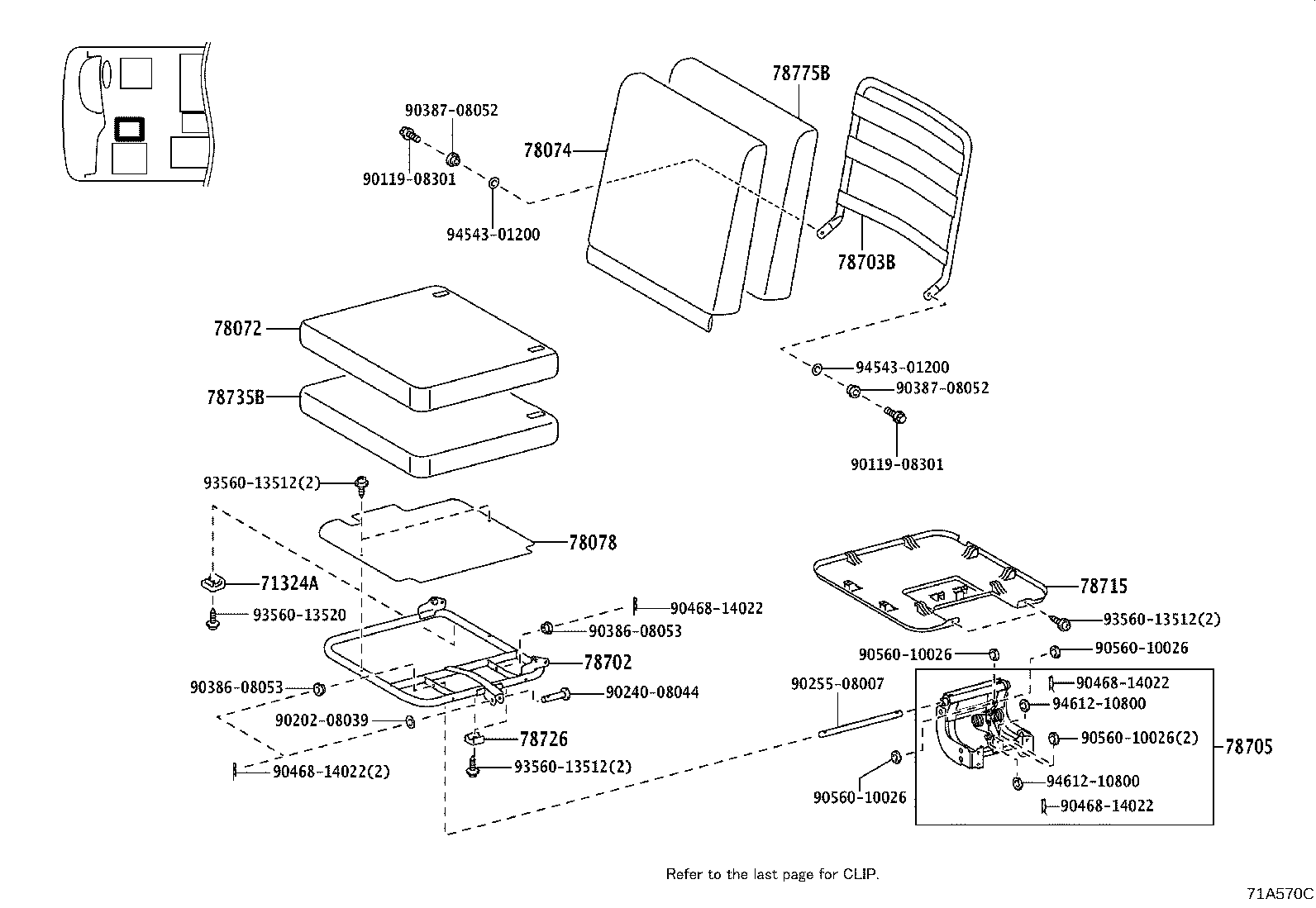

71A570C

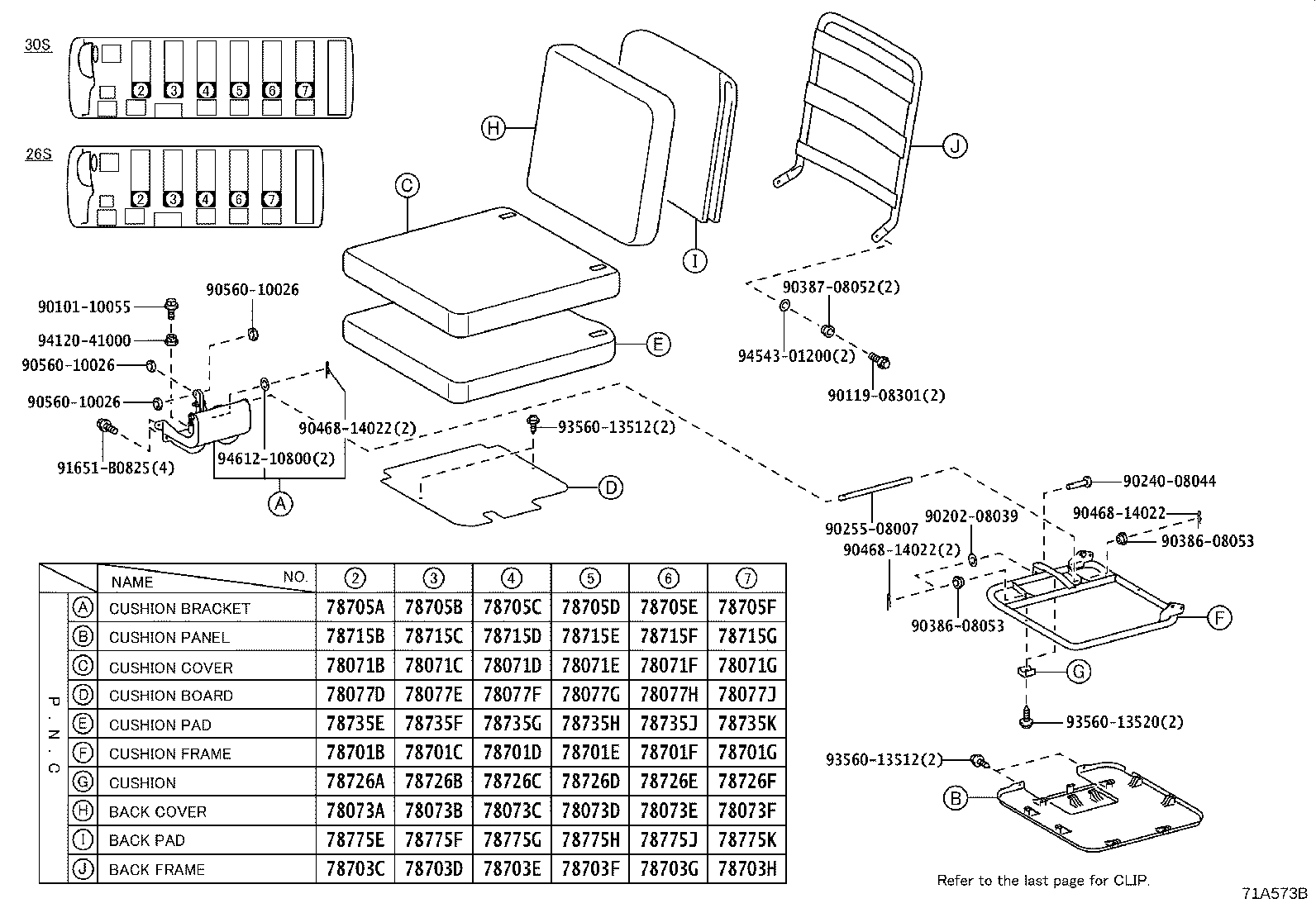

71A573B

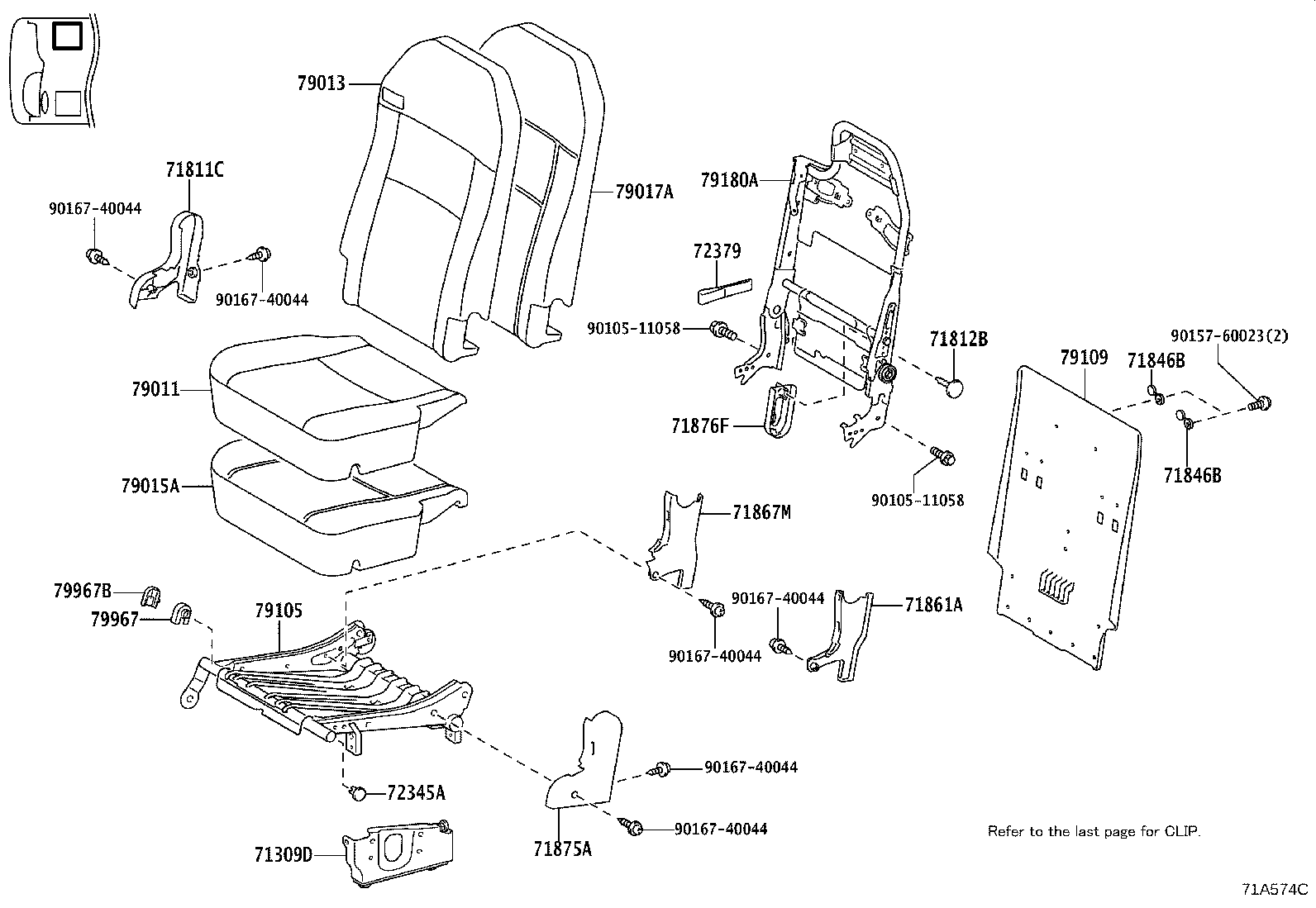

71A574C

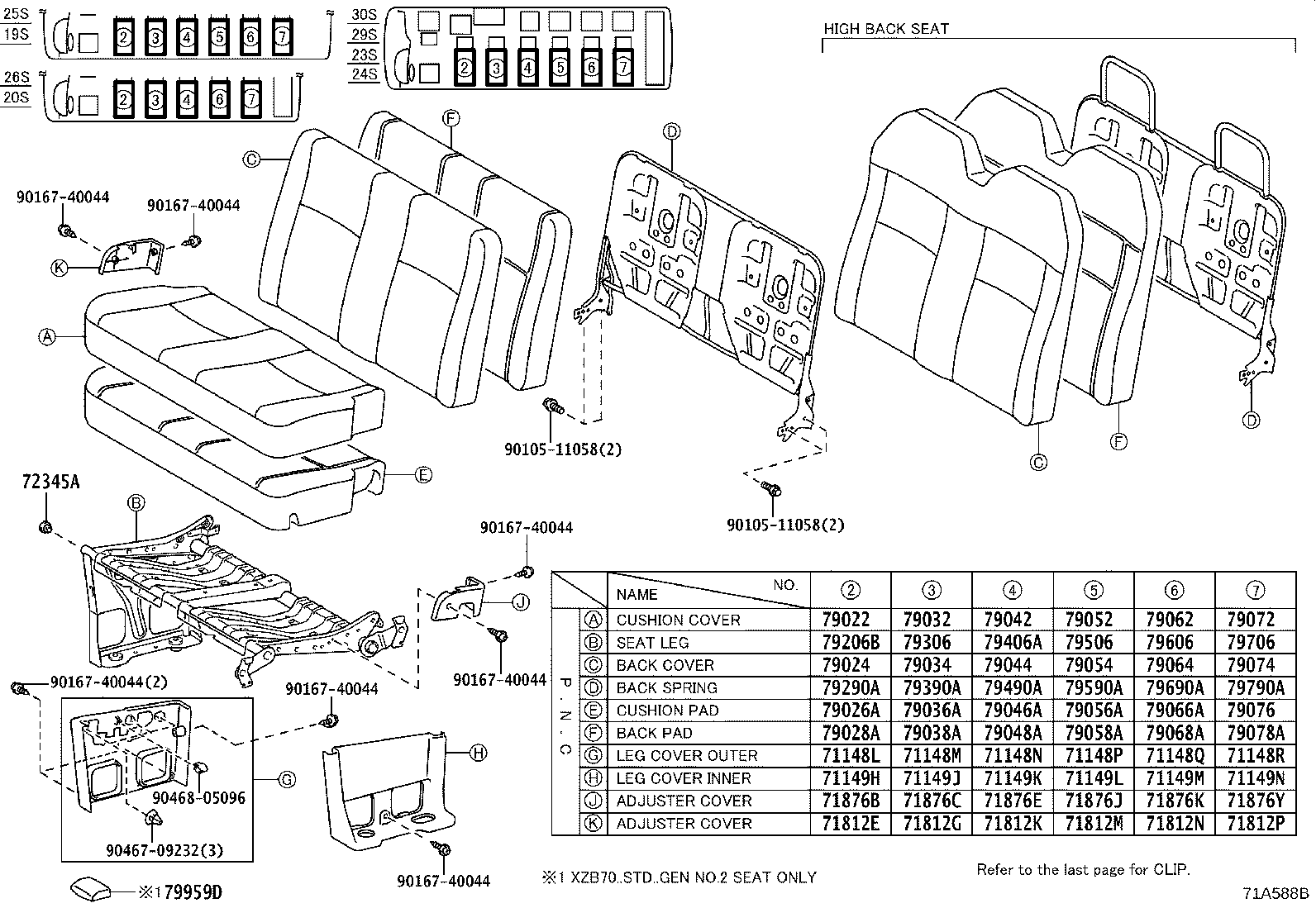

71A588B

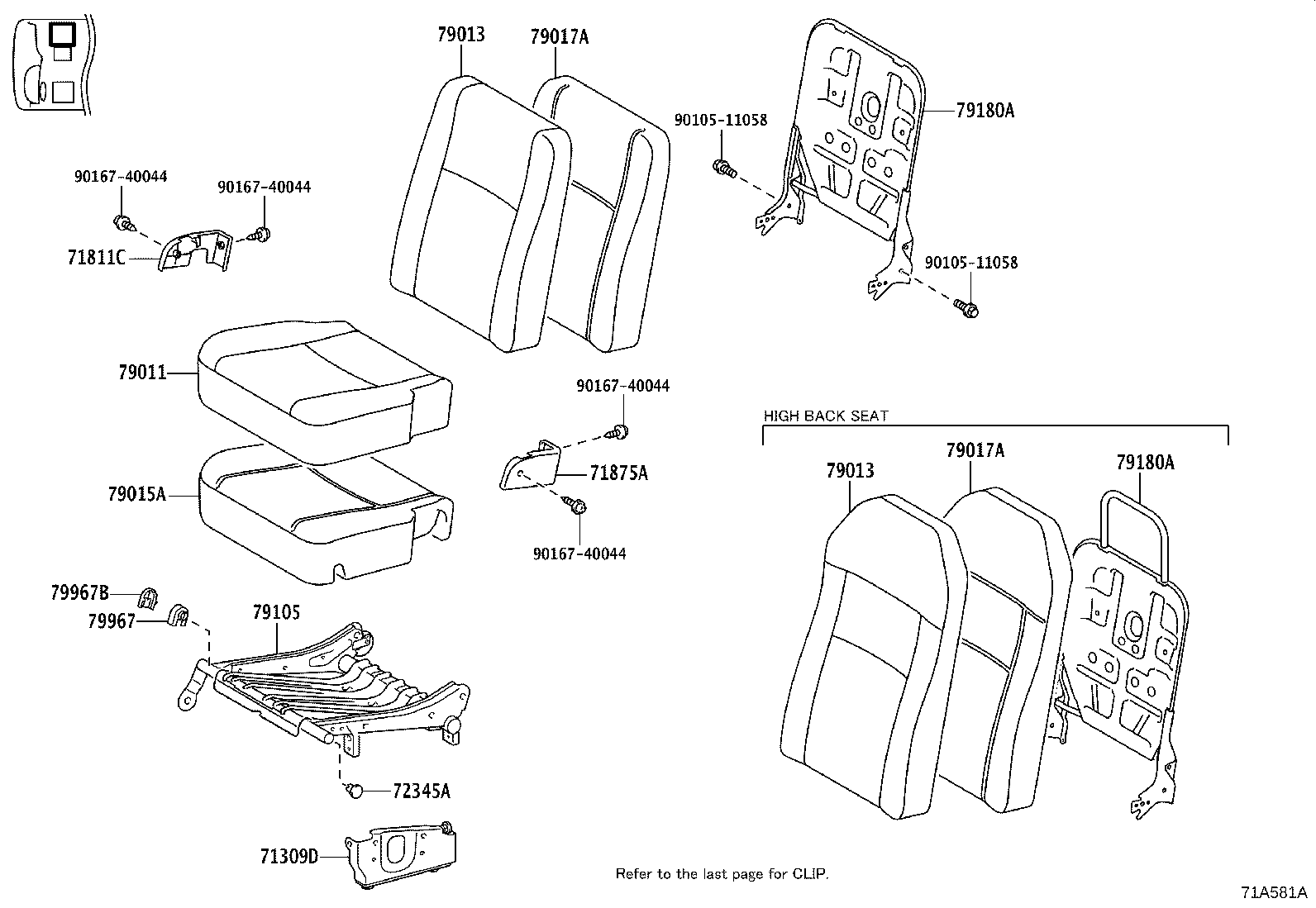

71A581A

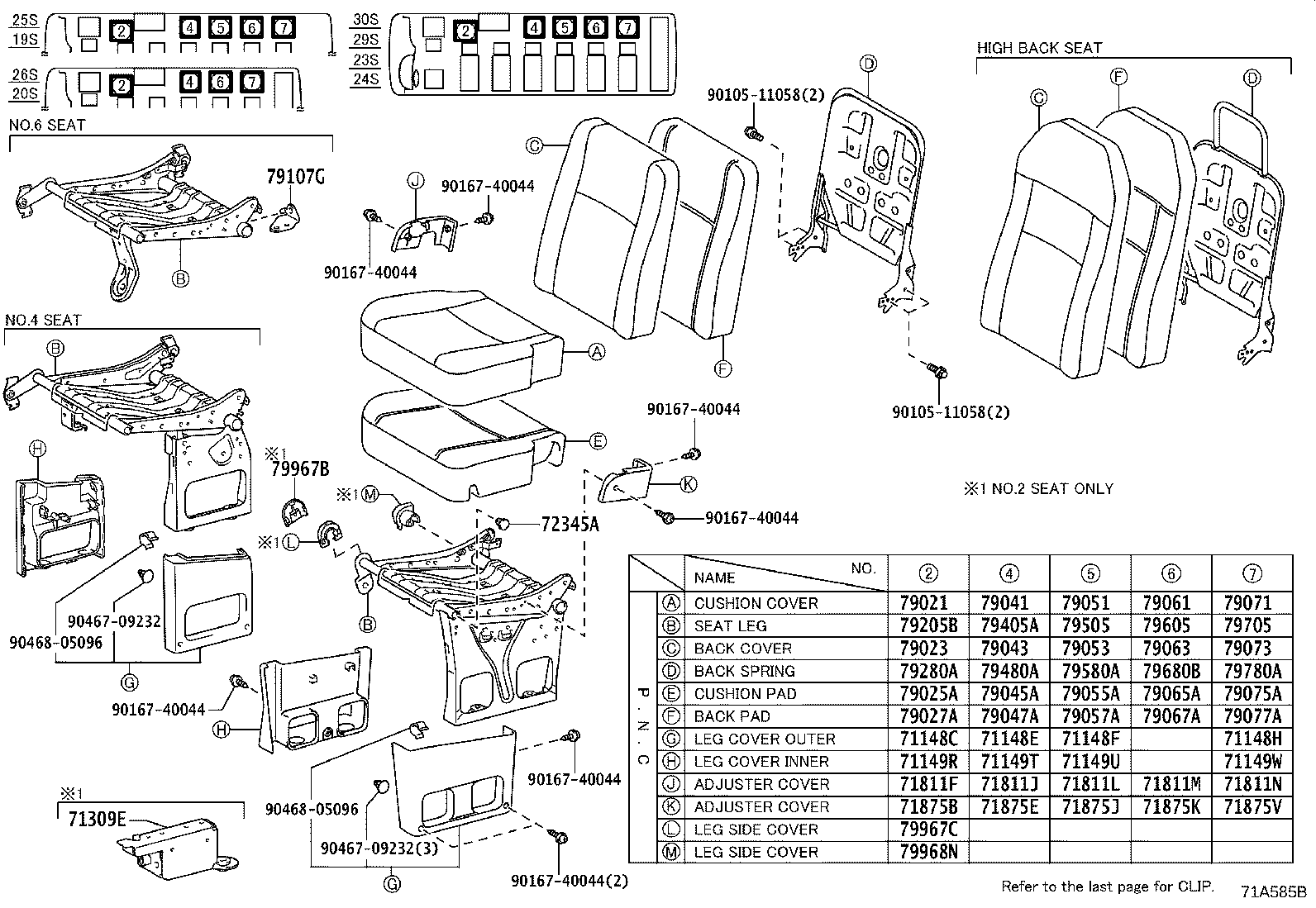

71A585B

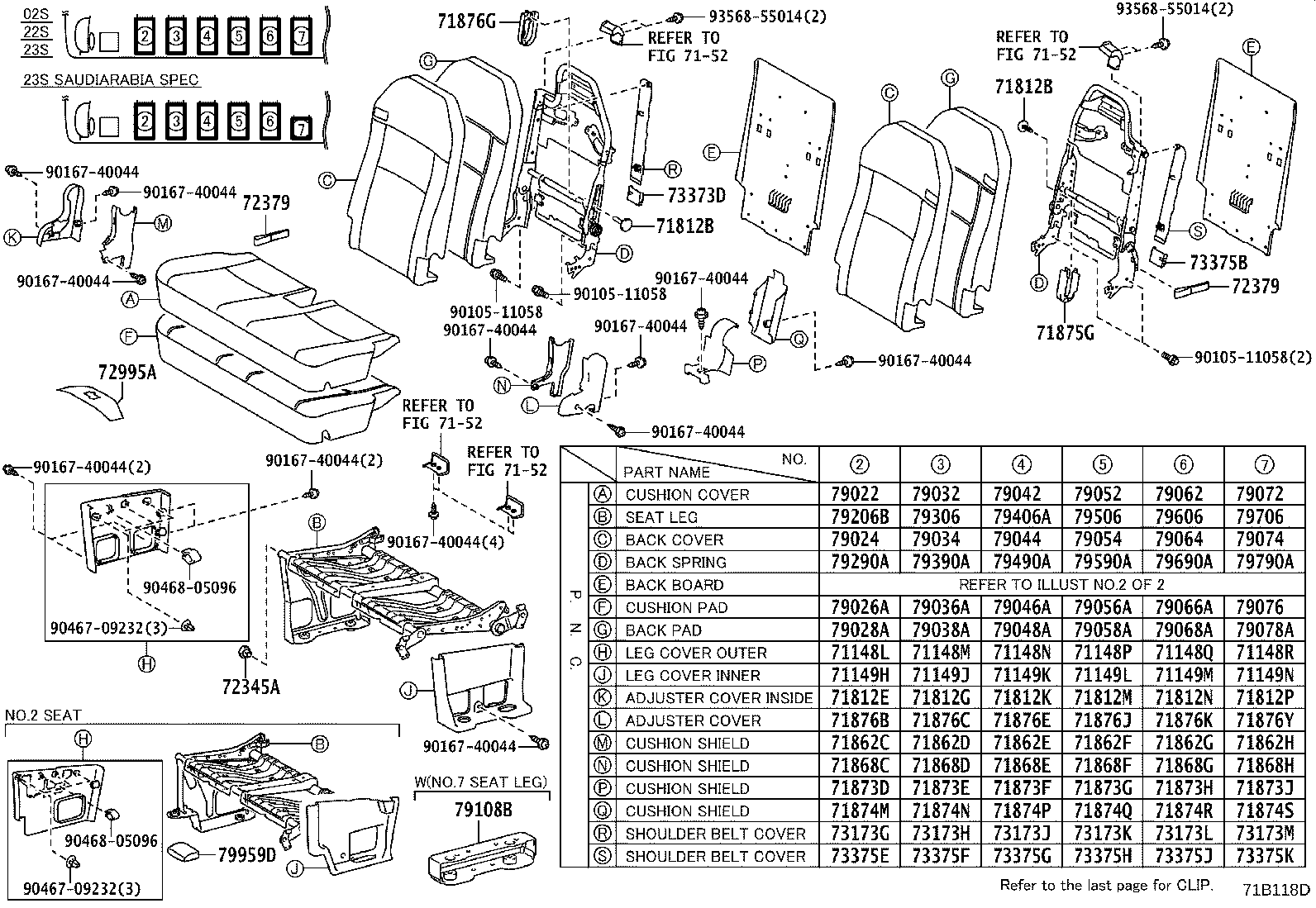

71B118D
71B118D
71B118D

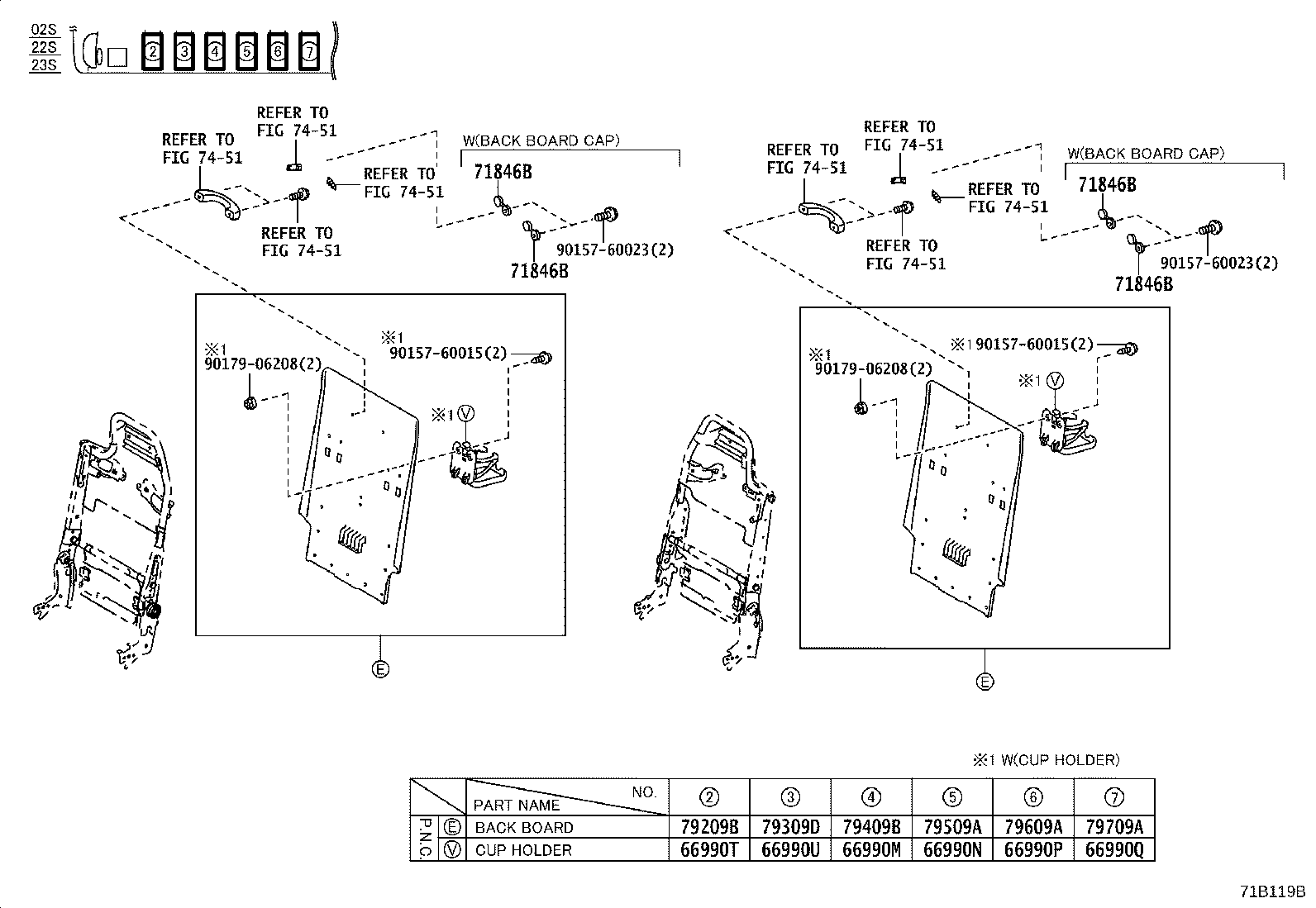

71B119B
71B119B
71B119B

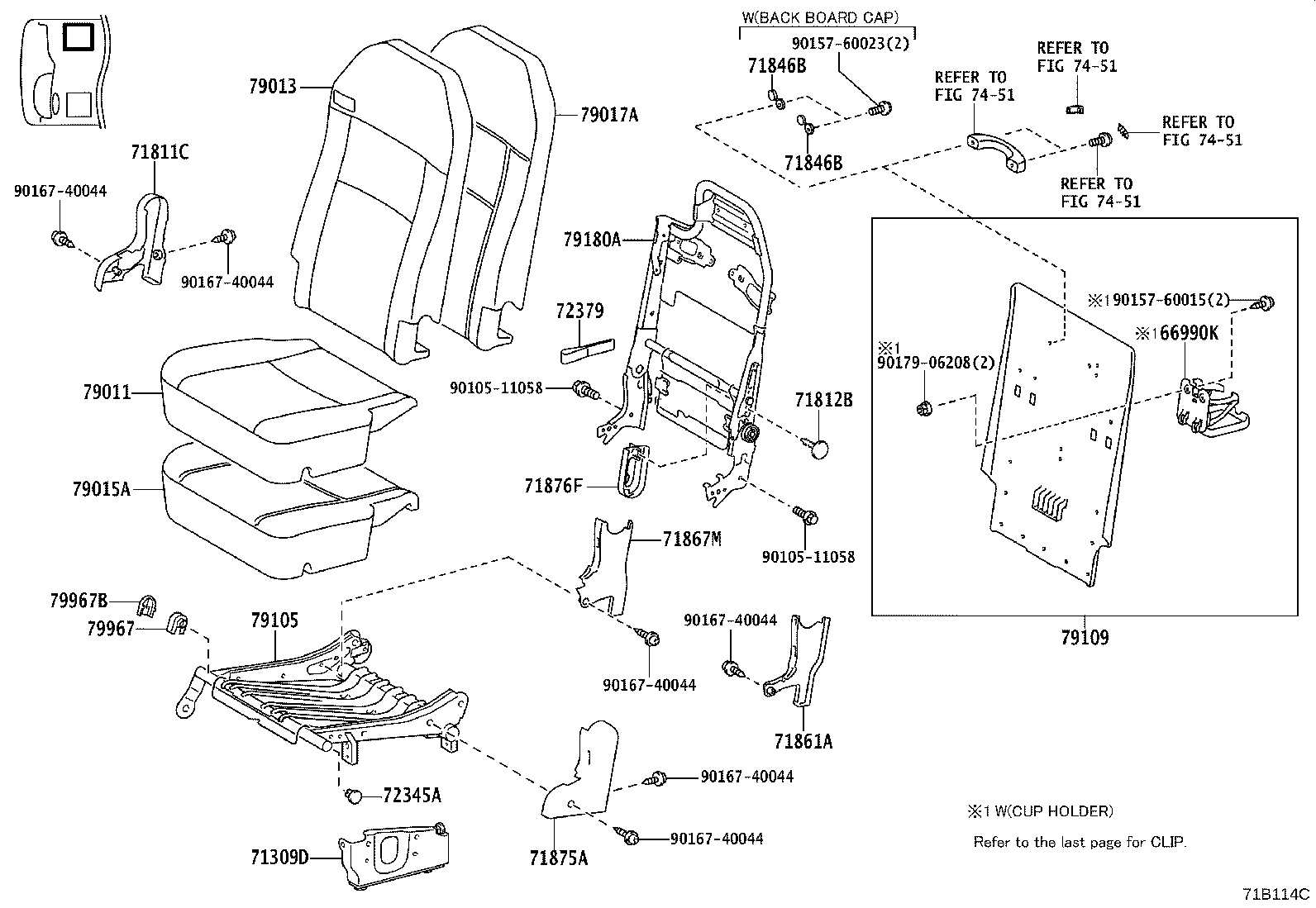

71B114C
71B114C

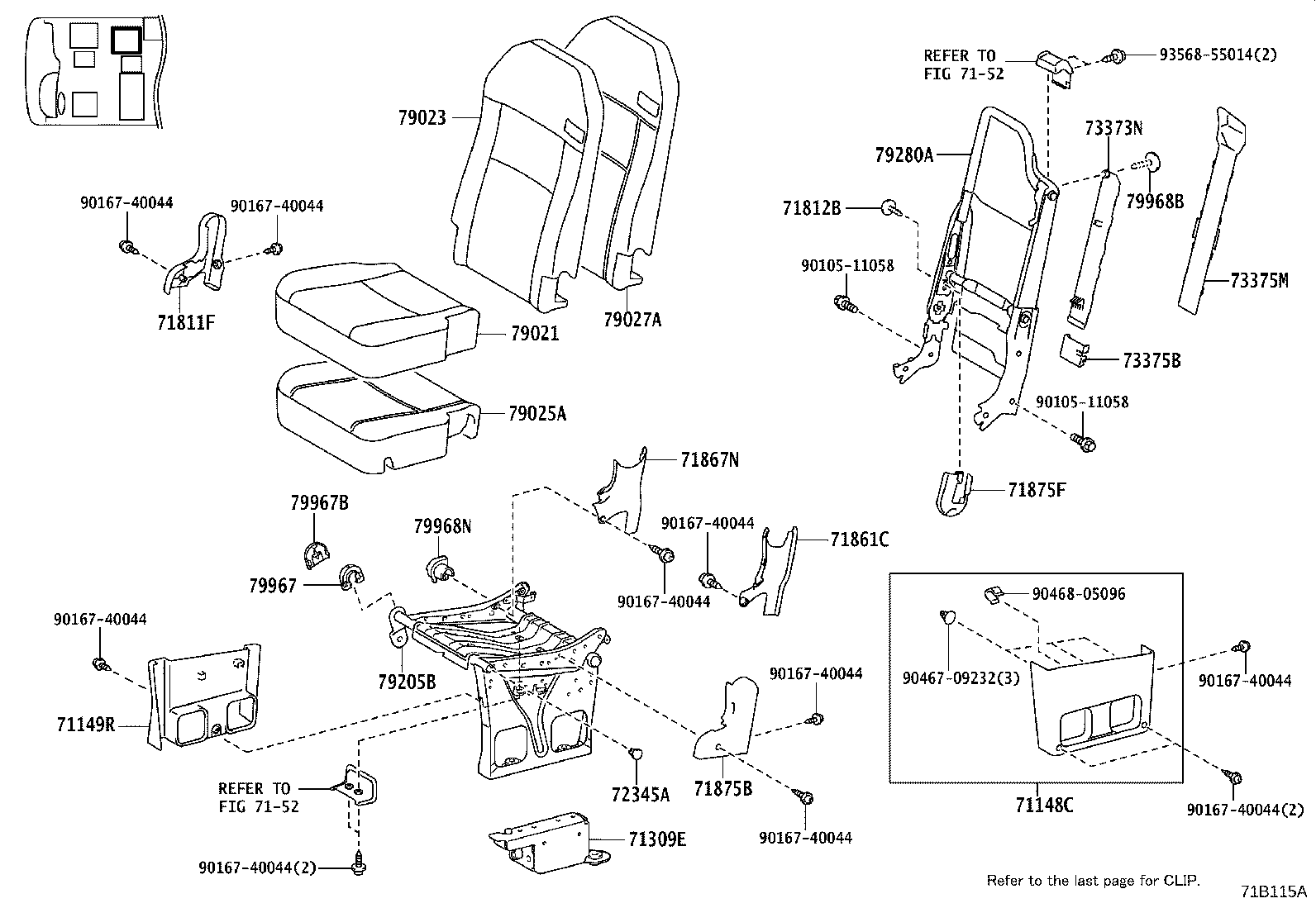

71B115A
71B115A
71B115A

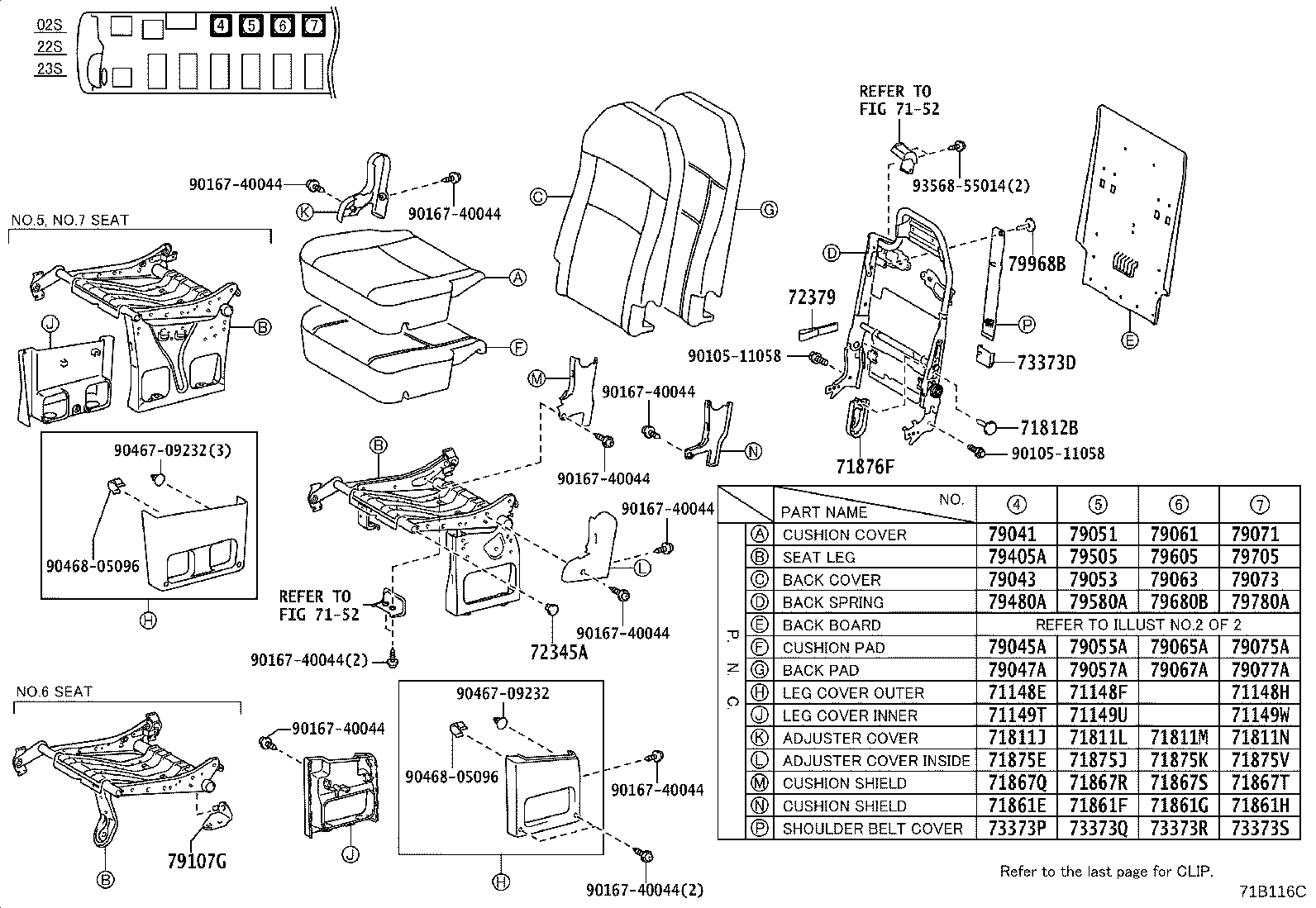

71B116C
71B116C
71B116C

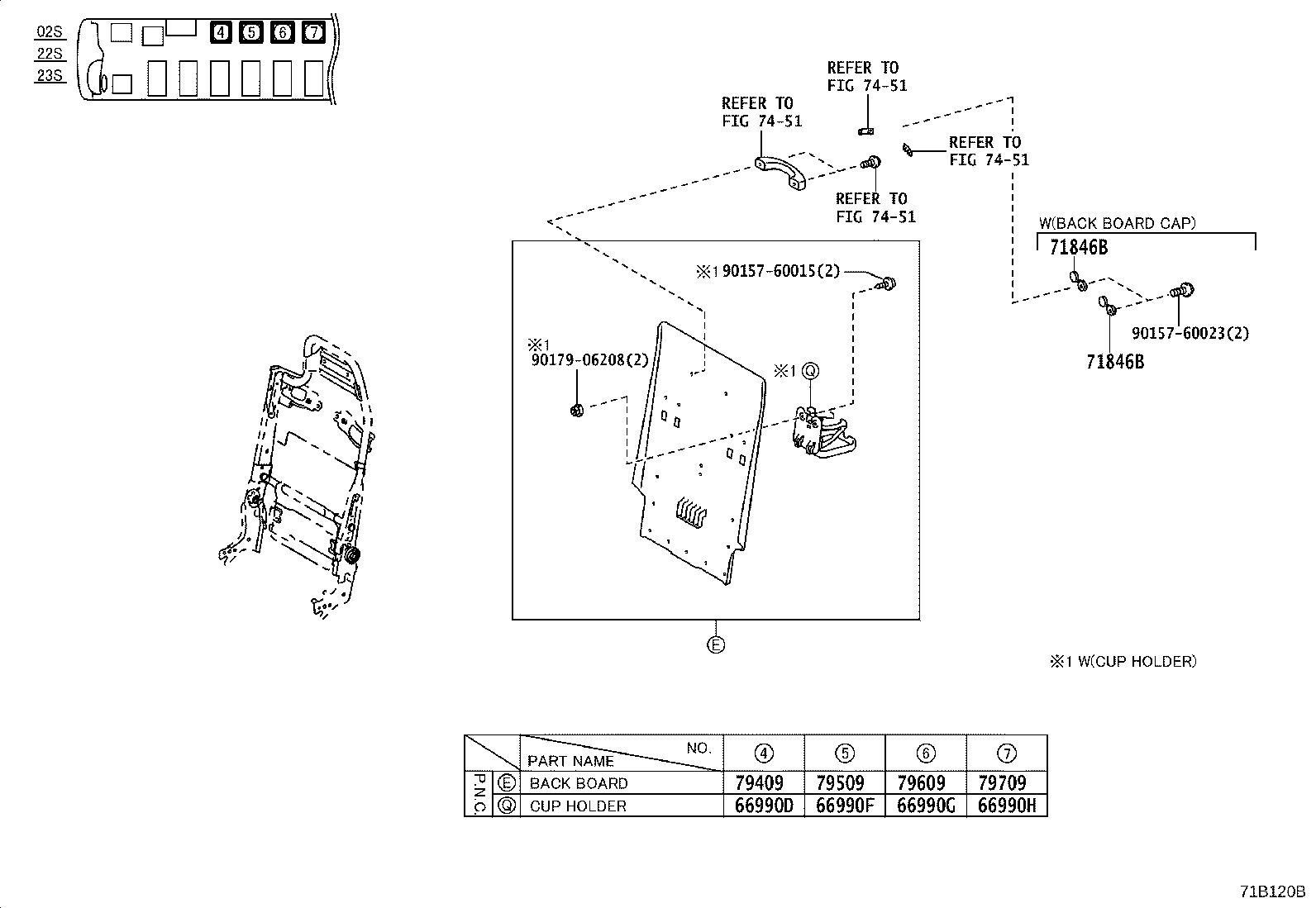

71B120B
71B120B
71B120B

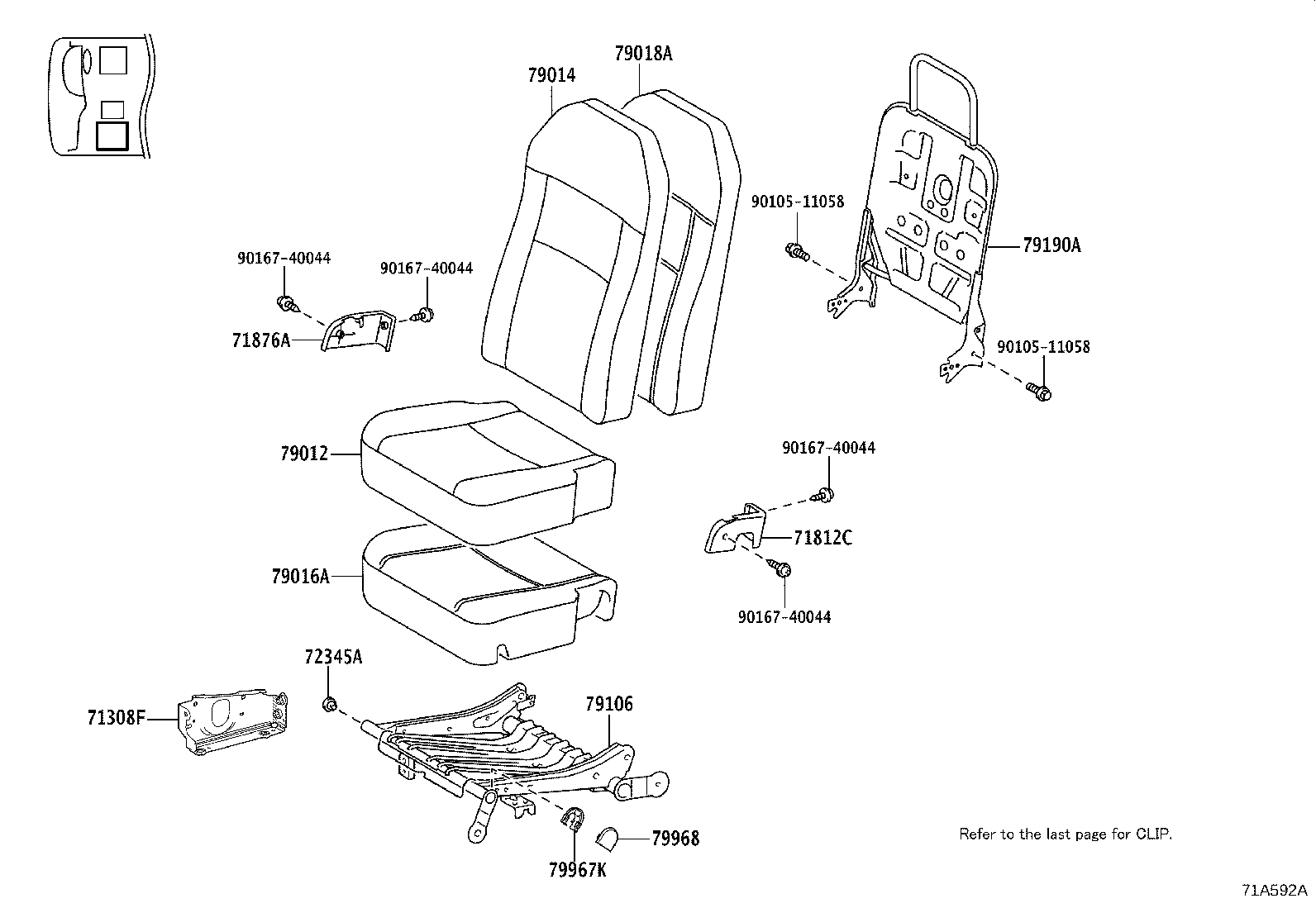

71A592A

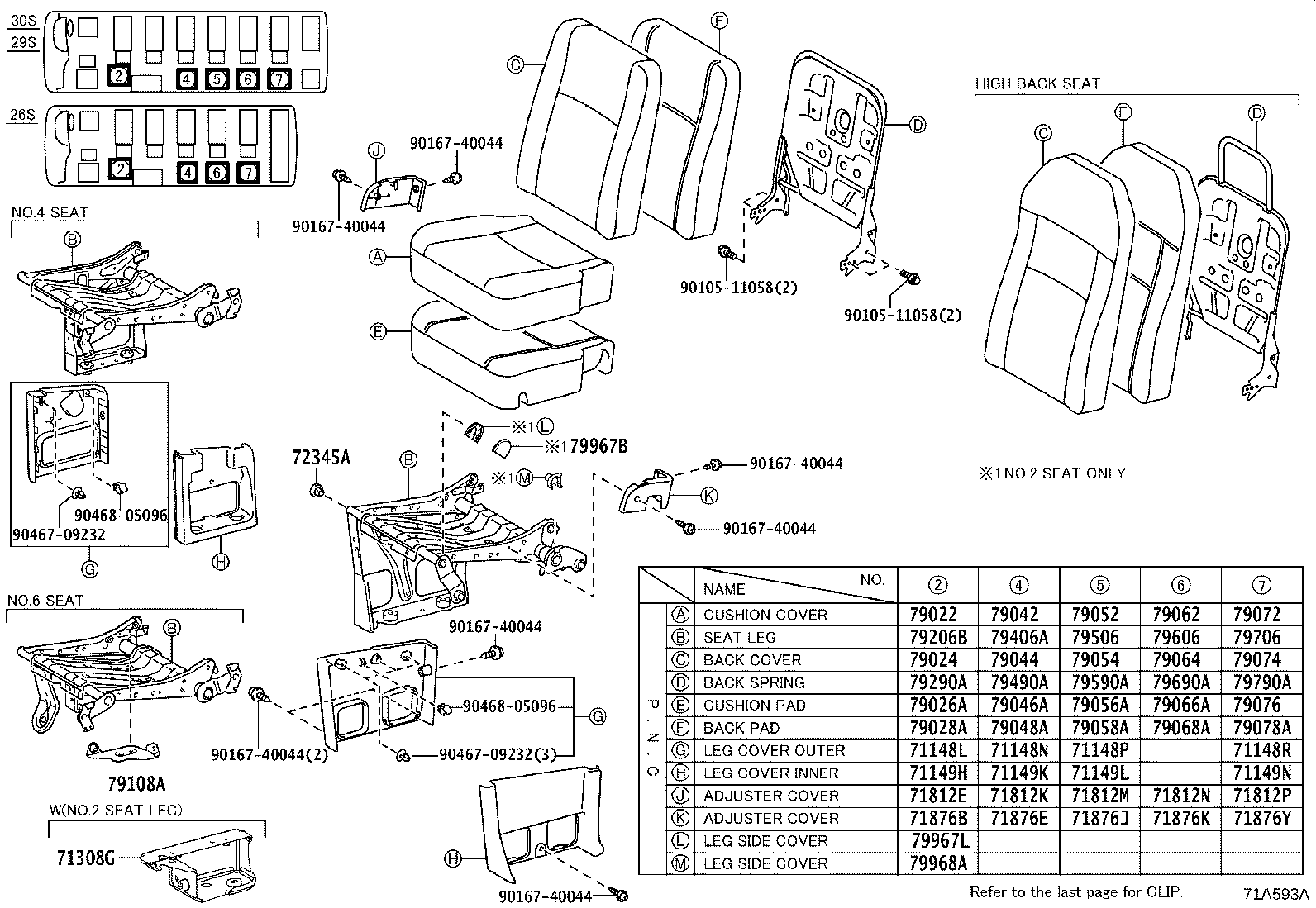

71A593A

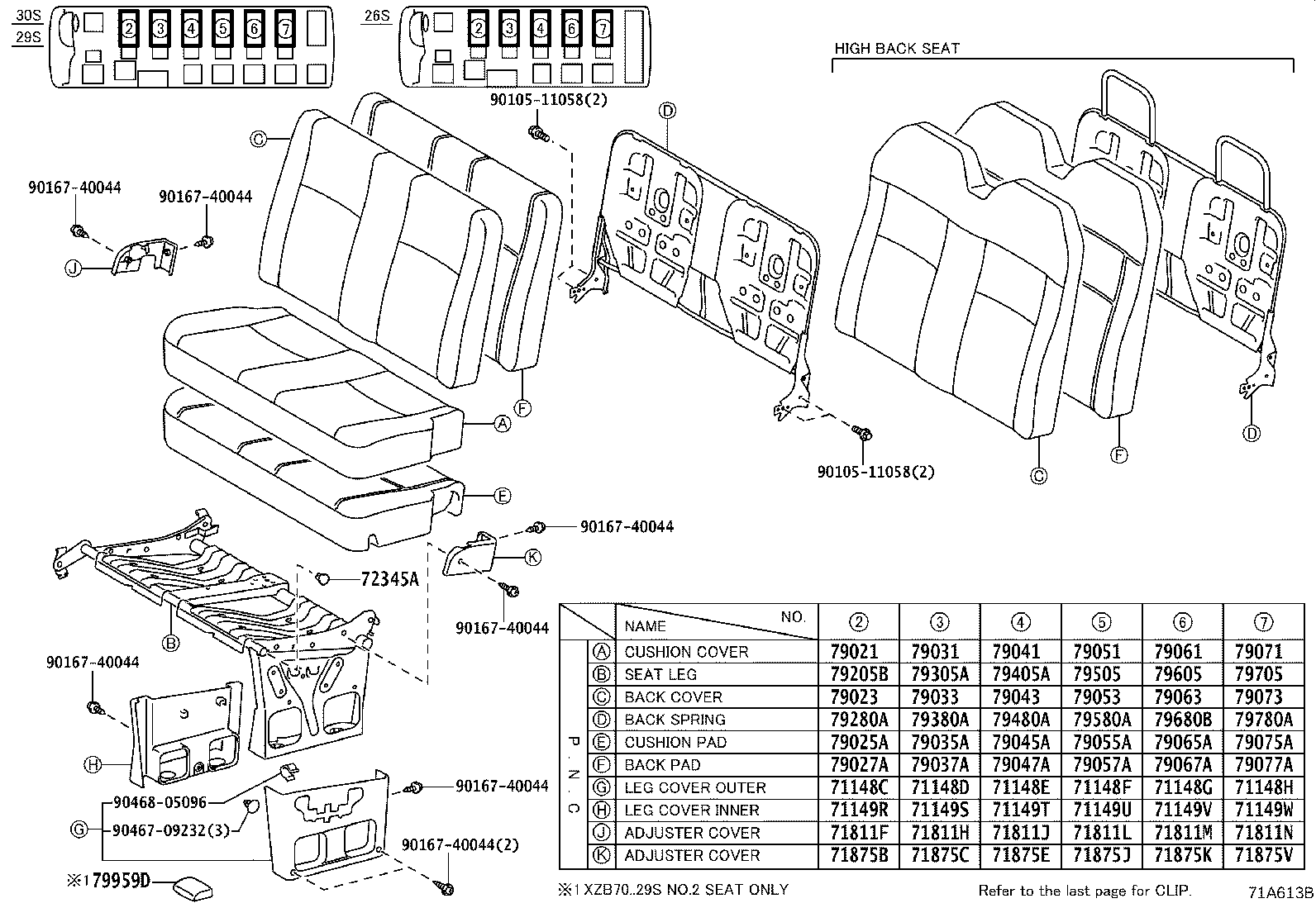

71A613B

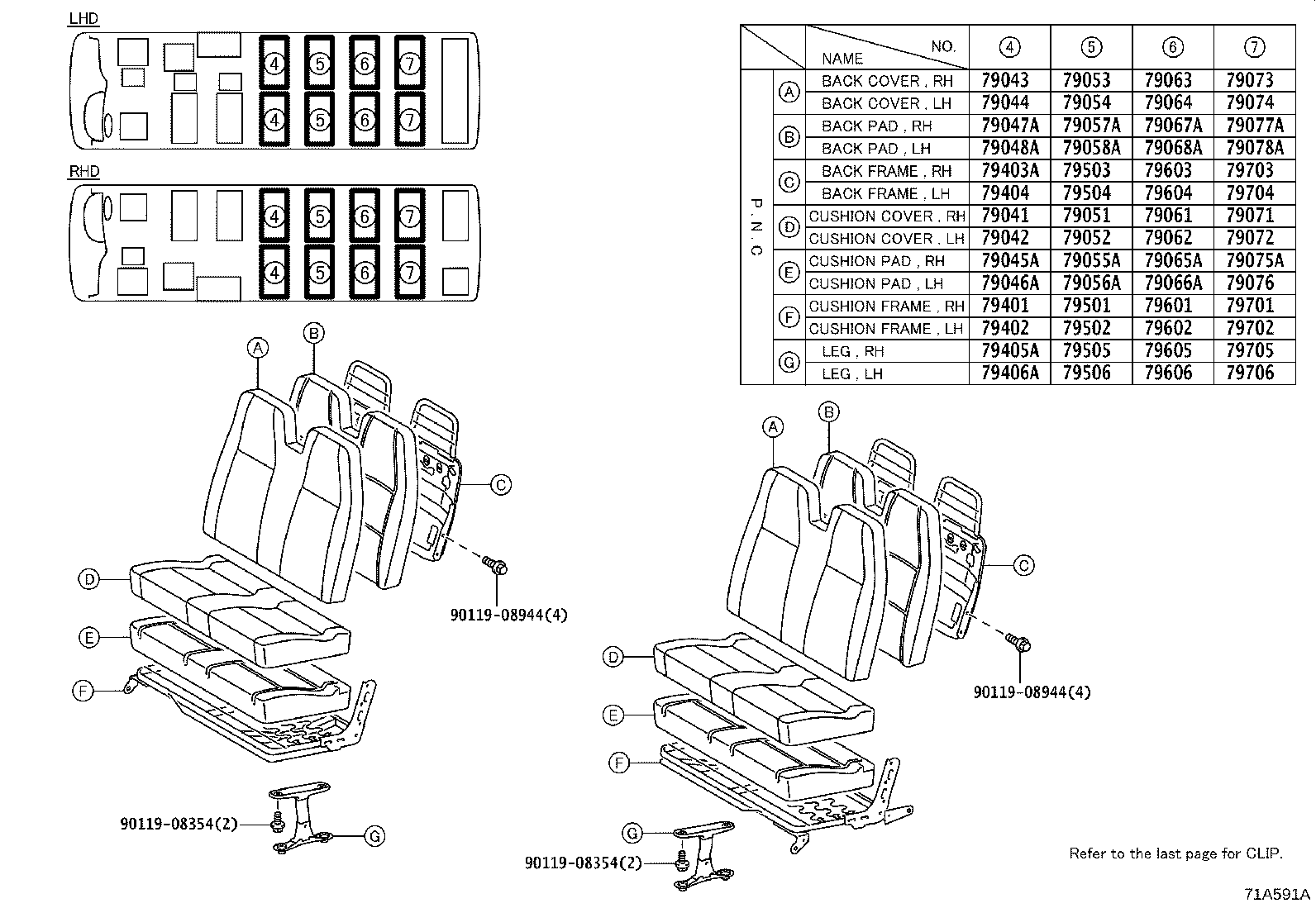

71A591A
71A591A

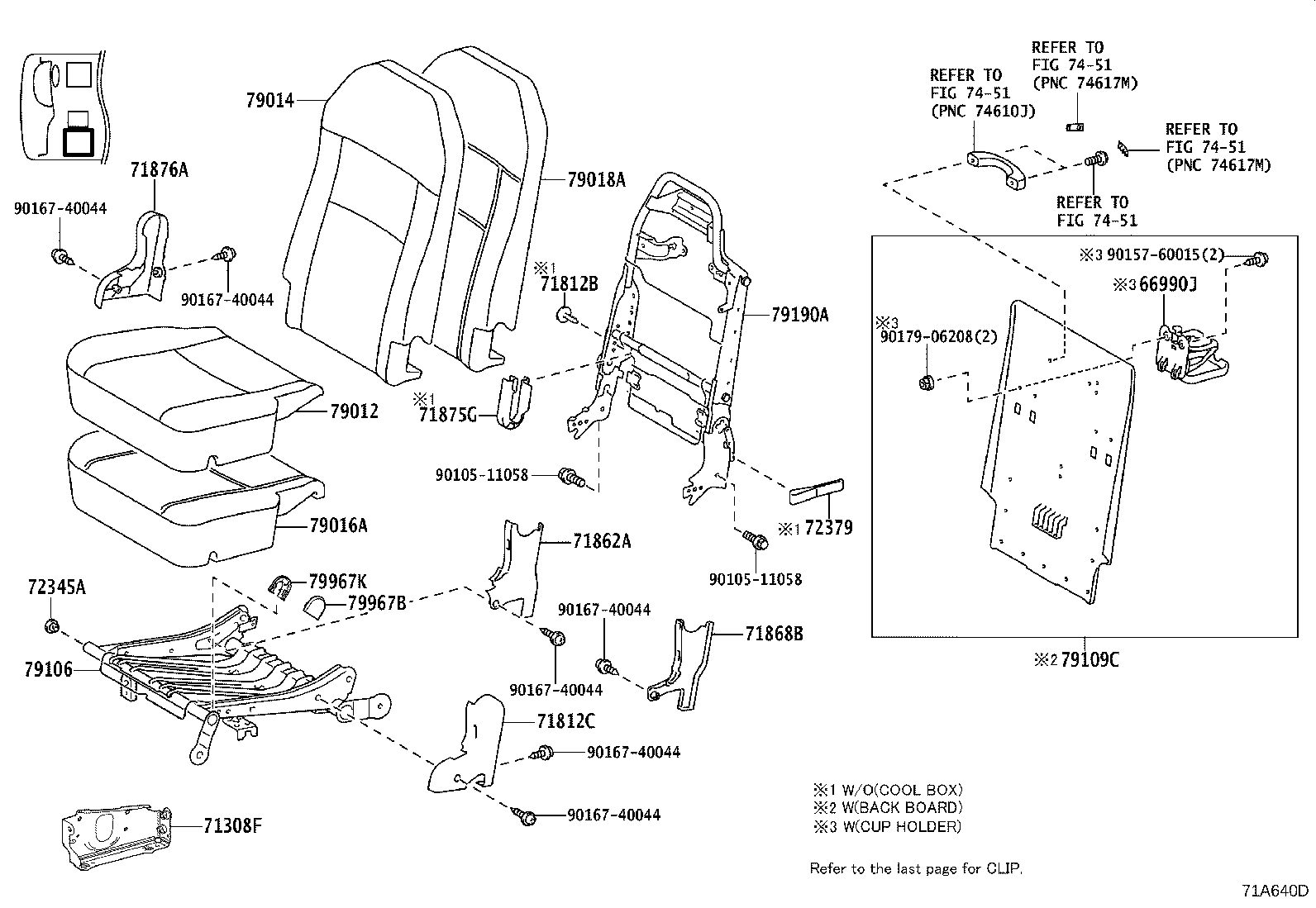

71A640D
71A640D

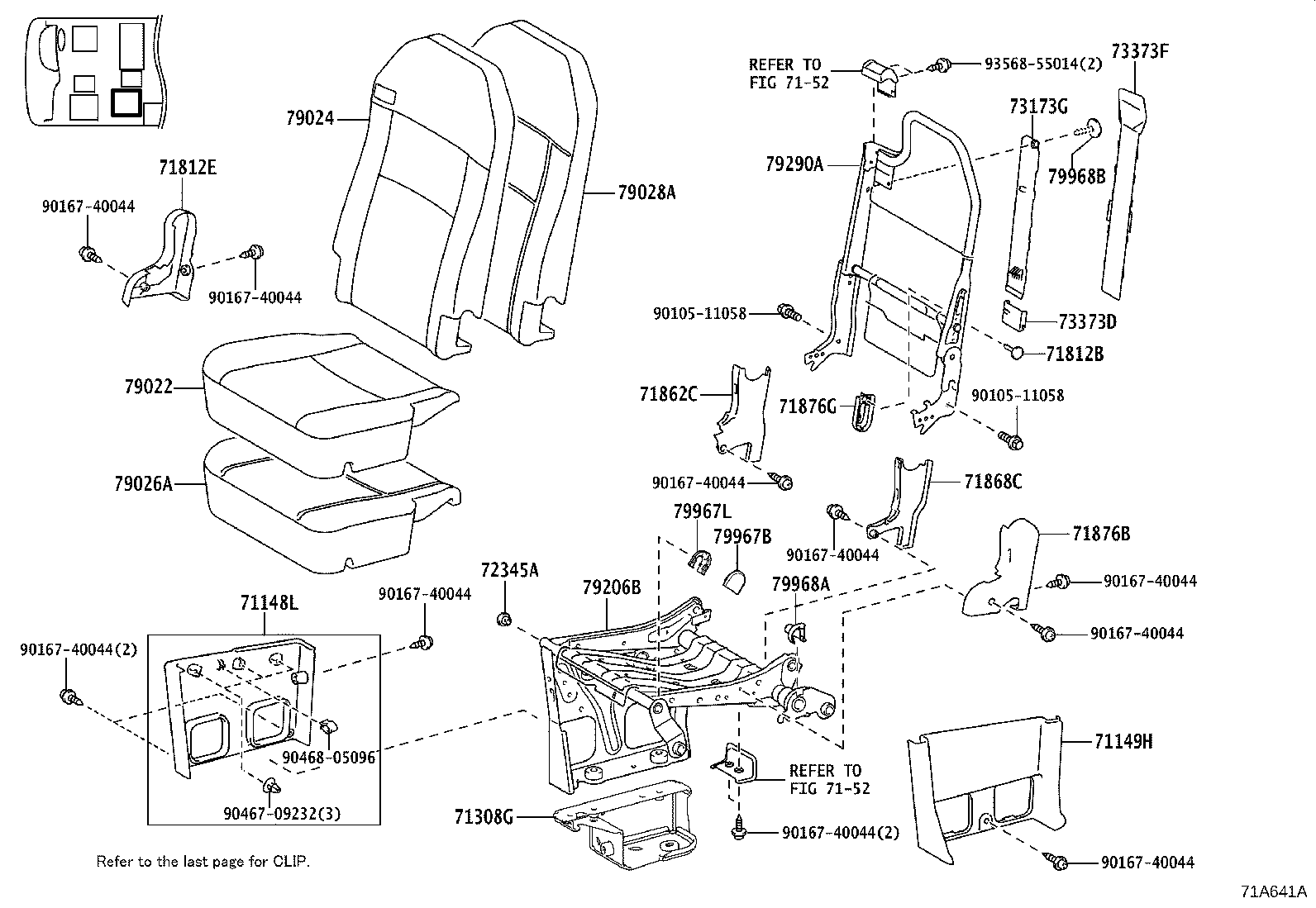

71A641A
71A641A

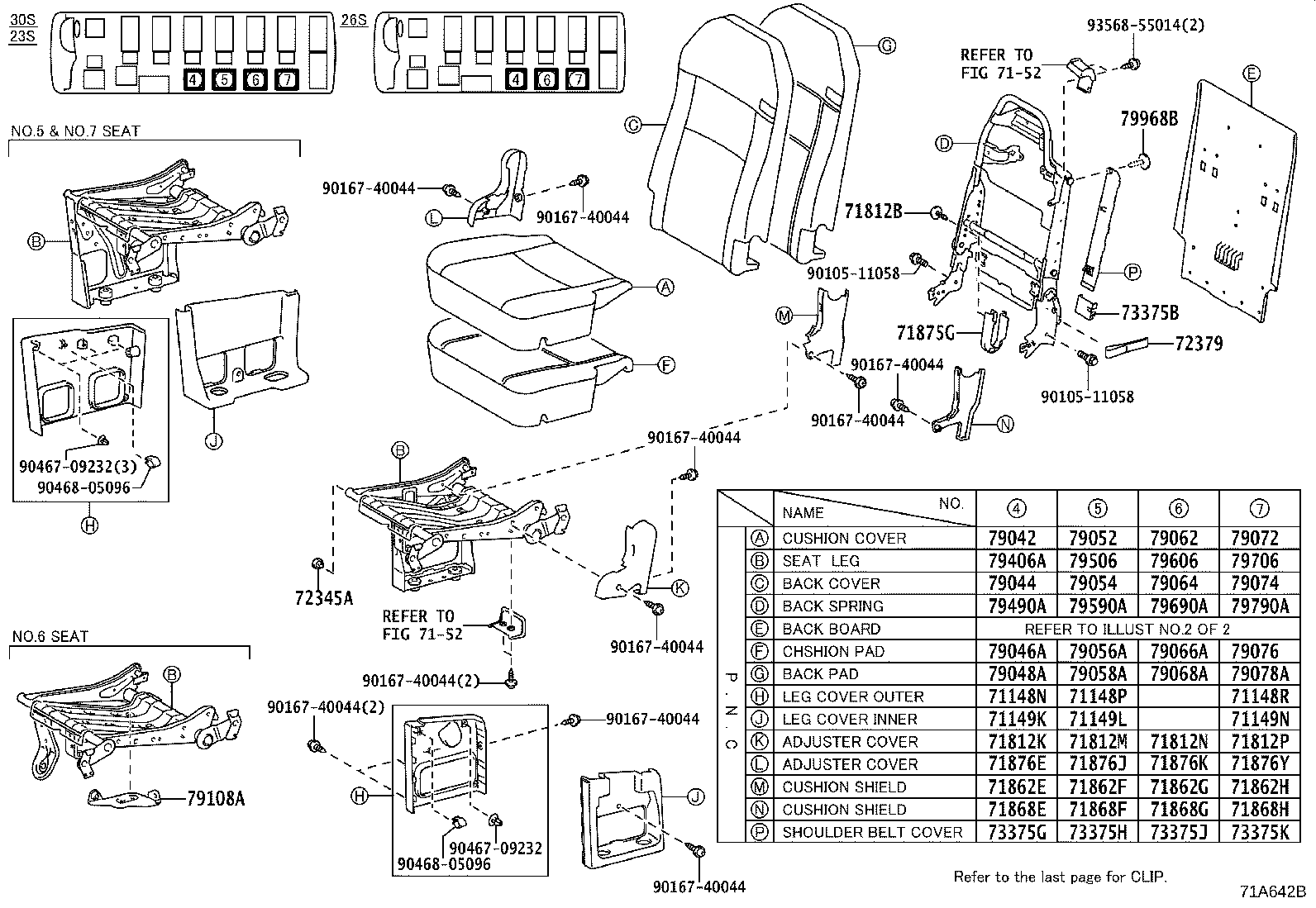

71A642B
71A642B

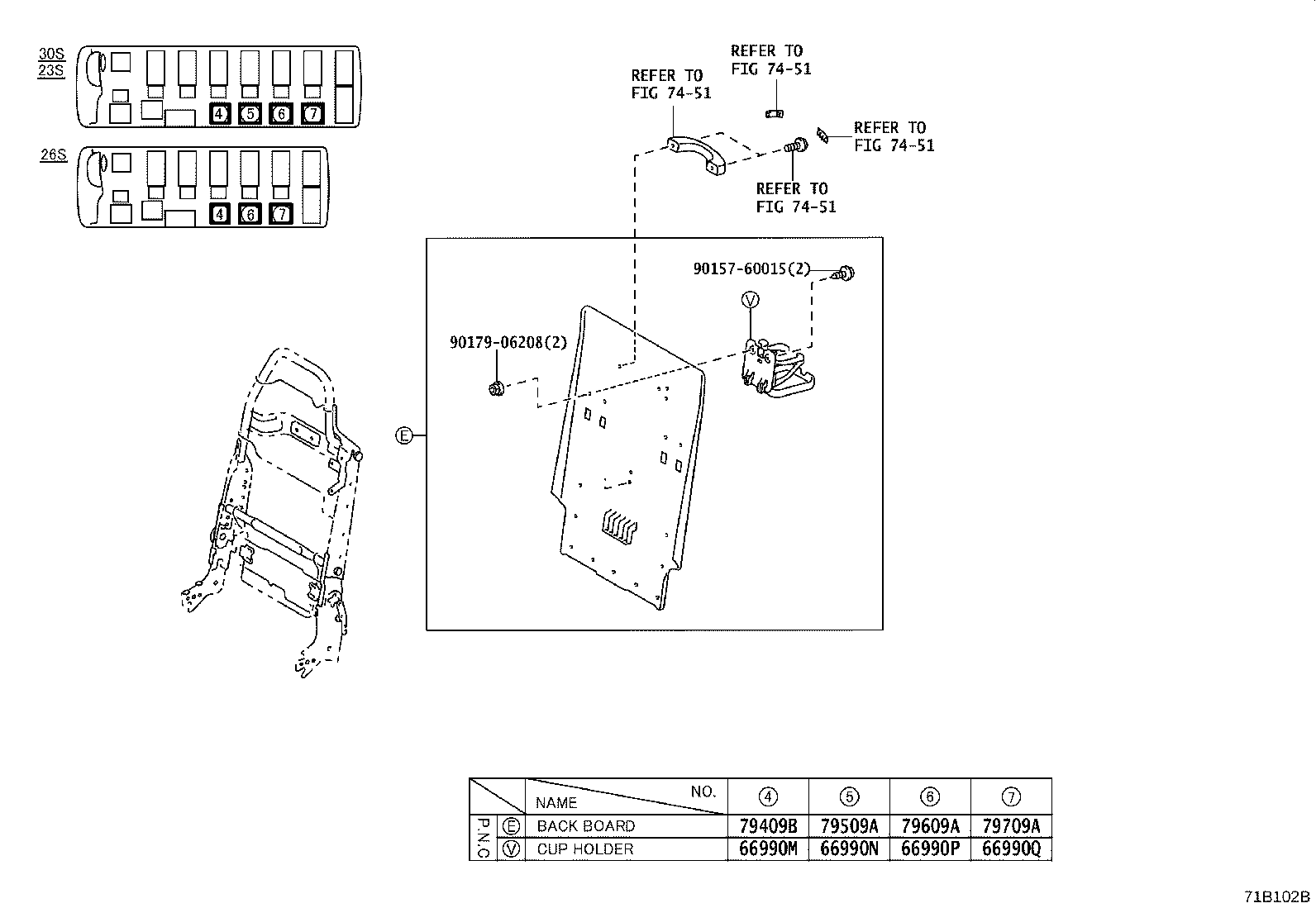

71B102B
71B102B

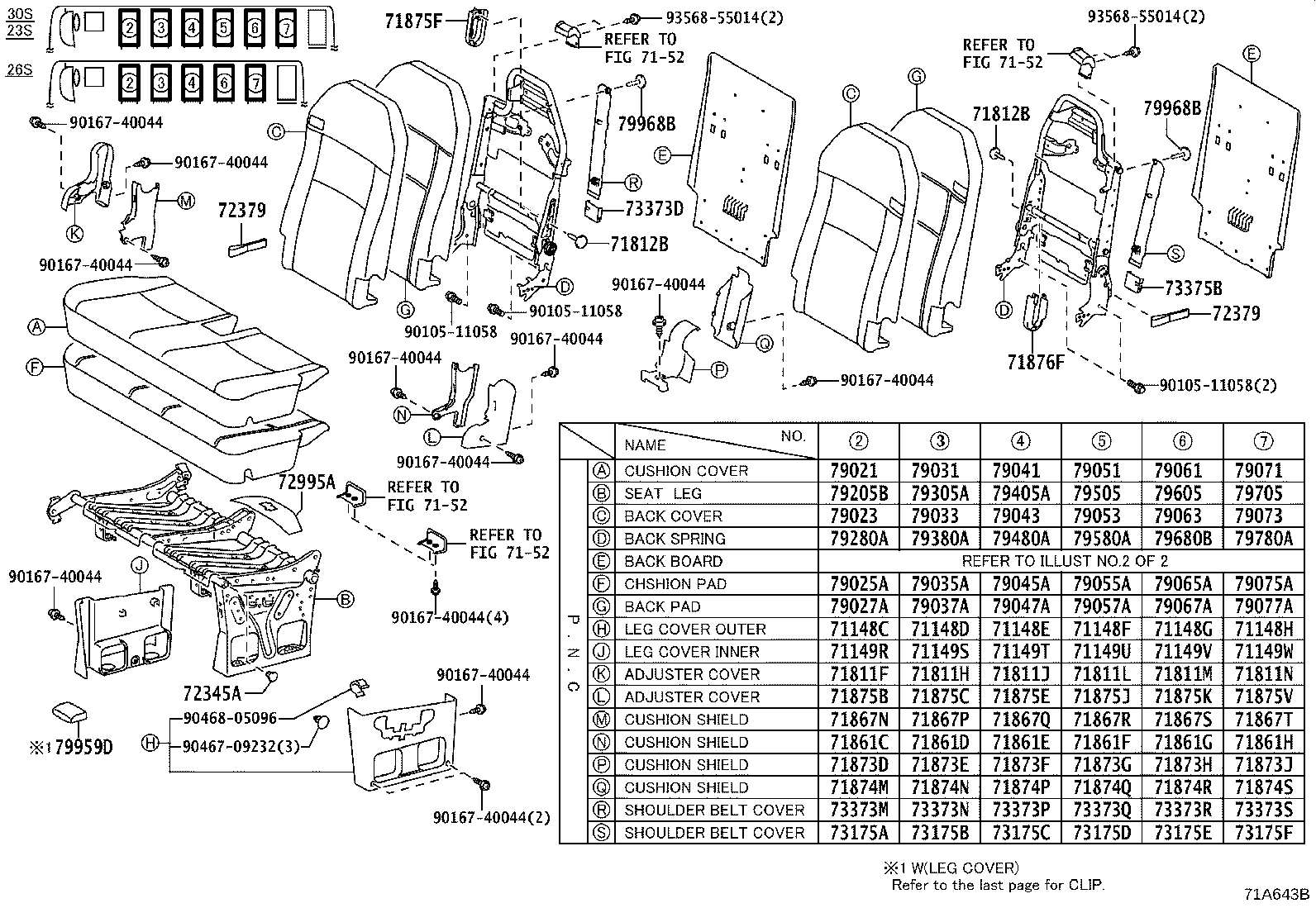

71A643B
71A643B

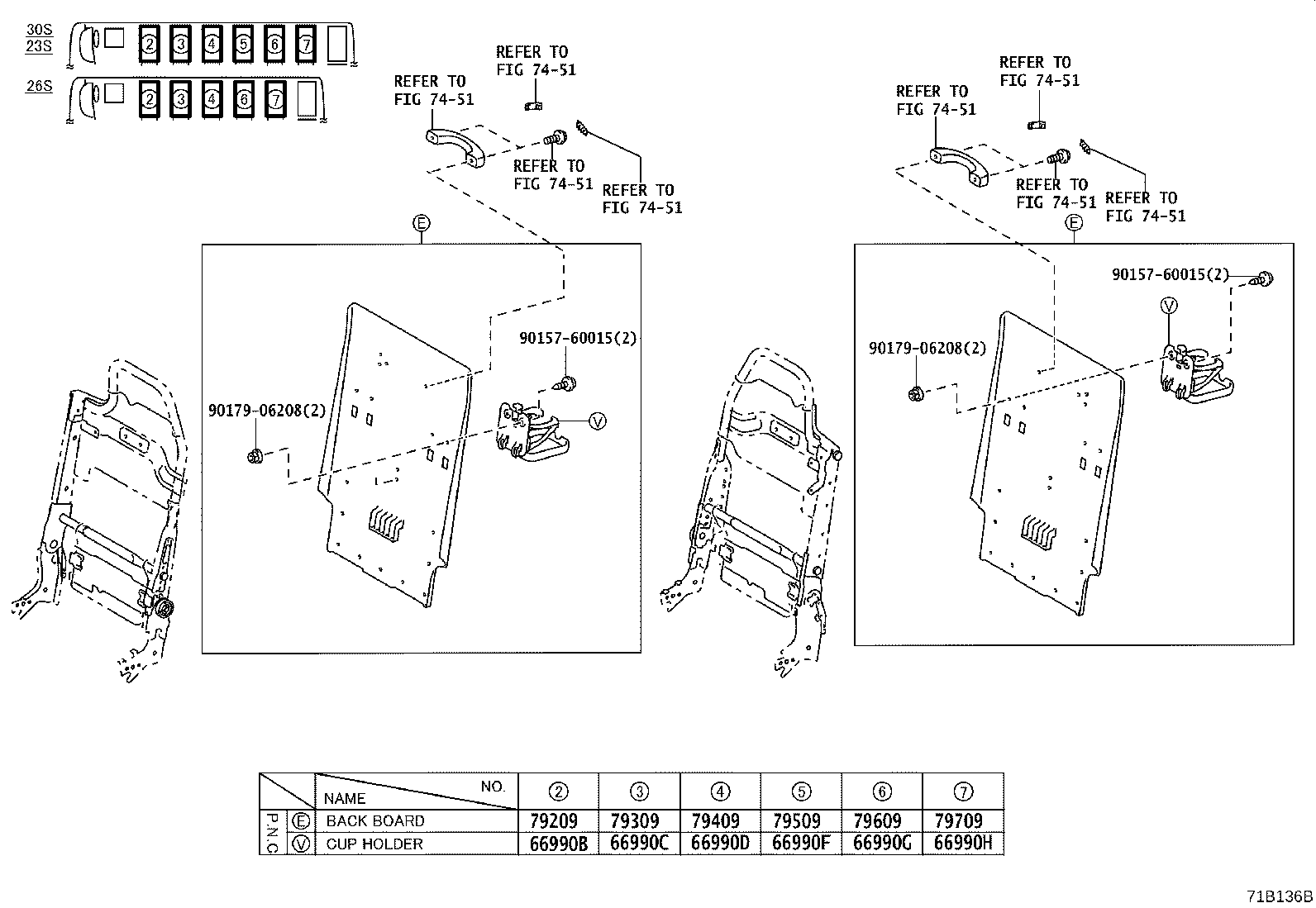

71B136B
71B136B

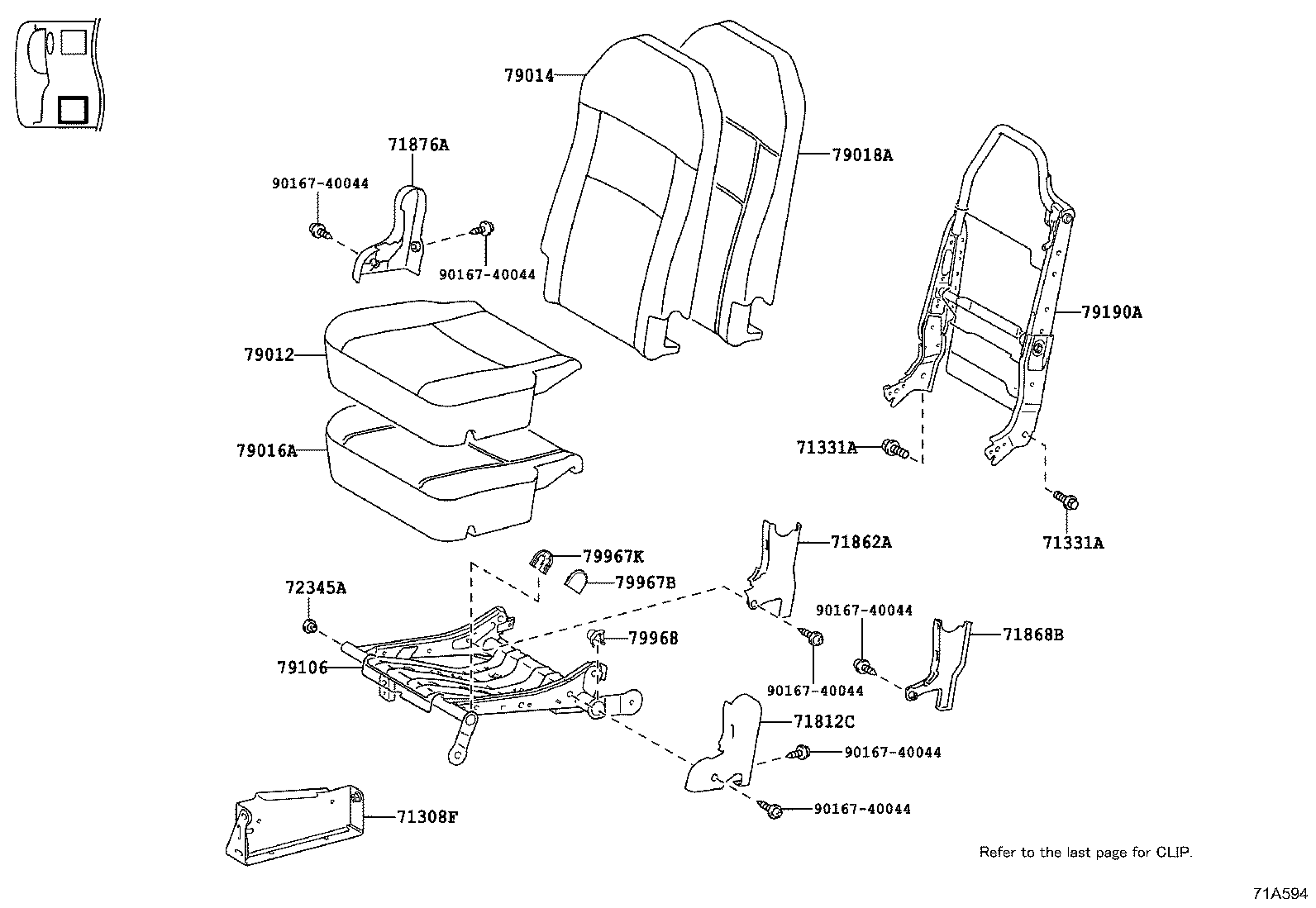

71A594

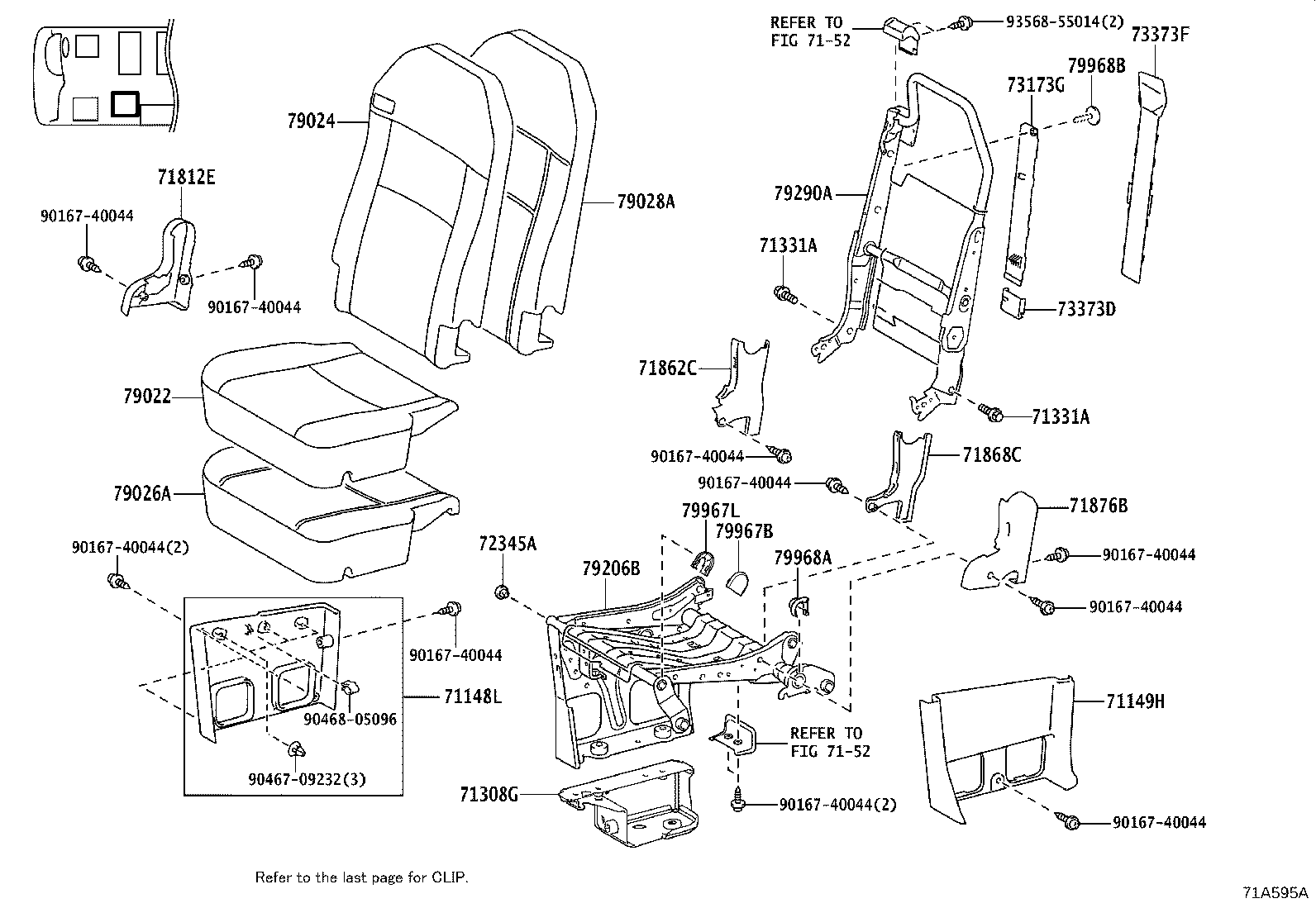

71A595A

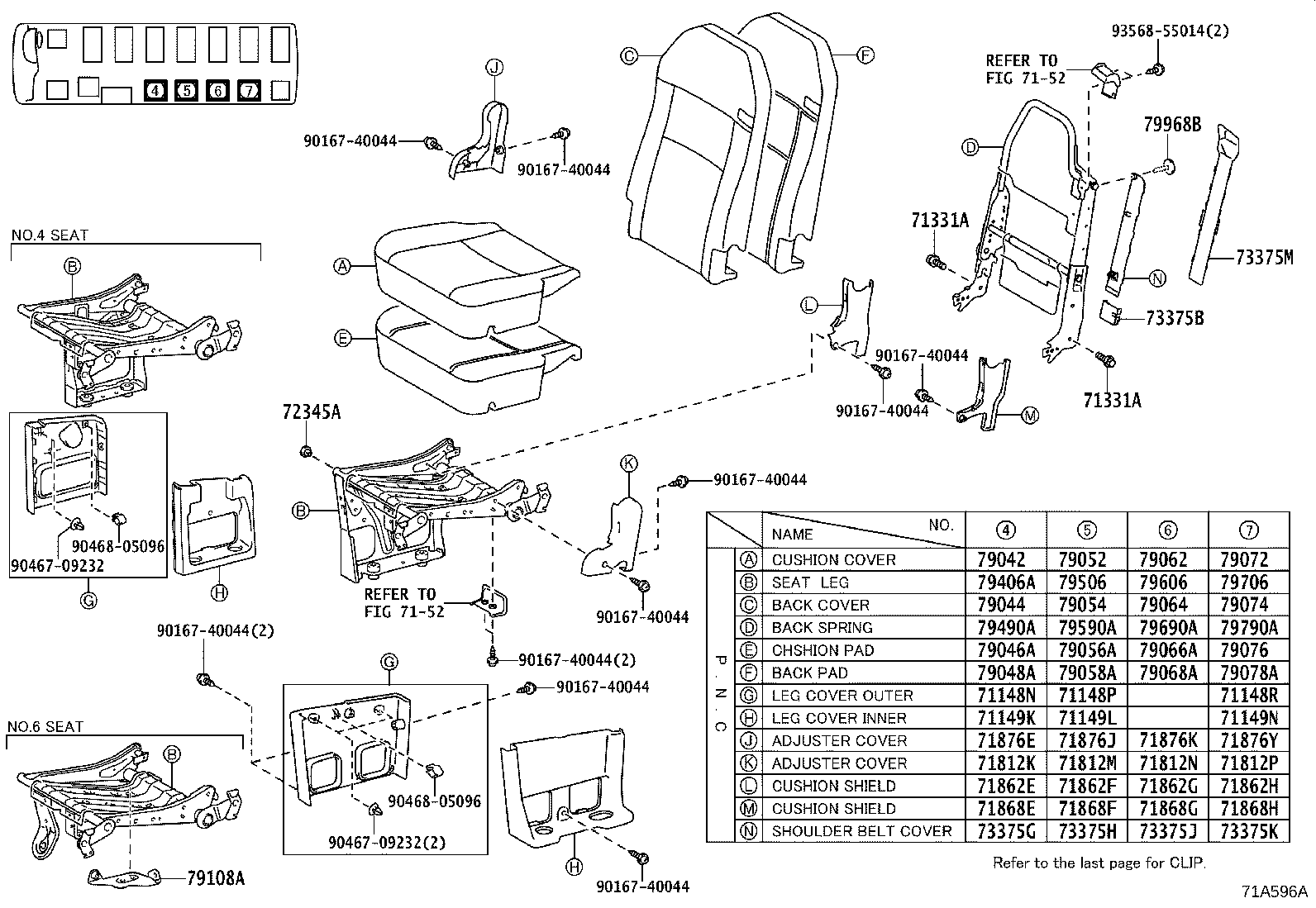

71A596A

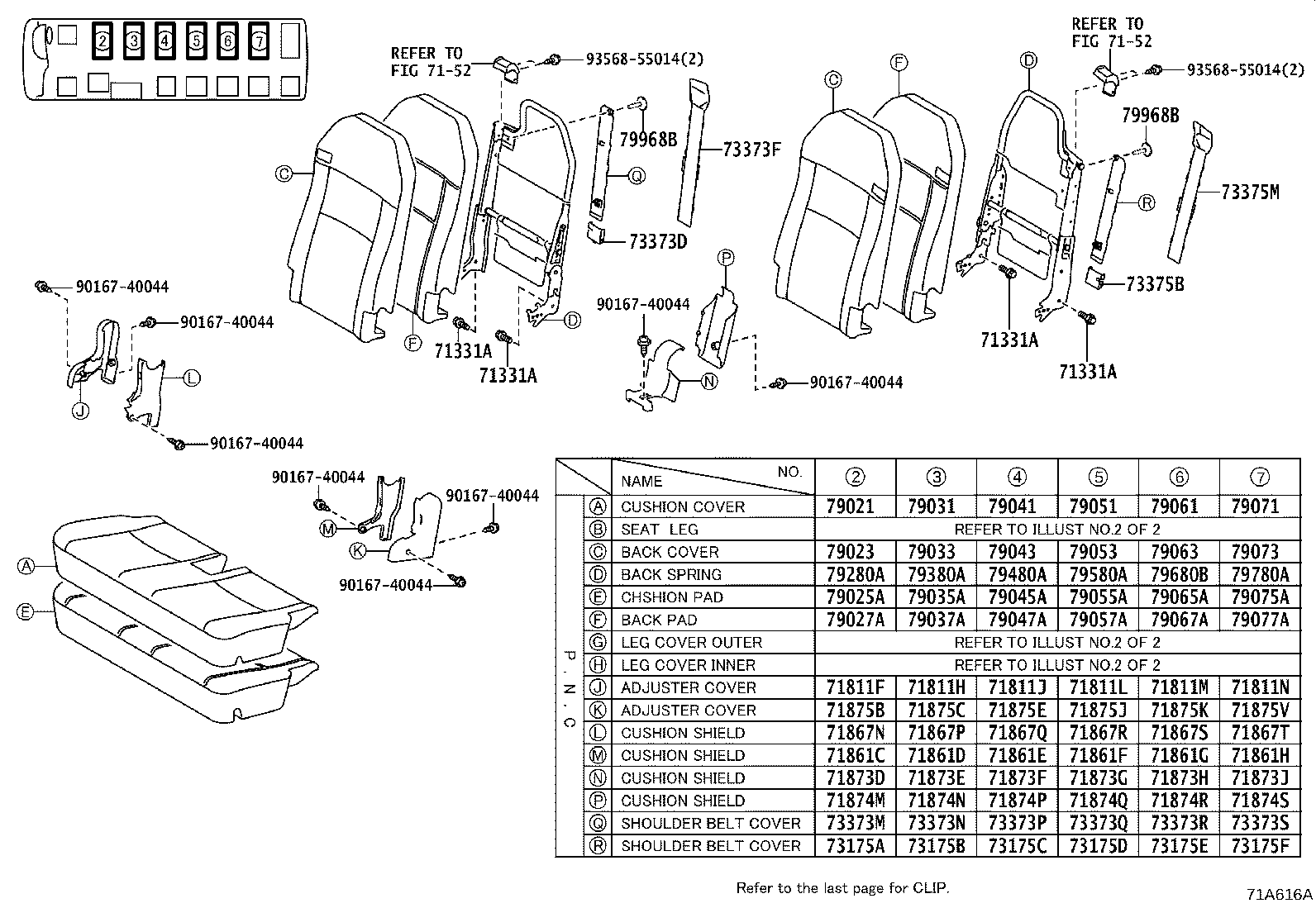

71A616A

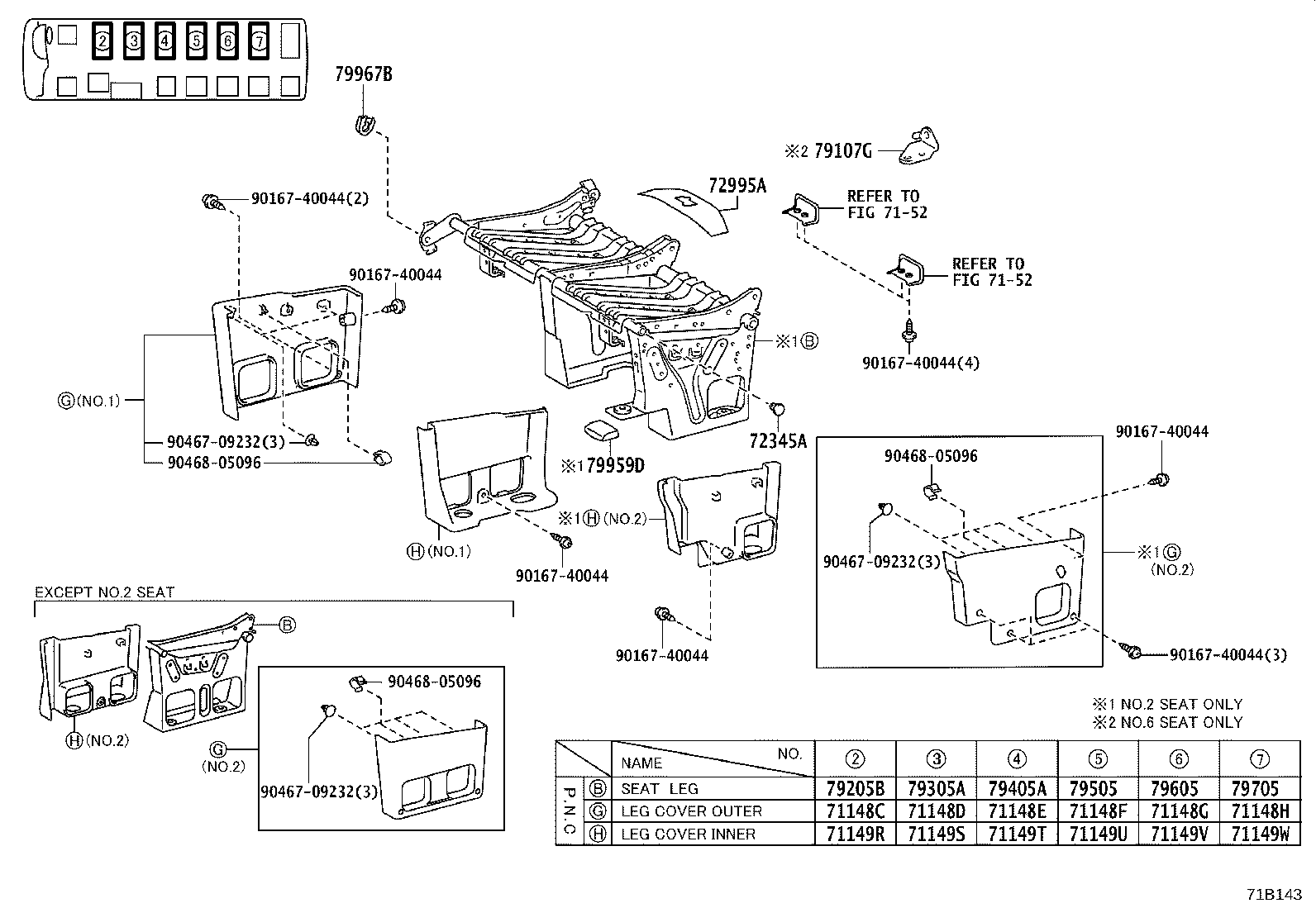

71B143

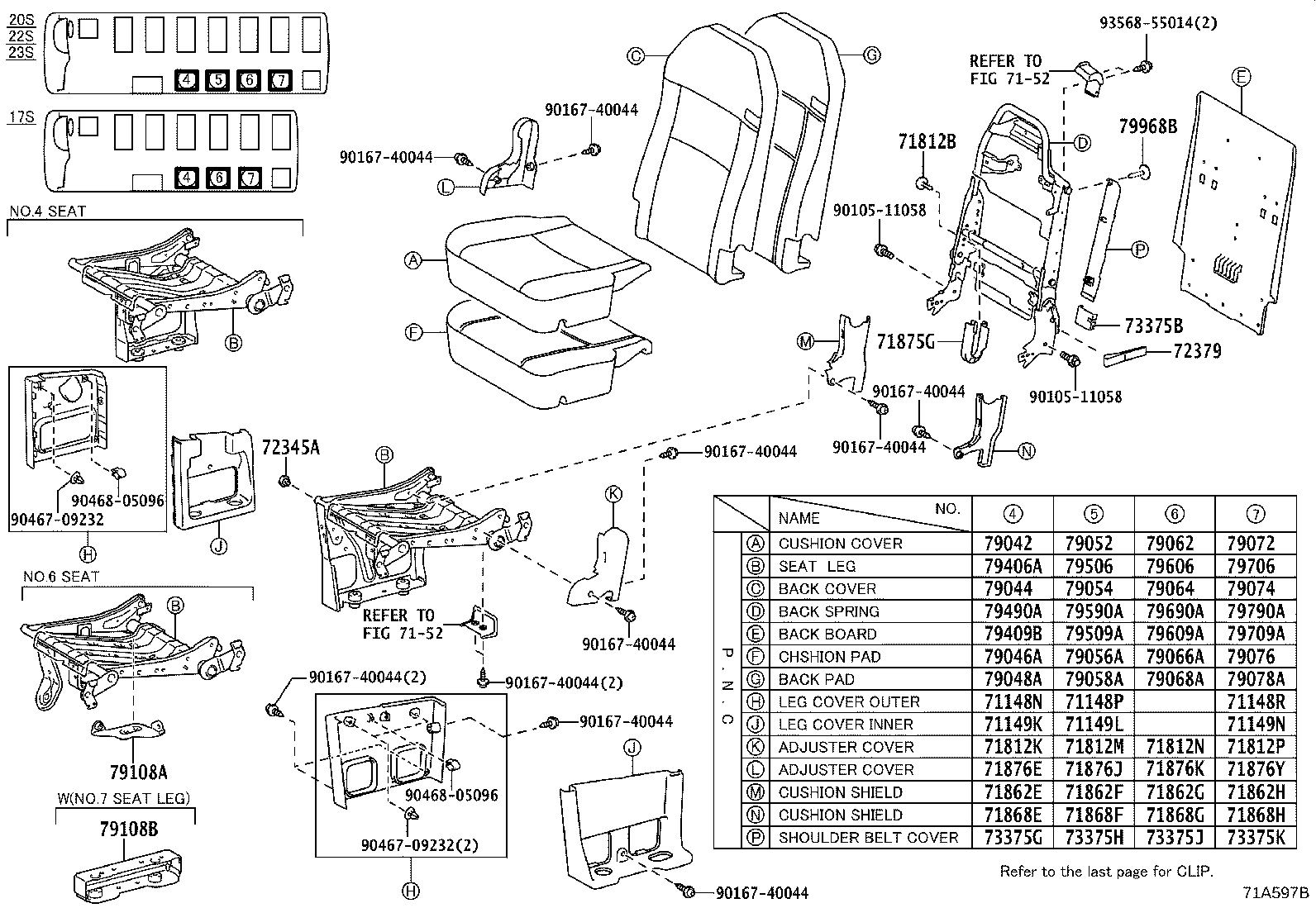

71A597B
71A597B

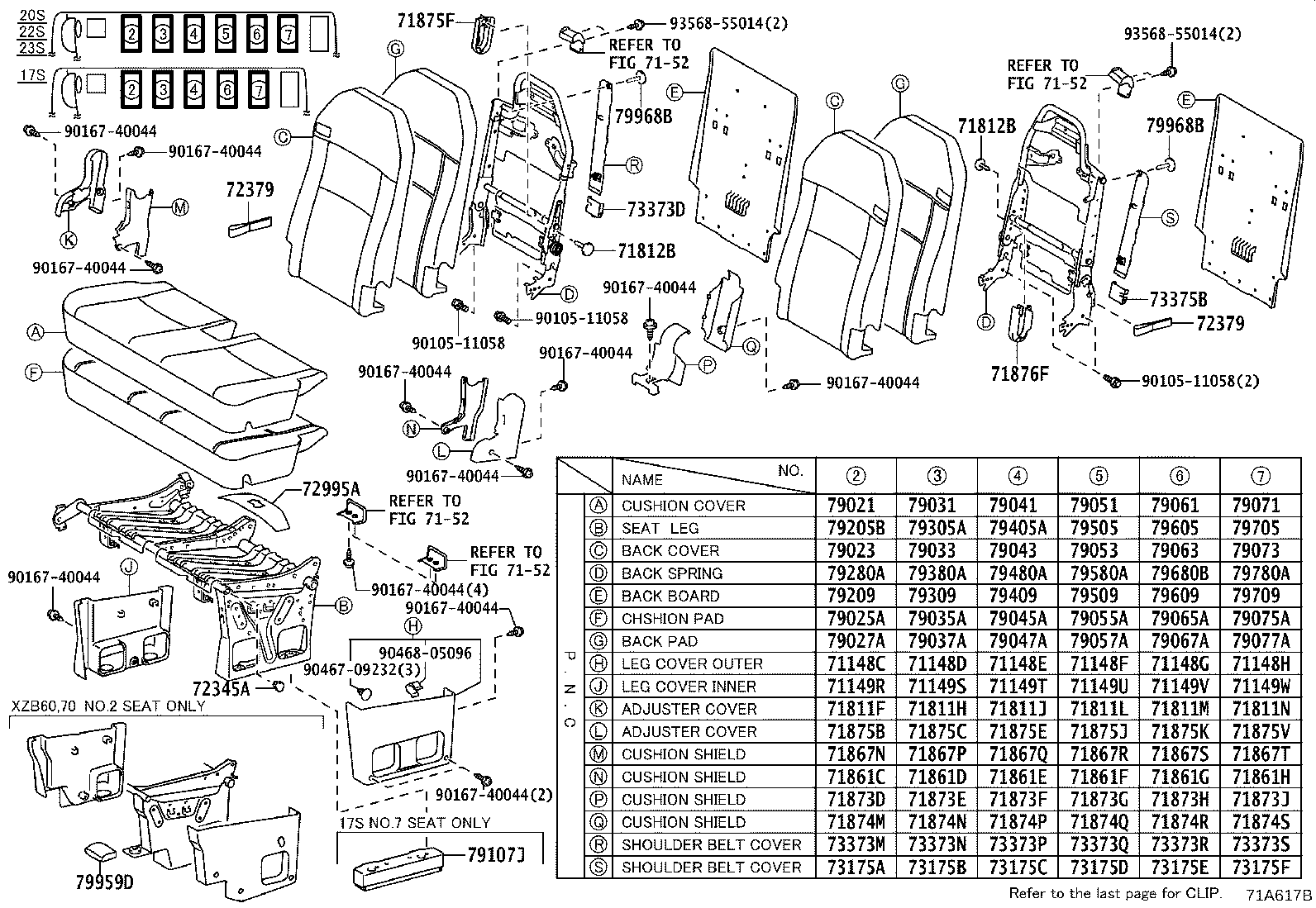

71A617B
71A617B

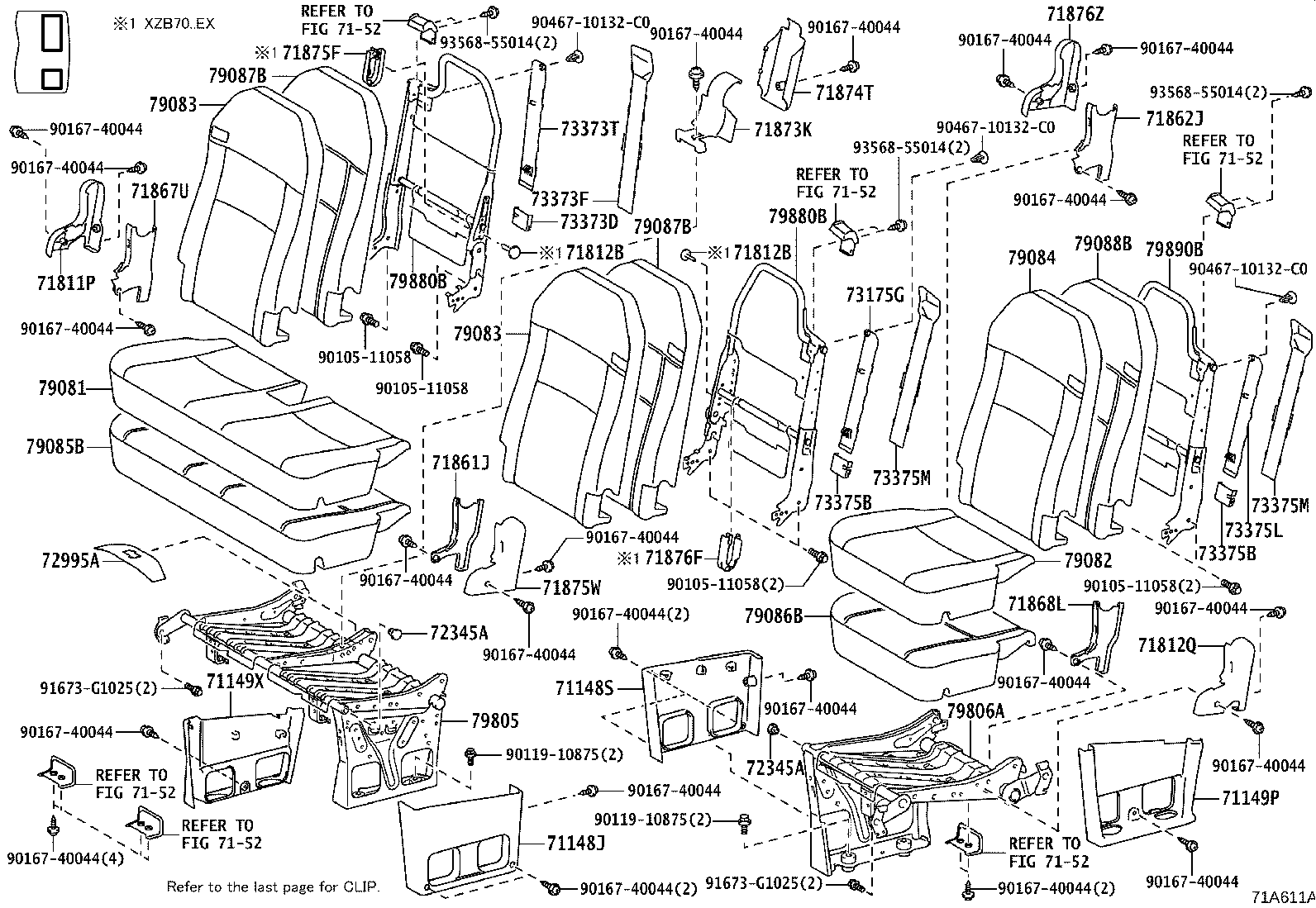

71A611A
71A611A
71A611A

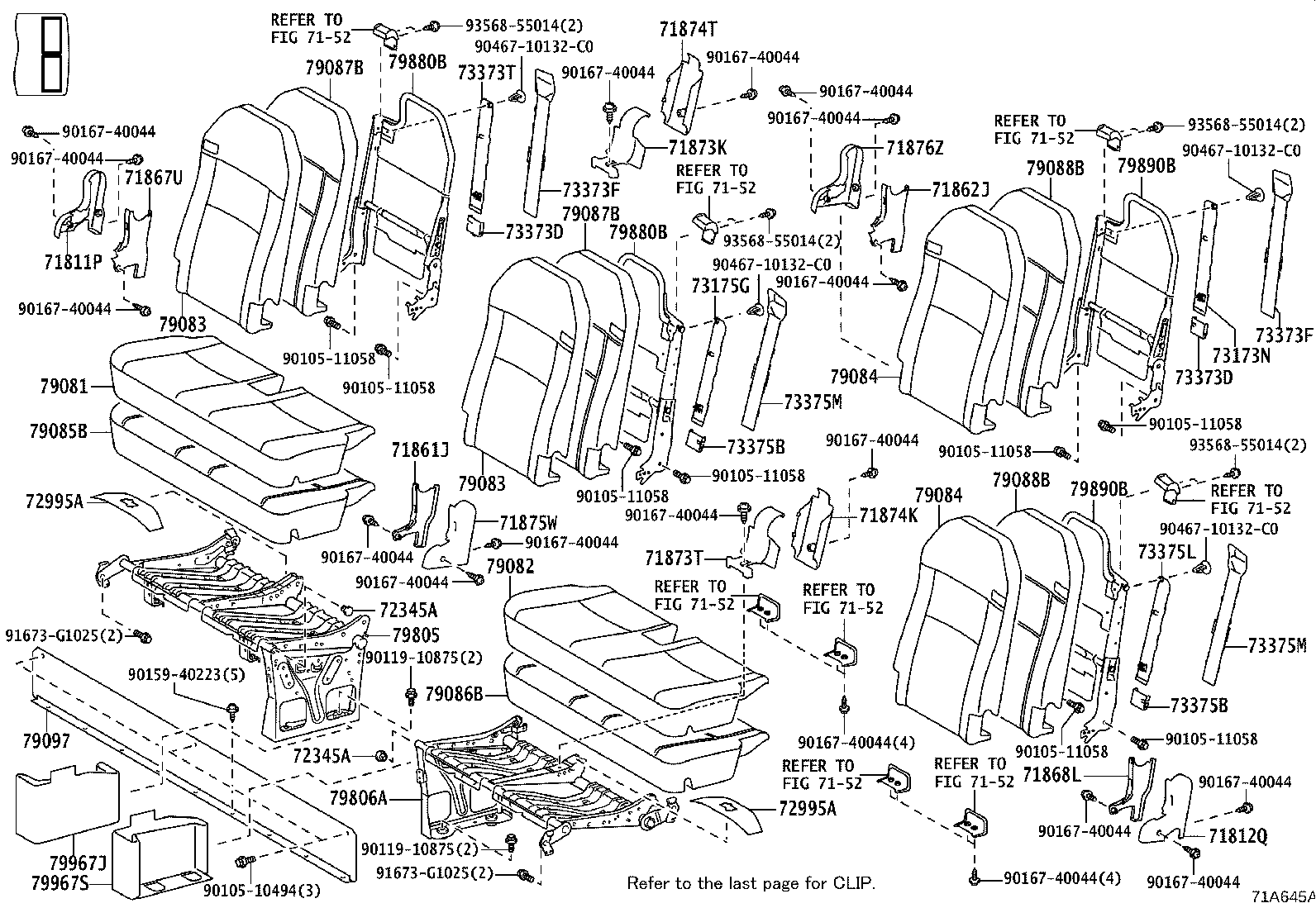

71A645A
71A645A
71A645A

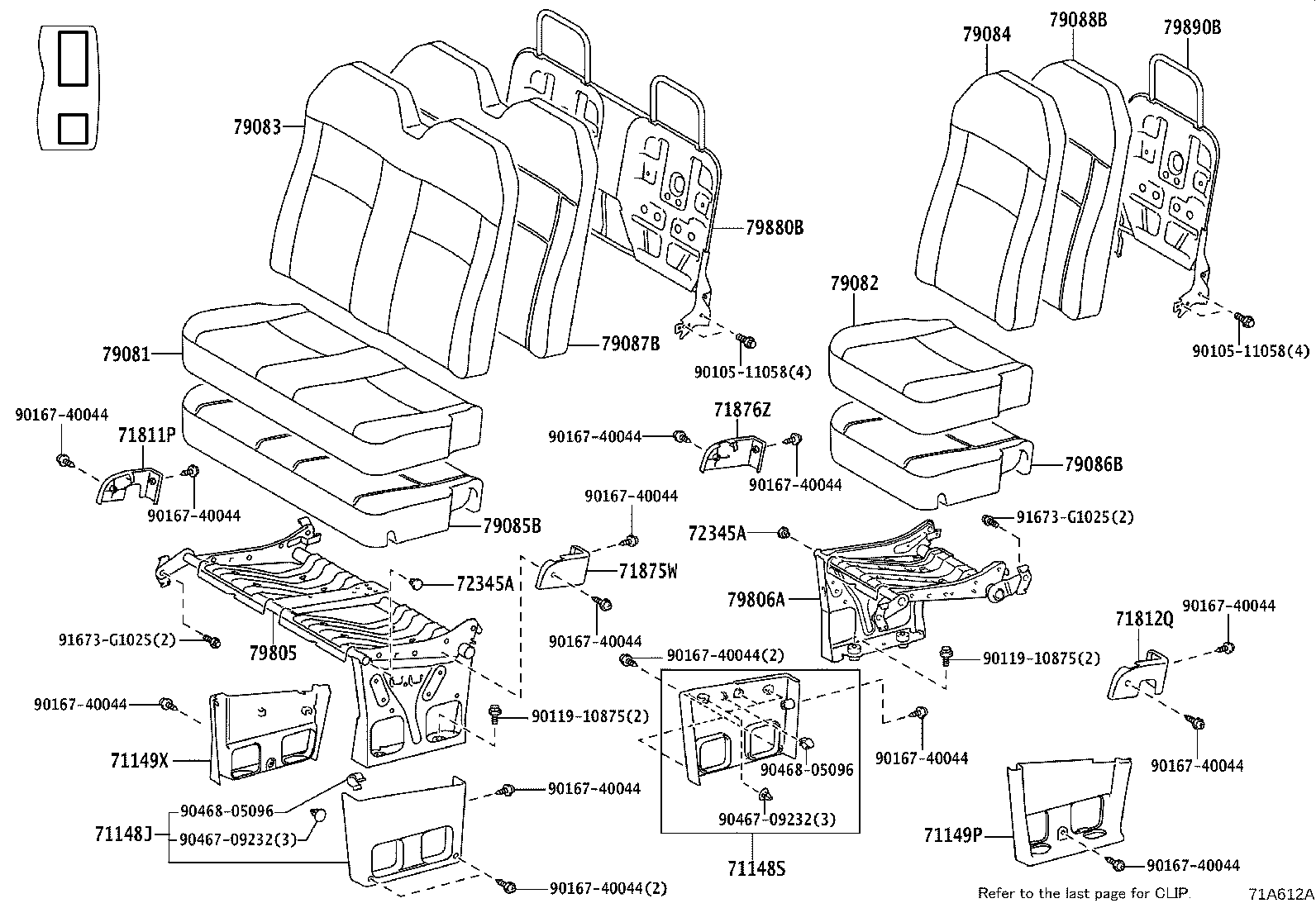

71A612A

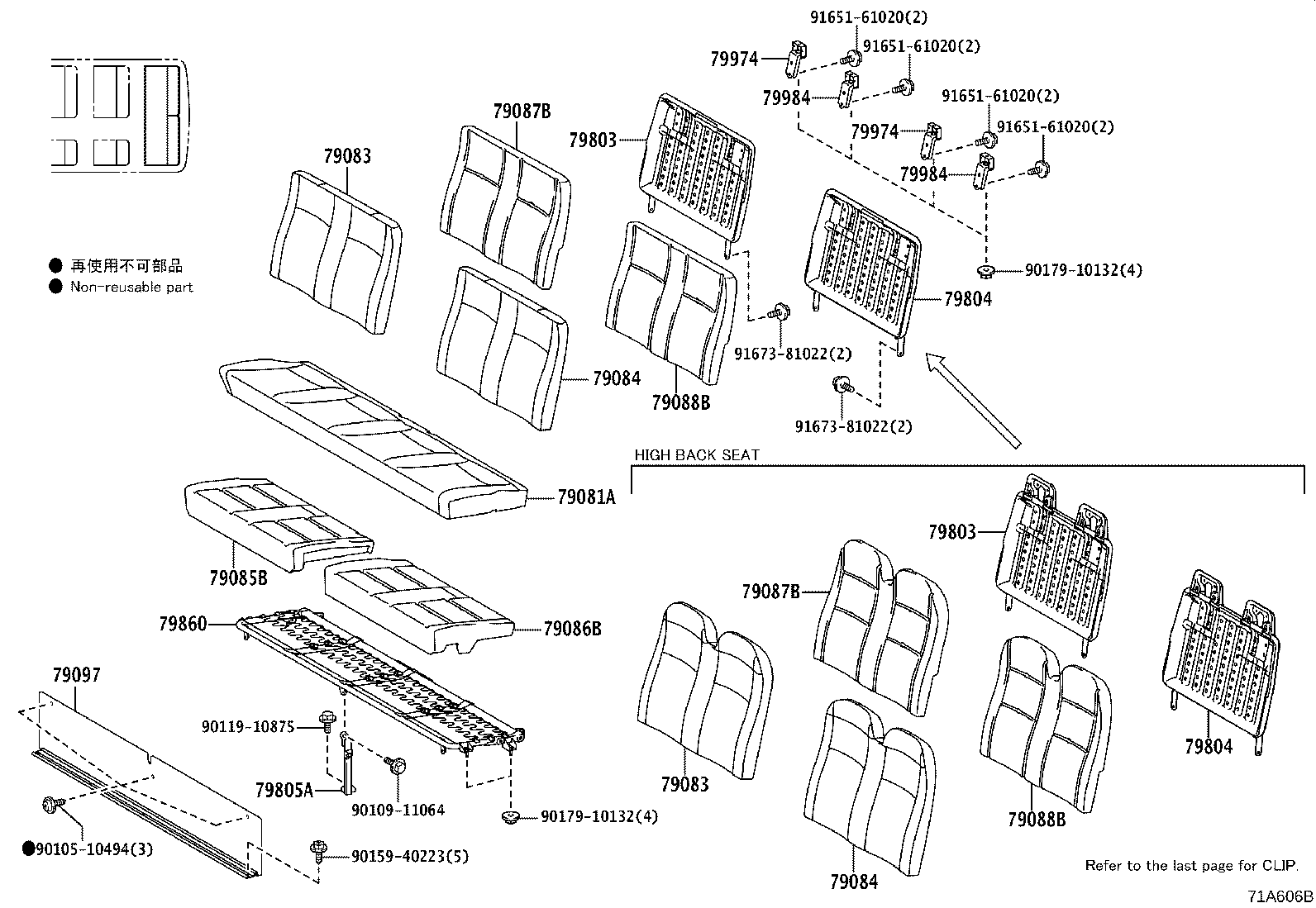

71A606B
71A606B

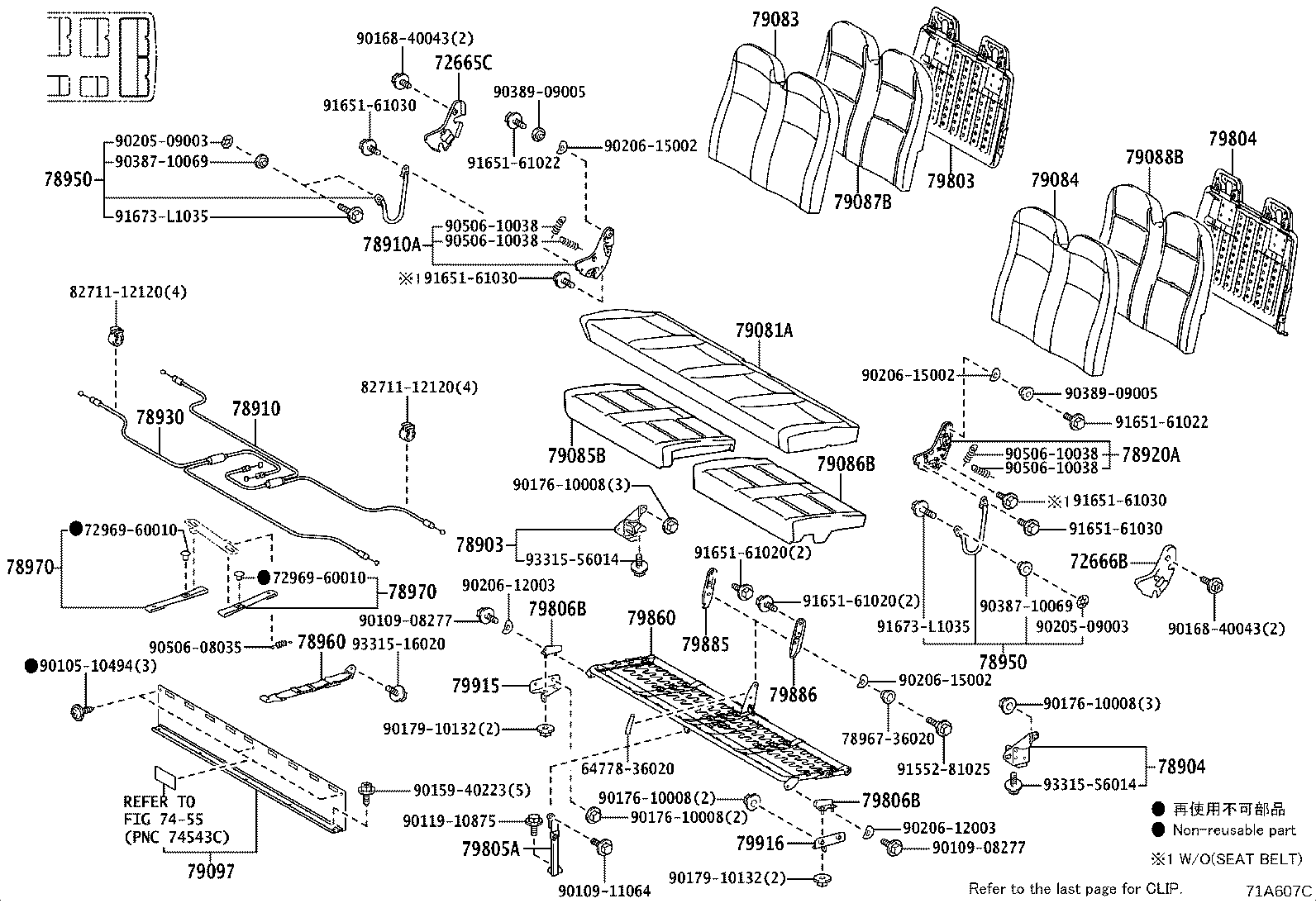

71A607C

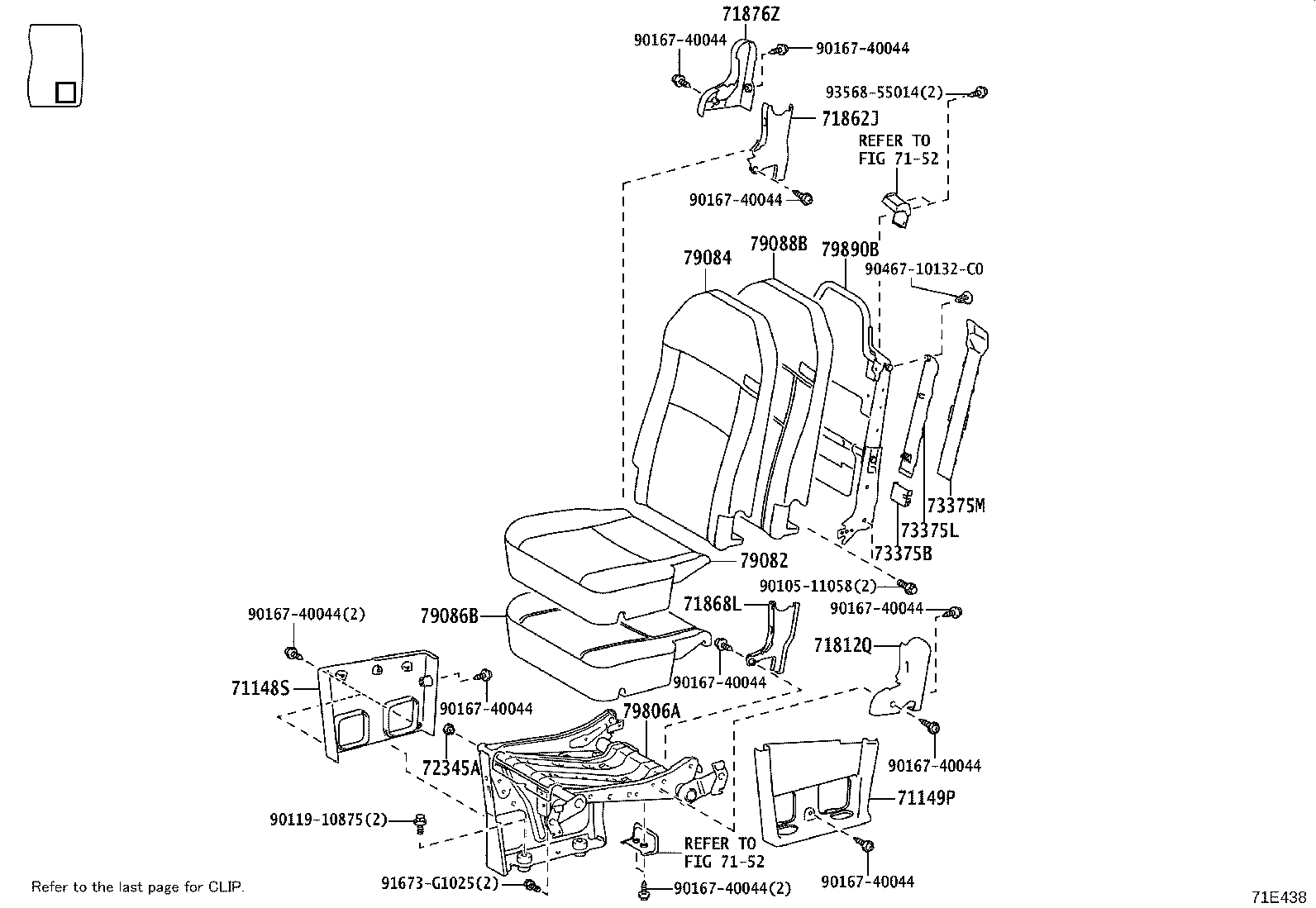

71E438

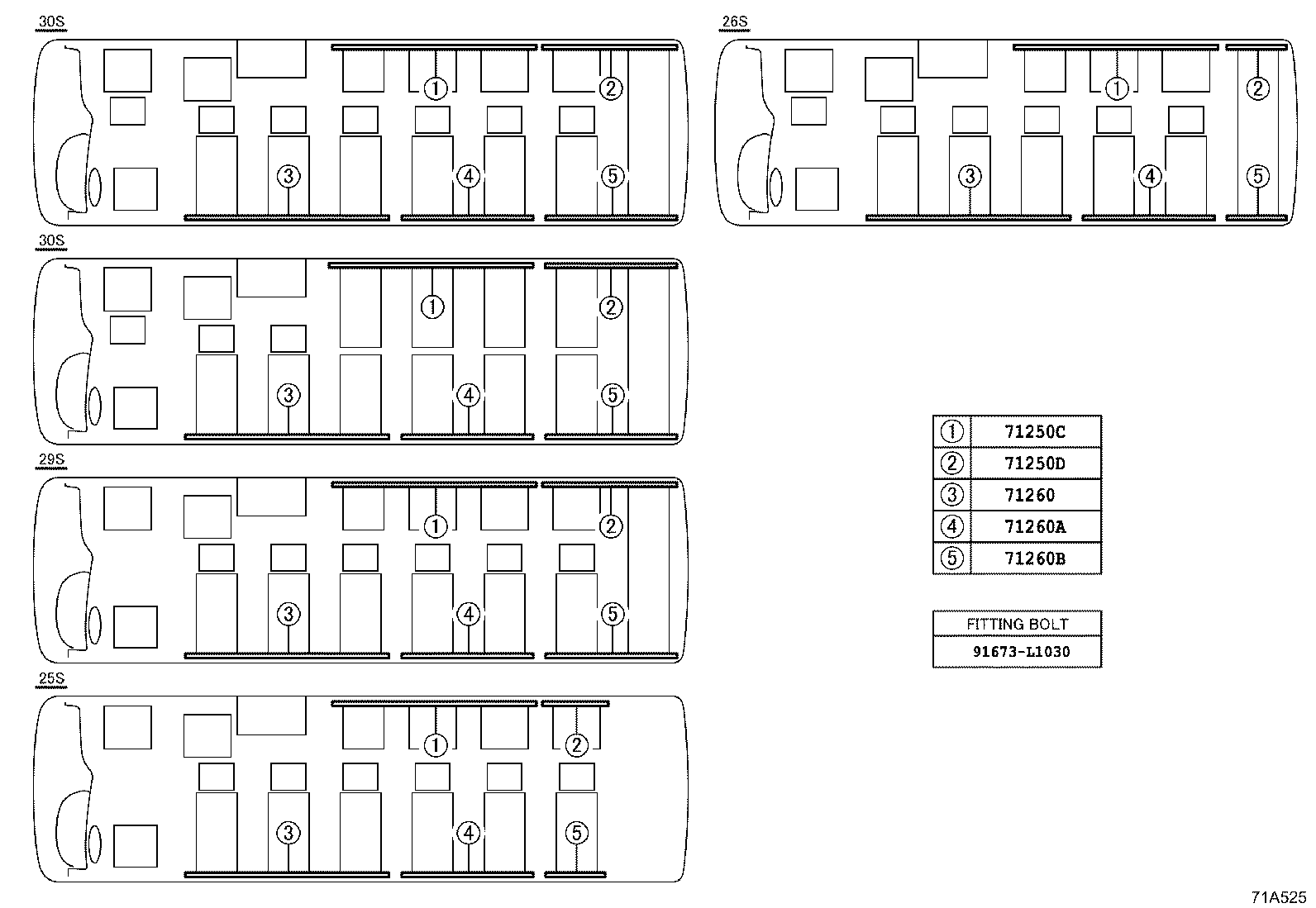

71A525

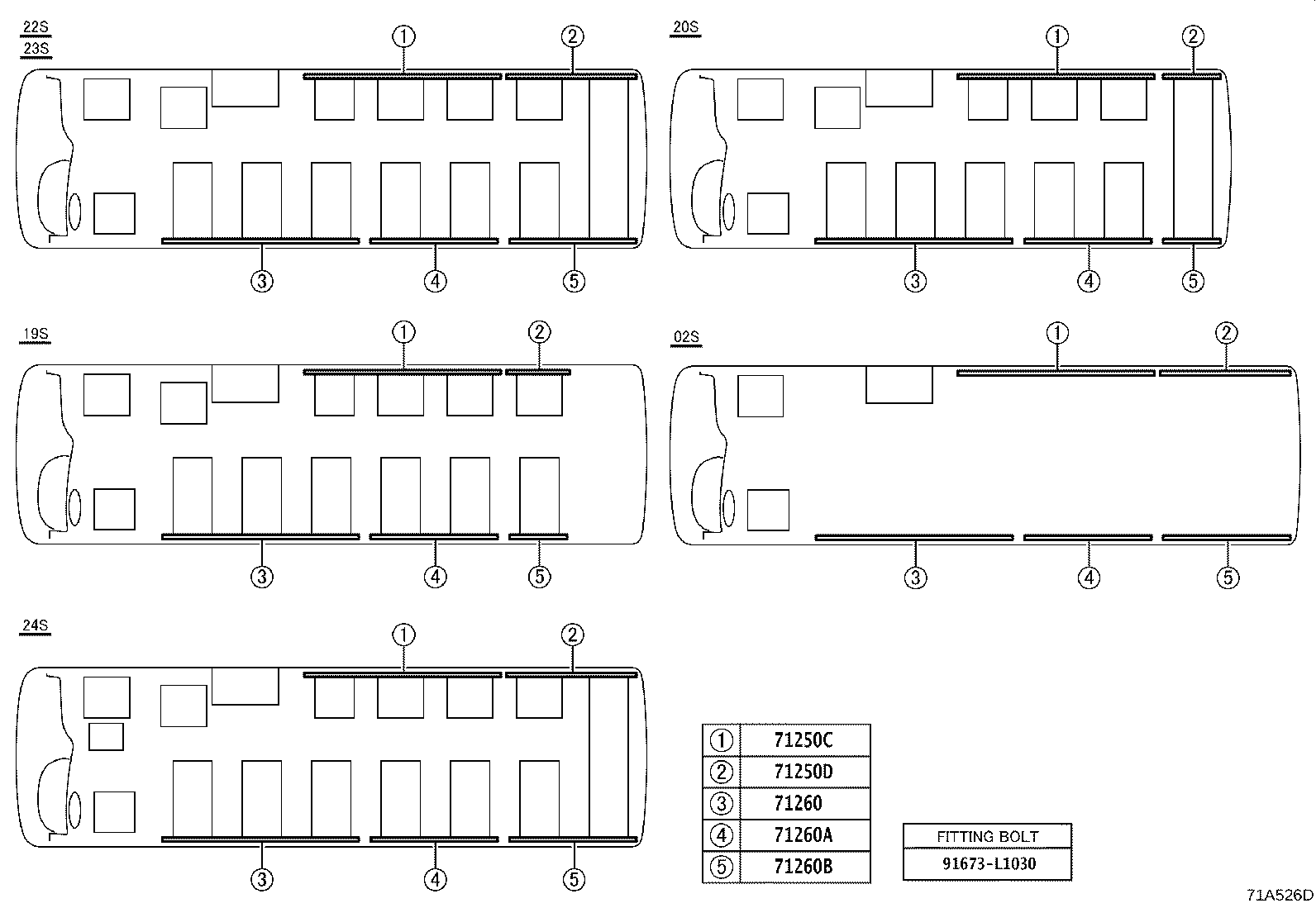

71A526D

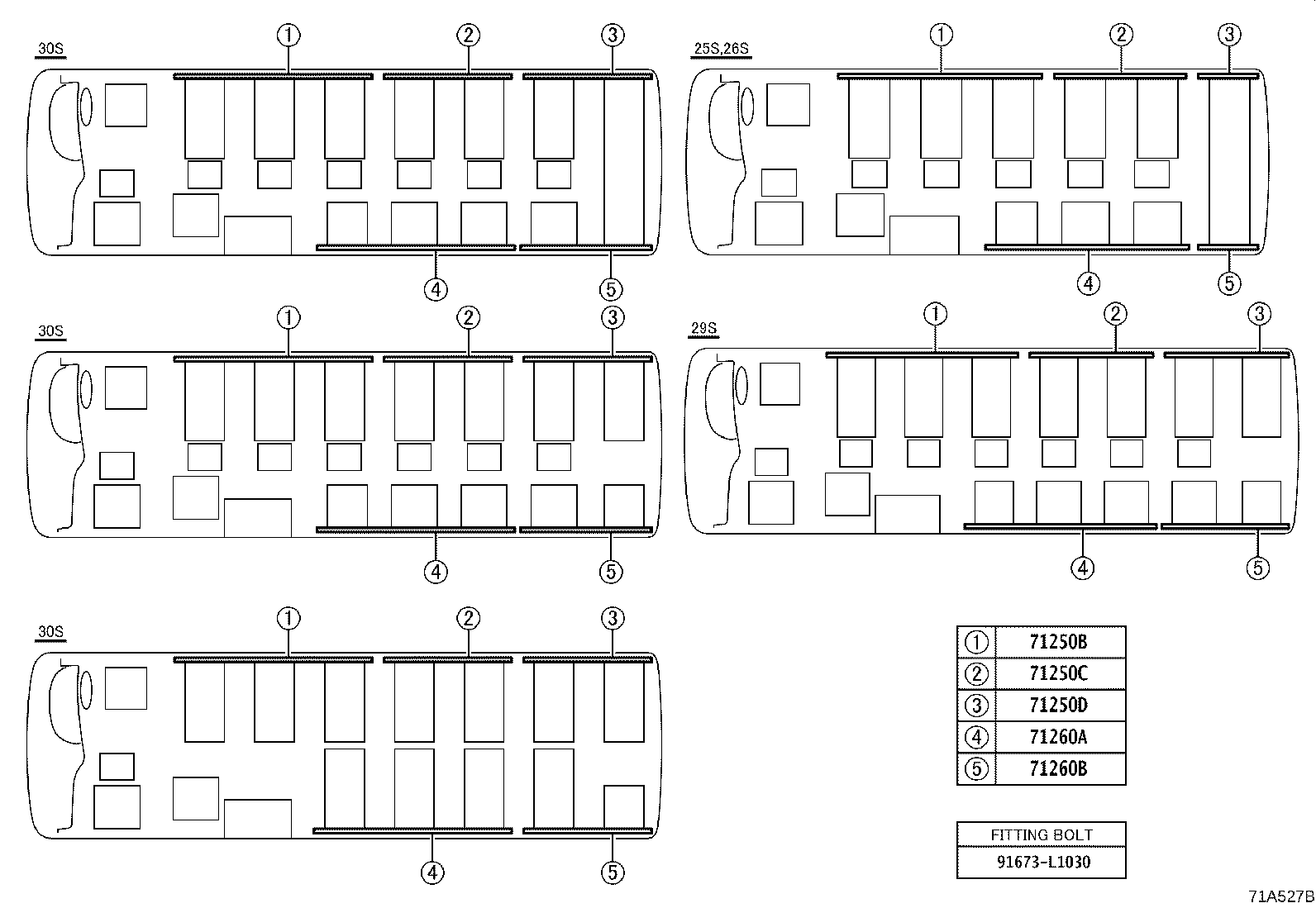

71A527B

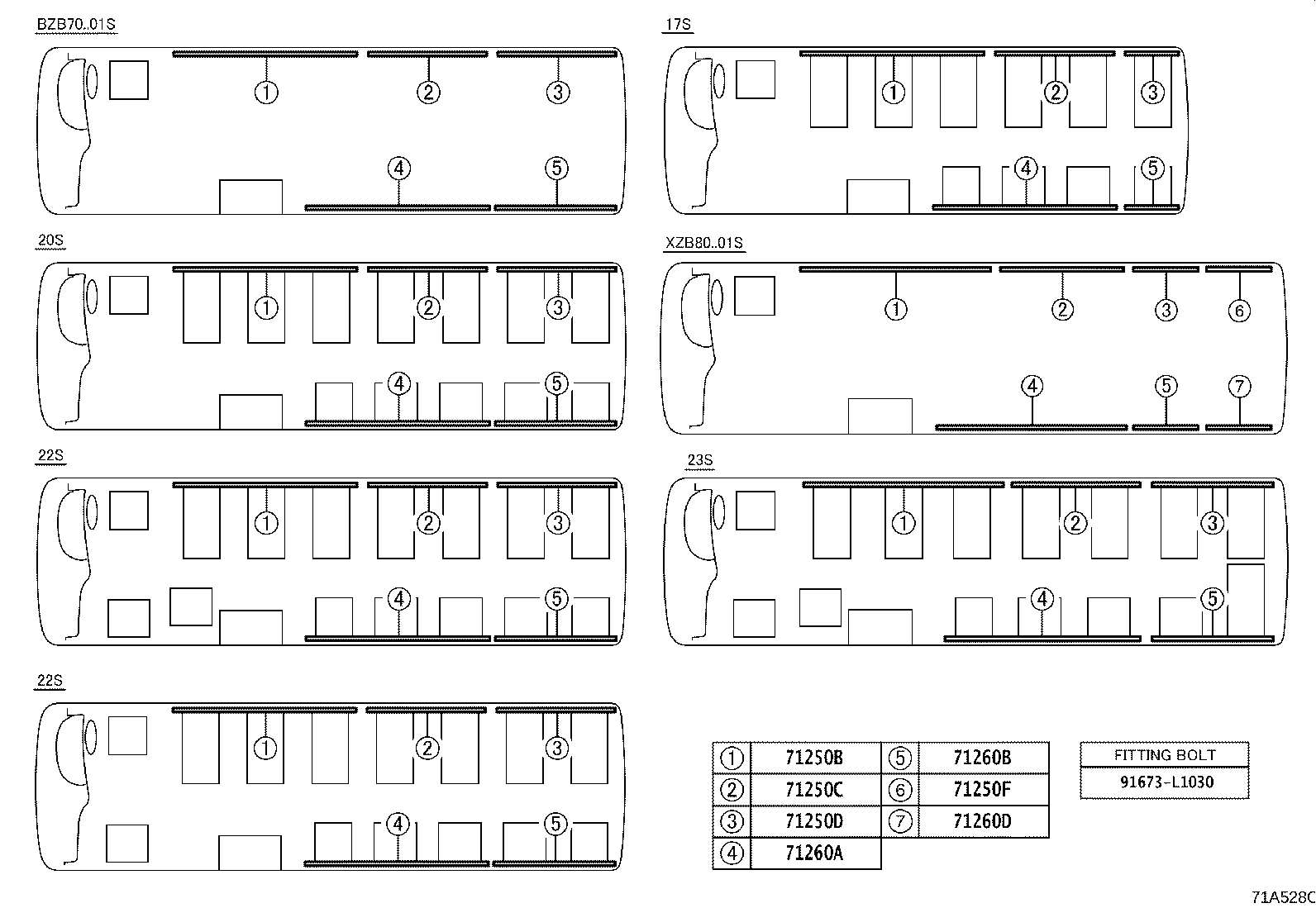

71A528C

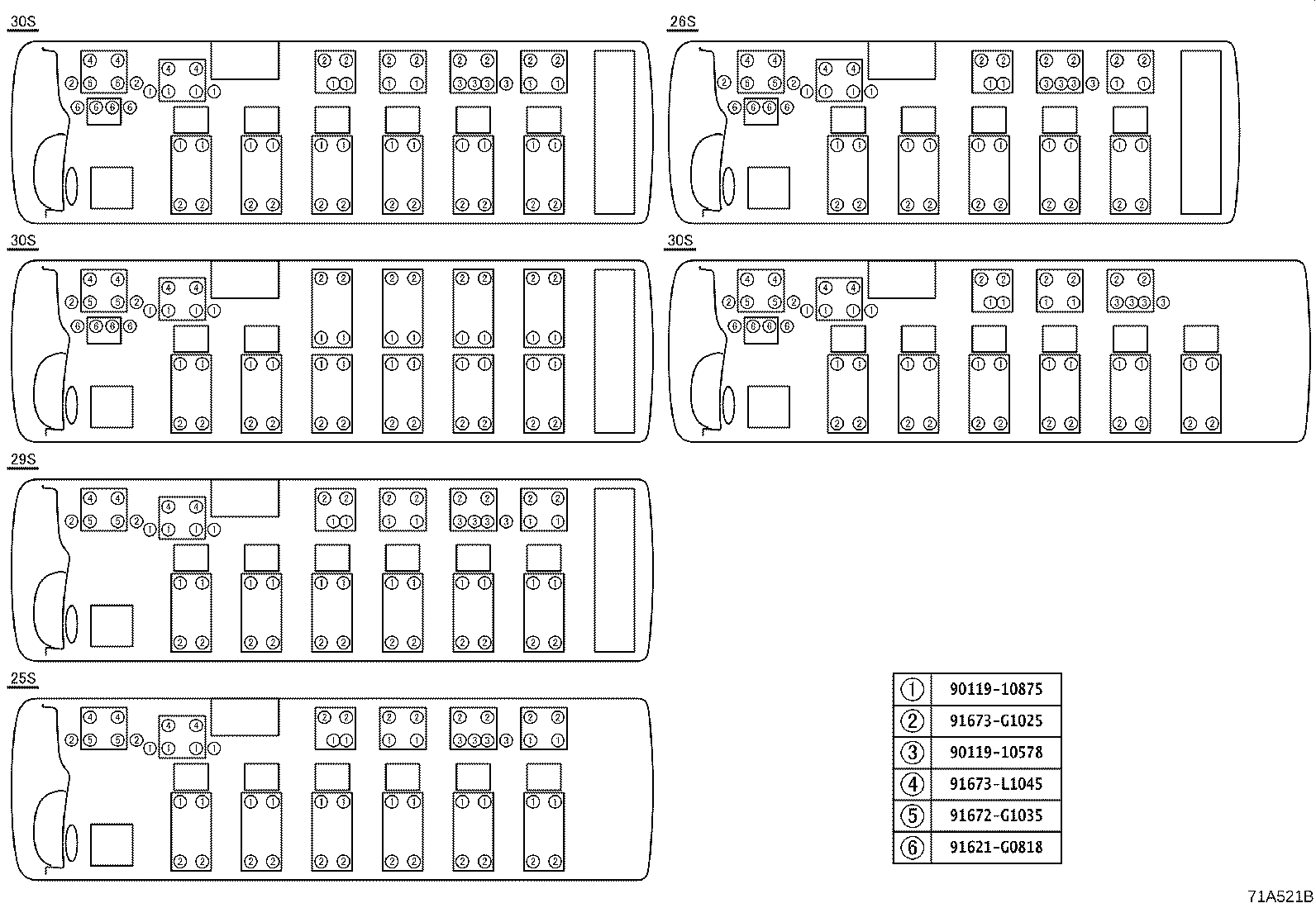

71A521B

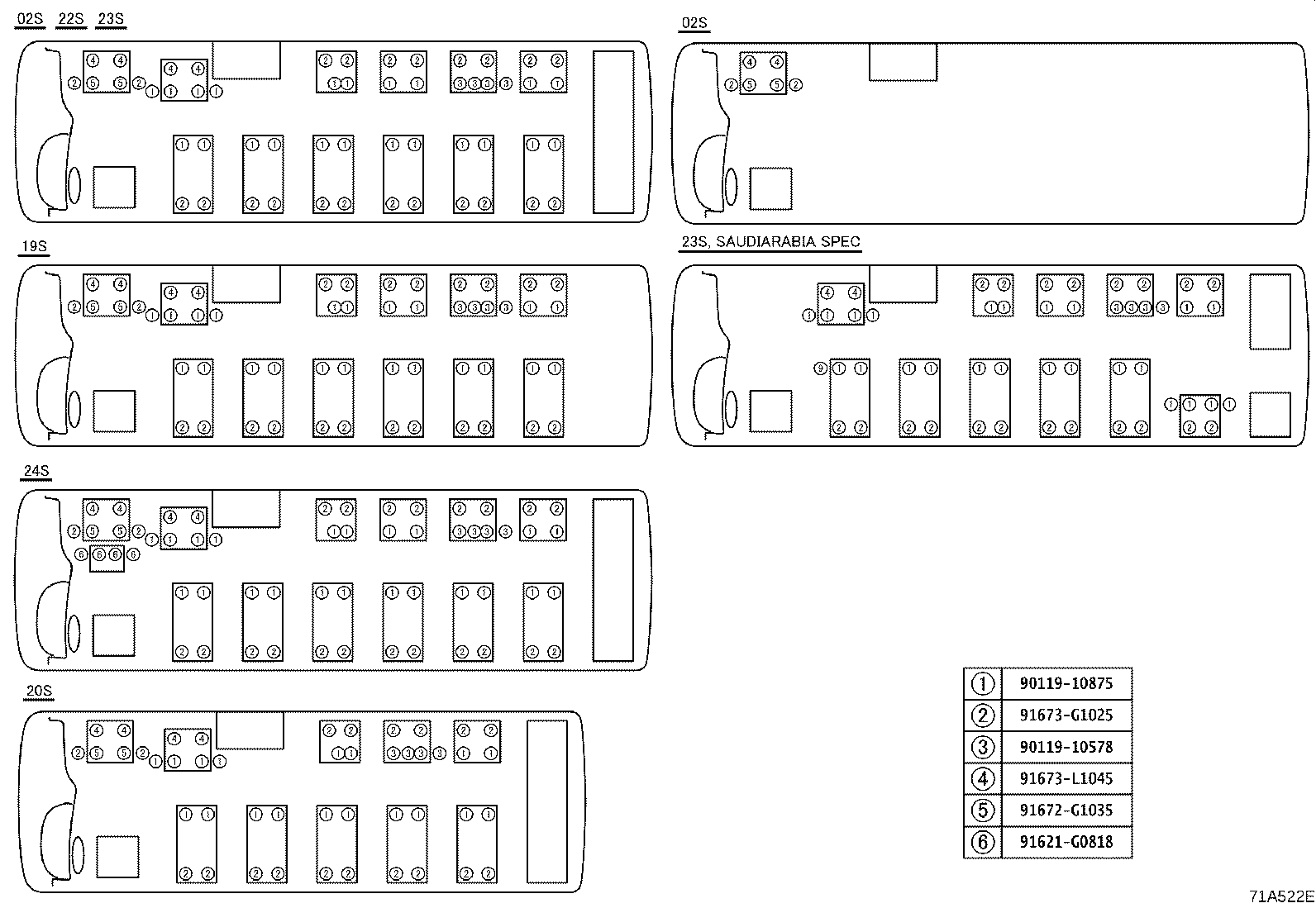

71A522E

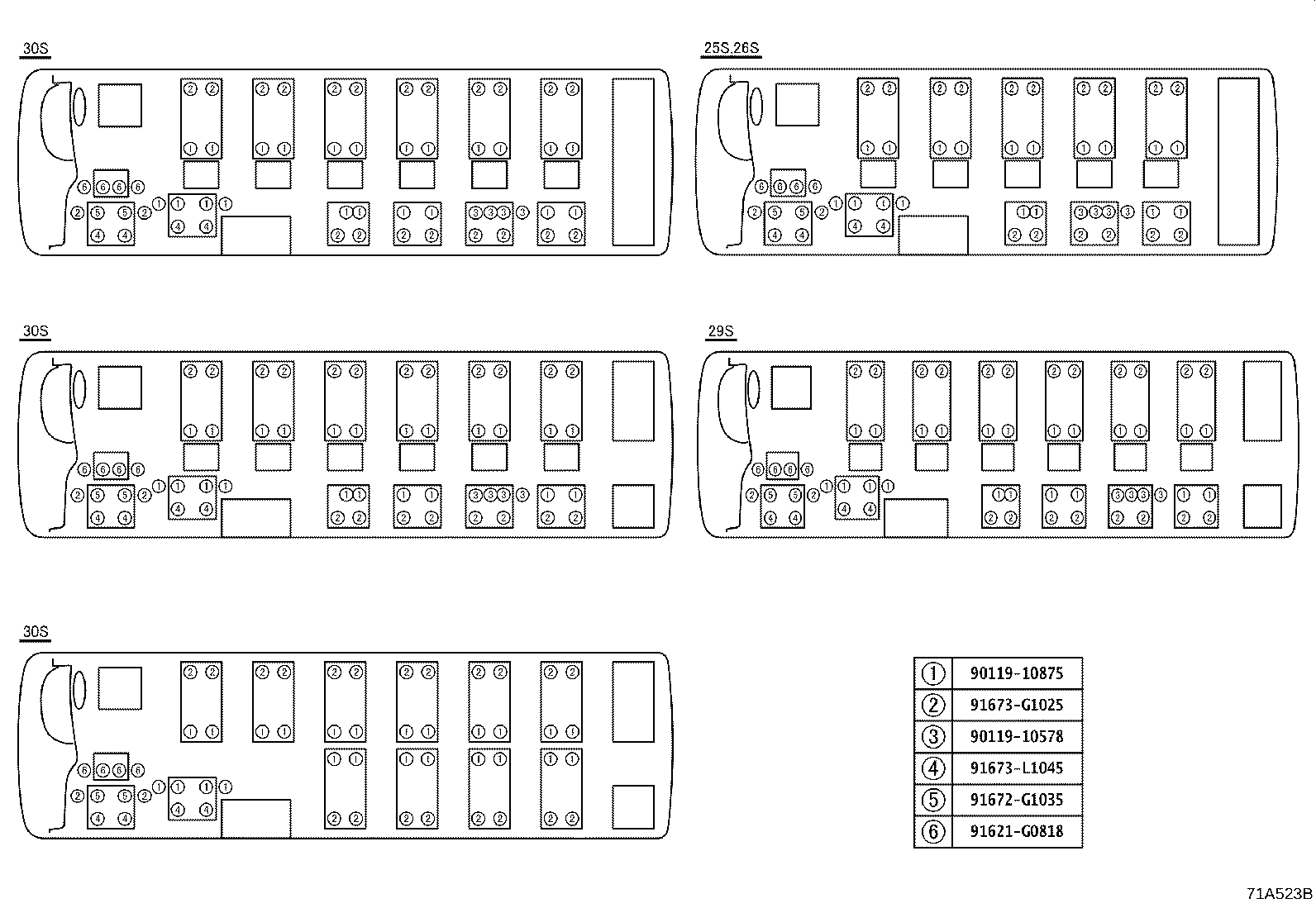

71A523B

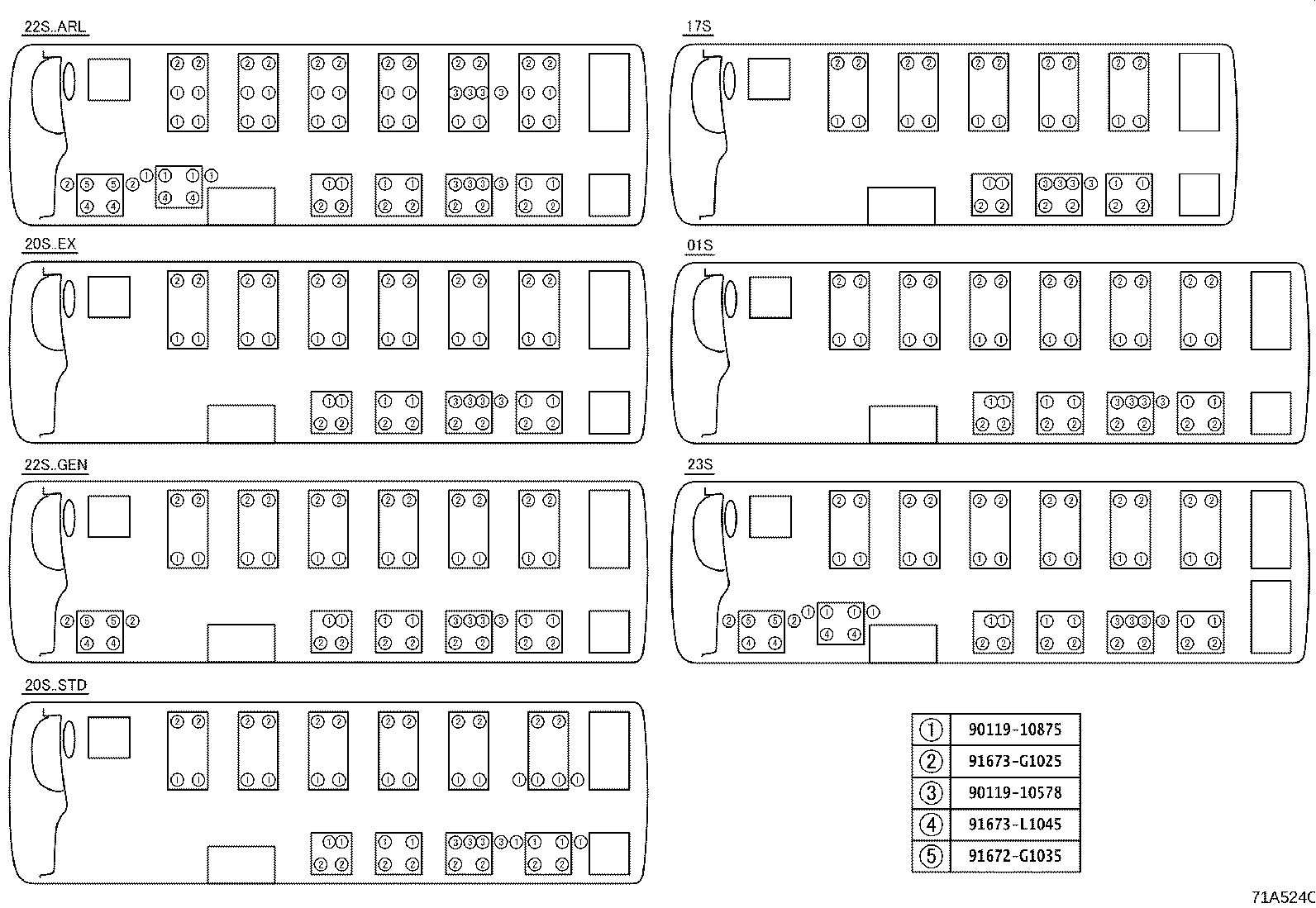

71A524C
71A524C
71D324
Part groups
| PNC | Description |
|---|---|
| 55560D | Lock Assy, Seat Under Tray |
| 66990 | Holder Assy, Cup |
| 66990B | Holder Assy, Cup, NO.2 RH |
| 66990C | Holder Assy, Cup, NO.3 RH |
| 66990D | Holder Assy, Cup, NO.4 RH |
| 66990F | Holder Assy, Cup, NO.5 RH |
| 66990G | Holder Assy, Cup, NO.6 RH |
| 66990H | Holder Assy, Cup, NO.7 RH |
| 66990J | Holder Assy, Cup, NO.1 LH |
| 66990K | Holder Assy, Cup, NO.1 RH |
| 66990M | Holder Assy, Cup, NO.4 LH |
| 66990N | Holder Assy, Cup, NO.5 LH |
| 66990P | Holder Assy, Cup, NO.6 LH |
| 66990Q | Holder Assy, Cup, NO.7 LH |
| 66990R | Holder Assy, Cup, NO.1 |
| 66990T | Holder Assy, Cup |
| 66990U | Holder Assy, Cup |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71108B | Leg Sub-assy, Front Seat, RH |
| 71148C | Cover, Rear Seat Leg, Outer |
| 71148D | Cover, Rear Seat Leg, Outer |
| 71148E | Cover, Rear Seat Leg, Outer |
| 71148F | Cover, Rear Seat Leg, Outer |
| 71148G | Cover, Rear Seat Leg, Outer |
| 71148H | Cover, Rear Seat Leg, Outer |
| 71148J | Cover, Rear Seat Leg, Outer |
| 71148L | Cover, Rear Seat Leg, Outer |
| 71148M | Cover, Rear Seat Leg, Outer |
| 71148N | Cover, Rear Seat Leg, Outer |
| 71148P | Cover, Rear Seat Leg, Outer |
| 71148Q | Cover, Rear Seat Leg, Outer |
| 71148R | Cover, Rear Seat Leg, Outer |
| 71148S | Cover, Rear Seat Leg, Outer |
| 71149 | Wire, Front Seat Cushion Connecting |
| 71149H | Cover, Rear Seat Leg, Inner |
| 71149J | Cover, Rear Seat Leg, Inner |
| 71149K | Cover, Rear Seat Leg, Inner |
| 71149L | Cover, Rear Seat Leg, Inner |
| 71149M | Cover, Rear Seat Leg, Inner |
| 71149N | Cover, Rear Seat Leg, Inner |
| 71149P | Cover, Rear Seat Leg, Inner |
| 71149R | Cover, Rear Seat Leg, Inner |
| 71149S | Cover, Rear Seat Leg, Inner |
| 71149T | Cover, Rear Seat Leg, Inner |
| 71149U | Cover, Rear Seat Leg, Inner |
| 71149V | Cover, Rear Seat Leg, Inner |
| 71149W | Cover, Rear Seat Leg, Inner |
| 71149X | Cover, Rear Seat Leg, Inner |
| 71250B | Bracket Assy, Seat, Outer RH |
| 71250C | Bracket Assy, Seat, Outer RH |
| 71250D | Bracket Assy, Seat, Outer RH |
| 71250F | Bracket Assy, Seat, Outer RH |
| 71260 | Bracket Assy, Seat, Outer LH |
| 71260A | Bracket Assy, Seat, Outer LH |
| 71260B | Bracket Assy, Seat, Outer LH |
| 71260D | Bracket Assy, Seat, Outer LH |
| 71308F | Leg Sub-assy, Rear Seat, RH |
| 71308G | Leg Sub-assy, Rear Seat, RH |
| 71309D | Leg Sub-assy, Rear Seat, LH |
| 71309E | Leg Sub-assy, Rear Seat, LH |
| 71324A | Cushion, Rear Seat |
| 71331A | Pin, Rear Seat Hinge |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71521 | Pad, Front Seat Cushion Silencer, A |
| 71524 | Pad, Front Seat Cushion Silencer, D |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71705B | Cap(FOR FRONT SEATBACK BOARD) |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71707A | Cover Sub-assy, Front Seatback Board |
| 71707B | Cover Sub-assy, Front Seatback Board |
| 71750A | Tray Assy, Front Seat Under |
| 71811C | Cover, Reclining Adjuster, RH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71811F | Cover, Reclining Adjuster, RH |
| 71811H | Cover, Reclining Adjuster, RH |
| 71811J | Cover, Reclining Adjuster, RH |
| 71811L | Cover, Reclining Adjuster, RH |
| 71811M | Cover, Reclining Adjuster, RH |
| 71811N | Cover, Reclining Adjuster, RH |
| 71811P | Cover, Reclining Adjuster, RH |
| 71812B | Clip(FOR REAR SEAT CUSHION COVER) |
| 71812C | Cover, Reclining Adjuster, LH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71812E | Cover, Reclining Adjuster, LH |
| 71812G | Cover, Reclining Adjuster, LH |
| 71812K | Cover, Reclining Adjuster, LH |
| 71812M | Cover, Reclining Adjuster, LH |
| 71812N | Cover, Reclining Adjuster, LH |
| 71812P | Cover, Reclining Adjuster, LH |
| 71812Q | Cover, Reclining Adjuster, LH |
| 71846B | Cap, Rear Seatback Board, NO.1 |
| 71861A | Shield, Rear Seat Cushion, Inner RH |
| 71861C | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861D | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861E | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861F | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861G | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861H | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861J | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71862A | Shield, Rear Seat Cushion, Inner LH |
| 71862C | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862D | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862E | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862F | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862G | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862H | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862J | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71867M | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867N | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867P | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867Q | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867R | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867S | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867T | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867U | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71868B | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868C | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868D | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868E | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868F | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868G | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868H | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868L | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71873D | Shield, Rear Seat Cushion, Lower RH |
| 71873E | Shield, Rear Seat Cushion, Lower RH |
| 71873F | Shield, Rear Seat Cushion, Lower RH |
| 71873G | Shield, Rear Seat Cushion, Lower RH |
| 71873H | Shield, Rear Seat Cushion, Lower RH |
| 71873J | Shield, Rear Seat Cushion, Lower RH |
| 71873K | Shield, Rear Seat Cushion, Lower RH |
| 71873T | Shield, Rear Seat Cushion, Lower RH |
| 71874K | Shield, Rear Seat Cushion, Lower LH |
| 71874M | Shield, Rear Seat Cushion, Lower LH |
| 71874N | Shield, Rear Seat Cushion, Lower LH |
| 71874P | Shield, Rear Seat Cushion, Lower LH |
| 71874Q | Shield, Rear Seat Cushion, Lower LH |
| 71874R | Shield, Rear Seat Cushion, Lower LH |
| 71874S | Shield, Rear Seat Cushion, Lower LH |
| 71874T | Shield, Rear Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71875C | Cover, Reclining Adjuster Inside, RH |
| 71875E | Cover, Reclining Adjuster Inside, RH |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71875J | Cover, Reclining Adjuster Inside, RH |
| 71875K | Cover, Reclining Adjuster Inside, RH |
| 71875V | Cover, Reclining Adjuster Inside, RH |
| 71875W | Cover, Reclining Adjuster Inside, RH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71876B | Cover, Reclining Adjuster Inside, LH |
| 71876C | Cover, Reclining Adjuster Inside, LH |
| 71876E | Cover, Reclining Adjuster Inside, LH |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71876J | Cover, Reclining Adjuster Inside, LH |
| 71876K | Cover, Reclining Adjuster Inside, LH |
| 71876Y | Cover, Reclining Adjuster Inside, LH |
| 71876Z | Cover, Reclining Adjuster Inside, LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72301 | Wire Sub-assy, Seat Track Equalizing |
| 72345A | Pipe, Reclining Connecting |
| 72379 | Belt, Seat Reclining Handle |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72520 | Adjuster Assy, Reclining Seatback, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72665C | Cover, Rear Seat Lock, RH |
| 72666B | Cover, Rear Seat Lock, LH |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72791 | Lever, Lumbar Support |
| 72995A | Cover, Rear Seat |
| 73173G | Cover, Rear Seat Shoulder Belt, RH |
| 73173H | Cover, Rear Seat Shoulder Belt, RH |
| 73173J | Cover, Rear Seat Shoulder Belt, RH |
| 73173K | Cover, Rear Seat Shoulder Belt, RH |
| 73173L | Cover, Rear Seat Shoulder Belt, RH |
| 73173M | Cover, Rear Seat Shoulder Belt, RH |
| 73173N | Cover, Rear Seat Shoulder Belt, RH |
| 73175A | Cover, Rear Seat Shoulder Belt, LH |
| 73175B | Cover, Rear Seat Shoulder Belt, LH |
| 73175C | Cover, Rear Seat Shoulder Belt, LH |
| 73175D | Cover, Rear Seat Shoulder Belt, LH |
| 73175E | Cover, Rear Seat Shoulder Belt, LH |
| 73175F | Cover, Rear Seat Shoulder Belt, LH |
| 73175G | Cover, Rear Seat Shoulder Belt, LH |
| 73373D | Cover, Rear Seat Shoulder Belt Hole, RH |
| 73373F | Cover, Rear Seat Shoulder Belt Hole |
| 73373M | Cover, Rear Seat Shoulder Belt, RH |
| 73373N | Cover, Rear Seat Shoulder Belt, RH |
| 73373P | Cover, Rear Seat Shoulder Belt, RH |
| 73373Q | Cover, Rear Seat Shoulder Belt, RH |
| 73373R | Cover, Rear Seat Shoulder Belt, RH |
| 73373S | Cover, Rear Seat Shoulder Belt, RH |
| 73373T | Cover, Rear Seat Shoulder Belt, RH |
| 73375B | Cover, Rear Seat Shoulder Belt Hole, LH |
| 73375E | Cover, Rear Seat Shoulder Belt, LH |
| 73375F | Cover, Rear Seat Shoulder Belt, LH |
| 73375G | Cover, Rear Seat Shoulder Belt, LH |
| 73375H | Cover, Rear Seat Shoulder Belt, LH |
| 73375J | Cover, Rear Seat Shoulder Belt, LH |
| 73375K | Cover, Rear Seat Shoulder Belt, LH |
| 73375L | Cover, Rear Seat Shoulder Belt, LH |
| 73375M | Cover, Rear Seat Shoulder Belt Hole |
| 78071 | Cover Sub-assy, Sub Seat Cushion, RH |
| 78071B | Cover Sub-assy, Sub Seat Cushion, RH NO.2 |
| 78071C | Cover Sub-assy, Sub Seat Cushion, RH NO.3 |
| 78071D | Cover Sub-assy, Sub Seat Cushion, RH NO.4 |
| 78071E | Cover Sub-assy, Sub Seat Cushion, RH NO.5 |
| 78071F | Cover Sub-assy, Sub Seat Cushion, RH NO.6 |
| 78071G | Cover Sub-assy, Sub Seat Cushion, RH NO.7 |
| 78072 | Cover Sub-assy, Sub Seat Cushion, LH |
| 78072A | Cover Sub-assy, Sub Seat Cushion, LH NO.2 |
| 78072B | Cover Sub-assy, Sub Seat Cushion, LH NO.3 |
| 78072C | Cover Sub-assy, Sub Seat Cushion, LH NO.4 |
| 78072D | Cover Sub-assy, Sub Seat Cushion, LH NO.5 |
| 78072E | Cover Sub-assy, Sub Seat Cushion, LH NO.6 |
| 78072F | Cover Sub-assy, Sub Seat Cushion, LH NO.7 |
| 78073 | Cover Sub-assy, Sub Seatback, RH |
| 78073A | Cover Sub-assy, Sub Seatback, RH NO.2 |
| 78073B | Cover Sub-assy, Sub Seatback, RH NO.3 |
| 78073C | Cover Sub-assy, Sub Seatback, RH NO.4 |
| 78073D | Cover Sub-assy, Sub Seatback, RH NO.5 |
| 78073E | Cover Sub-assy, Sub Seatback, RH NO.6 |
| 78073F | Cover Sub-assy, Sub Seatback, RH NO.7 |
| 78074 | Cover Sub-assy, Sub Seatback, LH |
| 78074A | Cover Sub-assy, Sub Seatback, LH NO.2 |
| 78074B | Cover Sub-assy, Sub Seatback, LH NO.3 |
| 78074C | Cover Sub-assy, Sub Seatback, LH NO.4 |
| 78074D | Cover Sub-assy, Sub Seatback, LH NO.5 |
| 78074E | Cover Sub-assy, Sub Seatback, LH NO.6 |
| 78074F | Cover Sub-assy, Sub Seatback, LH NO.7 |
| 78077B | Board Sub-assy, Sub Seat Cushion, RH |
| 78077D | Board Sub-assy, Sub Seat Cushion, RH NO.2 |
| 78077E | Board Sub-assy, Sub Seat Cushion, RH NO.3 |
| 78077F | Board Sub-assy, Sub Seat Cushion, RH NO.4 |
| 78077G | Board Sub-assy, Sub Seat Cushion, RH NO.5 |
| 78077H | Board Sub-assy, Sub Seat Cushion, RH NO.6 |
| 78077J | Board Sub-assy, Sub Seat Cushion, RH NO.7 |
| 78078 | Board Sub-assy, Sub Seat Cushion, LH |
| 78078B | Board Sub-assy, Sub Seat Cushion, LH NO.2 |
| 78078C | Board Sub-assy, Sub Seat Cushion, LH NO.3 |
| 78078D | Board Sub-assy, Sub Seat Cushion, LH NO.4 |
| 78078E | Board Sub-assy, Sub Seat Cushion, LH NO.5 |
| 78078F | Board Sub-assy, Sub Seat Cushion, LH NO.6 |
| 78078G | Board Sub-assy, Sub Seat Cushion, LH NO.7 |
| 78701 | Frame Sub-assy, Sub Seat Cushion, RH |
| 78701B | Frame Sub-assy, Sub Seat Cushion, RH NO.2 |
| 78701C | Frame Sub-assy, Sub Seat Cushion, RH NO.3 |
| 78701D | Frame Sub-assy, Sub Seat Cushion, RH NO.4 |
| 78701E | Frame Sub-assy, Sub Seat Cushion, RH NO.5 |
| 78701F | Frame Sub-assy, Sub Seat Cushion, RH NO.6 |
| 78701G | Frame Sub-assy, Sub Seat Cushion, RH NO.7 |
| 78702 | Frame Sub-assy, Sub Seat Cushion, LH |
| 78702A | Frame Sub-assy, Sub Seat Cushion, LH |
| 78702B | Frame Sub-assy, Sub Seat Cushion, LH NO.3 |
| 78702C | Frame Sub-assy, Sub Seat Cushion, LH NO.4 |
| 78702D | Frame Sub-assy, Sub Seat Cushion, LH NO.5 |
| 78702E | Frame Sub-assy, Sub Seat Cushion, LH NO.6 |
| 78702F | Frame Sub-assy, Sub Seat Cushion, LH NO.7 |
| 78703A | Frame Sub-assy, Sub Seatback, RH |
| 78703B | Frame Sub-assy, Sub Seatback, LH |
| 78703C | Frame Sub-assy, Sub Seatback, RH NO.2 |
| 78703D | Frame Sub-assy, Sub Seatback, RH NO.3 |
| 78703E | Frame Sub-assy, Sub Seatback, RH NO.4 |
| 78703F | Frame Sub-assy, Sub Seatback, RH NO.5 |
| 78703G | Frame Sub-assy, Sub Seatback, RH NO.6 |
| 78703H | Frame Sub-assy, Sub Seatback, RH NO.7 |
| 78703J | Frame Sub-assy, Sub Seatback, LH NO.2 |
| 78703K | Frame Sub-assy, Sub Seatback, LH NO.3 |
| 78703L | Frame Sub-assy, Sub Seatback, LH NO.4 |
| 78703M | Frame Sub-assy, Sub Seatback, LH NO.5 |
| 78703N | Frame Sub-assy, Sub Seatback, LH NO.6 |
| 78703P | Frame Sub-assy, Sub Seatback, LH NO.7 |
| 78705 | Bracket Sub-assy, Sub Seat Cushion |
| 78705A | Bracket Sub-assy, Sub Seat Cushion NO.2 |
| 78705B | Bracket Sub-assy, Sub Seat Cushion NO.3 |
| 78705C | Bracket Sub-assy, Sub Seat Cushion NO.4 |
| 78705D | Bracket Sub-assy, Sub Seat Cushion NO.5 |
| 78705E | Bracket Sub-assy, Sub Seat Cushion NO.6 |
| 78705F | Bracket Sub-assy, Sub Seat Cushion NO.7 |
| 78715 | Panel, Sub Seat Cushion |
| 78715B | Panel, Sub Seat Cushion NO.2 |
| 78715C | Panel, Sub Seat Cushion NO.3 |
| 78715D | Panel, Sub Seat Cushion NO.4 |
| 78715E | Panel, Sub Seat Cushion NO.5 |
| 78715F | Panel, Sub Seat Cushion NO.6 |
| 78715G | Panel, Sub Seat Cushion NO.7 |
| 78726 | Cushion, Sub Seat Cushion Frame |
| 78726A | Cushion, Sub Seat Cushion Frame, NO.2 |
| 78726B | Cushion, Sub Seat Cushion Frame, NO.3 |
| 78726C | Cushion, Sub Seat Cushion Frame, NO.4 |
| 78726D | Cushion, Sub Seat Cushion Frame, NO.5 |
| 78726E | Cushion, Sub Seat Cushion Frame, NO.6 |
| 78726F | Cushion, Sub Seat Cushion Frame, NO.7 |
| 78735A | Pad, Sub Seat Cushion, RH |
| 78735B | Pad, Sub Seat Cushion, LH |
| 78735E | Pad, Sub Seat Cushion, RH NO.2 |
| 78735F | Pad, Sub Seat Cushion, RH NO.3 |
| 78735G | Pad, Sub Seat Cushion, RH NO.4 |
| 78735H | Pad, Sub Seat Cushion, RH NO.5 |
| 78735J | Pad, Sub Seat Cushion, RH NO.6 |
| 78735K | Pad, Sub Seat Cushion, RH NO.7 |
| 78735L | Pad, Sub Seat Cushion, LH NO.2 |
| 78735M | Pad, Sub Seat Cushion, LH NO.3 |
| 78735N | Pad, Sub Seat Cushion, LH NO.4 |
| 78735P | Pad, Sub Seat Cushion, LH NO.5 |
| 78735R | Pad, Sub Seat Cushion, LH NO.6 |
| 78735S | Pad, Sub Seat Cushion, LH NO.7 |
| 78775A | Pad, Sub Seatback, RH |
| 78775B | Pad, Sub Seatback, LH |
| 78775E | Pad, Sub Seatback, RH NO.2 |
| 78775F | Pad, Sub Seatback, RH NO.3 |
| 78775G | Pad, Sub Seatback, RH NO.4 |
| 78775H | Pad, Sub Seatback, RH NO.5 |
| 78775J | Pad, Sub Seatback, RH NO.6 |
| 78775K | Pad, Sub Seatback, RH NO.7 |
| 78775L | Pad, Sub Seatback, LH NO.2 |
| 78775M | Pad, Sub Seatback, LH NO.3 |
| 78775N | Pad, Sub Seatback, LH NO.4 |
| 78775P | Pad, Sub Seatback, LH NO.5 |
| 78775R | Pad, Sub Seatback, LH NO.6 |
| 78775S | Pad, Sub Seatback, LH NO.7 |
| 78903 | Striker Sub-assy, Fold Seat Leg Lock |
| 78904 | Striker Sub-assy, Fold Seat Lock, NO.2 |
| 78910 | Cable Assy, Fold Seat Lock Control, NO.1 |
| 78910A | Lock Assy, Fold Seat, RH |
| 78920A | Lock Assy, Fold Seat, LH |
| 78930 | Cable Assy, Fold Seat Lock Control, NO.3 |
| 78950 | Band Assy, Fold Seat Stopper, NO.1 |
| 78960 | Band Assy, Fold Seat Stopper, NO.2 |
| 78970 | Band Assy, Seat Lock |
| 79011 | Cover Sub-assy, NO.1 Seat Cushion, RH |
| 79012 | Cover Sub-assy, NO.1 Seat Cushion, LH |
| 79013 | Cover Sub-assy, NO.1 Seatback, RH |
| 79014 | Cover Sub-assy, NO.1 Seatback, LH |
| 79015A | Pad Sub-assy, NO.1 Seat Cushion, RH |
| 79016A | Pad Sub-assy, NO.1 Seat Cushion, LH |
| 79017A | Pad Sub-assy, NO.1 Seatback, RH |
| 79018A | Pad Sub-assy, NO.1 Seatback, LH |
| 79021 | Cover Sub-assy, NO.2 Seat Cushion, RH |
| 79022 | Cover Sub-assy, NO.2 Seat Cushion, LH |
| 79023 | Cover Sub-assy, NO.2 Seatback, RH |
| 79024 | Cover Sub-assy, NO.2 Seatback, LH |
| 79025A | Pad Sub-assy, NO.2 Seat Cushion, RH |
| 79026A | Pad Sub-assy, NO.2 Seat Cushion, LH |
| 79027A | Pad Sub-assy, NO.2 Seatback, RH |
| 79028A | Pad Sub-assy, NO.2 Seatback, LH |
| 79031 | Cover Sub-assy, NO.3 Seat Cushion, RH |
| 79032 | Cover Sub-assy, NO.3 Seat Cushion, LH |
| 79033 | Cover Sub-assy, NO.3 Seatback, RH |
| 79034 | Cover Sub-assy, NO.3 Seatback, LH |
| 79035A | Pad Sub-assy, NO.3 Seat Cushion, RH |
| 79036A | Pad, Sub-assy, NO.3 Seat Cushion, LH |
| 79037A | Pad Sub-assy, NO.3 Seatback, RH |
| 79038A | Pad Sub-assy, NO.3 Seatback, LH |
| 79041 | Cover Sub-assy, NO.4 Seat Cushion, RH |
| 79042 | Cover Sub-assy, NO.4 Seat Cushion, LH |
| 79043 | Cover Sub-assy, NO.4 Seatback, RH |
| 79044 | Cover Sub-assy, NO.4 Seatback, LH |
| 79045A | Pad Sub-assy, NO.4 Seat Cushion, RH |
| 79046A | Pad Sub-assy, NO.4 Seat Cushion, LH |
| 79047A | Pad Sub-assy, NO.4 Seatback, RH |
| 79048A | Pad Sub-assy, NO.4 Seatback, LH |
| 79051 | Cover Sub-assy, NO.5 Seat Cushion, RH |
| 79052 | Cover Sub-assy, NO.5 Seat Cushion, LH |
| 79053 | Cover Sub-assy, NO.5 Seatback, RH |
| 79054 | Cover Sub-assy, NO.5 Seatback, LH |
| 79055A | Pad Sub-assy, NO.5 Seat Cushion, RH |
| 79056A | Pad Sub-assy, NO.5 Seat Cushion, LH |
| 79057A | Pad Sub-assy, NO.5 Seatback, RH |
| 79058A | Pad Sub-assy, NO.5 Seatback, LH |
| 79061 | Cover Sub-assy, NO.6 Seat Cushion, RH |
| 79062 | Cover Sub-assy, NO.6 Seat Cushion, LH |
| 79063 | Cover Sub-assy, NO.6 Seatback, RH |
| 79064 | Cover Sub-assy, NO.6 Seatback, LH |
| 79065A | Pad Sub-assy, NO.6 Seat Cushion, RH |
| 79066A | Pad Sub-assy, NO.6 Seat Cushion, LH |
| 79067A | Pad Sub-assy, NO.6 Seatback, RH |
| 79068A | Pad Sub-assy, NO.6 Seatback, LH |
| 79071 | Cover Sub-assy, NO.7 Seat Cushion, RH |
| 79072 | Cover Sub-assy, NO.7 Seat Cushion, LH |
| 79073 | Cover Sub-assy, NO.7 Seatback, RH |
| 79074 | Cover Sub-assy, NO.7 Seatback, LH |
| 79075A | Pad Sub-assy, NO.7 Seat Cushion, RH |
| 79076 | Pad Sub-assy, NO.7 Seat Cushion, LH |
| 79077A | Pad Sub-assy, NO.7 Seatback, RH |
| 79078A | Pad Sub-assy, NO.7 Seatback, LH |
| 79081 | Cover Sub-assy, NO.8 Seat Cushion, RH |
| 79081A | Cover Sub-assy, NO.8 Seat Cushion |
| 79082 | Cover Sub-assy, NO.8 Seat Cushion, LH |
| 79083 | Cover Sub-assy, NO.8 Seatback, RH |
| 79084 | Cover Sub-assy, NO.8 Seatback, LH |
| 79085B | Pad Sub-assy, NO.8 Seat Cushion, RH |
| 79086B | Pad Sub-assy, NO.8 Seat Cushion, LH |
| 79087B | Pad Sub-assy, NO.8 Seatback, RH |
| 79088B | Pad Sub-assy, NO.8 Seatback, LH |
| 79097 | Partition Sub-assy, Luggage Compartment Wall |
| 79105 | Leg Sub-assy, NO.1 Seat, RH |
| 79106 | Leg Sub Assy, NO.1 Seat, LH |
| 79107G | Leg Sub-assy, NO.6 Seat, Rear |
| 79107J | Leg Sub-assy, NO.7 Seat, Rear |
| 79108A | Leg Sub-assy, NO.6 Seat, Rear |
| 79108B | Leg Sub-assy, NO.7 Seat, Rear |
| 79109 | Board Sub-assy, NO.1 Seatback |
| 79109C | Board Sub-assy, NO.1 Seatback, LH |
| 79180A | Spring Assy, NO.1 Seatback, RH |
| 79190A | Spring Assy, NO.1 Seatback, LH |
| 79205B | Leg Sub-assy, NO.2 Seat, RH |
| 79206B | Leg Sub-assy, NO.2 Seat, LH |
| 79209 | Board Sub-assy, NO.2 Seatback |
| 79209B | Board Sub-assy, NO.2 Seatback, LH |
| 79280A | Spring Assy, NO.2 Seatback, RH |
| 79290A | Spring Assy, NO.2 Seatback, LH |
| 79305A | Leg Sub-assy, NO.3 Seat, RH |
| 79306 | Leg Sub Assy, NO.3 Seat, LH |
| 79309 | Board Sub-assy, NO.3 Seatback |
| 79309D | Board Sub-assy, NO.3 Seatback, LH |
| 79380A | Spring Assy, NO.3 Seatback, RH |
| 79390A | Spring Assy, NO.3 Seatback, LH |
| 79401 | Frame Sub-assy, NO.4 Seat Cushion, RH |
| 79402 | Frame Sub-assy, NO.4 Seat Cushion, LH |
| 79403A | Frame Sub-assy, NO.4 Seatback, RH |
| 79404 | Frame Sub-assy, NO.4 Seatback, LH |
| 79405A | Leg Sub-assy, NO.4 Seat, RH |
| 79406A | Leg Sub-assy, NO.4 Seat, LH |
| 79409 | Board Sub-assy, NO.4 Seatback |
| 79409B | Board Sub-assy, NO.4 Seatback, LH |
| 79480A | Spring Assy, NO.4 Seatback, RH |
| 79490A | Spring Assy, NO.4 Seatback, LH |
| 79501 | Frame Sub-assy, NO.5 Seat Cushion, RH |
| 79502 | Frame Sub-assy, NO.5 Seat Cushion, LH |
| 79503 | Frame Sub-assy, NO.5 Seatback, RH |
| 79504 | Frame Sub-assy, NO.5 Seatback, LH |
| 79505 | Leg Sub-assy, NO.5 Seat, RH |
| 79506 | Leg Sub-assy, NO.5 Seat, LH |
| 79509 | Board Sub-assy, NO.5 Seatback, RH |
| 79509A | Board Sub-assy, NO.5 Seatback, LH |
| 79580A | Spring Assy, NO.5 Seatback, RH |
| 79590A | Spring Assy, NO.5 Seatback, LH |
| 79601 | Frame Sub-assy, NO.6 Seat Cushion, RH |
| 79602 | Frame Sub-assy, NO.6 Seat Cushion, LH |
| 79603 | Frame Sub-assy, NO.6 Seatback, RH |
| 79604 | Frame Sub-assy, NO.6 Seatback, LH |
| 79605 | Leg Sub-assy, NO.6 Seat, RH |
| 79606 | Leg Sub-assy, NO.6 Seat, LH |
| 79609 | Board Sub-assy, NO.6 Seatback, RH |
| 79609A | Board Sub-assy, NO.6 Seatback, LH |
| 79680B | Spring Assy, NO.6 Seatback, RH |
| 79690A | Spring Assy, NO.6 Seatback, LH |
| 79701 | Frame Sub-assy, NO.7 Seat Cushion, RH |
| 79702 | Frame Sub-assy, NO.7 Seat Cushion, LH |
| 79703 | Frame Sub-assy, NO.7 Seatback, RH |
| 79704 | Frame Sub-assy, NO.7 Seatback, LH |
| 79705 | Leg Sub-assy, NO.7 Seat, RH |
| 79706 | Leg Sub-assy, NO.7 Seat, LH |
| 79709 | Board Sub-assy, NO.7 Seatback, RH |
| 79709A | Board Sub-assy, NO.7 Seatback, LH |
| 79780A | Spring Assy, NO.7 Seatback, RH |
| 79790A | Spring Assy, NO.7 Seatback, LH |
| 79803 | Frame Sub-assy, NO.8 Seatback, RH |
| 79804 | Frame Sub-assy, NO.8 Seatback, LH |
| 79805 | Leg Sub-assy, NO.8 Seat, RH |
| 79805A | Leg Sub-assy, Fold Seat, Front |
| 79806A | Leg Sub-assy, NO.8 Seat, LH |
| 79806B | Leg Sub Assy, Fold Seat Rear |
| 79860 | Spring Assy, NO.8 Seat Cushion |
| 79880B | Spring Assy, NO.8 Seatback, RH |
| 79885 | Hinge, Fold Seatback Set, RH |
| 79886 | Hinge, Fold Seatback Set, LH |
| 79890B | Spring Assy, NO.8 Seatback, LH |
| 79915 | Bracket, Seat Leg |
| 79916 | Bracket, Seat Leg, NO.2 |
| 79959D | Cover, Seat Leg |
| 79967 | Cover, Rear Seat Leg Side, NO.4 |
| 79967B | Cover, Rear Seat Leg Side NO.2 |
| 79967C | Cover, Rear Seat Leg Side, NO.4 |
| 79967J | Cover, Rear Seat Leg Side, NO.4 |
| 79967K | Cover, Rear Seat Leg Side, NO.4 |
| 79967L | Cover, Rear Seat Leg Side, NO.4 |
| 79967S | Cover, Rear Seat Leg Side, NO.4 |
| 79968 | Cover, Rear Seat Leg Side, NO.5 |
| 79968A | Cover, Rear Seat Leg Side, NO.5 |
| 79968B | Clip |
| 79968N | Cover, Rear Seat Leg Side, NO.5 |
| 79974 | Bracket, Seatback Assist, RH |
| 79984 | Bracket, Seatback Assist, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
