Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Protector Pipe, Roll Bar & Handrail

7 part groups · 3 illustrations

Illustrations

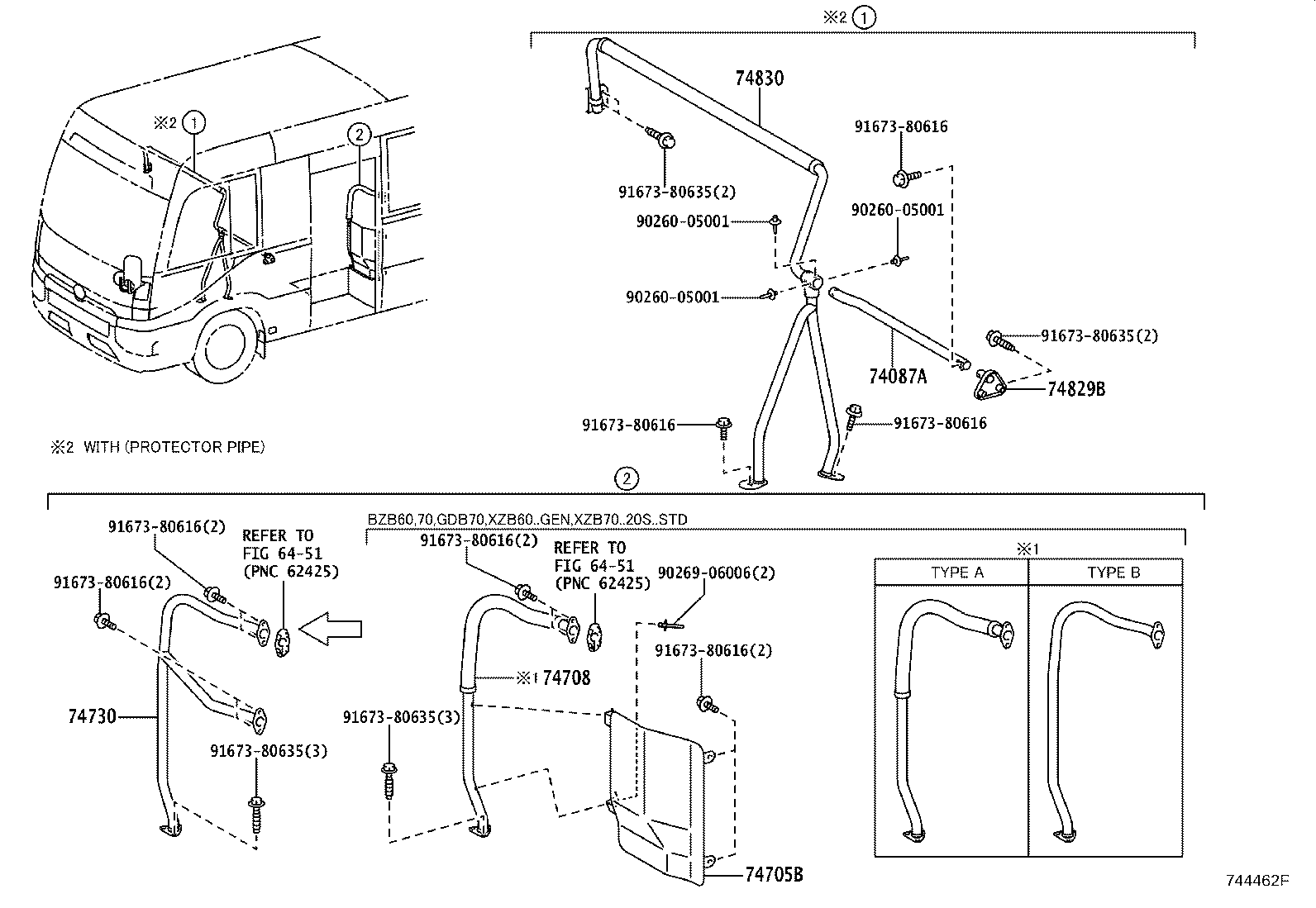

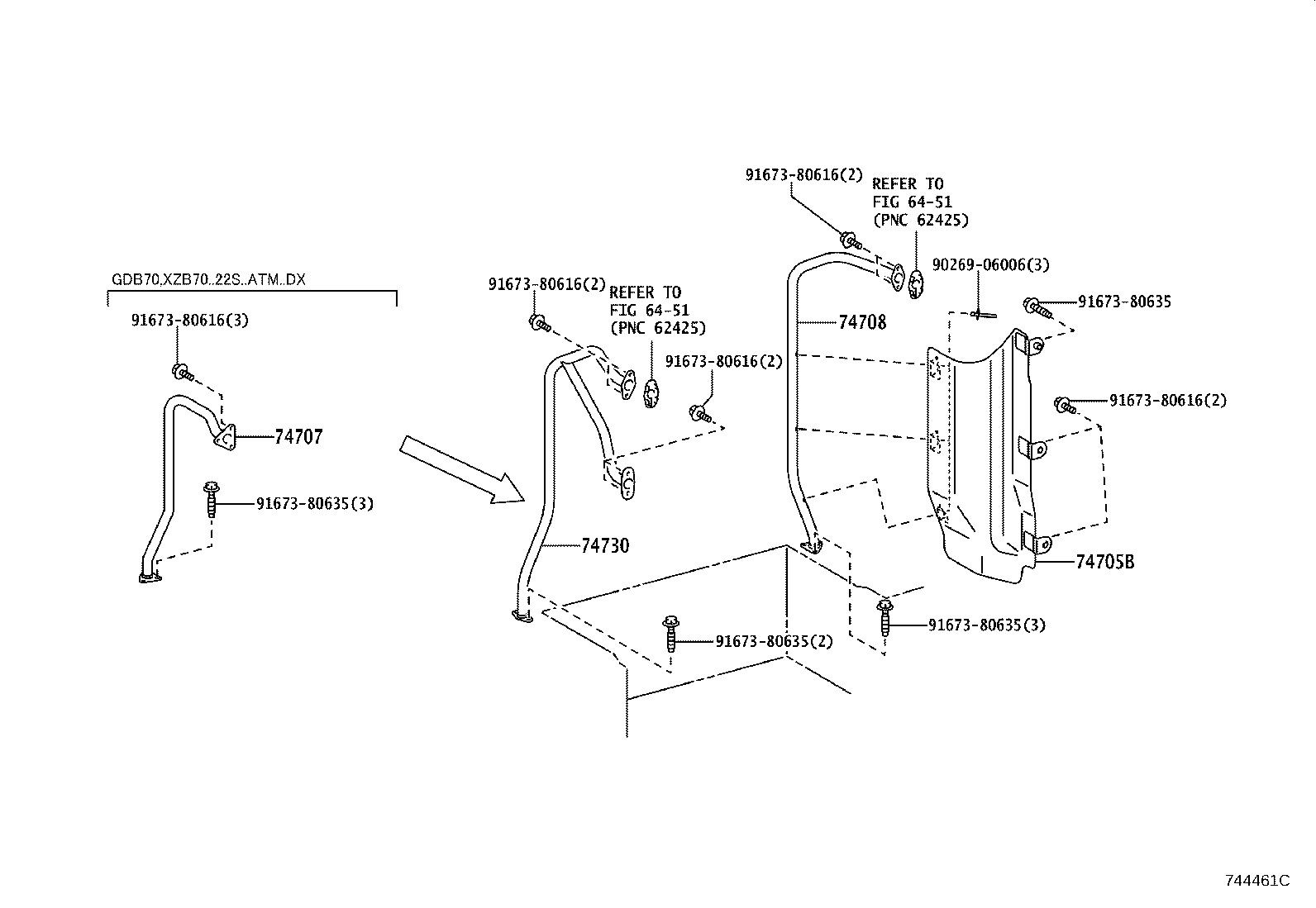

Figure 744460B 744460B 2017-01 → — Figure 744461C 744461C 2017-01 → — Figure 744462F 744462F 2017-01 → —

Part groups

PNCDescription
74087A Pipe Sub-assy, Front Protector, LH
74705B Net Sub-assy, Hand Grip Protector
74707 Frame Sub-assy, Hand Grip, NO.1
74708 Frame Sub-assy, Hand Grip, NO.2
74730 Frame Assy, Hand Grip
74829B Bracket, Front Protector Pipe, NO.3
74830 Pipe Assy, Front Protector, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
