Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01

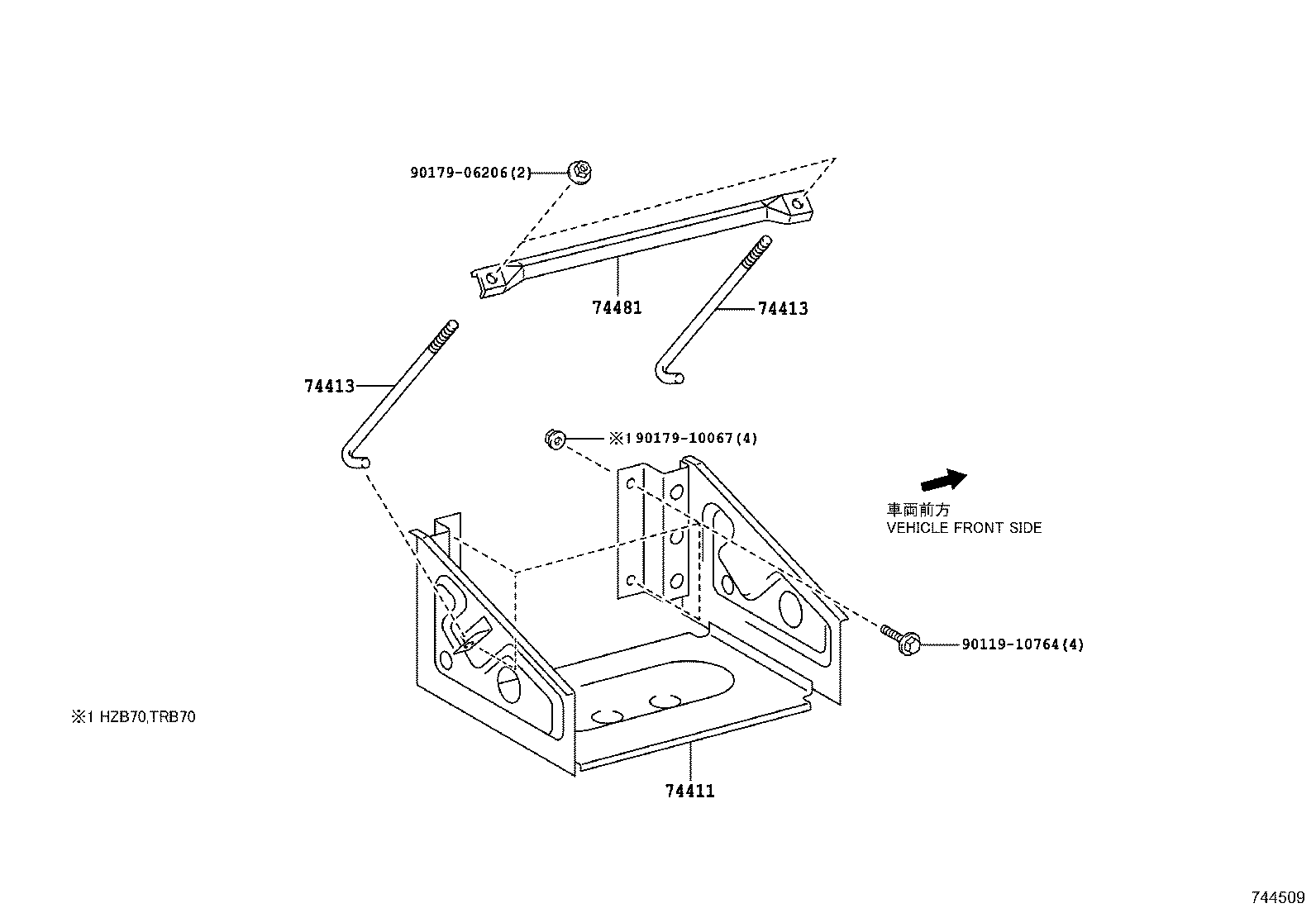

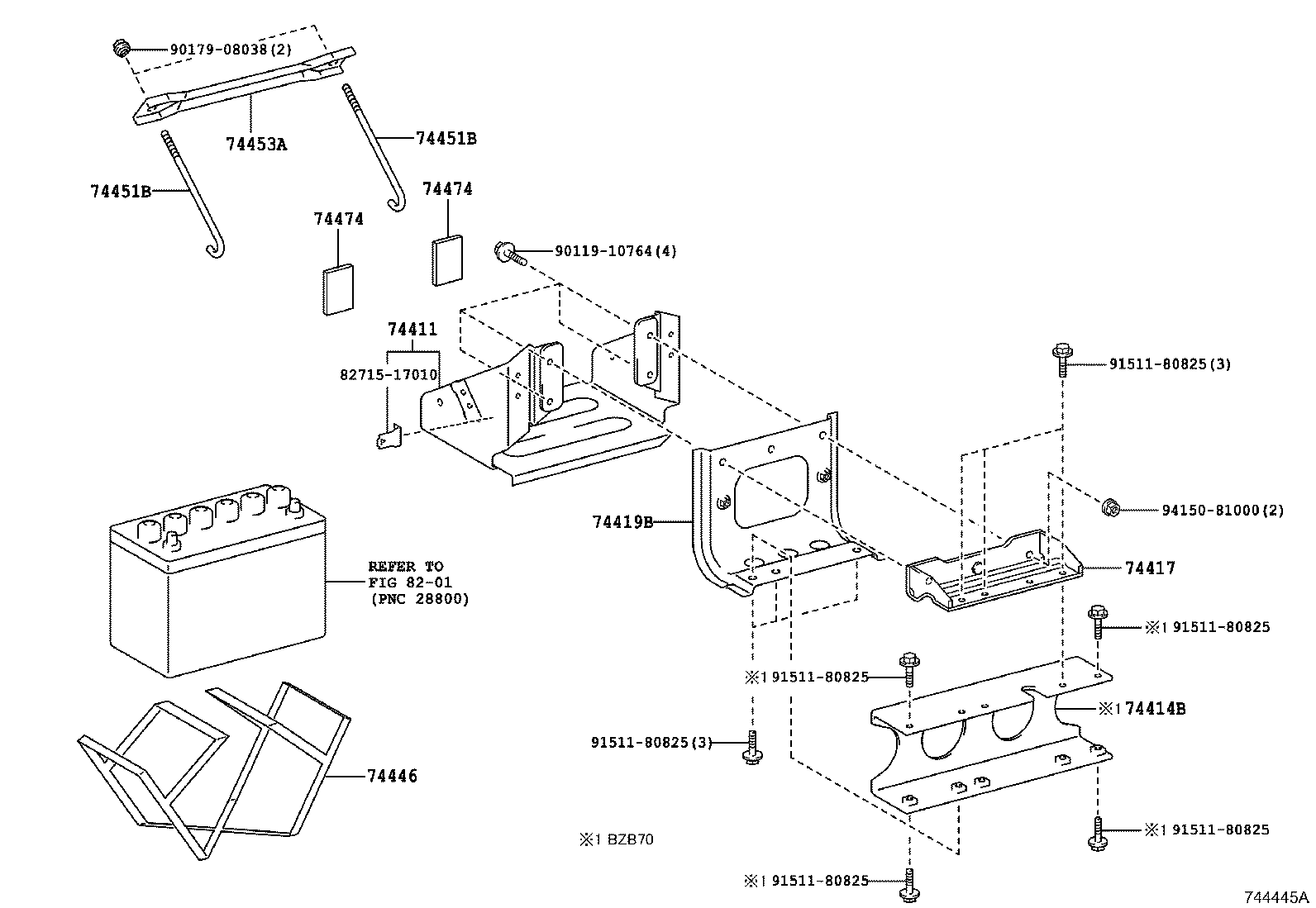

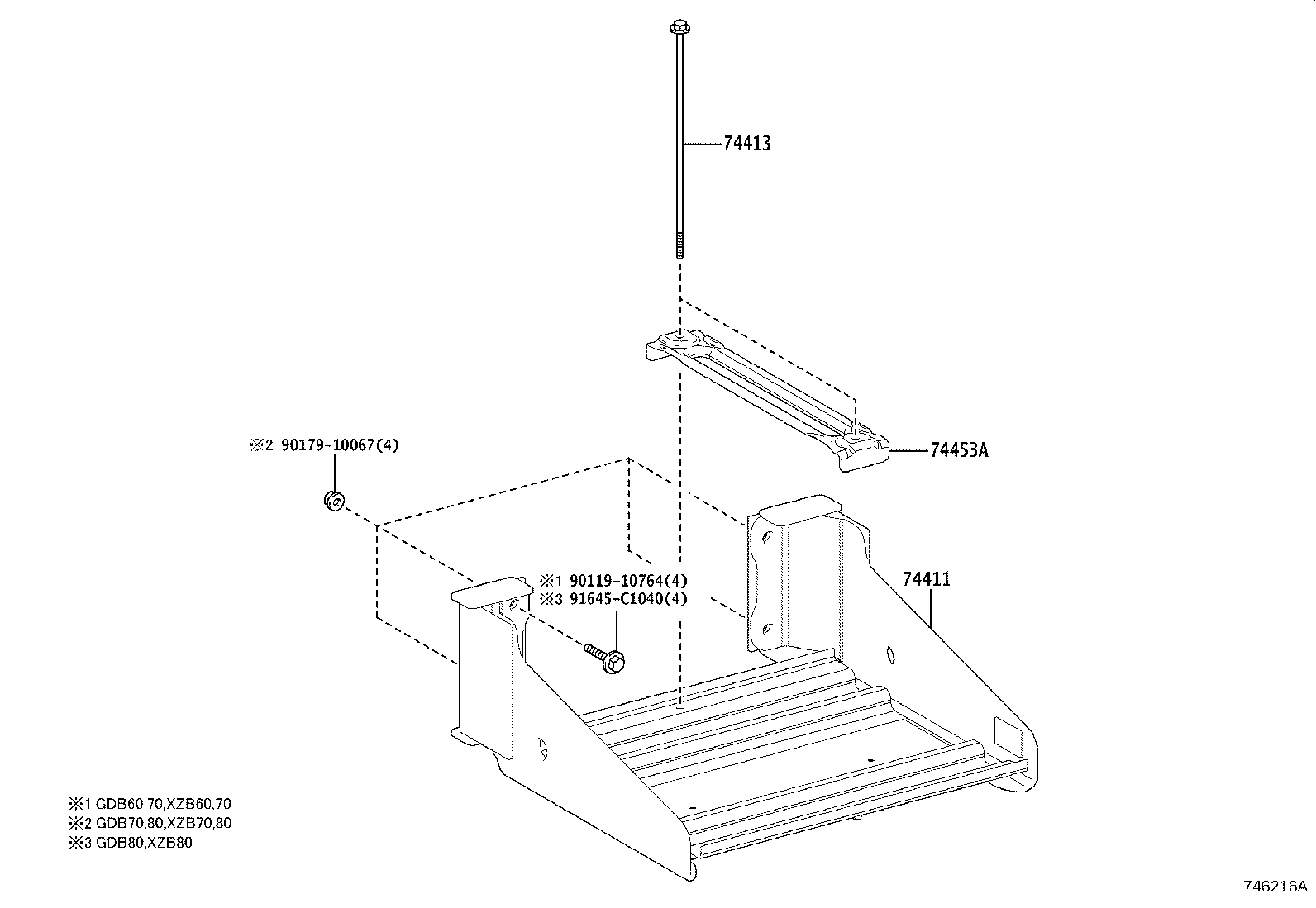

Battery Carrier
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 74411 | Carrier, Battery |
| 74413 | Bolt, Battery Clamp |
| 74414B | Reinforcement, Battery Bracket |
| 74417 | Bracket, Battery Carrier |
| 74419B | Bracket, Battery Carrier, NO.2 |
| 74446 | Band, Battery |
| 74451B | Bolt, Battery Clamp |
| 74453A | Bar, Battery Set Plate |
| 74474 | Pad, Battery |
| 74481 | Clamp, Battery Hold Down |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
