Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

50 part groups · 8 illustrations

Illustrations

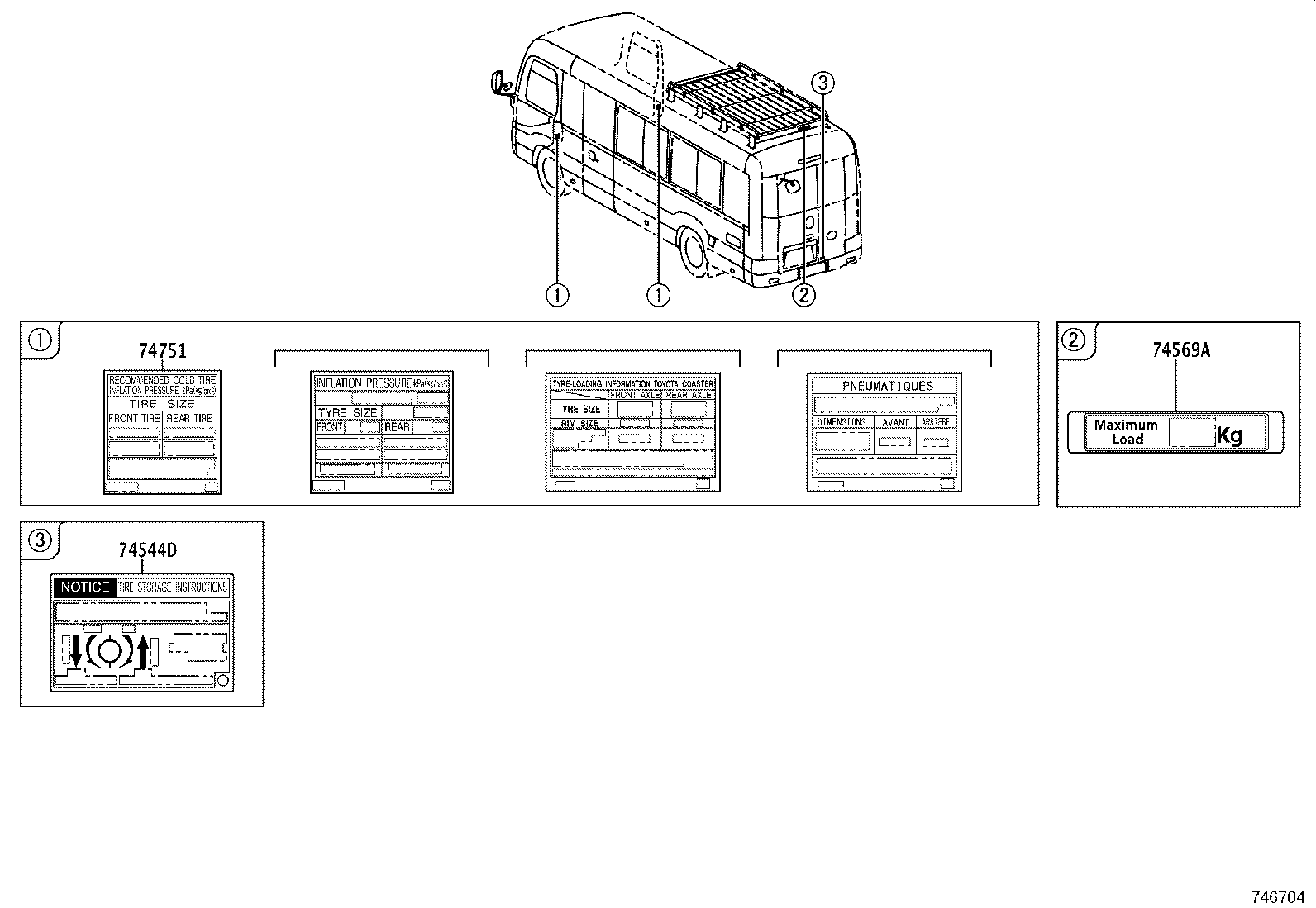

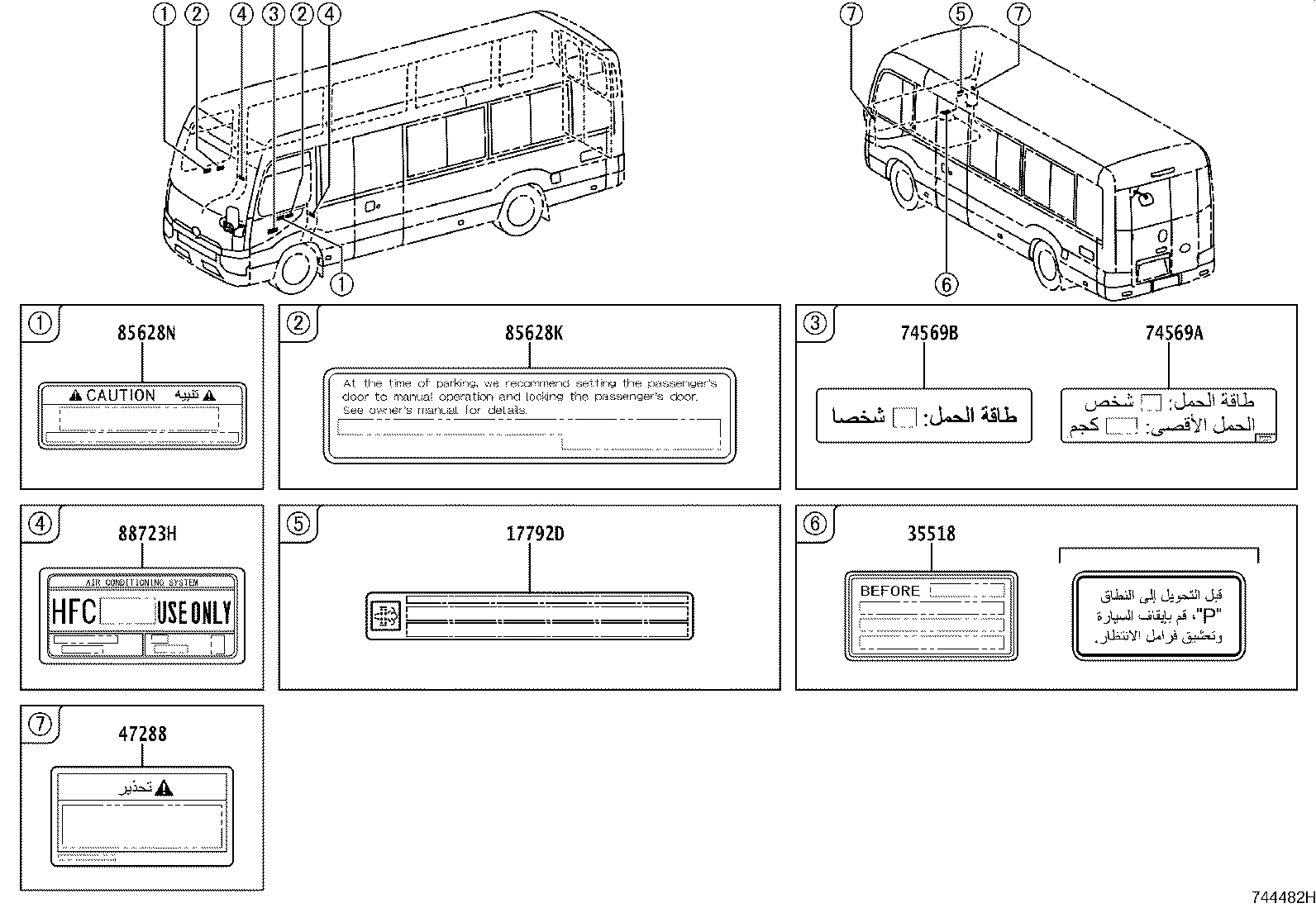

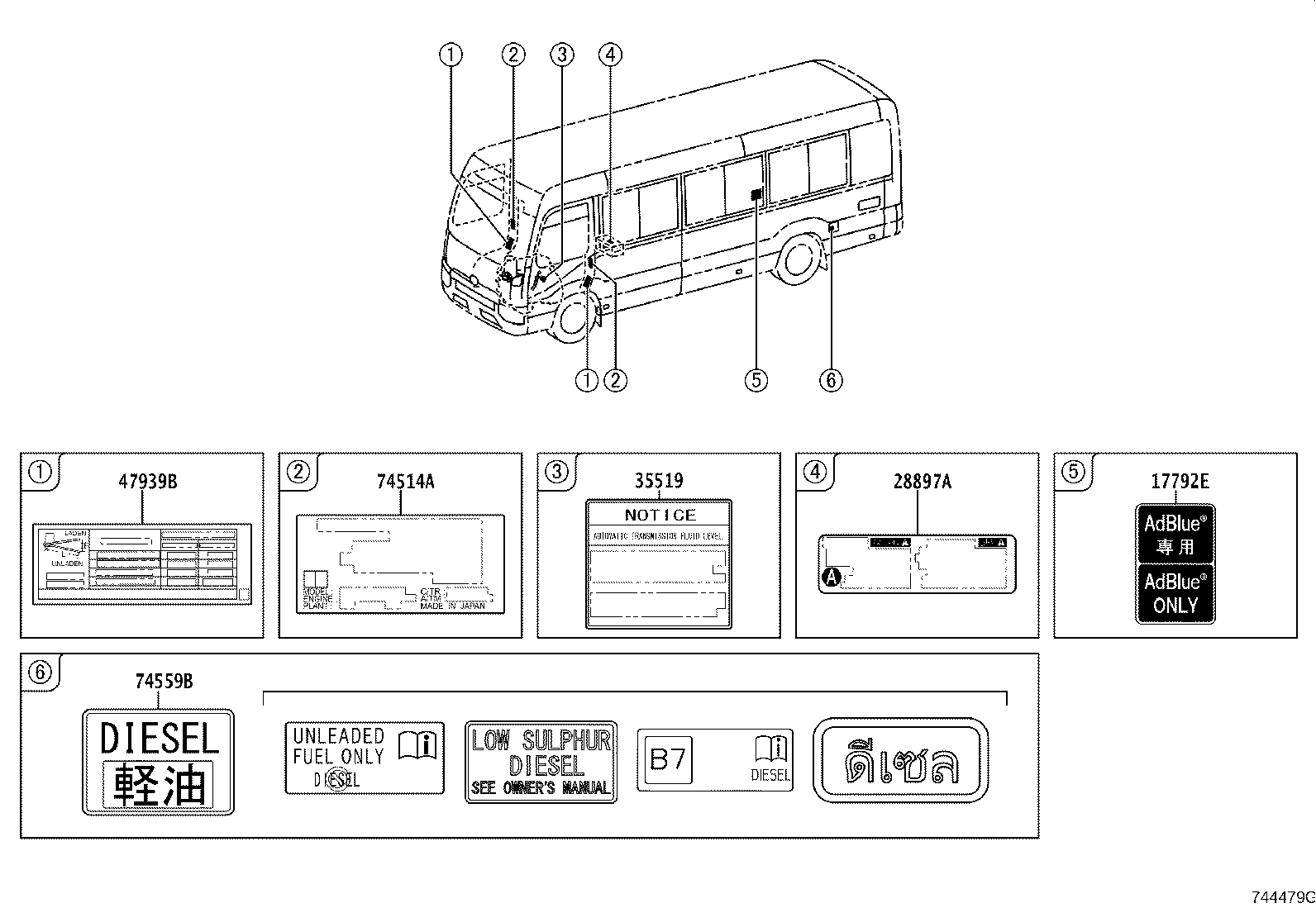

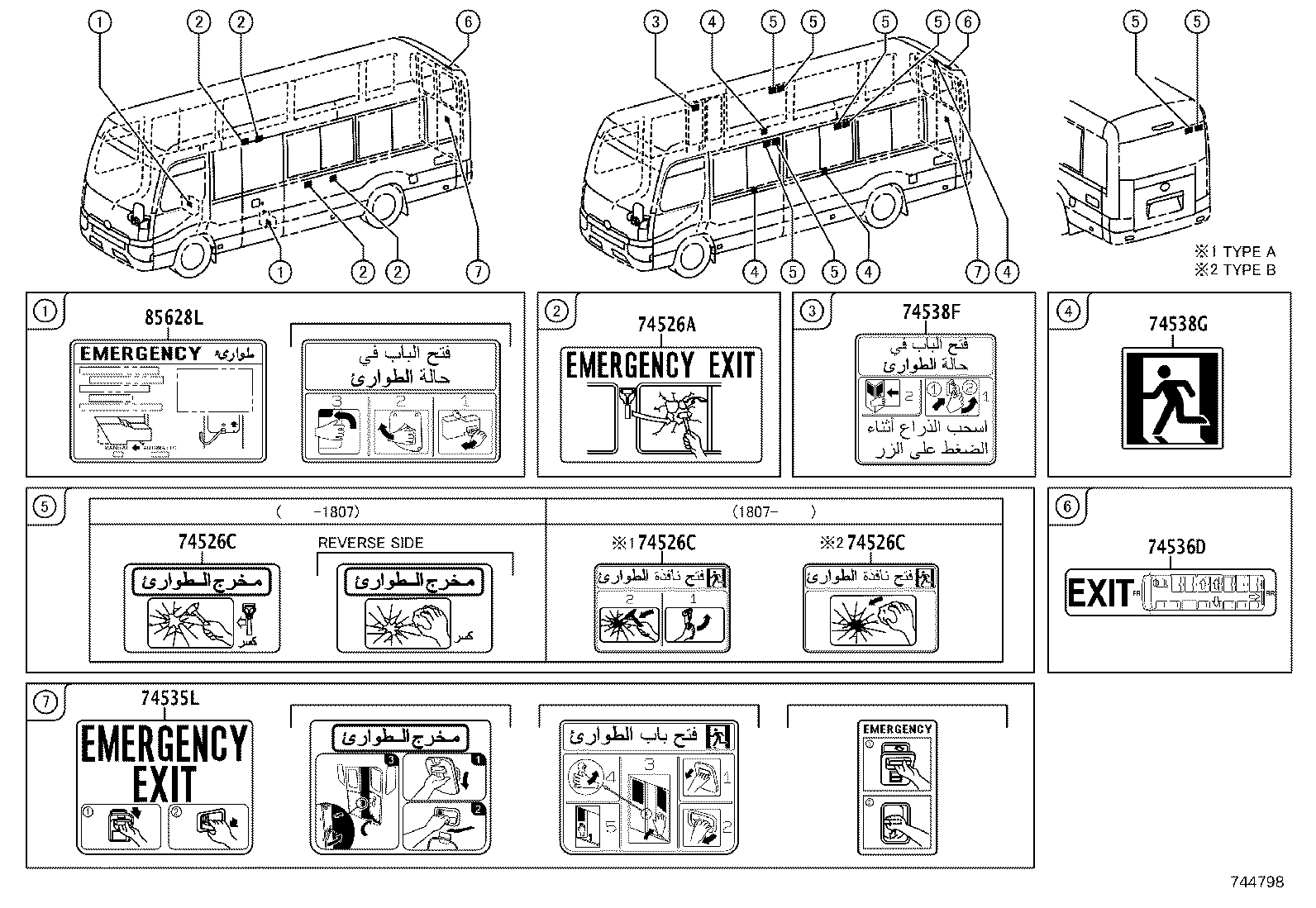

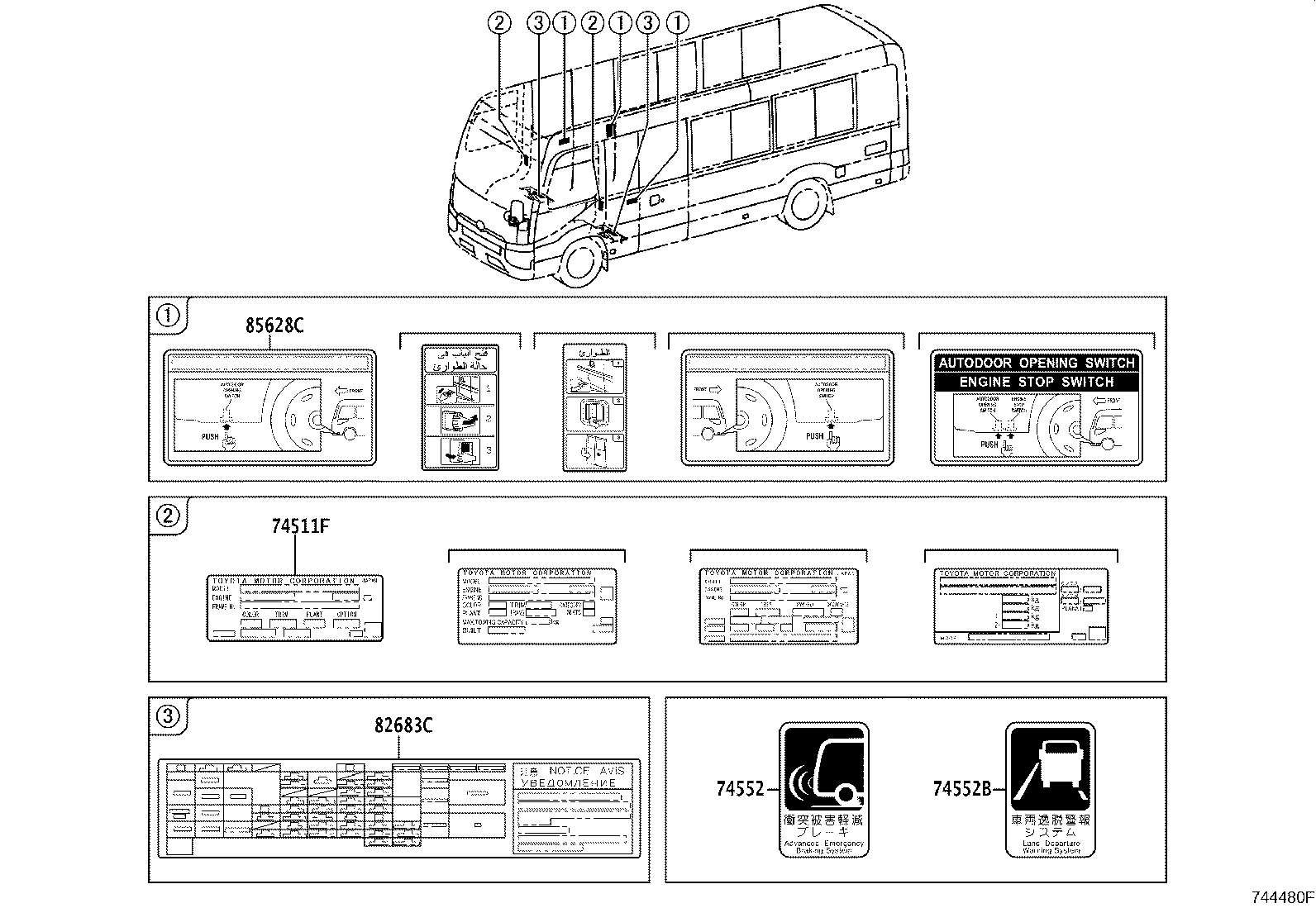

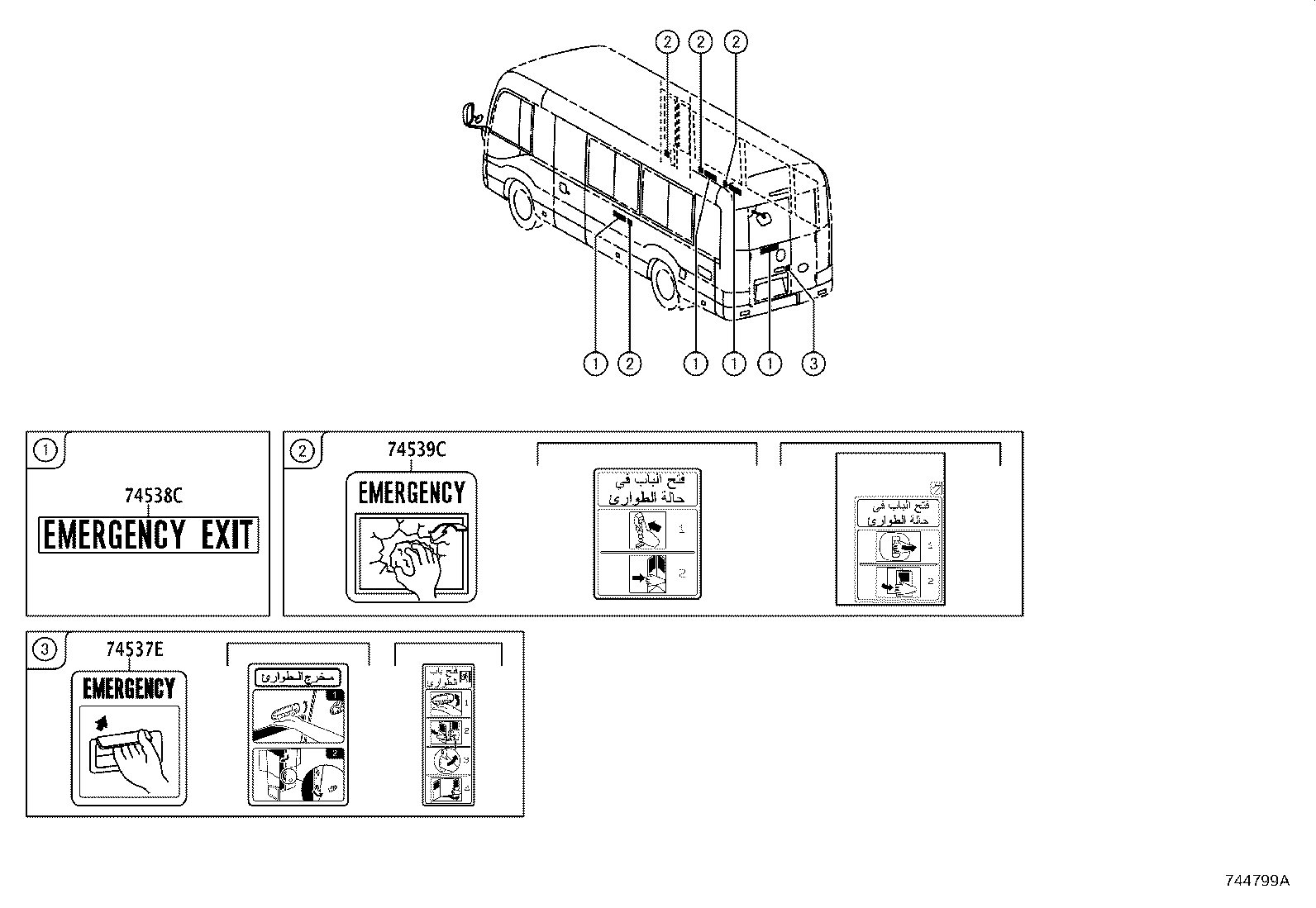

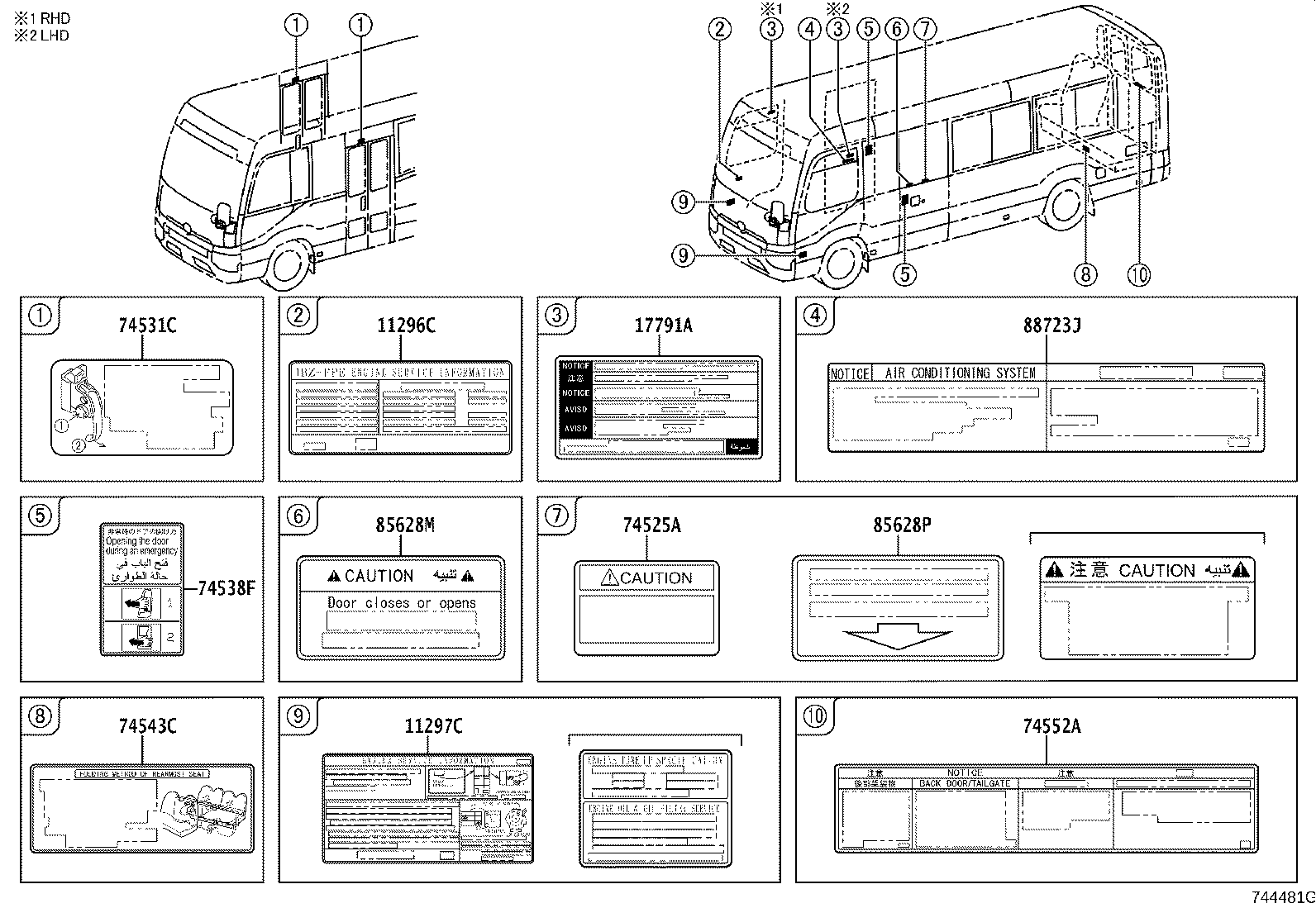

Figure 746150A 746150A 2017-01 → — Figure 744479G 744479G 2017-01 → — Figure 744480F 744480F 2017-01 → — Figure 746704 746704 2017-01 → — Figure 744481G 744481G 2017-01 → — Figure 744482H 744482H 2017-01 → — Figure 744798 744798 2017-01 → — Figure 744799A 744799A 2017-01 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11293F Label, Engine Caution
11295C Label, Engine Service Notice, NO.2
11296C Label, Engine Service Information
11297C Label, Engine Service Information, NO.2
11298B Label, Emission Control Information
16793E Label, Cooling Fan Caution
17700R Label, Air Cleaner Information
17791A Label, Maintenance Information
17792D Label, Emission Control Device Information
17792E Label, Emission Control Device Information
28897A Plate, Battery Caution
35518 Plate, Automatic Transmission Caution, NO.2
35519 Plate, Automatic Transmission Caution
47288 Label, Brake Fluid Notice
47939B Label, Load Sensing Valve Marking Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74514A Label, Certification Regulation Information
74517 Plate, Exhaust Temperature Caution
74525A Plate, Glide Door Caution
74526A Plate, Emergency Hammer Caution
74526C Label, Emergency Hammer Caution
74531C Plate, Door Inside Handle Caution
74535L Label, Emergency Back Door Inner Caution
74536D Label, Emergency Indicator Caution
74537E Label, Emergency Back Door Caution
74538C Label, Emergency Exit Caution
74538F Label, Emergency Exit Caution, NO.2
74538G Label, Emergency Exit Caution, NO.3
74539C Label, Emergency Exit Side Caution
74543C Label, Rear Seat Information
74544D Plate, Tire Carrier Caution
74552 Plate, Safety Caution
74552A Label, Safety Caution
74552B Label, Safety Caution
74559B Label, Fuel Information
74562 Plate, Emission Control System Information
74567A Plate, E.C.E Approved Number
74569A Plate, Vehicle Information
74569B Label, Vehicle Information
74751 Label, Tire Pressure Information
82683C Label, Fuse Block Notice
85628C Label, Automatic Door
85628K Label, Automatic Door, NO.1
85628L Label, Automatic Door, NO.2
85628M Label, Automatic Door, NO.3
85628N Label, Automatic Door, NO.4
85628P Label, Automatic Door, NO.5
88723H Label, Cooler Service Caution
88723J Label, Cooler Service Caution, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
