Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01
Body Stripe

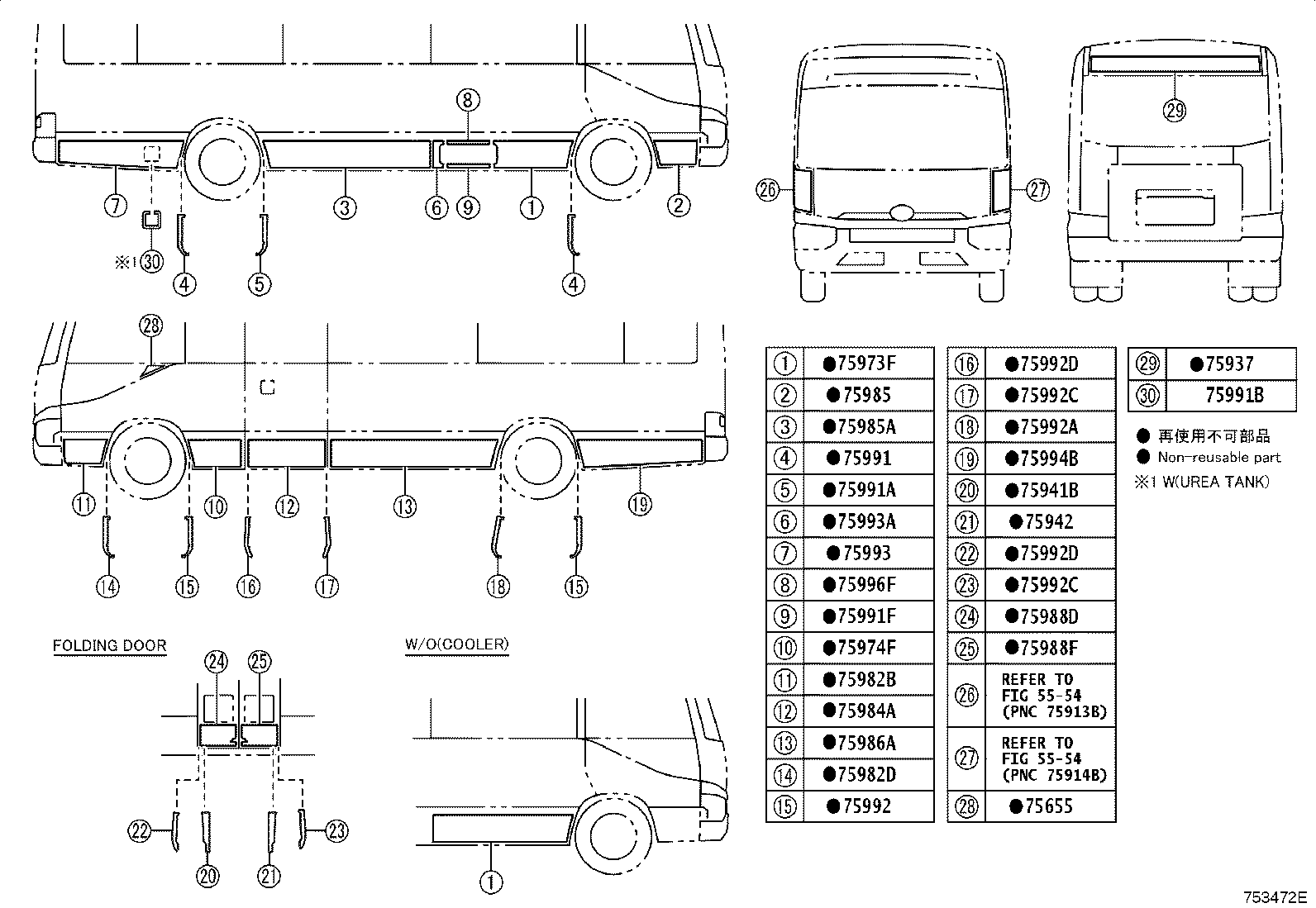

34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75655 | Tape, Center Pillar |
| 75937 | Stripe, Roof, Rear |
| 75941B | Stripe, Center Pillar, NO.1 |
| 75942 | Stripe, Center Pillar, NO.2 |
| 75973F | Stripe, Front Side Panel, RH |
| 75974F | Stripe, Front Side Panel, LH |
| 75981 | Stripe, Front Fender, RH NO.1 |
| 75981B | Stripe, Fender, RH |
| 75982B | Stripe, Fender, LH |
| 75982D | Stripe, Fender, LH |
| 75984A | Stripe, Slide Door |
| 75985 | Stripe, Front Door, RH |
| 75985A | Stripe, Side Panel, RH |
| 75986A | Stripe, Side Panel, LH |
| 75986H | Stripe, Side Panel, LH |
| 75988D | Stripe, Rear Door Outside, LH |
| 75988F | Stripe, Rear Door, Outside LH |
| 75991 | Stripe, Quarter, RH NO.1 |
| 75991A | Stripe, Quarter, RH |
| 75991B | Stripe, Quarter, RH |
| 75991C | Stripe, Quarter RH |
| 75991D | Stripe, Quarter, Front RH |
| 75991F | Stripe, Quarter Lower RH |
| 75992 | Stripe, Quarter, LH NO.1 |
| 75992A | Stripe, Quarter, LH |
| 75992C | Stripe, Quarter LH |
| 75992D | Stripe, Quarter, Front LH |
| 75992E | Stripe, Quarter, LH Upper |
| 75993 | Stripe, Quarter, RH NO.2 |
| 75993A | Stripe, Quarter, Rear RH |
| 75994 | Stripe, Quarter, LH NO.2 |
| 75994B | Strip, Quarter, Rear LH |
| 75996F | Stripe, Quarter, Upr RH |
| 75999G | Stripe, Quarter, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
