Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

21 part groups · 8 illustrations

Illustrations

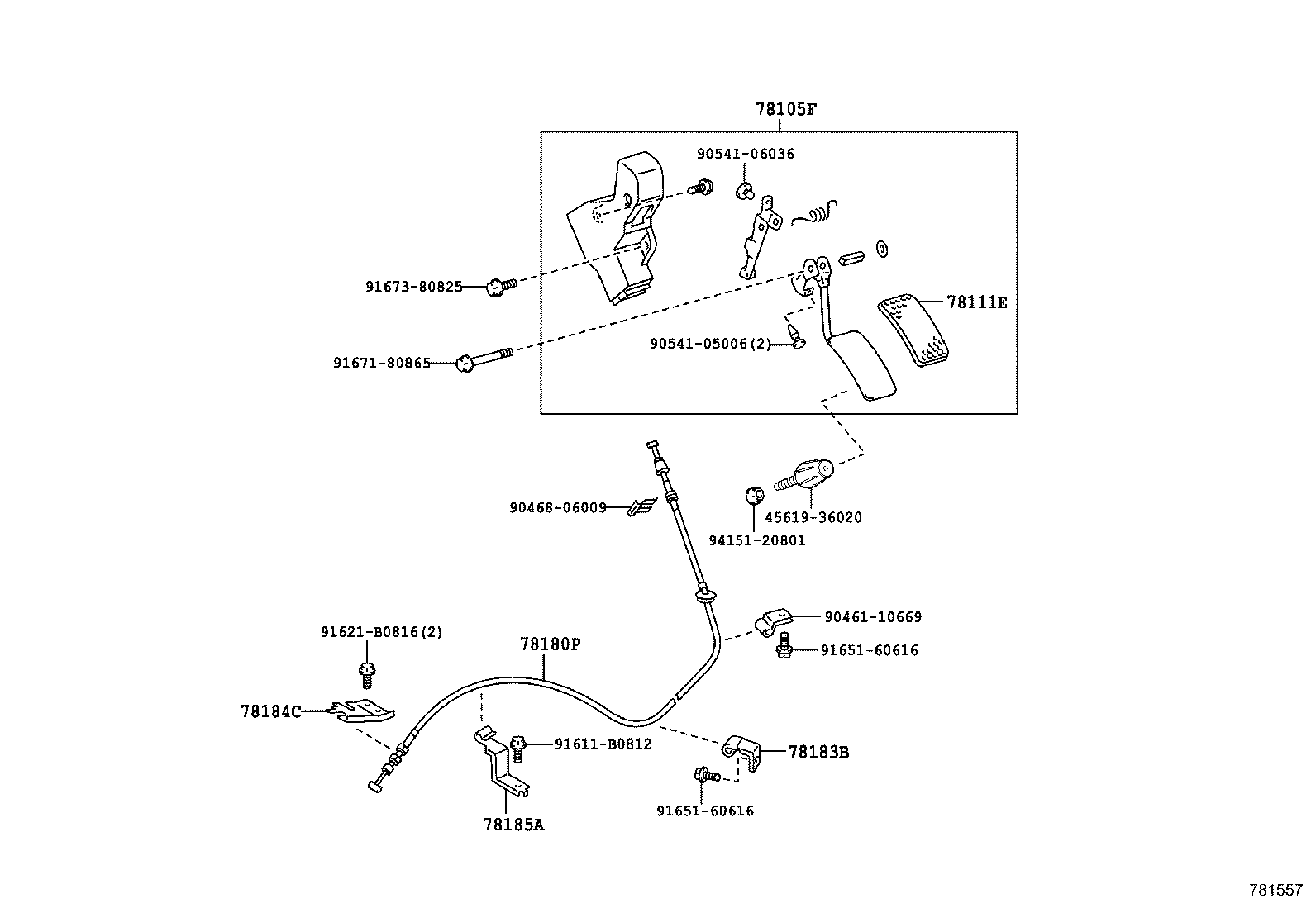

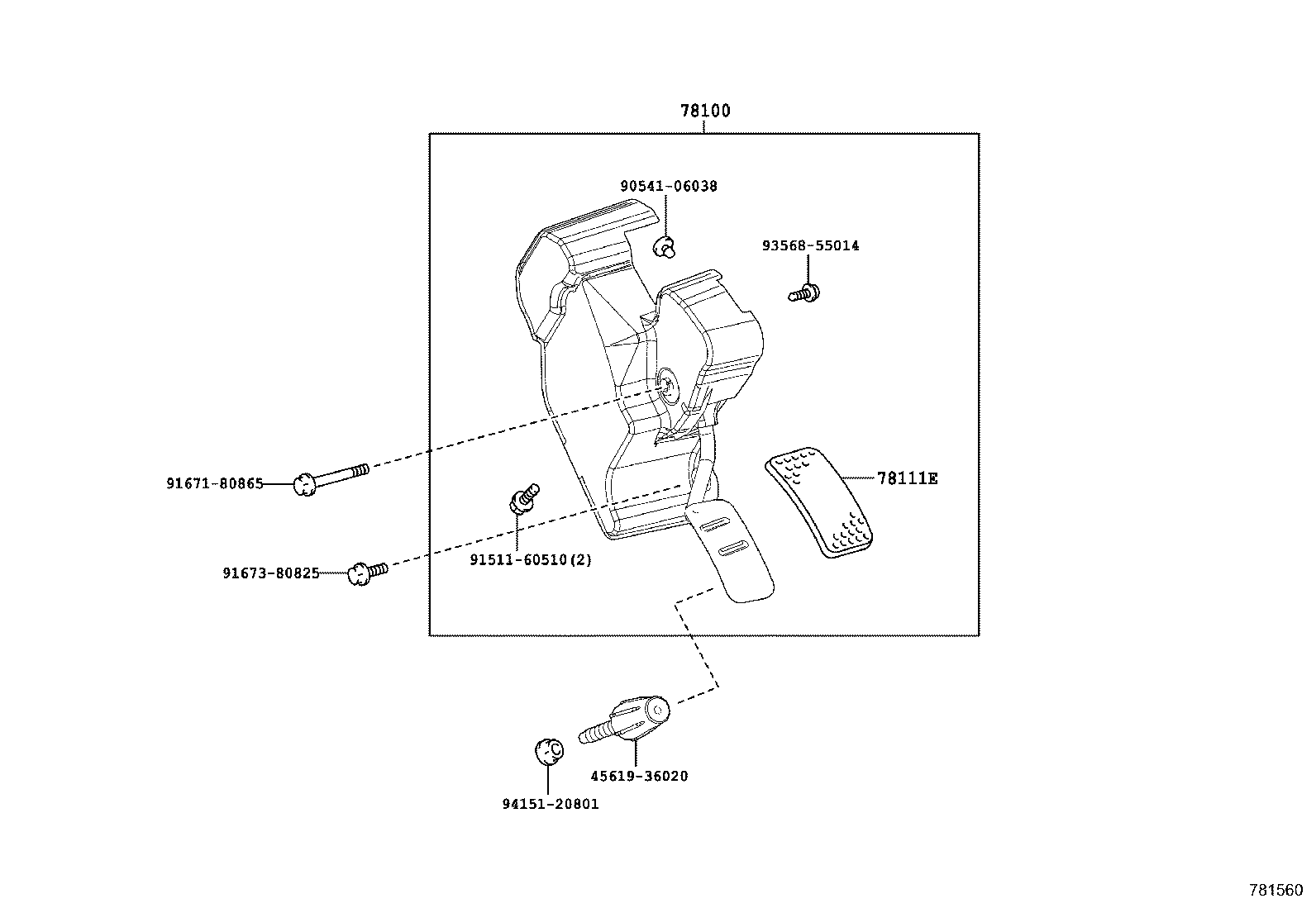

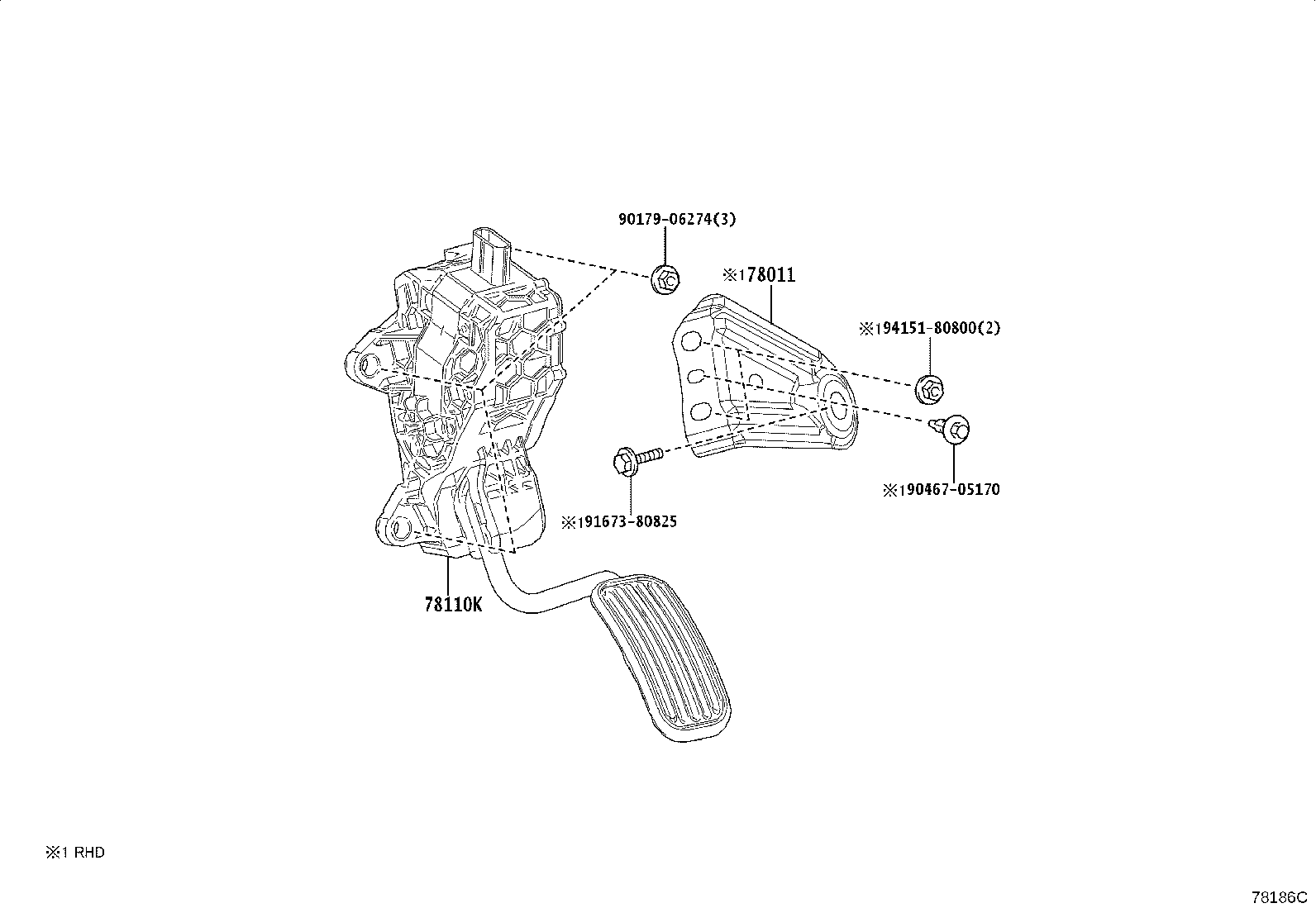

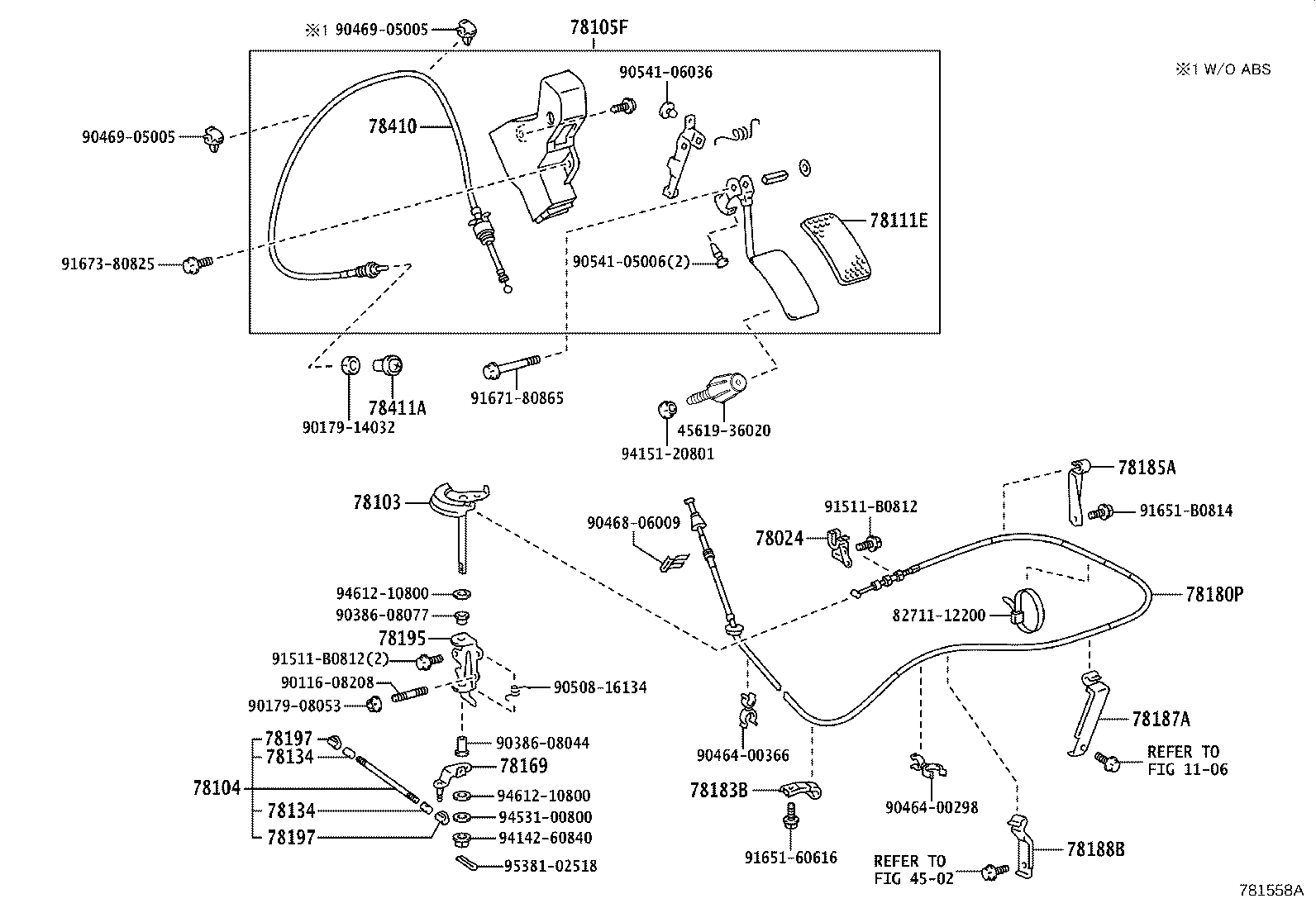

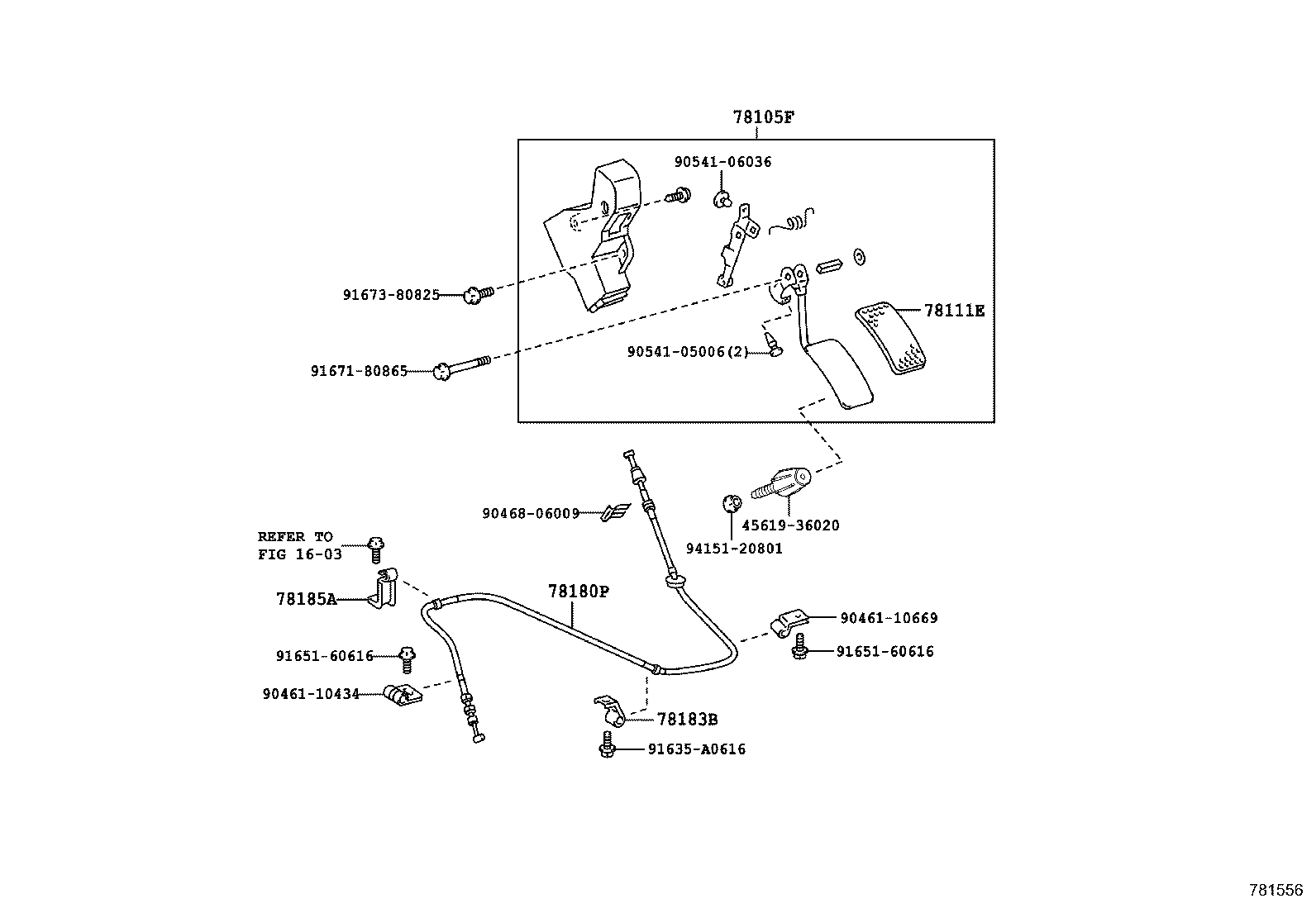

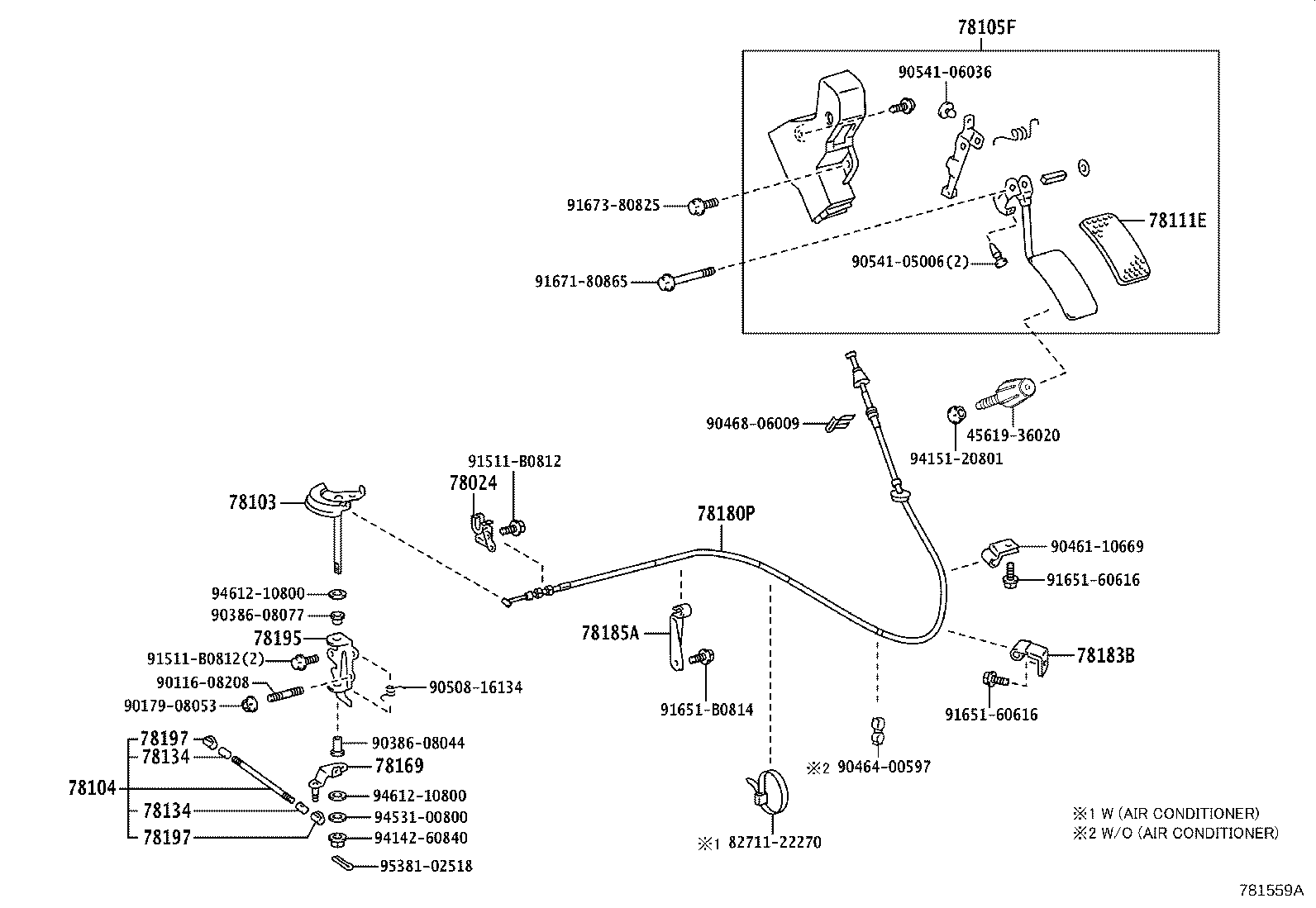

Figure 781555 781555 2017-01 → — Figure 781556 781556 2017-01 → — Figure 781557 781557 2017-01 → — Figure 781558A 781558A 2017-01 → — Figure 781559A 781559A 2017-01 → — Figure 781560 781560 2017-01 → 2025-01 Figure 781560 781560 2017-01 → — Figure 78186C 78186C 2025-01 → —

Part groups

PNCDescription
78011 Bracket Sub-assy, Accelerator Pedal Support
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78105F Link Sub-assy, Accelerator
78110K Rod Assy, Accelerator Pedal(W/SENSOR)
78111E Pad, Accelerator Pedal
78134 End, Accelerator Connecting Rod
78169 Hanger, Accelerator Spring
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184C Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78186A Clamp, Accelerator Control Cable, NO.3
78187A Clamp, Accelerator Control Cable, NO.4
78188B Support, Accelerator Auto-drive Cable
78195 Bracket, Accelerator Link
78197 Clip, Accelerator Joint Ball
78410 Cable Assy, Throttle Control
78411A Knob, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
