Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01

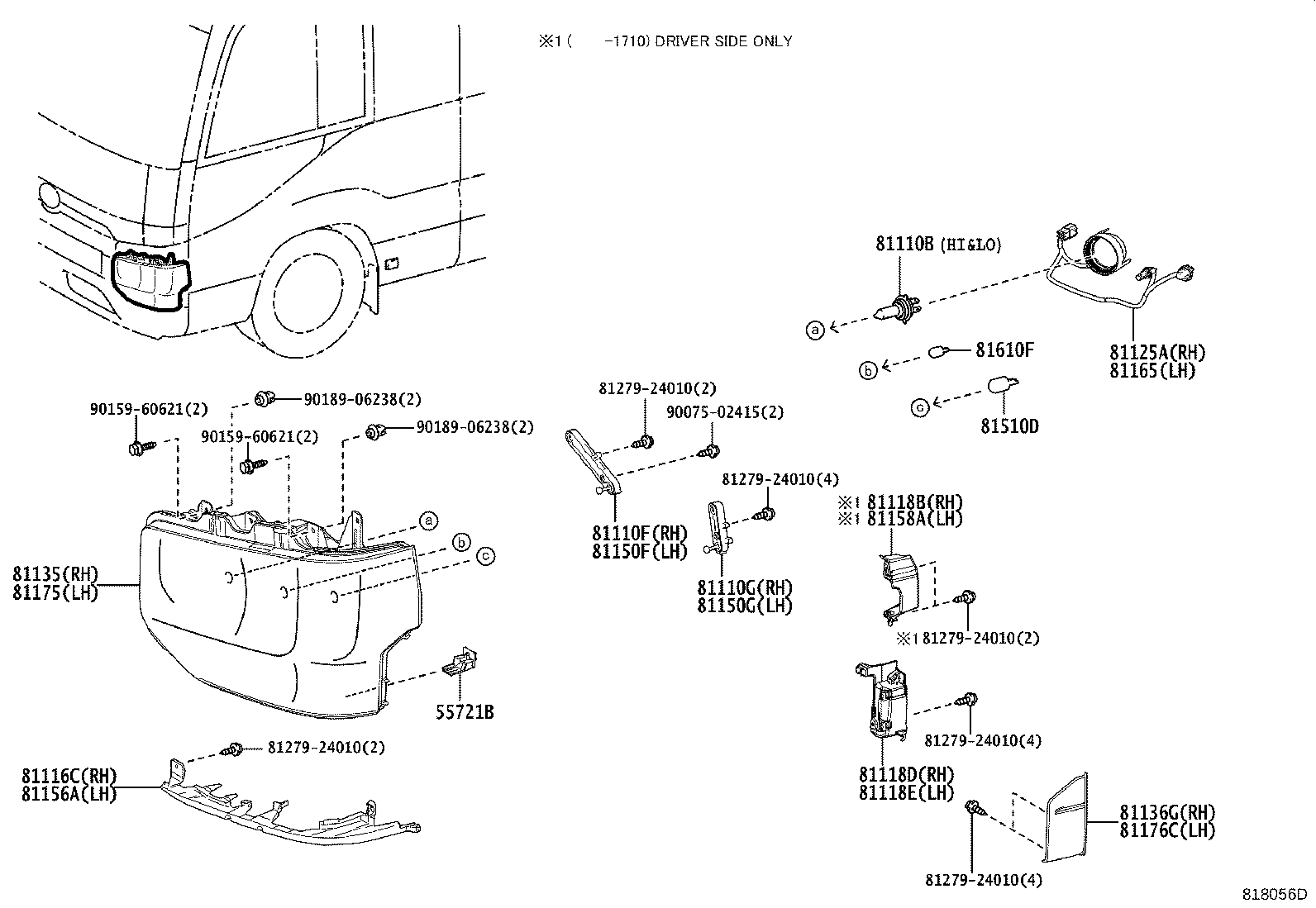

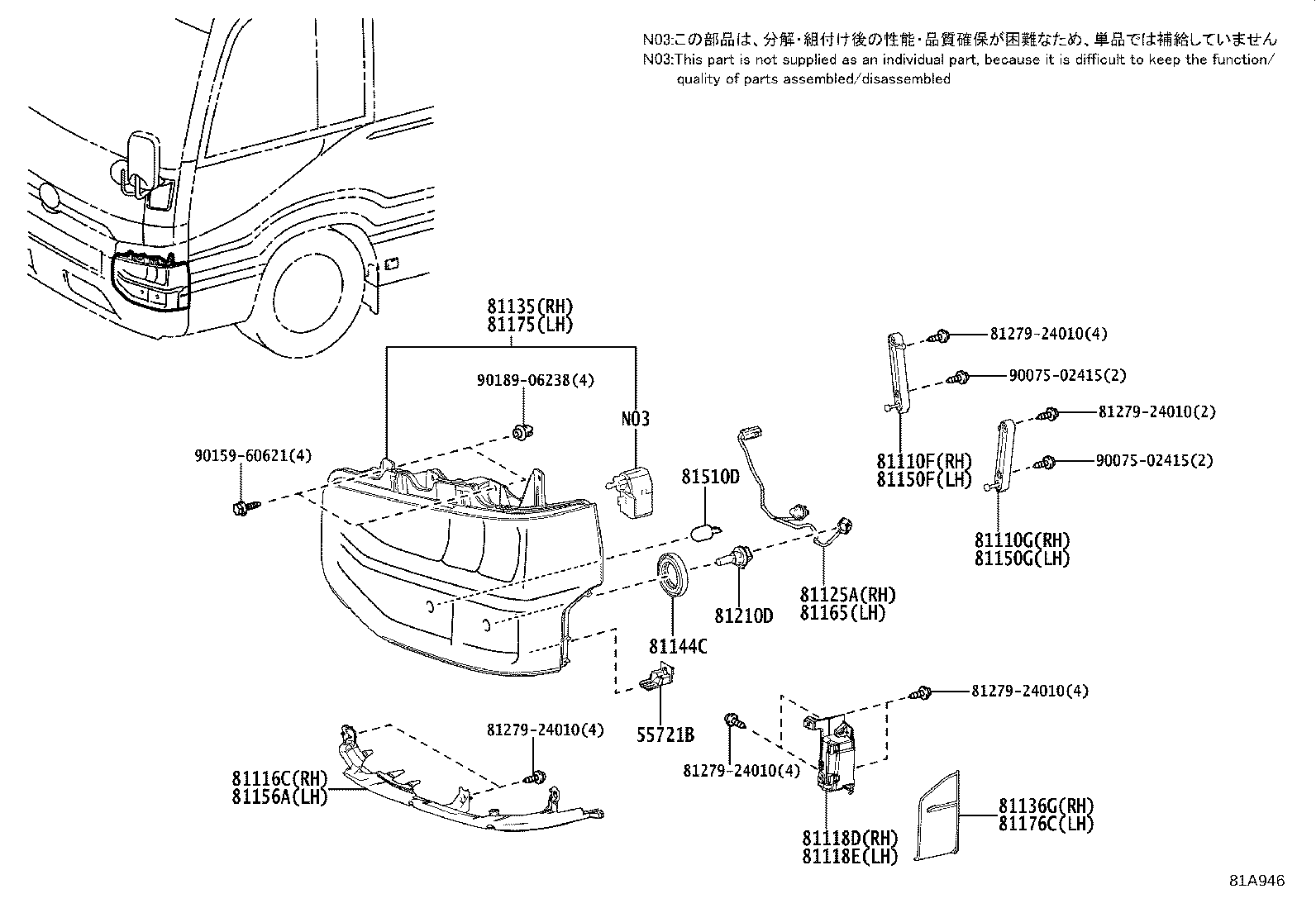

Headlamp
26 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55721B | Bracket, Headlamp |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81110F | Gear Unit Assy, RH NO.1 |
| 81110G | Gear Unit Assy, RH NO.2 |
| 81116C | Bracket, Headlamp, RH |
| 81118B | Bracket, Headlamp, RH NO.1 |
| 81118D | Bracket, Headlamp, RH NO.2 |
| 81118E | Bracket, Headlamp, LH NO.2 |
| 81125A | Cord, Headlamp, RH |
| 81135 | Unit Assy, Headlamp, RH |
| 81136G | Cover, Headlamp, NO.1 RH |
| 81138A | Socket & Wire, Headlamp |
| 81139 | Cover, Headlamp Socket |
| 81144C | Cover, Headlamp Socket |
| 81150F | Gear Unit Assy, LH NO.1 |
| 81150G | Gear Unit Assy, LH NO.2 |
| 81156A | Bracket, Headlamp, LH |
| 81158A | Bracket, Headlamp, LH NO.1 |
| 81165 | Cord, Headlamp, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81176C | Cover, Headlamp, NO.1 LH |
| 81210D | Bulb, Fog Lamp |
| 81510D | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81510L | Socket, Daytime Running Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
