Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01

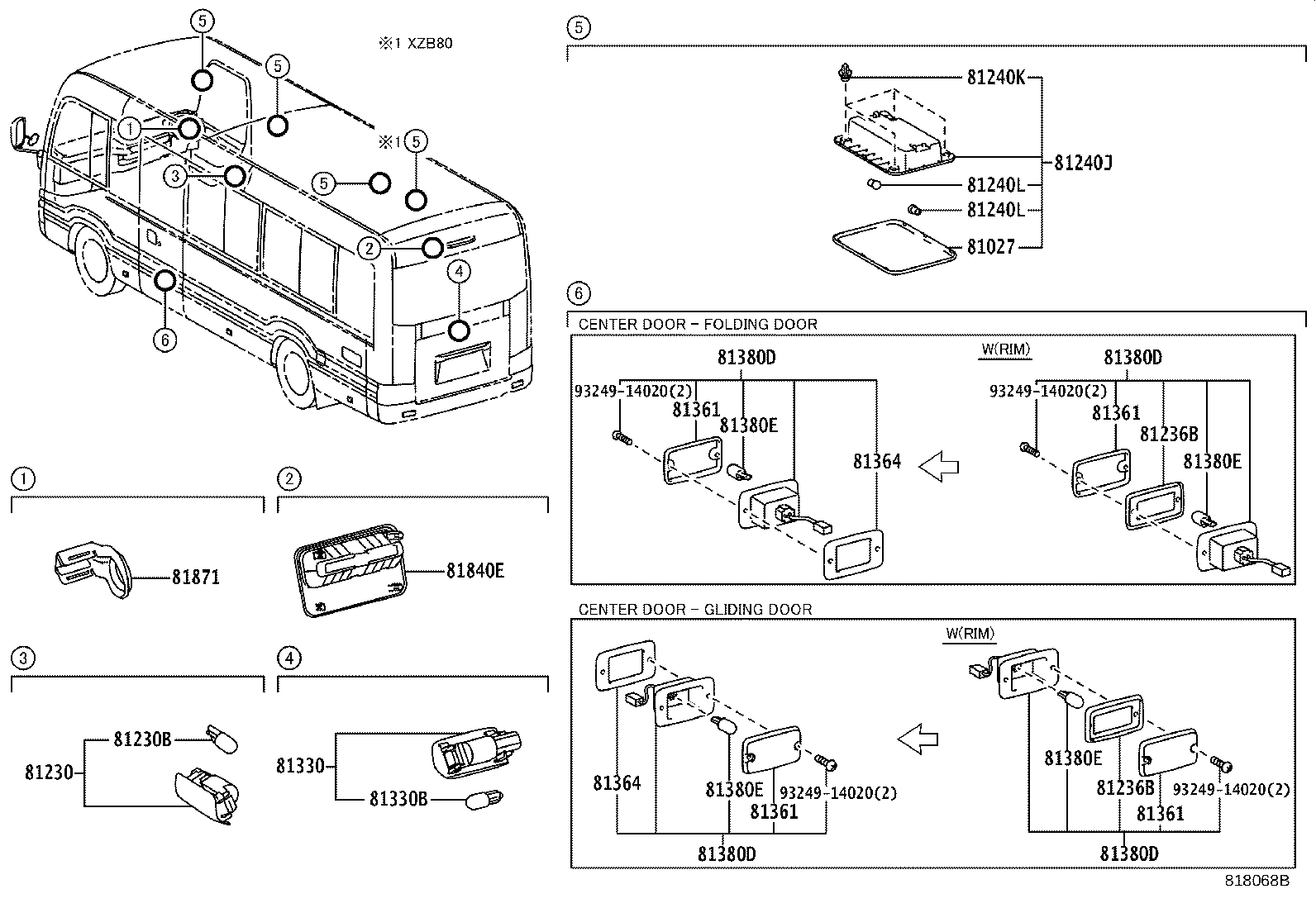

Interior Lamp
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81027 | Lens, Room Lamp |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81236B | Rim,Step Lamp |
| 81240J | Lamp Assy, Room |
| 81240K | Clip, Room Lamp |
| 81240L | Bulb, Room Lamp |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81361 | Lens, Step Lamp |
| 81364 | Gasket, Step Lamp |
| 81380D | Lamp Assy, Step |
| 81380E | Bulb (FOR STEP LAMP) |
| 81840E | Lamp Assy, Door Indicator |
| 81871 | Lens, Key Illumination |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
