Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

8 part groups · 3 illustrations

Illustrations

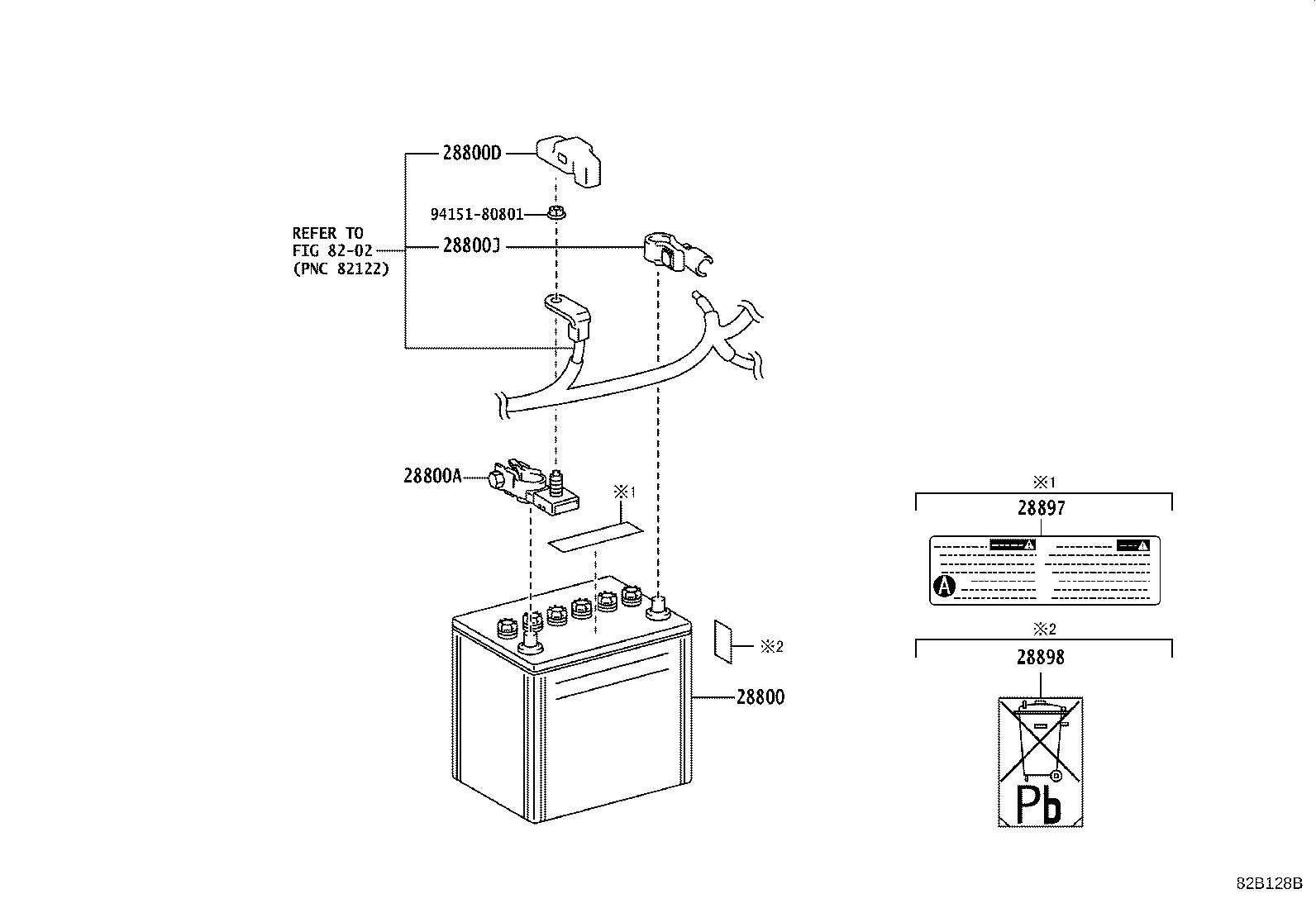

Figure 82B122E 82B122E 2017-01 → — Figure 82B122E 82B122E 2022-01 → — Figure 82B128B 82B128B 2017-01 → —

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800J Terminal, Battery Negative
28800M Terminal, Battery Positive
28800N Terminal, Battery Negative
28897 Plate, Battery Caution
28898 Plate, Battery
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
