Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01
Meter

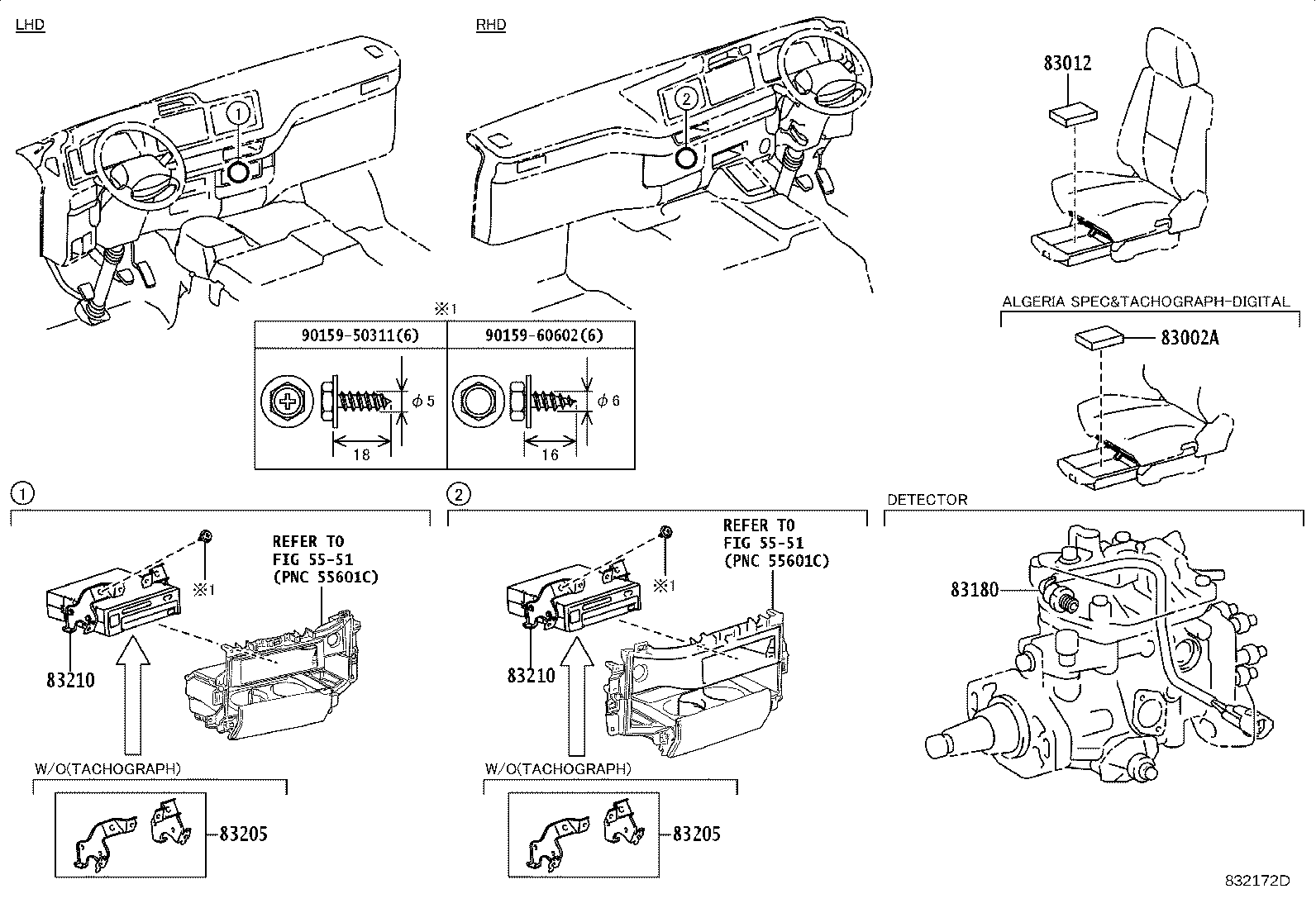

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 83002A | SD Card Set, Tachograph |
| 83012 | Sheet Set, Tachograph Chart |
| 83100 | Meter Assy, Combination |
| 83138G | Glass, Combination Meter |
| 83180 | Detector Assy, Revolution |
| 83205 | Bracket, Sub-assy, Tachograph |
| 83210 | Tachograph Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
