Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

13 part groups · 7 illustrations

Illustrations

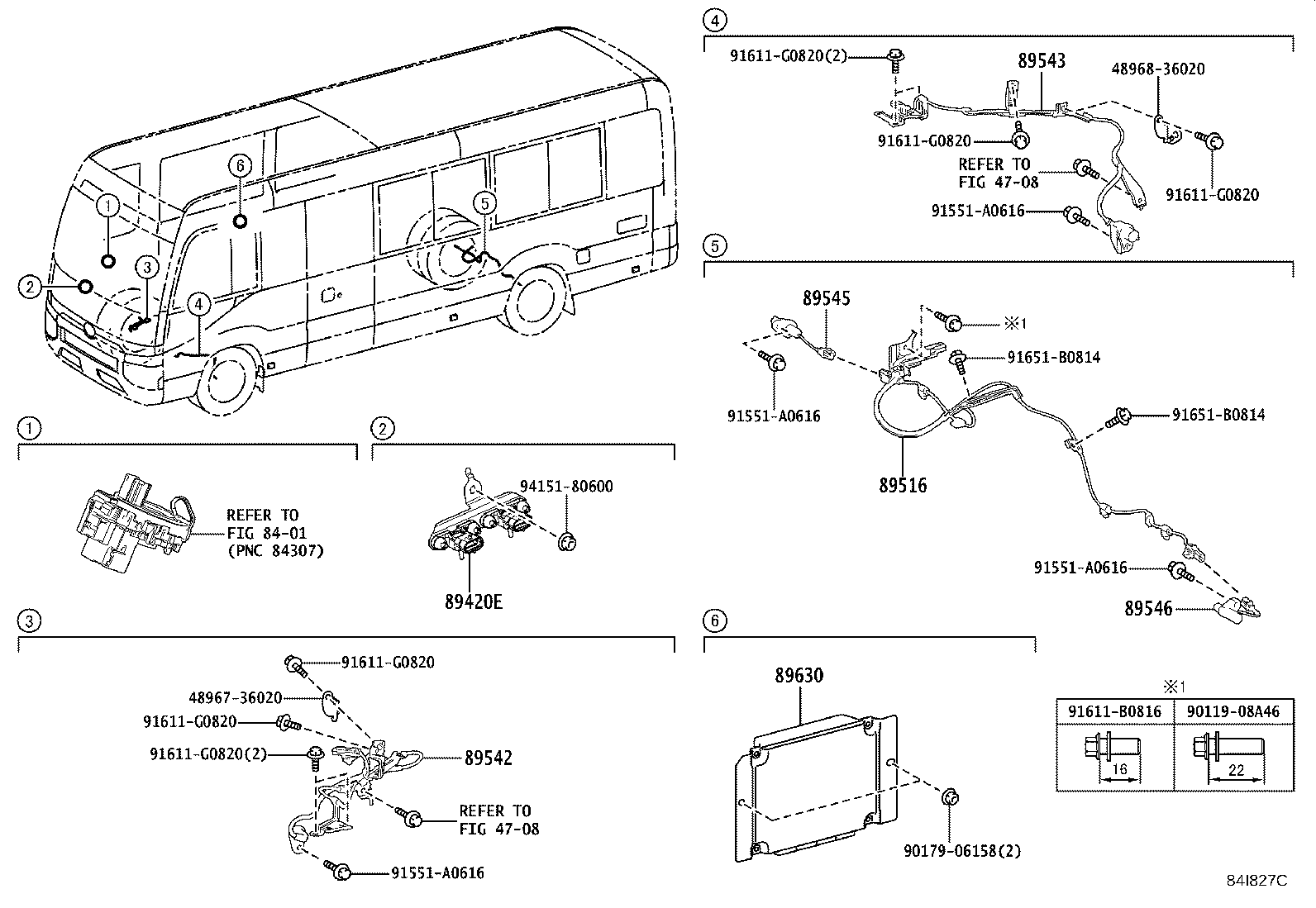

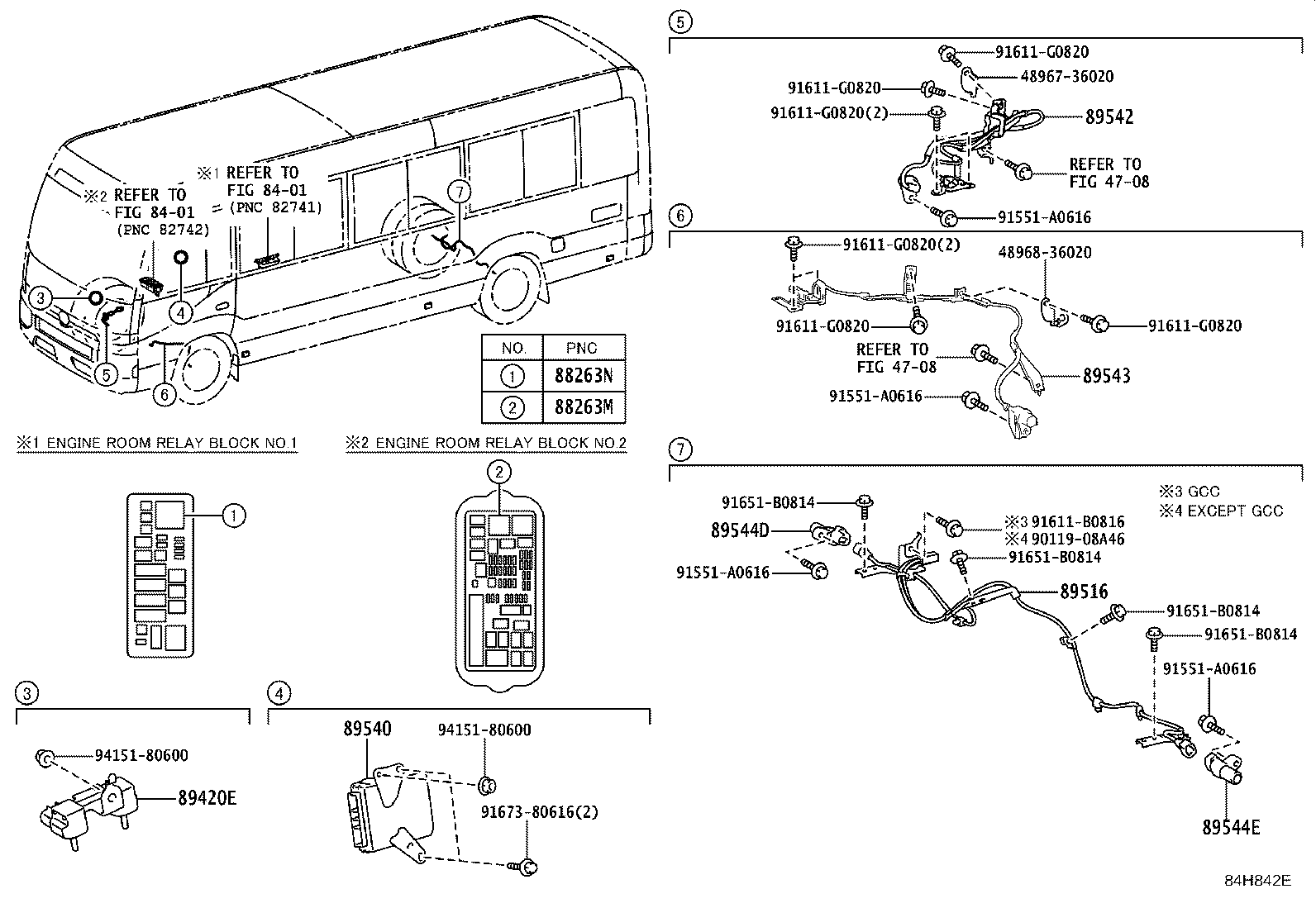

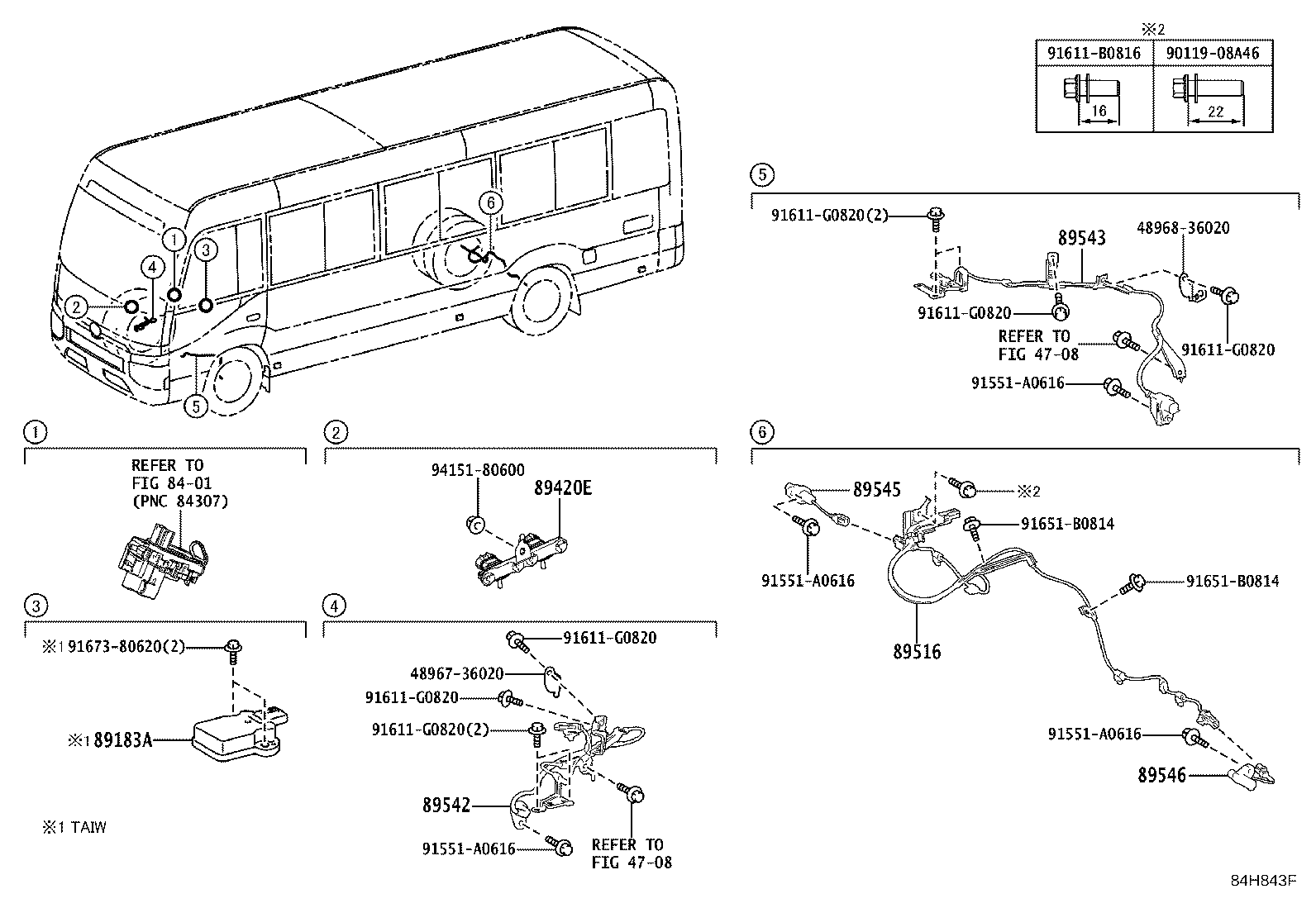

Figure 84H841F 84H841F 2017-01 → 2021-01 Figure 84H842E 84H842E 2017-01 → 2021-01 Figure 84H843F 84H843F 2017-01 → — Figure 84H843F 84H843F 2021-01 → — Figure 84I827C 84I827C 2018-01 → — Figure 84I827C 84I827C 2021-01 → — Figure 84I827C 84I827C 2021-01 → —

Part groups

PNCDescription
88263M Relay, Abs Solenoid
88263N Relay, Abs Motor
89183A Sensor, Yawrate
89420E Sensor Assy, Vacuum
89516 Wire, Skid Control Sensor
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89544D Sensor, Skid Control, Rear RH
89544E Sensor, Skid Control, Rear LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89630 Computer Assy, Translate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
