Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

12 part groups · 2 illustrations

Illustrations

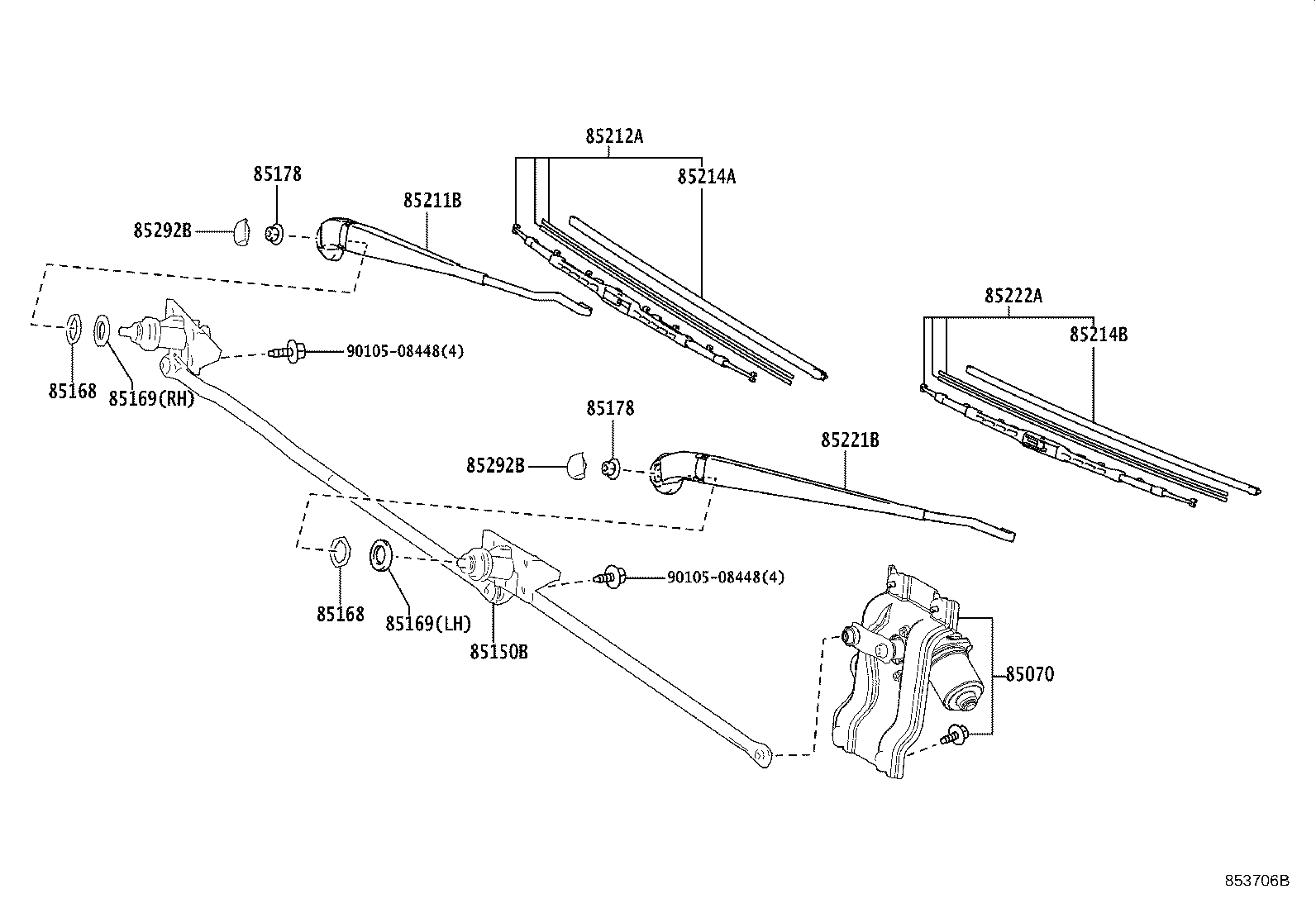

Figure 853680B 853680B 2017-01 → — Figure 853706B 853706B 2017-01 → —

Part groups

PNCDescription
85070 Motor & Bracket Assy, Front Wiper
85150B Link Assy, Wiper
85168 Nut, Windshield Wiper Link Pivot
85169 Washer, Windshield Wiper Link Pivot, NO.1
85178 Nut (FOR FRONT WIPER ARM SETTING)
85211B Arm, Front Wiper, RH
85212A Blade, FR Wiper, RH
85214A Rubber, Wiper, RH
85214B Rubber, Wiper, LH
85221B Arm, Front Wiper, LH
85222A Blade, FR Wiper, LH
85292B Cap, Front Wiper Arm Head
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
