Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

14 part groups · 7 illustrations

Illustrations

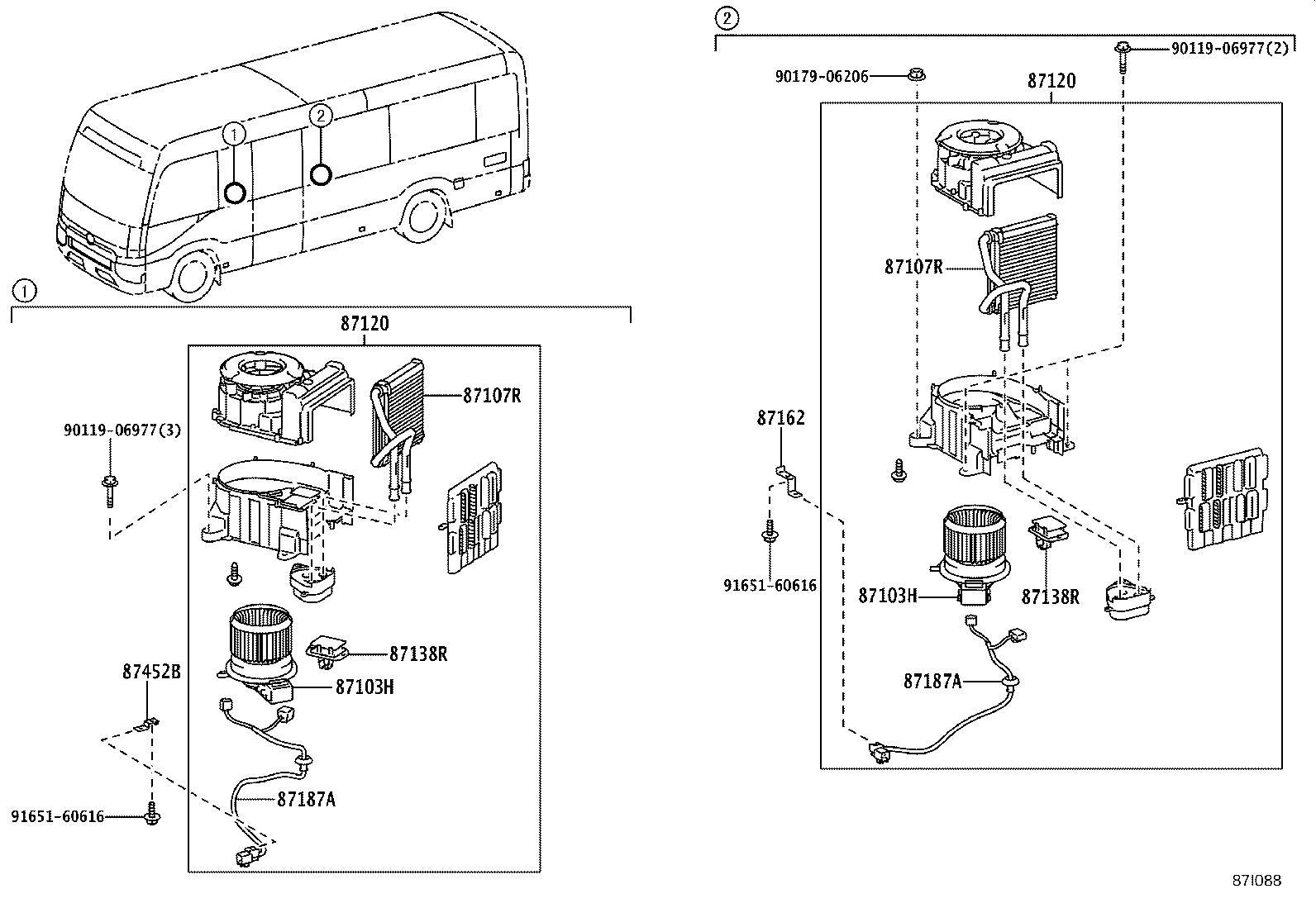

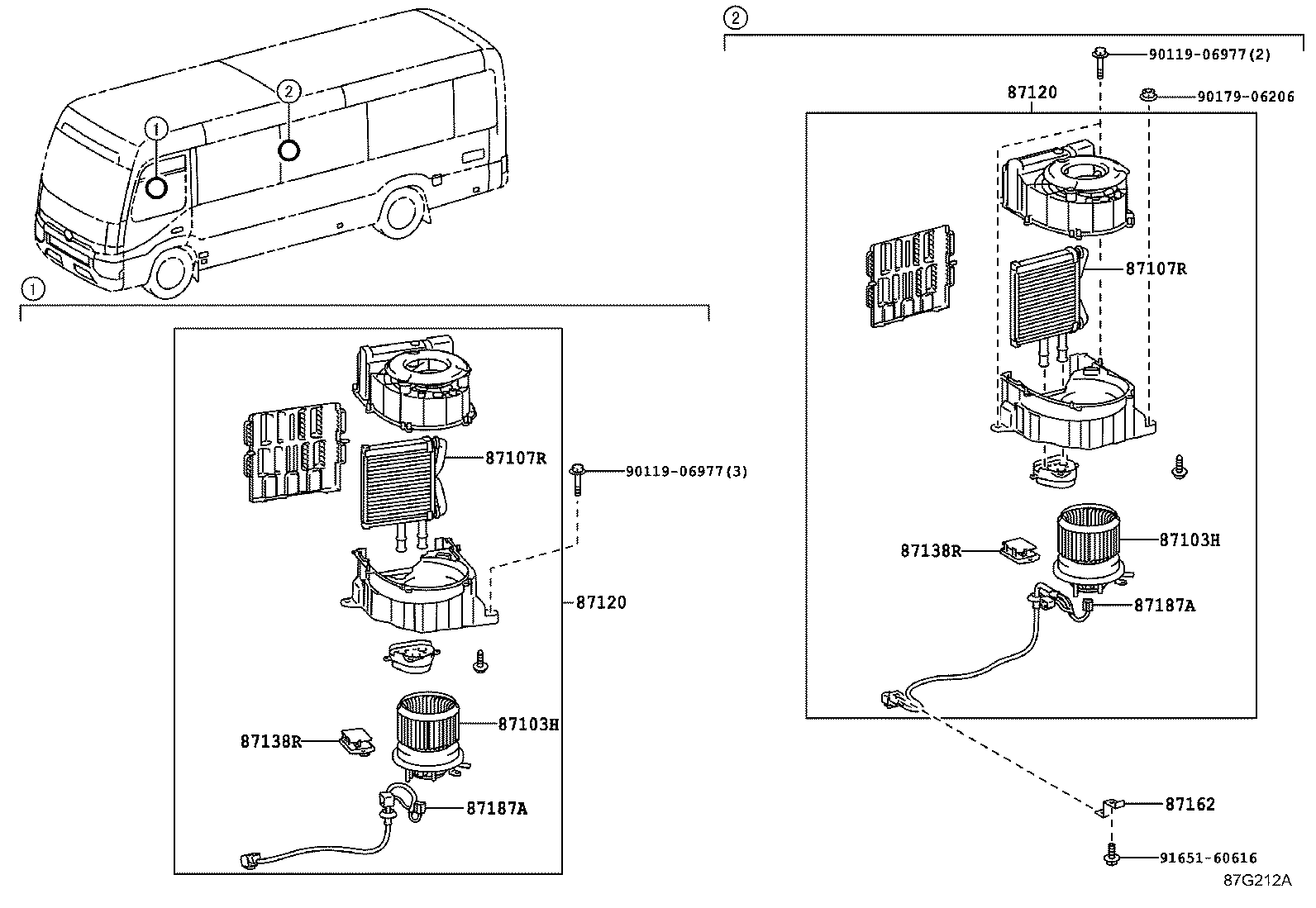

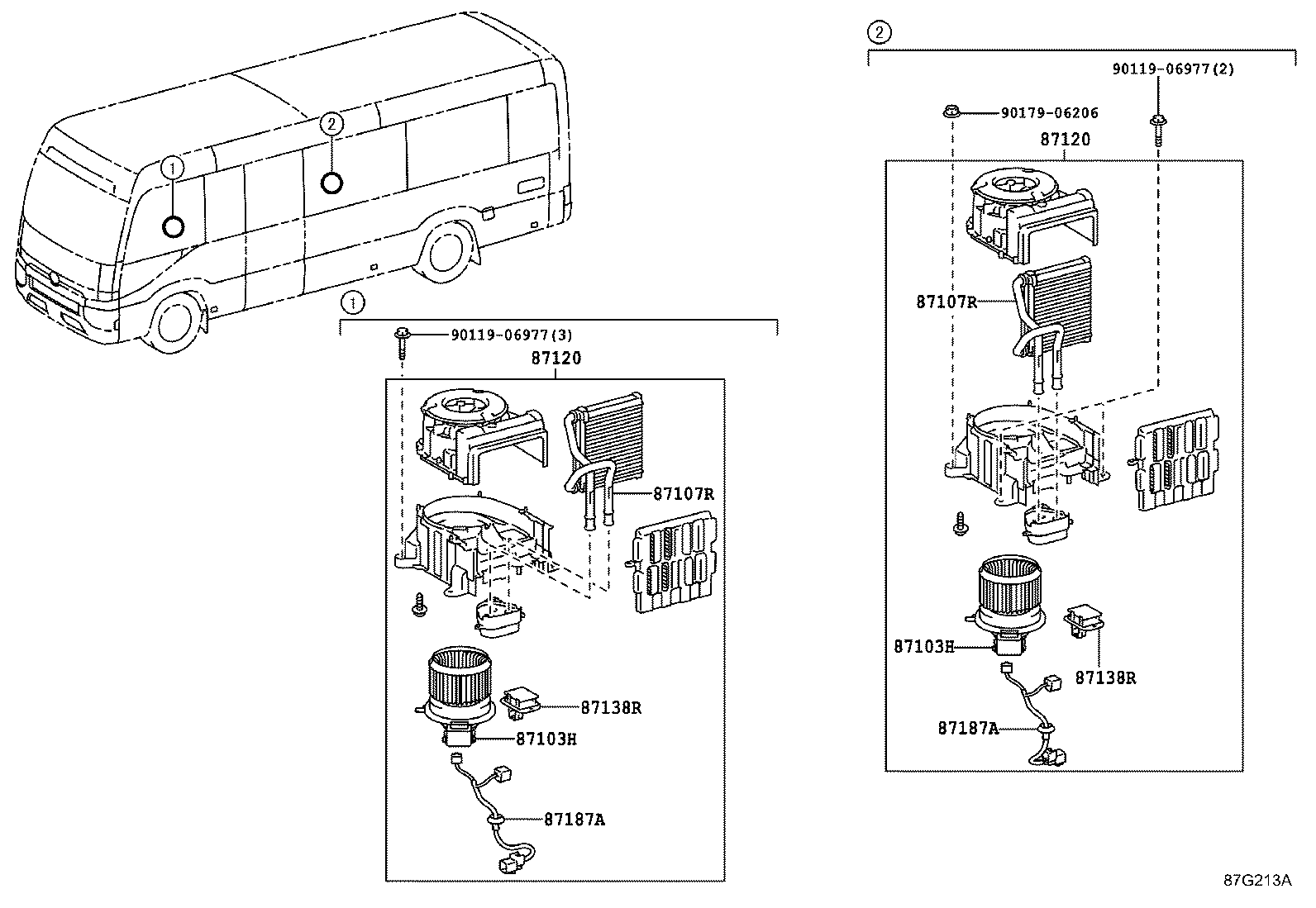

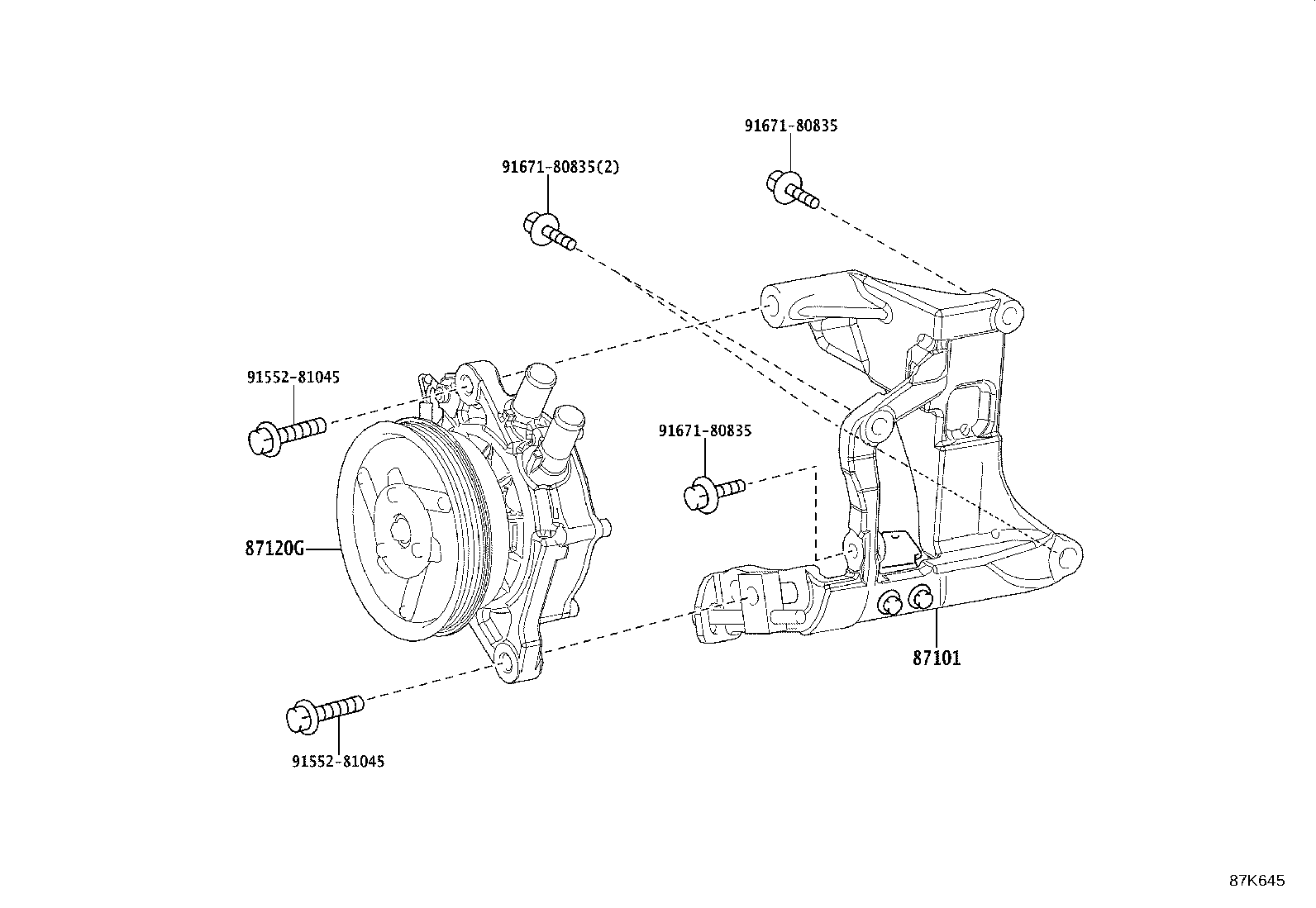

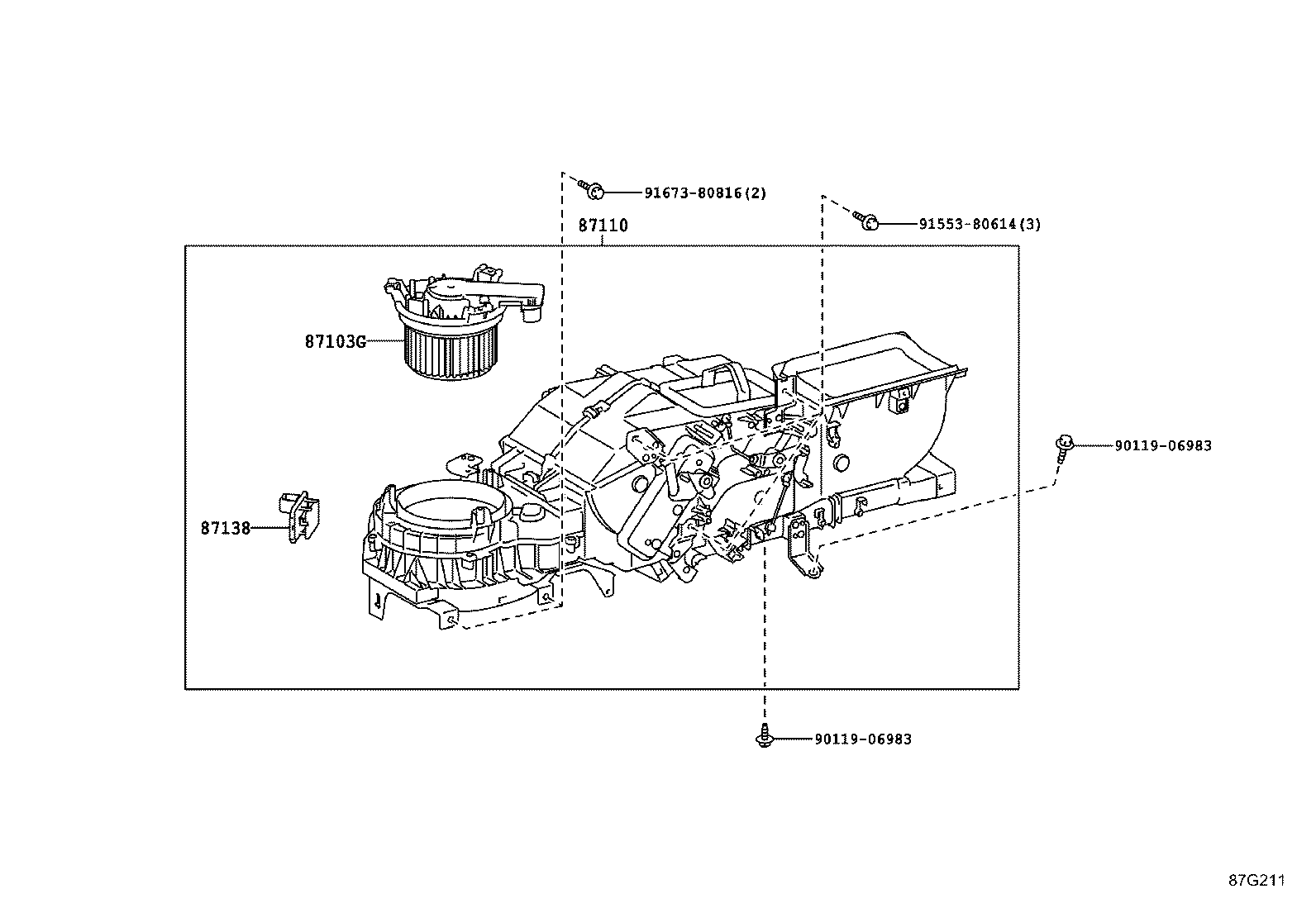

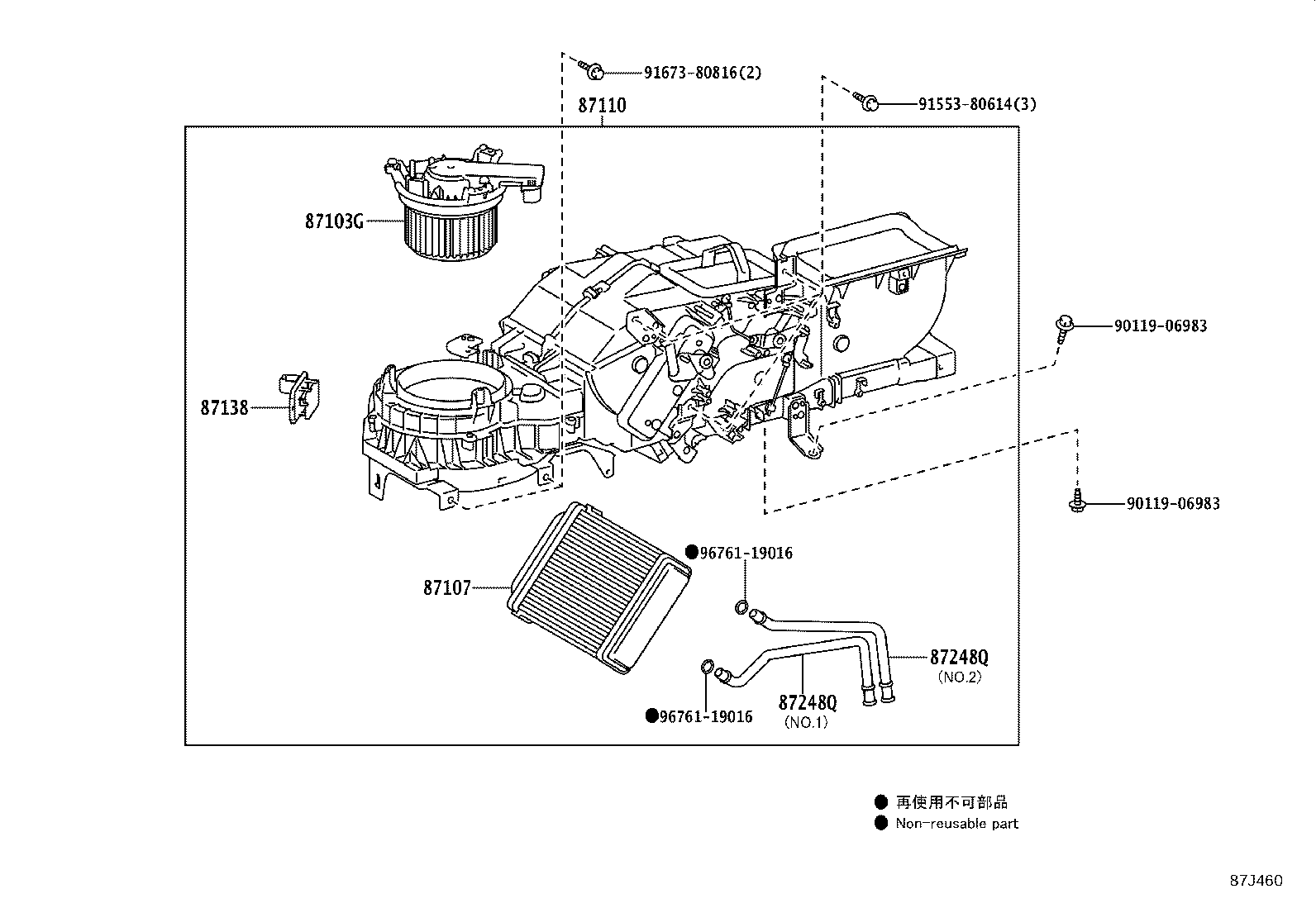

Figure 87G210B 87G210B 2017-01 → — Figure 87J460 87J460 2017-01 → — Figure 87G211 87G211 2017-01 → — Figure 87G212A 87G212A 2017-01 → — Figure 87G213A 87G213A 2017-01 → — Figure 87I088 87I088 2017-01 → — Figure 87K645 87K645 2022-01 → —

Part groups

PNCDescription
87101 Bracket Sub-assy, Viscous Heater NO.1
87103G Case Sub-assy, Front Heater Blower
87103H Case Sub-assy, Rear Heater Blower
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87110 Heater Assy
87120 Heater Assy, Rear
87120G Heater Assy, Viscous W/Magnet Clutch
87138 Resistor, Heater Blower
87138R Resistor, Rear Heater Blower
87162 Bracket, Heater Set
87187A Wire, Blower Motor Lead
87248Q Pipe, Front Heater Radiator Water
87452B Bracket, Heater, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
