Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

50 part groups · 9 illustrations

Illustrations

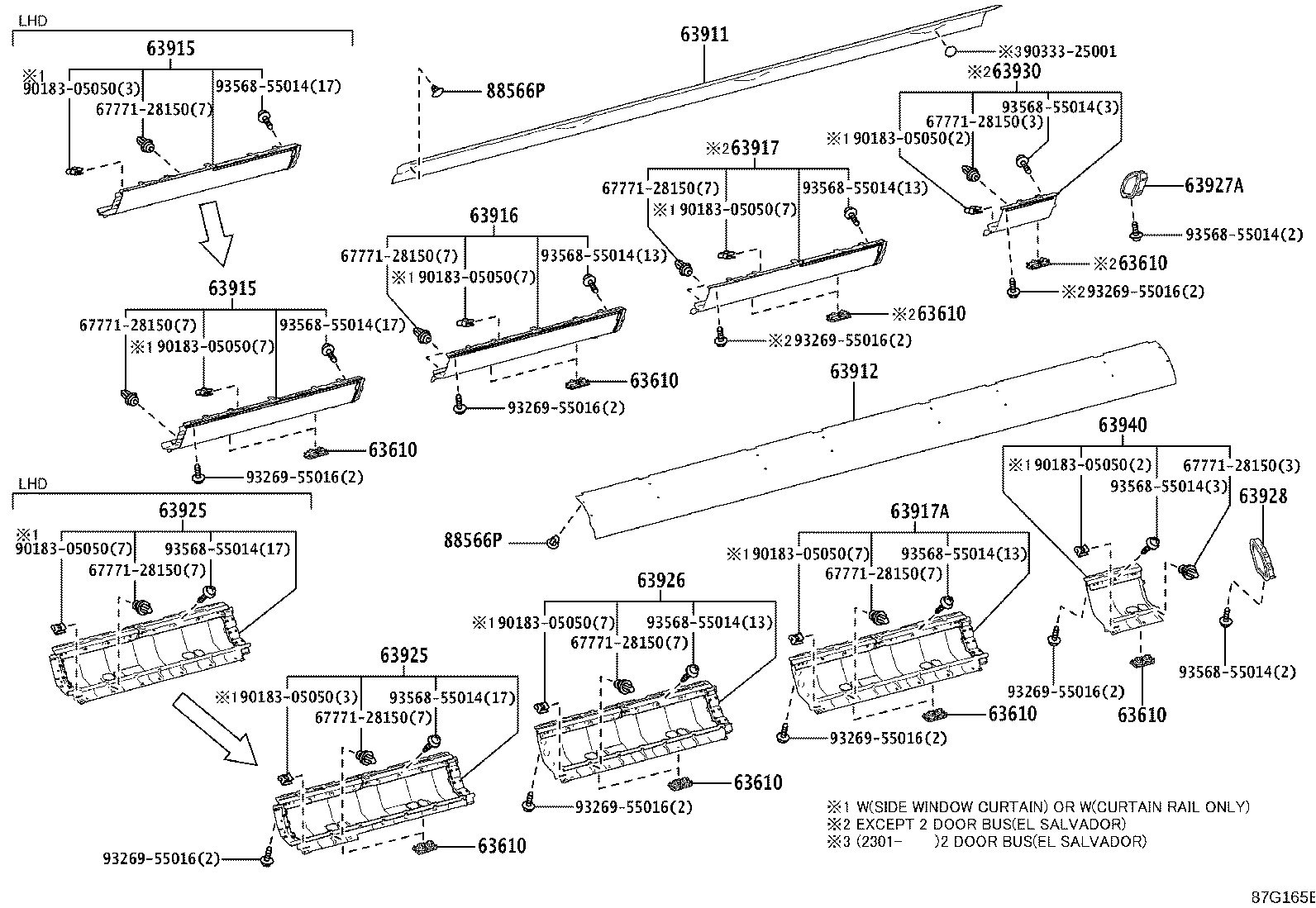

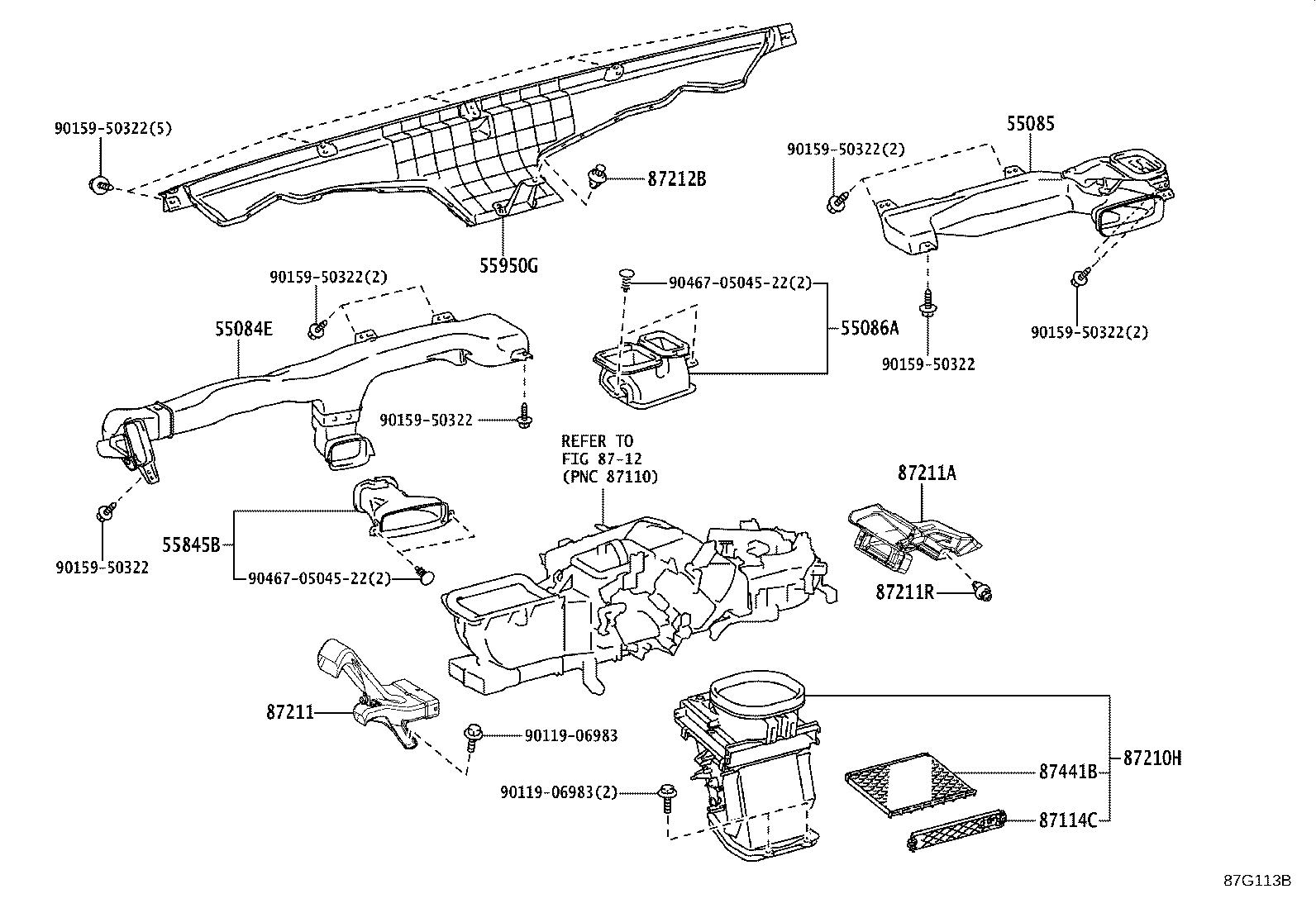

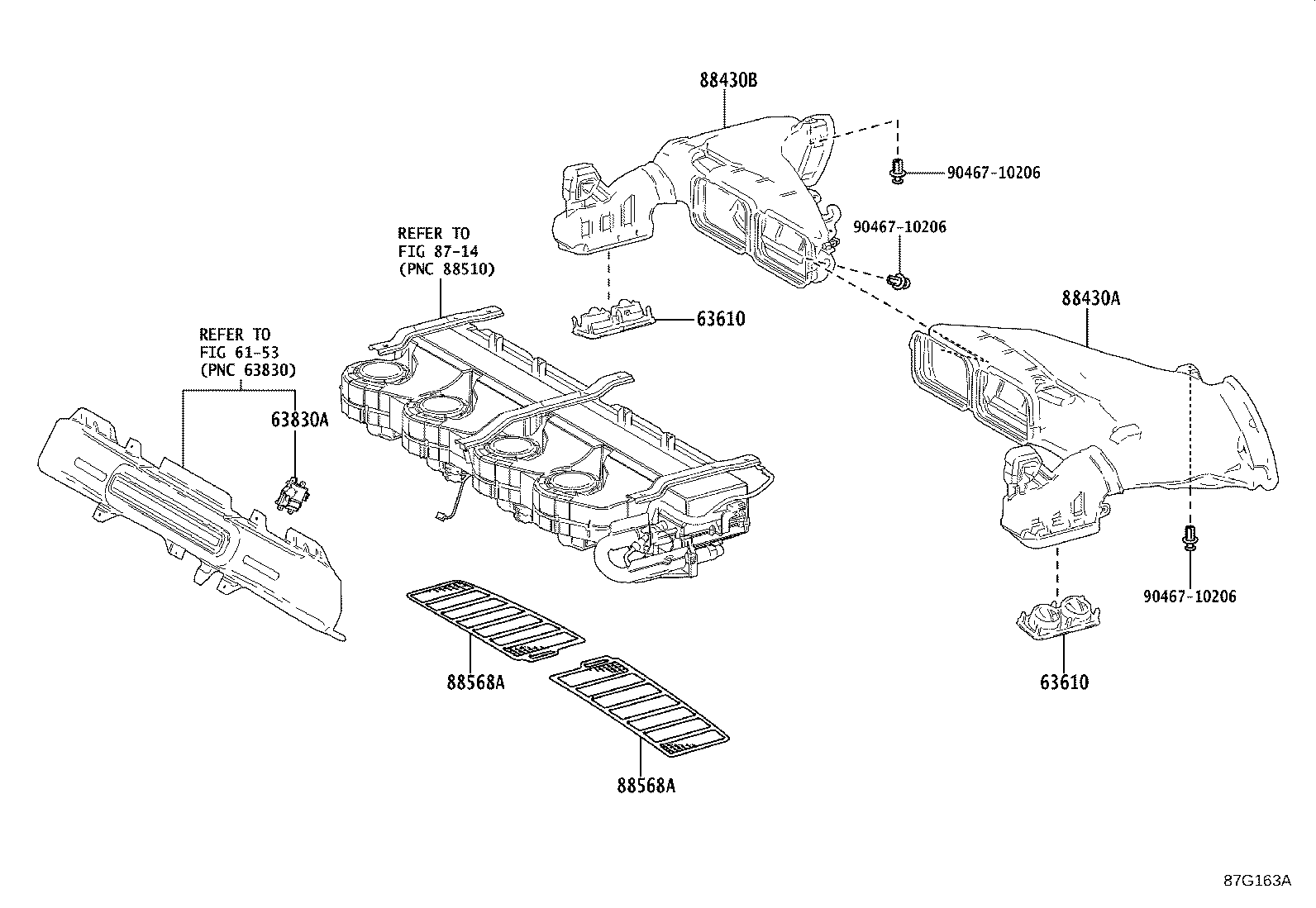

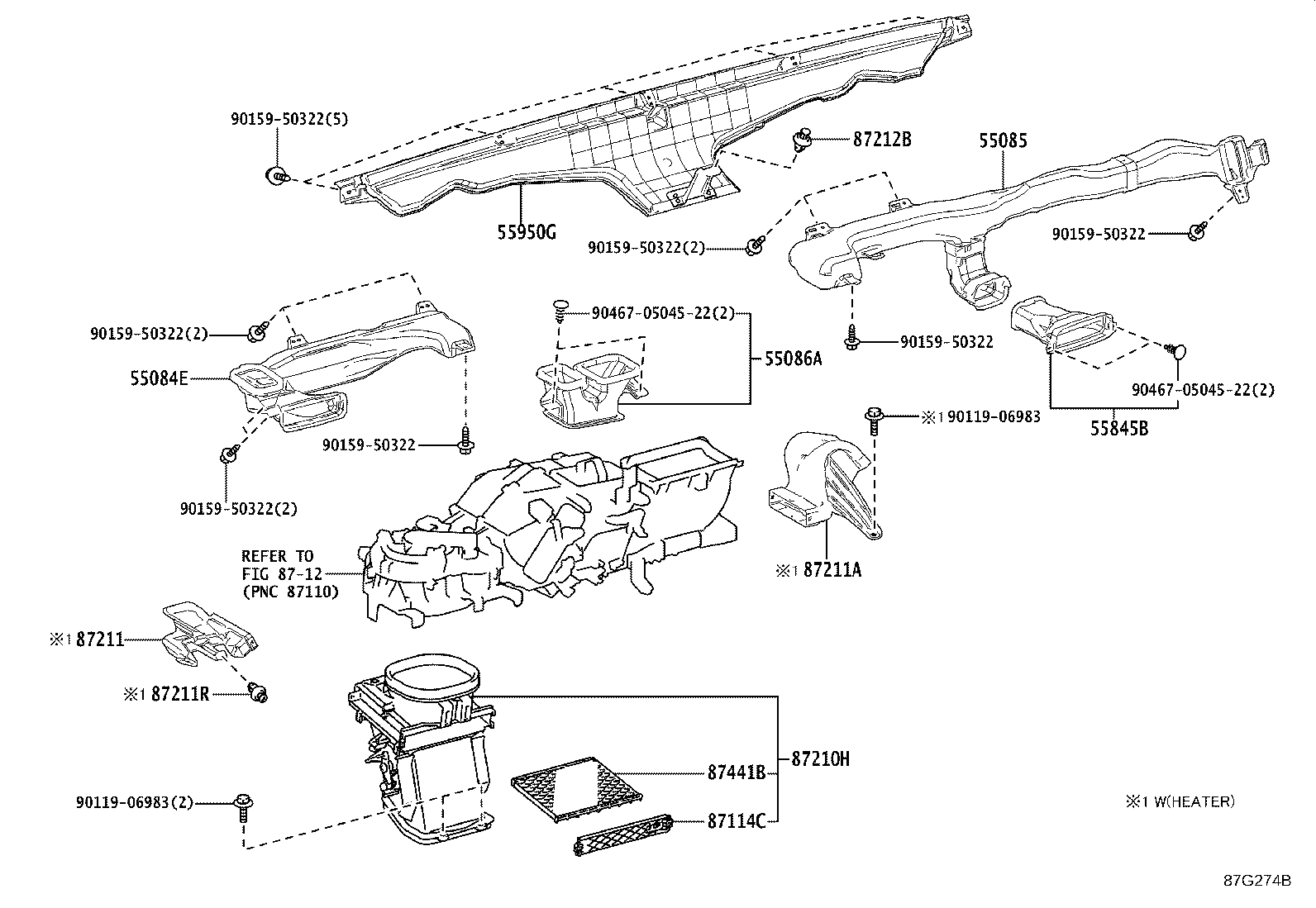

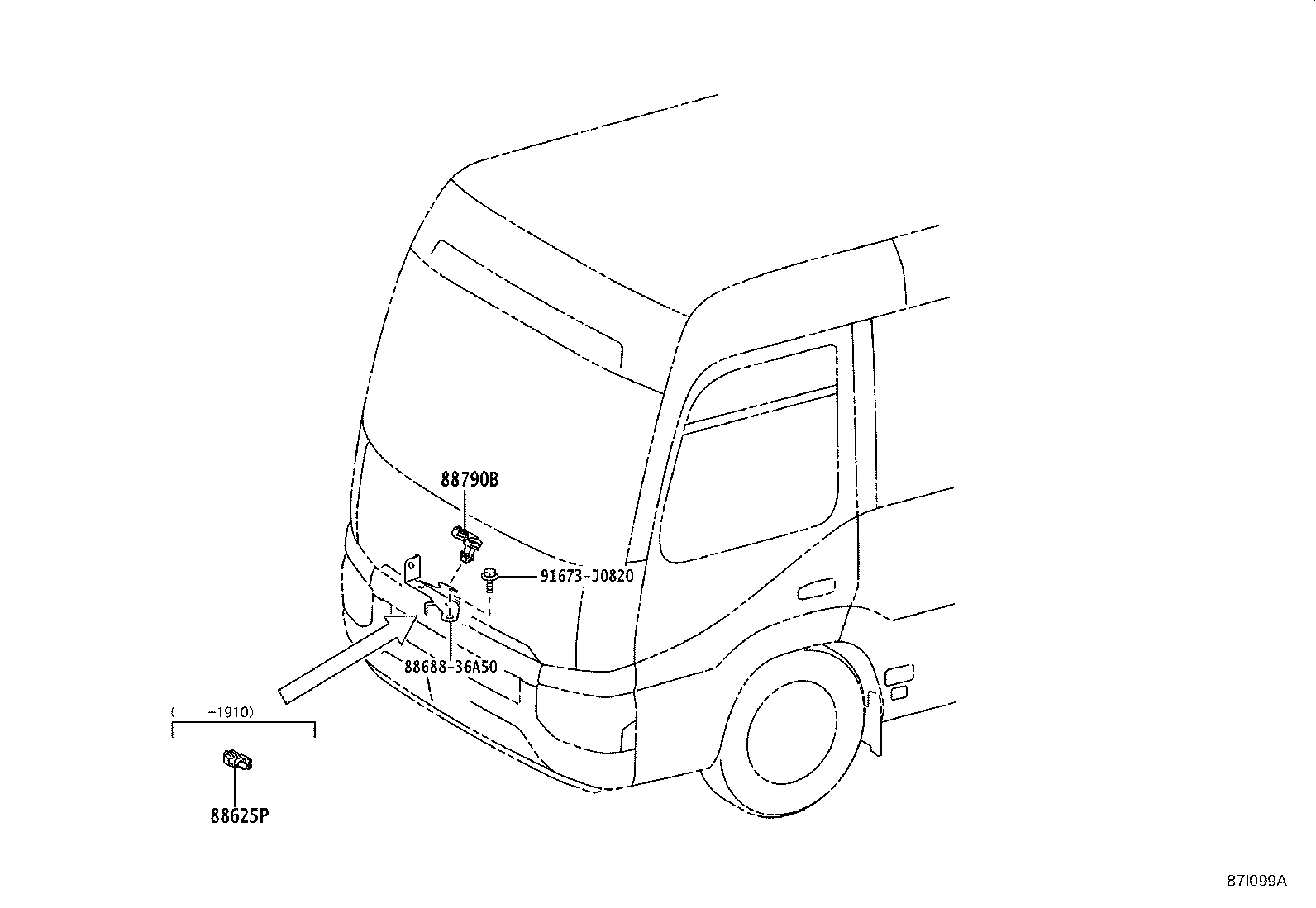

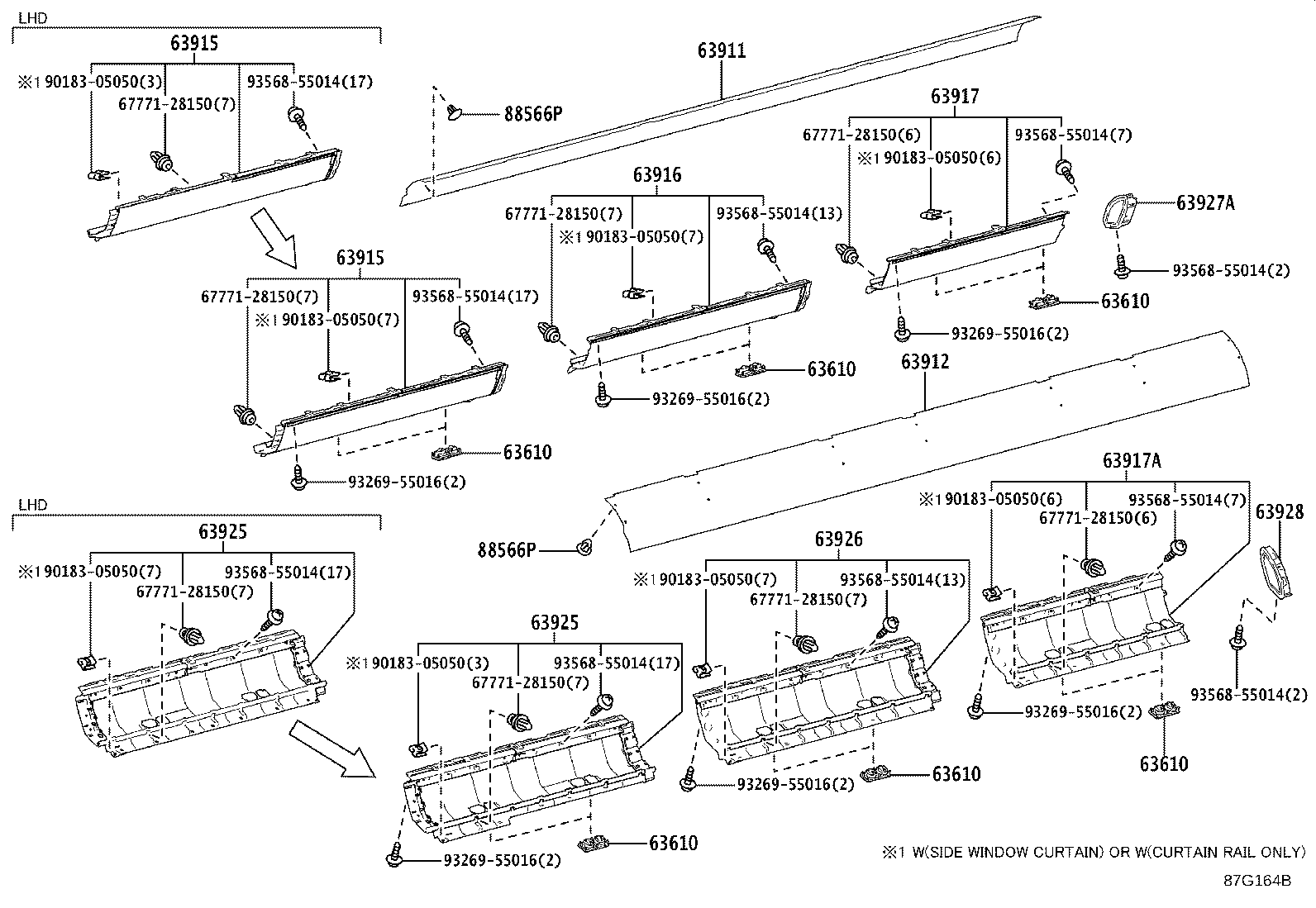

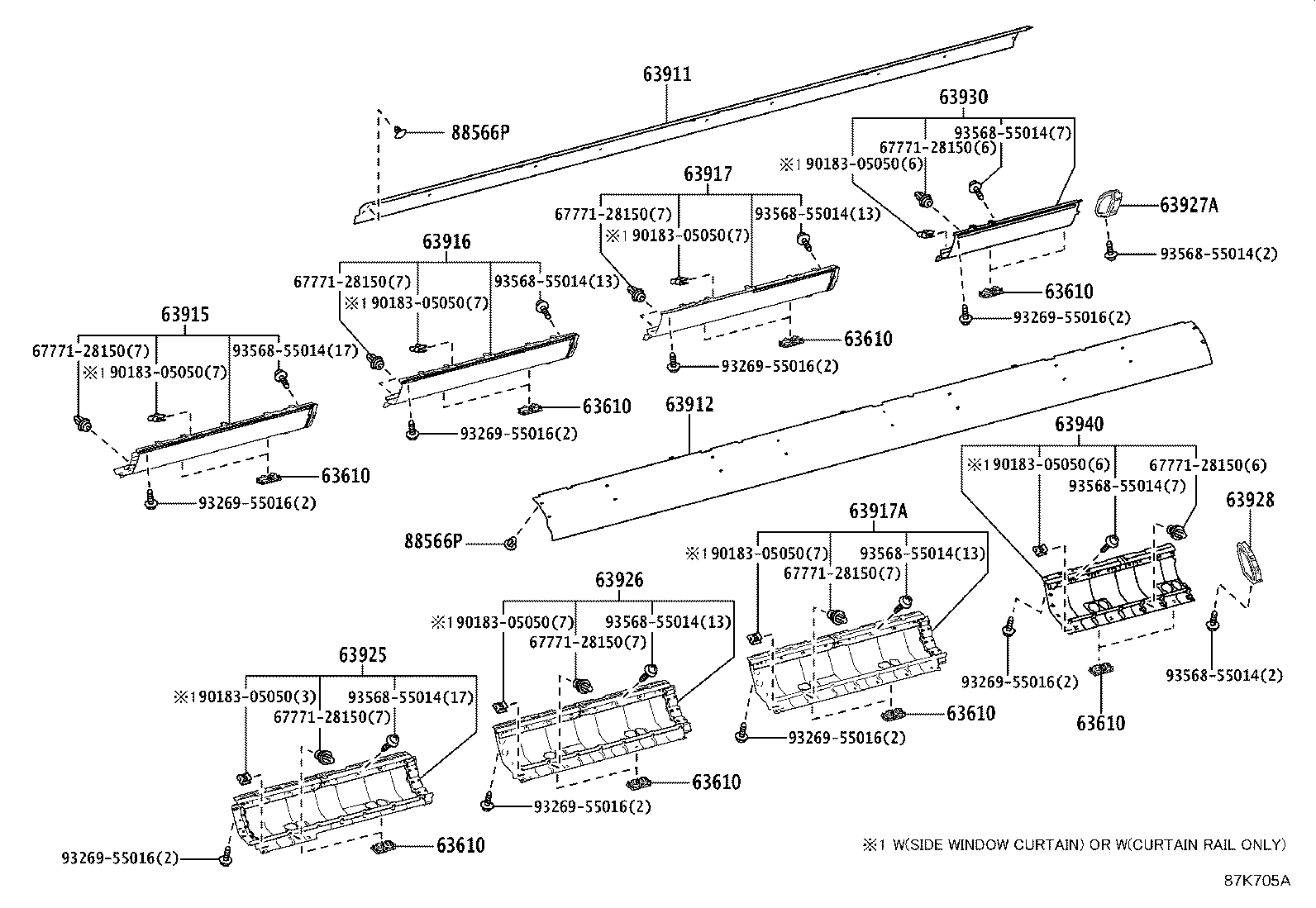

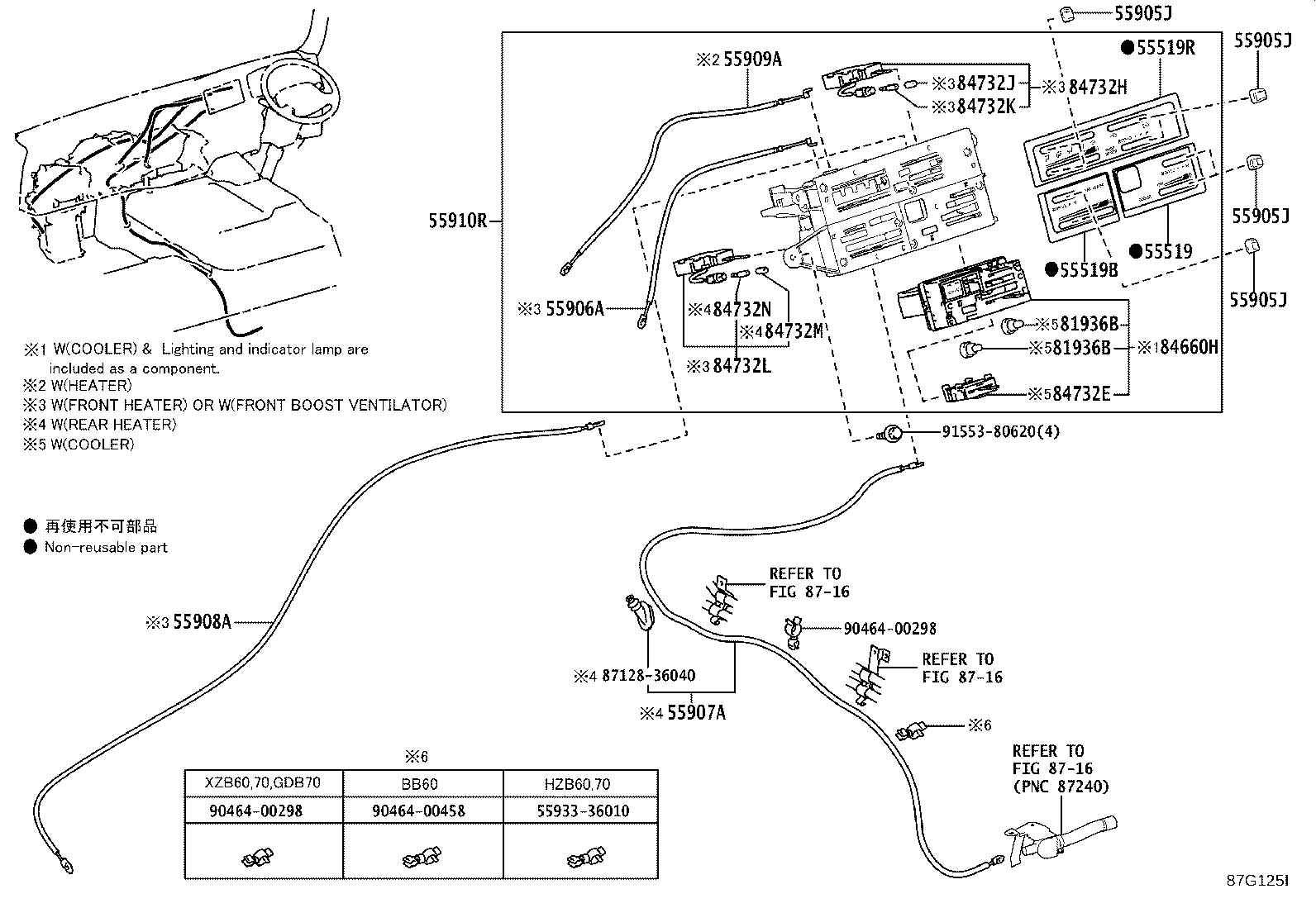

Figure 87G126K 87G126K 2017-01 → — Figure 87G125I 87G125I 2017-01 → — Figure 87G113B 87G113B 2017-01 → — Figure 87G274B 87G274B 2017-01 → — Figure 87G163A 87G163A 2017-01 → — Figure 87G164B 87G164B 2017-01 → — Figure 87G165E 87G165E 2017-01 → — Figure 87K705A 87K705A 2019-08 → — Figure 87I099A 87I099A 2017-01 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086A Duct Sub-assy, Heater TO Register, Center
55519 Plate, Heater Control Name
55519B Plate, Heater Control Name
55519R Plate, Heater Control Name
55845B Duct, Rear Heater TO Register, NO.3
55905J Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910R Control Assy, Heater
55950G Nozzle Assy, Defroster
63610 Register Assy, Air Outlet, NO.1
63830A Servo Sub-assy, Damper(FOR ROOF VENTILATOR)
63911 Duct, Cooler, Outer RH
63912 Duct, Cooler, Outer LH
63915 Duct, Cooler, Inner NO.1 RH
63916 Duct, Cooler, Inner NO.2 RH
63917 Duct, Cooler, Inner NO.3 RH
63917A Duct, Cooler, Inner NO.3 LH
63925 Duct, Cooler, Inner NO.1 LH
63926 Duct, Cooler, Inner NO.2 LH
63927A Cover, Cooler Duct End, NO.1
63928 Cover, Cooler Duct End, NO.2
63930 Duct, Cooler, Inner NO.4 RH
63940 Duct, Cooler, Inner NO.4 LH
81936B Bulb Assy, Cooler Control
84660H Switch Assy, Cooler Control
84732E Switch, Cooler Blower
84732H Switch, Heater Blower
84732J Cap, Heater Blower Switch Bulb
84732K Bulb, Heater Blower Switch
84732L Switch, Rear Heater Blower
84732M Cap, Rear Heater Blower Switch Bulb
84732N Bulb, Rear Heater Blower Switch
87114C Cover, Heater
87210H Case Assy, Air Damper
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211R Clip, Air Duct
87212B Clip, Air Duct
87441B Filter, Heater Air
88430A Duct Assy, Air, NO.1
88430B Duct Assy, Air, NO.2
88566P Clip, Cooler Air Duct
88568A Filter, Air
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
