Heating & Air Conditioning - Water Piping

41 part groups · 29 illustrations

Illustrations

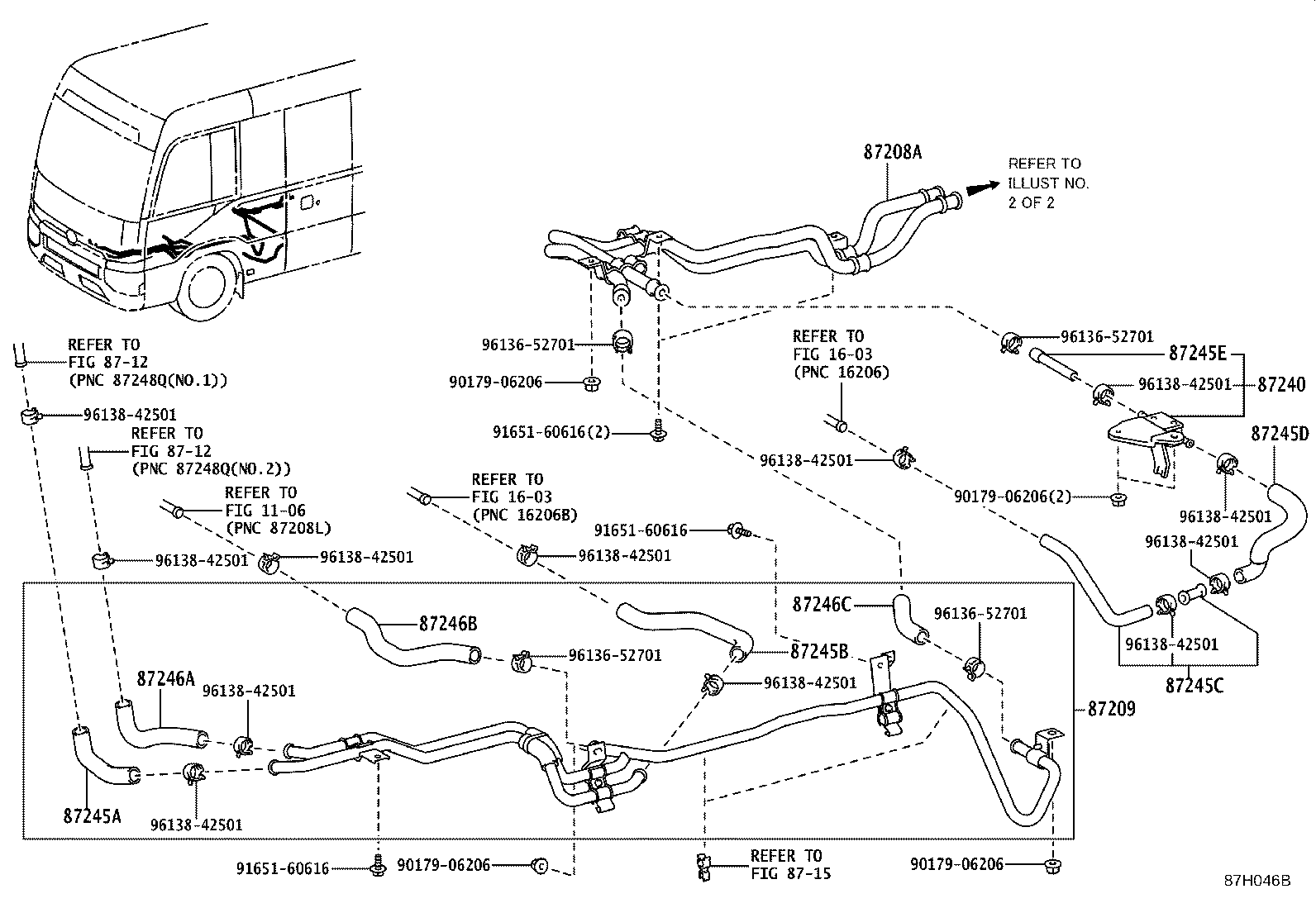

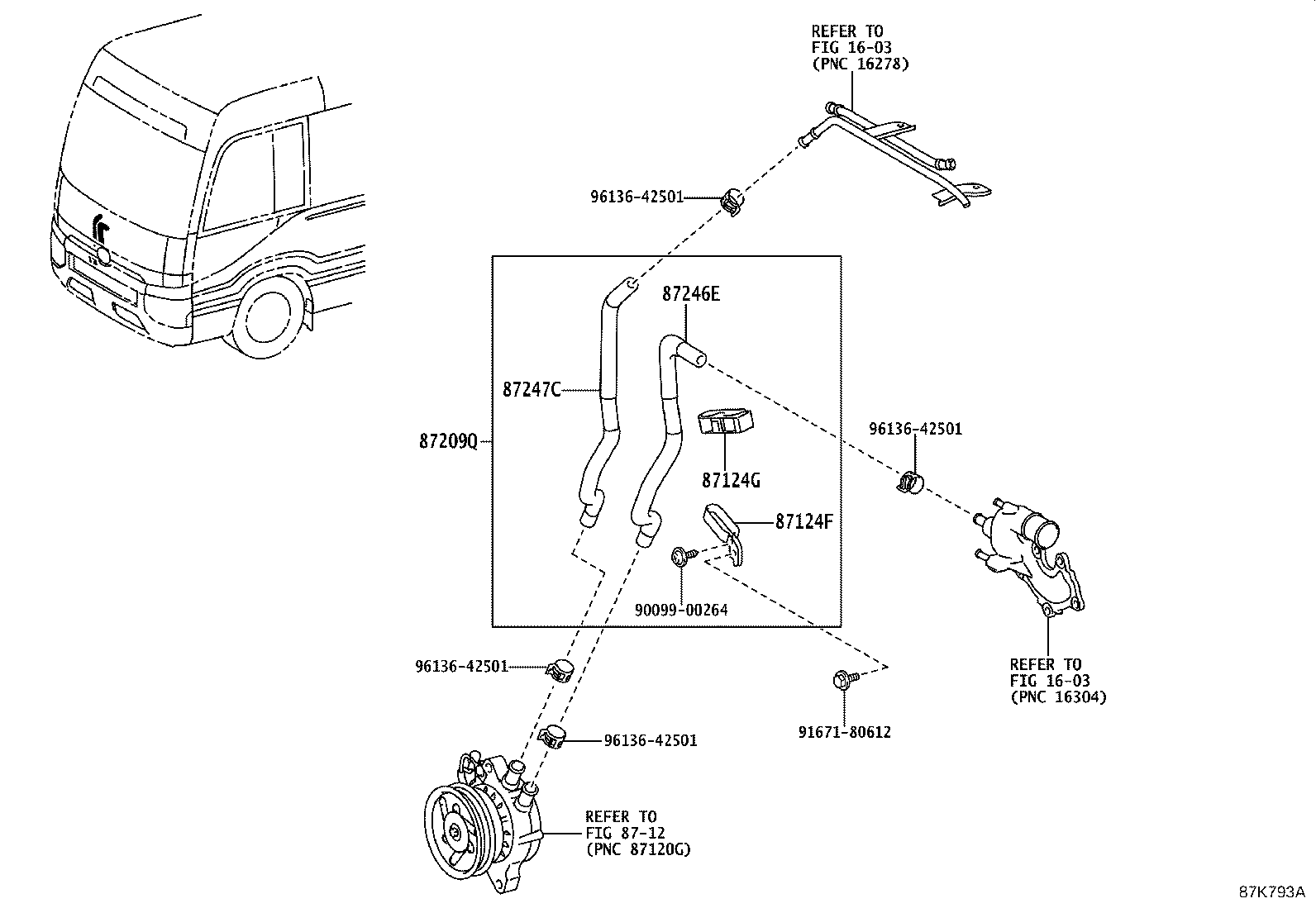

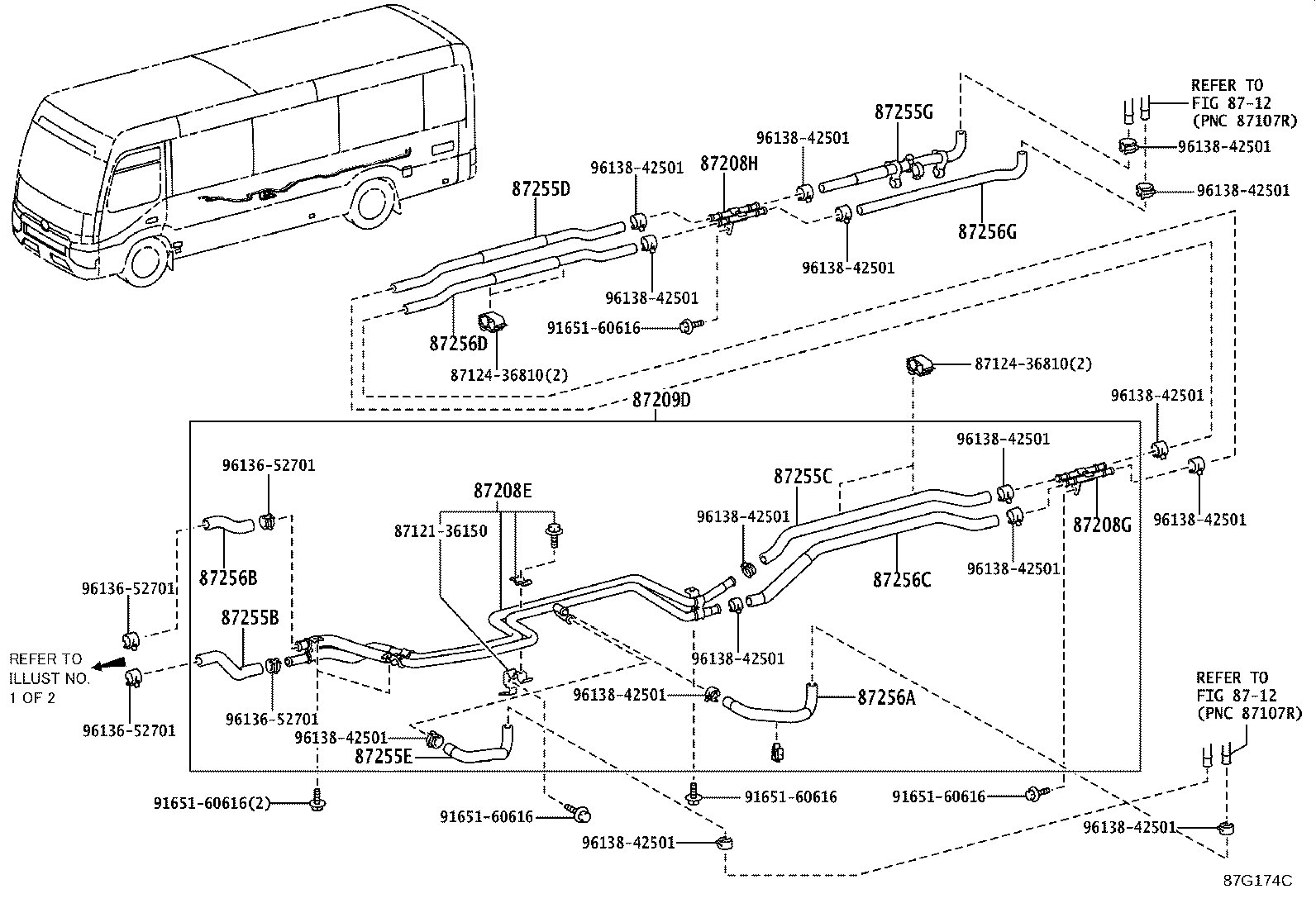

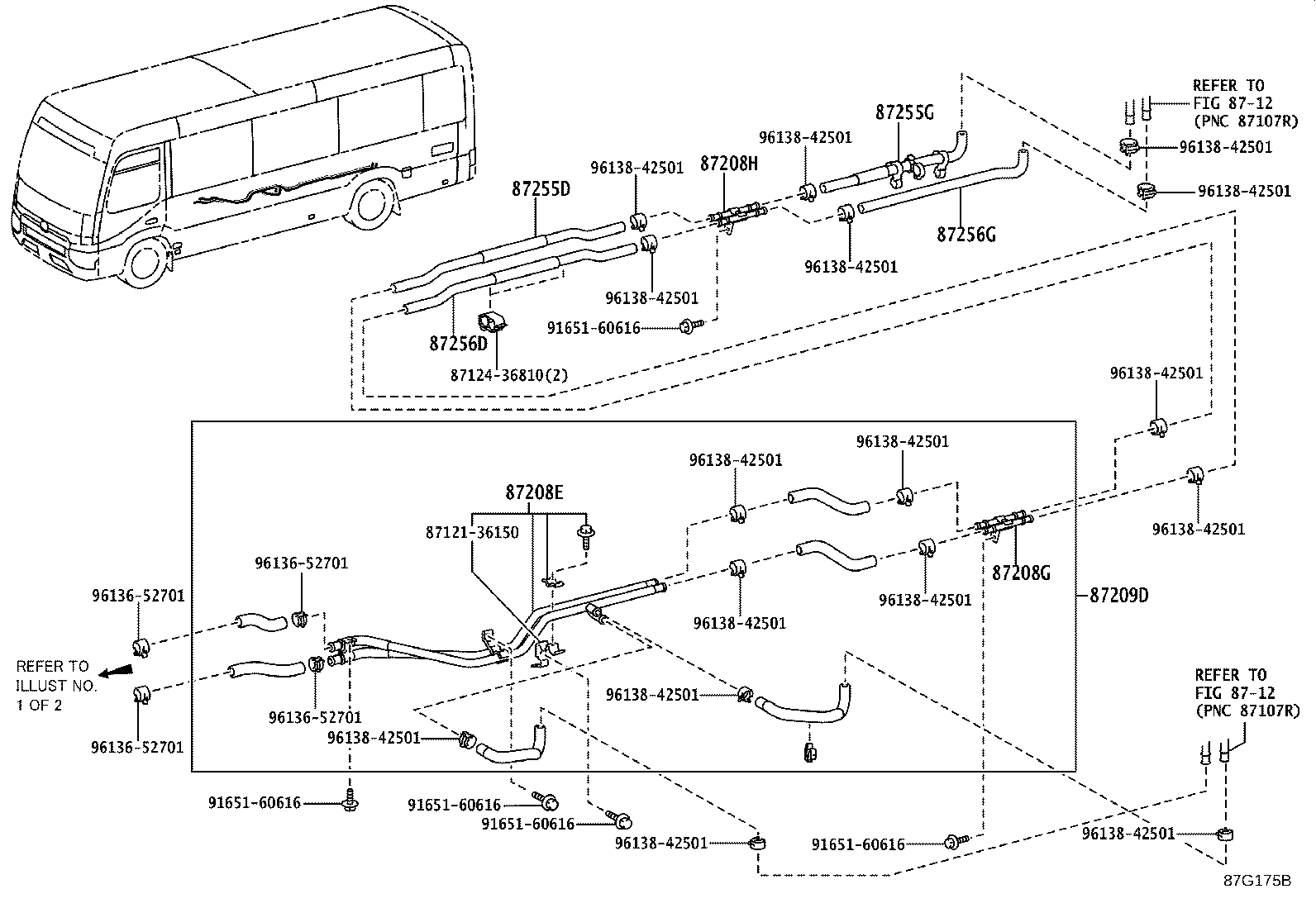

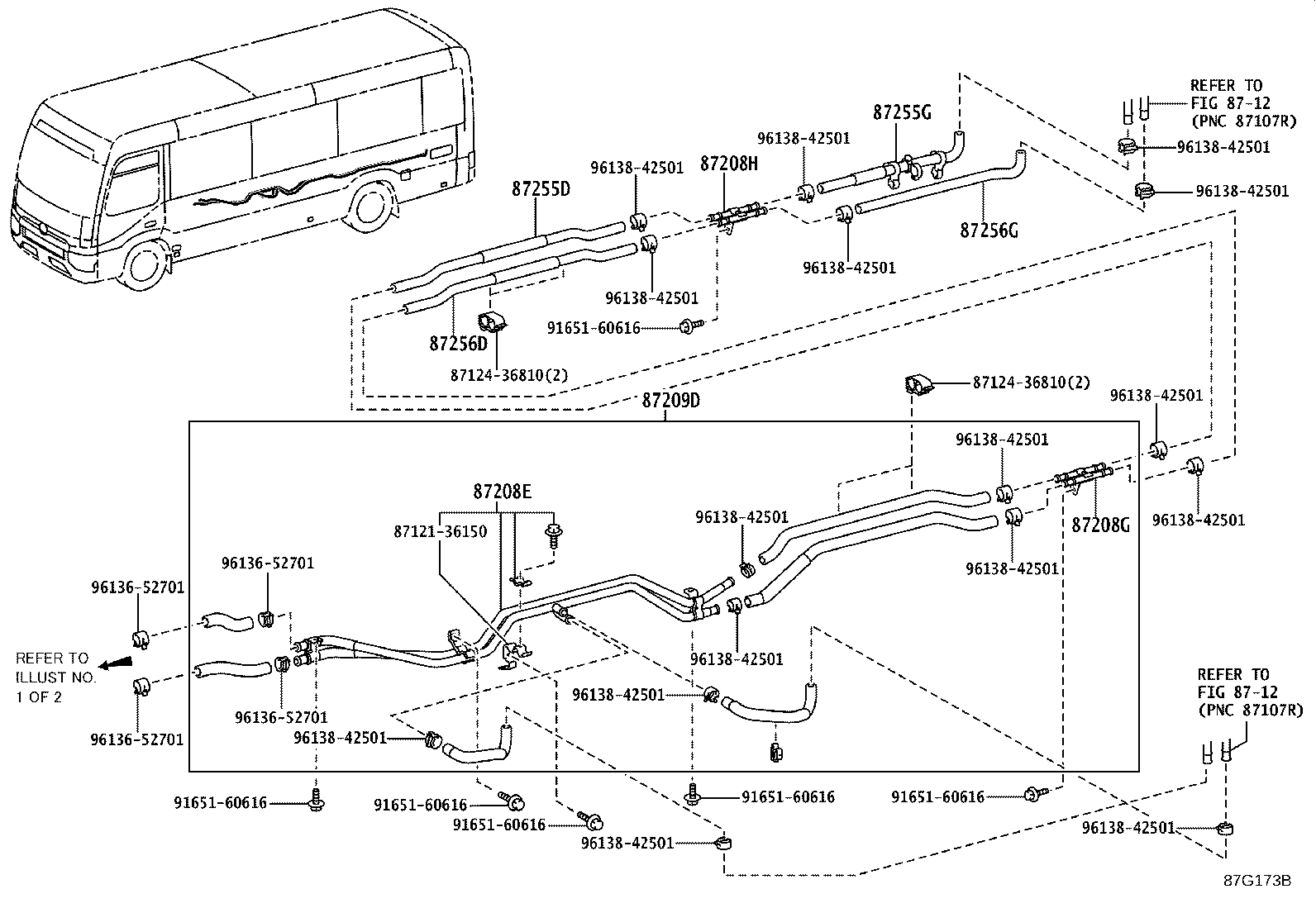

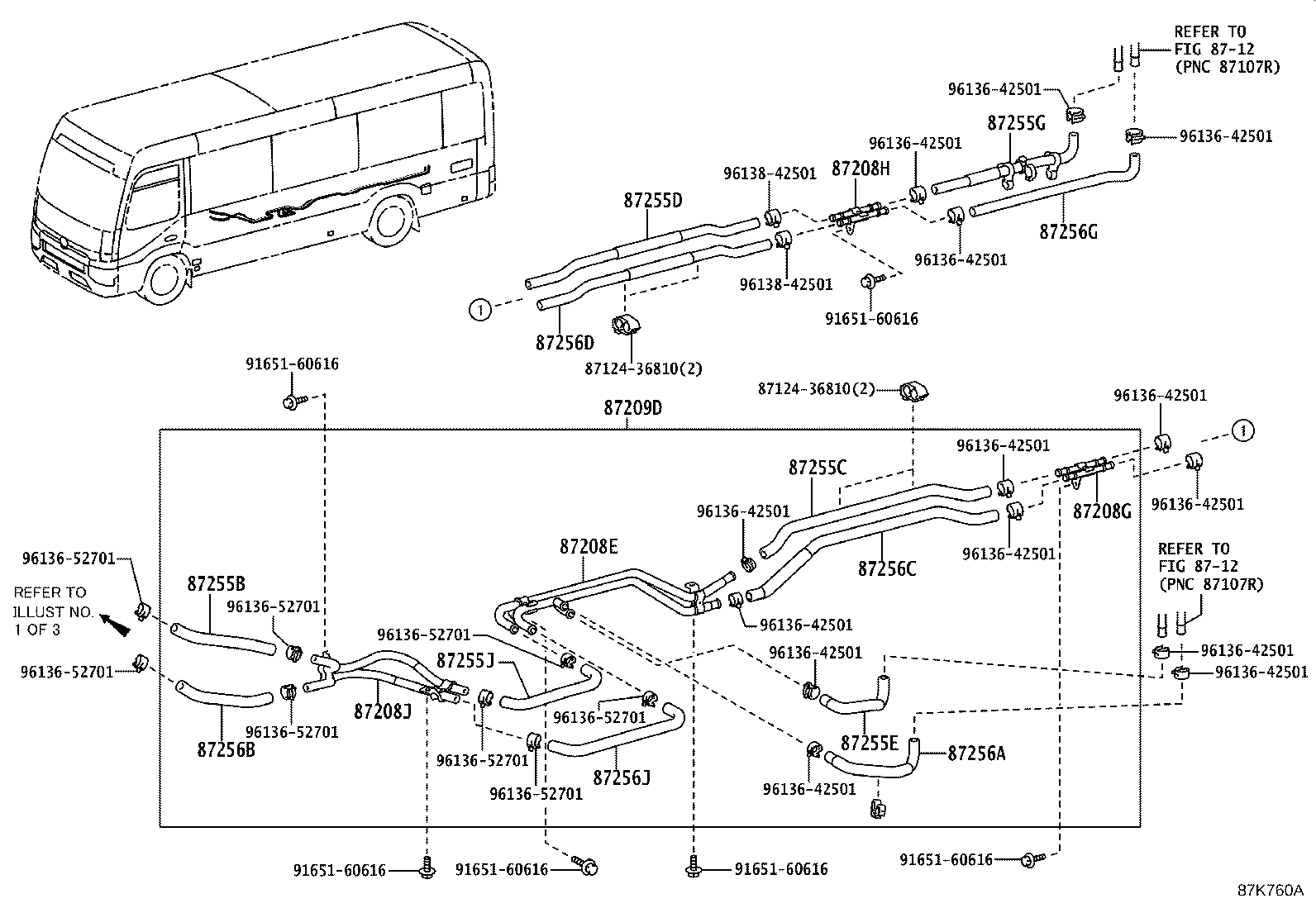

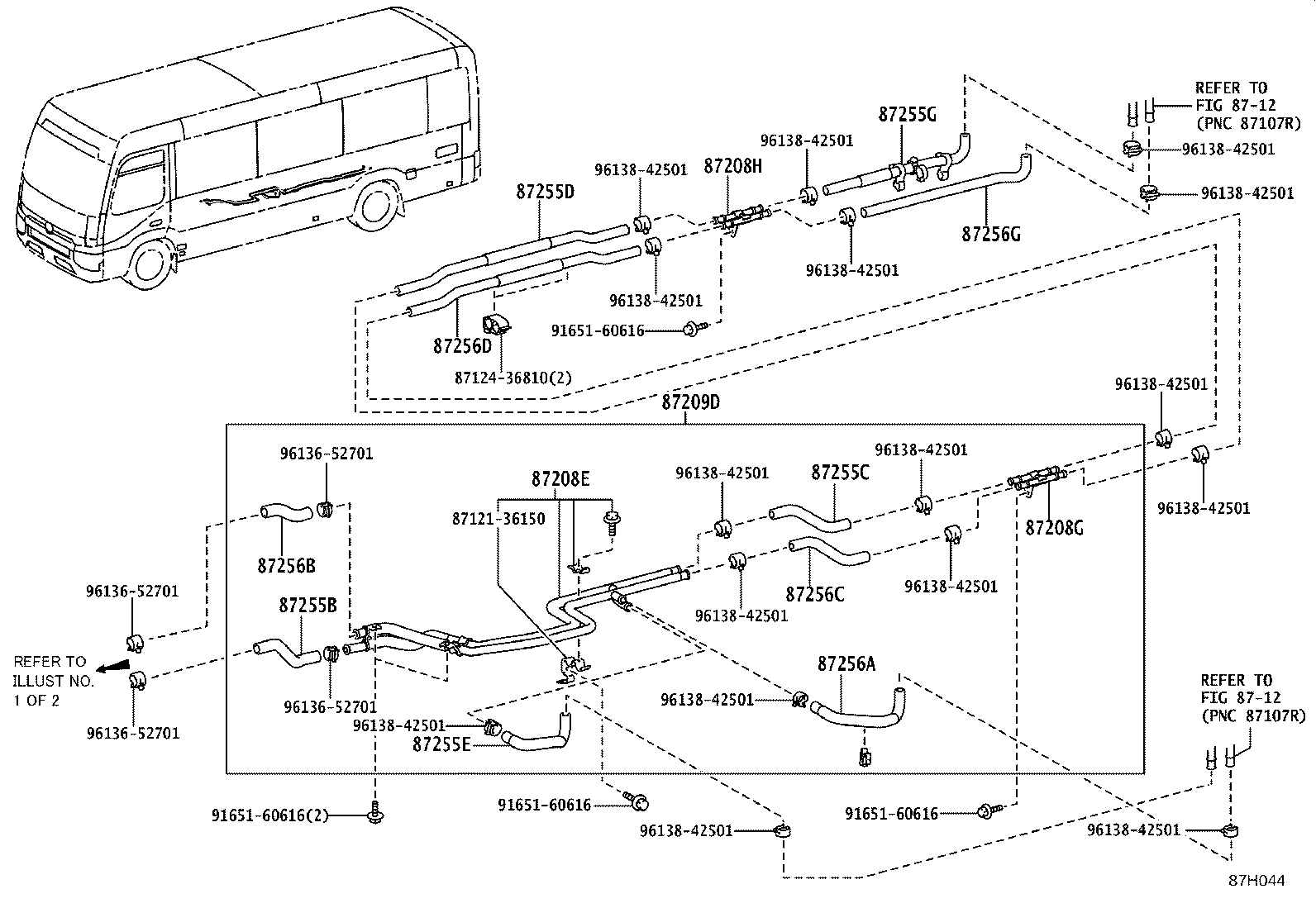

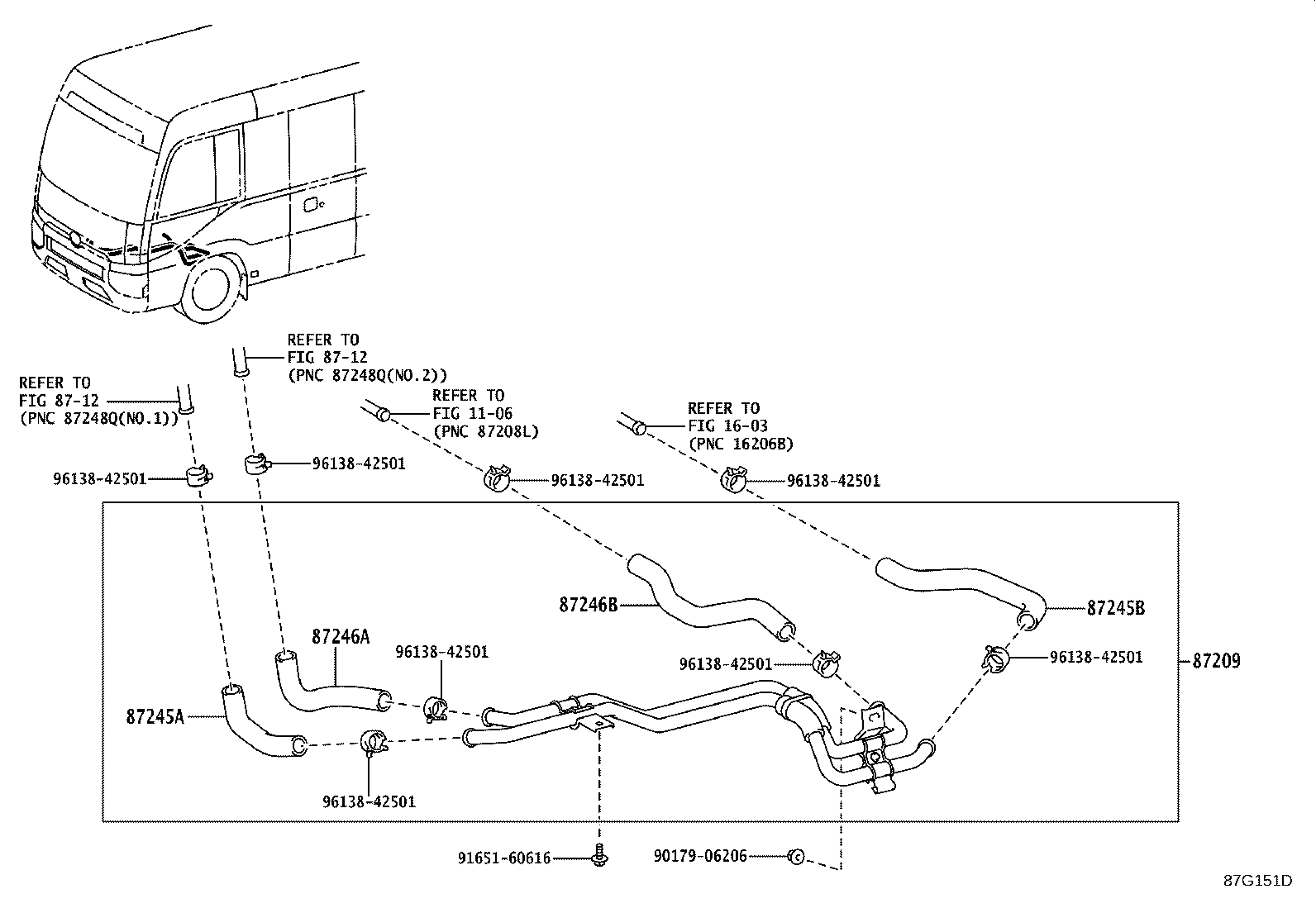

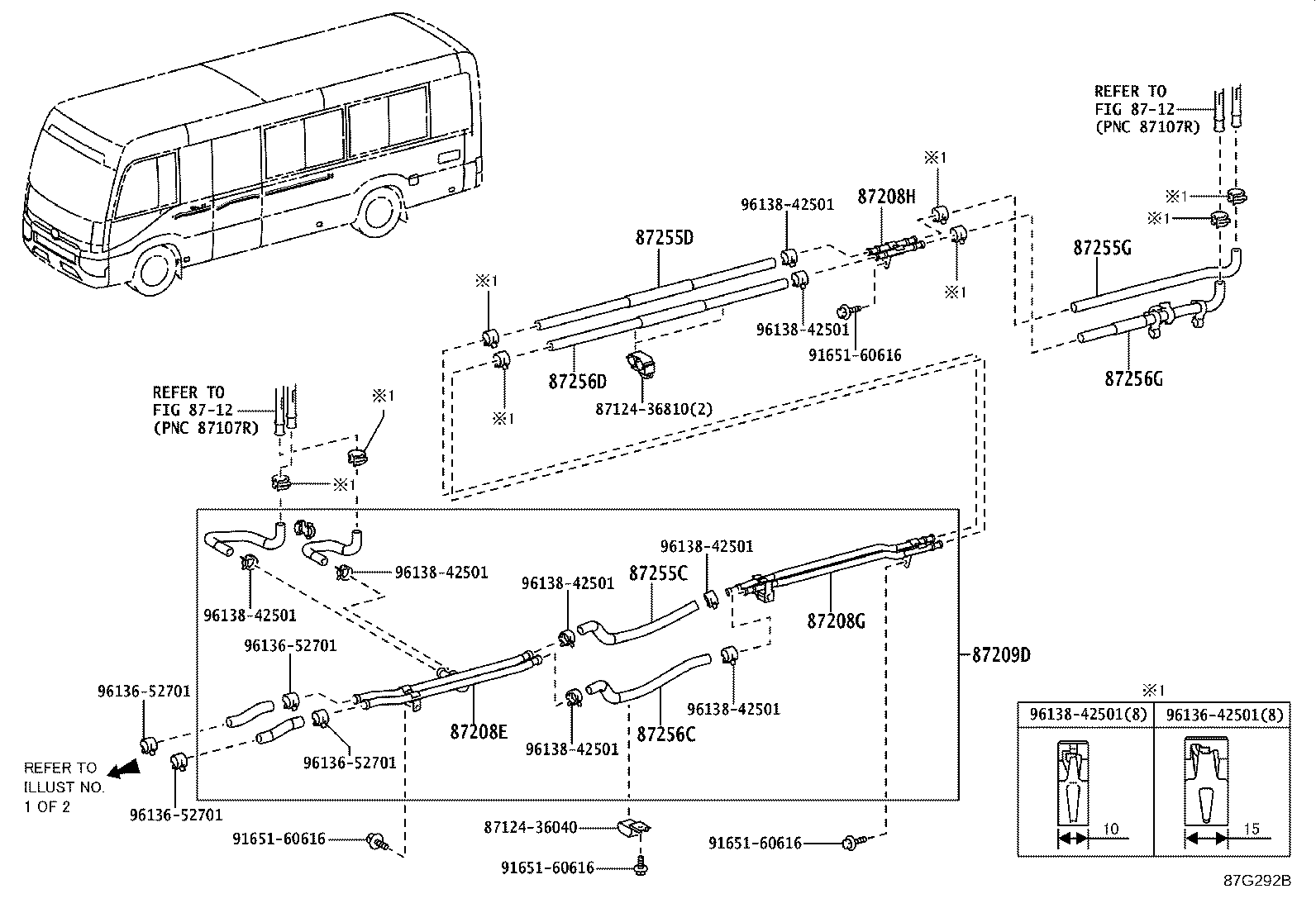

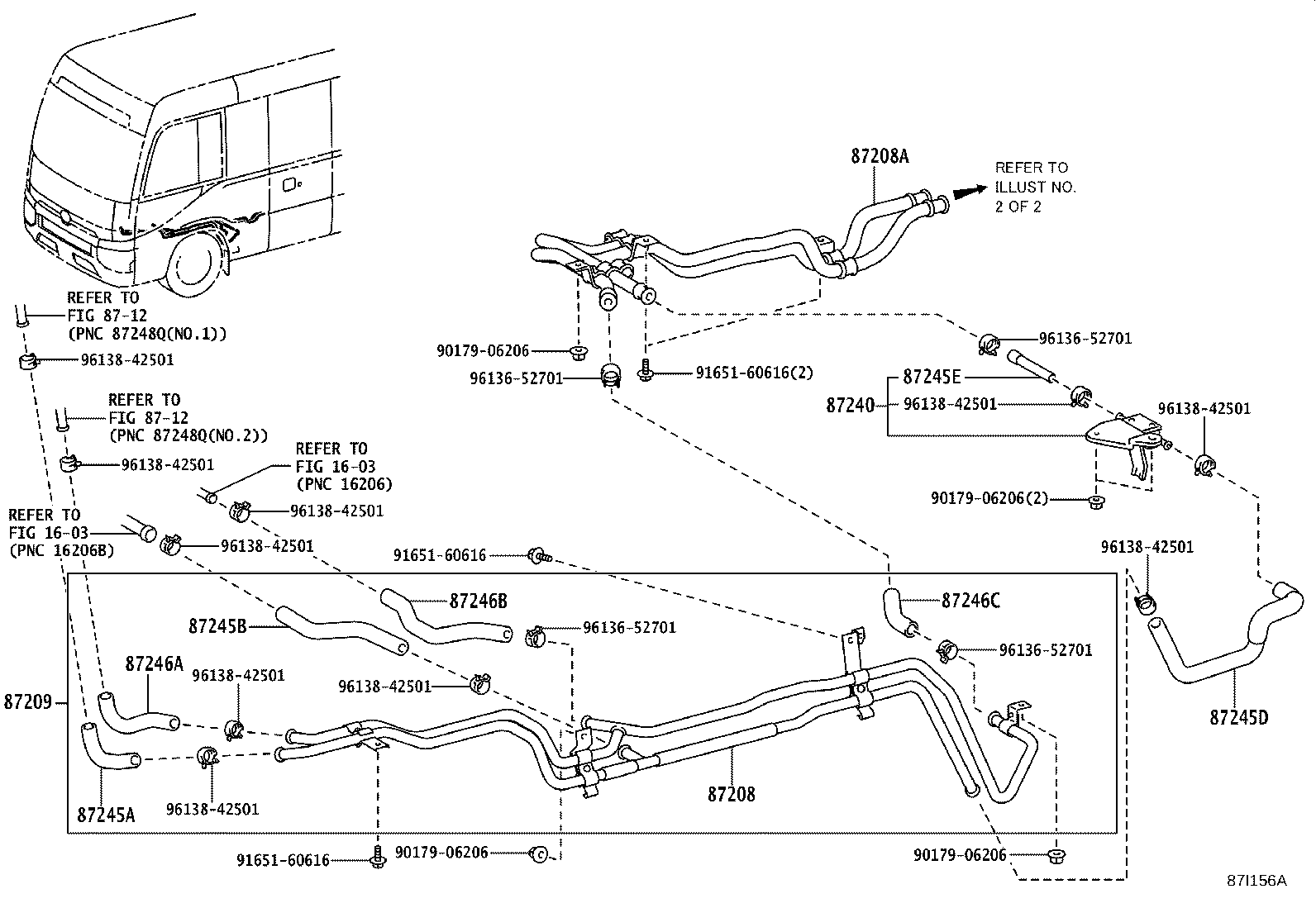

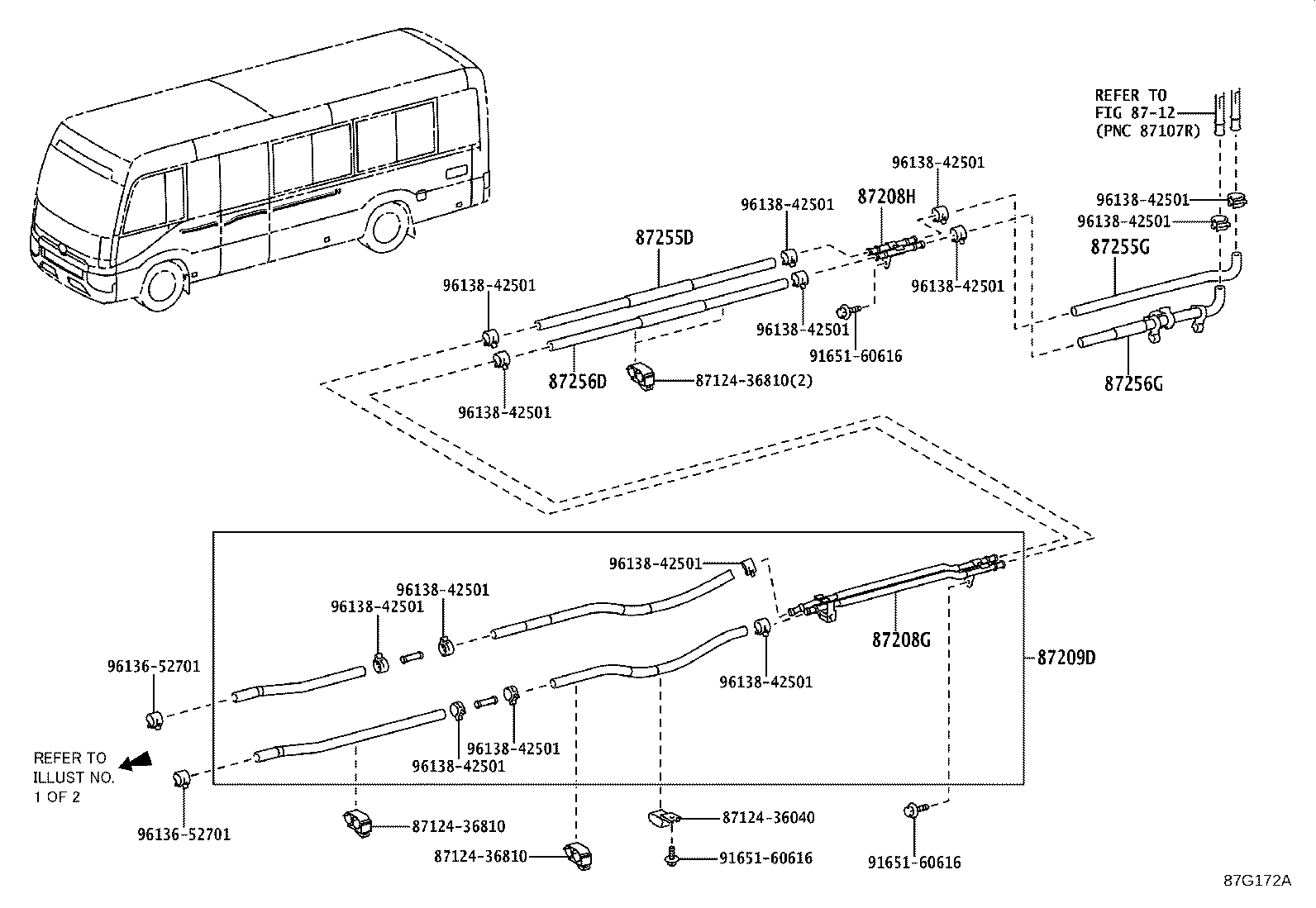

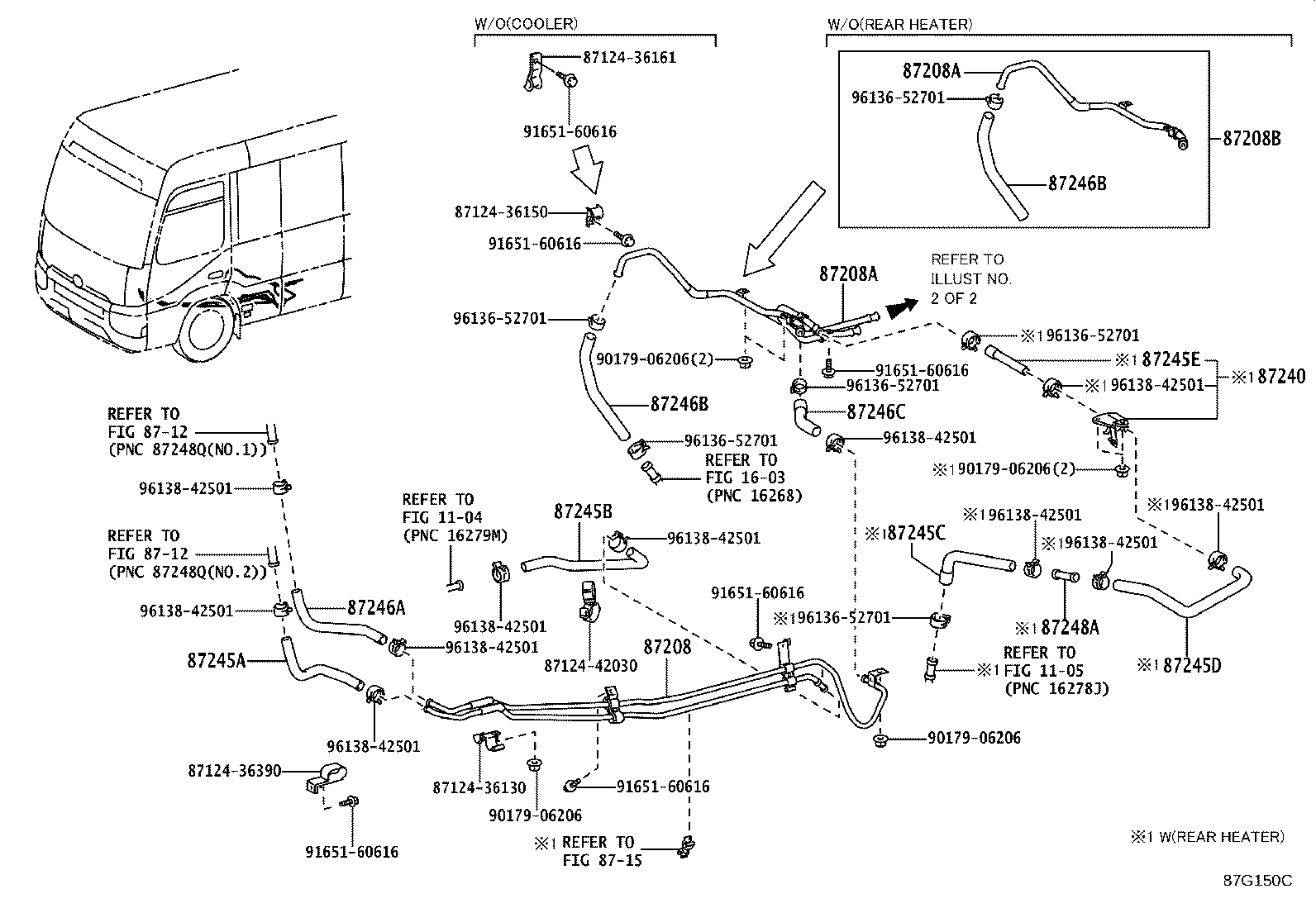

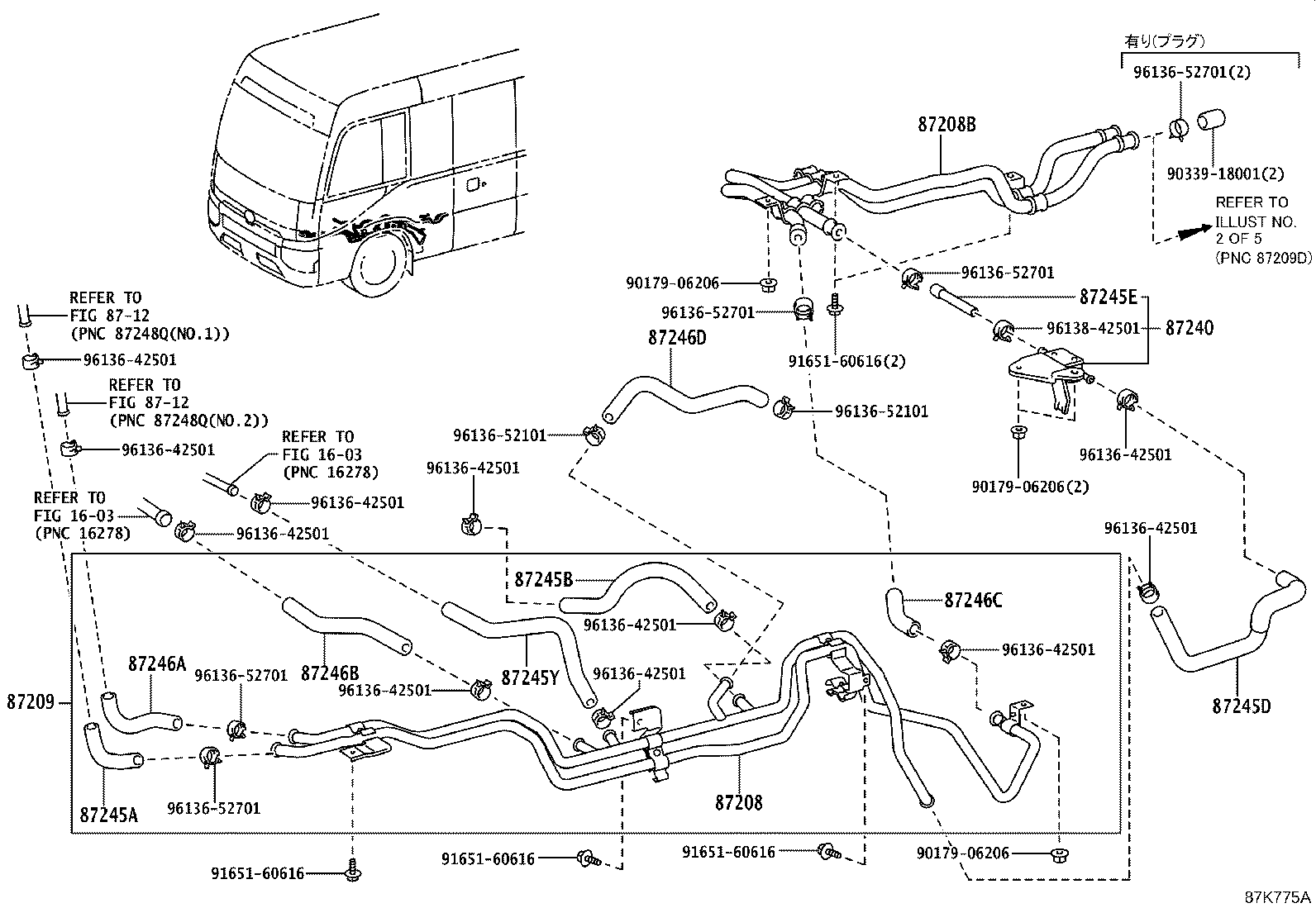

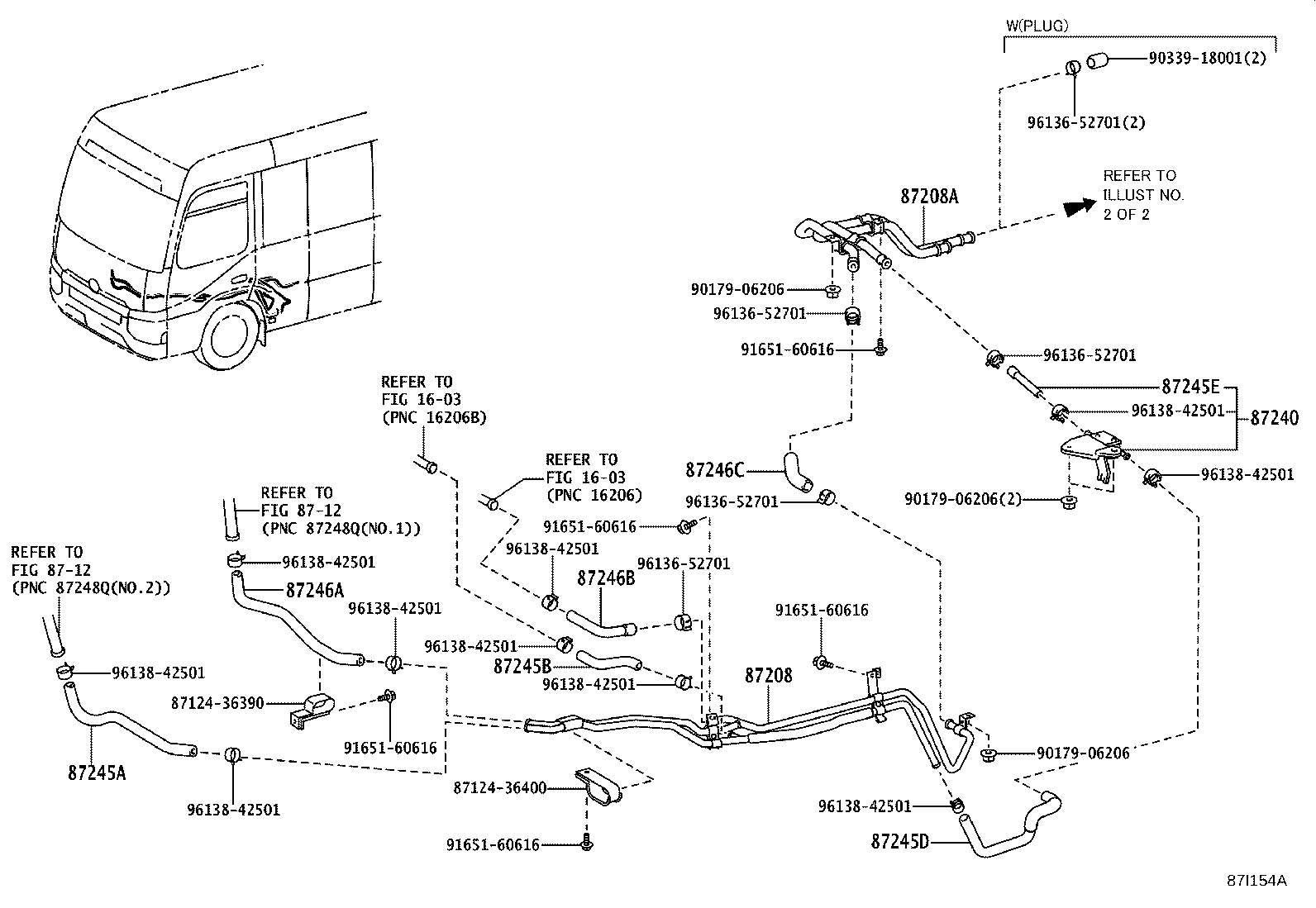

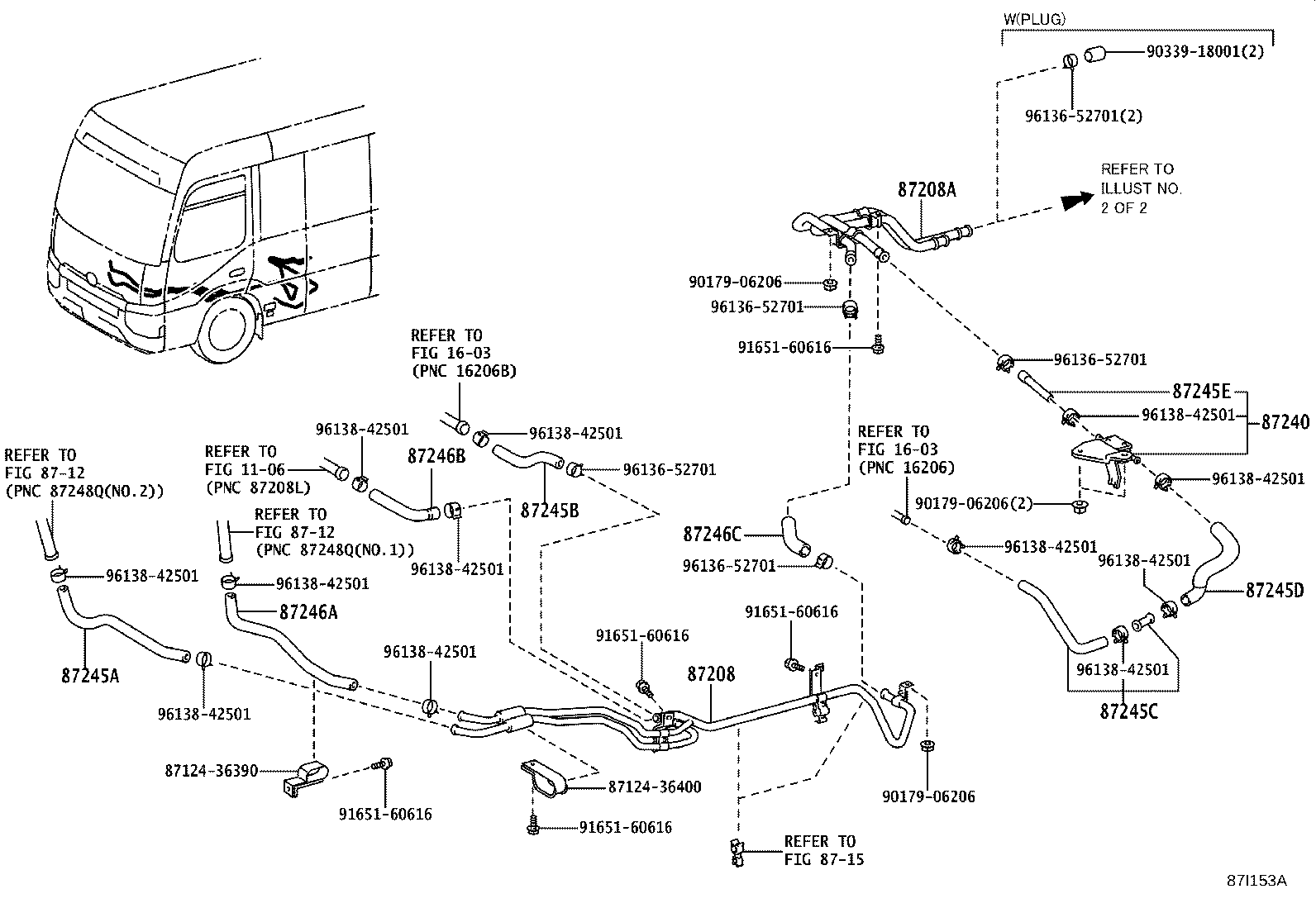

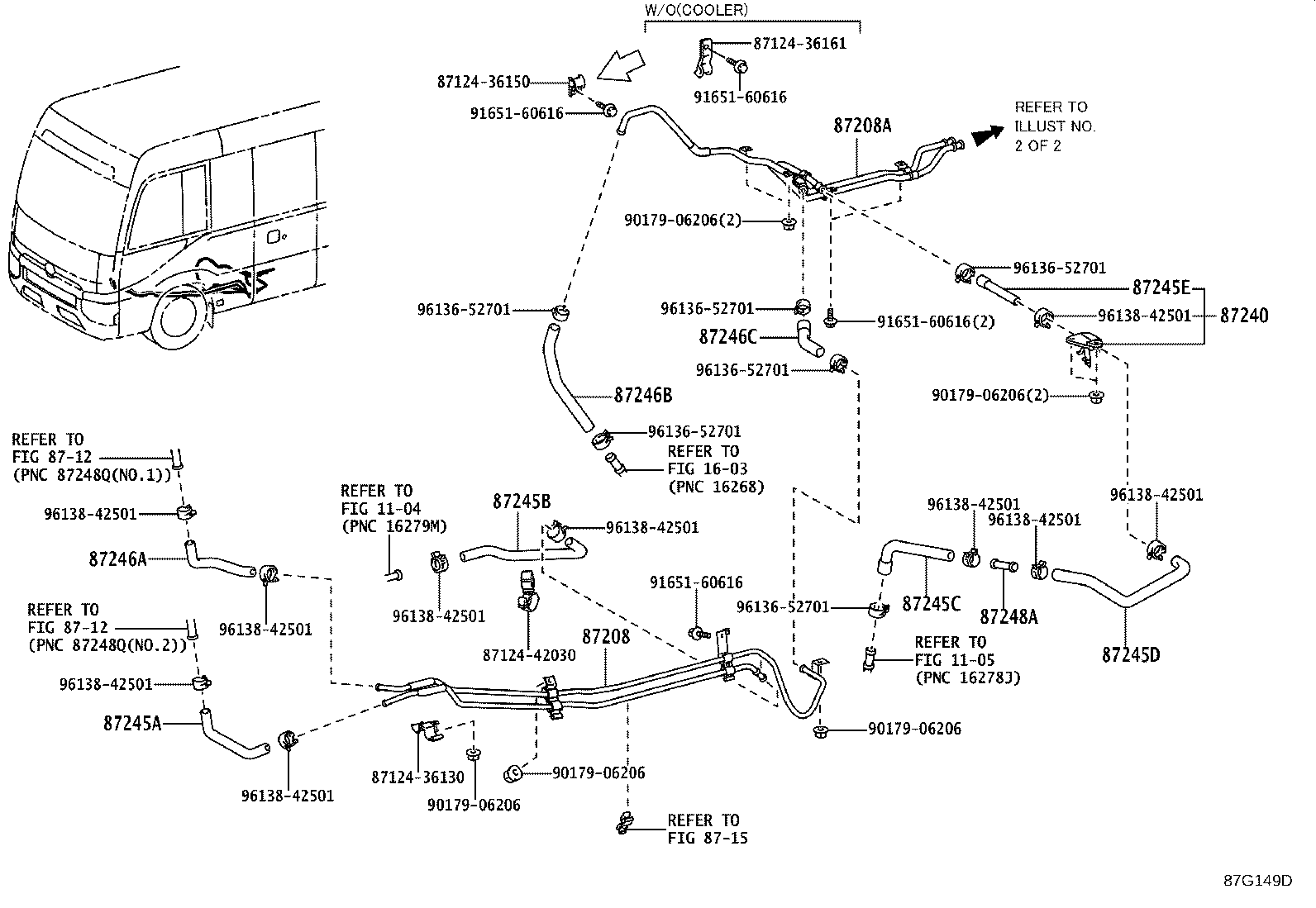

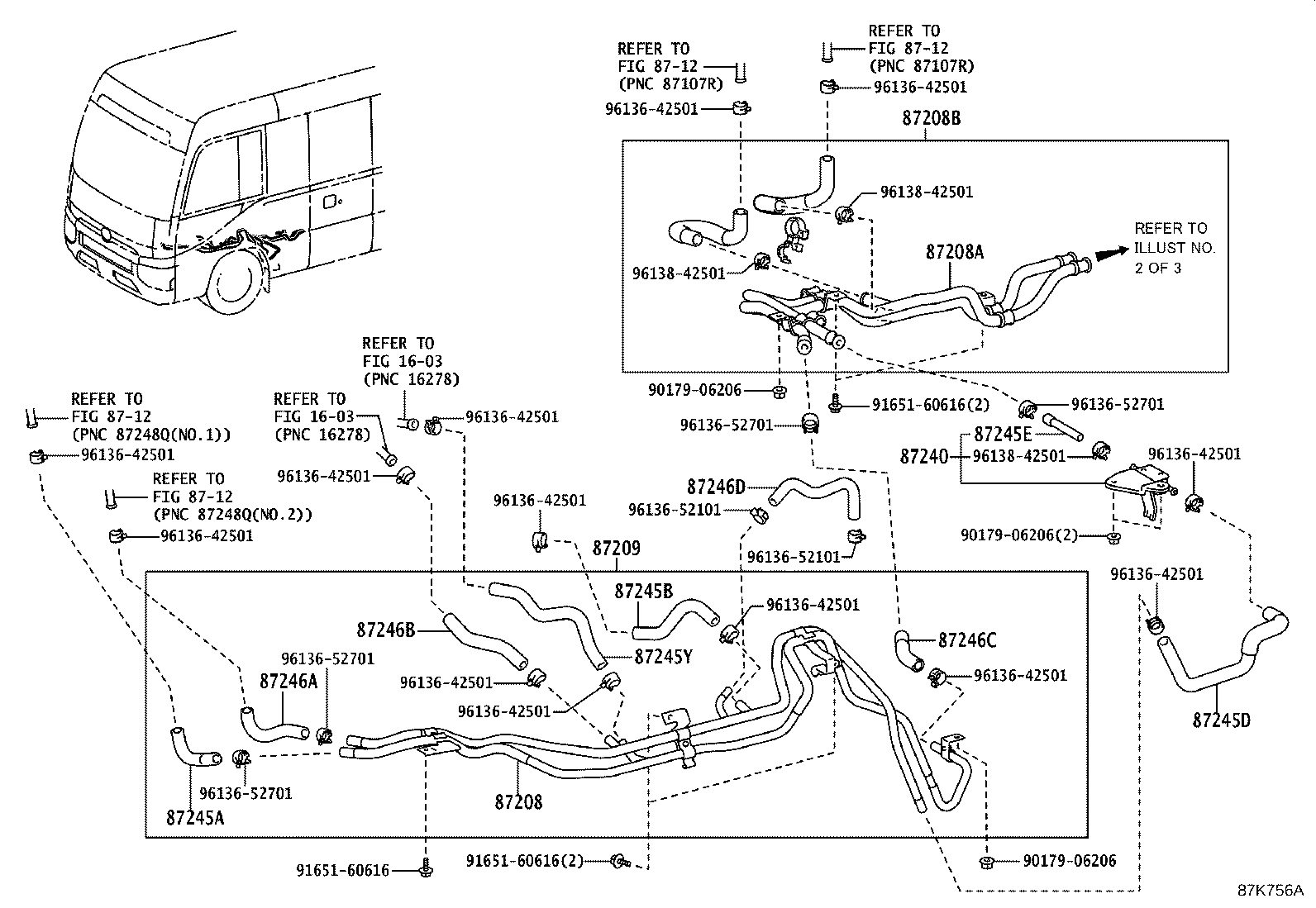

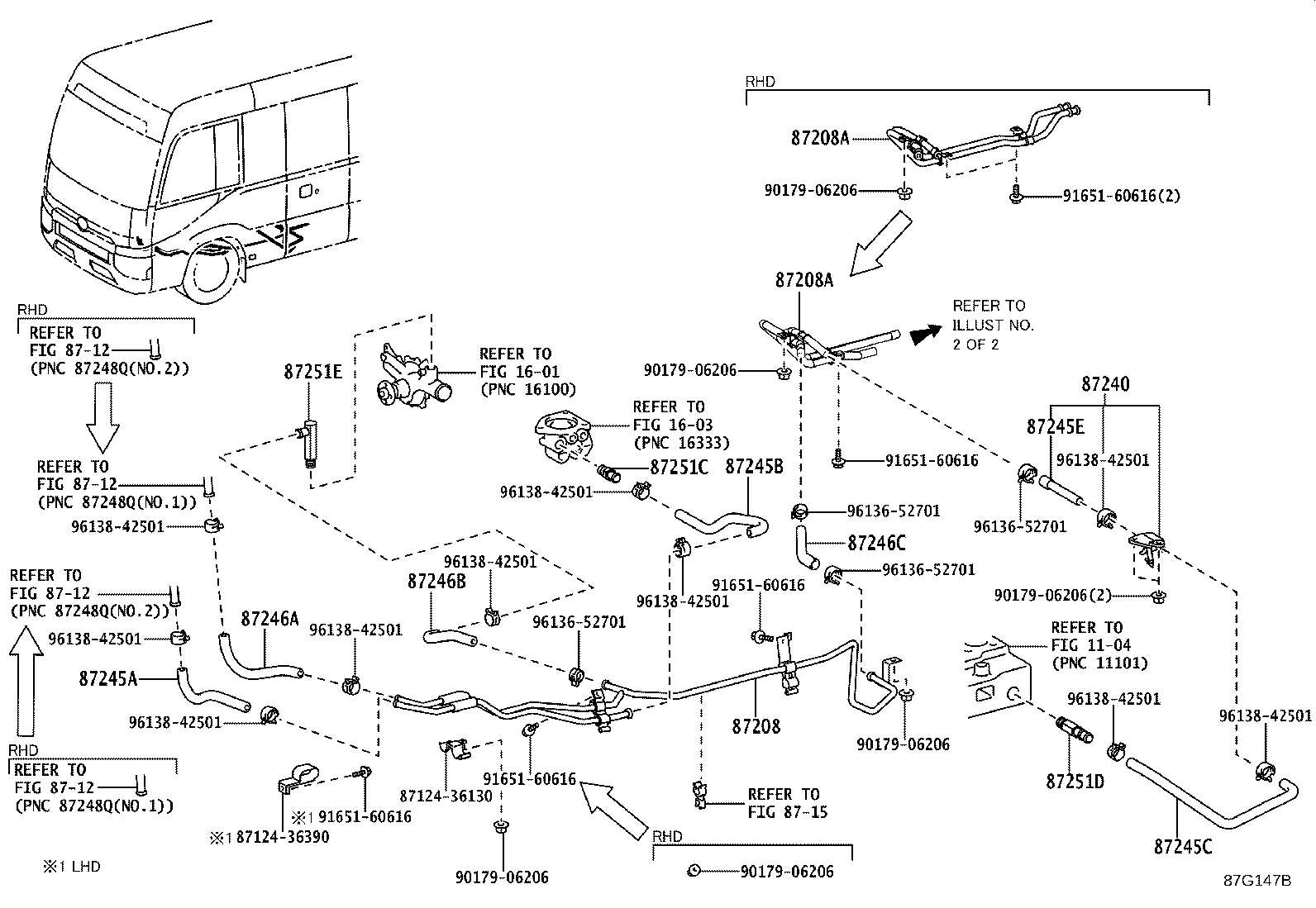

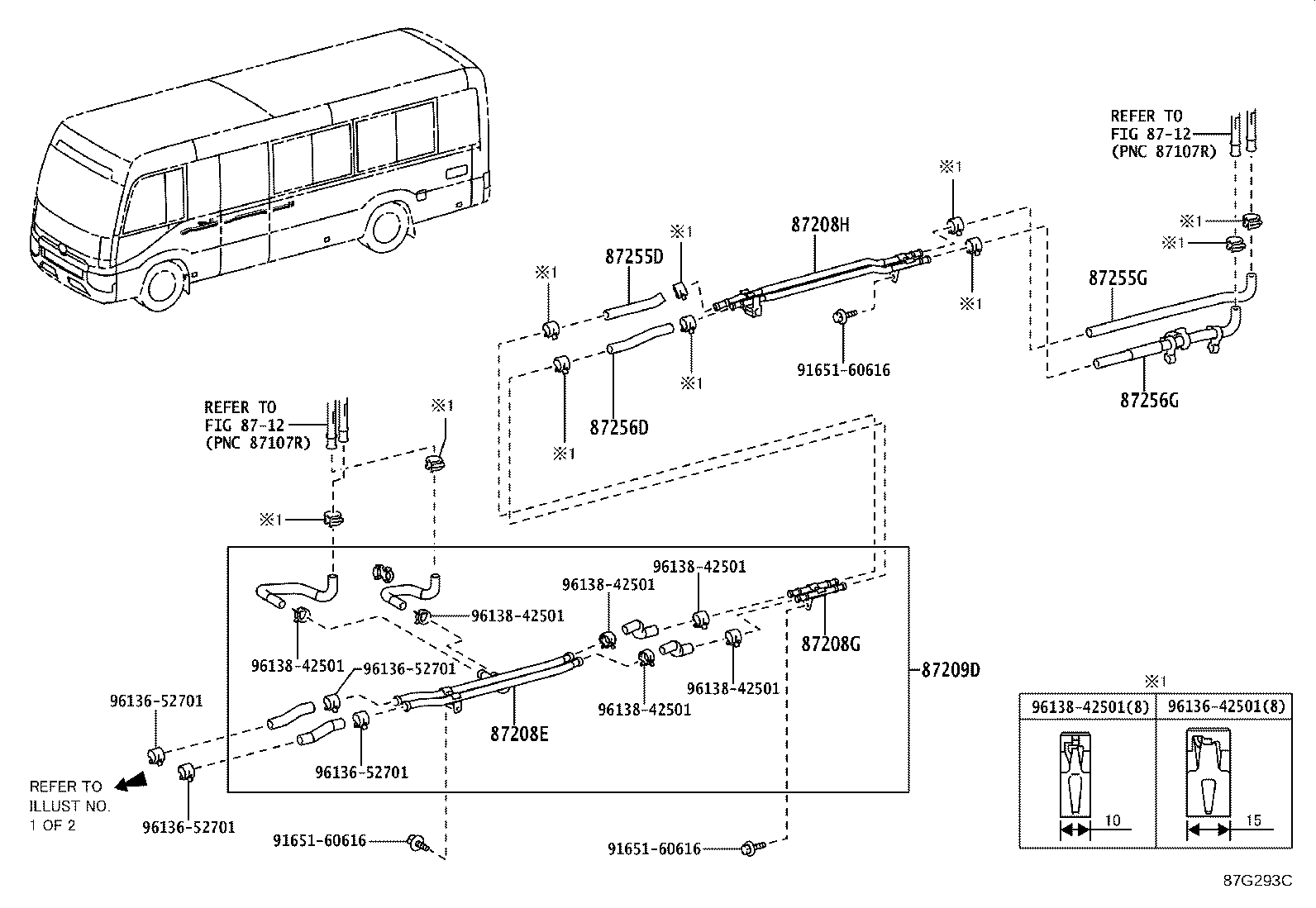

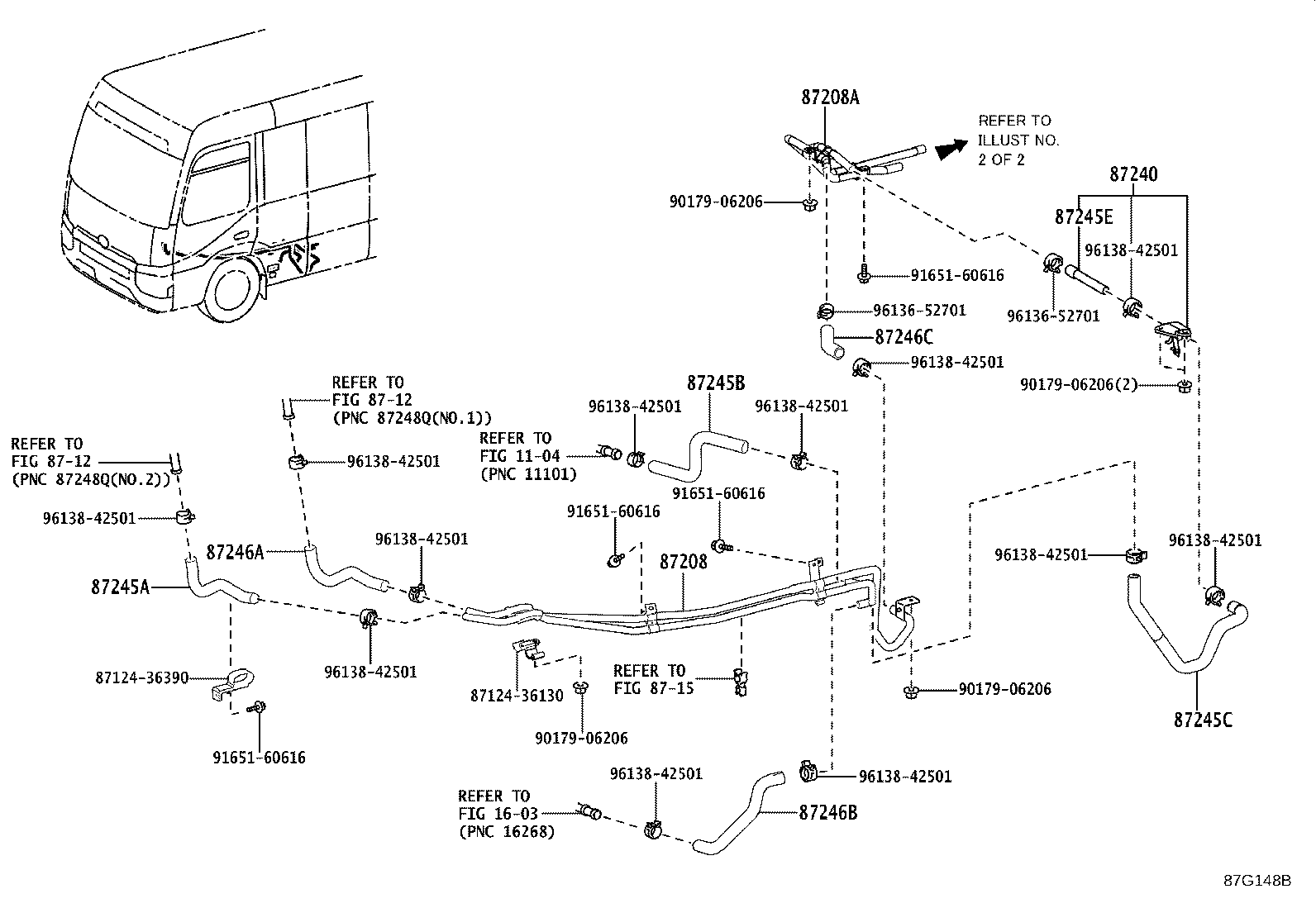

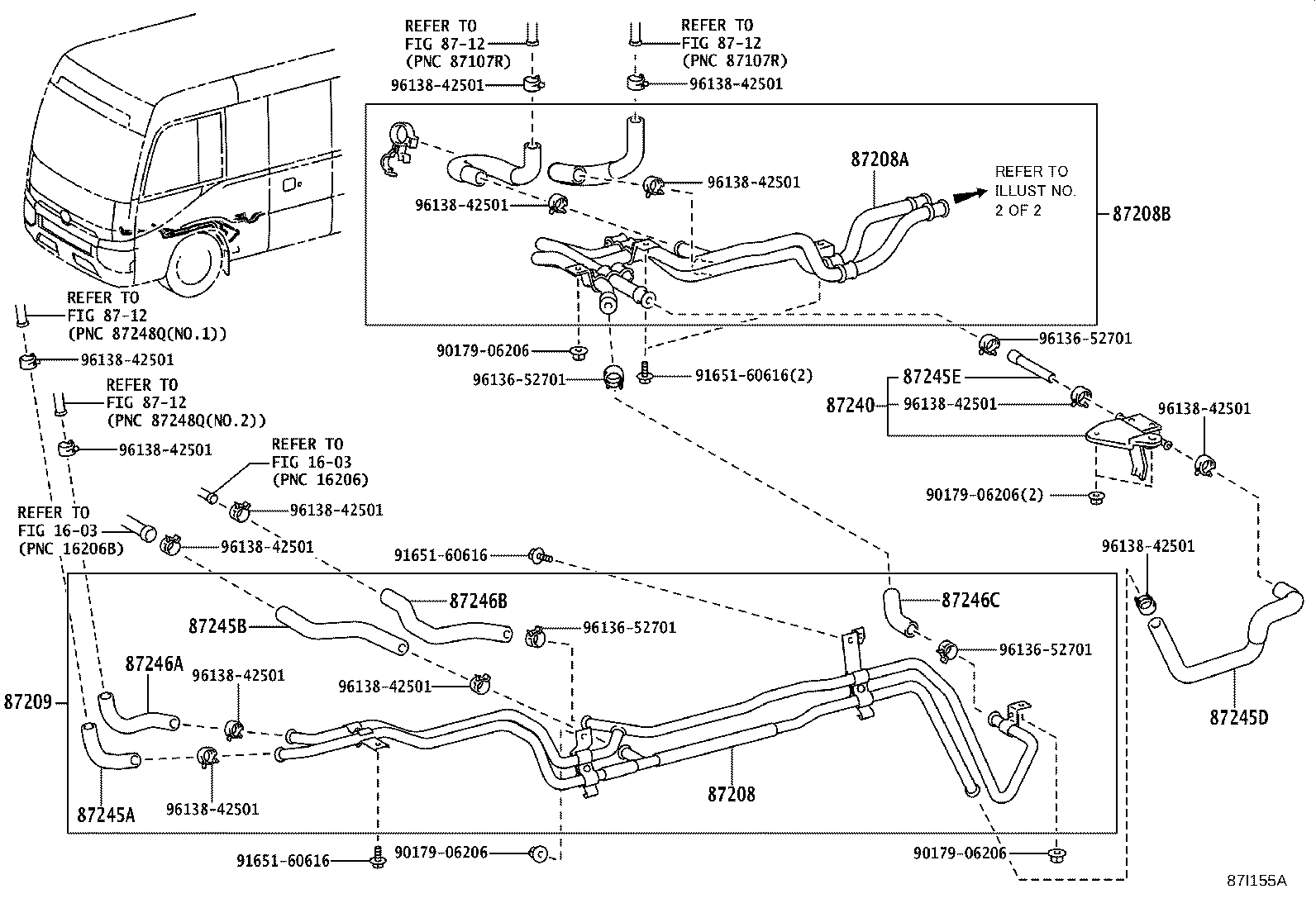

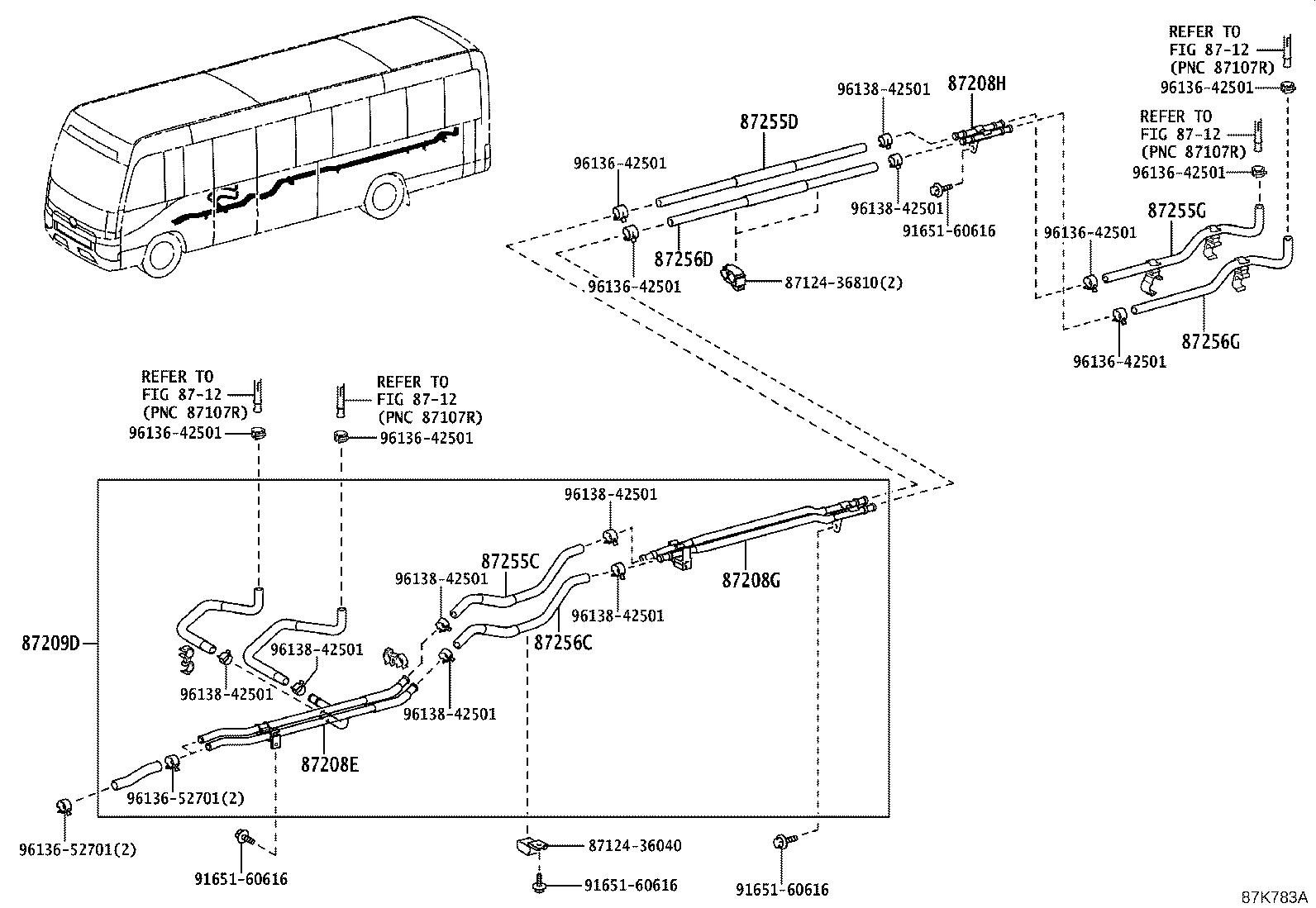

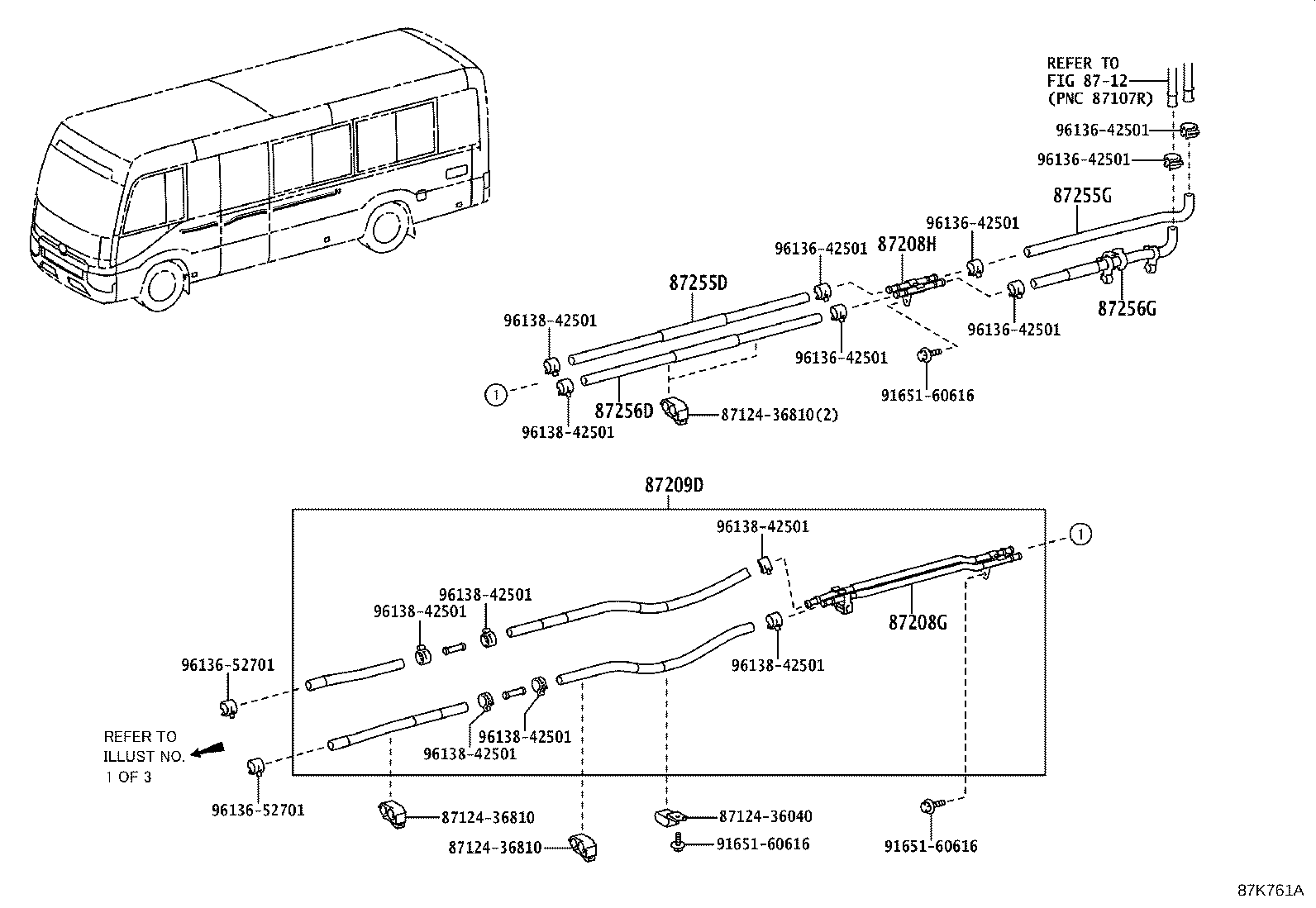

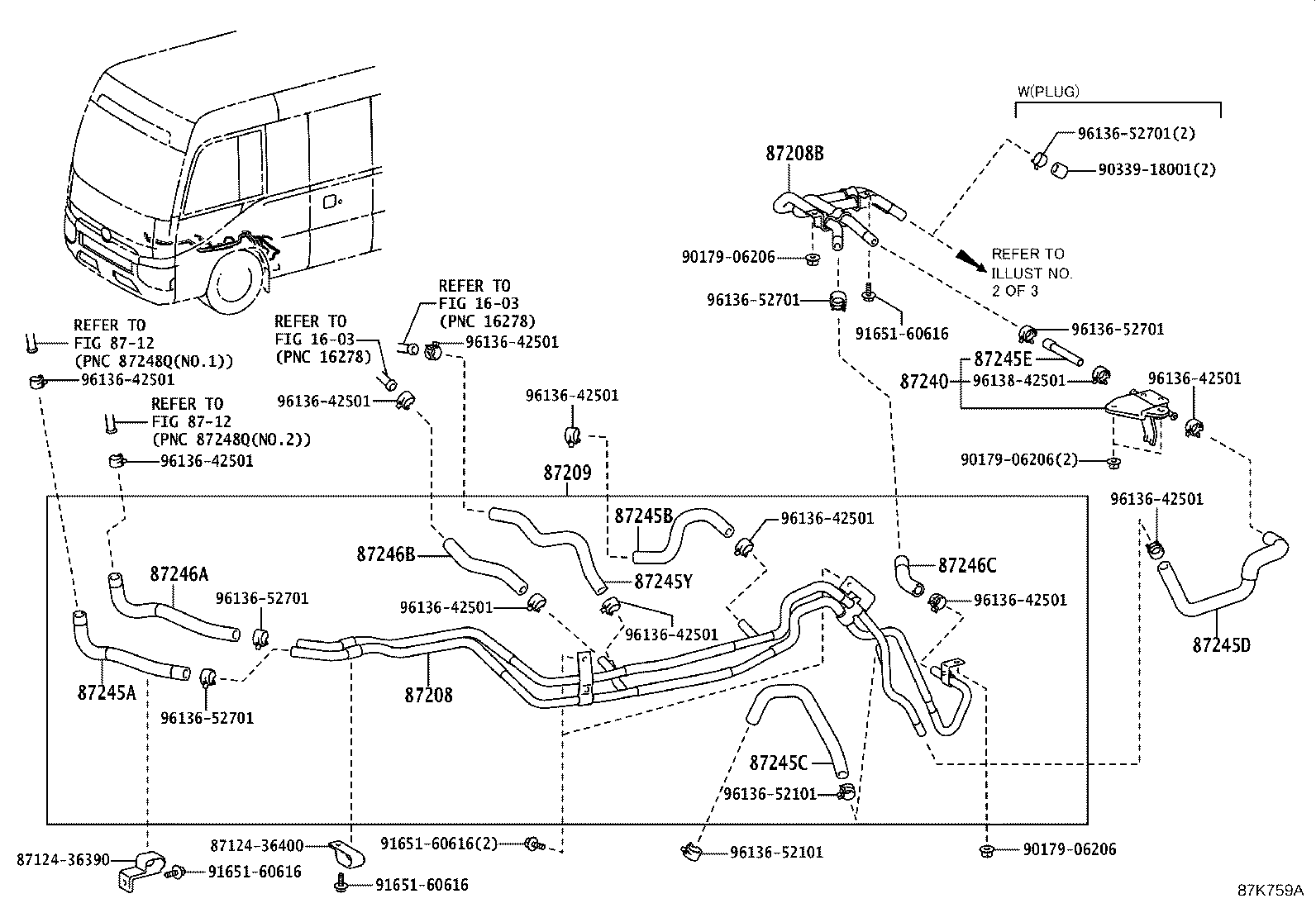

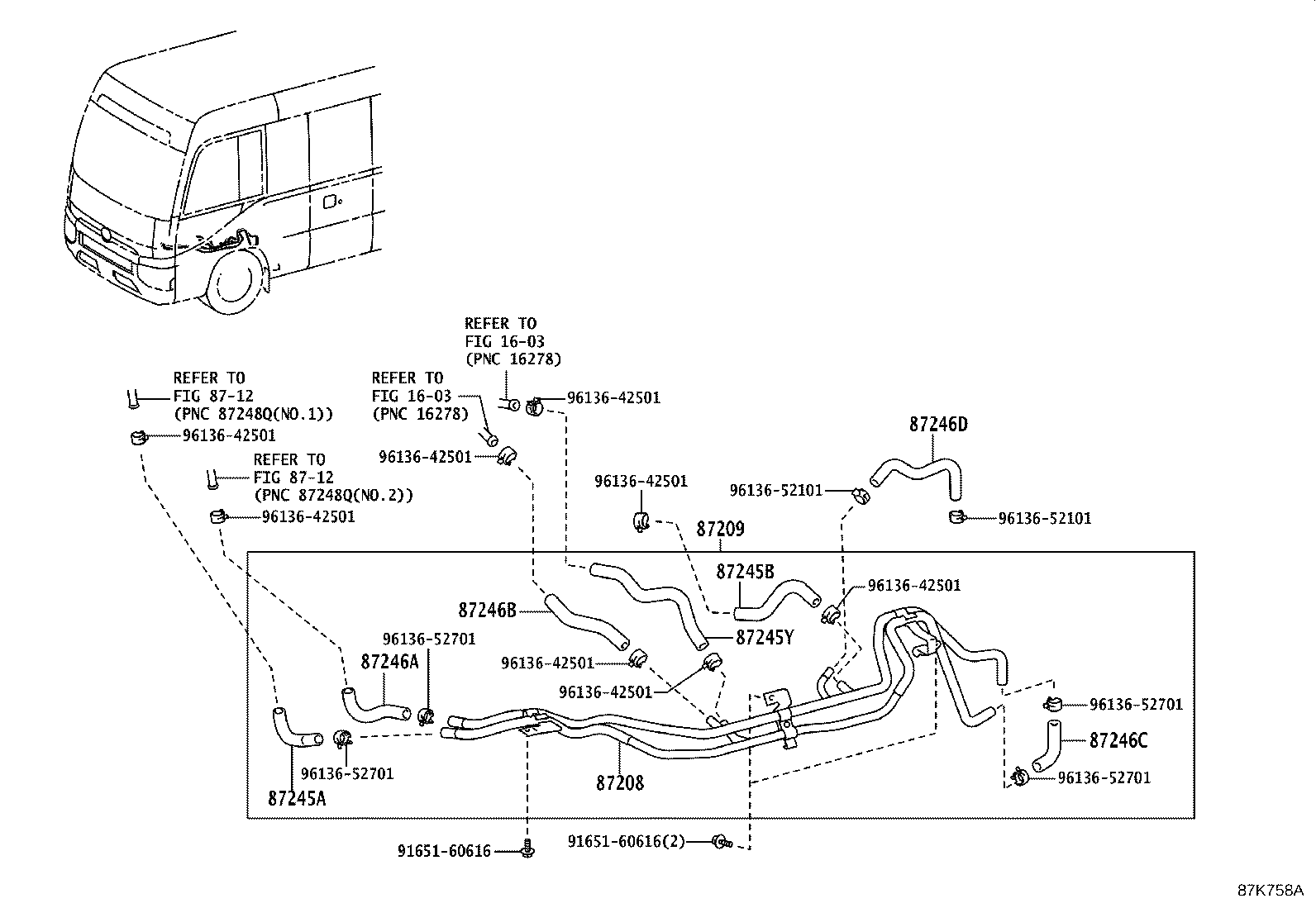

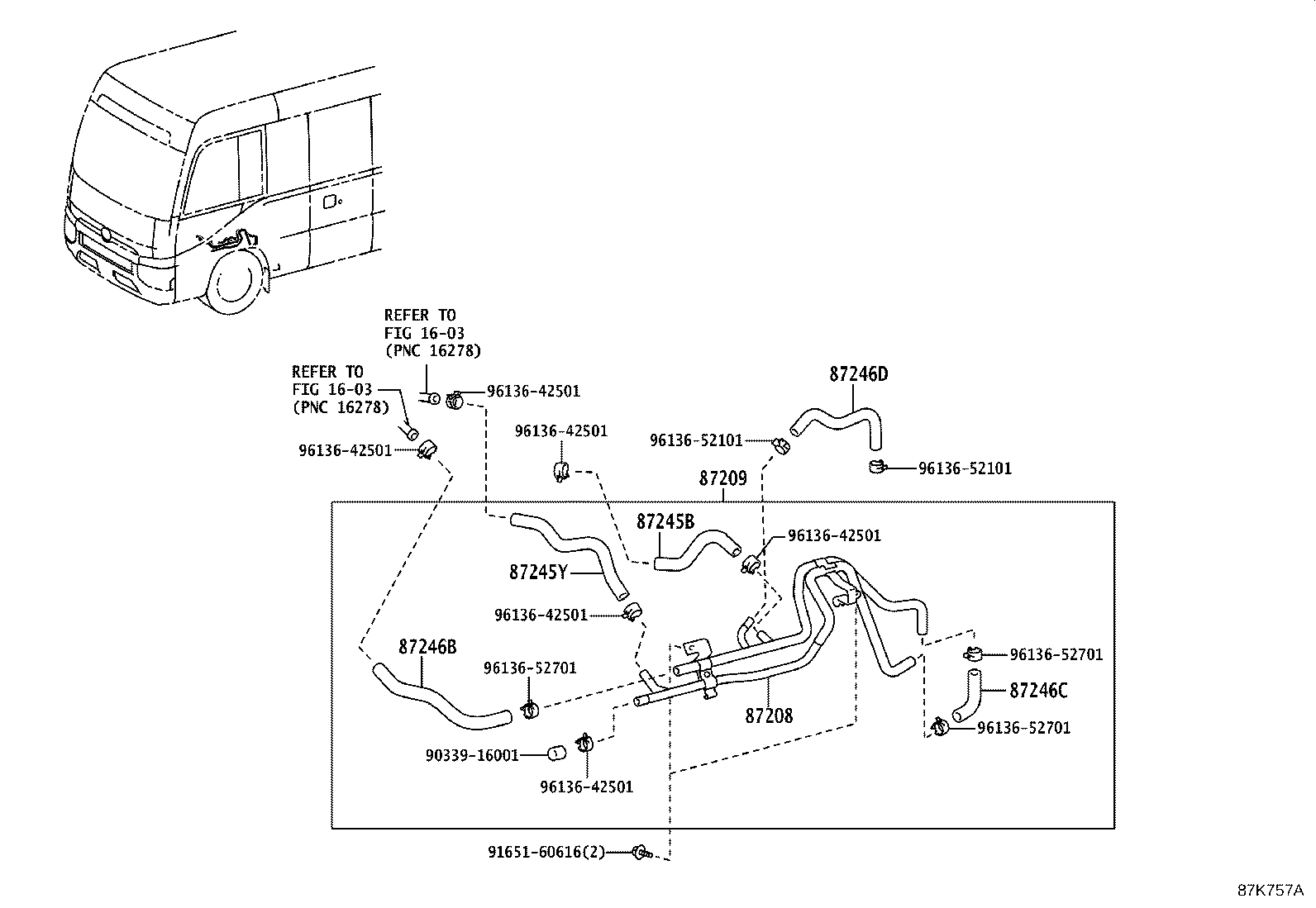

Figure 87G152E 87G152E 2017-01 → 2019-08 Figure 87I155A 87I155A 2019-08 → — Figure 87H046B 87H046B 2018-01 → 2019-08 Figure 87I156A 87I156A 2019-08 → — Figure 87G147B 87G147B 2017-01 → — Figure 87G151D 87G151D 2017-01 → — Figure 87G150C 87G150C 2017-01 → — Figure 87G149D 87G149D 2017-01 → — Figure 87G148B 87G148B 2017-01 → — Figure 87I153A 87I153A 2017-01 → 2019-08 Figure 87I154A 87I154A 2019-08 → — Figure 87K756A 87K756A 2022-01 → — Figure 87K757A 87K757A 2022-01 → — Figure 87K758A 87K758A 2022-01 → — Figure 87K775A 87K775A 2022-01 → — Figure 87K759A 87K759A 2022-01 → — Figure 87G172A 87G172A 2017-01 → — Figure 87G175B 87G175B 2017-01 → — Figure 87G293C 87G293C 2017-01 → — Figure 87G173B 87G173B 2017-01 → — Figure 87G292B 87G292B 2017-01 → — Figure 87G292B 87G292B 2024-01 → — Figure 87G174C 87G174C 2017-01 → — Figure 87H044 87H044 2018-01 → — Figure 87K760A 87K760A 2022-01 → — Figure 87K761A 87K761A 2022-01 → 2024-01 Figure 87K761A 87K761A 2022-01 → — Figure 87K783A 87K783A 2022-01 → — Figure 87K793A 87K793A 2022-01 → —

Part groups

PNCDescription
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87208E Pipe Sub-assy, Heater Water, E
87208G Pipe Sub-assy, Heater Water, G
87208H Pipe Sub-assy, Heater Water, H
87208J Pipe Sub-assy, Heater Water, J
87209 Hose Sub-assy, Water
87209D Hose Sub-assy, Water, D
87209Q Hose Sub-assy, Water, F
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245Y Hose, Heater Water
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87247C Hose, Heater Water, C
87248A Pipe, Heater Water Inlet, A
87251C Joint, Water Hose Through
87251D Joint, Water, NO.1
87251E Joint, Water, NO.2
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255D Hose, Rear Heater Water Inlet, D
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87255G Hose, Rear Heater Water Inlet, G
87255J Hose, Heater Water Inlet, J
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87256D Hose, Rear Heater Water Outlet, D
87256G Hose, Rear Heater Water Outlet, G
87256J Hose, Rear Heater Water Outlrt, J
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
