Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

113 part groups · 42 illustrations

Illustrations

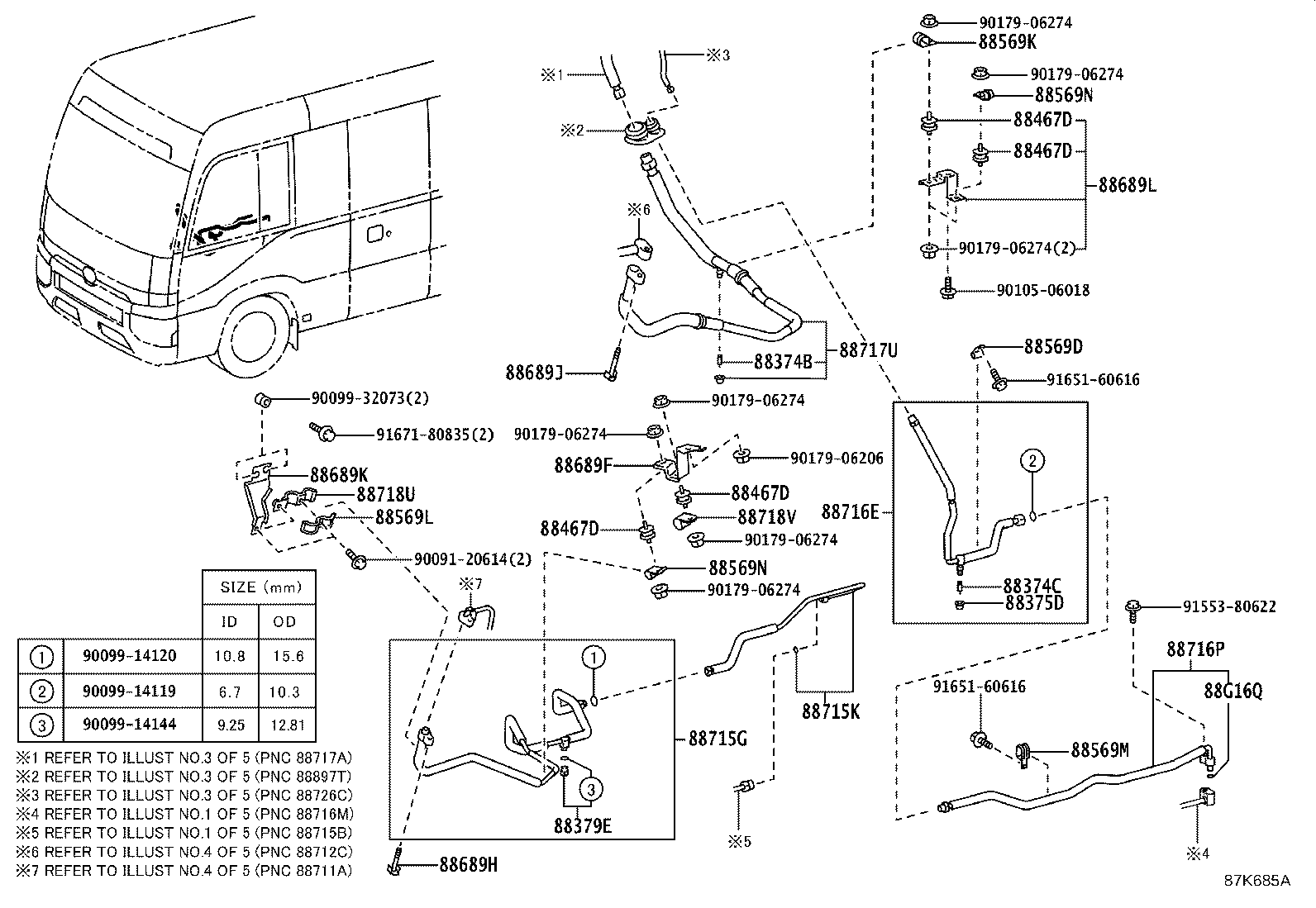

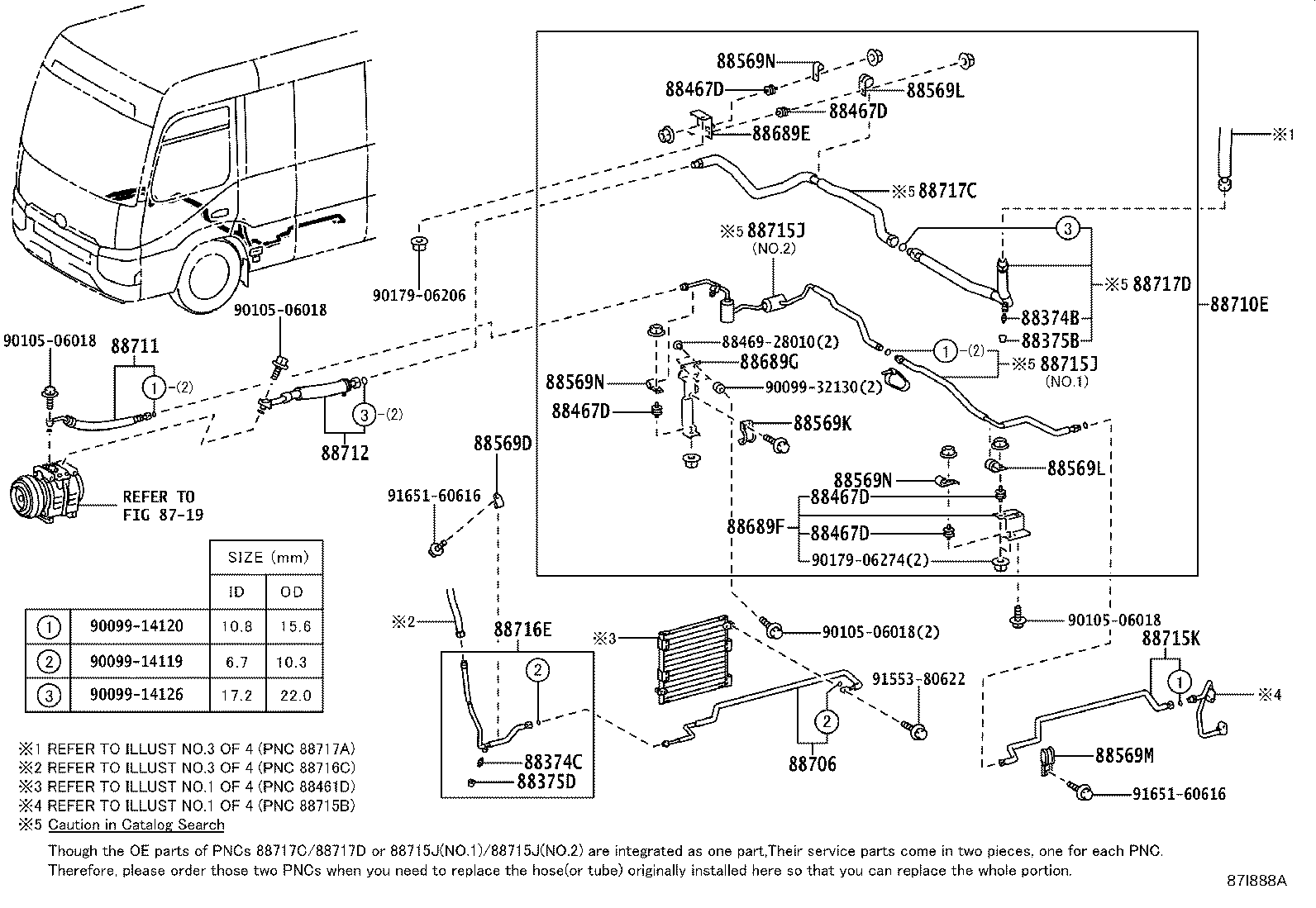

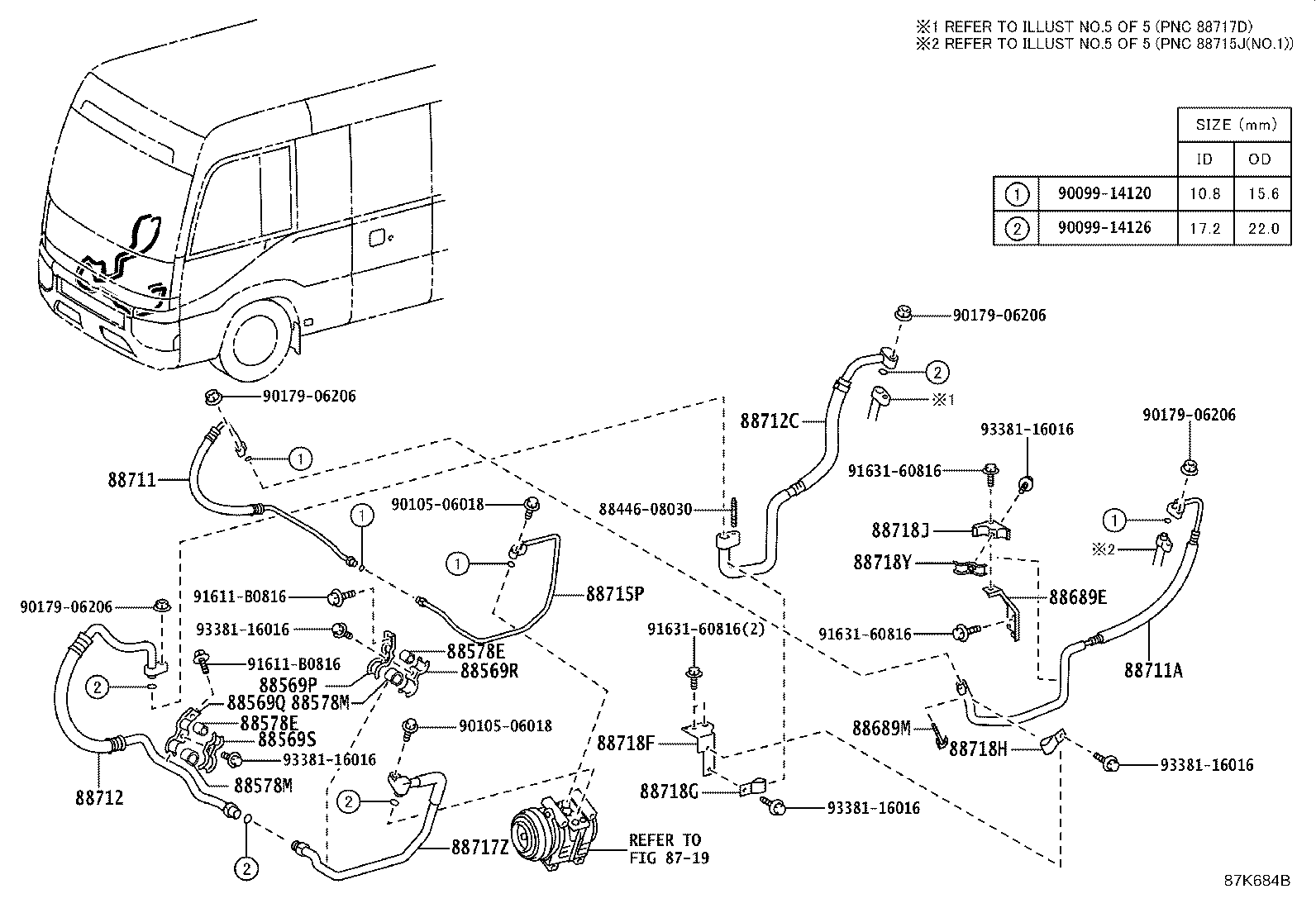

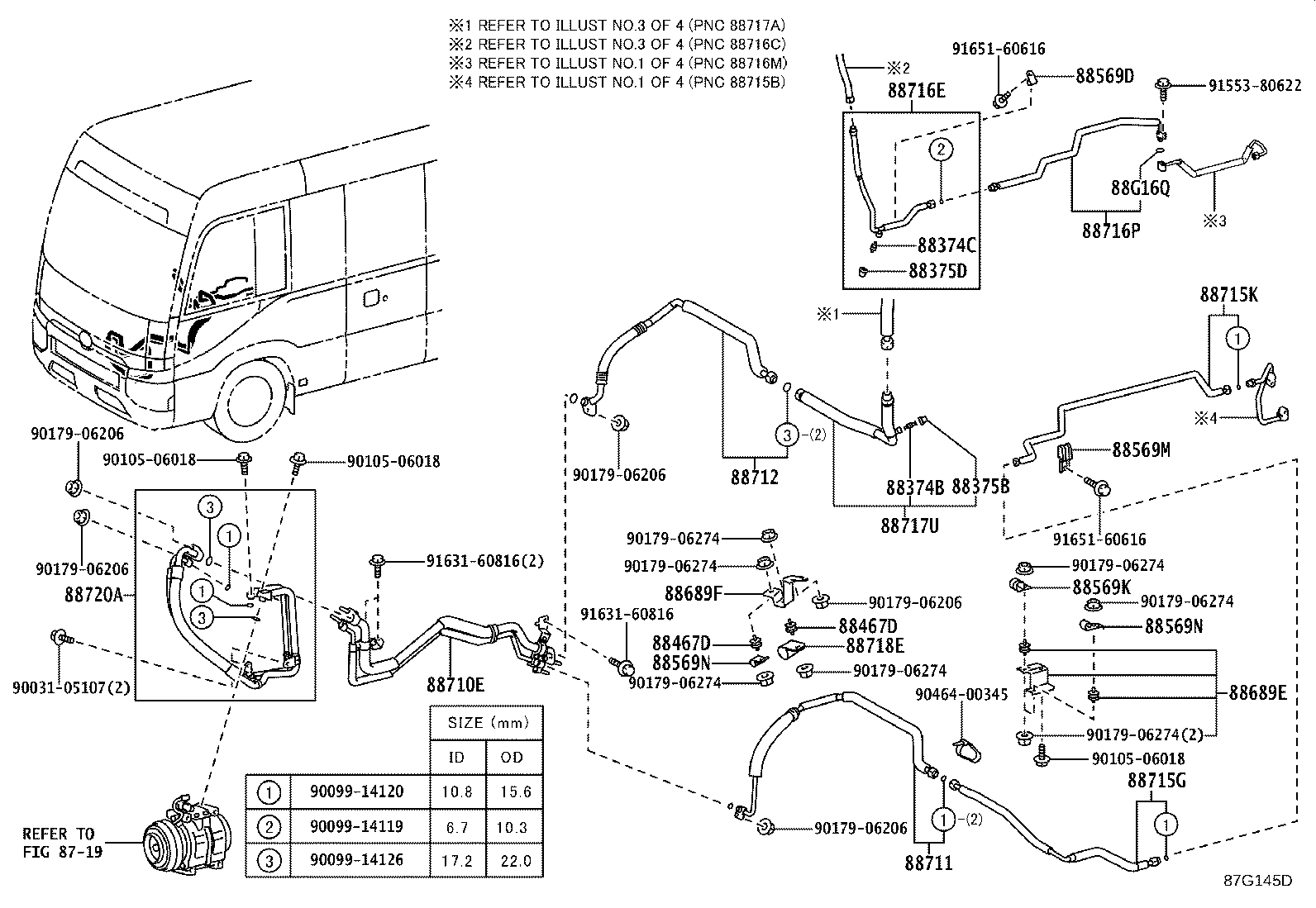

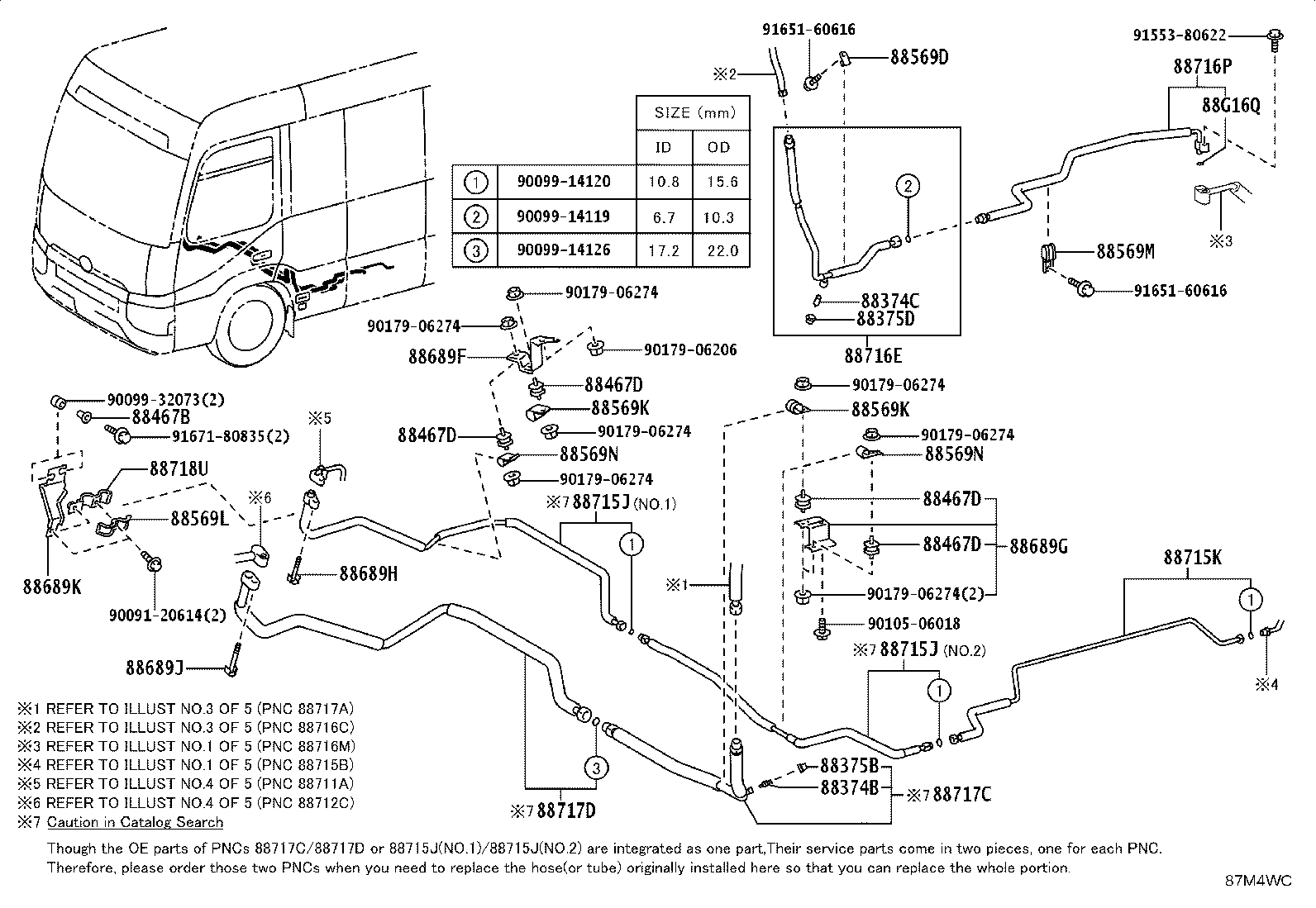

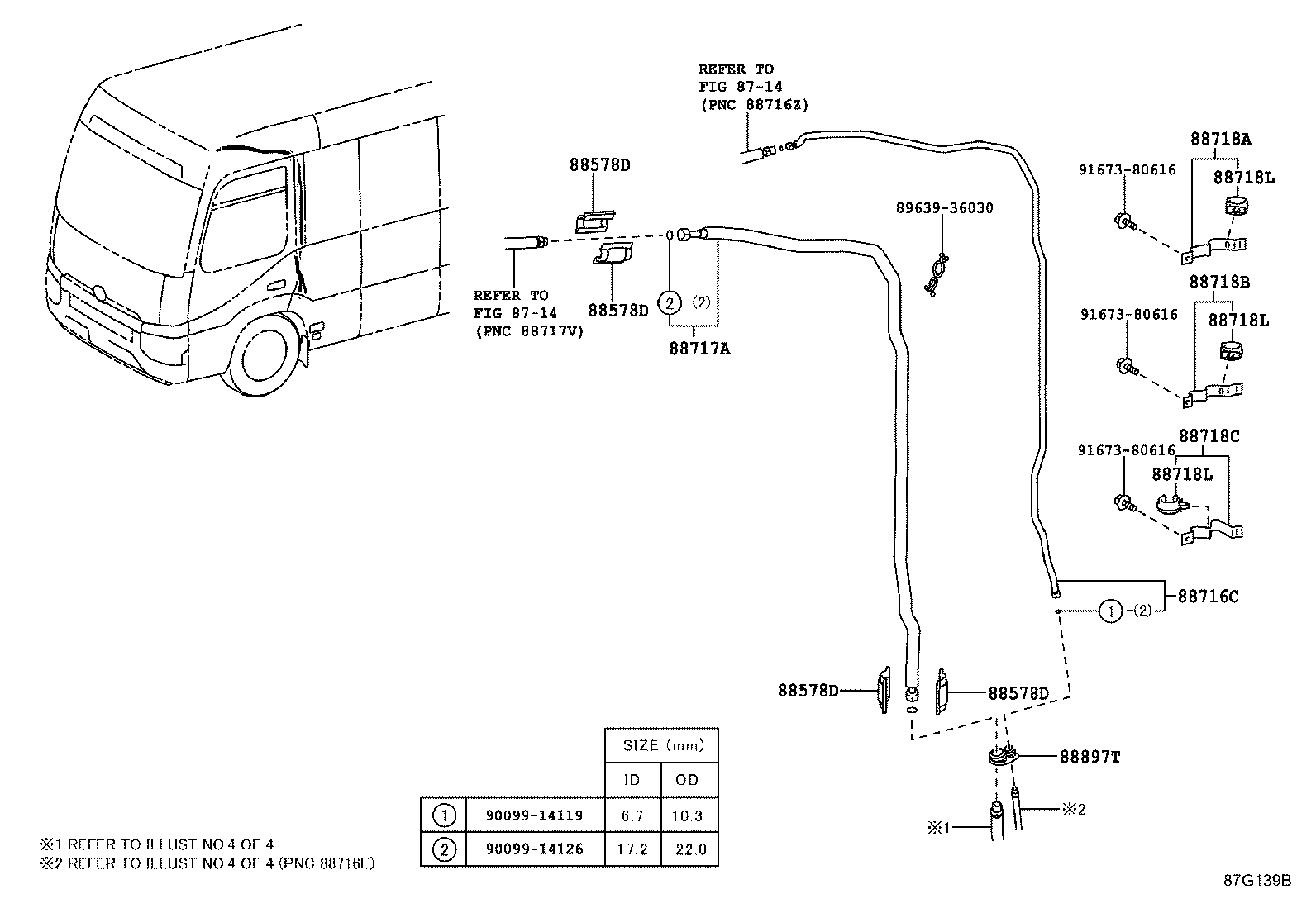

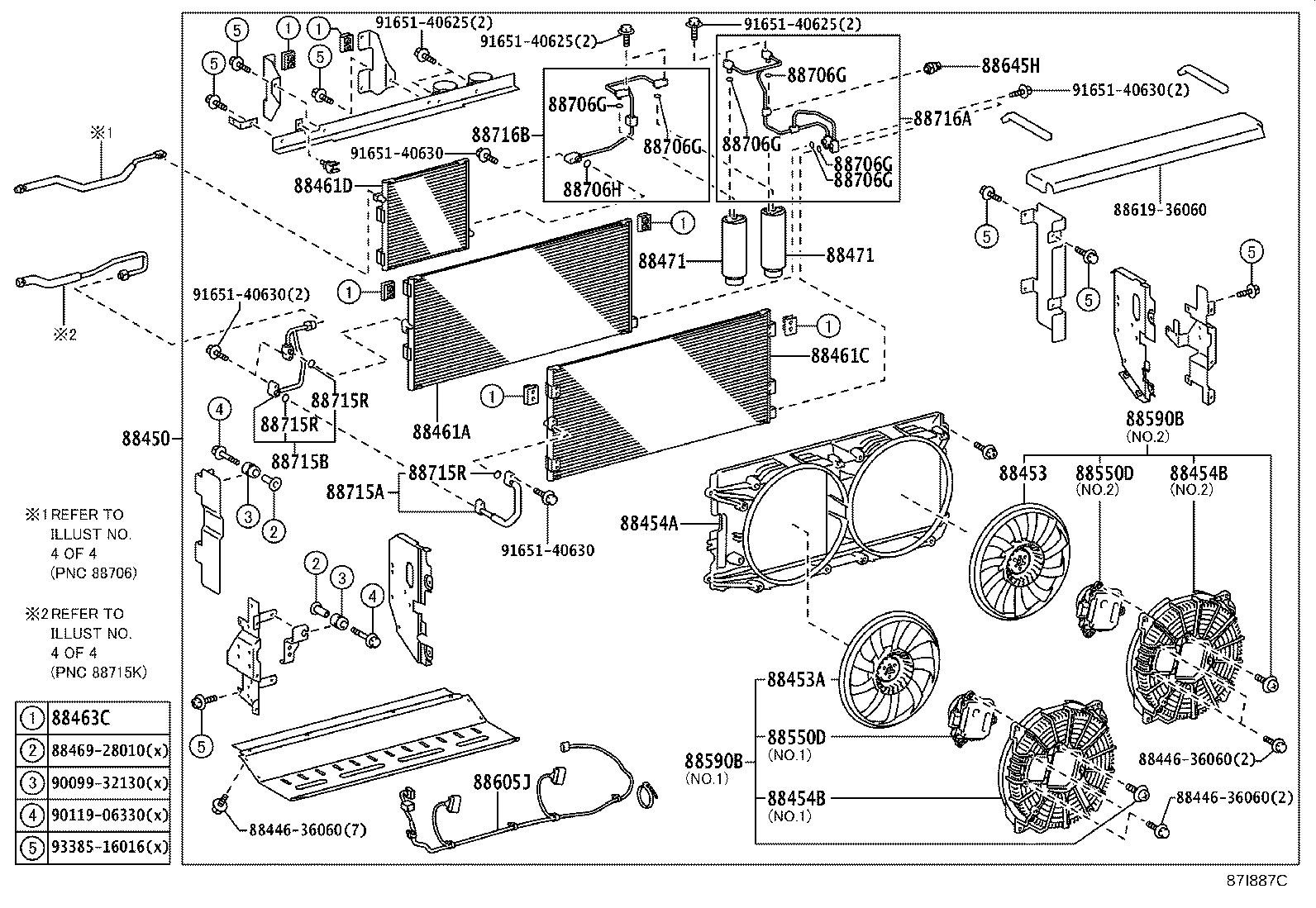

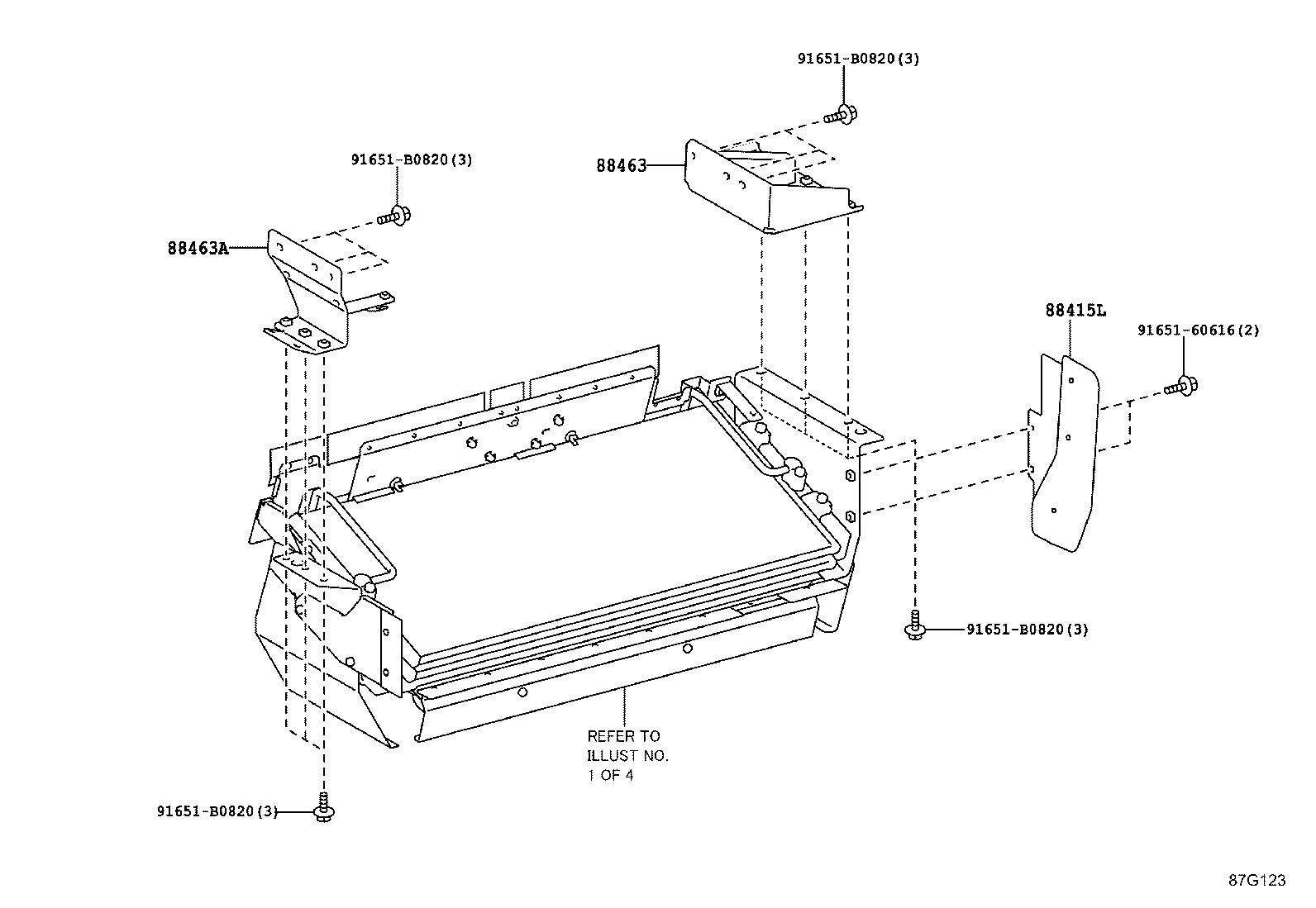

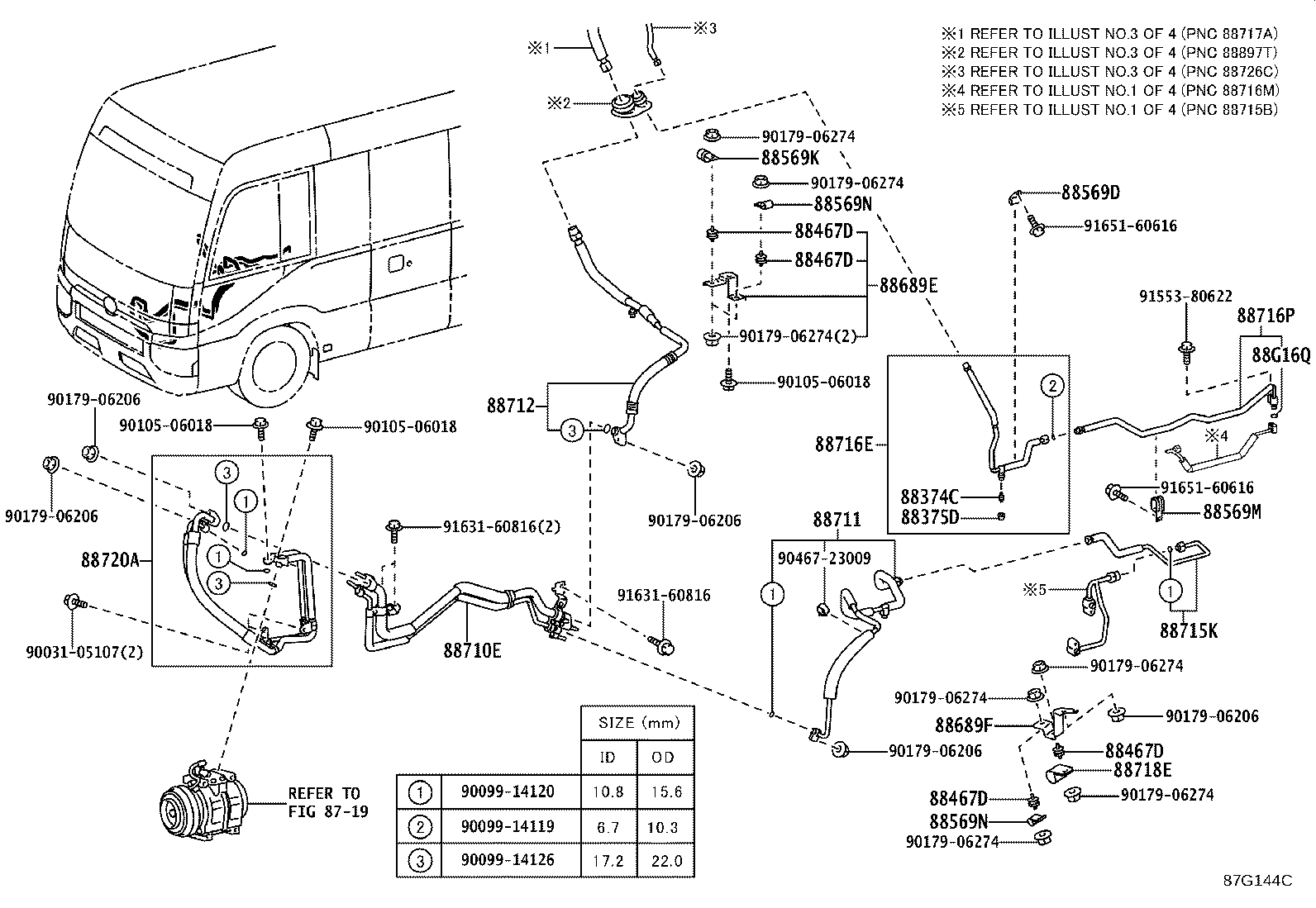

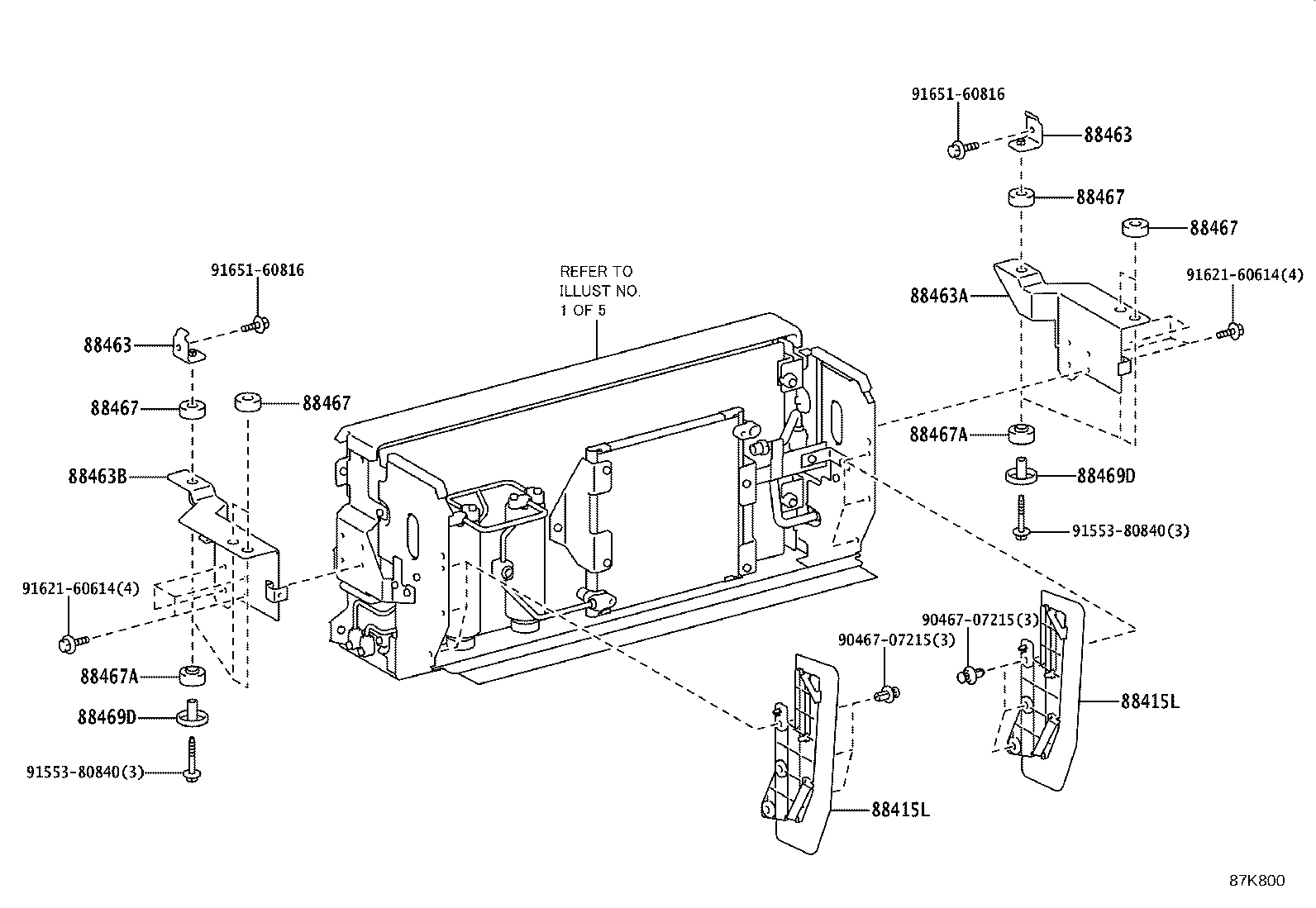

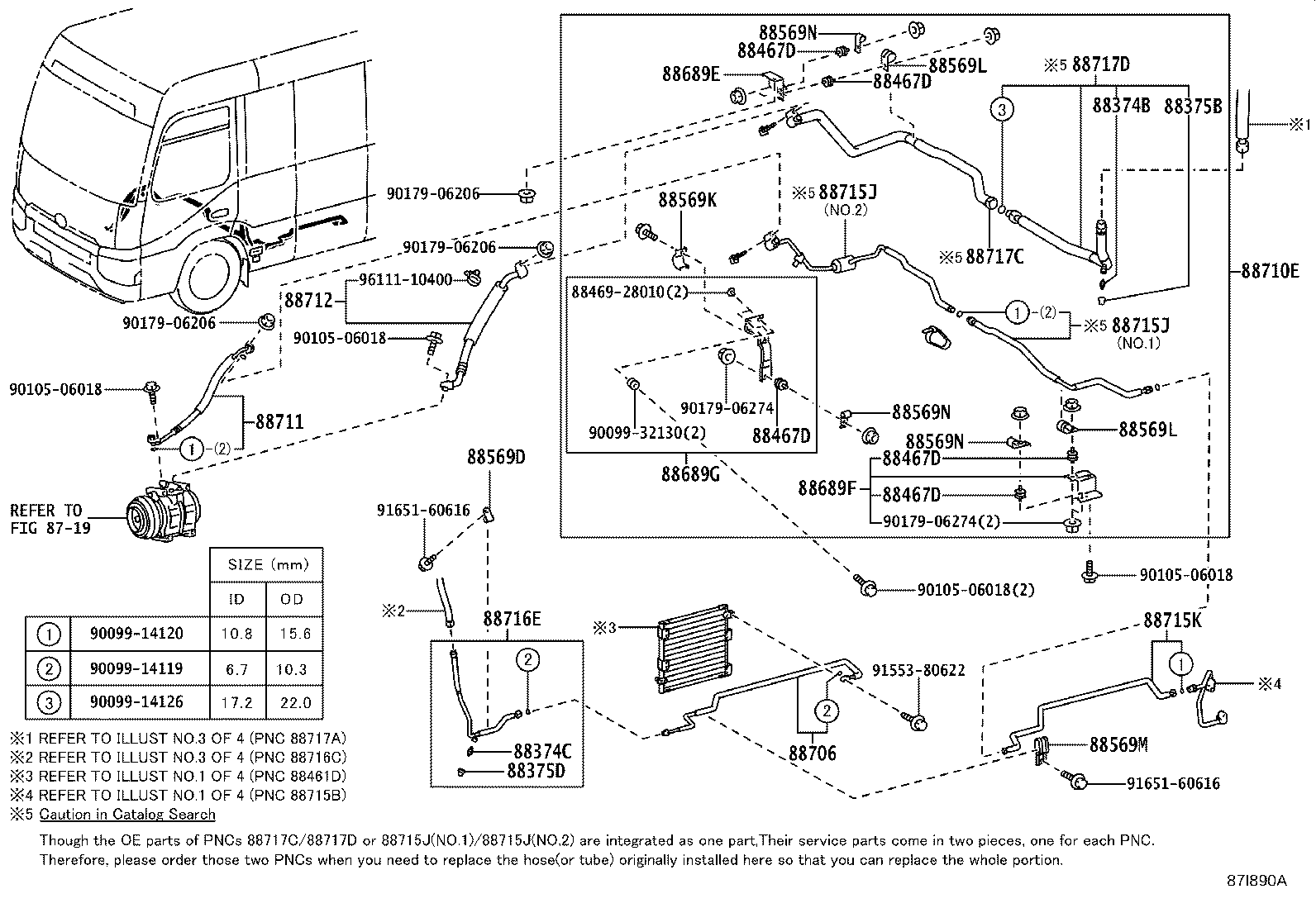

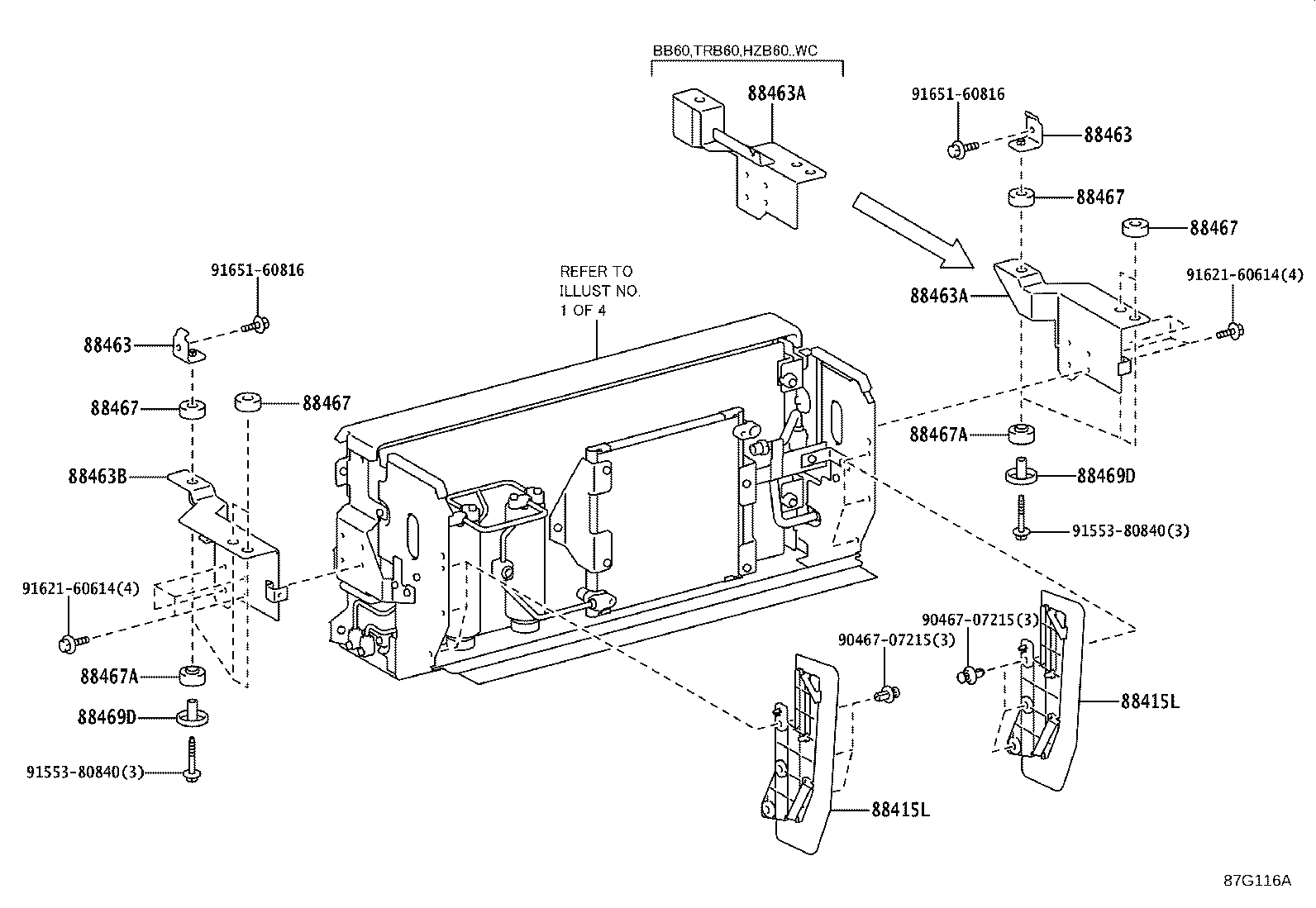

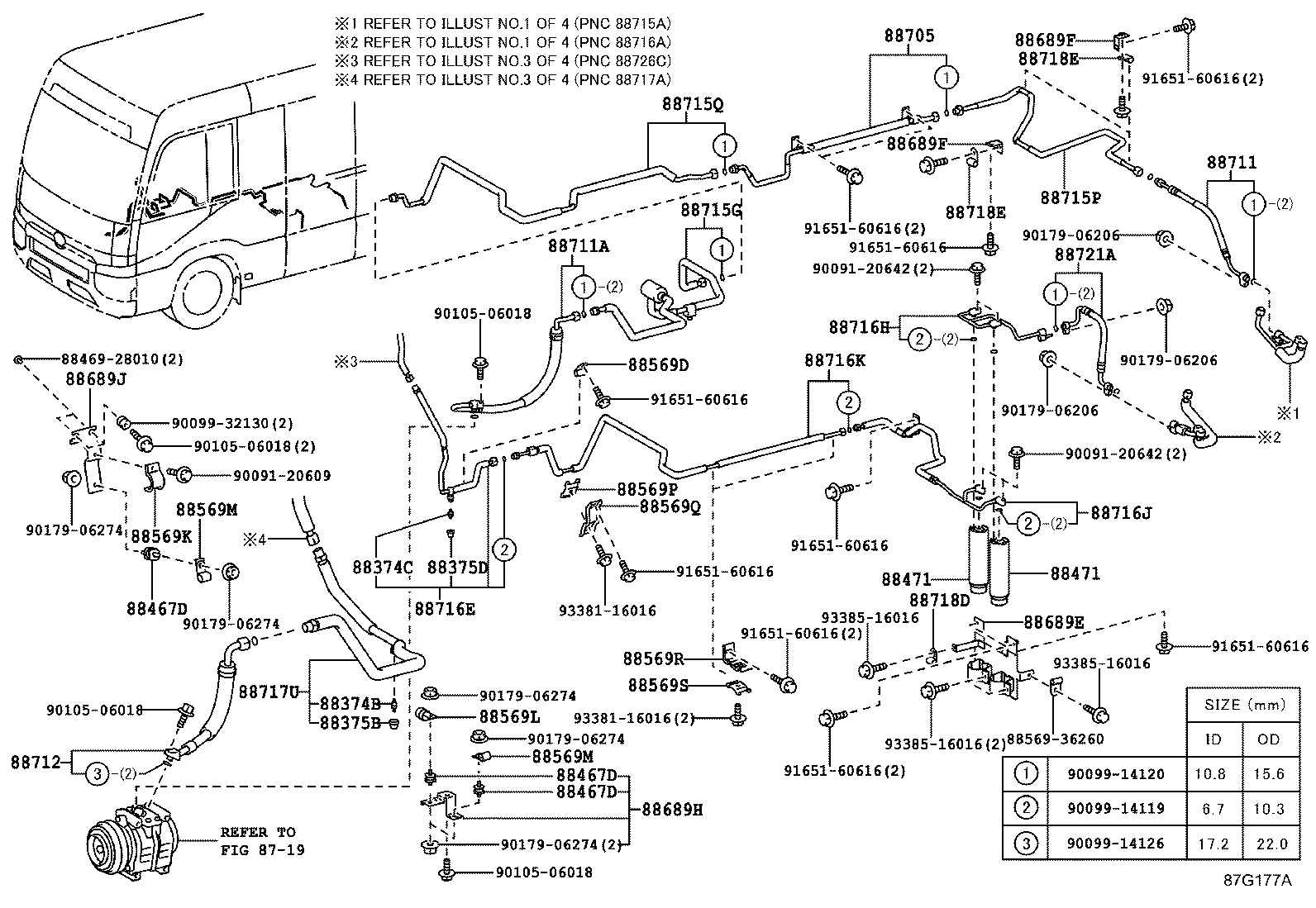

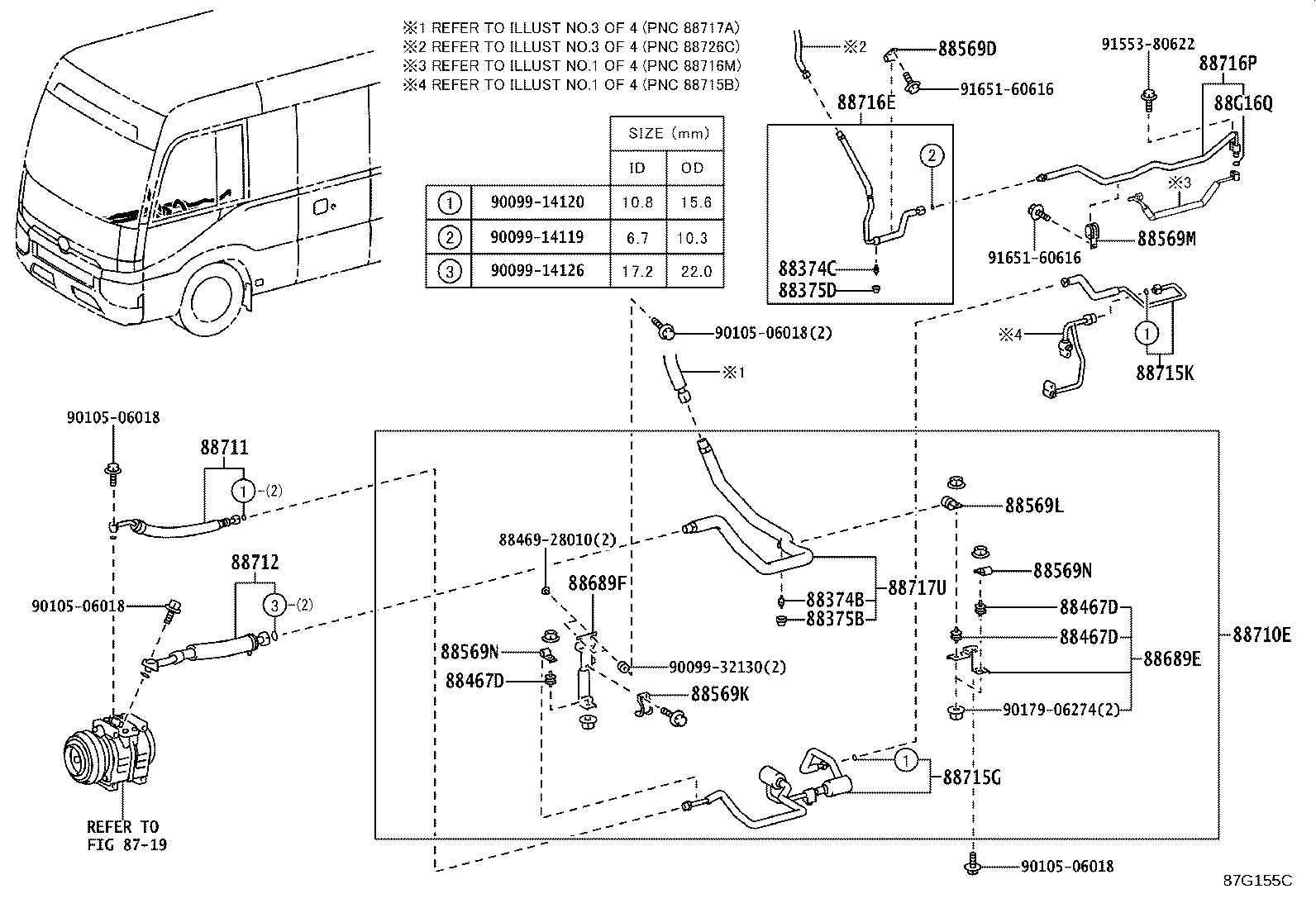

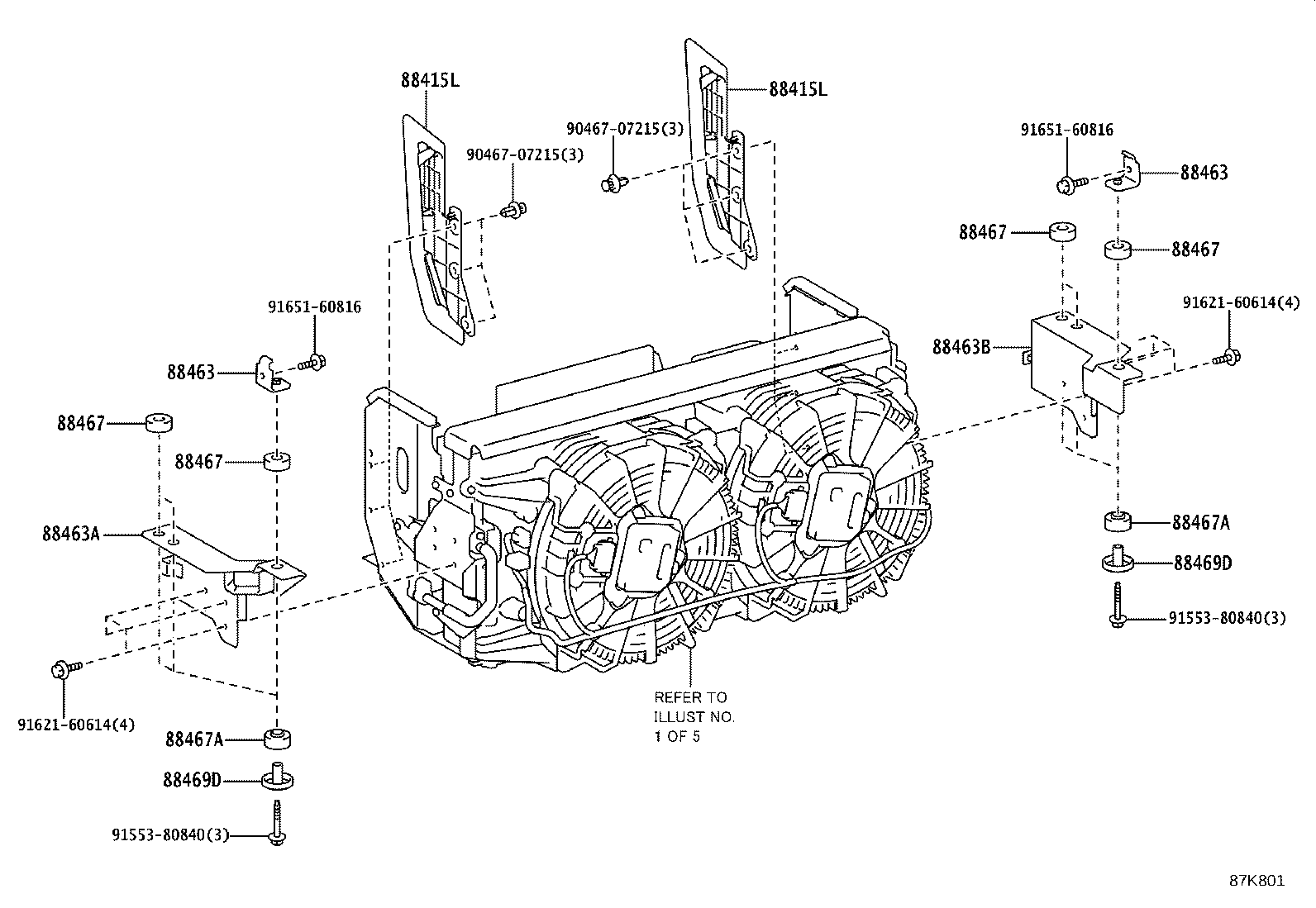

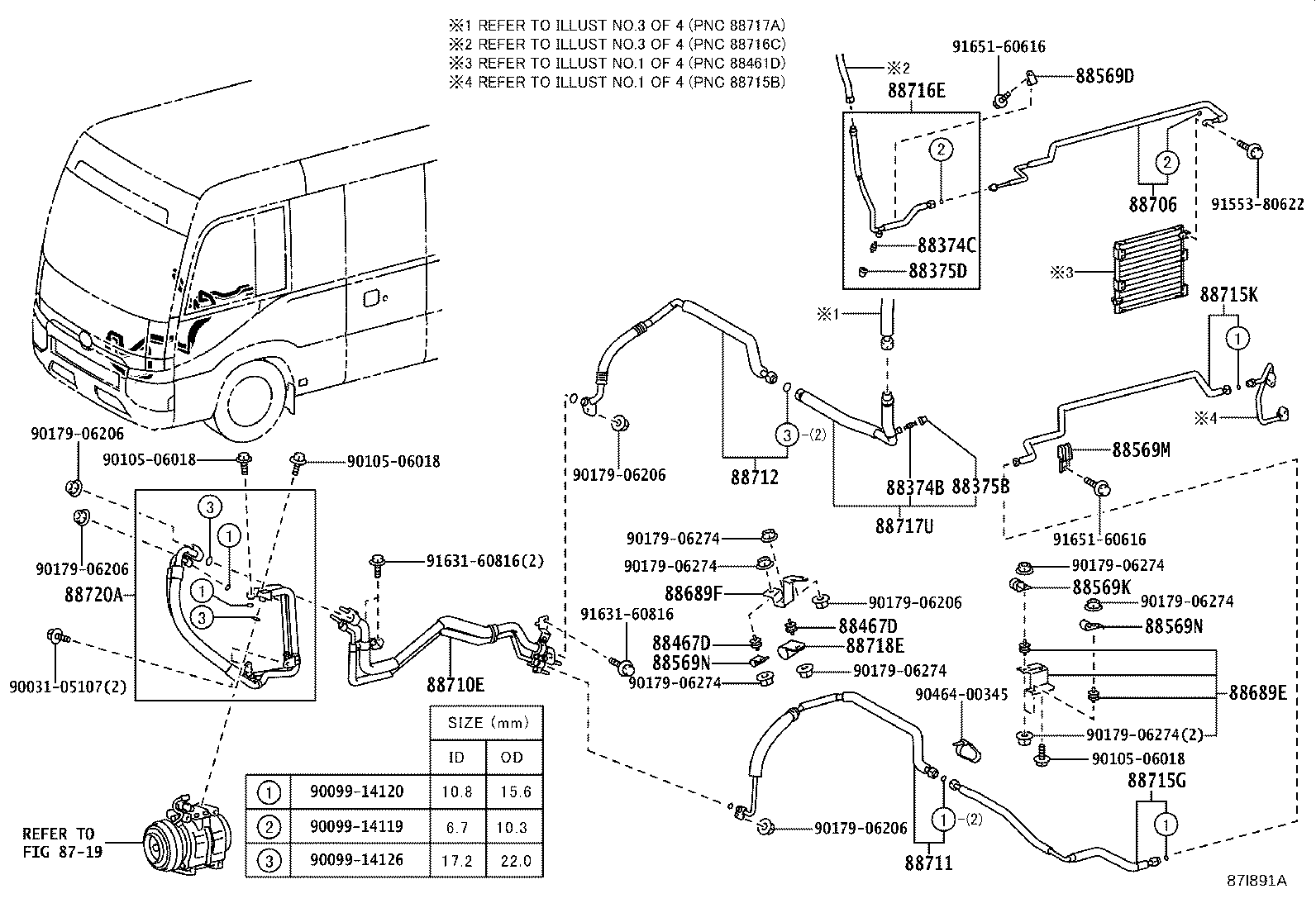

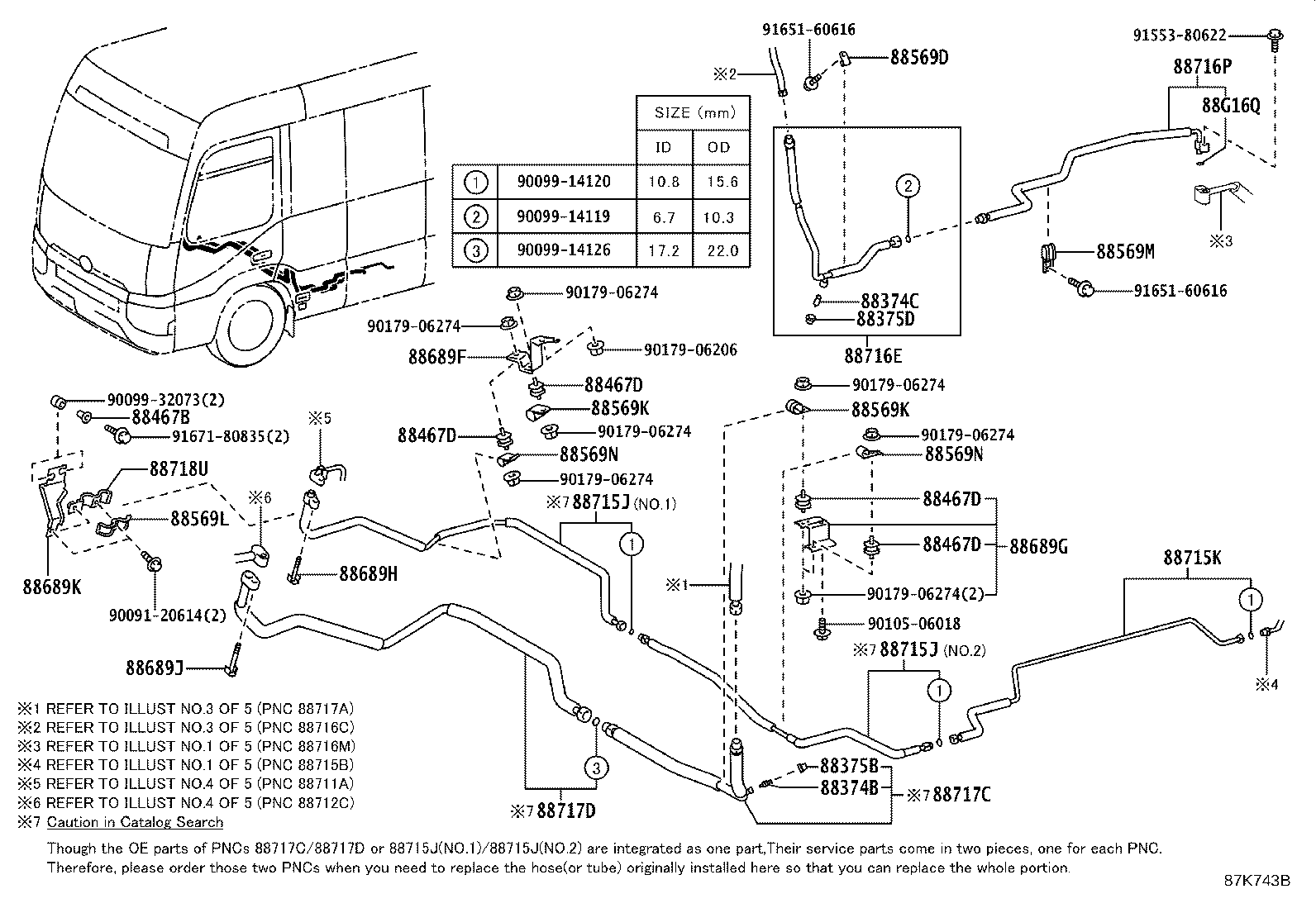

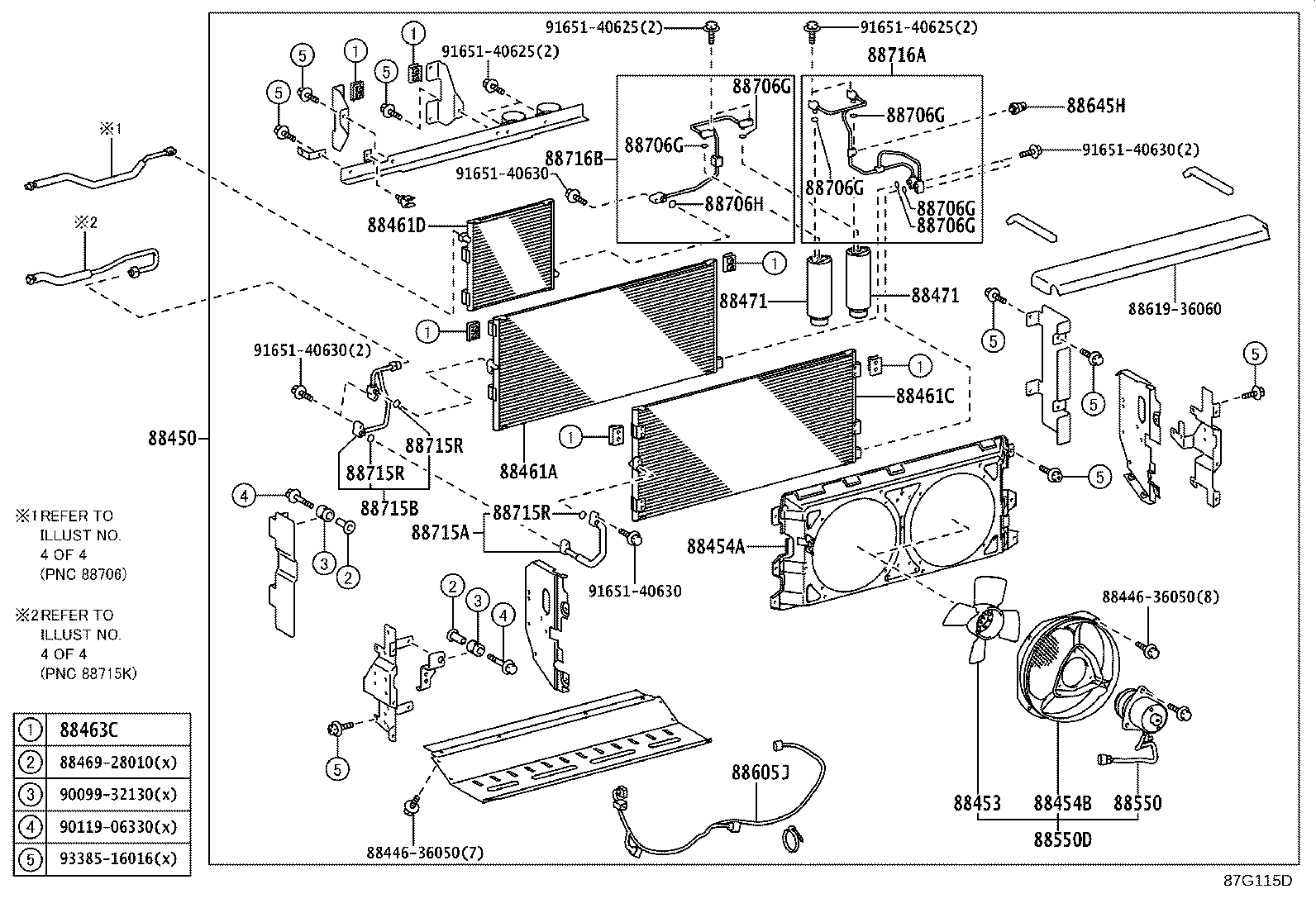

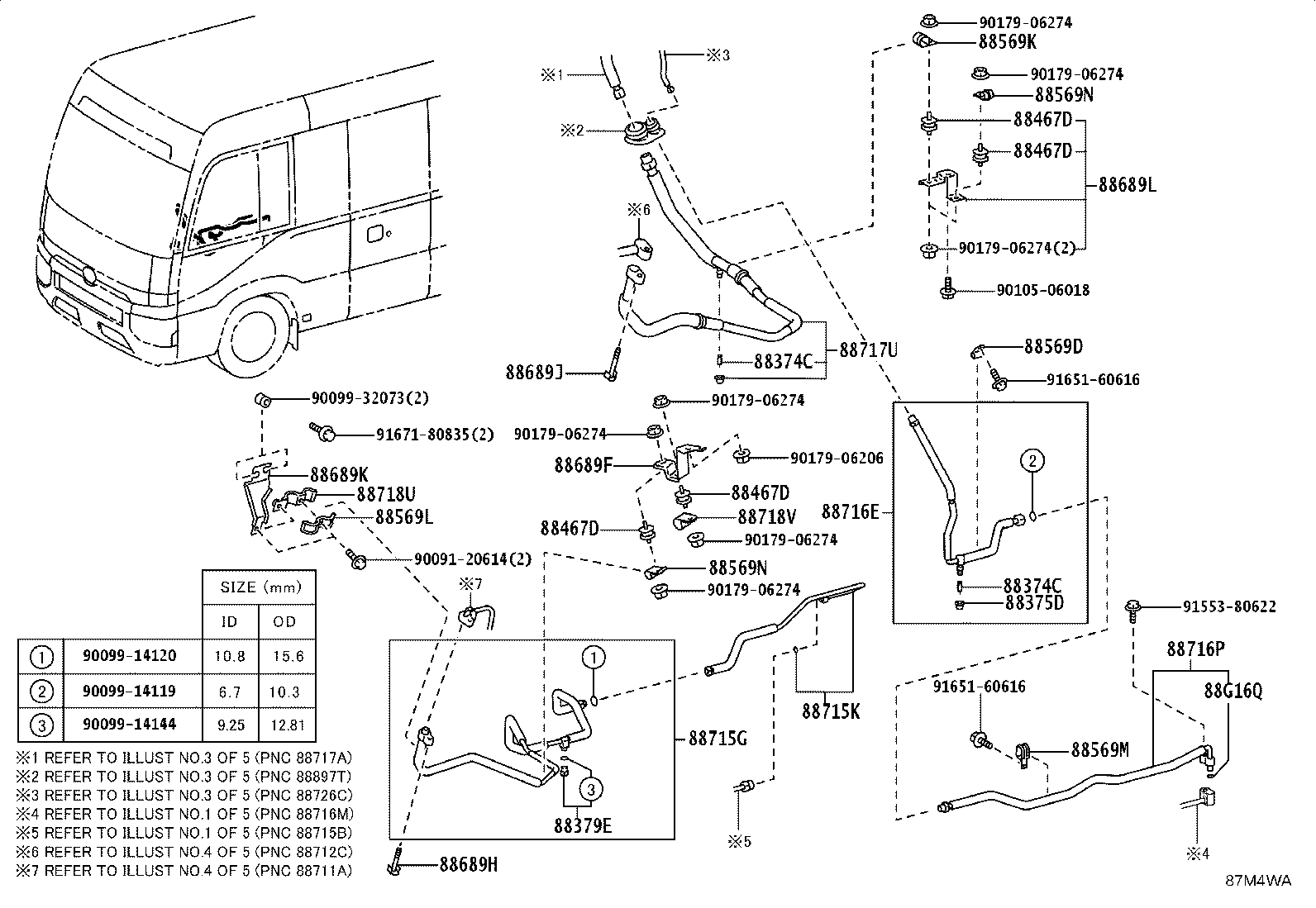

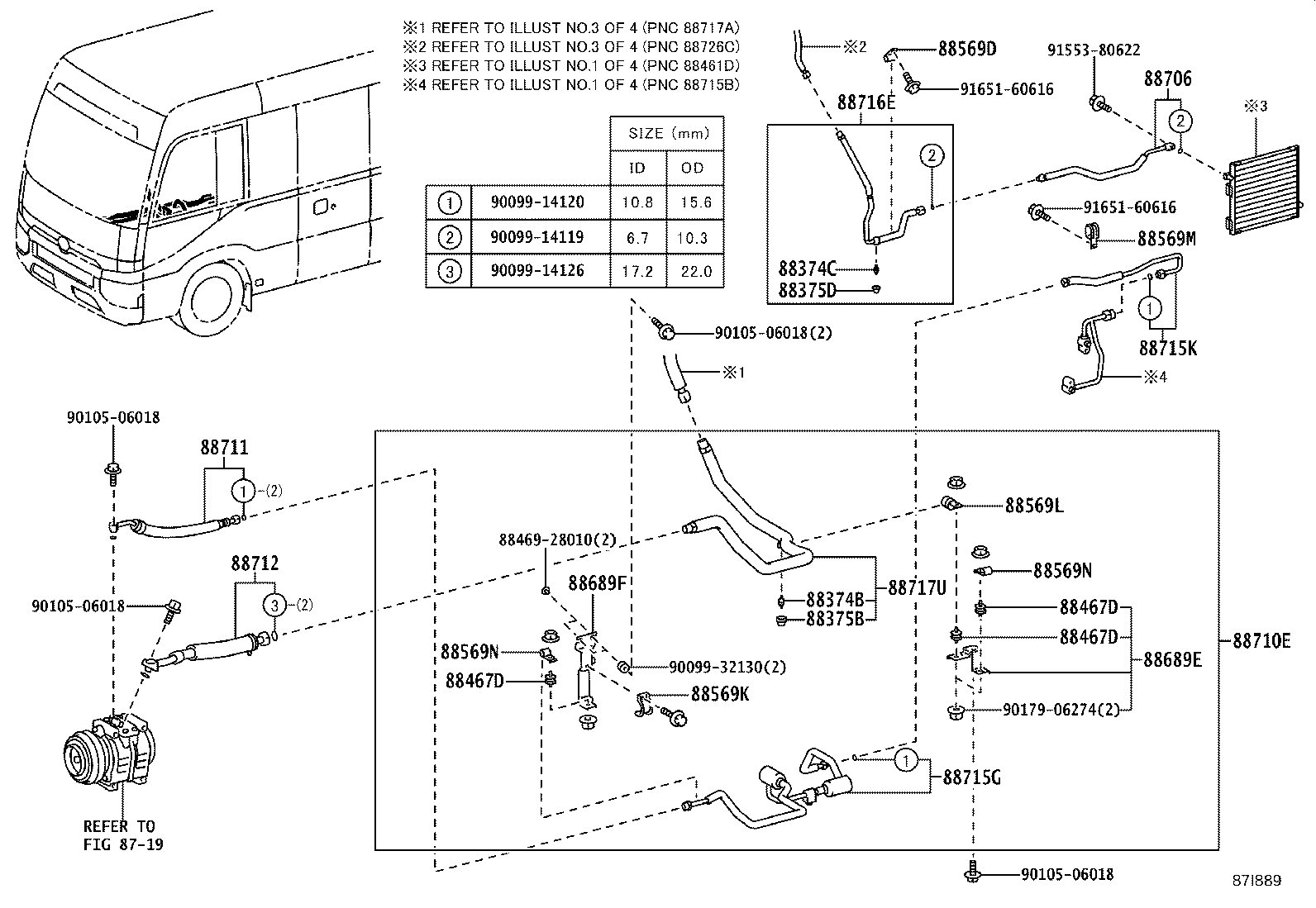

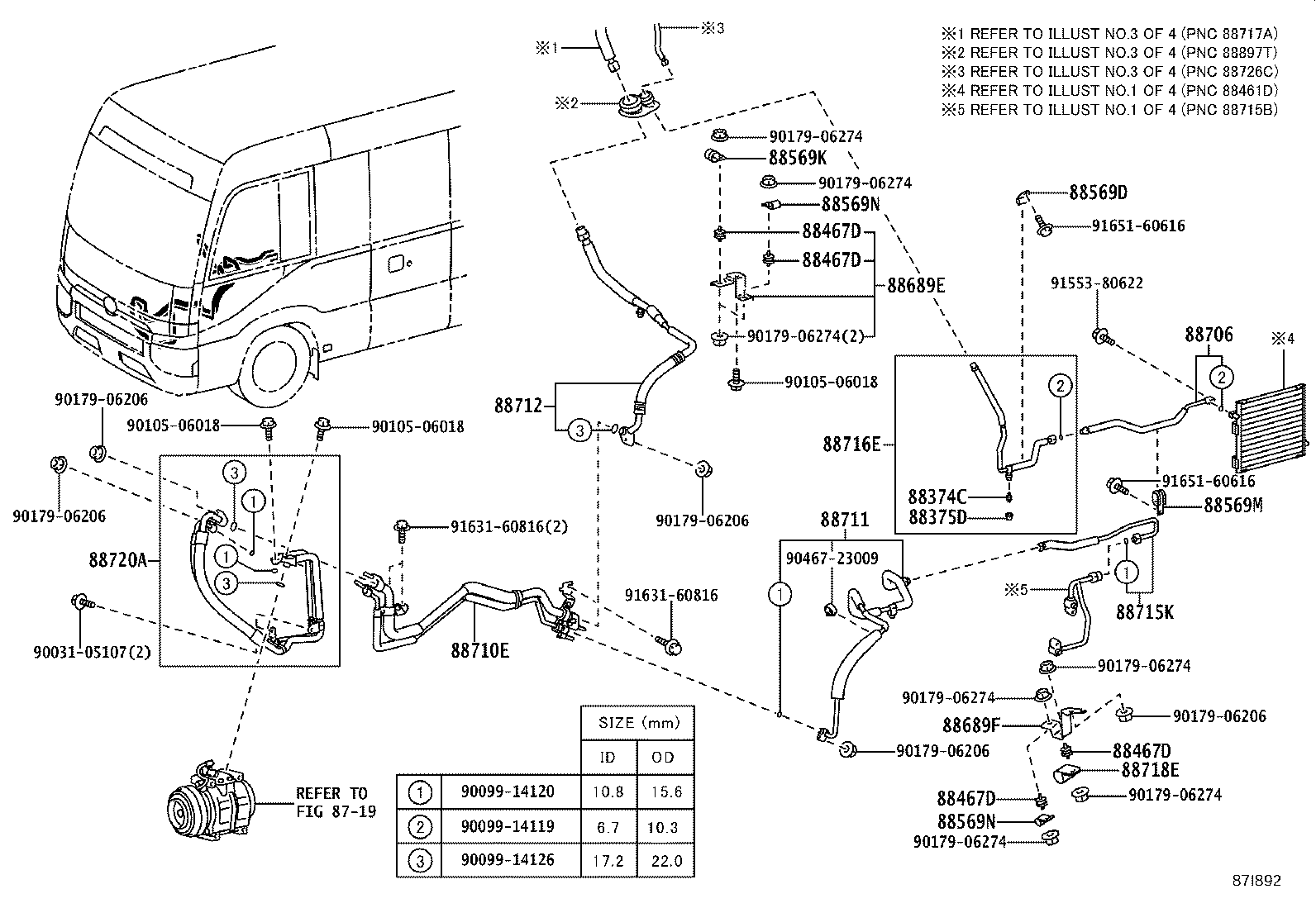

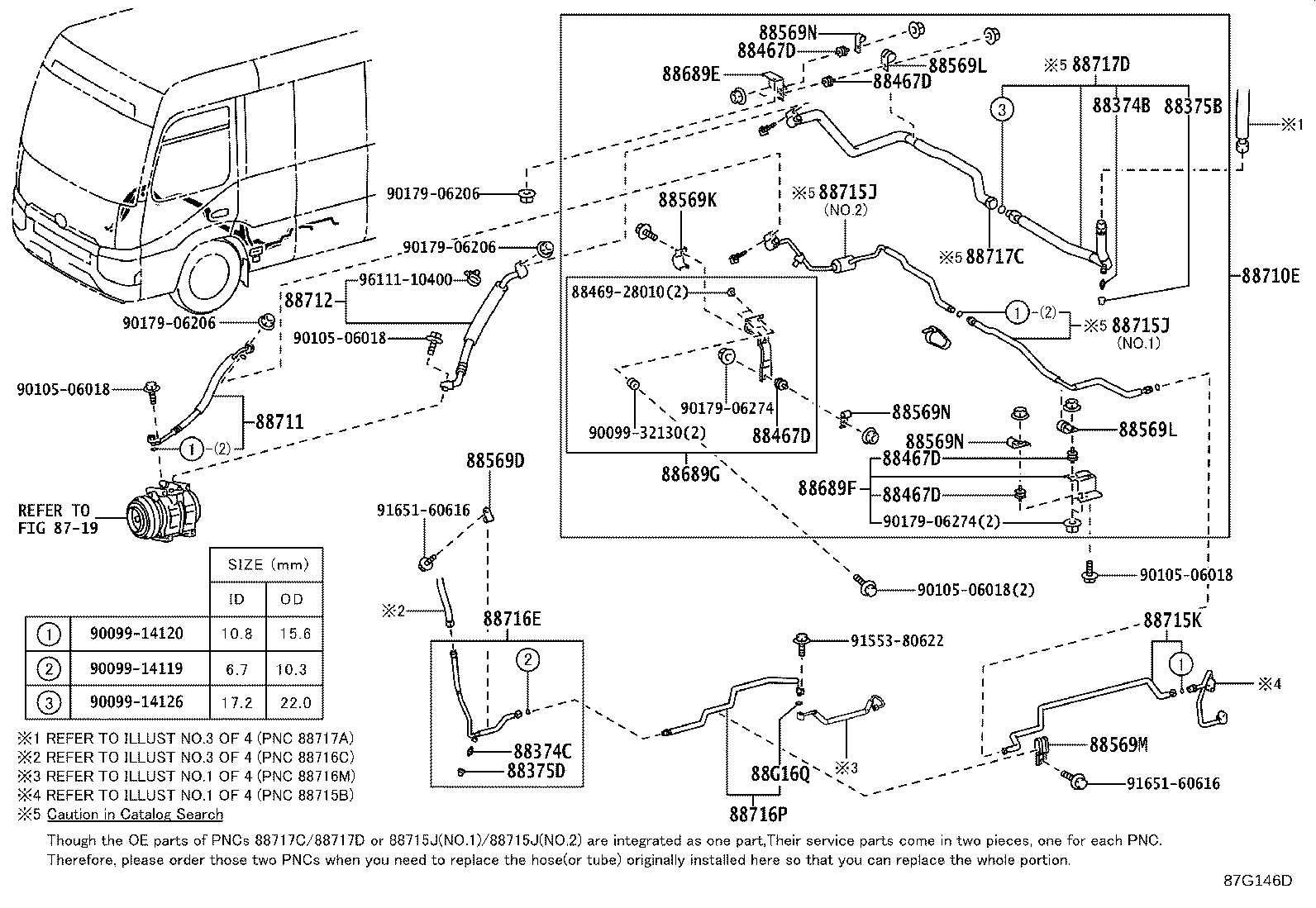

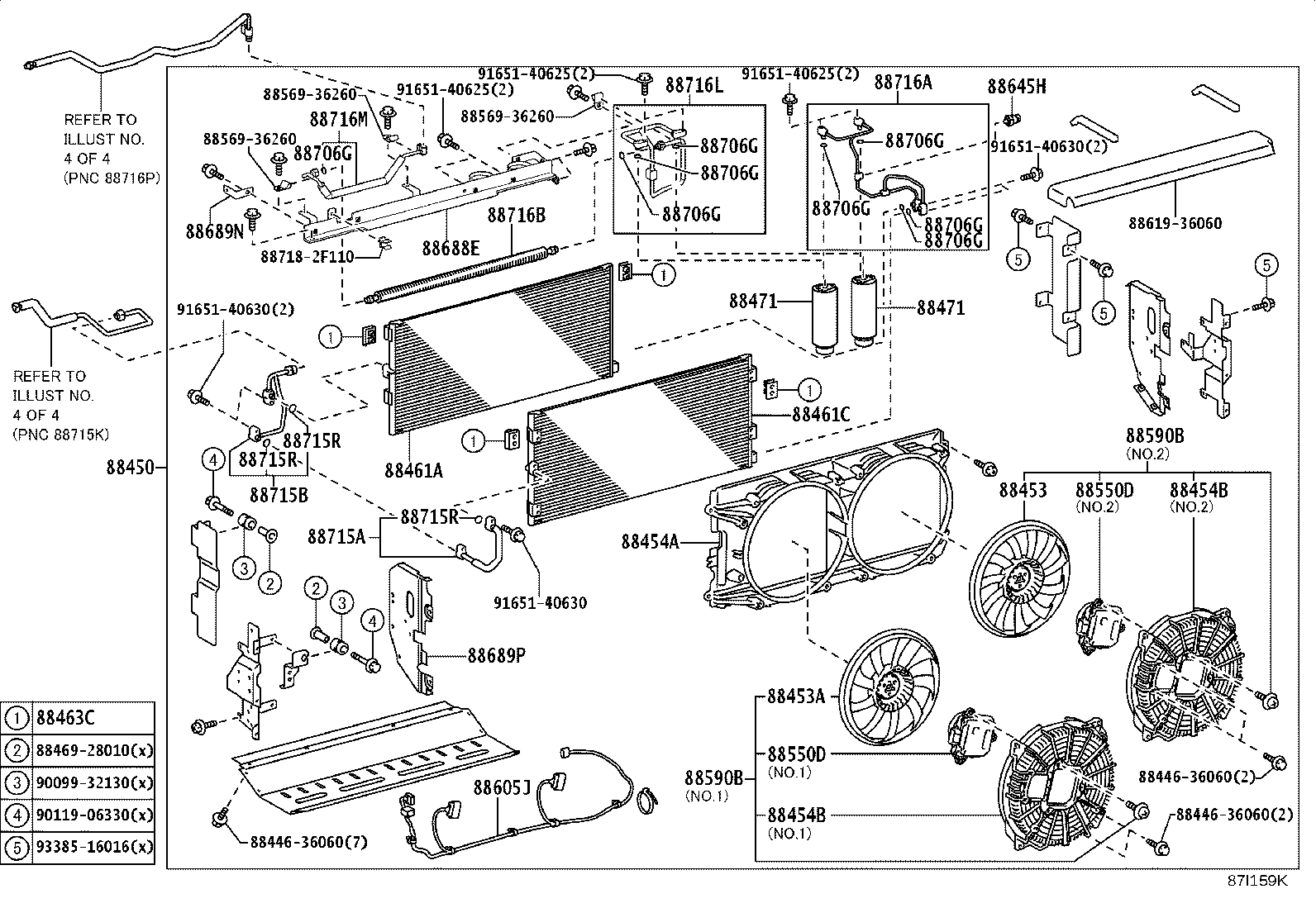

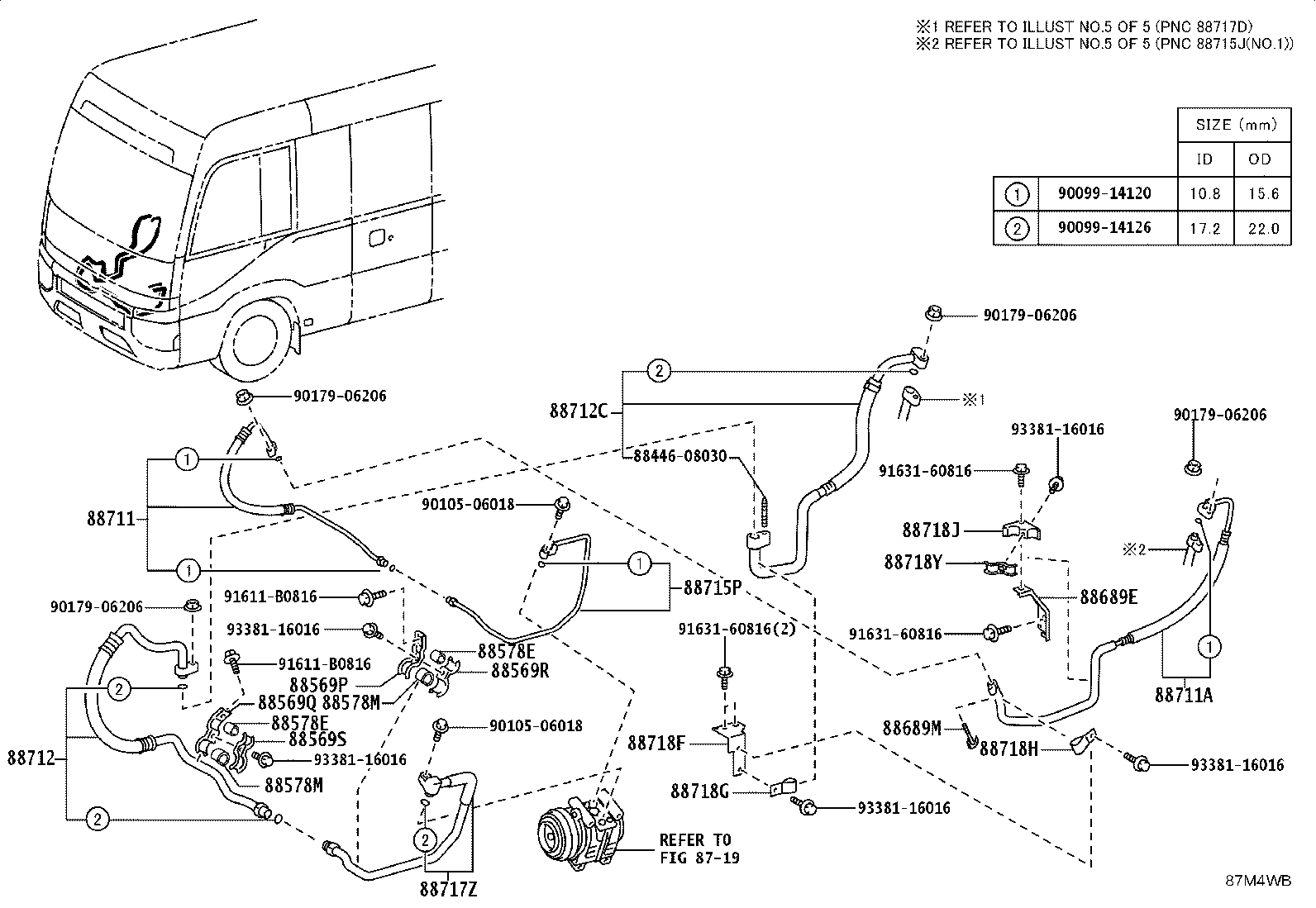

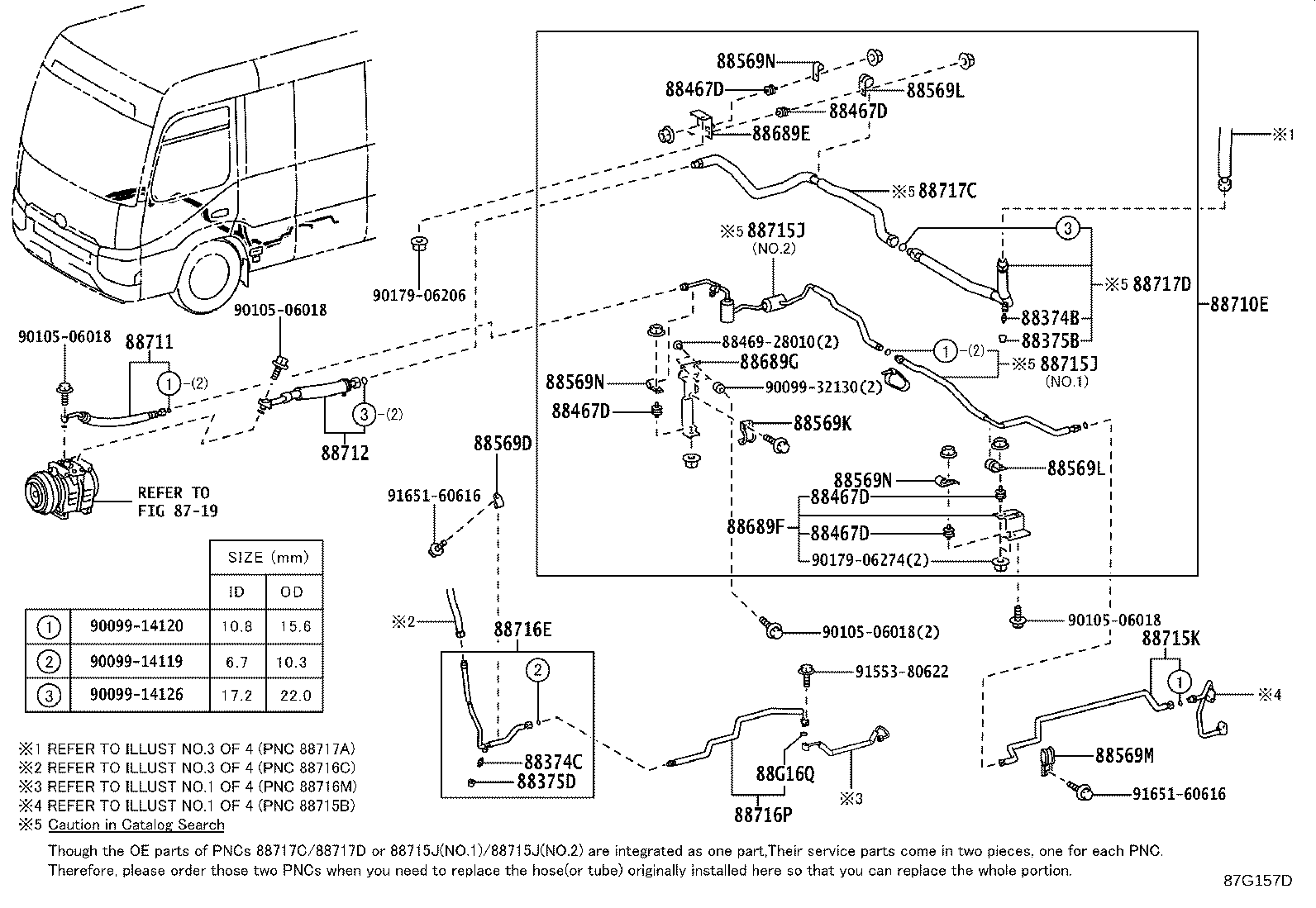

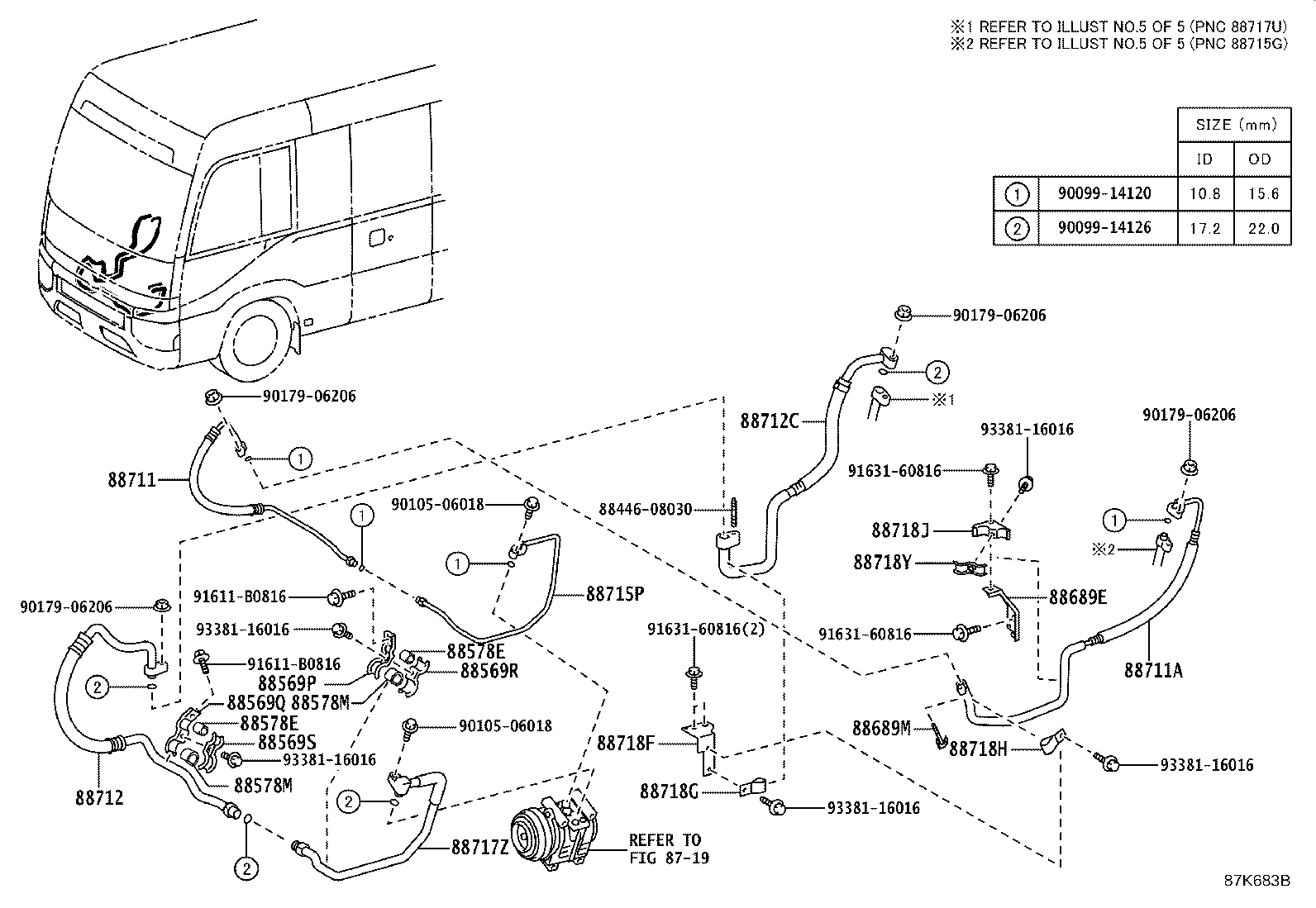

Figure 87G114E 87G114E 2017-01 → 2019-08 Figure 87I886C 87I886C 2019-08 → 2020-01 Figure 87I160G 87I160G 2020-01 → — Figure 87K798C 87K798C 2022-01 → — Figure 87G115D 87G115D 2017-01 → 2019-08 Figure 87I887C 87I887C 2019-08 → 2021-01 Figure 87G122B 87G122B 2017-01 → — Figure 87I159K 87I159K 2020-01 → — Figure 87K799D 87K799D 2022-01 → — Figure 87G116A 87G116A 2017-01 → — Figure 87K800 87K800 2022-01 → — Figure 87I158 87I158 2017-01 → 2019-08 Figure 87G123 87G123 2017-01 → — Figure 87I161A 87I161A 2019-08 → — Figure 87K801 87K801 2022-01 → — Figure 87G139B 87G139B 2017-01 → — Figure 87K802 87K802 2022-01 → — Figure 87G138B 87G138B 2017-01 → — Figure 87K803 87K803 2022-01 → — Figure 87G162B 87G162B 2017-01 → — Figure 87G161A 87G161A 2017-01 → — Figure 87G176A 87G176A 2017-01 → — Figure 87G177A 87G177A 2017-01 → — Figure 87I888A 87I888A 2017-01 → 2020-01 Figure 87G157D 87G157D 2020-01 → — Figure 87I889 87I889 2017-01 → 2020-01 Figure 87G155C 87G155C 2020-01 → — Figure 87I890A 87I890A 2017-01 → 2020-01 Figure 87G146D 87G146D 2020-01 → — Figure 87I891A 87I891A 2017-01 → 2020-01 Figure 87G145D 87G145D 2020-01 → — Figure 87I892 87I892 2017-01 → 2020-01 Figure 87G144C 87G144C 2020-01 → — Figure 87M4WE 87M4WE 2025-01 → — Figure 87K684B 87K684B 2022-01 → — Figure 87K683B 87K683B 2022-01 → — Figure 87K743B 87K743B 2022-01 → — Figure 87K685B 87K685B 2022-01 → — Figure 87M4W9 87M4W9 2025-01 → — Figure 87M4WA 87M4WA 2025-01 → — Figure 87M4WB 87M4WB 2025-01 → — Figure 87M4WC 87M4WC 2025-01 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88379E Valve, Pressure Relief

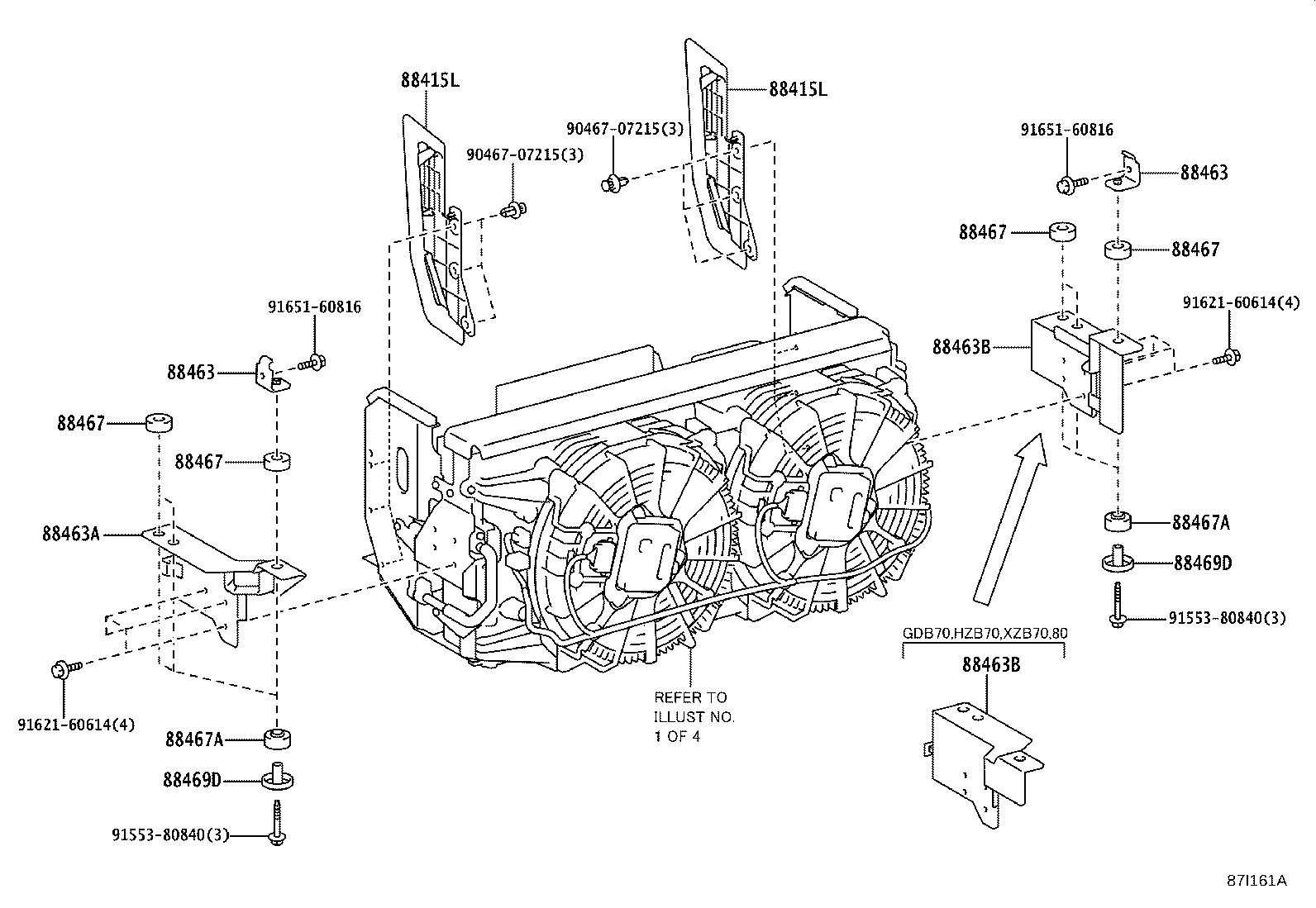

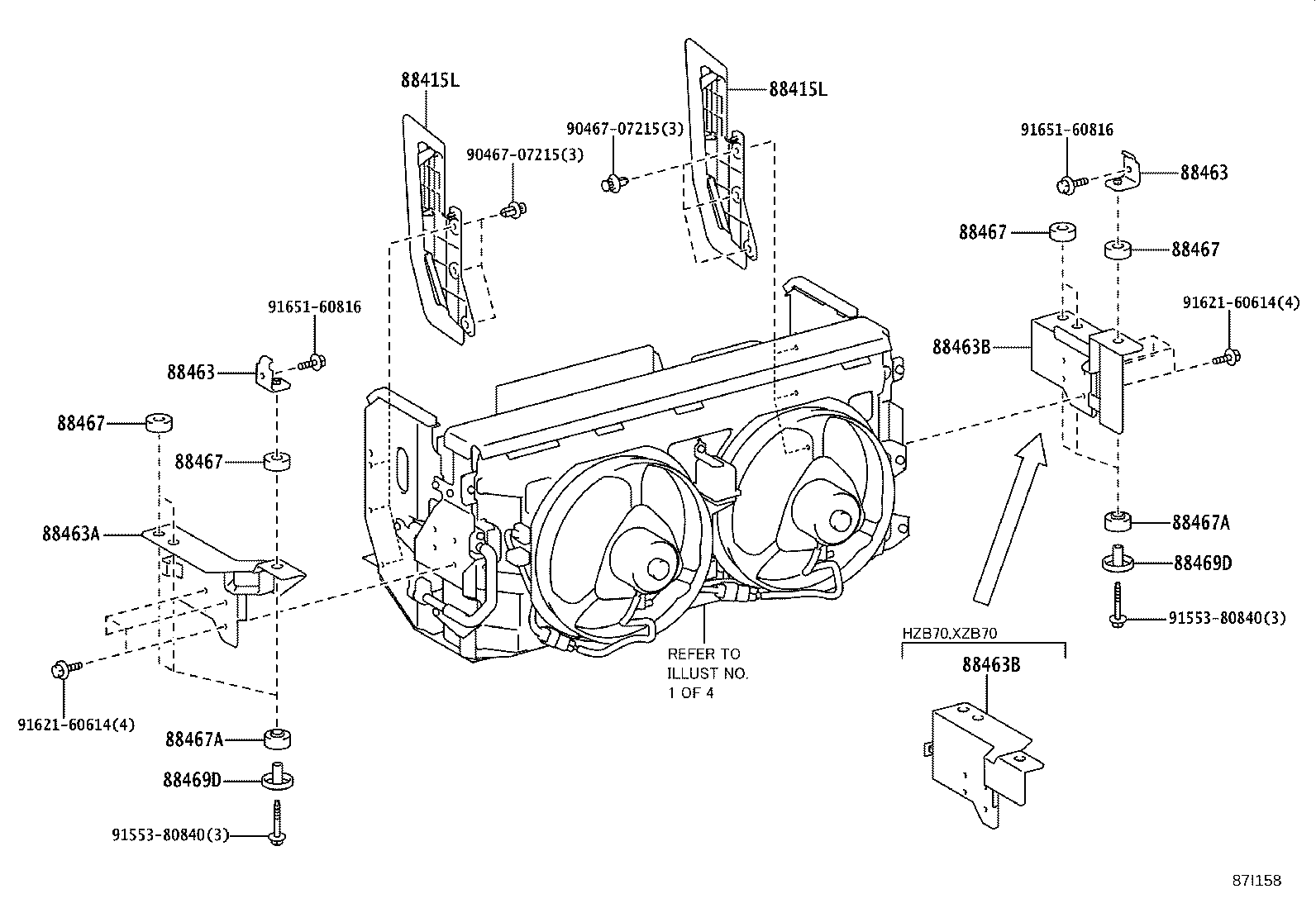

88415C Cover, Dust, NO.1
88415D Cover, Dust, NO.2
88415E Cover, Dust, NO.3
88415G Cover, Cooler Condenser Dust, NO.4
88415H Cover, Cooler Condenser Dust, NO.5
88415J Cover, Cooler Condenser Dust, NO.6
88415K Cover, Cooler Condenser Dust, NO.7
88415L Cover, Dust, NO.8
88440C Relay Assy, Cooler Condenser Fan

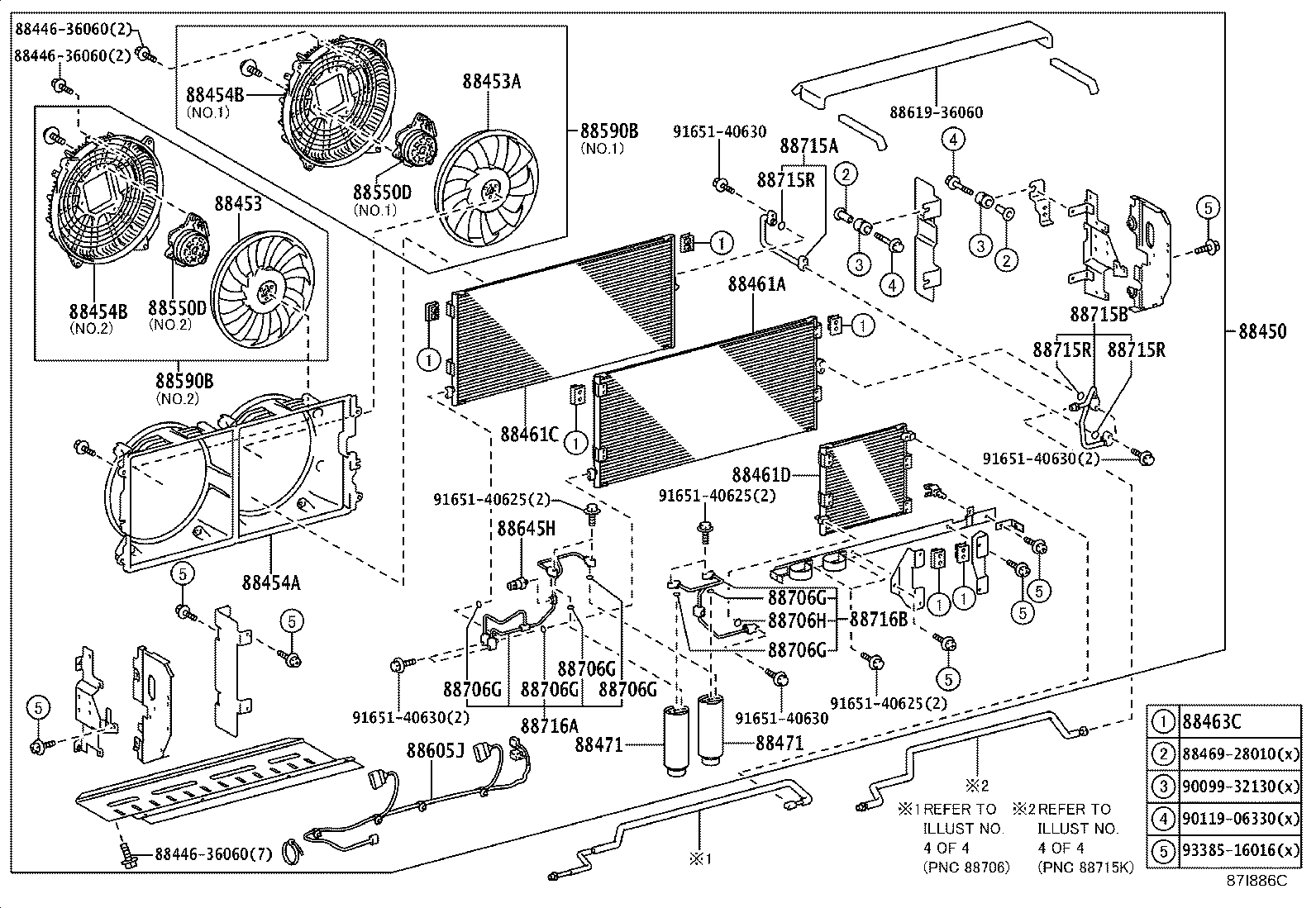

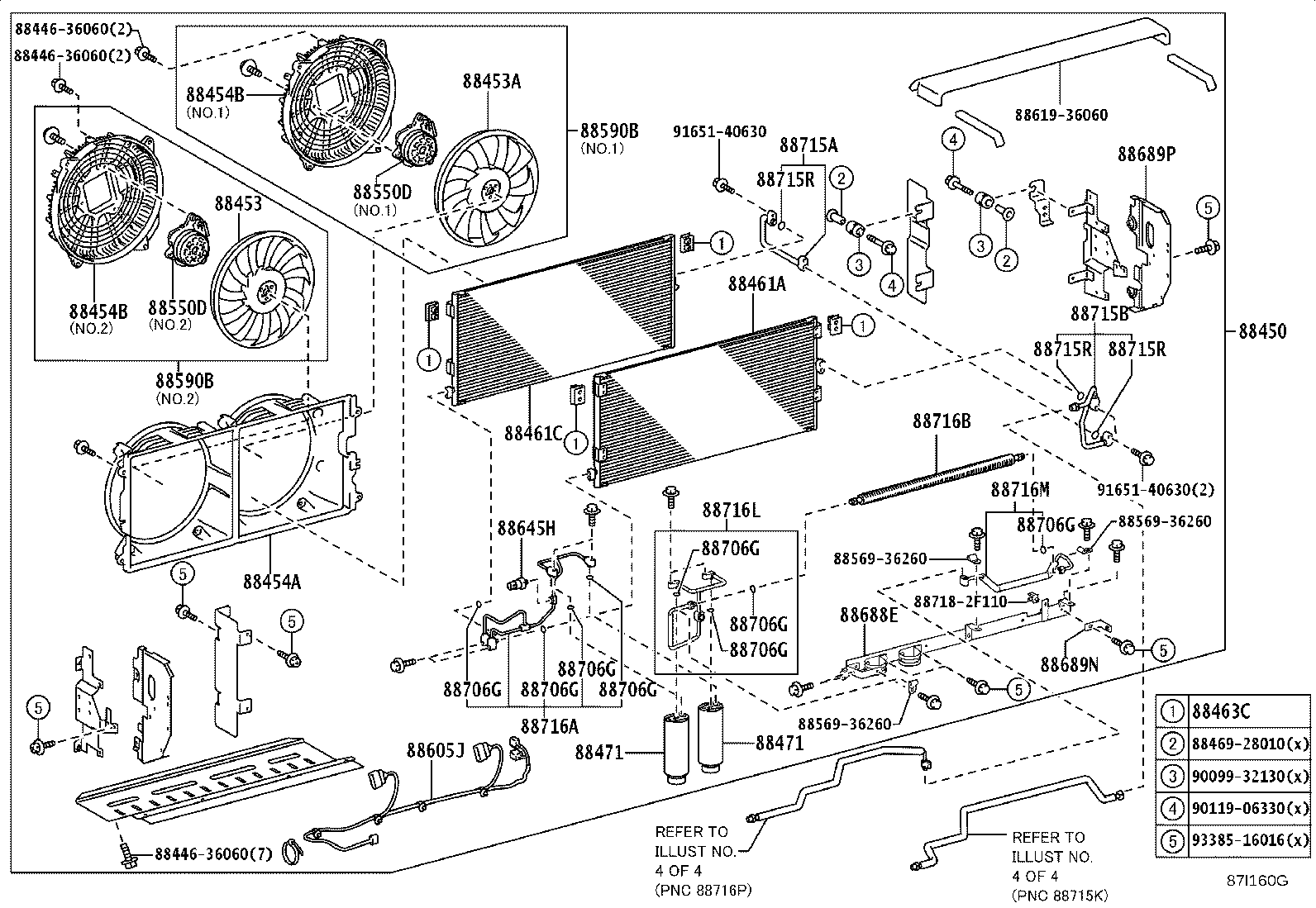

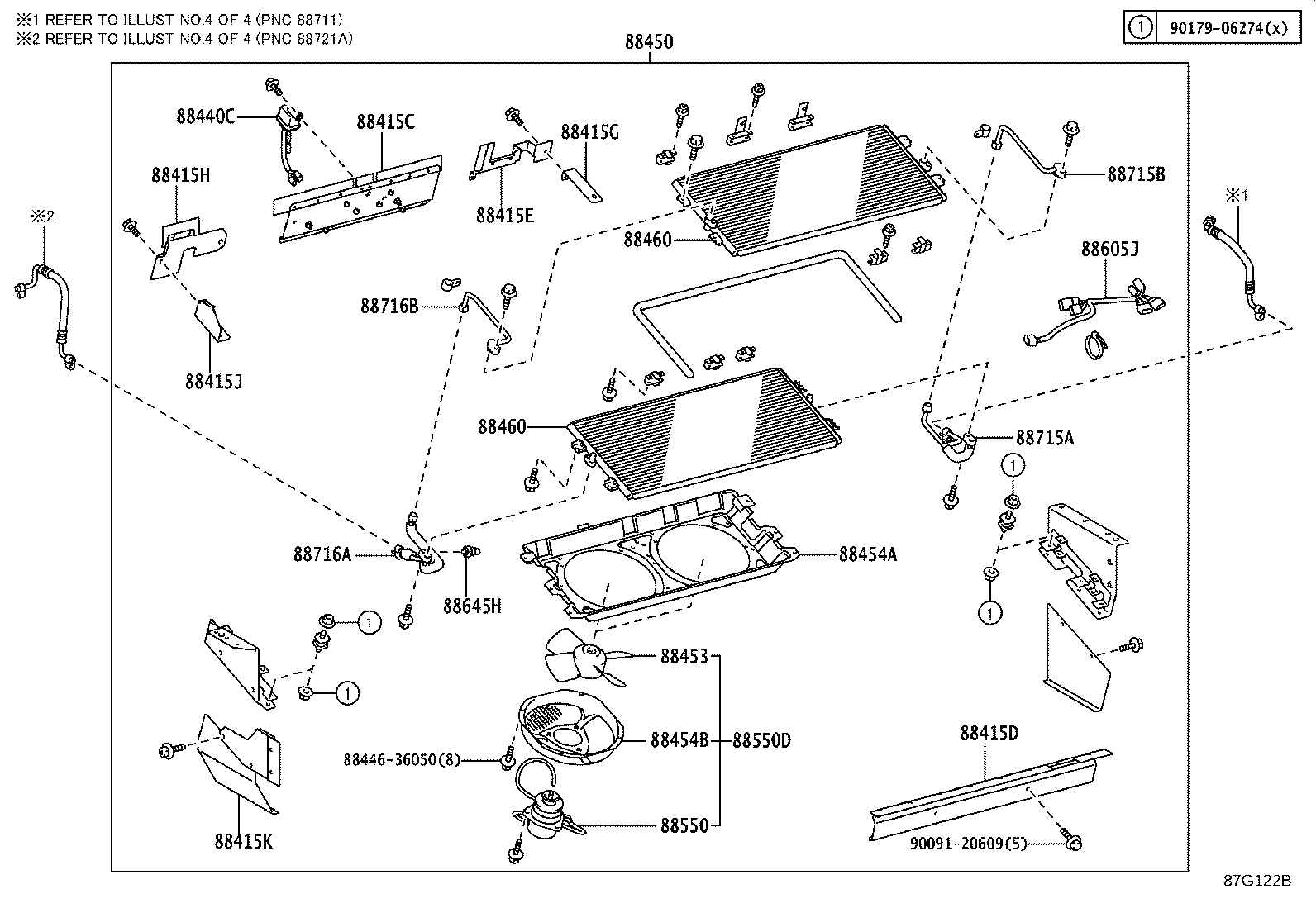

88450 Condenser Assy, W/Receiver
88453 Fan, Cooling (FOR CONDENSER)
88453A Fan, Cooling
88454A Shroud, Fan
88454B Shroud, Fan
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88461C Core, Cooler Condenser, NO.2
88461D Core, Cooler Condenser, NO.3
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88463C Bracket, Cooler Condenser, NO.4
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88467B Insulator, Cooler Condenser Mounting
88467D Cushion, Cooler Refrigerant Pipe Clamp
88469D Collar, Condenser Bracket, NO.1
88471 Tank, Receiver Air Conditioner
88550 Motor Assy, Blower (FOR CONDENSER)
88550D Motor Assy, Blower
88569D Clamp, Cooler, NO.1
88569K Clamp, Cooler, NO.2
88569L Clamp, Cooler, NO.3
88569M Clamp, Piping, NO.1
88569N Clamp, Piping, NO.2
88569P Clamp, Cooler, NO.4
88569Q Clamp, Cooler, NO.5
88569R Clamp, Cooler, NO.6
88569S Clamp, Cooler, NO.7
88578D Packing, Cooler Pipe, NO.1
88578E Packing, Cooler Pipe, NO.2
88578M Packing, Cooling Pipe, NO.3
88590B Blower Assy, W/Shroud
88605J Harness Sub-assy, Air Conditioner Wiring
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88689E Bracket, Cooler, NO.1
88689F Bracket, Cooler, NO.2
88689G Bracket, Cooler, NO.3
88689H Bracket, Cooler, NO.4
88689J Bracket, Cooler, NO.5
88689K Bracket, Cooler, NO.6
88689L Bracket, Cooler, NO.7
88689M Bracket, Cooler, NO.8
88689N Bracket, Cooler, NO.9
88689P Bracket, Cooler, NO.10

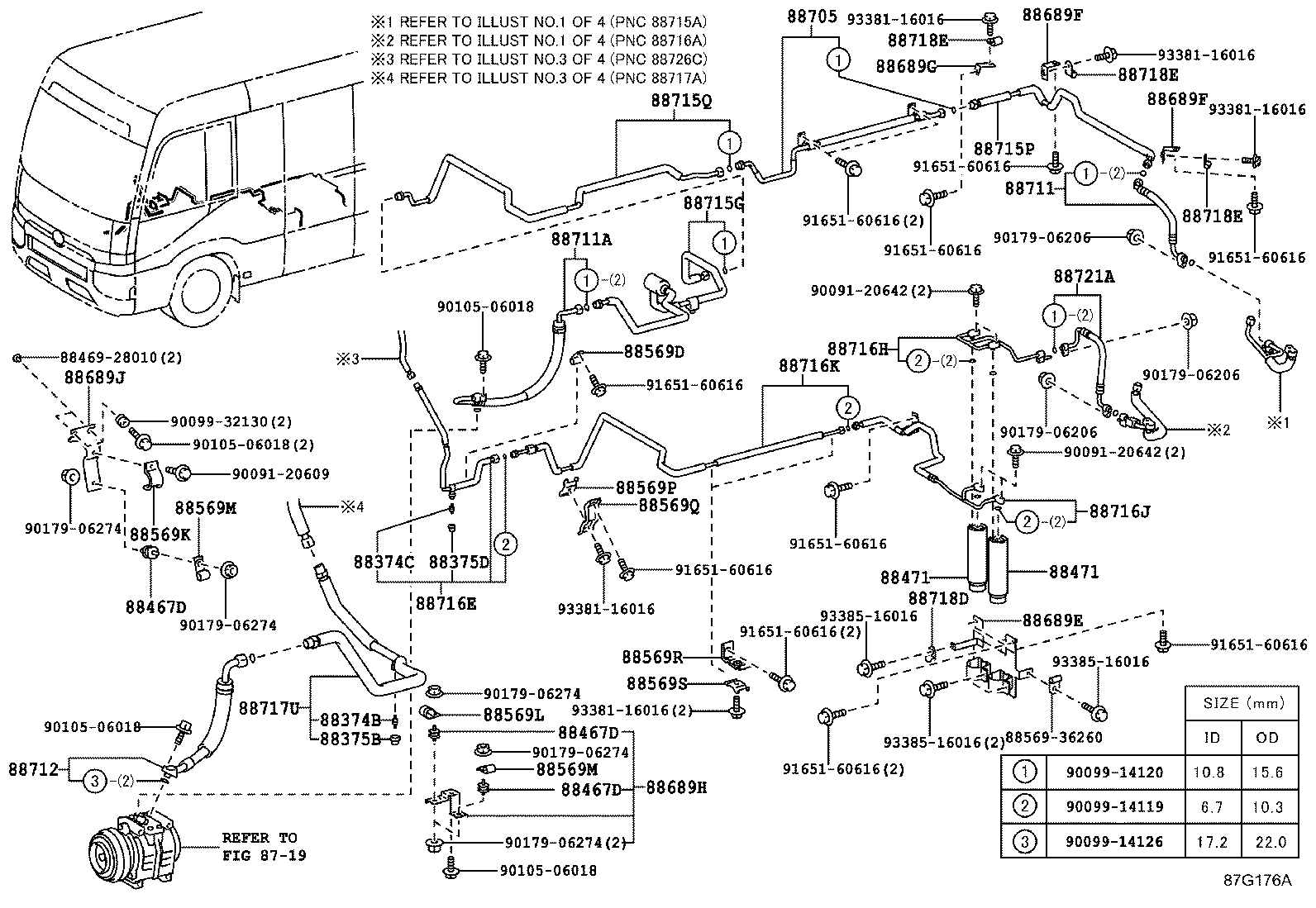

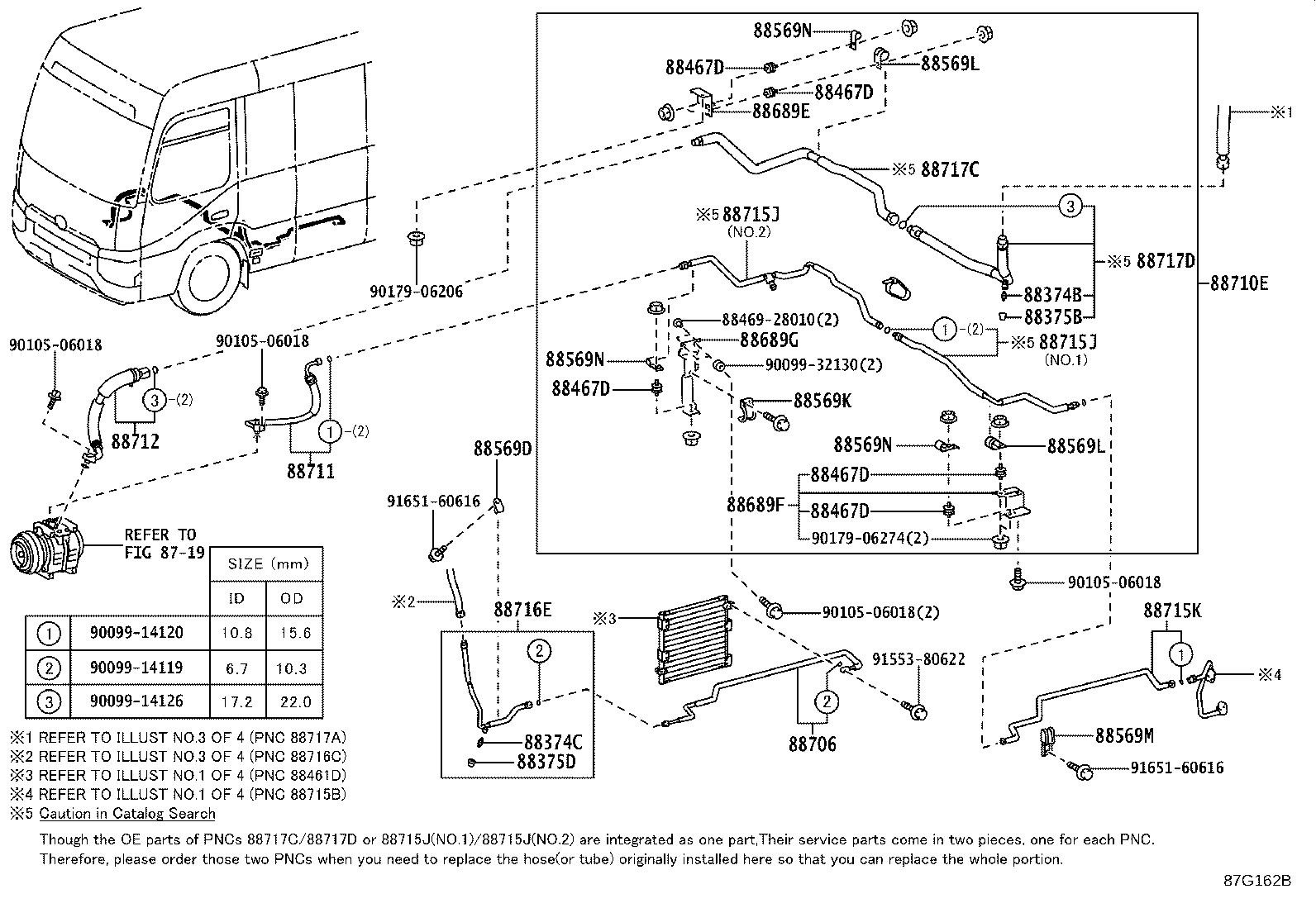

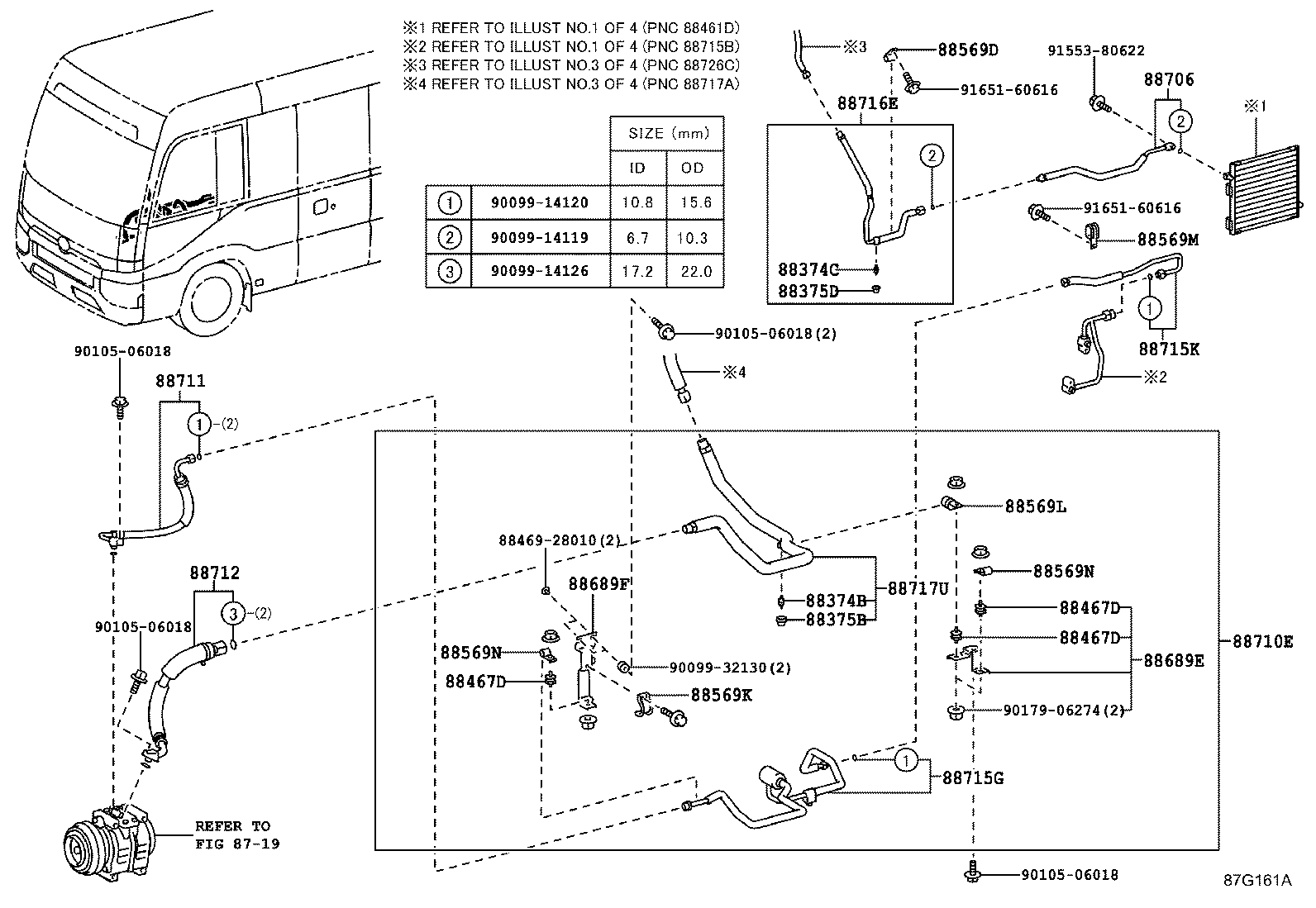

88705 Pipe Sub-assy, Discharge
88706 Pipe Sub-assy, Liquid
88706G Ring, O(FOR LIQUID TUBE)
88706H Ring, O, NO.2(FOR LIQUID TUBE)
88710E Tube & Accessory Assy, Air Conditioner

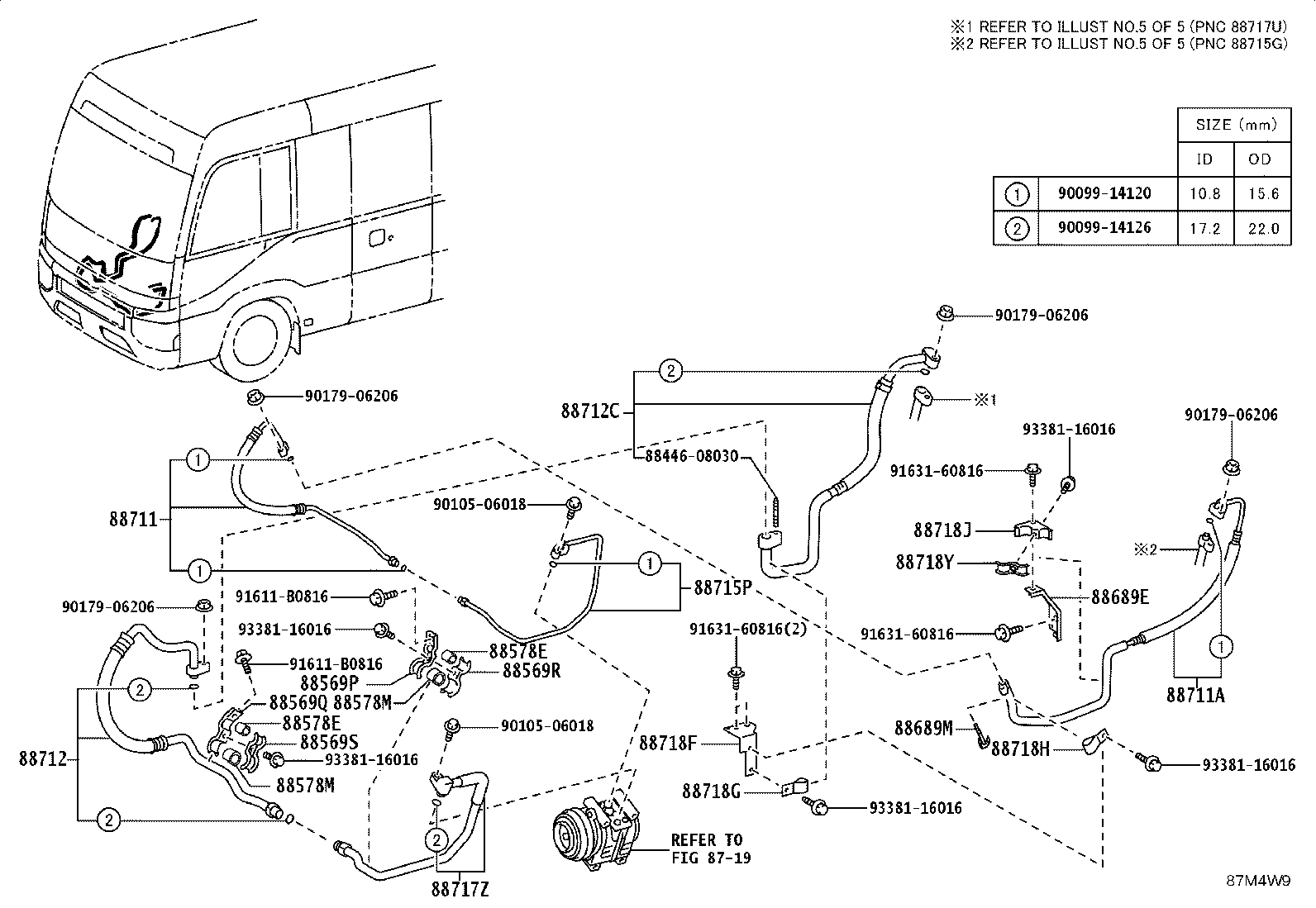

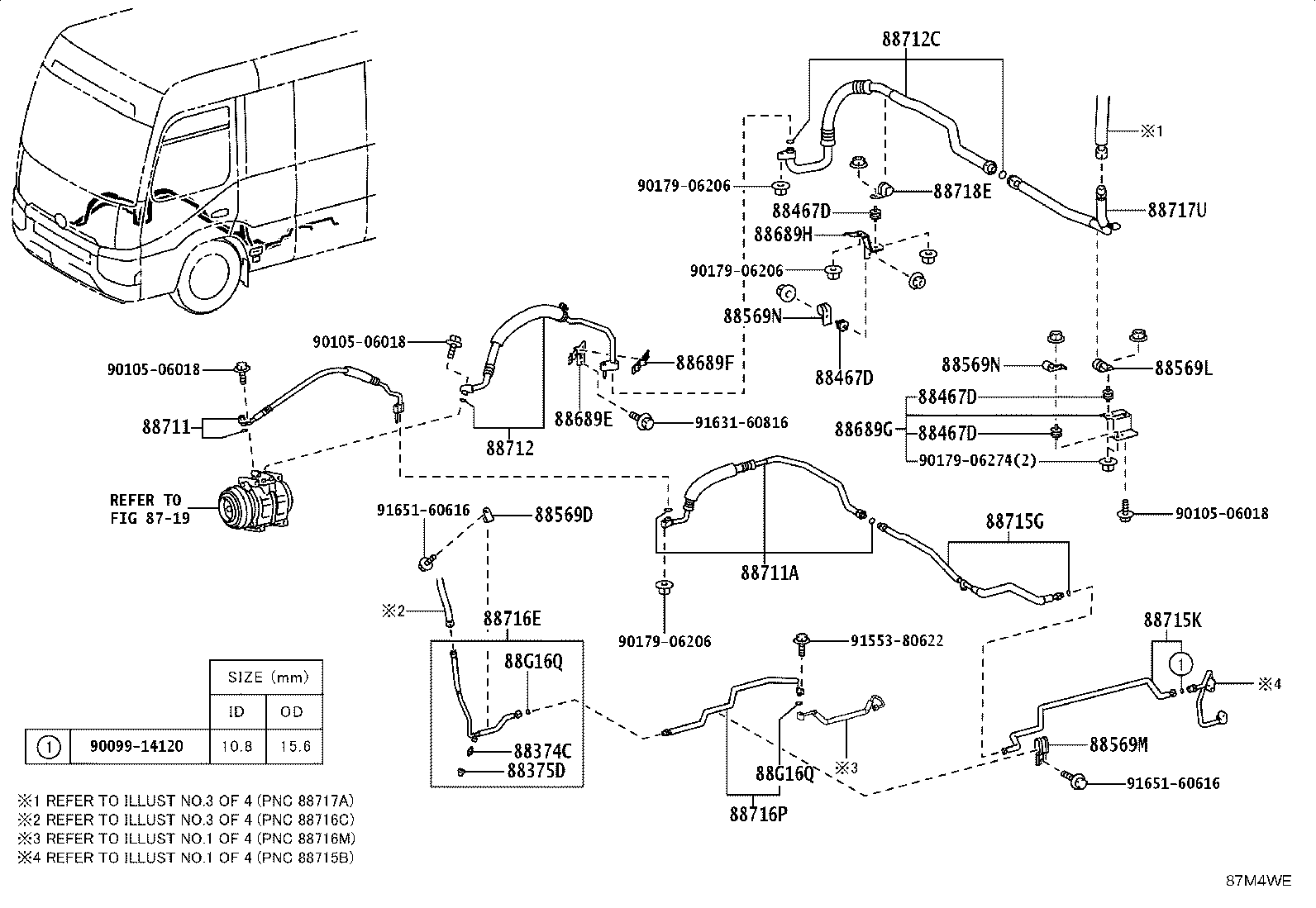

88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88712 Hose, Cooler Refrigerant Suction, NO.1
88712C Hose, Suction
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715G Tube, Discharge, G
88715J Tube, Discharge, J
88715K Tube, Discharge, K
88715P Tube, Discharge, P
88715Q Tube, Discharge, Q
88715R Ring, O(FOR DISCHARGE TUBE)
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88716K Pipe, Cooler Refrigerant Liquid, K
88716L Pipe, Cooler Refrigerant Liquid, L
88716M Pipe, Cooler Refrigerant Liquid, M
88716P Pipe, Cooler Refrigerant Liquid, P
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D

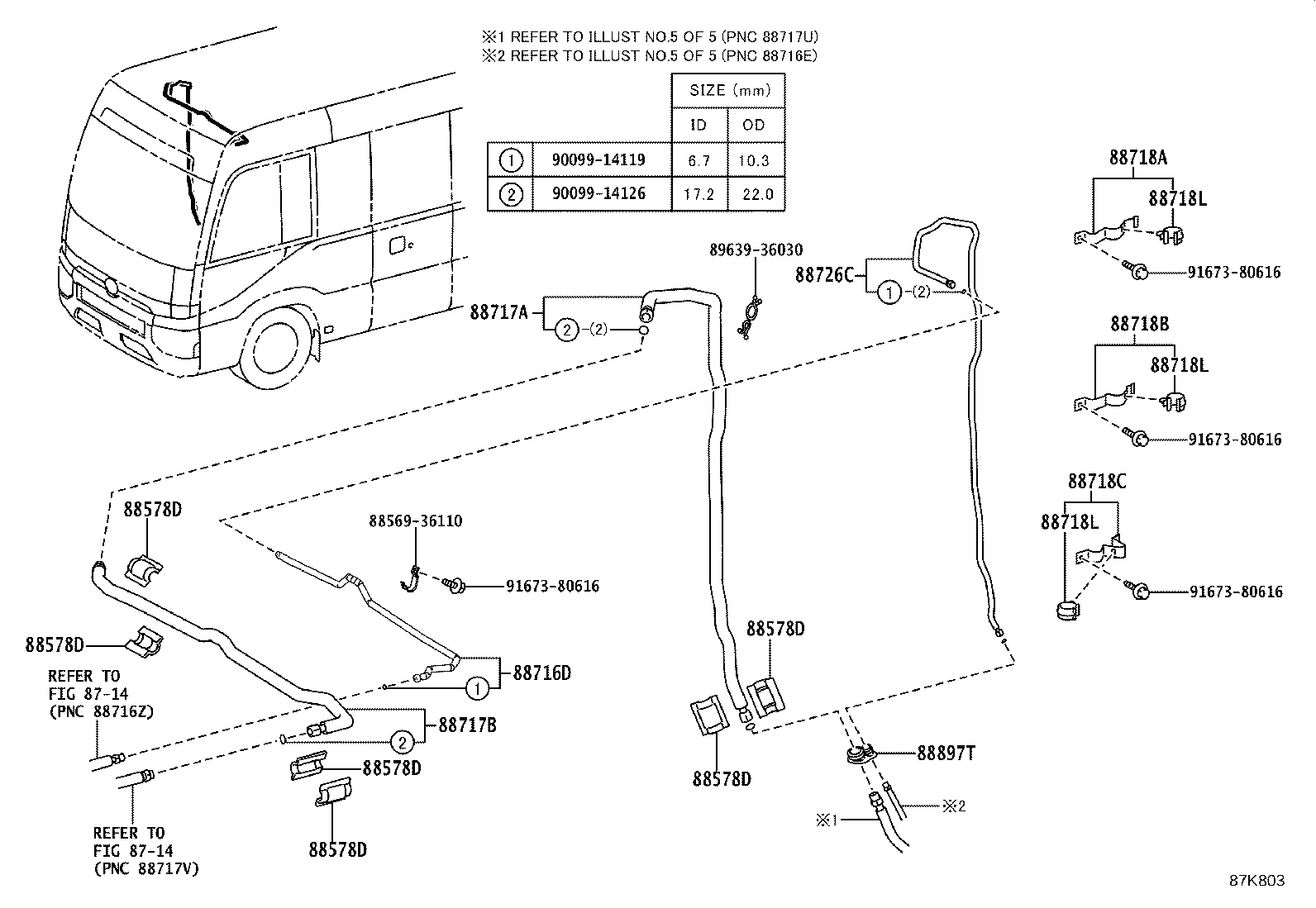

88717U Tube, Suction, NO.1
88717Z Tube, Suction, NO.2
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718E Clamp, NO.5(FOR COOLER REFRIGERANT PIPE)
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88718G Clamp, NO.2(FOR COOLER REFRIGERANT HOSE)
88718H Clamp, NO.3(FOR COOLER REFRIGERANT HOSE)
88718J Clamp, NO.4(FOR COOLER REFRIGERANT HOSE)
88718L Clamp, Piping
88718U Clamp, NO.6(FOR COOLER REFRIGERANT PIPE)
88718V Clamp, NO.7(FOR COOLER REFRIGERANT PIPE)
88718Y Clamp, NO.5 (FOR COOLER REFRIGERANT HOSE)
88720A Hose & Accessory, Air Conditioner
88721A Hose, Liquid, A
88726C Pipe, Cooler Refrigerant Liquid, C
88897T Grommet, Cooler
88G16Q Ring, O, NO.1(FOR LIQUID TUBE)
