Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

12 part groups · 6 illustrations

Illustrations

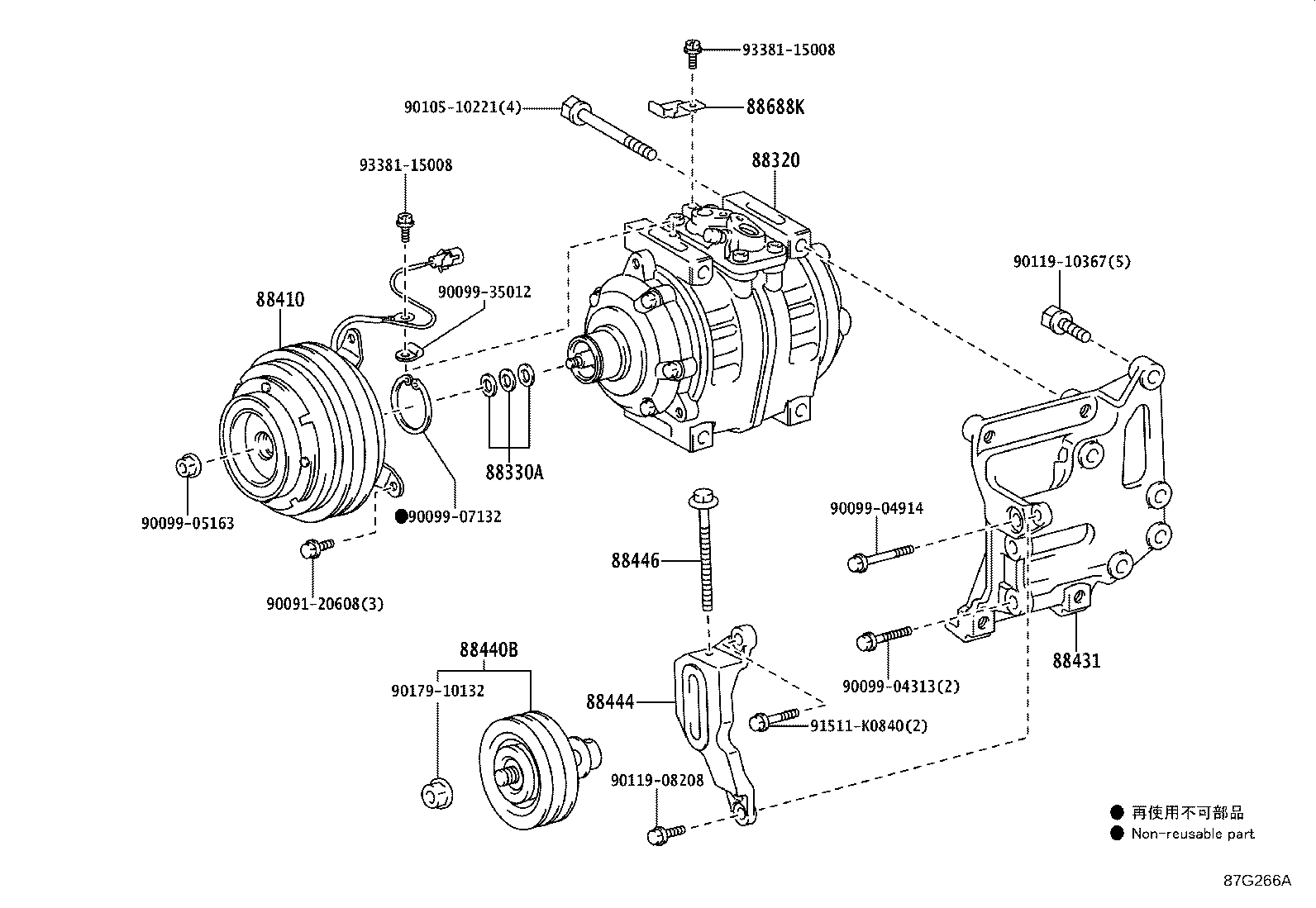

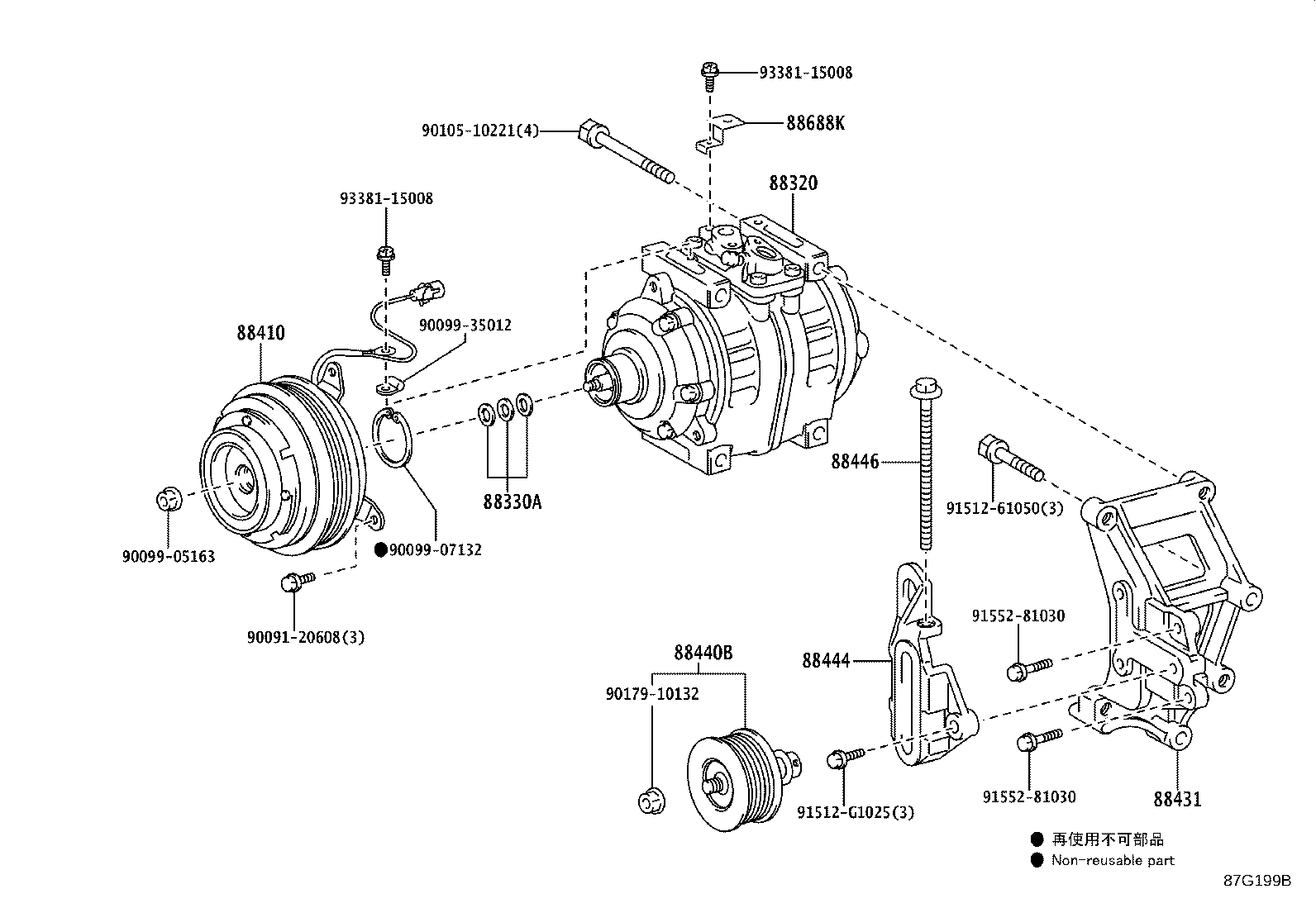

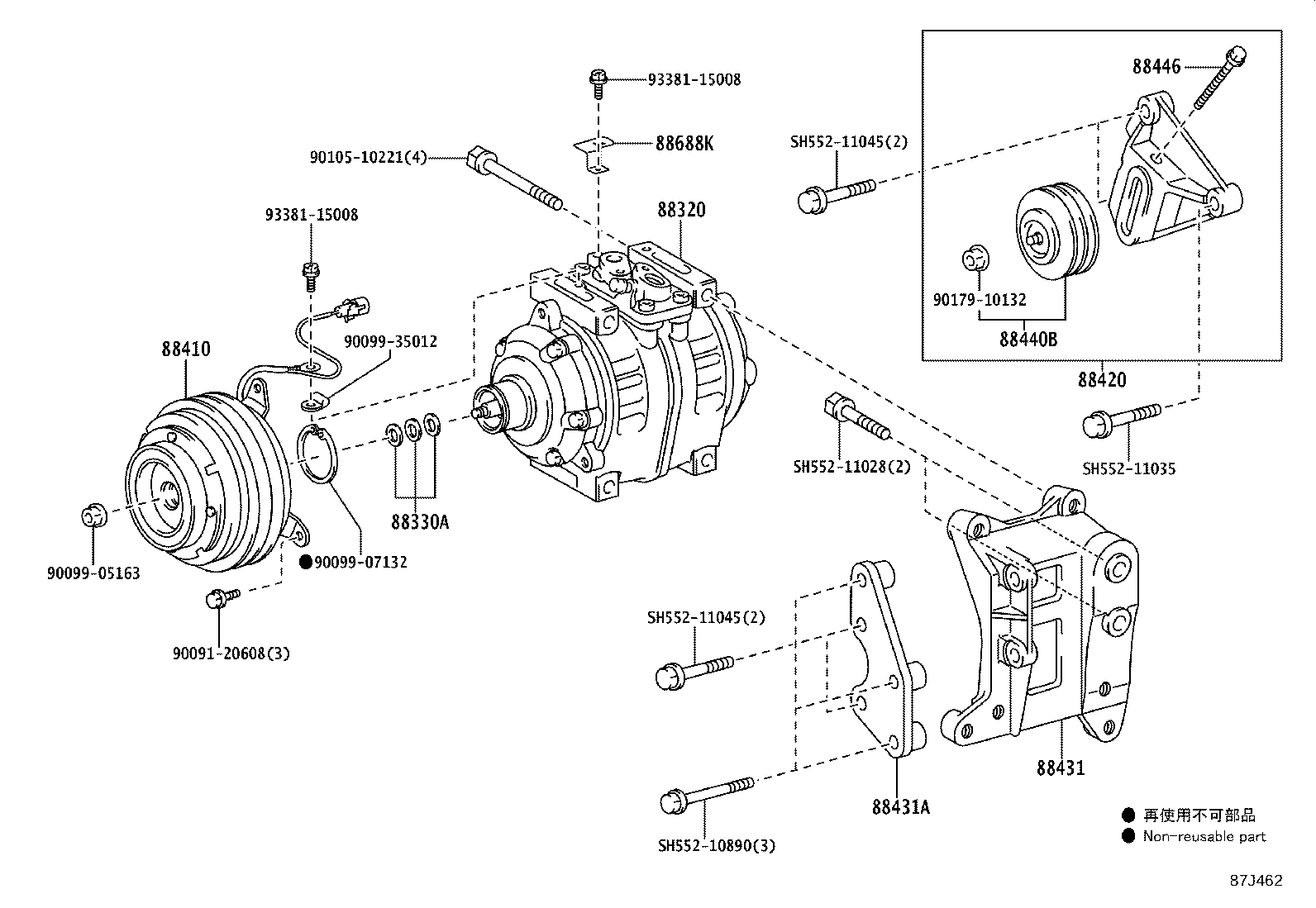

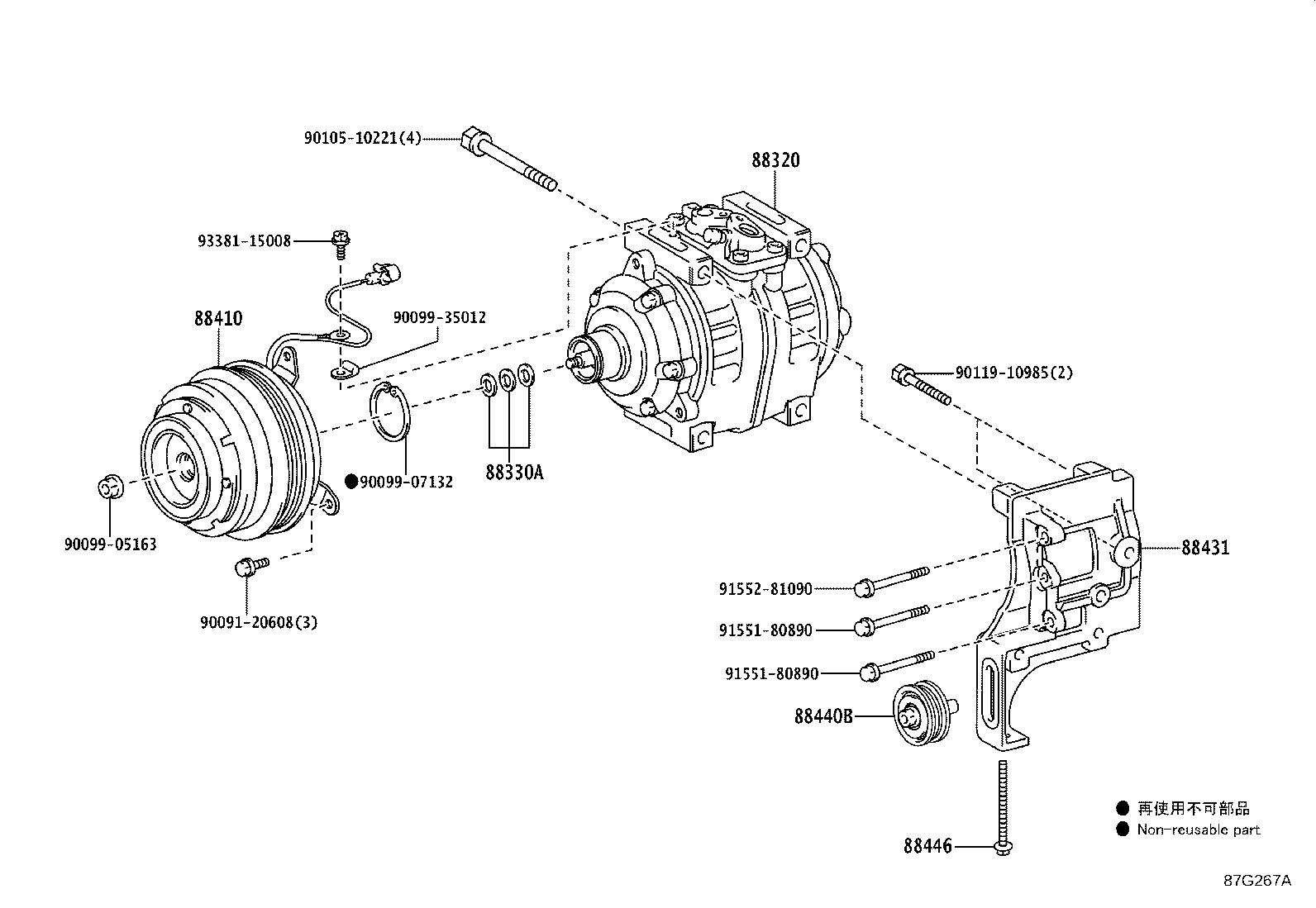

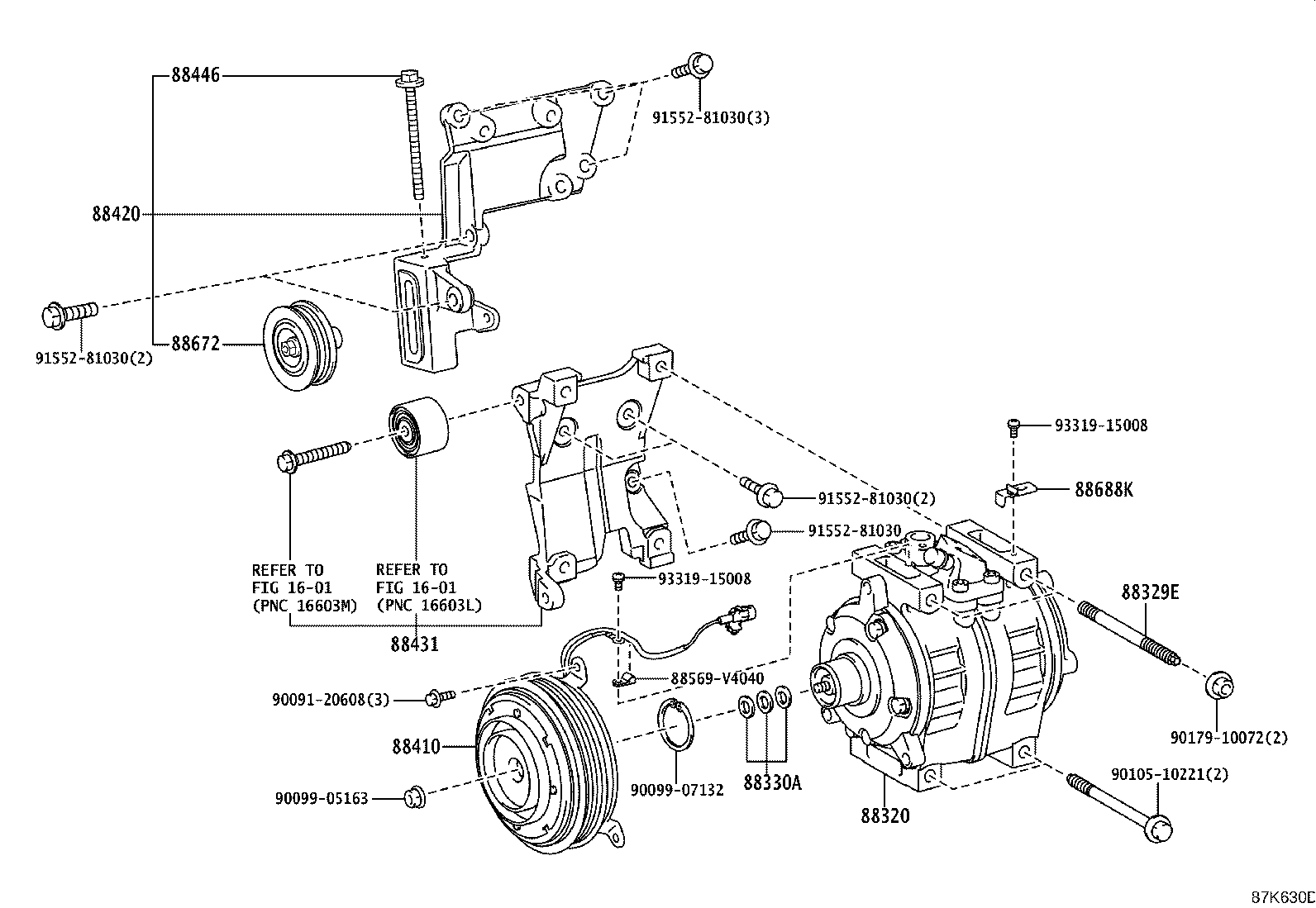

Figure 87G200A 87G200A 2017-01 → — Figure 87G266A 87G266A 2017-01 → — Figure 87G199B 87G199B 2017-01 → — Figure 87G267A 87G267A 2017-01 → — Figure 87J462 87J462 2017-01 → — Figure 87K630D 87K630D 2022-01 → —

Part groups

PNCDescription
88320 Compressor Assy, Cooler
88329E Bolt, Compressor, NO.1
88330A Washer (FOR MAGNET CLUTCH)
88410 Clutch Assy, Magnet
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88431A Bracket, Compressor Mounting, NO.2
88440B Pulley Assy, Idle
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88672 Pulley, Idler
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
