Toyota Coaster (CHINA)

2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

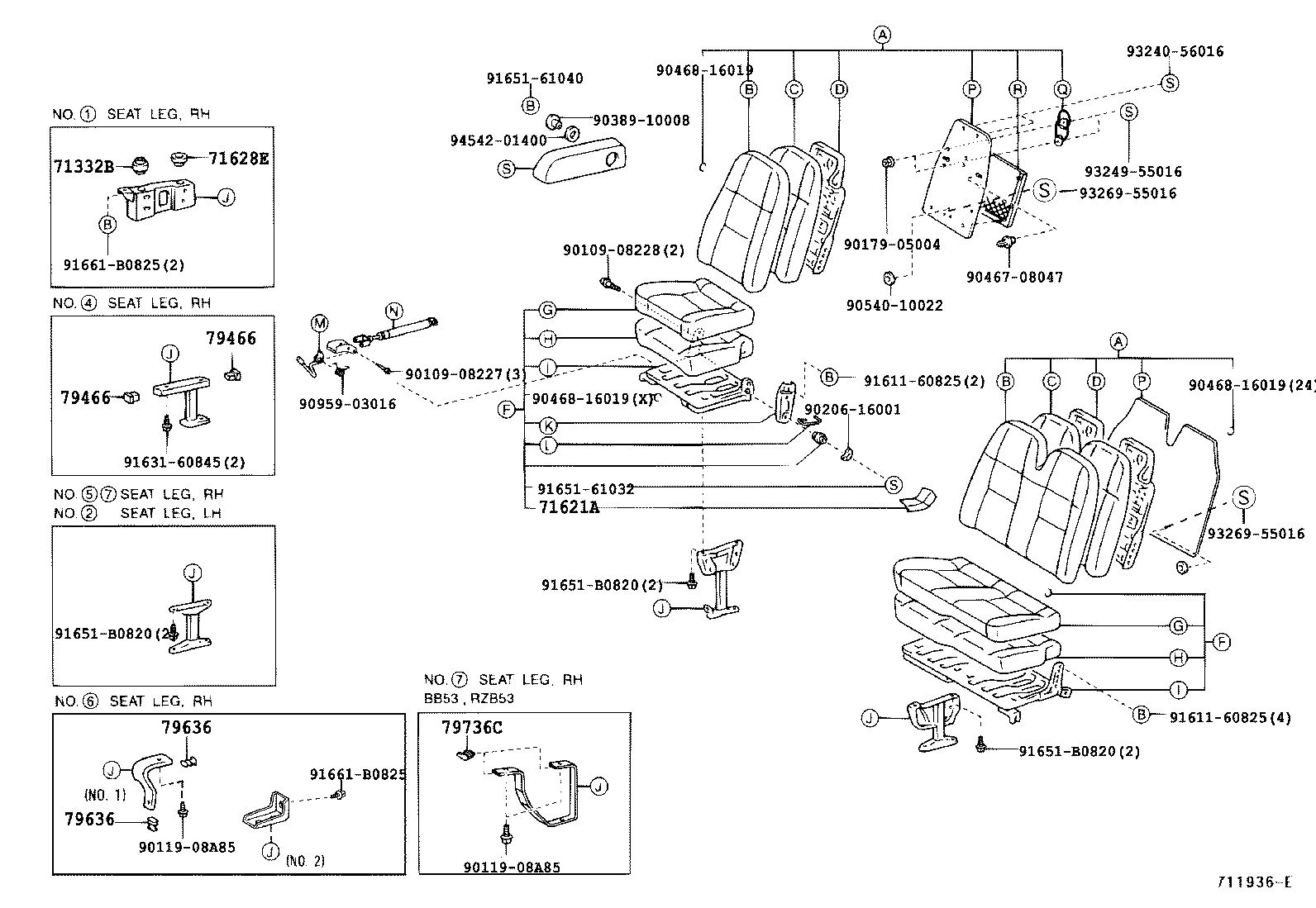

Exploded illustration 711936E 71628E — SPACER, REAR SEAT CUSHION (2 parts) 71332B — SPACER, REAR SEATBACK HINGE (4 parts) 91661B0825 — not listed in this catalogue 79466 — COVER, NO.4 SEAT LEG, NO.1 (4 parts) 79466 — COVER, NO.4 SEAT LEG, NO.1 (4 parts) 9163160845 — not listed in this catalogue 91651B0820 — not listed in this catalogue 79636 — COVER, NO.6 SEAT LEG, RH (2 parts) 79636 — COVER, NO.6 SEAT LEG, RH (2 parts) 9011908A85 — not listed in this catalogue 91661B0825 — not listed in this catalogue 9011908A85 — not listed in this catalogue 79736C — COVER, NO.7 SEAT LEG, RH (2 parts) 91651B0820 — not listed in this catalogue 71621A — PAD, REAR SEAT CUSHION SILENCER, A (4 parts) 9165161032 — not listed in this catalogue 9326955016 — not listed in this catalogue 9046816019 — not listed in this catalogue 9010908227 — not listed in this catalogue 9010908228 — not listed in this catalogue 9038910008 — not listed in this catalogue 9454201400 — not listed in this catalogue 9165161040 — not listed in this catalogue 9046816019 — not listed in this catalogue 9017905004 — not listed in this catalogue 9054010022 — not listed in this catalogue 9161160825 — not listed in this catalogue 9020616001 — not listed in this catalogue 9046708047 — not listed in this catalogue 9324955016 — not listed in this catalogue 9324056016 — not listed in this catalogue 9046816019 — not listed in this catalogue 9326955016 — not listed in this catalogue 9095903016 — not listed in this catalogue 9161160825 — not listed in this catalogue 91651B0820 — not listed in this catalogue
711936E · 8 callouts, 28 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
71332B — Spacer, Rear Seatback Hinge
71332-36030 Spacer, Rear Seatback Hinge
2000-12 → 2003-10 ended
BB5#,RZB5# —
71332-36030 Spacer, Rear Seatback Hinge
2003-10 → 2004-11 ended
BB54,RZB54 29S,30S —
71332-36030 note Spacer, Rear Seatback Hinge
2003-10 → 2004-11 ended
BB5#,RZB5# 20S,24S —
71332-36040 Spacer, Rear Seatback Hinge
2004-11 → —
BB5#,RZB5#,TRB53,XZB53 —
71621A — Pad, Rear Seat Cushion Silencer, A
71621-36010 Pad, Rear Seat Cushion Silencer, A
2000-12 → 2003-10 ended
BB5#,RZB5# —
71621-36010 Pad, Rear Seat Cushion Silencer, A
2003-10 → 2004-11 ended
BB54,RZB54 29S,30S —
71621-36010 Pad, Rear Seat Cushion Silencer, A
2003-10 → 2007-01 ended
BB5#,RZB5# 20S,23S,24S —
71621-36010 Pad, Rear Seat Cushion Silencer, A
2003-10 → —
TRB53,XZB53 CBU —
71628E — Spacer, Rear Seat Cushion
71628-36030 Spacer, Rear Seat Cushion
2000-12 → 2003-10 ended
BB54,RZB54 —
71628-36030 Spacer, Rear Seat Cushion
2003-10 → 2004-11 ended
BB54,RZB54 29S,30S —
79466 — Cover, NO.4 Seat Leg, NO.1
79366-36020 Cover, NO.4 Seat Leg, NO.1
2000-12 → 2003-10 ended
BB54,RZB54 —
79366-0S010 note Cover, NO.4 Seat Leg, NO.1
2007-01 → —
TRB53,XZB53 23S —
79366-36020 Cover, NO.4 Seat Leg, NO.1
2003-10 → —
TRB53,XZB53 CBU;BB5#,RZB5# 23S,29S,30S —
79366-36020 Cover, NO.4 Seat Leg, NO.1
2004-11 → —
BB5#,RZB5# 20S,24S —
79636 — Cover, NO.6 Seat Leg, RH
79236-36010 Cover, NO.6 Seat Leg, RH
2000-12 → 2003-10 ended
BB54,RZB54 —
79236-36010 Cover, NO.6 Seat Leg, RH
2003-10 → 2004-11 ended
BB54,RZB54 29S,30S —
79736C — Cover, NO.7 Seat Leg, RH
79236-36010 Cover, NO.7 Seat Leg, RH
2000-12 → 2003-10 ended
BB53,RZB53 —
79236-36010 Cover, NO.7 Seat Leg, RH
2003-10 → —
TRB53,XZB53 20S CBU;BB5#,RZB5# 20S,23S,24S —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
