Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

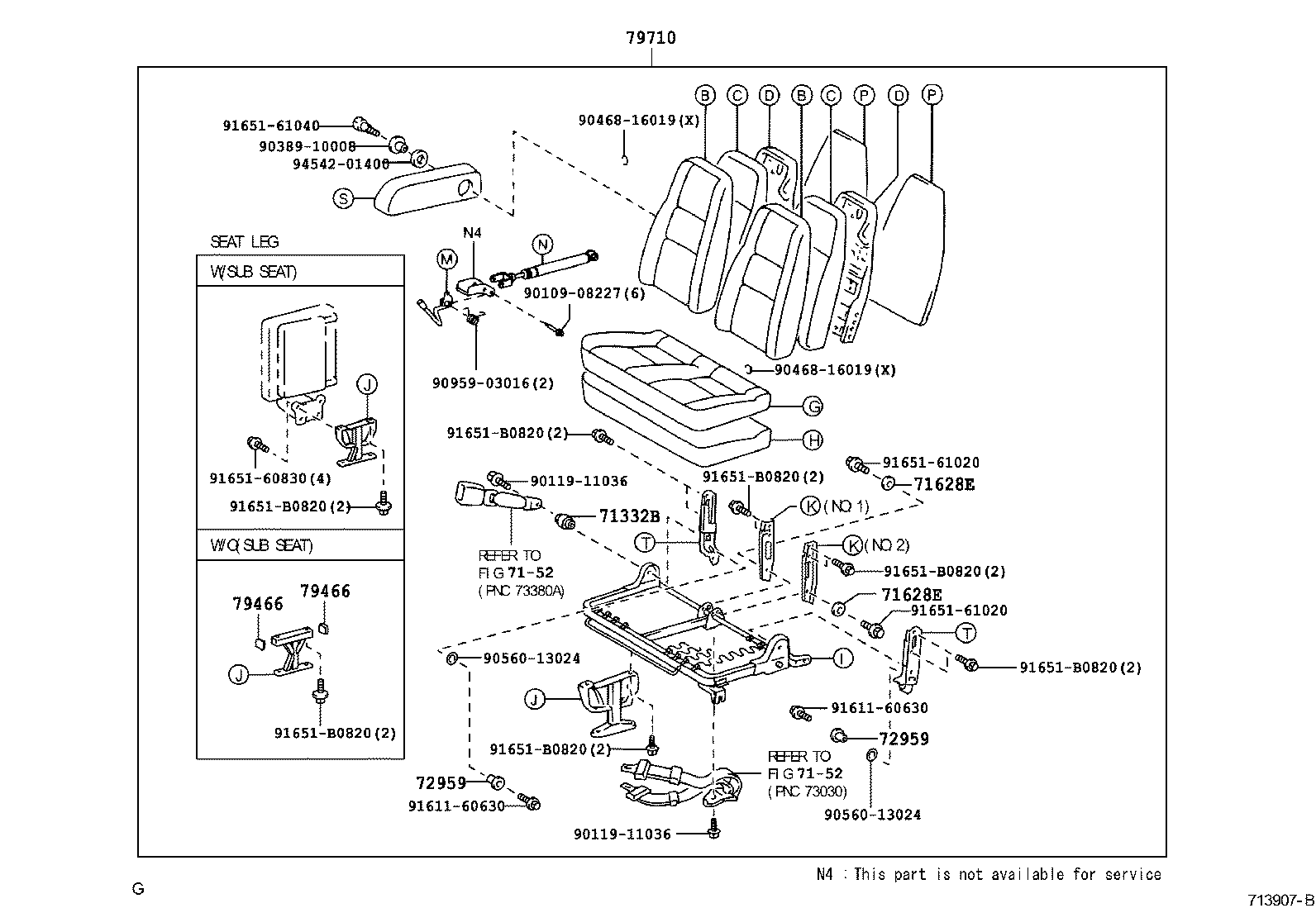

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71332B — Spacer, Rear Seatback Hinge | ||||
| 71332-36030 |
Spacer, Rear Seatback Hinge
2000-12 → 2003-10
ended
|
BB5#,RZB5# | — | |
| 71332-36030 |
Spacer, Rear Seatback Hinge
2003-10 → 2004-11
ended
|
BB54,RZB54 29S,30S | — | |
| 71332-36030 note |
Spacer, Rear Seatback Hinge
2003-10 → 2004-11
ended
|
BB5#,RZB5# 20S,24S | — | |
| 71332-36040 |
Spacer, Rear Seatback Hinge
2004-11 → —
|
BB5#,RZB5#,TRB53,XZB53 | — | |
| 71628E — Spacer, Rear Seat Cushion | ||||
| 71628-36030 |
Spacer, Rear Seat Cushion
2000-12 → 2003-10
ended
|
BB54,RZB54 | — | |
| 71628-36030 |
Spacer, Rear Seat Cushion
2003-10 → 2004-11
ended
|
BB54,RZB54 29S,30S | — | |
| 72959 — Spacer, Rear Seat Turn Side | ||||
| 72959-36010 |
Spacer, Rear Seat Turn Side
2004-11 → —
|
BB5#,RZB5#,TRB53,XZB53 CBU | — | |
| 72959-36010 |
Spacer, Rear Seat Turn Side
2011-08 → —
|
TRB53 IV5 | — | |
| 79466 — Cover, NO.4 Seat Leg, NO.1 | ||||
| 79366-36020 |
Cover, NO.4 Seat Leg, NO.1
2000-12 → 2003-10
ended
|
BB54,RZB54 | — | |
| 79366-0S010 note |
Cover, NO.4 Seat Leg, NO.1
2007-01 → —
|
TRB53,XZB53 23S | — | |
| 79366-36020 |
Cover, NO.4 Seat Leg, NO.1
2003-10 → —
|
TRB53,XZB53 CBU;BB5#,RZB5# 23S,29S,30S | — | |
| 79366-36020 |
Cover, NO.4 Seat Leg, NO.1
2004-11 → —
|
BB5#,RZB5# 20S,24S | — | |
| 79710 — Seat Assy, NO.7, LH | ||||
| 79710-36550-E1 note |
Seat Assy, NO.7, LH
2004-11 → 2006-10
ended
|
BB54,RZB54 20S | — | |
| 79710-36551-E0 note |
Seat Assy, NO.7, LH
2006-11 → 2007-01
ended
|
BB54,RZB54 20S | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
