Toyota Coaster (CHINA)

2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

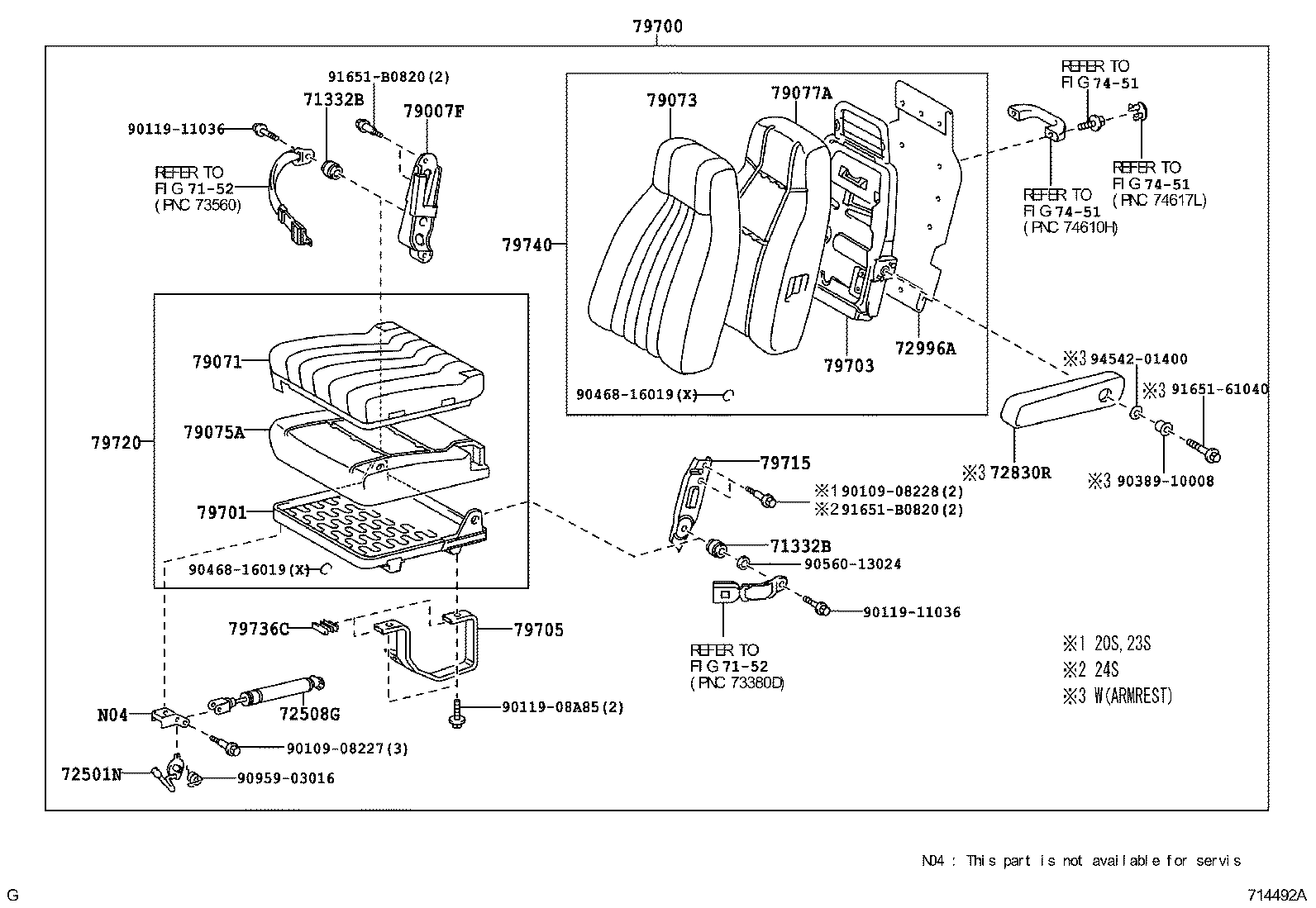

Exploded illustration 714492A 9011911036 — not listed in this catalogue 91651B0820 — not listed in this catalogue 71332B — SPACER, REAR SEATBACK HINGE (4 parts) 79007F — FRAME, SEAT CUSHION SIDE, RH OUTER NO.7 (1 parts) 7152 — not listed in this catalogue 72501N — ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 RH (2 parts) 72508G — SHAFT SUB-ASSY, NO.7 SEAT RECLINING ADJUSTING, RH (5 parts) 71332B — SPACER, REAR SEATBACK HINGE (4 parts) 72830R — ARMREST ASSY, NO.7 SEAT, NO.1 RH (6 parts) 79703 — FRAME SUB-ASSY, NO.7 SEATBACK, RH (11 parts) 79073 — COVER SUB-ASSY, NO.7 SEATBACK, RH (15 parts) 79077A — PAD SUB-ASSY, NO.7 SEATBACK, RH (8 parts) 72996A — COVER, REAR SEATBACK (5 parts) 79715 — PLATE, NO.7 SEAT CUSHION HINGE, NO.1 RH (4 parts) 79740 — BACK ASSY, NO.7 SEAT, RH (11 parts) 79700 — SEAT ASSY, NO.7, RH (2 parts) 79705 — LEG SUB-ASSY, NO.7 SEAT, RH (5 parts) 79736C — COVER, NO.7 SEAT LEG, RH (2 parts) 9095903016 — not listed in this catalogue 9010908227 — not listed in this catalogue 9011908A85 — not listed in this catalogue 9046816019 — not listed in this catalogue 9046816019 — not listed in this catalogue 9011911036 — not listed in this catalogue 9056013024 — not listed in this catalogue 9038910008 — not listed in this catalogue 9165161040 — not listed in this catalogue 9454201400 — not listed in this catalogue 91651B0820 — not listed in this catalogue 9010908228 — not listed in this catalogue 7152 — not listed in this catalogue 7451 — not listed in this catalogue 7451 — not listed in this catalogue 79701 — FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH (12 parts) 79075A — PAD SUB-ASSY, NO.7 SEAT CUSHION, RH (7 parts) 79071 — COVER SUB-ASSY, NO.7 SEAT CUSHION, RH (13 parts) 79720 — CUSHION ASSY, NO.7 SEAT, RH (8 parts) 7451 — not listed in this catalogue
714492A · 19 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
121 parts on this figure
Part number Description Fitment Price
71332B — Spacer, Rear Seatback Hinge
71332-36030 Spacer, Rear Seatback Hinge
2000-12 → 2003-10 ended
BB5#,RZB5# —
71332-36030 Spacer, Rear Seatback Hinge
2003-10 → 2004-11 ended
BB54,RZB54 29S,30S —
71332-36030 note Spacer, Rear Seatback Hinge
2003-10 → 2004-11 ended
BB5#,RZB5# 20S,24S —
71332-36040 Spacer, Rear Seatback Hinge
2004-11 → —
BB5#,RZB5#,TRB53,XZB53 —
72501N — Arm Sub-assy, NO.7 Seat Reclining Adjuster, Upper NO.1 RH
72501-36060-E0 note Arm Sub-assy, NO.7 Seat Reclining Adjuster, Upper NO.1 RH
2000-12 → 2003-10 ended
BB53,RZB53 —
72501-36060-E0 note Arm Sub-assy, NO.7 Seat Reclining Adjuster, Upper NO.1 RH
2003-10 → 2014-03 ended
BB53,RZB53;BB54,RZB54,TRB53,XZB53 20S CBU —
72508G — Shaft Sub-assy, NO.7 Seat Reclining Adjusting, RH
72508-36030 Shaft Sub-assy, NO.7 Seat Reclining Adjusting, RH
2000-12 → 2003-10 ended
BB53,RZB53 —
72508-36030 Shaft Sub-assy, NO.7 Seat Reclining Adjusting, RH
2003-10 → 2007-06 ended
BB53,RZB53;BB54,RZB54,TRB53,XZB53 20S —
72508-36031 Shaft Sub-assy, NO.7 Seat Reclining Adjusting, RH
2007-07 → —
TRB53,XZB53 20S CBU —
72508-36040 Shaft Sub-assy, NO.7 Seat Reclining Adjusting, RH
2004-11 → 2007-01 ended
BB54,RZB54 23S —
72508-36080 Shaft Sub-assy, NO.7 Seat Reclining Adjusting, RH
2007-01 → —
TRB53,XZB53 23S —
72830R — Armrest Assy, NO.7 Seat, NO.1 RH
72830-36030-A0 note Armrest Assy, NO.7 Seat, NO.1 RH
2007-01 → 2011-08 ended
TRB53,XZB53 EX —
72830-36030-A1 note Armrest Assy, NO.7 Seat, NO.1 RH
2011-08 → 2014-03 ended
TRB53,XZB53 EX —
72830-36040-E0 note Armrest Assy, NO.7 Seat, NO.1 RH
2003-10 → 2007-01 ended
BB5#,RZB5# 20S,24S —
72840-36050-E0 note Armrest Assy, NO.7 Seat, NO.1 RH
2003-10 → 2007-01 ended
BB5#,RZB5# 20S,24S —
72840-36080-A0 note Armrest Assy, NO.7 Seat, NO.1 RH
2007-01 → 2011-08 ended
TRB53,XZB53 EX —
72840-36080-A1 note Armrest Assy, NO.7 Seat, NO.1 RH
2011-08 → 2014-03 ended
TRB53,XZB53 EX —
72996A — Cover, Rear Seatback
72996-0S010 note Cover, Rear Seatback
2007-01 → —
TRB53,XZB53 —
72996-36010 Cover, Rear Seatback
2004-11 → —
BB5#,RZB5# —
72996-36010 Cover, Rear Seatback
2007-11 → —
TRB53,XZB53 20S CBU —
72996-36010 note Cover, Rear Seatback
2007-01 → —
TRB53,XZB53 CBU —
72996-36010 note Cover, Rear Seatback
2007-01 → —
TRB53,XZB53 CBU —
79007F — Frame, Seat Cushion Side, RH Outer NO.7
79007-36030 Frame, Seat Cushion Side, RH Outer NO.7
2004-11 → —
BB5#,RZB5#,TRB53,XZB53 CBU —
79071 — Cover Sub-assy, NO.7 Seat Cushion, RH
79021-36350-E0 note Cover Sub-assy, NO.7 Seat Cushion, RH
2000-12 → 2003-10 ended
BB54,RZB54 —
79031-36160-E0 note Cover Sub-assy, NO.7 Seat Cushion, RH
2000-12 → 2003-10 ended
BB53,RZB53 —
79021-36350-E0 note Cover Sub-assy, NO.7 Seat Cushion, RH
2003-10 → 2004-11 ended
BB54,RZB54 29S,30S —
79021-36430-E0 note Cover Sub-assy, NO.7 Seat Cushion, RH
2004-11 → 2007-01 ended
BB54,RZB54 23S —
79031-36160-E0 note Cover Sub-assy, NO.7 Seat Cushion, RH
2003-10 → 2007-01 ended
BB53,RZB53;BB54,RZB54 20S —
79031-36200-A0 note Cover Sub-assy, NO.7 Seat Cushion, RH
2007-01 → 2011-08 ended
TRB53,XZB53 20S STD —
79031-36200-A1 note Cover Sub-assy, NO.7 Seat Cushion, RH
2011-08 → 2014-03 ended
TRB53,XZB53 20S STD CBU —
79031-36210-A0 note Cover Sub-assy, NO.7 Seat Cushion, RH
2007-01 → 2011-08 ended
TRB53,XZB53 EX —
79031-36210-A1 note Cover Sub-assy, NO.7 Seat Cushion, RH
2011-08 → 2014-03 ended
TRB53,XZB53 EX —
79041-36010-A0 note Cover Sub-assy, NO.7 Seat Cushion, RH
2007-01 → 2011-08 ended
TRB53,XZB53 23S STD —
79041-36010-A1 note Cover Sub-assy, NO.7 Seat Cushion, RH
2011-08 → 2014-03 ended
TRB53,XZB53 23S STD —
79041-36020-A0 note Cover Sub-assy, NO.7 Seat Cushion, RH
2007-01 → 2011-08 ended
TRB53,XZB53 LX —
79041-36020-A1 note Cover Sub-assy, NO.7 Seat Cushion, RH
2011-08 → 2014-03 ended
TRB53,XZB53 LX —
79073 — Cover Sub-assy, NO.7 Seatback, RH
79013-36190-E0 note Cover Sub-assy, NO.7 Seatback, RH
2000-12 → 2003-10 ended
BB53,RZB53 —
79013-36220-E0 note Cover Sub-assy, NO.7 Seatback, RH
2000-12 → 2003-10 ended
BB54,RZB54 —
79013-36190-E0 note Cover Sub-assy, NO.7 Seatback, RH
2003-10 → 2004-11 ended
BB53,RZB53 —
79013-36220-E0 note Cover Sub-assy, NO.7 Seatback, RH
2003-10 → 2004-11 ended
BB54,RZB54 29S,30S —
79013-36240-E0 note Cover Sub-assy, NO.7 Seatback, RH
2003-10 → 2004-11 ended
BB5#,RZB5# 20S,24S —
79013-36270-E0 note Cover Sub-assy, NO.7 Seatback, RH
2004-11 → 2007-01 ended
BB54,RZB54 23S —
79013-36280-E0 note Cover Sub-assy, NO.7 Seatback, RH
2004-11 → 2007-01 ended
BB53,RZB53 23S —
79013-36290-E0 note Cover Sub-assy, NO.7 Seatback, RH
2004-11 → 2007-01 ended
BB53,RZB53 24S —
79013-36290-E0 note Cover Sub-assy, NO.7 Seatback, RH
2004-11 → 2007-01 ended
BB54,RZB54 20S —
79013-36310-A0 note Cover Sub-assy, NO.7 Seatback, RH
2007-01 → 2011-08 ended
TRB53,XZB53 STD —
79013-36310-A1 note Cover Sub-assy, NO.7 Seatback, RH
2011-08 → 2014-03 ended
TRB53,XZB53 STD CBU —
79013-36320-A0 note Cover Sub-assy, NO.7 Seatback, RH
2007-01 → 2011-08 ended
TRB53,XZB53 EX —
79013-36320-A1 note Cover Sub-assy, NO.7 Seatback, RH
2011-08 → 2014-03 ended
TRB53,XZB53 EX —
79013-36350-A0 note Cover Sub-assy, NO.7 Seatback, RH
2007-01 → 2011-08 ended
TRB53,XZB53 LX —
79013-36350-A1 note Cover Sub-assy, NO.7 Seatback, RH
2011-08 → 2014-03 ended
TRB53,XZB53 LX —
79075A — Pad Sub-assy, NO.7 Seat Cushion, RH
79025-36020 Pad Sub-assy, NO.7 Seat Cushion, RH
2000-12 → 2003-10 ended
BB54,RZB54 —
79035-36070 Pad Sub-assy, NO.7 Seat Cushion, RH
2000-12 → 2003-10 ended
BB53,RZB53 —
79025-36020 Pad Sub-assy, NO.7 Seat Cushion, RH
2003-10 → 2004-11 ended
BB54,RZB54 29S,30S —
79025-36040 Pad Sub-assy, NO.7 Seat Cushion, RH
2004-11 → 2007-01 ended
BB54,RZB54 23S —
79035-36070 Pad Sub-assy, NO.7 Seat Cushion, RH
2003-10 → 2006-12 ended
BB53,RZB53;BB54,RZB54 20S —
79035-36071 Pad Sub-assy, NO.7 Seat Cushion, RH
2007-01 → —
TRB53,XZB53 20S CBU —
79035-36120 Pad Sub-assy, NO.7 Seat Cushion, RH
2007-01 → —
TRB53,XZB53 23S —
79077A — Pad Sub-assy, NO.7 Seatback, RH
79017-36050 Pad Sub-assy, NO.7 Seatback, RH
2000-12 → 2003-10 ended
BB54,RZB54 —
79017-36060 Pad Sub-assy, NO.7 Seatback, RH
2000-12 → 2003-10 ended
BB53,RZB53 —
79017-36050 Pad Sub-assy, NO.7 Seatback, RH
2003-10 → 2007-01 ended
BB54,RZB54 23S,29S,30S —
79017-36060 Pad Sub-assy, NO.7 Seatback, RH
2003-10 → 2004-11 ended
BB53,RZB53 —
79017-36060 Pad Sub-assy, NO.7 Seatback, RH
2003-10 → 2007-01 ended
BB53,RZB53 23S —
79017-36150 note Pad Sub-assy, NO.7 Seatback, RH
2003-10 → 2007-01 ended
BB5#,RZB5# 20S,24S —
79017-36150 Pad Sub-assy, NO.7 Seatback, RH
2007-01 → —
TRB53,XZB53 EX —
79017-36160 Pad Sub-assy, NO.7 Seatback, RH
2007-01 → —
TRB53,XZB53 (LX,STD) CBU —
79700 — Seat Assy, NO.7, RH
79700-36650-E1 note Seat Assy, NO.7, RH
2004-11 → 2006-10 ended
BB54,RZB54 20S —
79700-36651 note Seat Assy, NO.7, RH
2006-11 → 2007-01 ended
BB54,RZB54 20S —
79701 — Frame Sub-assy, NO.7 Seat Cushion, RH
79360-36030-E0 note Frame Sub-assy, NO.7 Seat Cushion, RH
2000-12 → 2003-10 ended
BB54,RZB54 —
79360-36040-E0 note Frame Sub-assy, NO.7 Seat Cushion, RH
2000-12 → 2003-10 ended
BB53,RZB53 —
79360-0S040-E0 note Frame Sub-assy, NO.7 Seat Cushion, RH
2009-12 → 2014-03 ended
TRB53,XZB53 23S —
79360-36030-E0 note Frame Sub-assy, NO.7 Seat Cushion, RH
2003-10 → 2004-11 ended
BB54,RZB54 29S,30S —
79360-36040-E0 note Frame Sub-assy, NO.7 Seat Cushion, RH
2003-10 → 2004-11 ended
BB5#,RZB5# 20S,24S —
79360-36050-E0 note Frame Sub-assy, NO.7 Seat Cushion, RH
2004-11 → 2006-12 ended
BB5#,RZB5# 20S,23S —
79360-36090-E0 note Frame Sub-assy, NO.7 Seat Cushion, RH
2007-01 → 2009-11 ended
TRB53,XZB53 23S —
79760-0S010-E0 note Frame Sub-assy, NO.7 Seat Cushion, RH
2009-12 → 2014-03 ended
TRB53,XZB53 20S STD CBU —
79760-0S020-E0 note Frame Sub-assy, NO.7 Seat Cushion, RH
2009-12 → 2014-03 ended
TRB53,XZB53 EX —
79760-36020-E0 note Frame Sub-assy, NO.7 Seat Cushion, RH
2004-11 → 2006-12 ended
BB53,RZB53 24S —
79760-36021-E0 note Frame Sub-assy, NO.7 Seat Cushion, RH
2007-01 → 2009-11 ended
TRB53,XZB53 EX —
79760-36030-E0 note Frame Sub-assy, NO.7 Seat Cushion, RH
2007-01 → 2009-11 ended
TRB53,XZB53 20S STD —
79703 — Frame Sub-assy, NO.7 Seatback, RH
79103-36110 Frame Sub-assy, NO.7 Seatback, RH
2000-12 → 2003-10 ended
BB54,RZB54 —
79103-36120 Frame Sub-assy, NO.7 Seatback, RH
2000-12 → 2003-10 ended
BB53,RZB53 —
79103-36110 Frame Sub-assy, NO.7 Seatback, RH
2003-10 → 2004-11 ended
BB54,RZB54 29S,30S —
79103-36120 Frame Sub-assy, NO.7 Seatback, RH
2003-10 → 2004-11 ended
BB53,RZB53 —
79103-36140 note Frame Sub-assy, NO.7 Seatback, RH
2003-10 → 2004-11 ended
BB5#,RZB5# 20S,24S —
79103-36150 Frame Sub-assy, NO.7 Seatback, RH
2004-11 → —
BB54,RZB54 23S;TRB53,XZB53 STD CBU —
79103-36160 Frame Sub-assy, NO.7 Seatback, RH
2004-11 → 2007-01 ended
BB53,RZB53 23S —
79103-36170 Frame Sub-assy, NO.7 Seatback, RH
2004-11 → 2007-01 ended
BB54,RZB54 20S —
79103-36190 Frame Sub-assy, NO.7 Seatback, RH
2007-01 → —
TRB53,XZB53 LX —
79303-36060 note Frame Sub-assy, NO.7 Seatback, RH
2004-11 → 2007-01 ended
BB53,RZB53 24S —
79303-36060 Frame Sub-assy, NO.7 Seatback, RH
2007-01 → —
TRB53,XZB53 EX —
79705 — Leg Sub-assy, NO.7 Seat, RH
79505-36060-E0 note Leg Sub-assy, NO.7 Seat, RH
2000-12 → 2003-10 ended
BB54,RZB54 —
79705-36040-E0 note Leg Sub-assy, NO.7 Seat, RH
2000-12 → 2003-10 ended
BB53,RZB53 —
79505-36060-E0 note Leg Sub-assy, NO.7 Seat, RH
2003-10 → 2004-11 ended
BB54,RZB54 29S,30S —
79605-36040-E0 note Leg Sub-assy, NO.7 Seat, RH
2007-01 → 2014-03 ended
TRB53,XZB53 23S —
79705-36040-E0 note Leg Sub-assy, NO.7 Seat, RH
2003-10 → 2014-03 ended
TRB53,XZB53 20S CBU;BB5#,RZB5# 20S,23S,24S —
79715 — Plate, NO.7 Seat Cushion Hinge, NO.1 RH
79125-36040 Plate, NO.7 Seat Cushion Hinge, NO.1 RH
2000-12 → 2003-10 ended
BB53,RZB53 —
79125-36040 Plate, NO.7 Seat Cushion Hinge, NO.1 RH
2003-10 → 2004-11 ended
BB5#,RZB5# 20S,24S —
79125-36060 Plate, NO.7 Seat Cushion Hinge, NO.1 RH
2004-11 → —
BB5#,RZB5# 20S,23S;TRB53,XZB53 (LX,STD) CBU —
79125-36080 Plate, NO.7 Seat Cushion Hinge, NO.1 RH
2004-11 → —
BB53,RZB53,TRB53,XZB53 (20S,24S) EX —
79720 — Cushion Assy, NO.7 Seat, RH
79420-36030-E0 note Cushion Assy, NO.7 Seat, RH
2000-12 → 2003-10 ended
BB54,RZB54 —
79420-36050-E0 note Cushion Assy, NO.7 Seat, RH
2000-12 → 2003-10 ended
BB53,RZB53 —
79420-36030-E1 note Cushion Assy, NO.7 Seat, RH
2003-10 → 2004-11 ended
BB54,RZB54 29S,30S —
79420-36050-E1 note Cushion Assy, NO.7 Seat, RH
2003-10 → 2004-11 ended
BB5#,RZB5# 20S,24S —
79420-36060 note Cushion Assy, NO.7 Seat, RH
2006-11 → 2007-01 ended
BB54,RZB54 23S —
79420-36060-E0 note Cushion Assy, NO.7 Seat, RH
2004-11 → 2006-11 ended
BB54,RZB54 23S —
79420-36070 note Cushion Assy, NO.7 Seat, RH
2006-11 → 2007-01 ended
BB53,RZB53 23S;BB54,RZB54 20S —
79420-36070-E0 note Cushion Assy, NO.7 Seat, RH
2004-11 → 2006-11 ended
BB53,RZB53 23S;BB54,RZB54 20S —
79736C — Cover, NO.7 Seat Leg, RH
79236-36010 Cover, NO.7 Seat Leg, RH
2000-12 → 2003-10 ended
BB53,RZB53 —
79236-36010 Cover, NO.7 Seat Leg, RH
2003-10 → —
TRB53,XZB53 20S CBU;BB5#,RZB5# 20S,23S,24S —
79740 — Back Assy, NO.7 Seat, RH
79140-36350-E0 note Back Assy, NO.7 Seat, RH
2000-12 → 2003-10 ended
BB53,RZB53 —
79140-36370-E0 note Back Assy, NO.7 Seat, RH
2000-12 → 2003-10 ended
BB54,RZB54 —
79140-36250-E1 note Back Assy, NO.7 Seat, RH
2003-10 → 2004-11 ended
BB5#,RZB5# 20S,24S —
79140-36370-E1 note Back Assy, NO.7 Seat, RH
2003-10 → 2004-11 ended
BB54,RZB54 29S,30S —
79140-36400-E0 note Back Assy, NO.7 Seat, RH
2003-10 → 2004-11 ended
BB53,RZB53 —
79140-36410 note Back Assy, NO.7 Seat, RH
2006-11 → 2007-01 ended
BB54,RZB54 23S —
79140-36410-E0 note Back Assy, NO.7 Seat, RH
2004-11 → 2006-11 ended
BB54,RZB54 23S —
79140-36420 note Back Assy, NO.7 Seat, RH
2006-11 → 2007-01 ended
BB53,RZB53 23S —
79140-36420-E0 note Back Assy, NO.7 Seat, RH
2004-11 → 2006-11 ended
BB53,RZB53 23S —
79140-36430 note Back Assy, NO.7 Seat, RH
2006-11 → 2007-01 ended
BB54,RZB54 20S —
79140-36430-E0 note Back Assy, NO.7 Seat, RH
2004-11 → 2006-11 ended
BB54,RZB54 20S —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
