Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

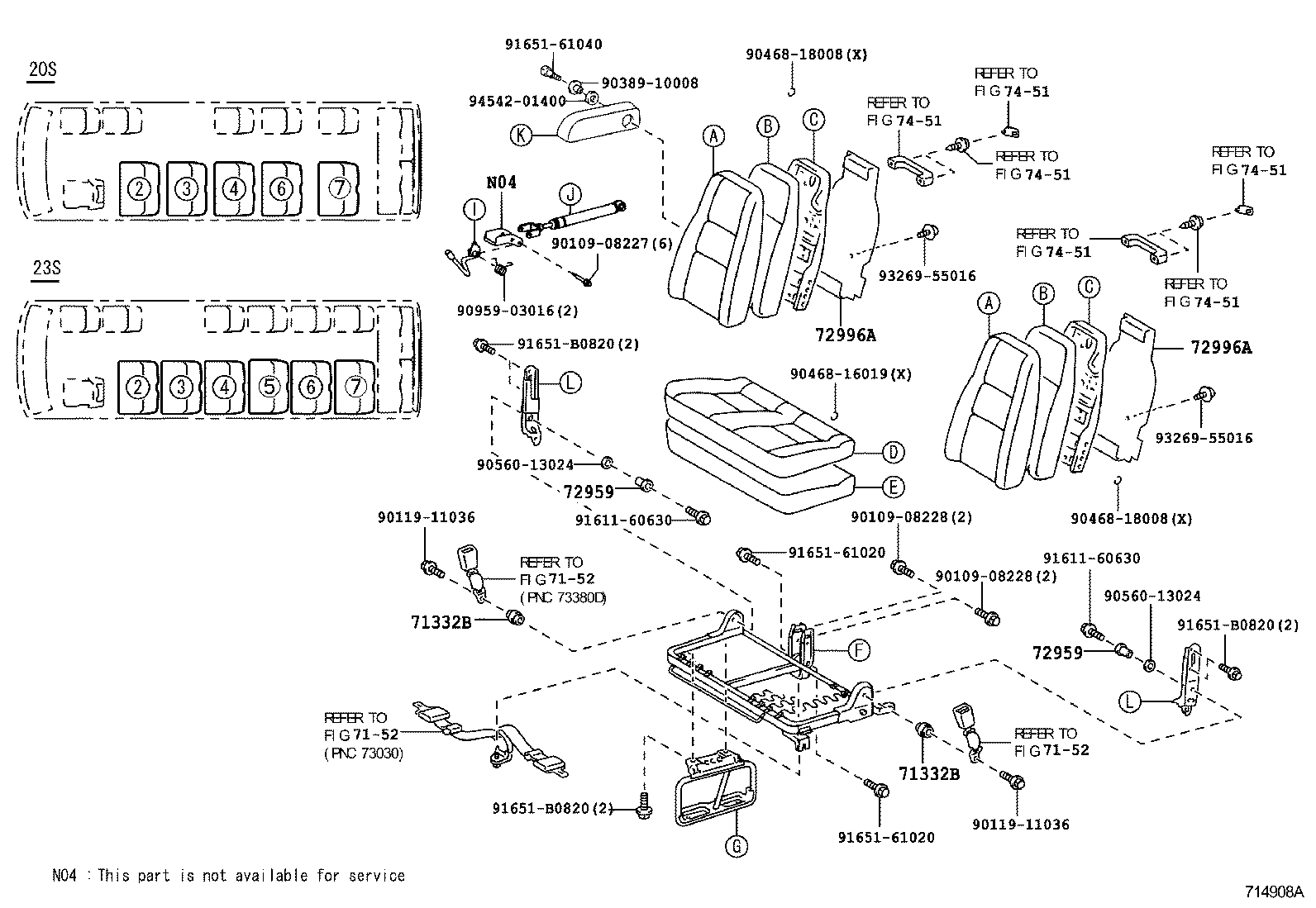

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71332B — Spacer, Rear Seatback Hinge | ||||
| 71332-36030 |
Spacer, Rear Seatback Hinge
2000-12 → 2003-10
ended
|
BB5#,RZB5# | — | |
| 71332-36030 |
Spacer, Rear Seatback Hinge
2003-10 → 2004-11
ended
|
BB54,RZB54 29S,30S | — | |
| 71332-36030 note |
Spacer, Rear Seatback Hinge
2003-10 → 2004-11
ended
|
BB5#,RZB5# 20S,24S | — | |
| 71332-36040 |
Spacer, Rear Seatback Hinge
2004-11 → —
|
BB5#,RZB5#,TRB53,XZB53 | — | |
| 72959 — Spacer, Rear Seat Turn Side | ||||
| 72959-36010 |
Spacer, Rear Seat Turn Side
2004-11 → —
|
BB5#,RZB5#,TRB53,XZB53 CBU | — | |
| 72959-36010 |
Spacer, Rear Seat Turn Side
2011-08 → —
|
TRB53 IV5 | — | |
| 72996A — Cover, Rear Seatback | ||||
| 72996-0S010 note |
Cover, Rear Seatback
2007-01 → —
|
TRB53,XZB53 | — | |
| 72996-36010 |
Cover, Rear Seatback
2004-11 → —
|
BB5#,RZB5# | — | |
| 72996-36010 note |
Cover, Rear Seatback
2007-01 → —
|
TRB53,XZB53 CBU | — | |
| 72996-36010 note |
Cover, Rear Seatback
2007-01 → —
|
TRB53,XZB53 CBU | — | |
| 72996-36010 |
Cover, Rear Seatback
2007-11 → —
|
TRB53,XZB53 20S CBU | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
