Toyota Coaster (CHINA)

2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

13 part groups · 4 illustrations

Illustrations

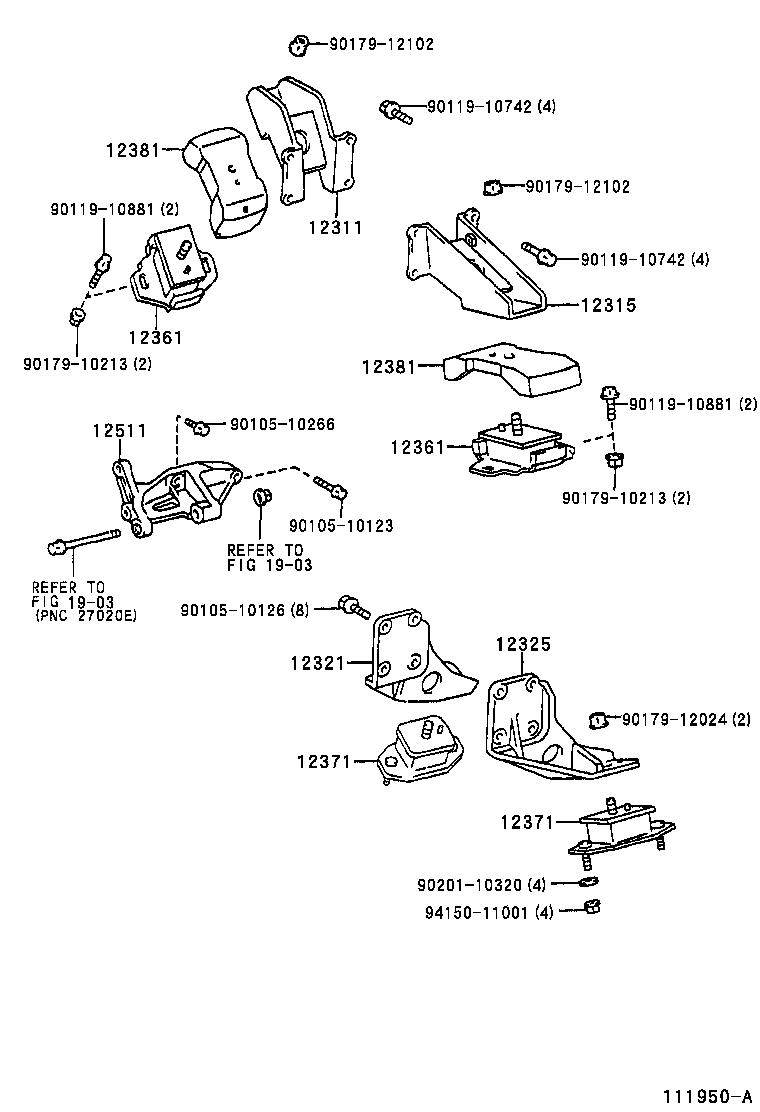

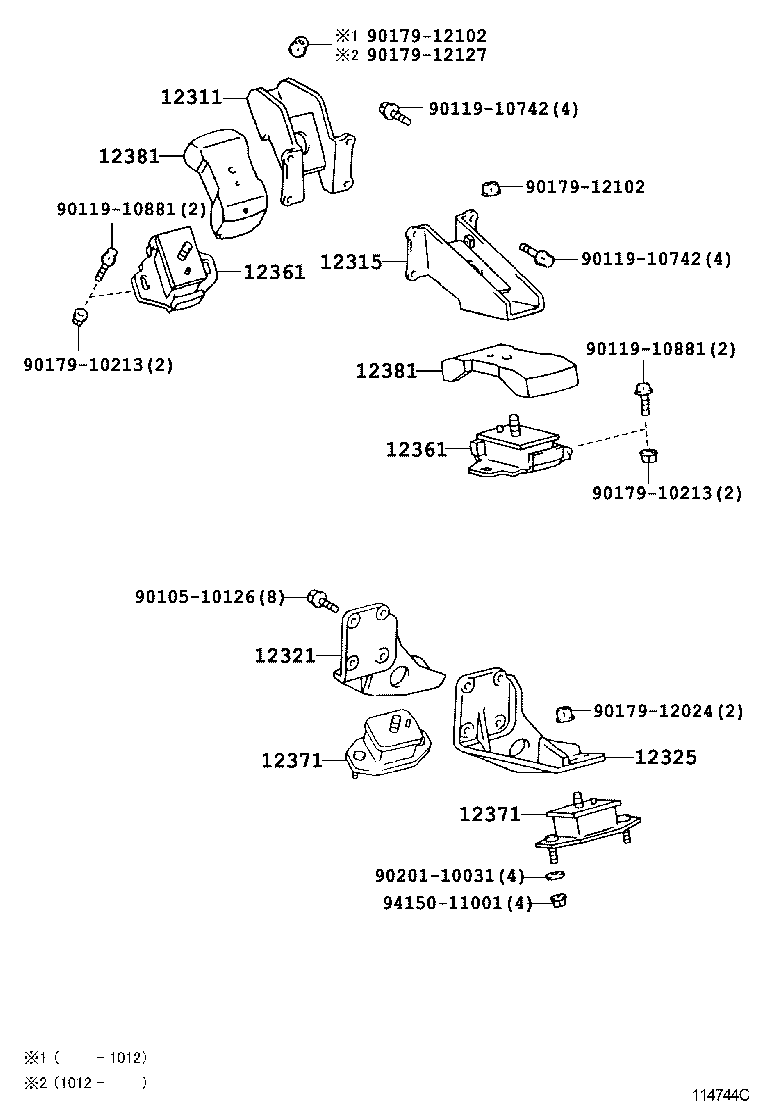

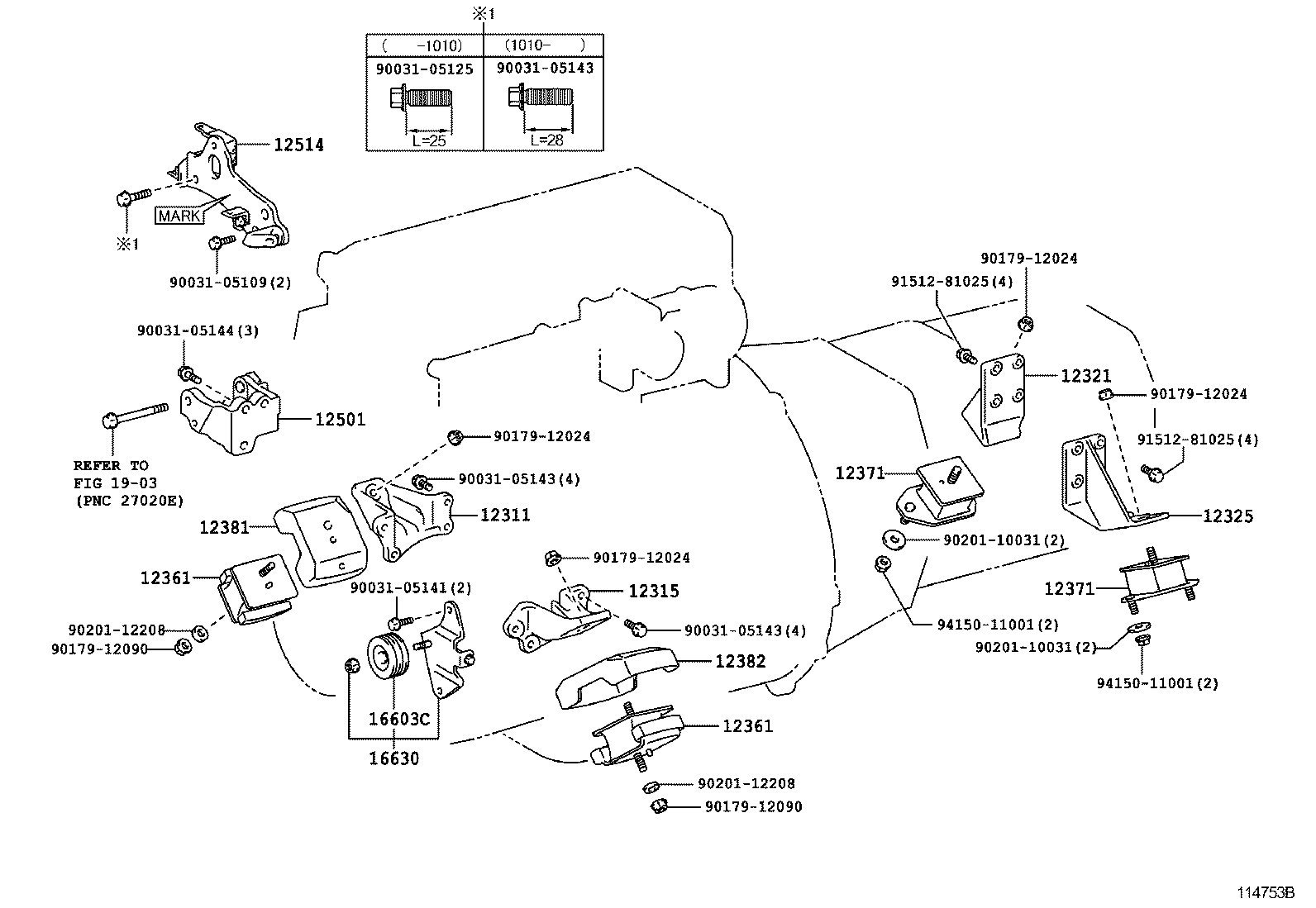

Figure 111962A 111962A 2000-12 → — Figure 111950A 111950A 2000-12 → 2007-01 Figure 114744C 114744C 2007-01 → — Figure 114753B 114753B 2007-01 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12325 Bracket, Engine Mounting, NO.3
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12501 Bracket Sub-assy, Alternator
12511 Bracket, Alternator, NO.1
12514 Bar, Alternator Belt Adjusting
16603C Pulley Sub-assy, Idler
16630 Pulley Assy, Idler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
