Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

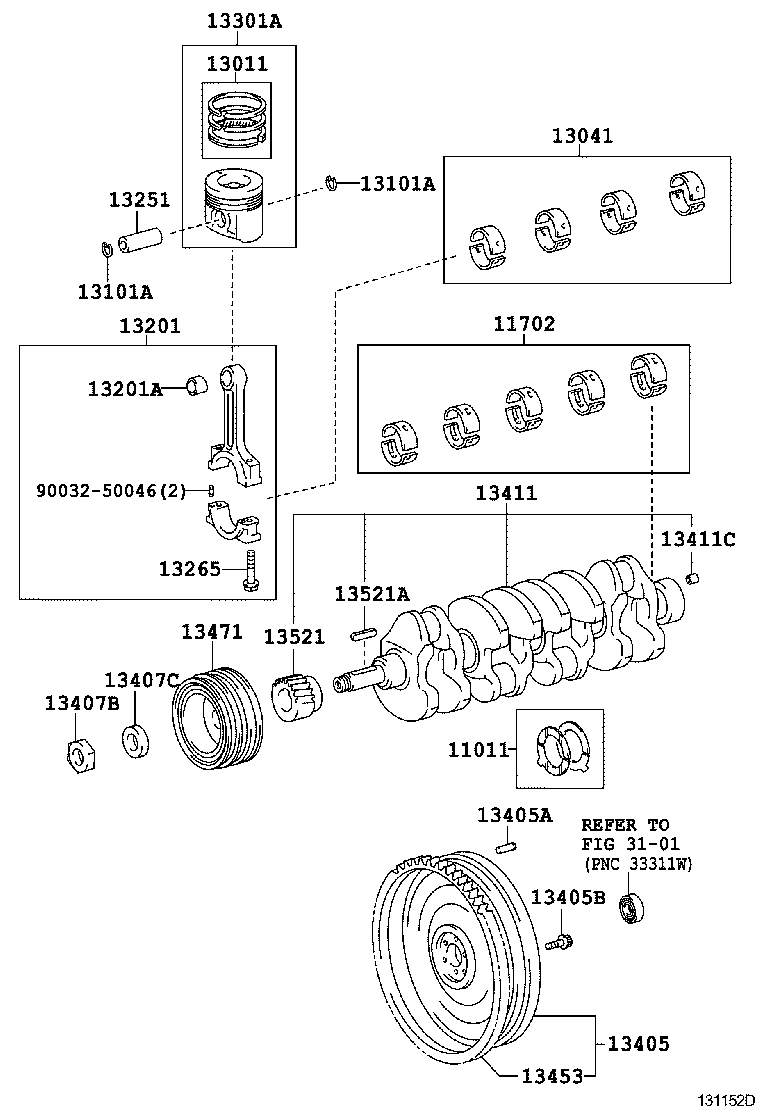

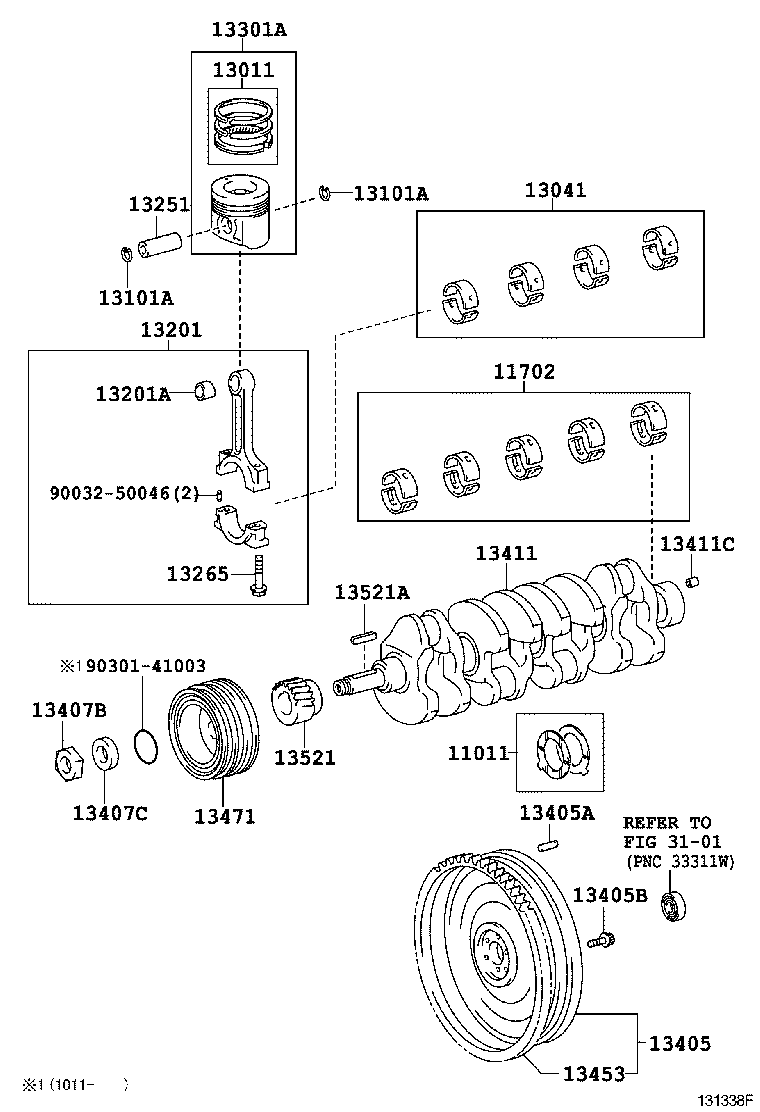

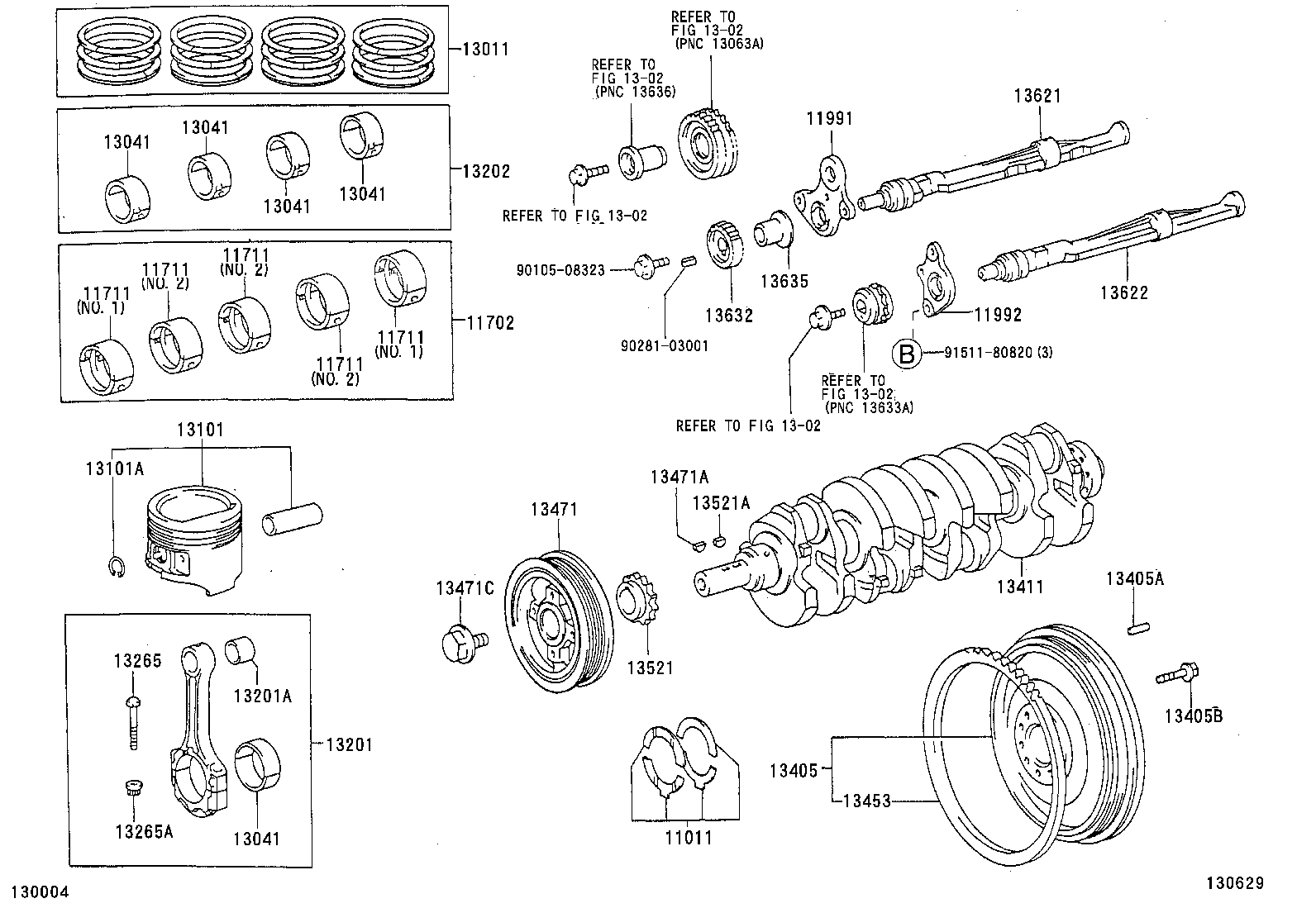

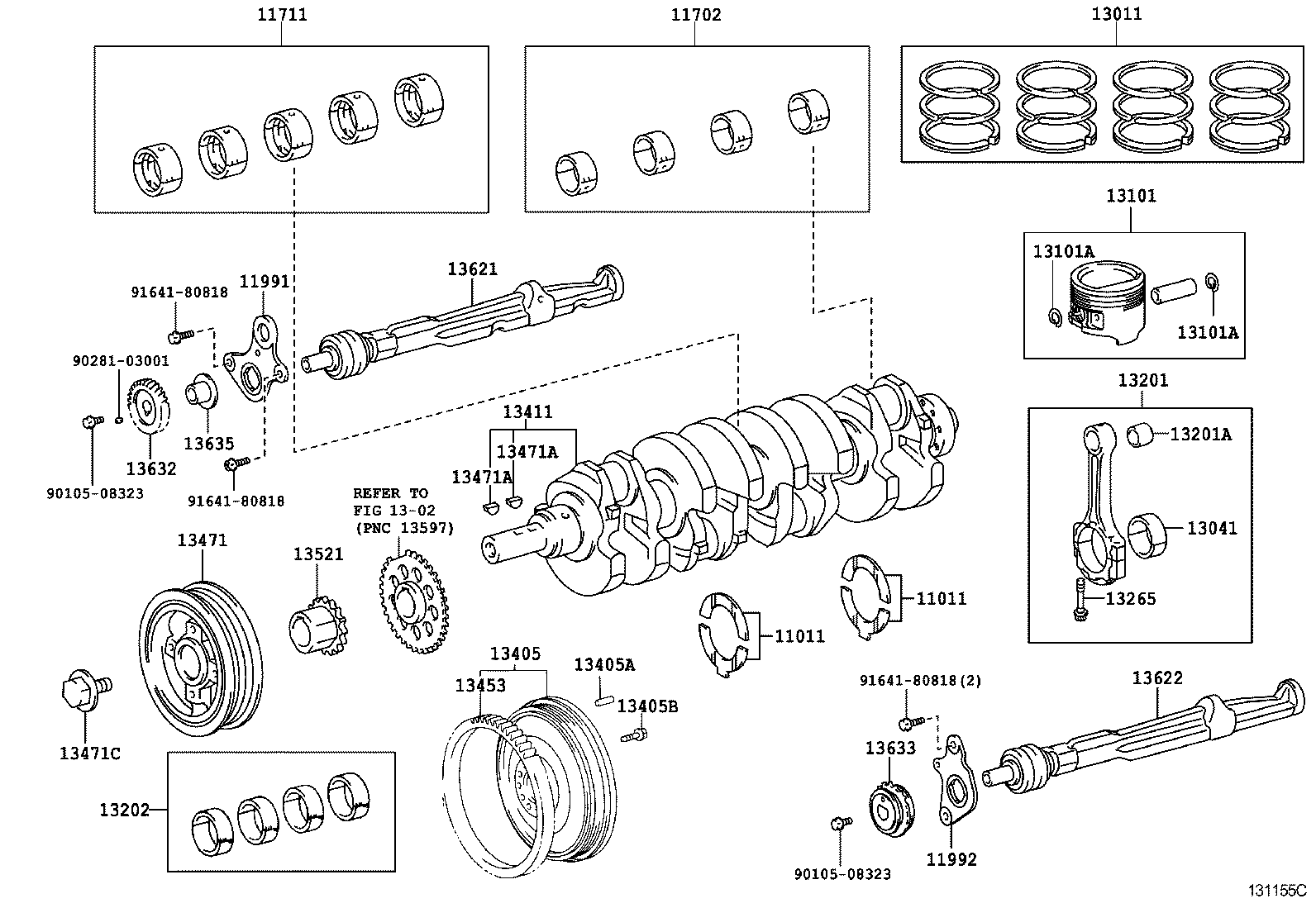

Crankshaft & Piston
40 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11011 | Washer Set, Crankshaft Thrust |
| 11702 | Bearing Set, Crankshaft |
| 11711 | Bearing, Crankshaft |
| 11991 | Washer, Balanceshaft Thrust |
| 11992 | Washer, Balanceshaft Thrust, NO.2 |
| 13011 | Ring Set, Piston |
| 13041 | Bearing, Connecting Rod |
| 13101 | Piston Sub-assy, W/Pin |
| 13101A | Ring, Hole Snap(FOR PISTON PIN) |
| 13201 | Rod Sub-assy, Connecting |
| 13201A | Bush(FOR CONNECTING ROD SMALL END) |
| 13202 | Bearing Set, Connecting Rod |
| 13251 | Pin, Piston |
| 13265 | Bolt, Connecting Rod |
| 13265A | Nut, Hexagon(FOR CONNECTING ROD BOLT) |
| 13301A | Piston Set, W/Piston Ring |
| 13405 | Flywheel Sub-assy |
| 13405A | Pin, Straight(FOR FLYWHEEL) |
| 13405B | Bolt, Flywheel Setting |
| 13407B | Nut, Hexagon(FOR CRANKSHAFT DAMPER) |
| 13407C | Spacer(FOR CRANKSHAFT DAMPER) |
| 13411 | Crankshaft |
| 13411C | Pin, Straight(FOR CRANKSHAFT) |
| 13434 | Spline, Oil Pump Drive |
| 13453 | Gear, Flywheel Ring |
| 13471 | Pulley, Crankshaft |
| 13471A | Key, Crankshaft(FOR CRANKSHAFT PULLEY SET) |
| 13471C | Bolt(FOR CRANKSHAFT PULLEY SET) |
| 13503 | Shaft Sub-assy, Idle Gear |
| 13521 | Gear OR Sprocket, Crankshaft Timing |
| 13521A | Key(FOR CRANKSHAFT TIMING GEAR) |
| 13525 | Gear, Idle, NO.1 |
| 13572 | Plate, Idle Gear Thrust |
| 13577A | Bolt, Hexagon(FOR IDLE GEAR BOLT LOCK) |
| 13621 | Balanceshaft, NO.1 |
| 13622 | Balanceshaft, NO.2 |
| 13632 | Gear, Balanceshaft Driven, NO.1 |
| 13633 | Gear, Balanceshaft Driven, NO.2 |
| 13635 | Spacer, Balanceshaft Thrust |
| 13707A | Union(FOR OIL PIPE, NO.1) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
