Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

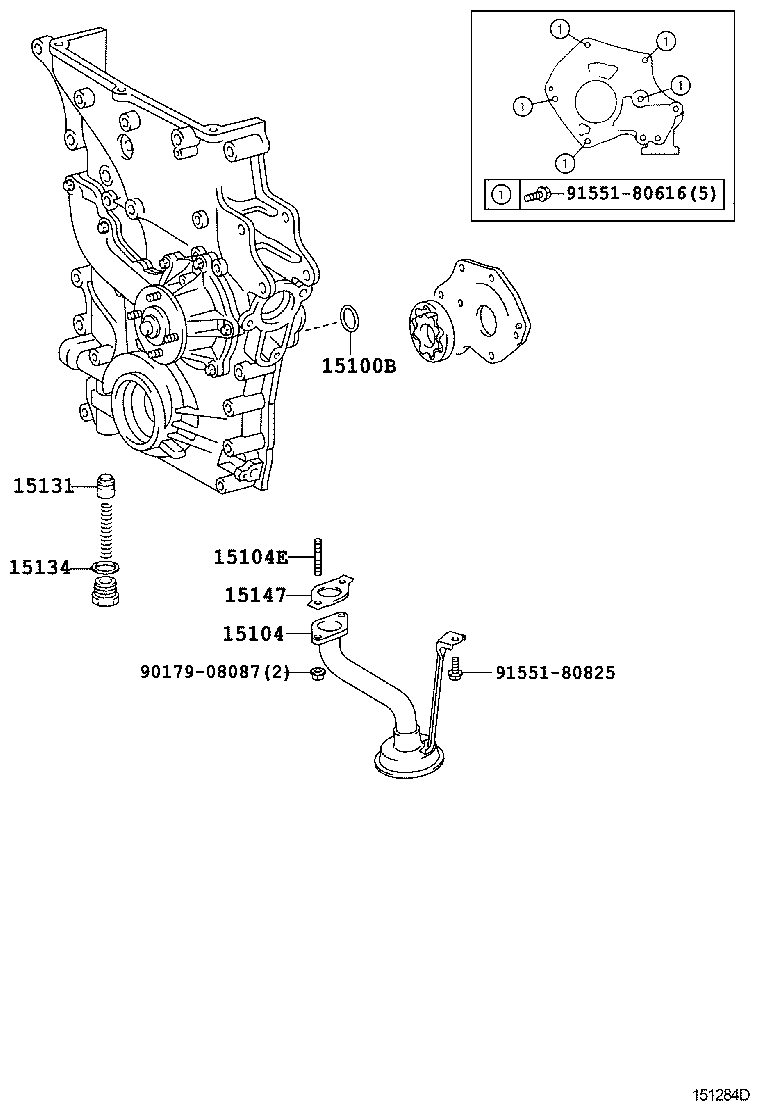

Engine Oil Pump
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 15012 | Cover Sub-assy, Oil Pump |
| 15100 | Pump Assy, Oil |
| 15100B | Ring, O(FOR OIL PUMP) |
| 15102 | Rotor Set, Oil Pump |
| 15104 | Strainer Sub-assy, Oil |
| 15104A | Ring, O(FOR OIL STRAINER) |
| 15104C | Gasket(FOR OIL STRAINER) |
| 15104E | Bolt, Stud(FOR OIL STRAINER) |
| 15115 | Cover, Oil Pump |
| 15119 | Gasket, Oil Pump Cover |
| 15121 | Gear, Oil Pump Drive |
| 15122 | Gear, Oil Pump Driven |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15133 | Plug, Oil Pump Relief Valve |
| 15134 | Gasket, Oil Pump Relief Valve |
| 15135 | Retainer, Oil Pump Relief Valve |
| 15147 | Gasket, Oil Strainer |
| 15149 | Gasket, Oil Strainer Flange |
| 15403 | Pipe Sub-assy, Oil Pump Outlet |
| 15403A | Union(FOR OIL PUMP OUTLET PIPE) |
| 15403B | Gasket(FOR OIL PUMP OUTLET PIPE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
