Toyota Coaster (CHINA)

2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General

Discontinued model Data version 2014-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

11 part groups · 5 illustrations

Illustrations

Figure 150398A

150398A 2000-12 → —

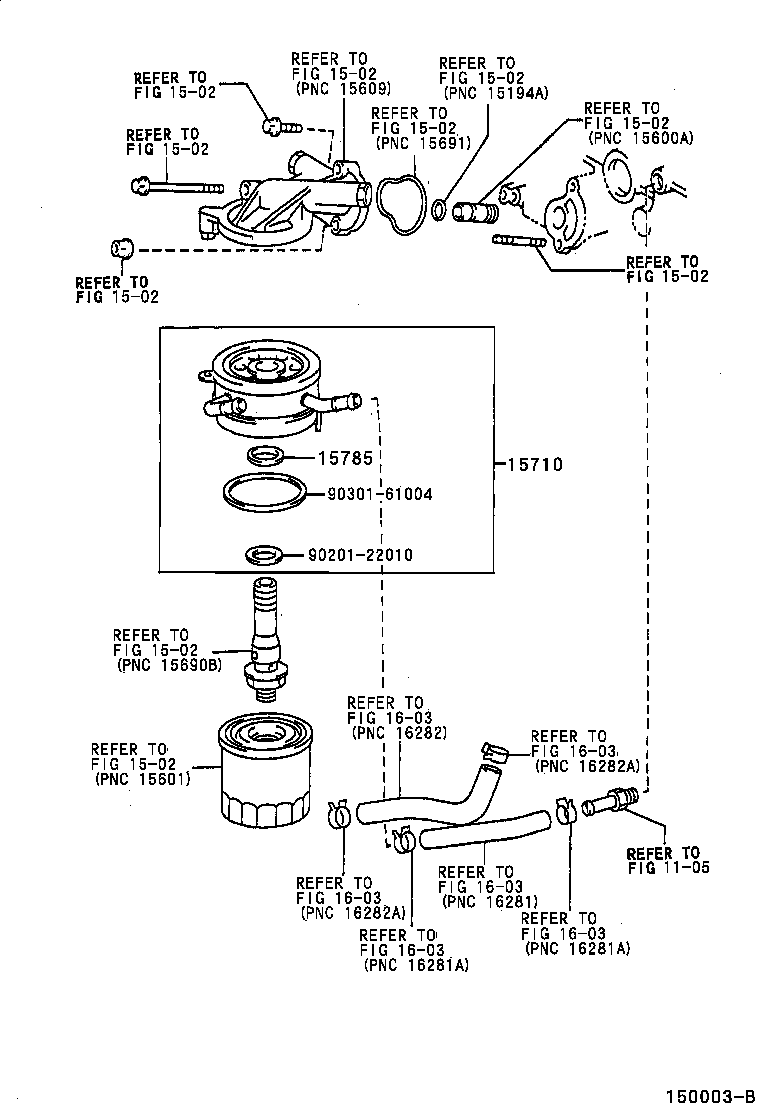

Figure 150003B

150003B 2000-12 → 2007-01

151891 2007-01 → —

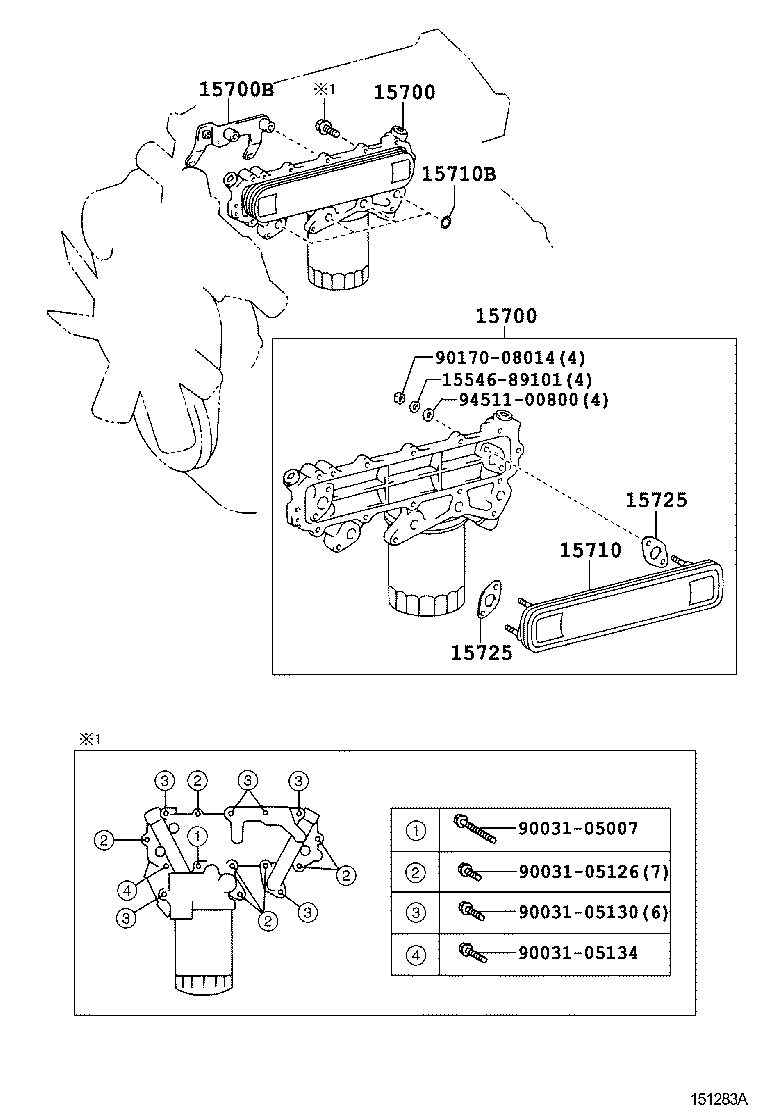

Figure 151283A

151283A 2007-01 → 2007-11

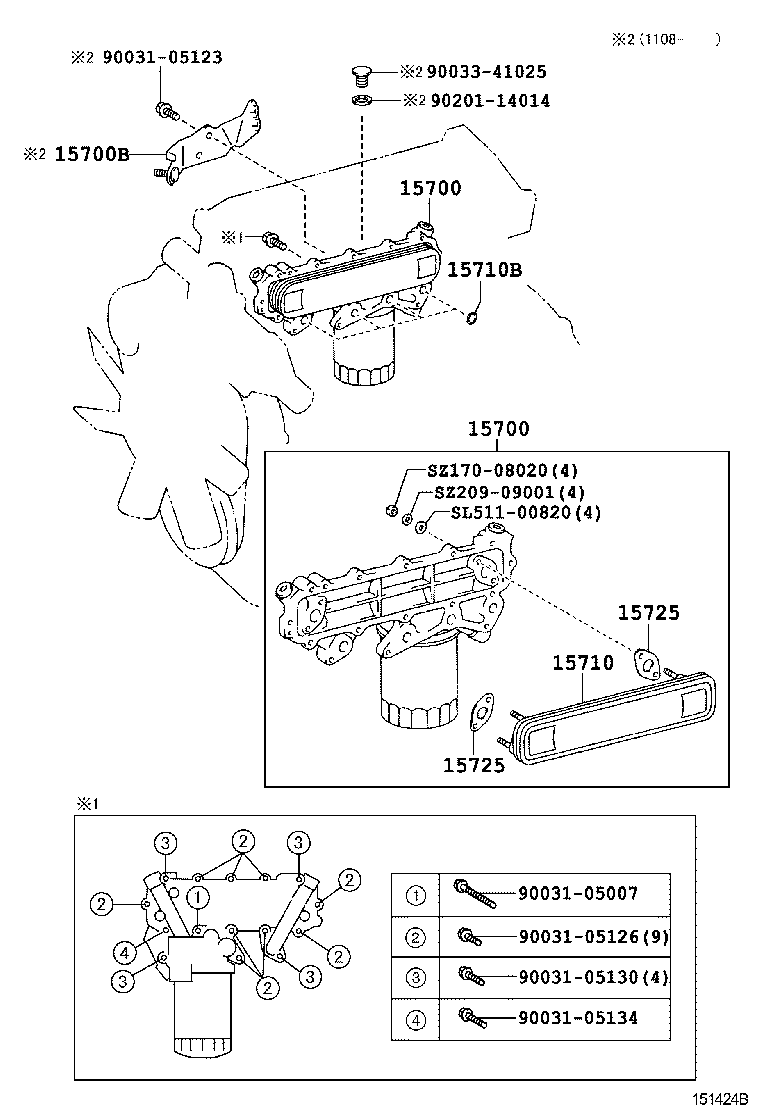

Figure 151424B

151424B 2007-11 → —

Part groups

PNC	Description
15529A	Plug
15695	Bolt, Oil Cooler Union
15700	Cooler Assy, Oil W/Bracket
15700B	Bracket(FOR OIL COOLER)
15710	Cooler Assy, Oil
15710B	Ring, O(FOR OIL COOLER)
15710C	Gasket(FOR OIL COOLER)
15722	Gasket, Oil Cooler
15725	Gasket, Oil Cooler Cover
15785	Gasket, Oil Cooler
15791	Case, Oil Cooler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
