Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

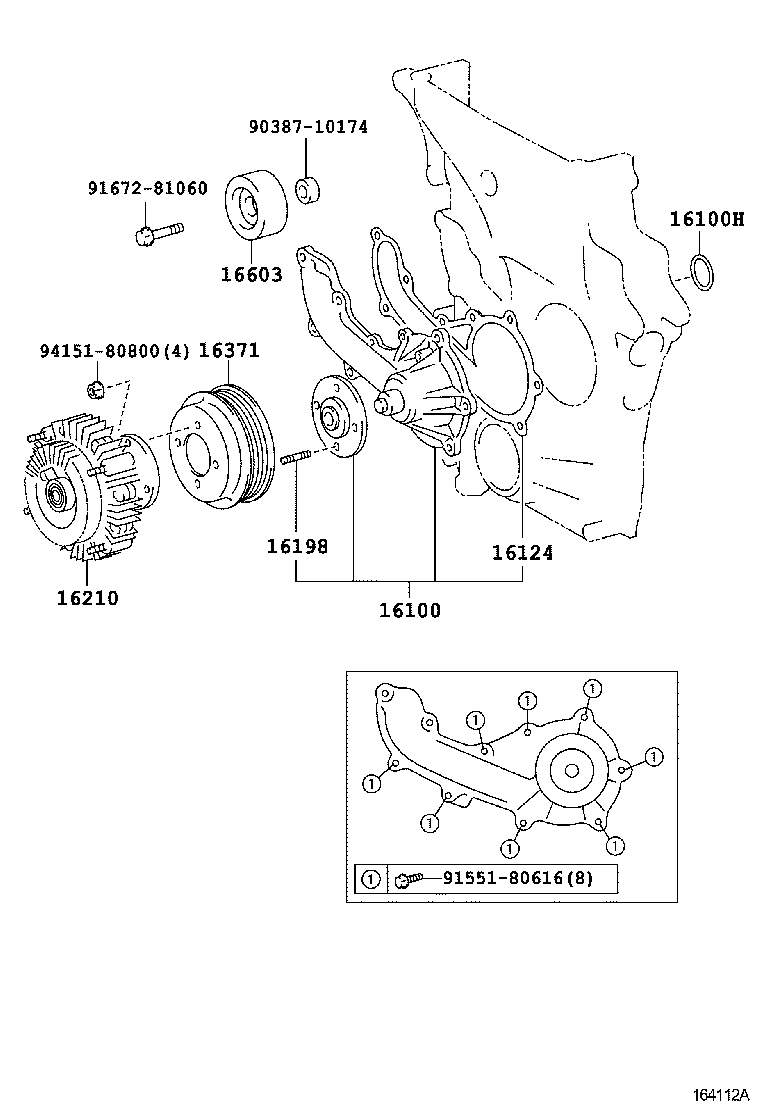

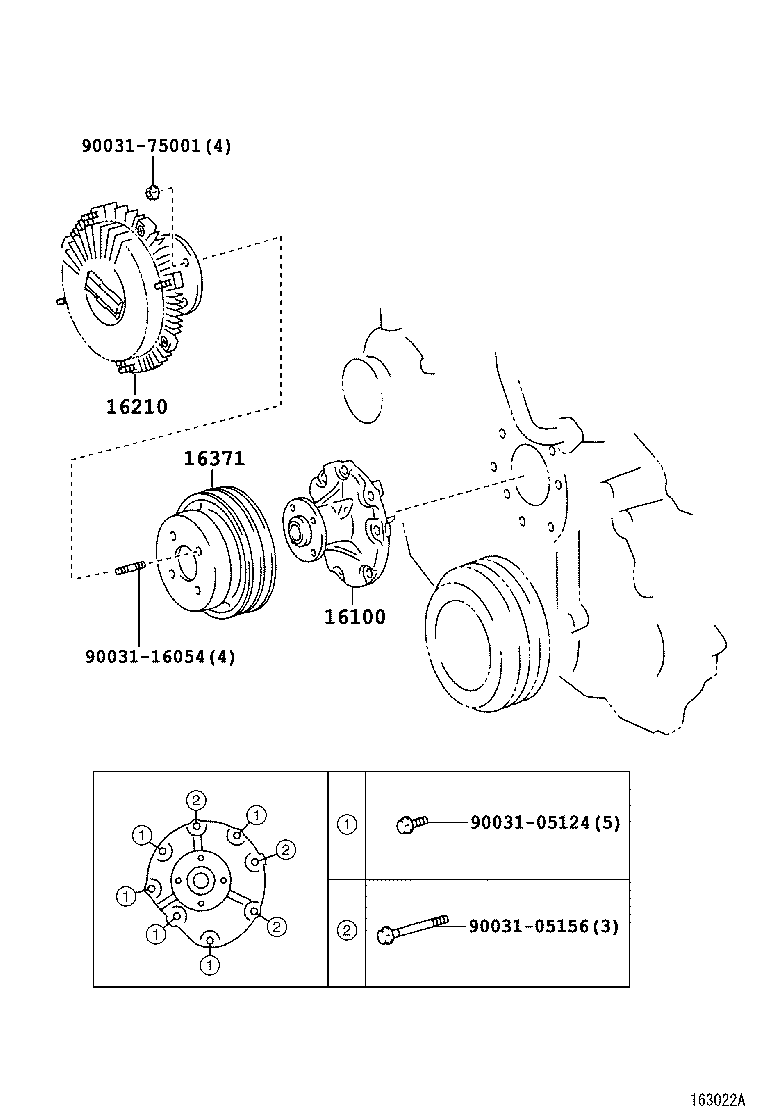

Water Pump
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100A | Plug, Water Pump |
| 16100H | Ring, O(FOR WATER PUMP) |
| 16117 | Plate, Water Pump |
| 16124 | Gasket, Water Pump Cover |
| 16198 | Bolt, Stud(FOR WATER PUMP PULLEY SEAT) |
| 16210 | Coupling Assy, Fluid |
| 16271 | Gasket, Water Pump |
| 16371 | Pulley, Fan |
| 16603 | Pulley Sub-assy, Idler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
