Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01
Radiator & Water Outlet

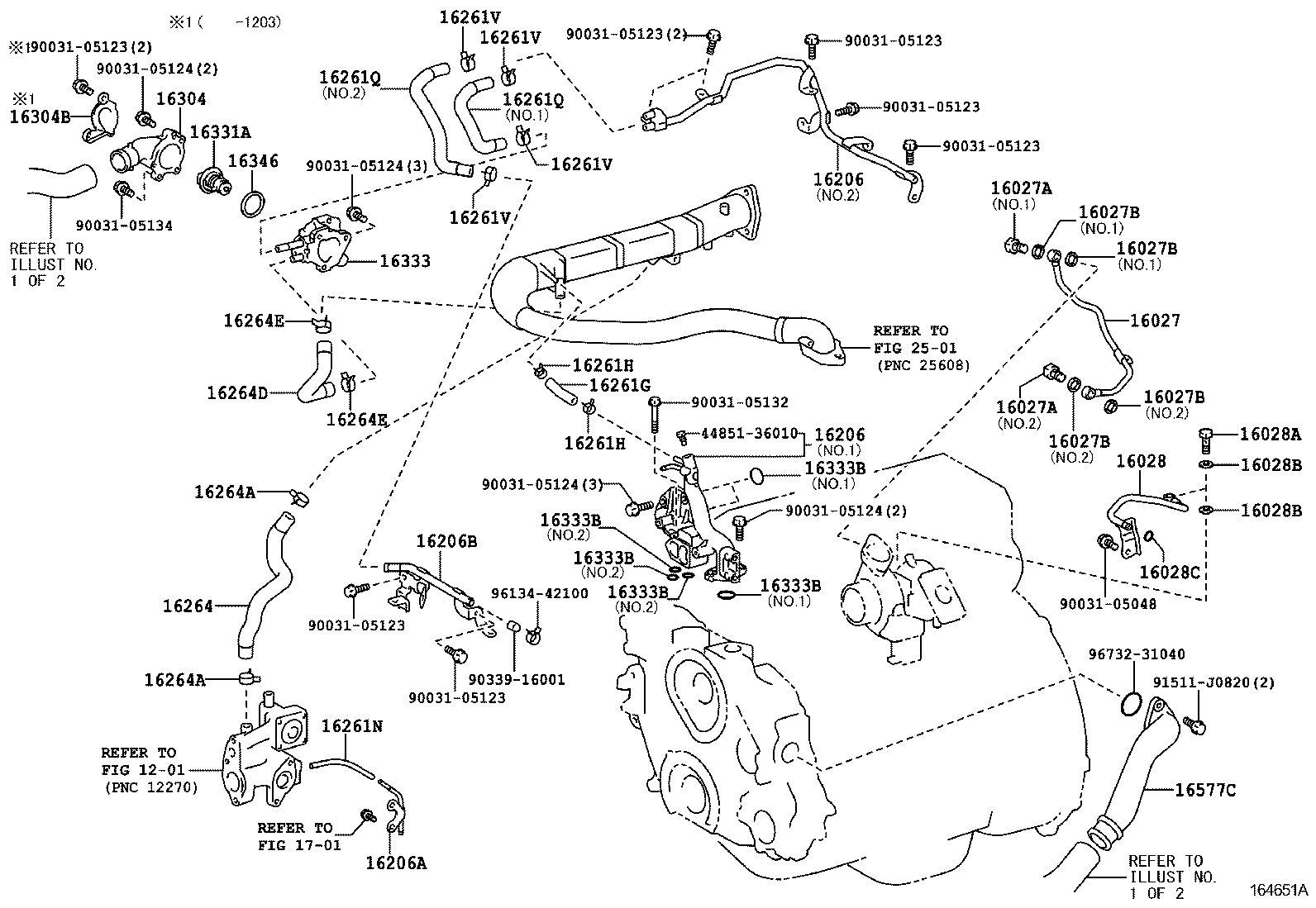

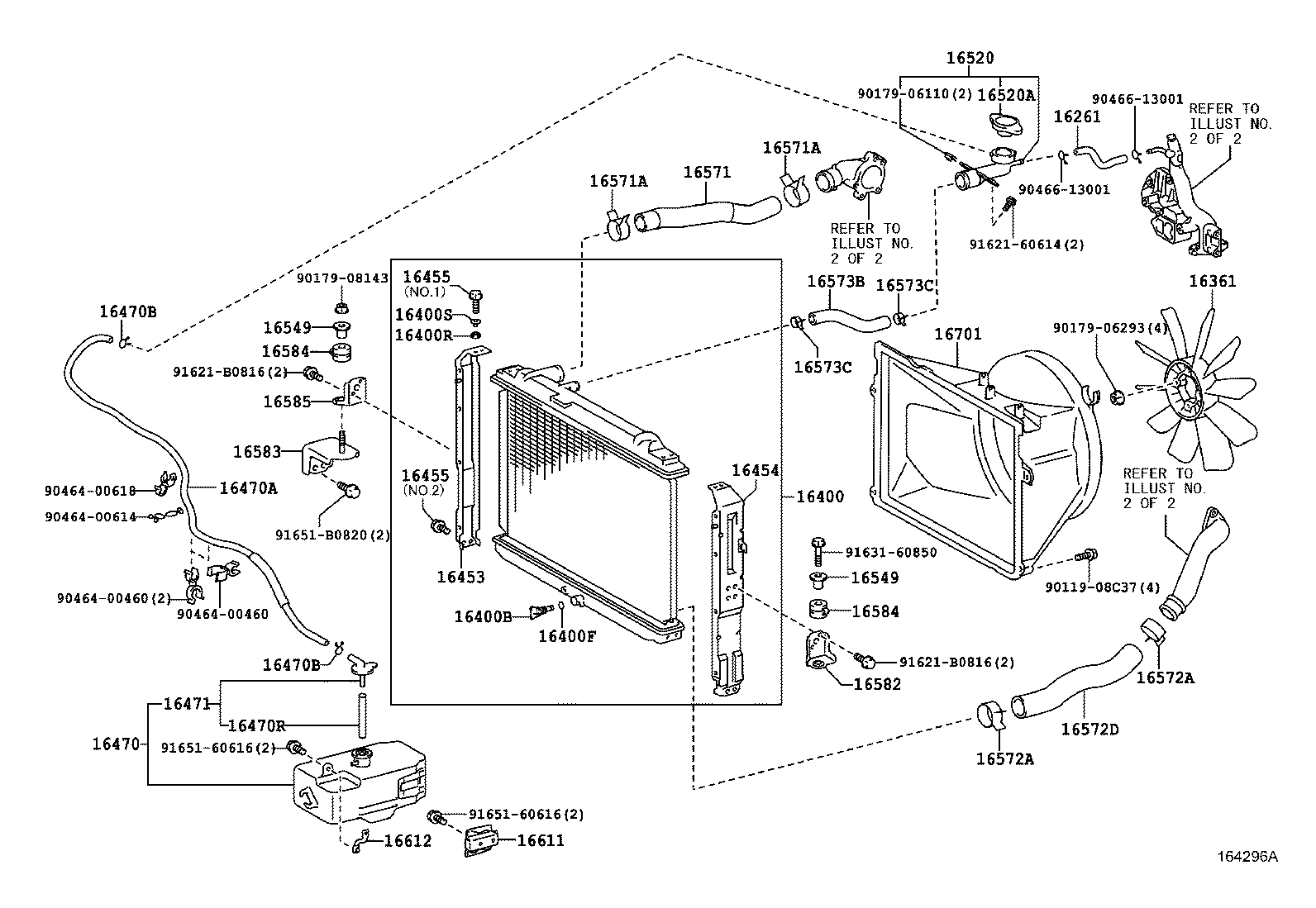

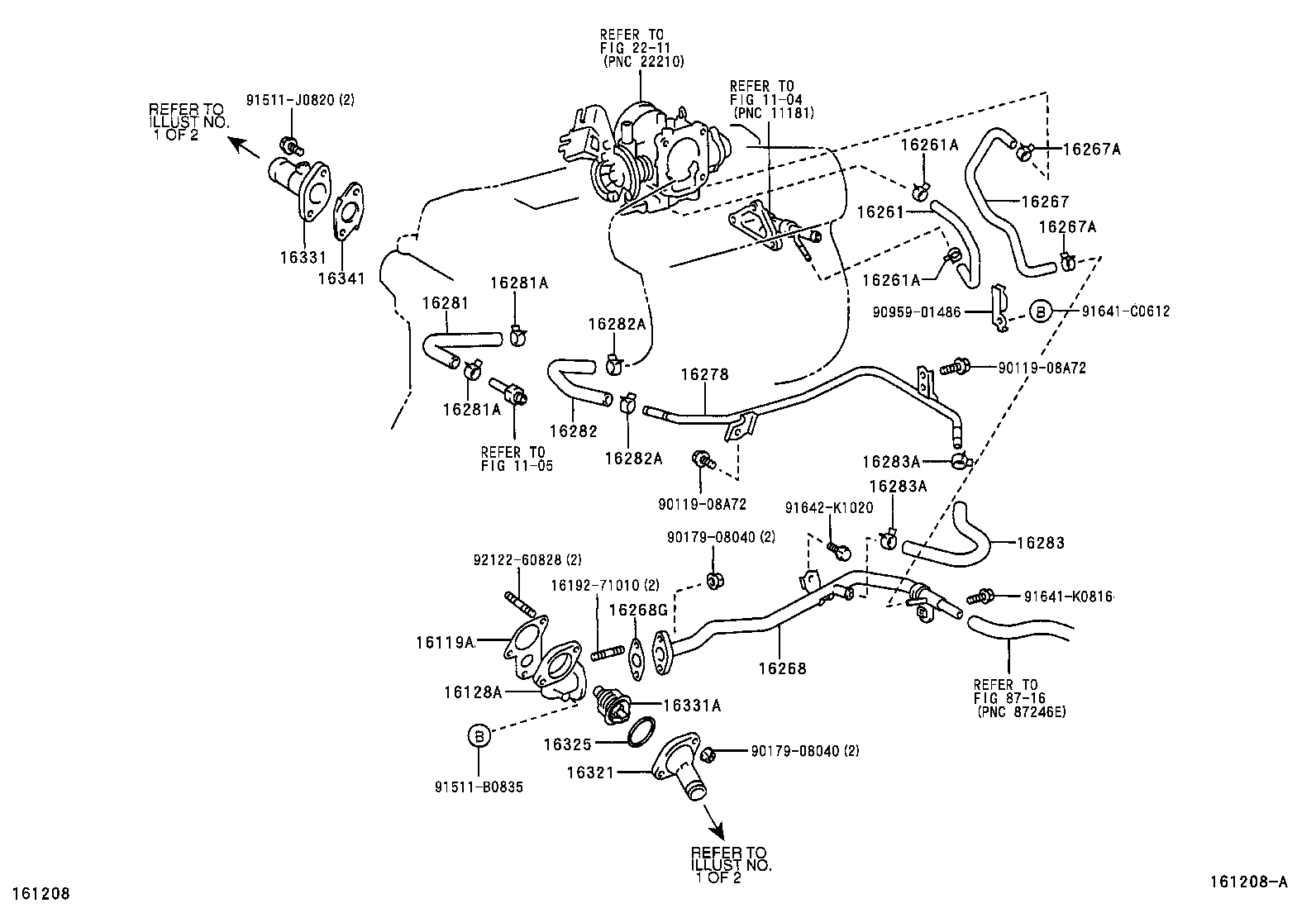

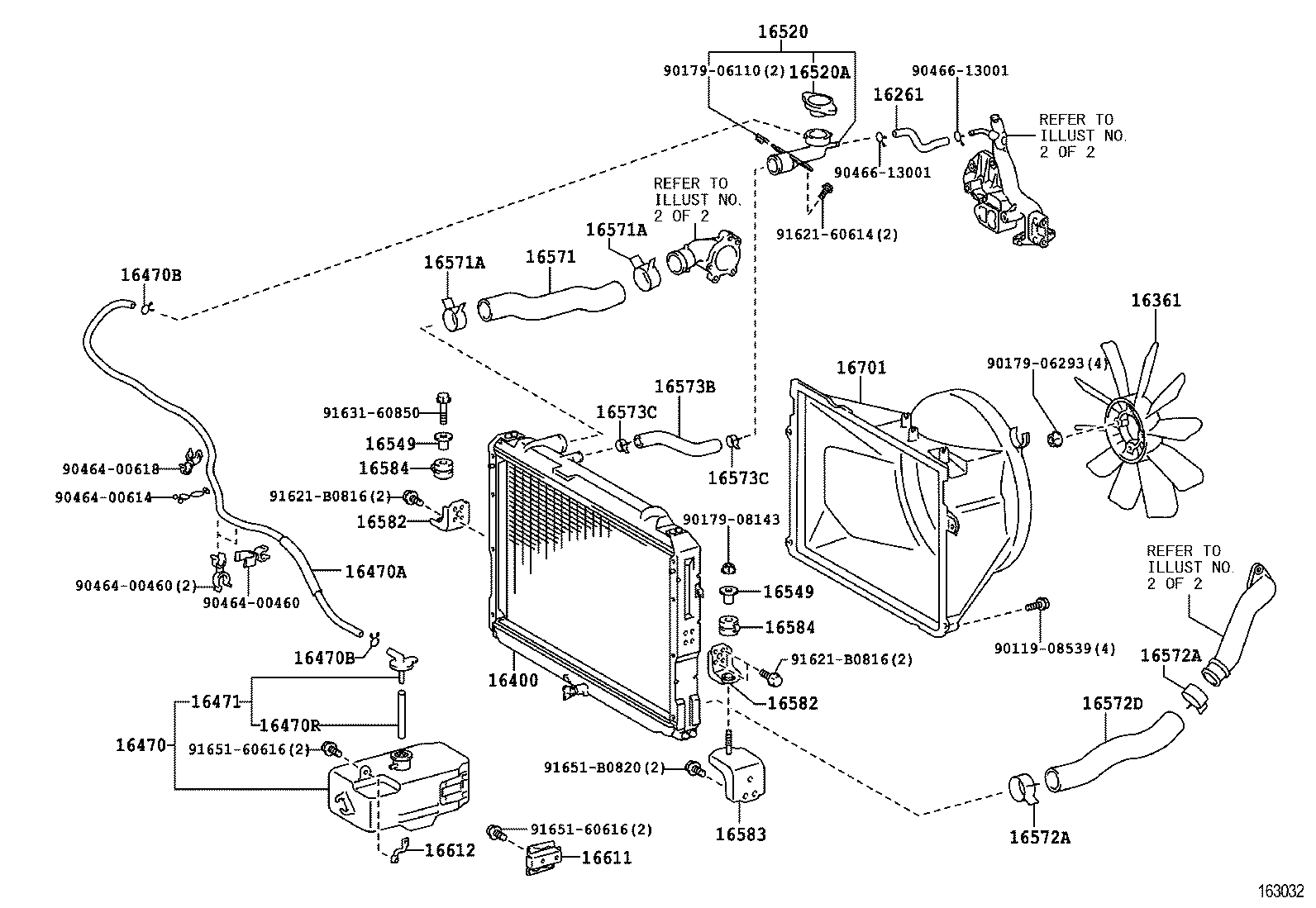

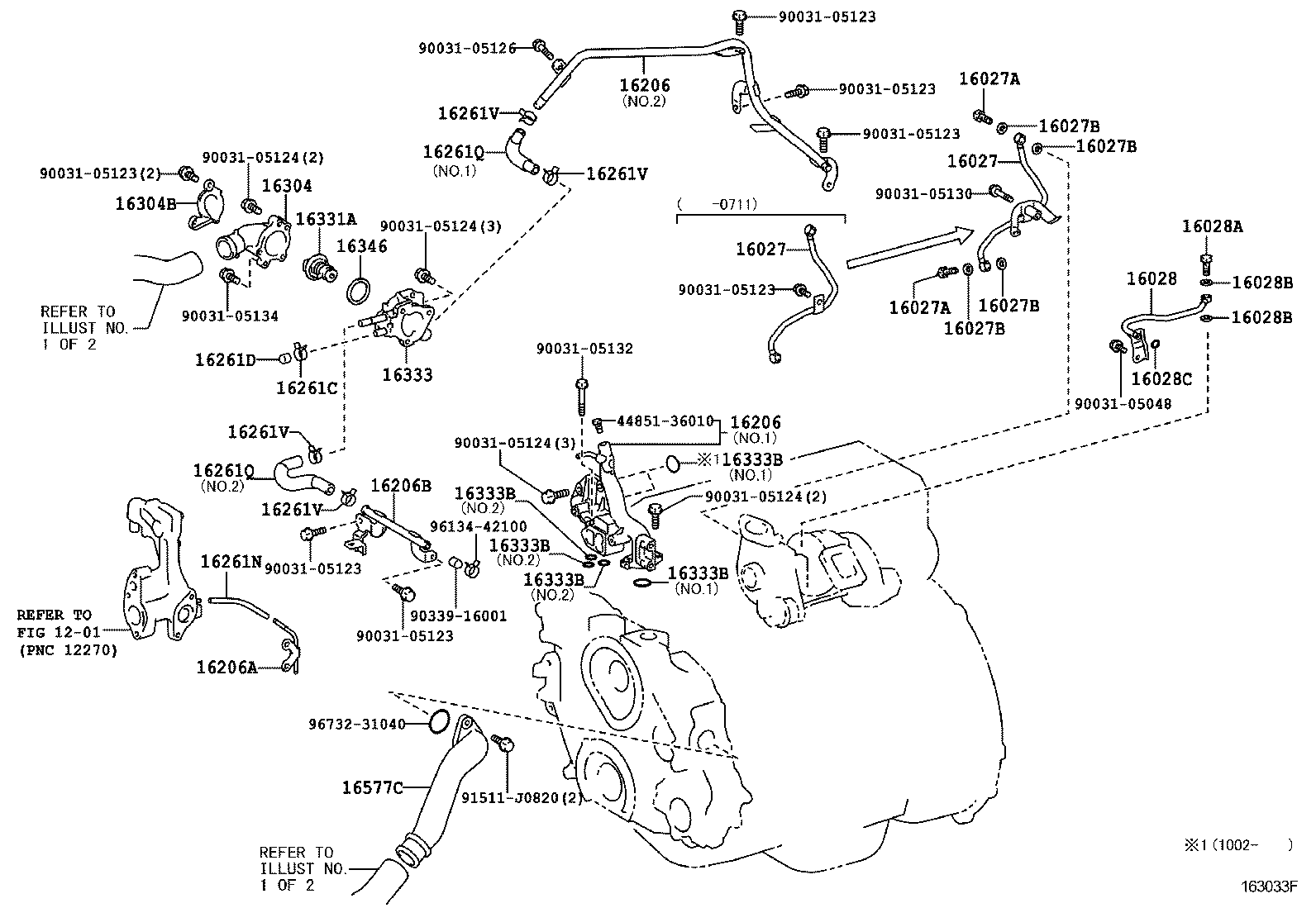

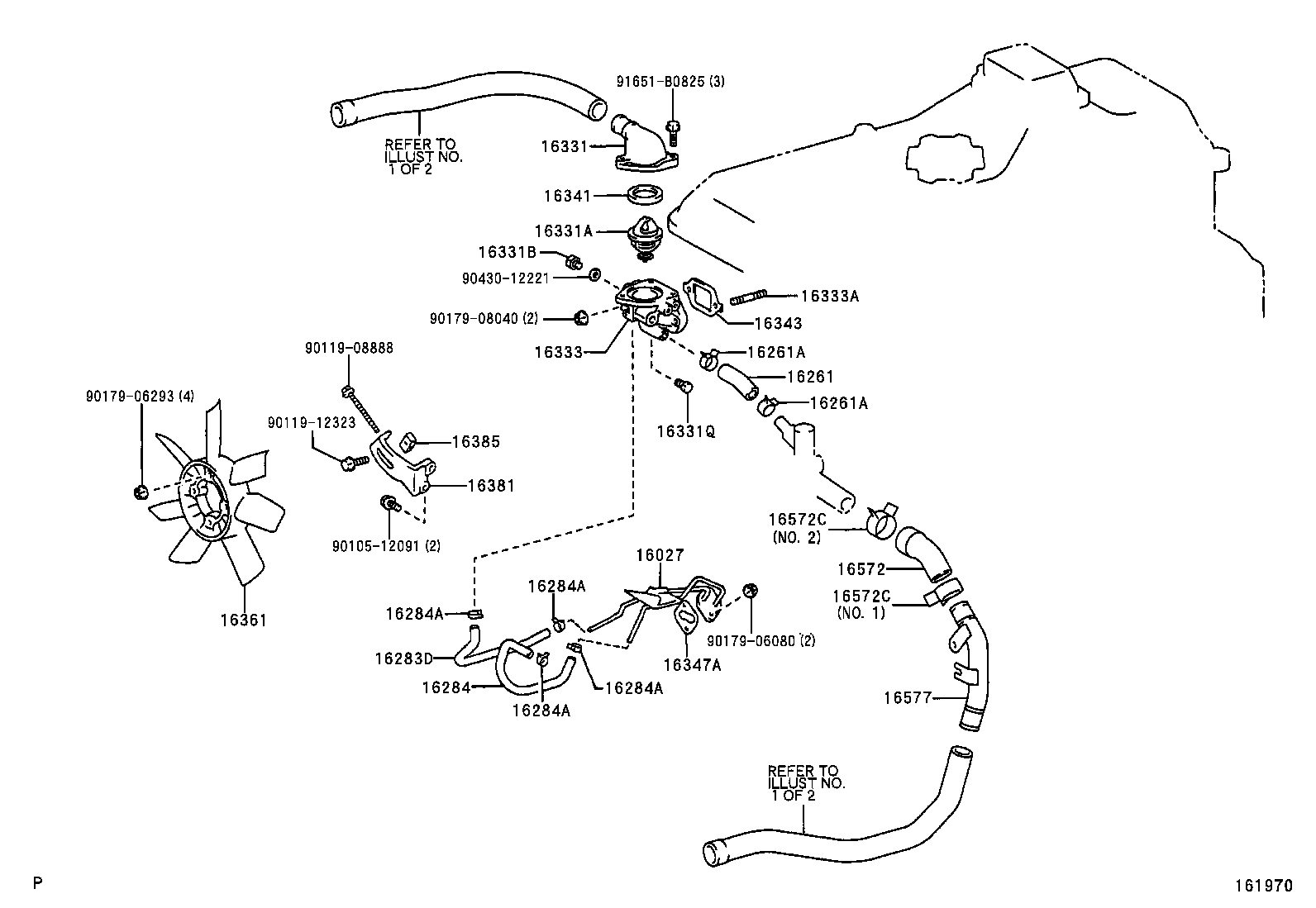

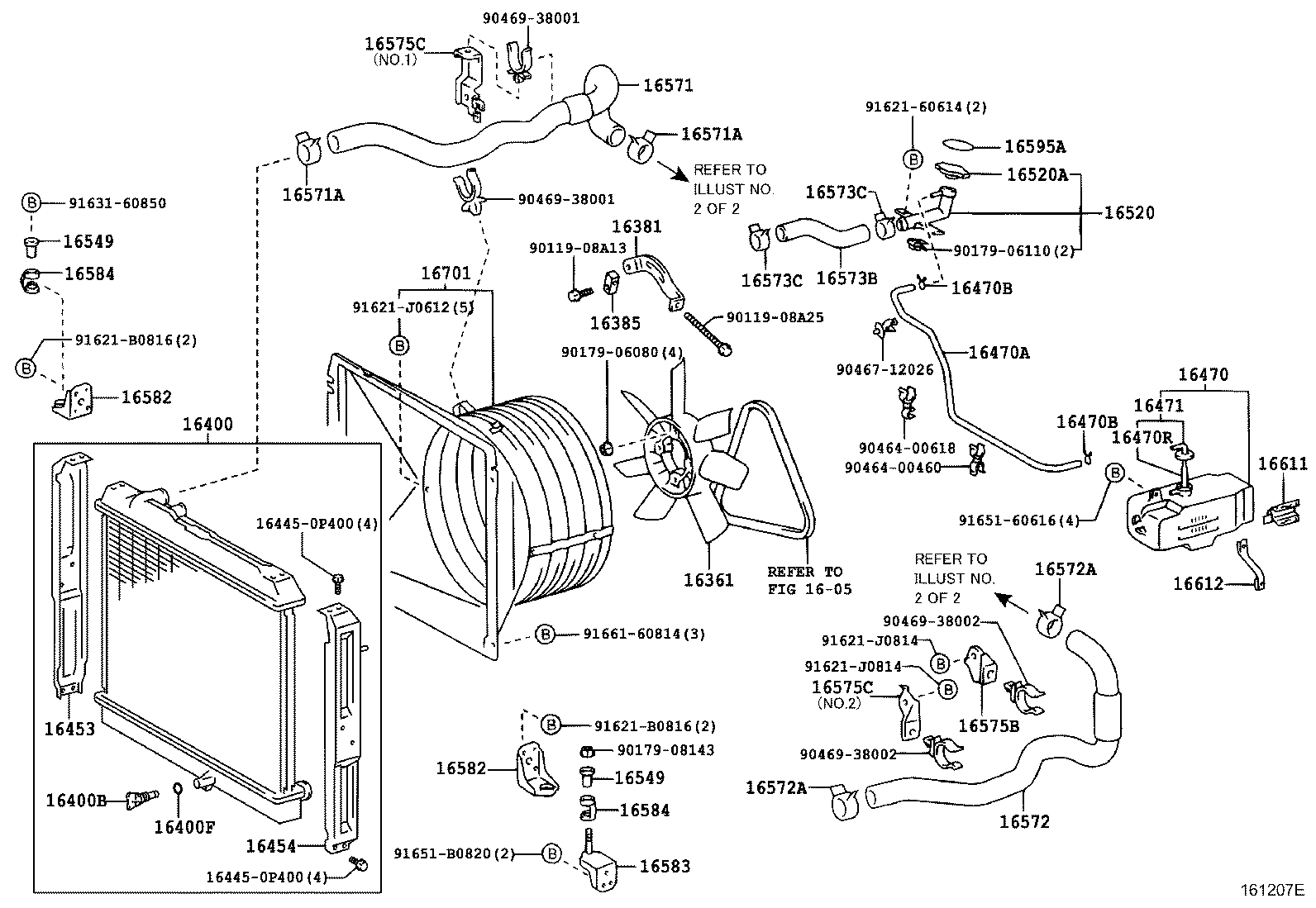

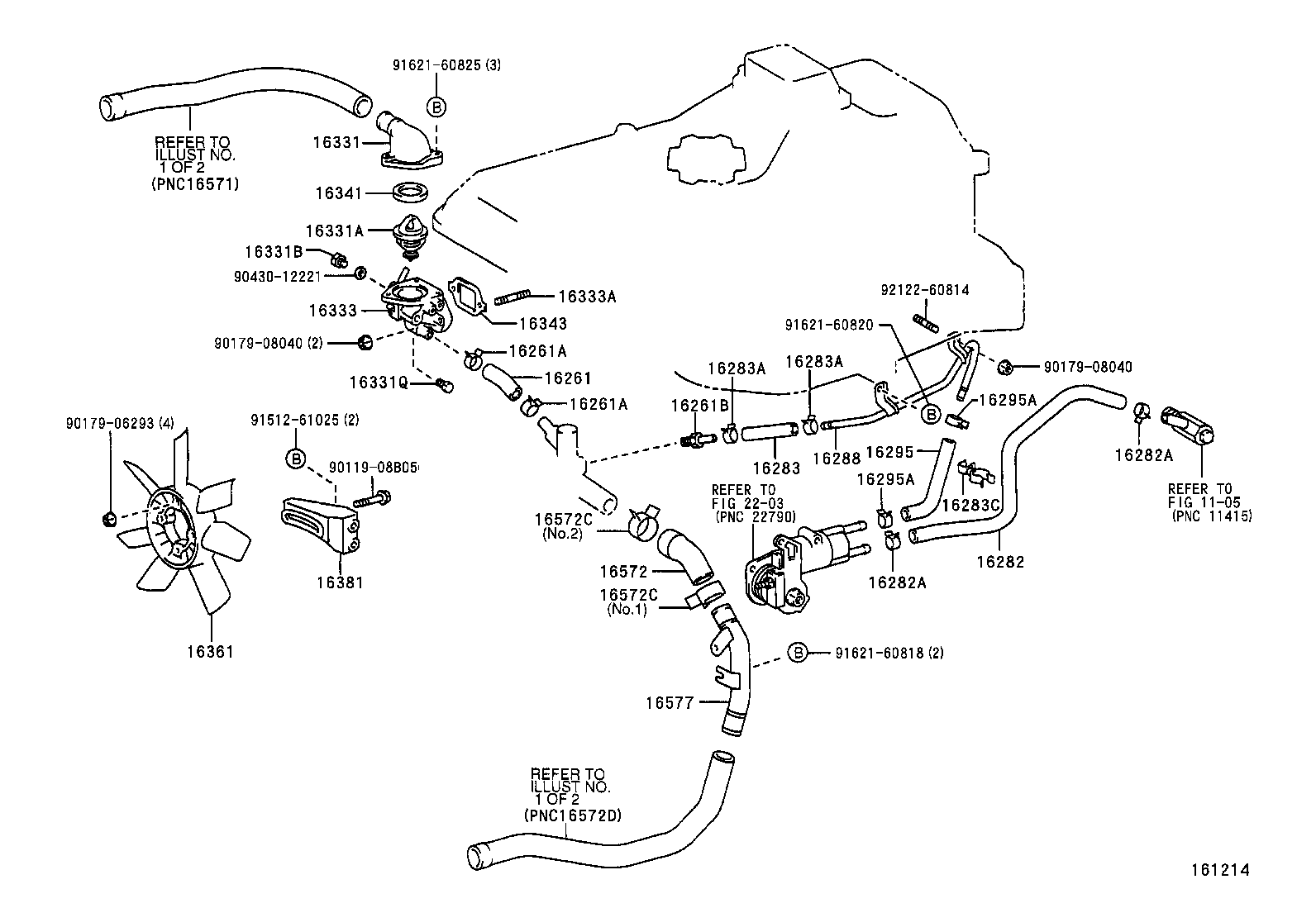

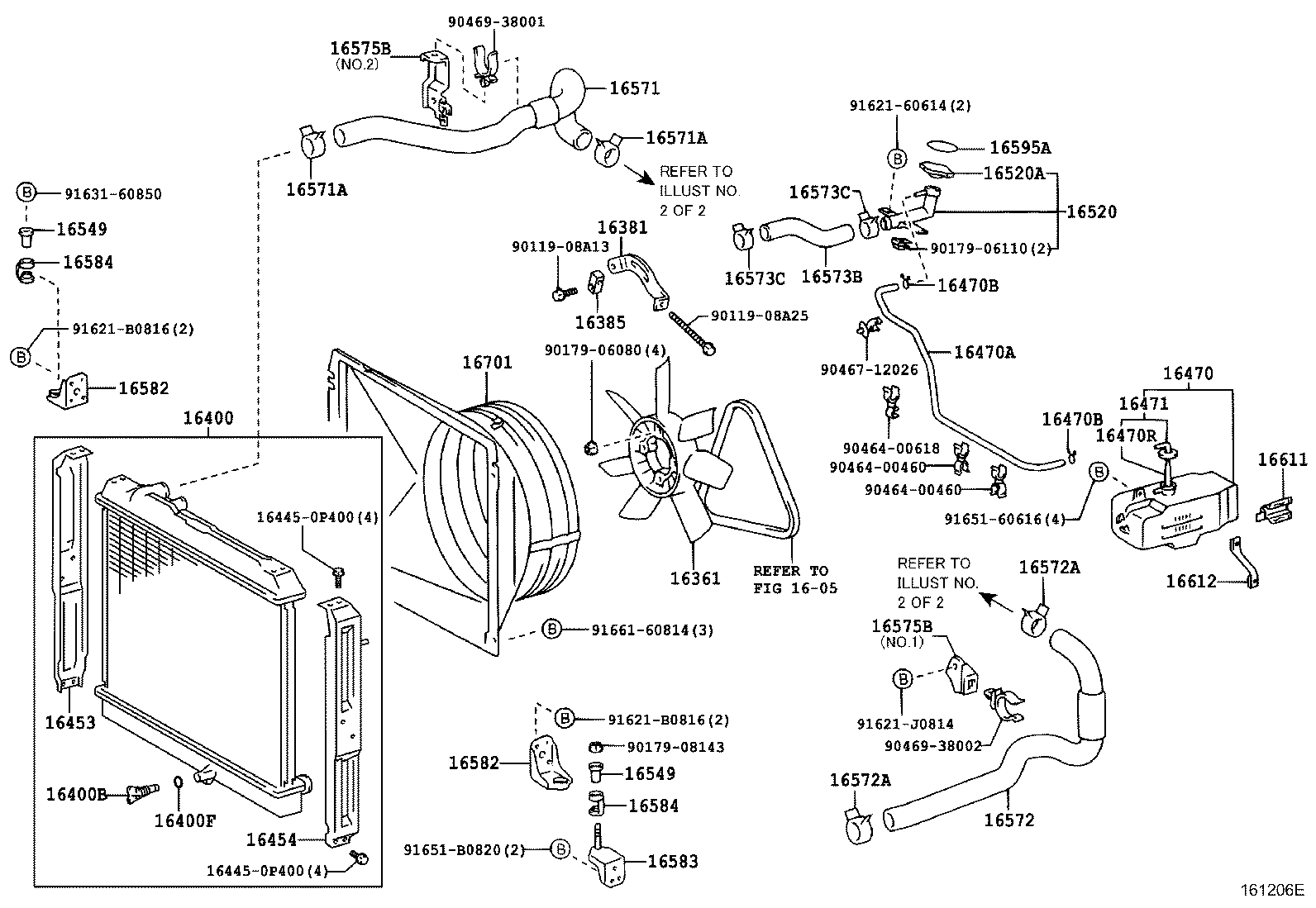

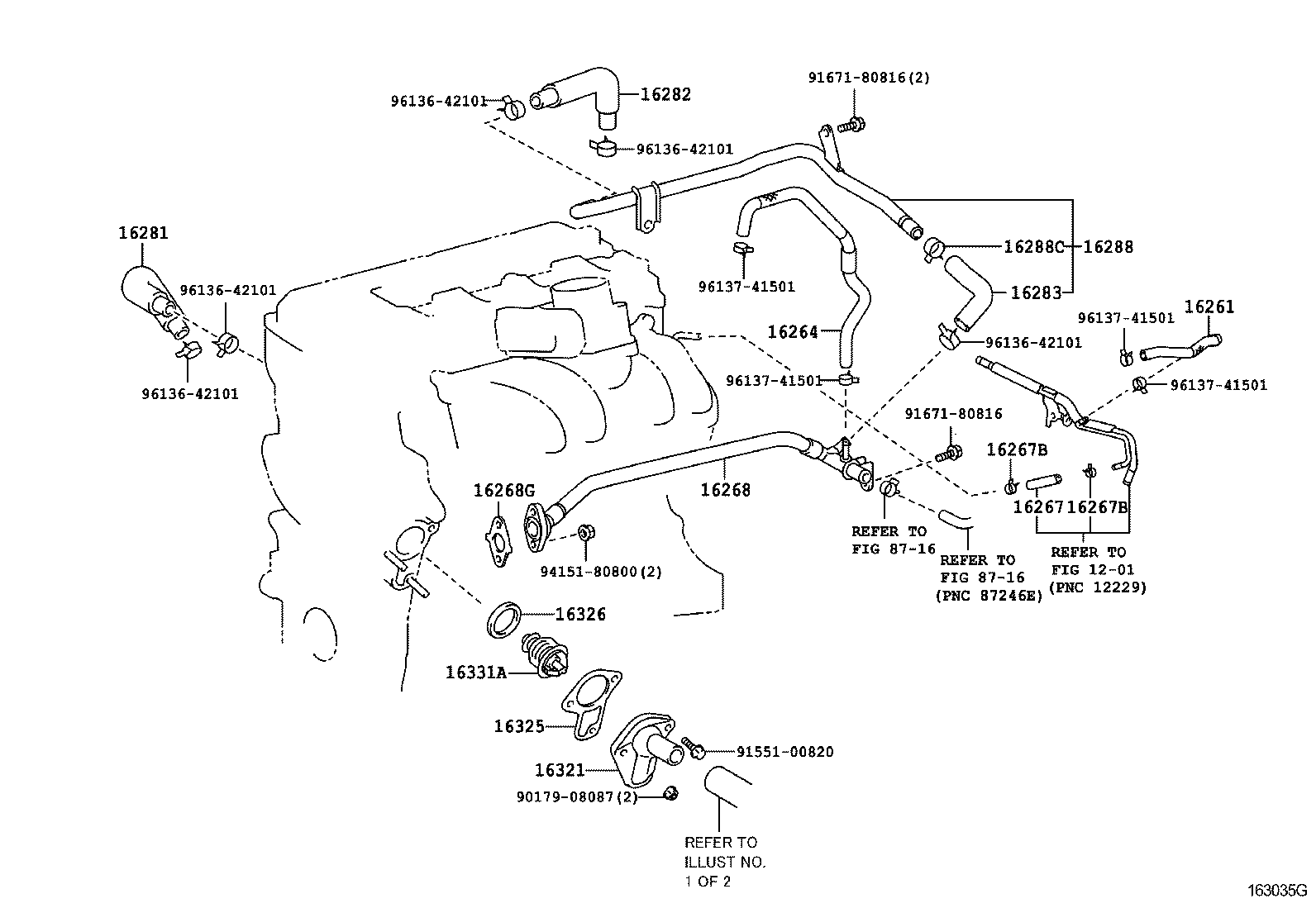

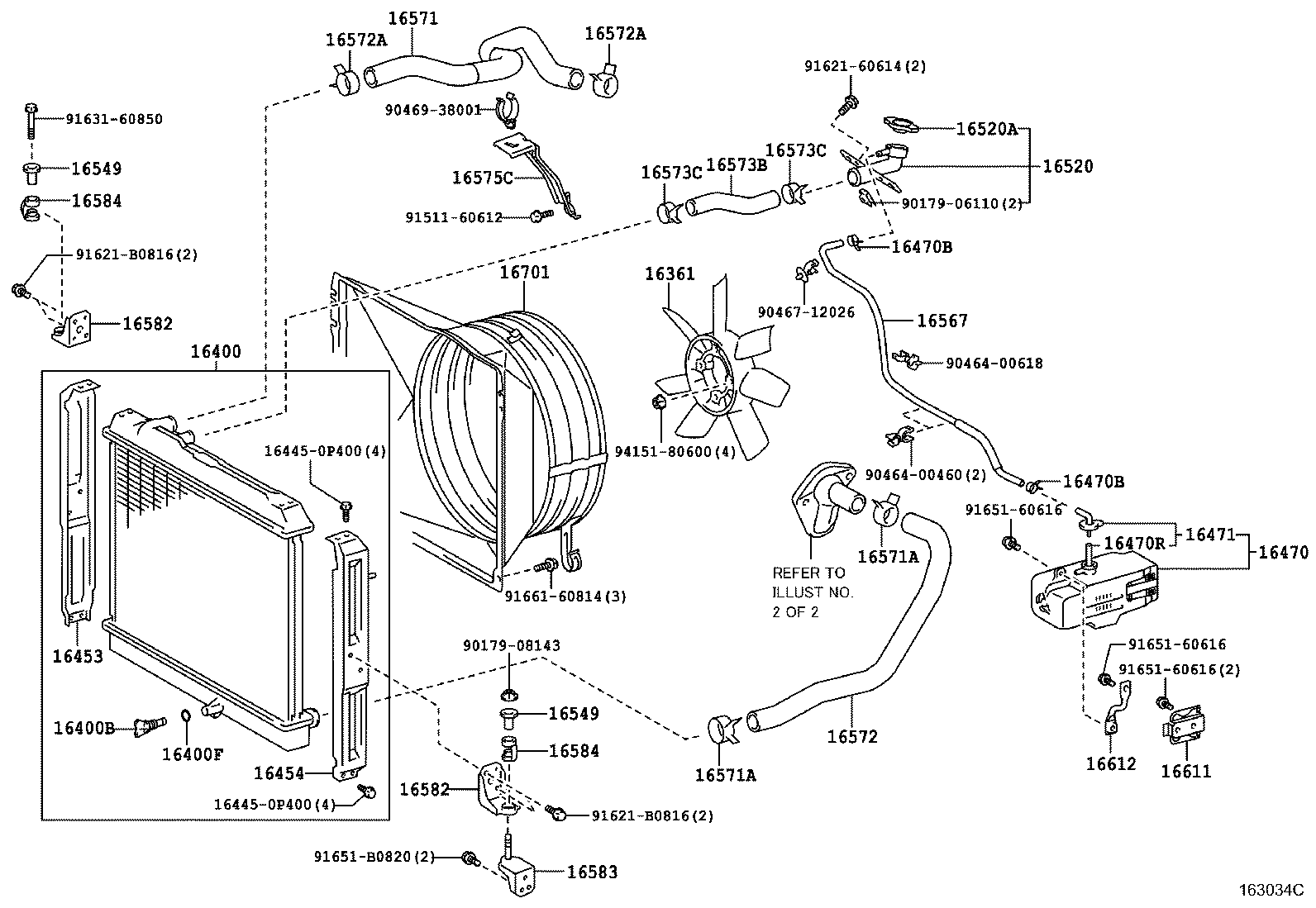

102 part groups · 12 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 16027A | Bolt, Union(FOR TURBO WATER PIPE) |
| 16027B | Gasket(FOR TURBO WATER PIPE) |
| 16028 | Pipe Sub-assy, Turbo Water, NO.2 |
| 16028A | Bolt, Union(FOR TURBO WATER PIPE NO.2) |
| 16028B | Gasket(FOR TURBO WATER PIPE NO.2) |
| 16028C | Ring, O(FOR TURBO WATER PIPE) |
| 16119A | Gasket, Thermostat Guide |
| 16128A | Plate, Water Pump Thermostat Guide |
| 16206 | Pipe Sub-assy, Water By-pass |
| 16206A | Pipe Sub-assy, Water By-pass, NO.2 |
| 16206B | Pipe Sub-assy, Water By-pass, NO.3 |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261B | Union(FOR WATER BY-PASS HOSE) |
| 16261C | Clamp, W/O Heater |
| 16261D | Plug, W/O Heater |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16261N | Hose, Water By-pass, NO.2 |
| 16261Q | Hose, Water By-pass |
| 16261V | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264D | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267B | Clip(FOR WATER BY-PASS HOSE) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268G | Gasket(FOR WATER BY-PASS PIPE) |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16283C | Clamp OR Clip(FOR WATER BY-PASS HOSE) |
| 16283D | Hose, Water By-pass, NO.6 |
| 16284 | Hose, Turbo Water, NO.1 |
| 16284A | Clip(FOR TURBO WATER HOSE NO.1) |
| 16288 | Pipe, Water By-pass, NO.4 |
| 16288C | Clip(FOR WATER BY-PASS PIPE NO.4) |
| 16295 | Hose, Water By-pass, NO.7 |
| 16295A | Clip(FOR WATER BY-PASS HOSE NO.7) |
| 16304 | Outlet Sub-assy, Water |
| 16304B | Cover Sub-assy, Water Outlet |
| 16321 | Inlet, Water |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16331B | Plug(FOR WATER OUTLET) |
| 16331Q | Plug(FOR WATER OUTLET) |
| 16333 | Housing, Water Outlet |
| 16333A | Bolt, Stud(FOR WATER OUTLET HOUSING) |
| 16333B | Ring, O(FOR WATER OUTLET HOUSING) |
| 16341 | Gasket, Water Outlet |
| 16343 | Gasket, Water Outlet Housing |
| 16346 | Gasket, Thermostat |
| 16347A | Gasket(FOR TURBO WATER PIPE) |
| 16361 | Fan |
| 16381 | Bar, Fan Belt Adjusting |
| 16385 | Slider, Fan Belt Adjusting |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16400R | Bushing(FOR RADIATOR) |
| 16400S | Collar(FOR RADIATOR) |
| 16453 | Plate, Radiator Side |
| 16454 | Plate, Radiator Side |
| 16455 | Bolt, Radiator Side Support Plate |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16470R | Hose, NO.2(FOR RADIATOR RESERVE TANK) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16520 | Filler Assy, Water |
| 16520A | Cap Sub-assy, Water Filler |
| 16549 | Collar, Radiator Support, NO.2 |
| 16567 | Hose(FOR RADIATOR RESERVE TANK) |
| 16571 | Hose, Radiator, Inlet |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16572 | Hose, Radiator, Outlet |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16572C | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.2) |
| 16572D | Hose, Radiator, NO.2 |
| 16573B | Hose, Radiator, NO.3 |
| 16573C | Clamp OR Clip, Radiator Hose, NO.3 |
| 16575B | Bracket, Water Hose Clamp, NO.2 |
| 16575C | Bracket, Water Hose Clamp, NO.1 |
| 16577 | Pipe, Radiator, NO.7 |
| 16577C | Pipe, Radiator |
| 16582 | Bracket, Radiator, NO.1 |
| 16583 | Bracket, Radiator, NO.2 |
| 16584 | Insulator, Radiator Mounting |
| 16585 | Bracket, Radiator, NO.3 |
| 16595A | Guide, Radiator Air, NO.1 LH |
| 16611 | Bracket, Radiator Reserve Tank |
| 16612 | Bracket, Radiator Reserve Tank, NO.2 |
| 16701 | Shroud Sub-assy, Fan |
