Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

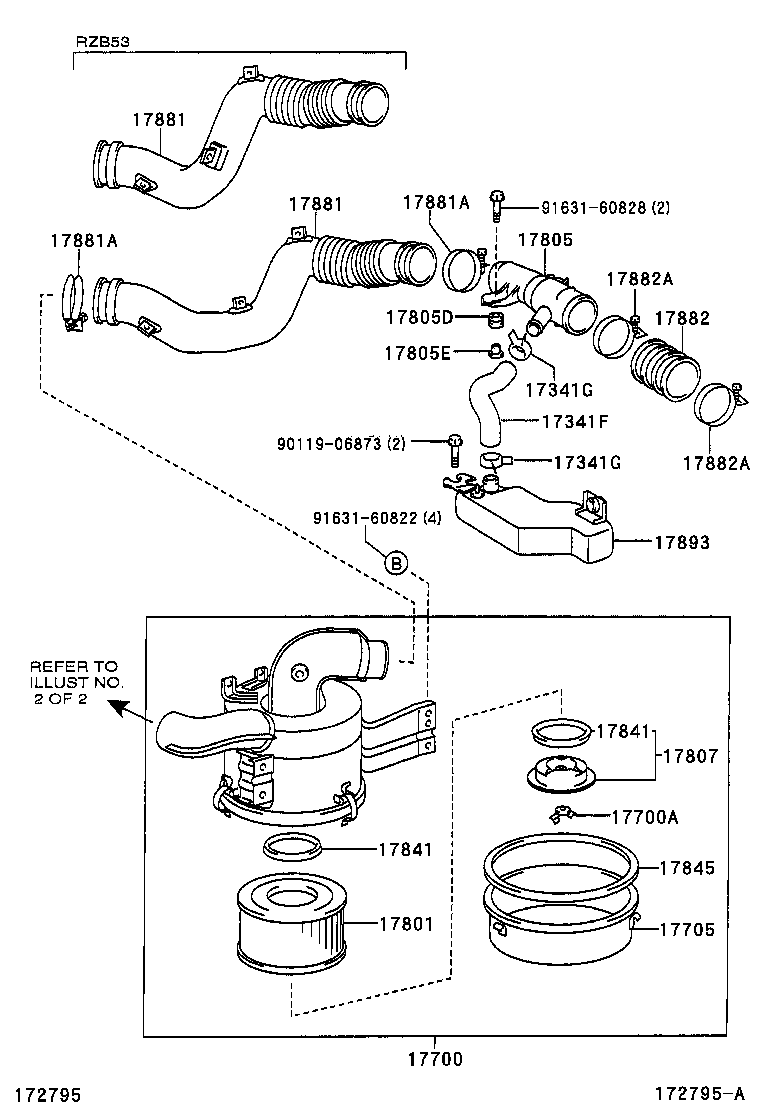

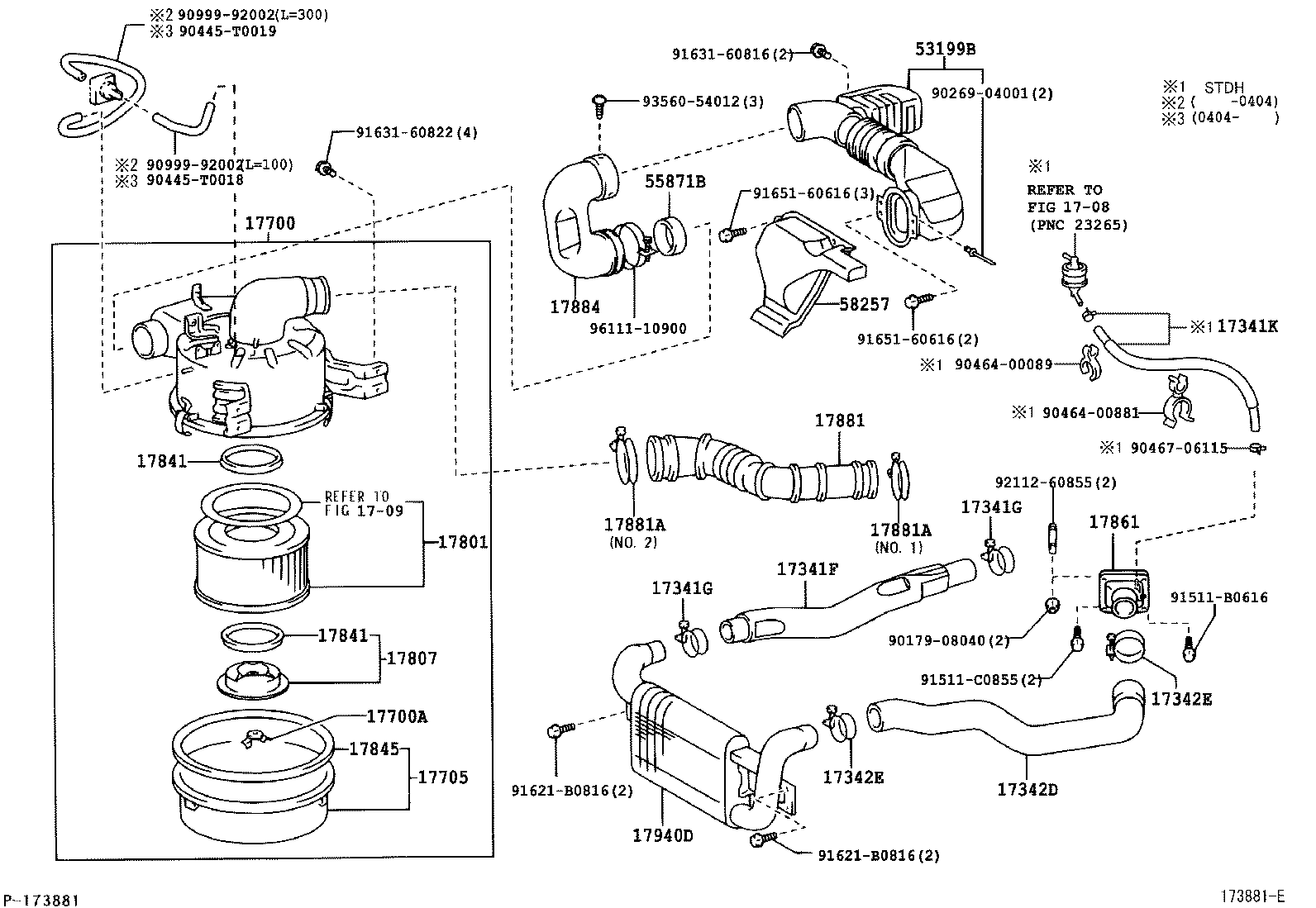

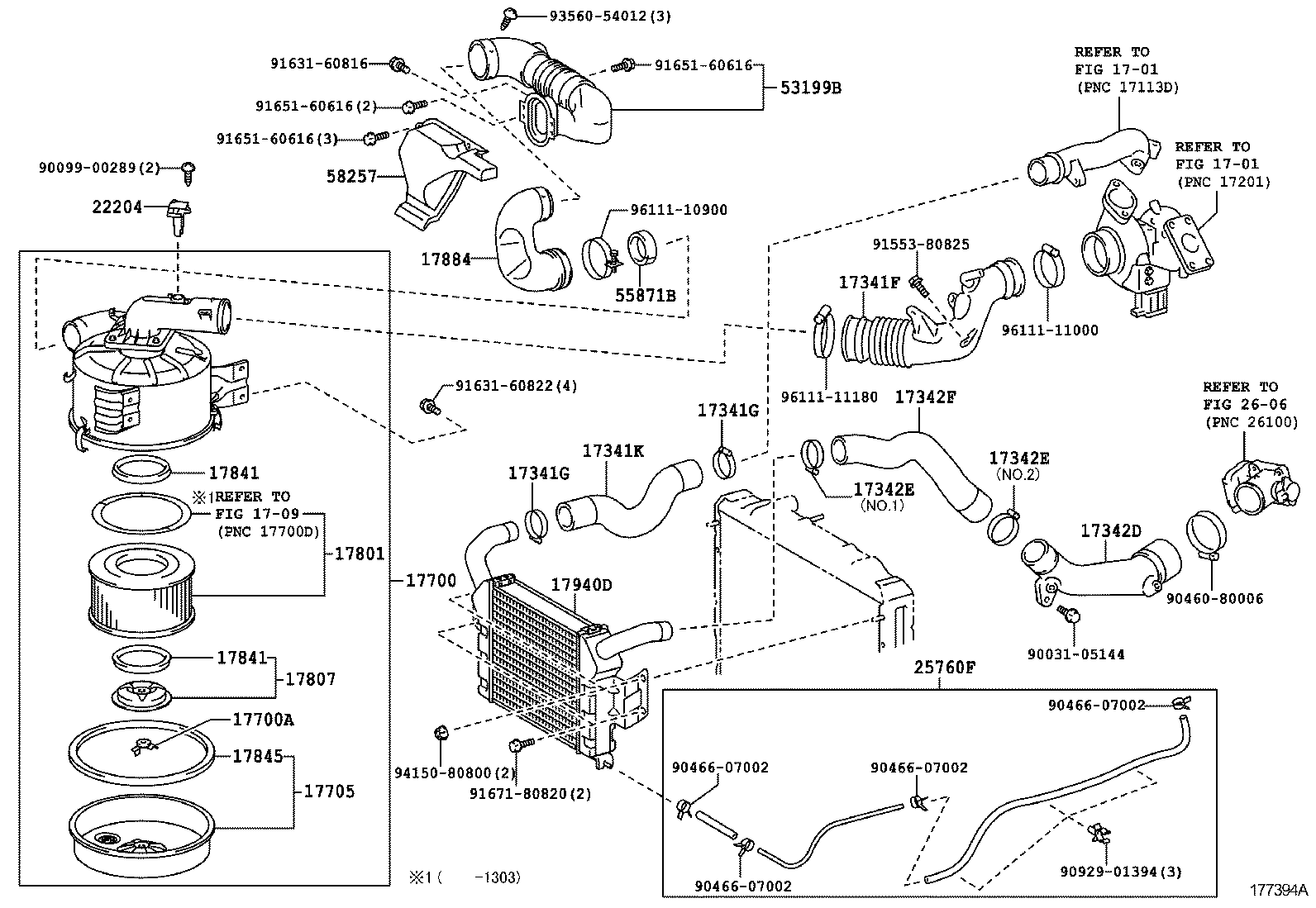

Air Cleaner
37 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 17341F | Hose, Air, NO.1 |
| 17341G | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17341K | Hose, Air, NO.1(FOR INTERCOOLER) |
| 17342D | Hose, Air, NO.2 |
| 17342E | Clamp OR Clip(FOR AIR HOSE, NO.2) |
| 17342F | Hose, Air, NO.2(FOR INTERCOOLER) |
| 17343D | Hose, Air, NO.3 |
| 17700 | Cleaner Assy, Air |
| 17700A | Nut, Wing(FOR AIR CLEANER) |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17765 | Stay, Air Cleaner, NO.1 |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17805 | Connector Sub-assy, Intake Air |
| 17805C | Pipe Sub-assy, Air Cleaner, NO.1 |
| 17805D | Grommet(FOR INTAKE AIR CONNECTOR) |
| 17805E | Collar(FOR INTAKE AIR CONNECTOR) |
| 17807 | Plate Sub-assy, Air Cleaner Filter Set |
| 17841 | Gasket, Filter Element |
| 17845 | Gasket, Air Cleaner Cap |
| 17861 | Connector, Intake Air |
| 17861D | Clamp(FOR INTAKE AIR CONNECTOR) |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17883 | Hose, Air Cleaner, NO.3 |
| 17883A | Clamp(FOR AIR CLEANER HOSE, NO.3) |
| 17884 | Hose, Air Cleaner, NO.4 |
| 17884A | Clamp(FOR AIR CLEANER HOSE, NO.4) |
| 17885 | Pipe, Air Cleaner |
| 17893 | Resonator, Intake Air |
| 17940D | Intercooler Assy |
| 22204 | Meter Sub-assy, Intake Air Flow |
| 25760F | Hose Assy, Vacuum Transmitting |
| 53199B | Duct Sub-assy, Cool Air Intake |
| 55871B | Seal, Air Duct |
| 58257 | Plate, Air Cleaner House |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
