Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

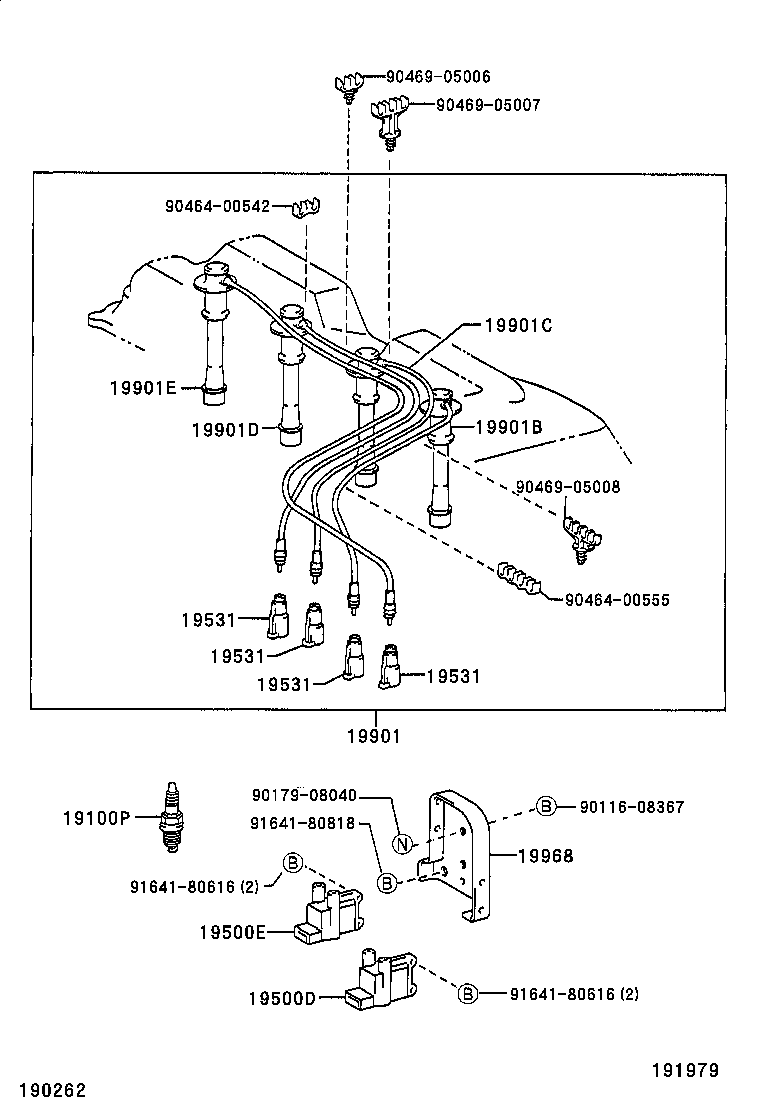

Ignition Coil & Spark Plug / Glow Plug
17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 19100P | Plug, Spark |
| 19500 | Coil Assy, Ignition |
| 19500D | Coil, Ignition, NO.1 |
| 19500E | Coil, Ignition, NO.2 |
| 19531 | Holder, Resistive Cord, NO.1 |
| 19810 | Heater Assy, Intake |
| 19829A | Gasket, Intake Heater |
| 19850 | Plug Assy, Glow |
| 19850B | Grommet, Screw(FOR GLOW PLUG) |
| 19879 | Wire, Glow Plug Ground |
| 19901 | Cord Set, Coil & Spark, W/Resistive |
| 19901B | Cord, Spark Plug Resistive, NO.1 |
| 19901C | Cord, Spark Plug Resistive, NO.2 |
| 19901D | Cord, Spark Plug Resistive, NO.3 |
| 19901E | Cord, Spark Plug Resistive, NO.4 |
| 19968 | Bracket, Ignition Coil |
| 28626 | Wire, Glow Plug |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
