Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

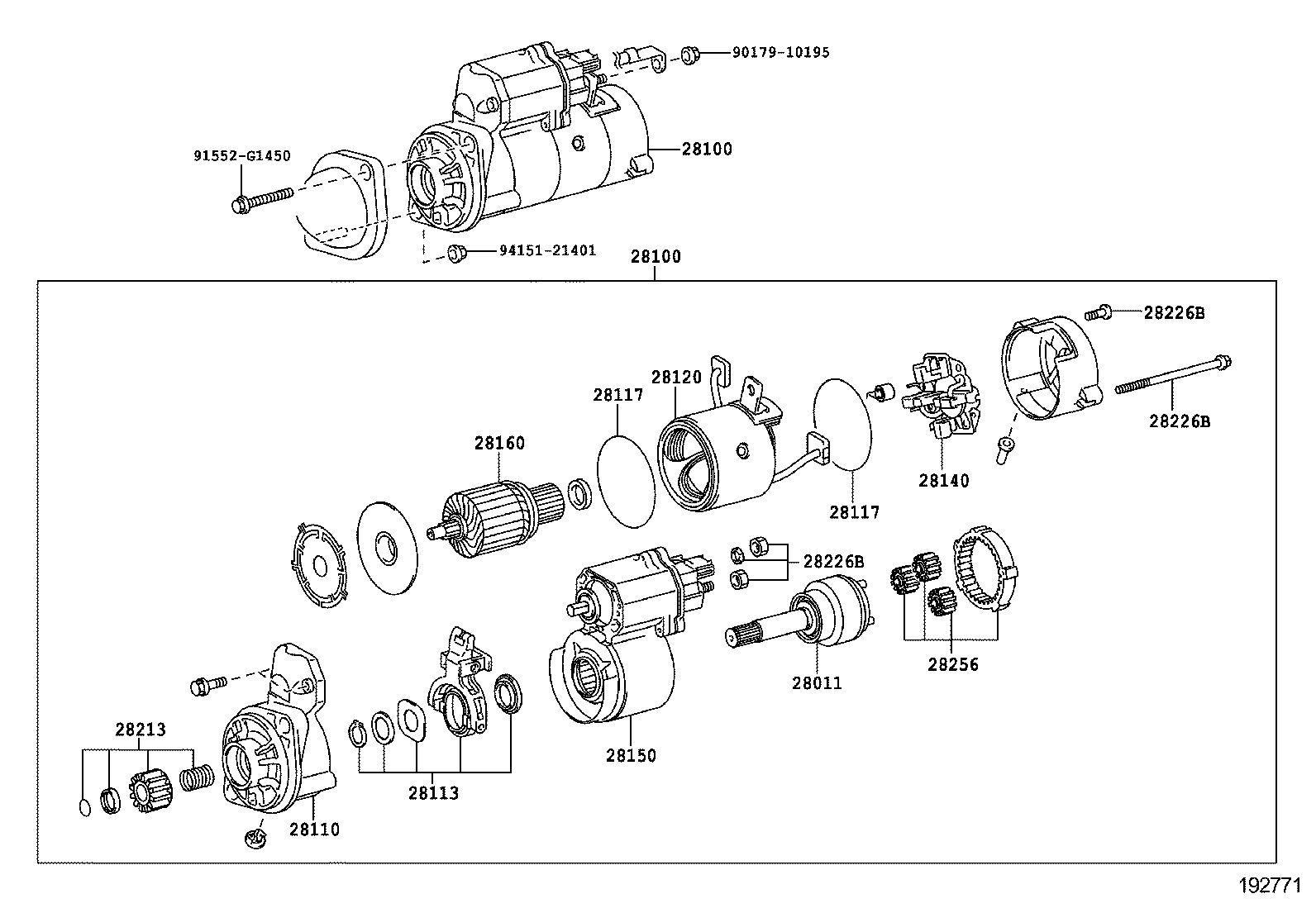

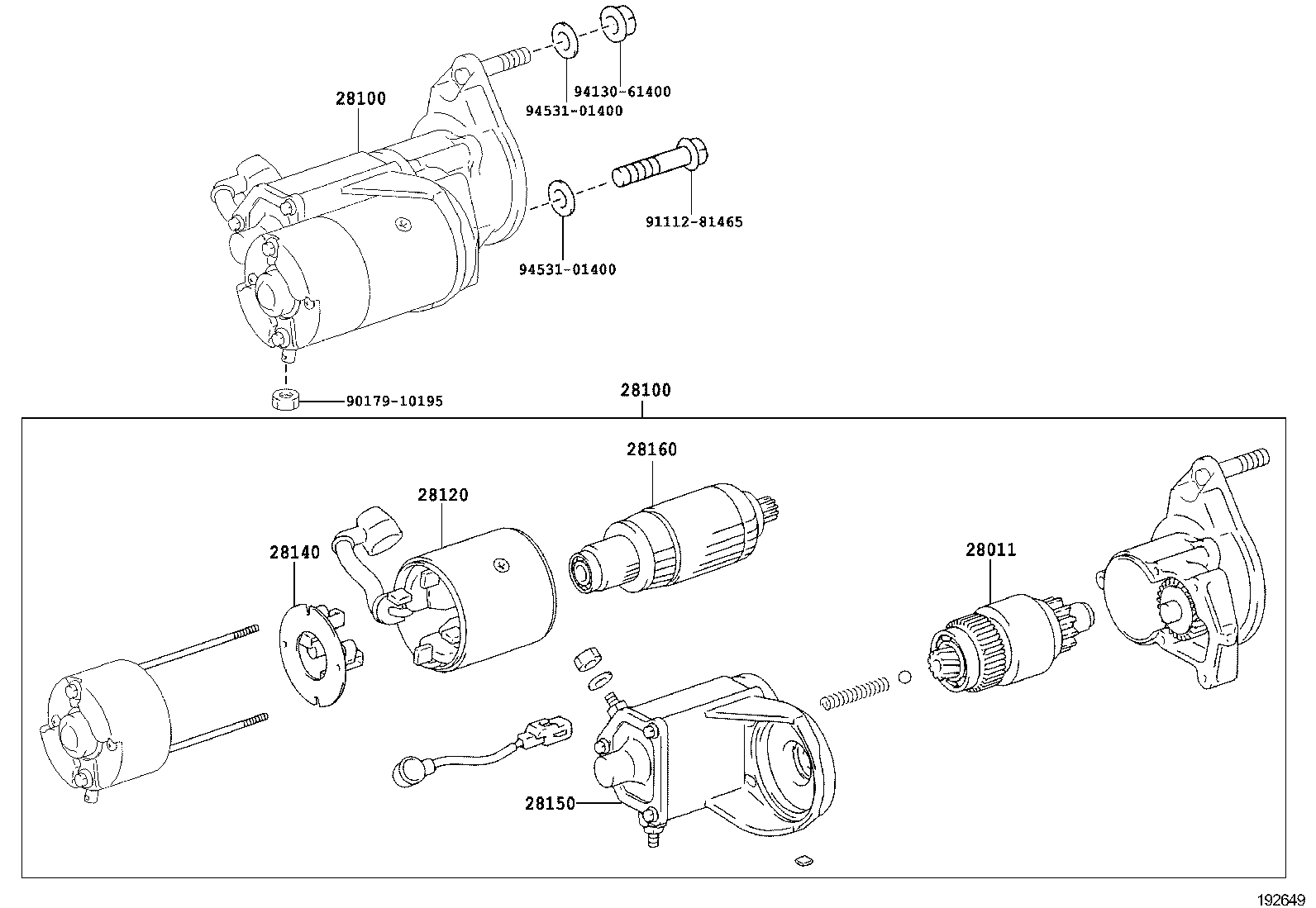

Starter
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28113 | Lever, Starter Pinion Drive |
| 28117 | Rubber(FOR STARTER YOKE) |
| 28120 | Yoke Assy, Starter |
| 28140 | Holder Assy, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28213 | Pinion, Starter Clutch |
| 28226B | Starter Kit, Repair Service |
| 28256 | Gear, Starter Internal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
