Toyota Coaster (CHINA)

2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

28 part groups · 8 illustrations

Illustrations

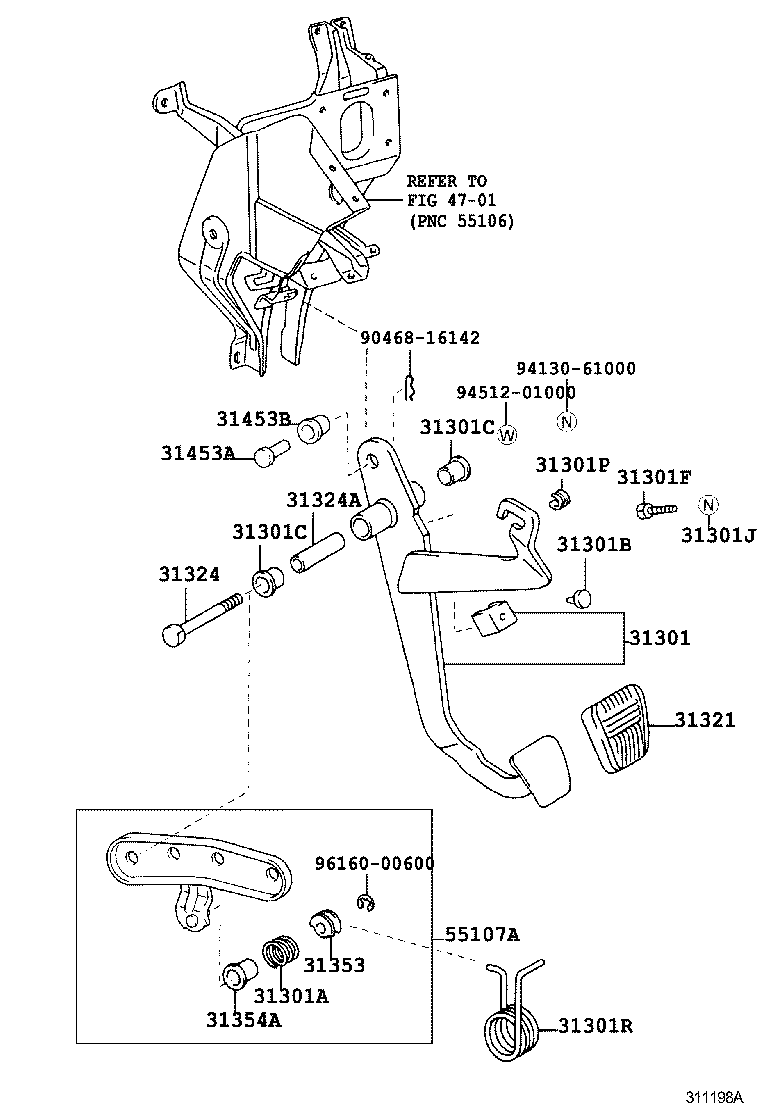

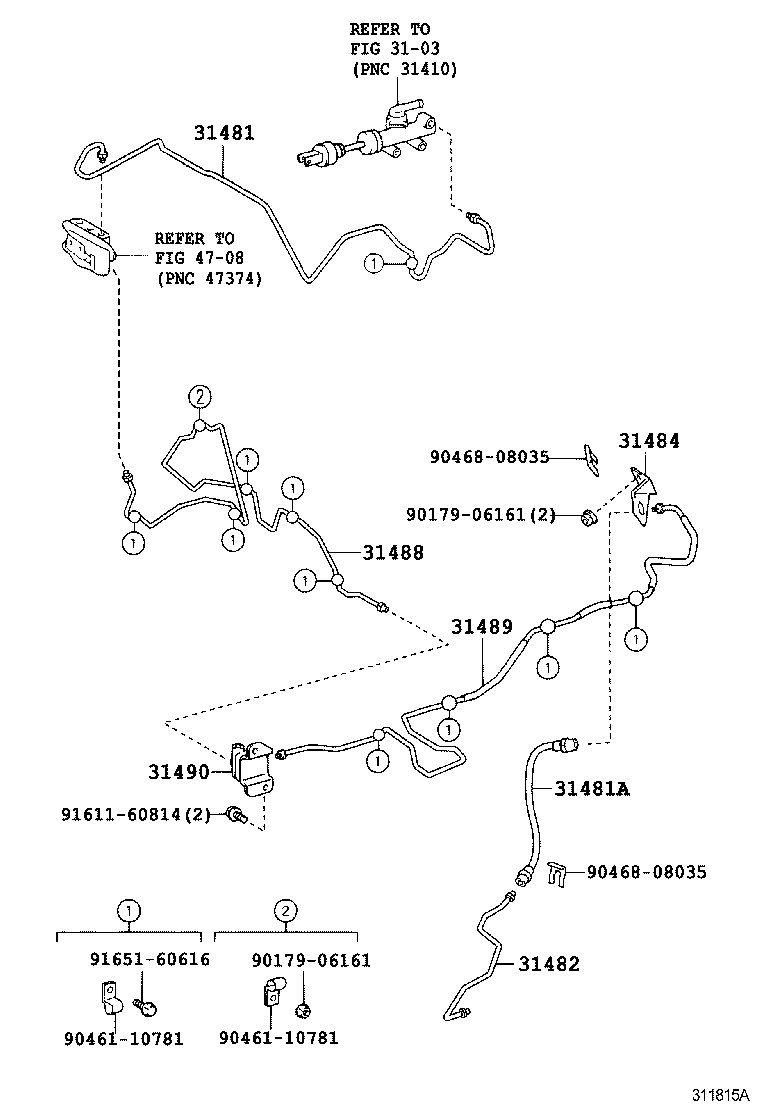

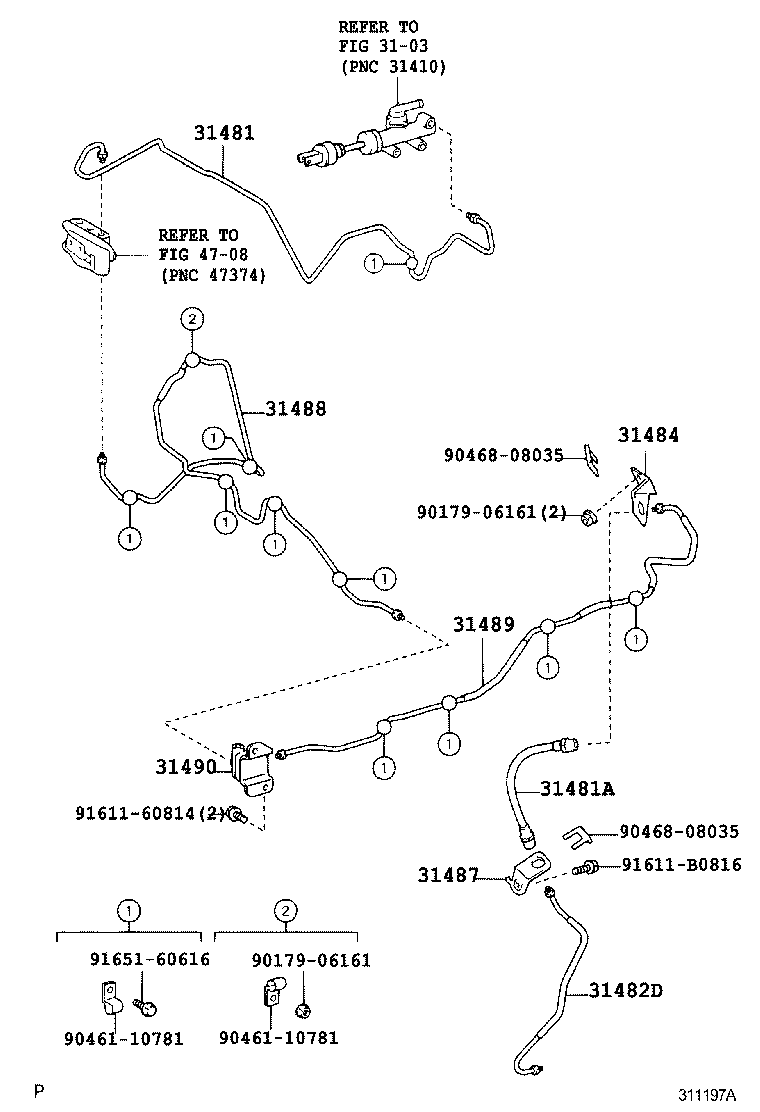

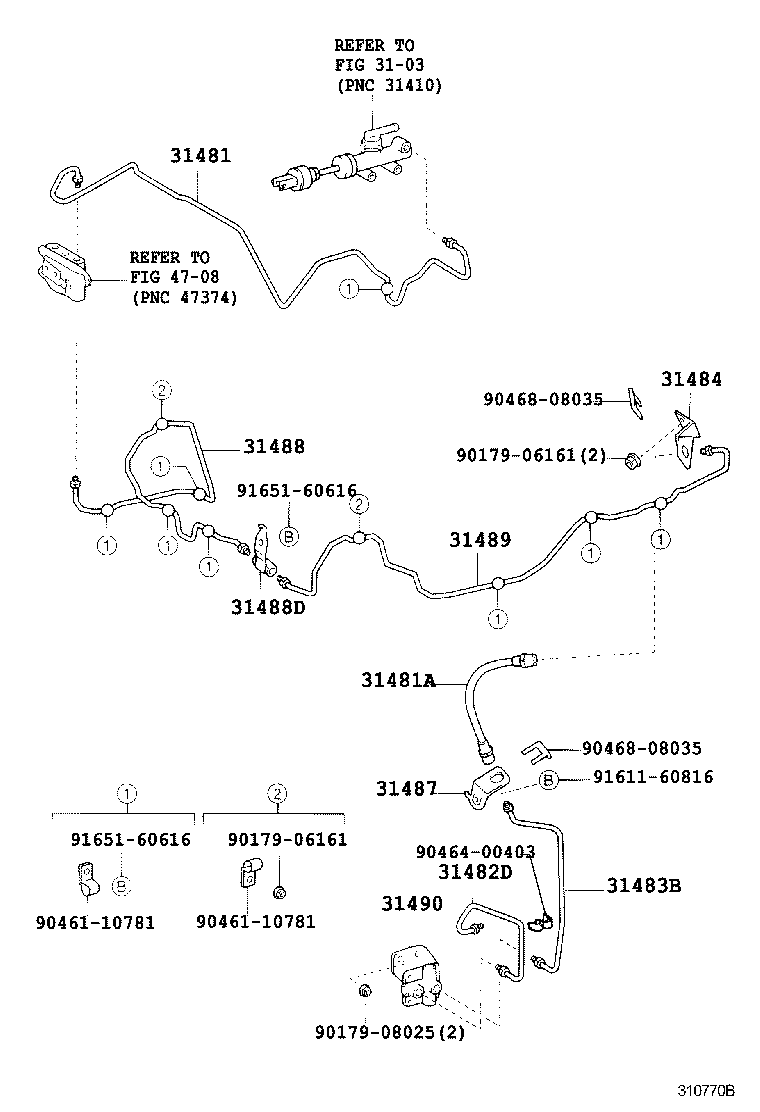

Figure 310769B 310769B 2000-12 → 2003-10 Figure 310769B 310769B 2003-10 → — Figure 311198A 311198A 2003-10 → 2007-01 Figure 311198A 311198A 2007-01 → — Figure 310770B 310770B 2000-12 → 2003-10 Figure 311197A 311197A 2003-10 → — Figure 310771B 310771B 2000-12 → — Figure 311815A 311815A 2007-01 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31301J Nut(FOR CLUTCH PEDAL STOPPER)
31301P Bush(FOR CLUTCH PEDAL TURNOVER)
31301R Spring, Compression(FOR TURNOVER SPRING SEAT)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31353 Holder, Clutch Pedal Spring
31354A Bush(FOR CLUTCH PEDAL SPRING SEAT UPPER)
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481A Hose, Clutch, NO.1
31481B Way(FOR CLUTCH TUBE)
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31482D Tube, Clutch Release Cylinder TO Accumulator
31483B Tube, Accumulator TO Flexible Hose
31484 Bracket, Flexible Hose(FOR CLUTCH)
31487 Plate, Release Tube Set
31488 Tube, Connector TO Tube Connector
31488D Way, 2(FOR CLUTCH TUBE TO RELEASE CYLINDER)
31489 Tube, Tube Connector TO Flexible Hose
31490 Accumulator Assy, Clutch
55107A Support Sub-assy, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
