Toyota Coaster (CHINA)

2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

17 part groups · 8 illustrations

Illustrations

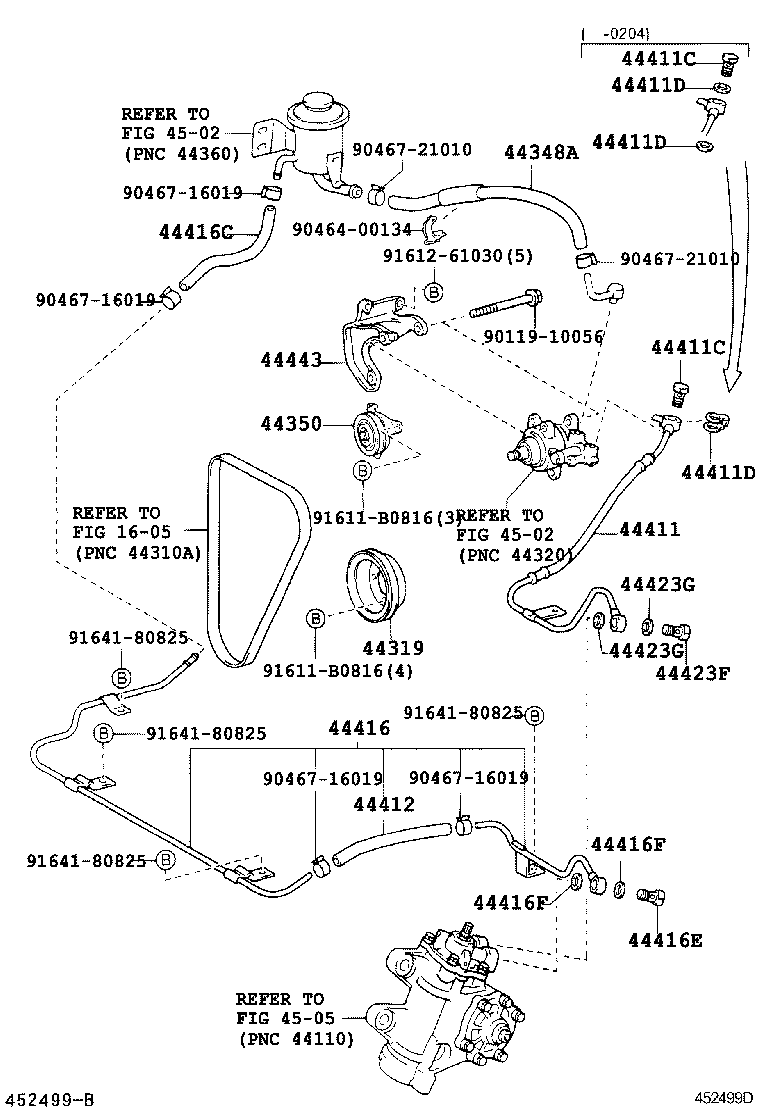

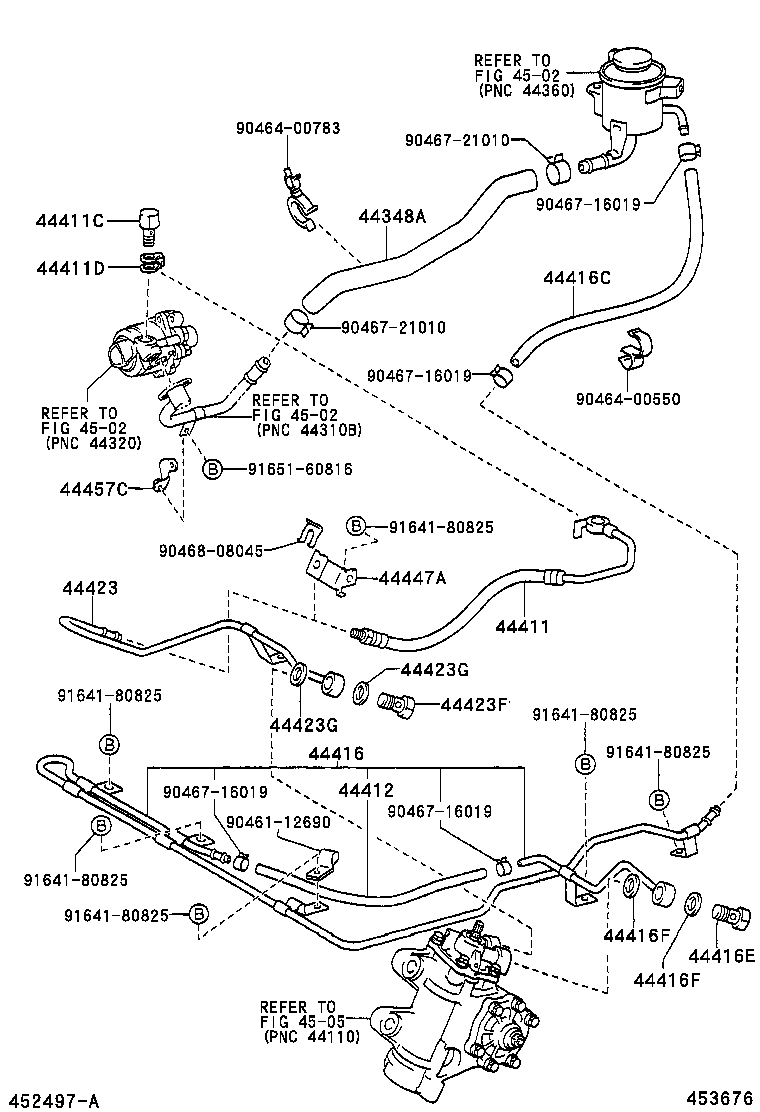

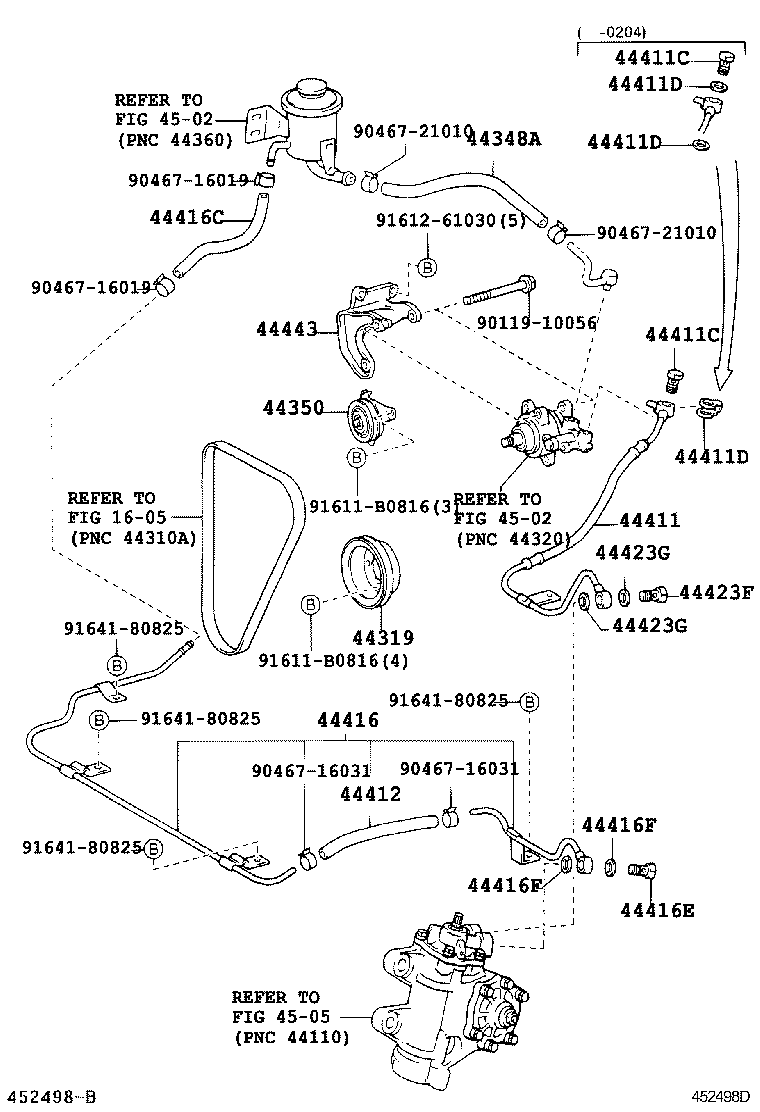

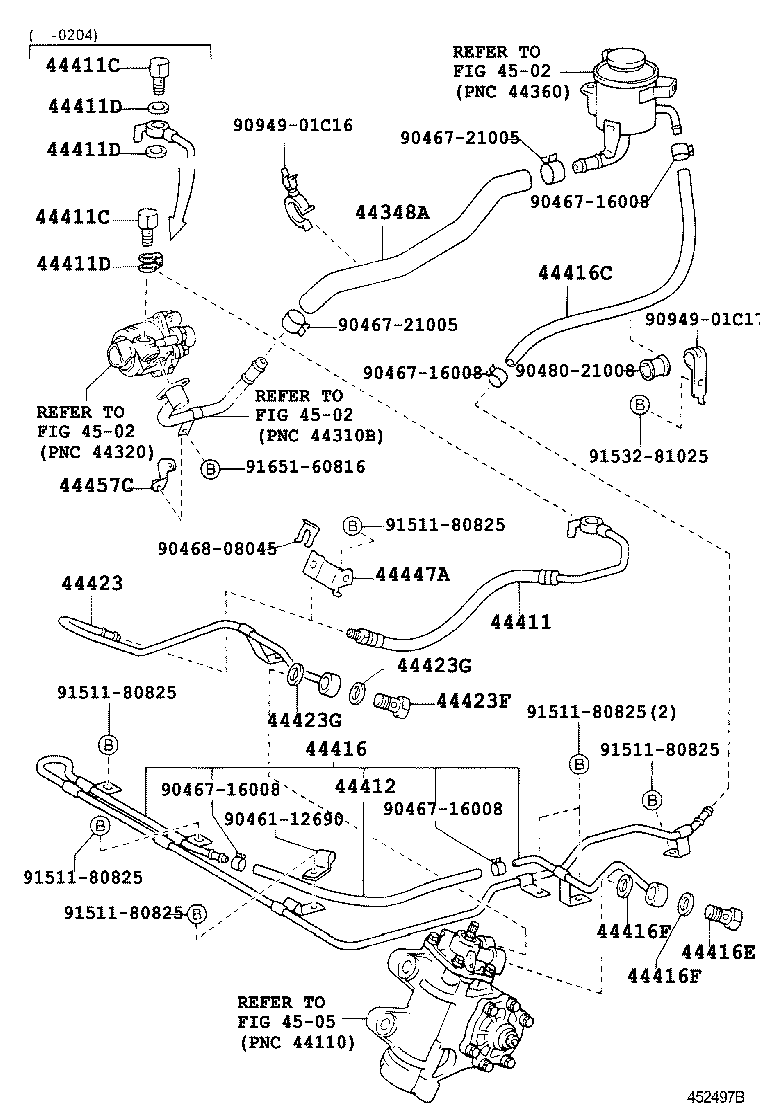

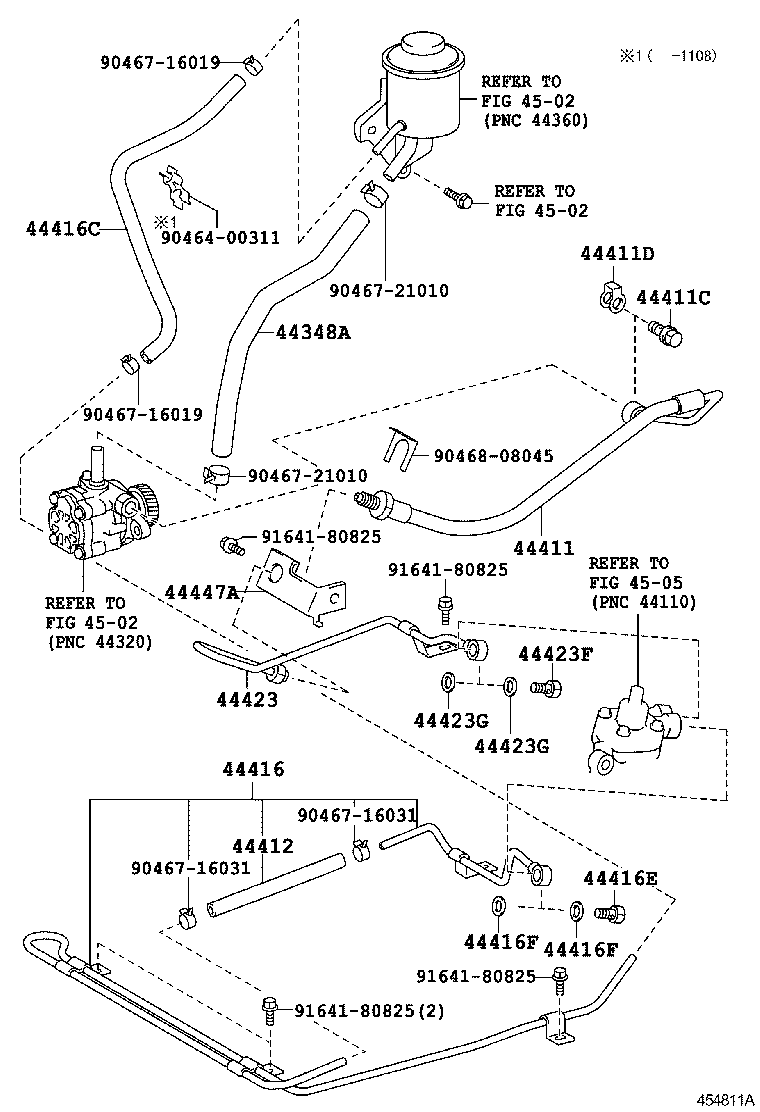

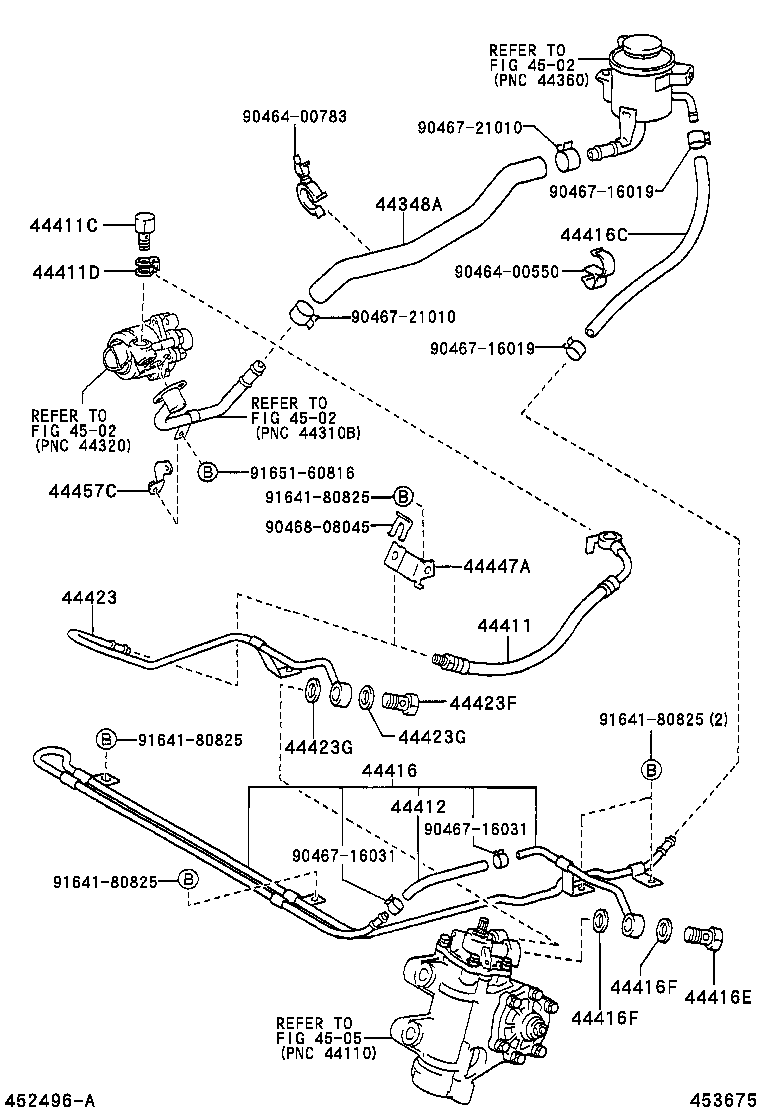

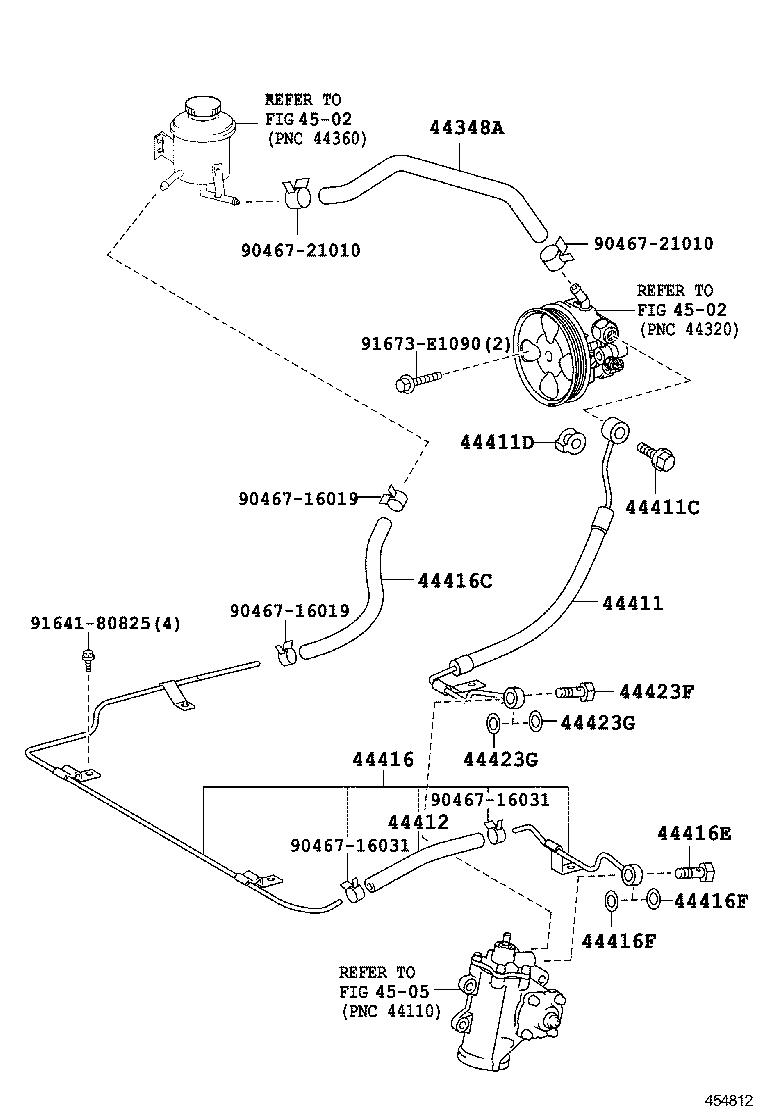

Figure 452496B 452496B 2000-12 → 2003-10 Figure 452497B 452497B 2000-12 → 2003-10 Figure 452498D 452498D 2000-12 → — Figure 452499D 452499D 2000-12 → — Figure 453675 453675 2003-10 → — Figure 453676 453676 2003-10 → — Figure 454811A 454811A 2007-01 → — Figure 454812 454812 2007-01 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416C Hose(FOR RETURN TUBE TO RESERVIOR)
44416E Bolt, Union(FOR RETURN TUBE)
44416F Gasket(FOR RETURN TUBE)
44423 Tube, Oil Pump TO Gear Box
44423F Bolt, Union
44423G Gasket, Union Bolt
44443 Bracket, Pump
44447A Bracket, Hose Support, NO.1
44457C Bracket, Power Steering Tube Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
