Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

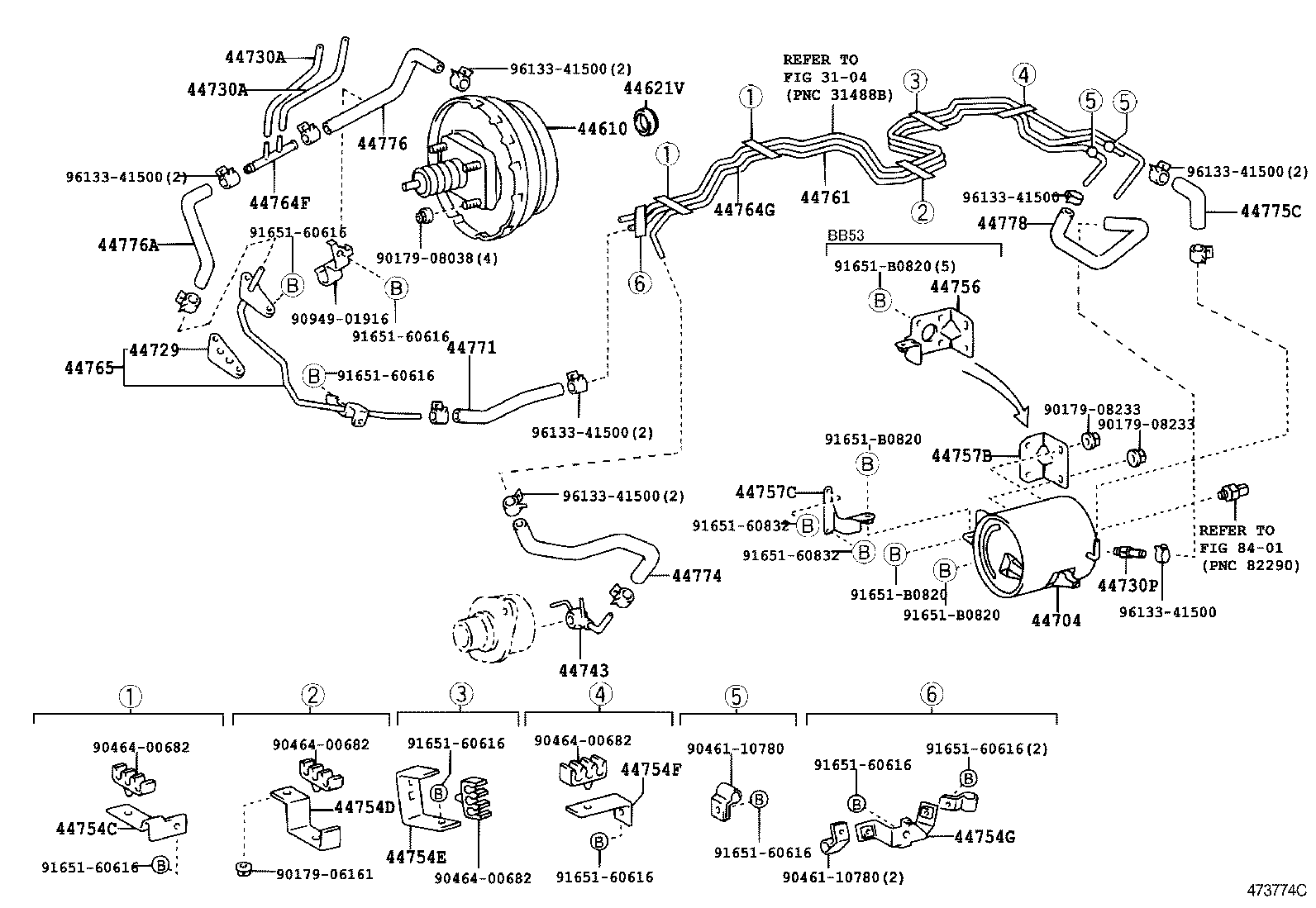

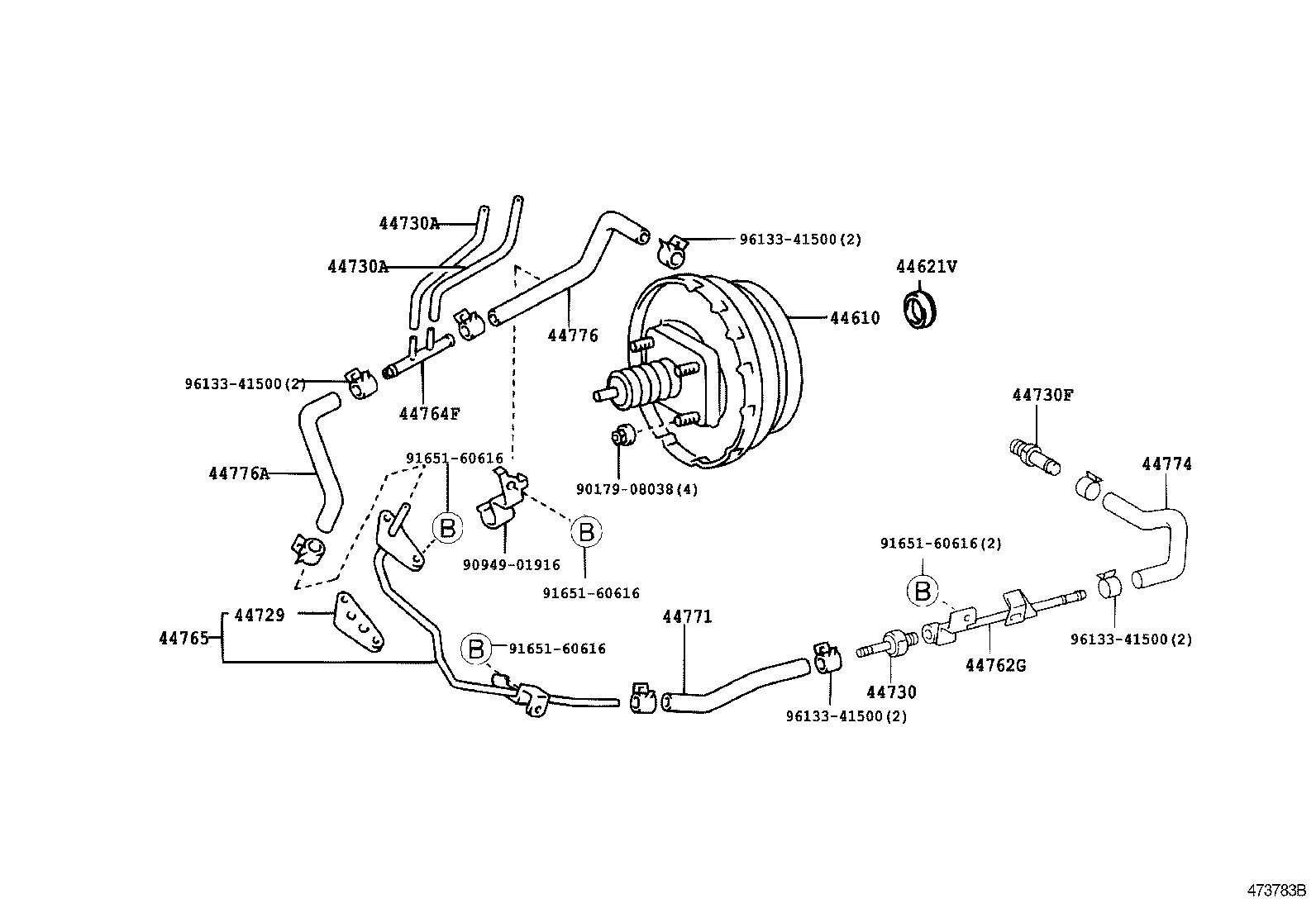

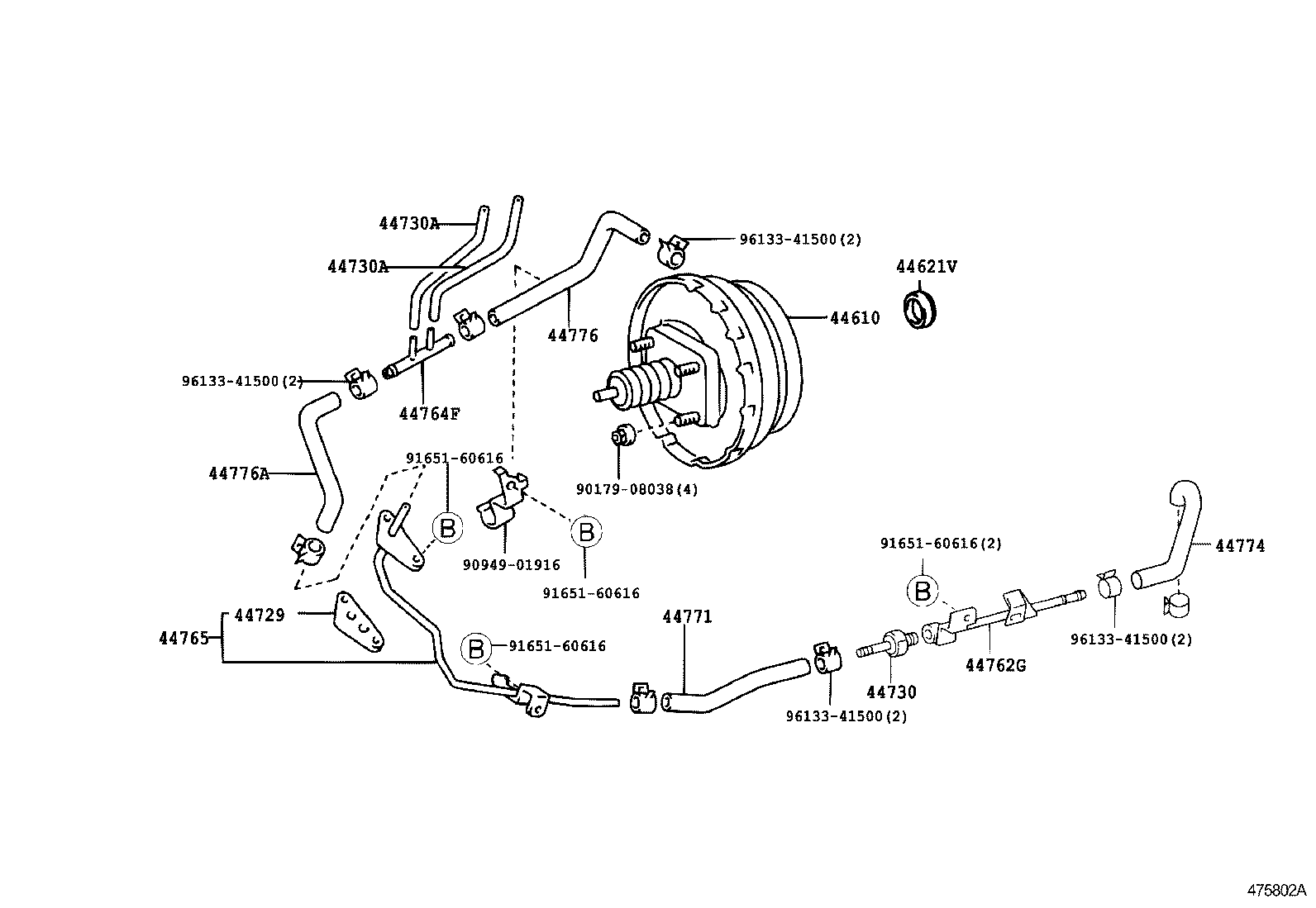

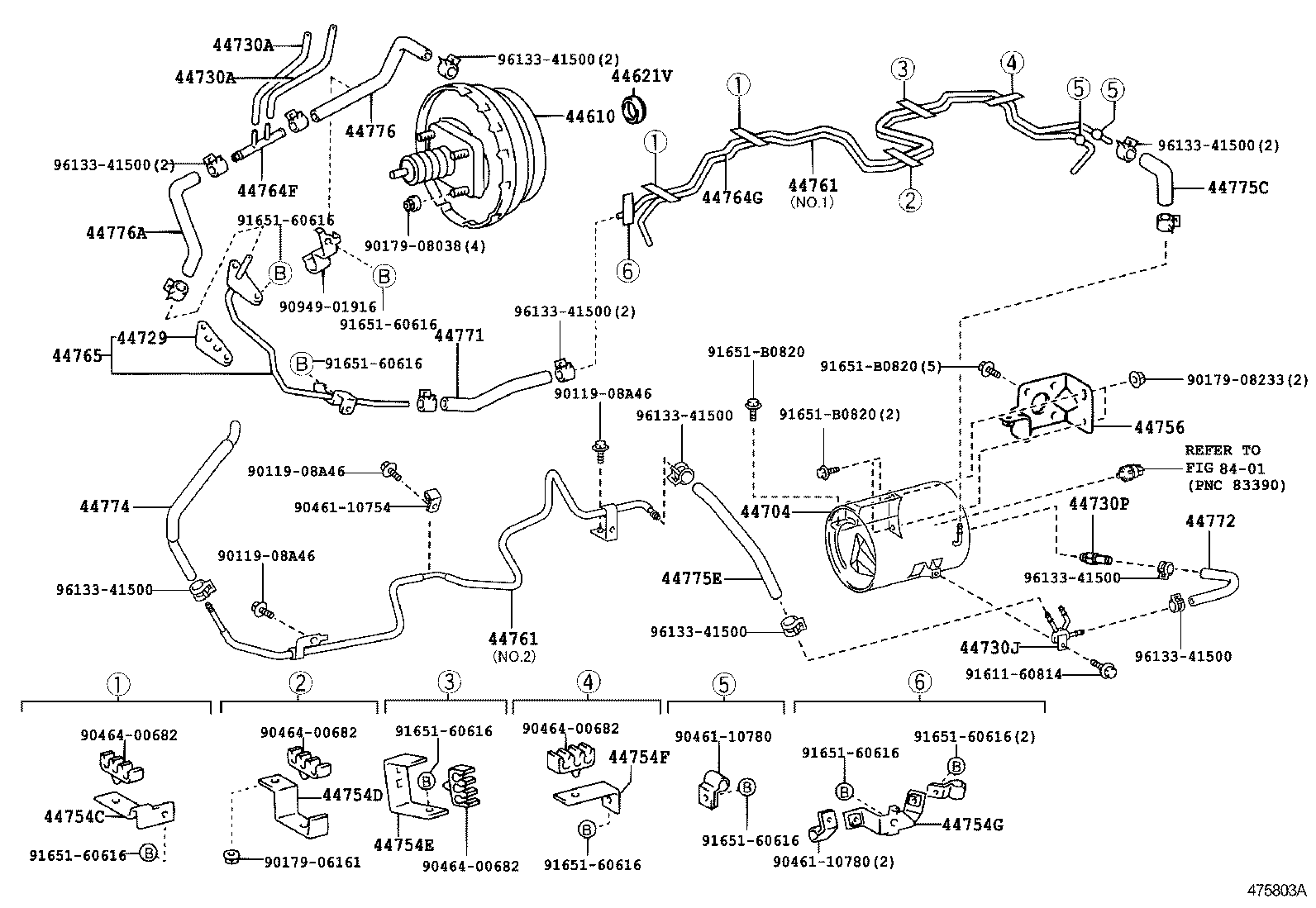

Brake Booster & Vacuum Tube
32 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44621V | Seal, Booster Body |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44729 | Gasket, Vacuum Tube |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730A | Hose, Vacuum, NO.1 |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44730J | Way(FOR BOOSTER VACUUM) |
| 44730P | Valve Assy, Vacuum Check, NO.1 |
| 44743 | Union(FOR VACUUM PUMP) |
| 44754C | Bracket, Vacuum Tube, NO.1 |
| 44754D | Bracket, Vacuum Tube, NO.2 |
| 44754E | Bracket, Vacuum Tube, NO.3 |
| 44754F | Bracket, Vacuum Tube, NO.4 |
| 44754G | Bracket, Vacuum Tube, NO.5 |
| 44756 | Bracket, Vacuum Reservoir |
| 44757B | Bracket, Vacuum Tank Clamp, NO.2 |
| 44757C | Bracket, Vacuum Tank Clamp, NO.1 |
| 44761 | Tube, Intake Manifold OR Vacuum Pump TO Connector |
| 44762G | Tube, Vacuum Check Valve TO Connector |
| 44764F | Way(FOR BOOSTER VACUUM TUBE) |
| 44764G | Tube, Connector TO Brake Booster |
| 44765 | Tube, Connector TO Brake Booster, NO.2 |
| 44771 | Hose, Vacuum Tube Connector |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44774 | Hose, Union TO Connector Tube |
| 44775C | Hose, Connector TO Way |
| 44775E | Hose, Way TO Connector |
| 44776 | Hose, Brake Booster |
| 44776A | Hose, Vacuum Reservoir TO Brake Booster |
| 44778 | Hose, Connector TO Check Valve |
| 47289 | Label, Brake Master Cylinder Adjust Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
