Toyota Coaster (CHINA)
2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General
Discontinued model
Data version 2014-01

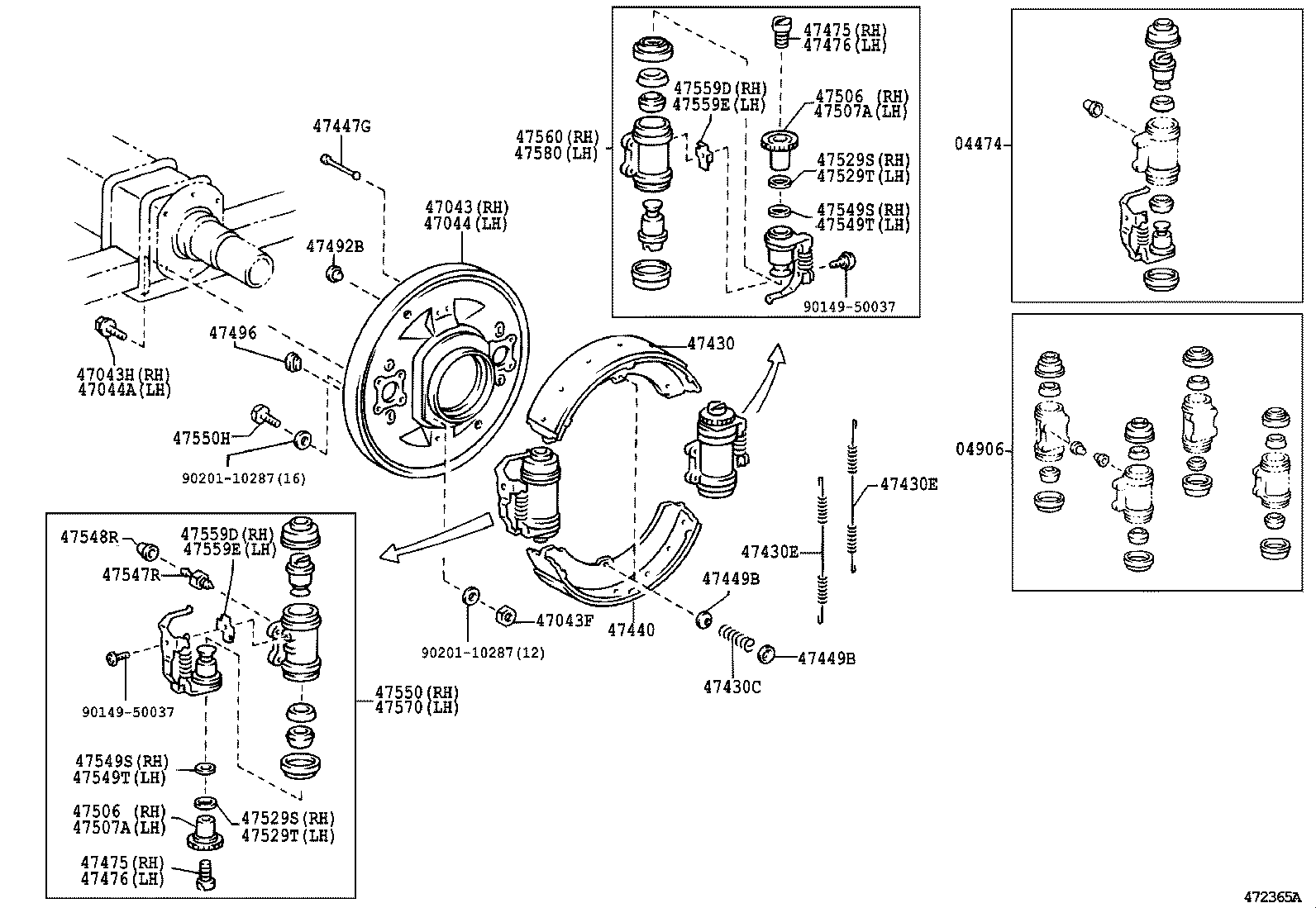

Rear Drum Brake Wheel Cylinder & Backing Plate
33 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04474 | Cylinder Kit, Rear Wheel |
| 04495 | Shoe Kit, Rear Brake |
| 04906 | Cup Kit, Rear Wheel Cylinder |
| 47043 | Plate Sub-assy, Brake Backing, Rear RH |
| 47043F | Nut(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47043H | Bolt, NO.1(FOR REAR BRAKE BACKING PLATE RH) |
| 47044 | Plate Sub-assy, Brake Backing, Rear LH |
| 47044A | Bolt, NO.1(FOR REAR BRAKE BACKING PLATE LH) |
| 47430 | Shoe Assy, Rear Brake(FOR FRONT OR UPPER SIDE) |
| 47430C | Spring(FOR REAR BRAKE SHOE HOLD DOWN) |
| 47430E | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47440 | Shoe Assy, Rear Brake(FOR REAR OR LOWER SIDE) |
| 47447G | Pin, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47449B | Cup, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47475 | Bolt, Rear Wheel Cylinder Adjusting, RH (FOR REAR BRAKE) |
| 47476 | Bolt, Rear Wheel Cylinder Adjusting, LH(FOR REAR BRAKE) |
| 47492B | Plug, Shoe Inspection(FOR REAR BRAKE) |
| 47496 | Plug, Hole(FOR REAR BRAKE) |
| 47506 | Nut Sub-assy, Automatic Adjust, RH(FOR REAR BRAKE) |
| 47507A | Nut Sub-assy, Automatic Adjust, LH(FOR REAR BRAKE) |
| 47529S | Seal, Rear Brake Adjust Nut Dust, RH |
| 47529T | Seal, Rear Brake Adjust Nut Dust, LH |
| 47547R | Plug, Bleeder(FOR DRUM BRAKE, REAR) |
| 47548R | Cap, Bleeder Plug(FOR DRUM BRAKE, REAR) |
| 47549S | Seat, Rear Brake Automatic Adjust Nut, RH |
| 47549T | Seat, Rear Brake Automatic Adjust Nut, LH |
| 47550 | Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER) |
| 47550H | Bolt(FOR REAR WHEEL CYLINDER) |
| 47559D | Spring, Rear Brake Automatic Adjust Lever Support, RH |
| 47559E | Spring, Rear Brake Automatic Adjust Lever Support, LH |
| 47560 | Cylinder Assy, Rear Wheel Brake(FOR RH, REAR OR LOWER) |
| 47570 | Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER) |
| 47580 | Cylinder Assy, Rear Wheel Brake(FOR LH, REAR OR LOWER) |
