Toyota Coaster (CHINA)

2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

72 part groups · 11 illustrations

Illustrations

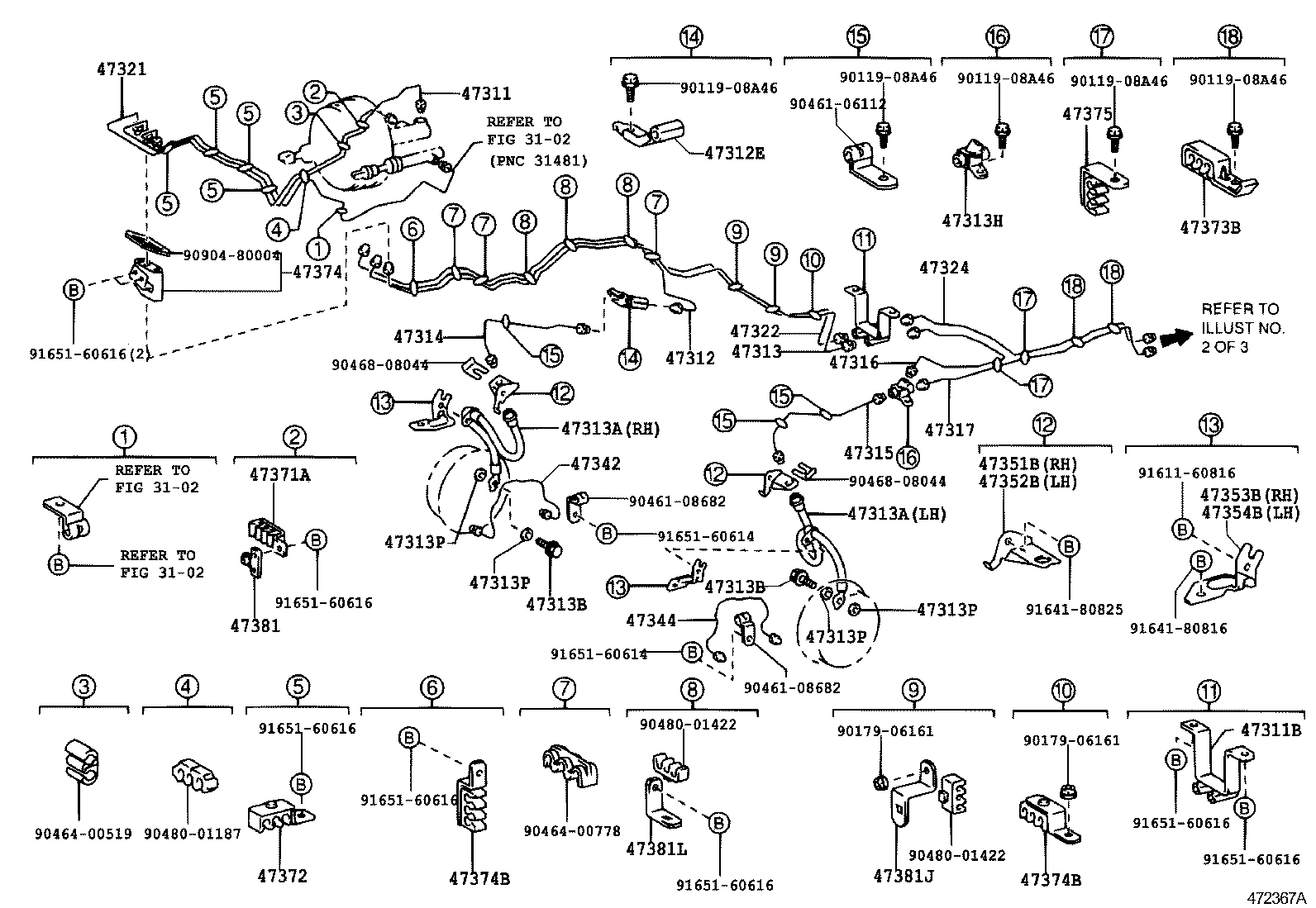

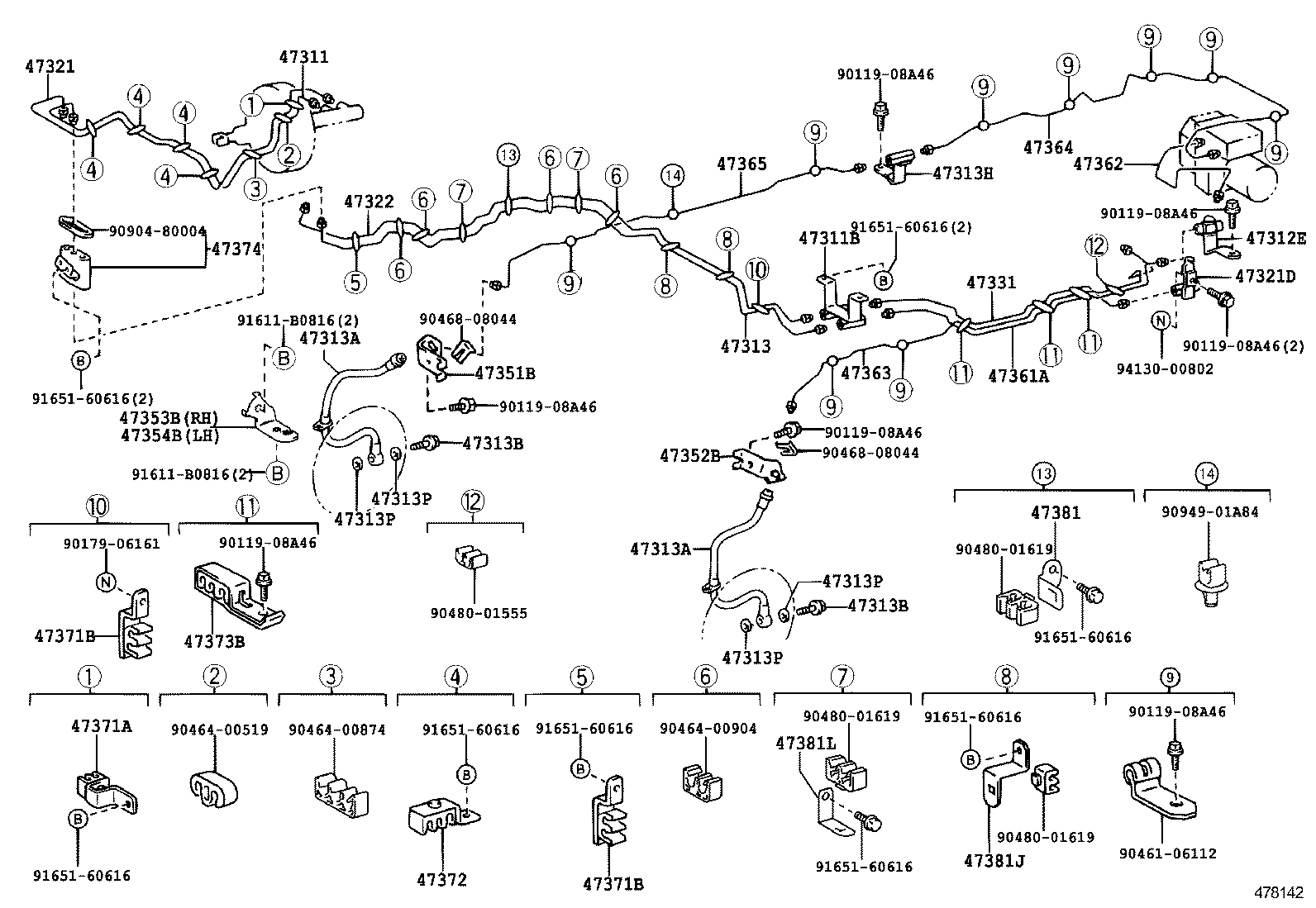

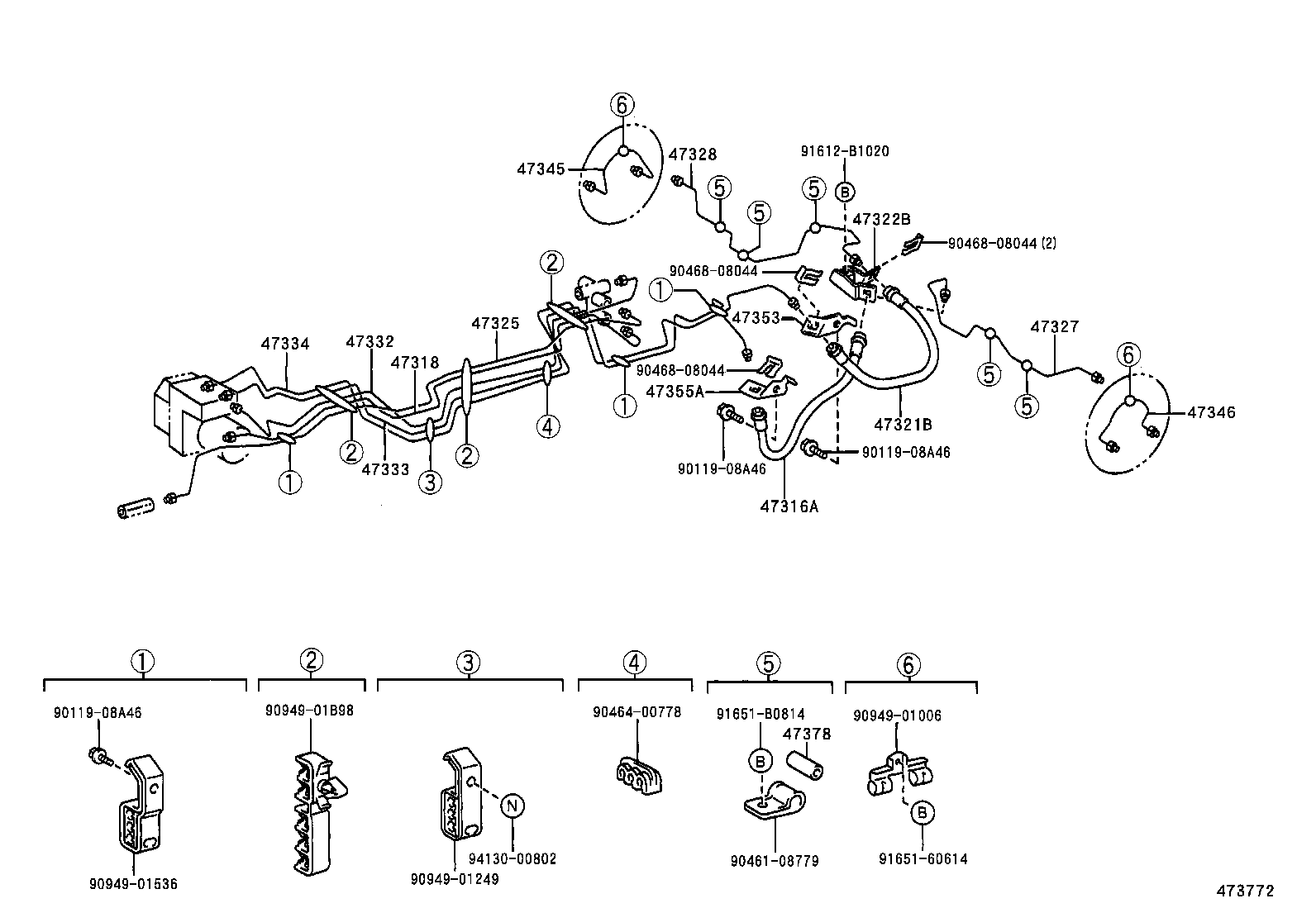

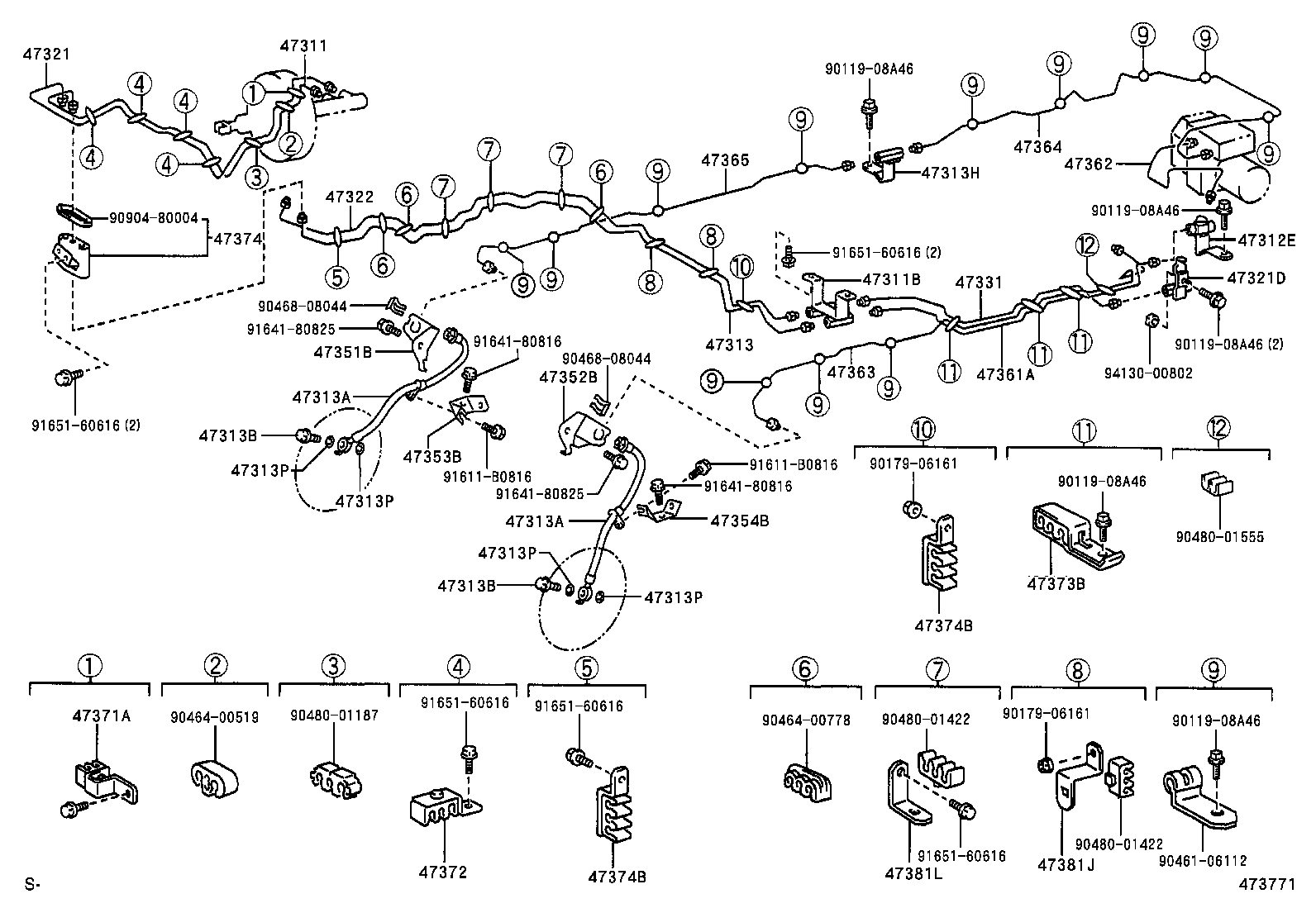

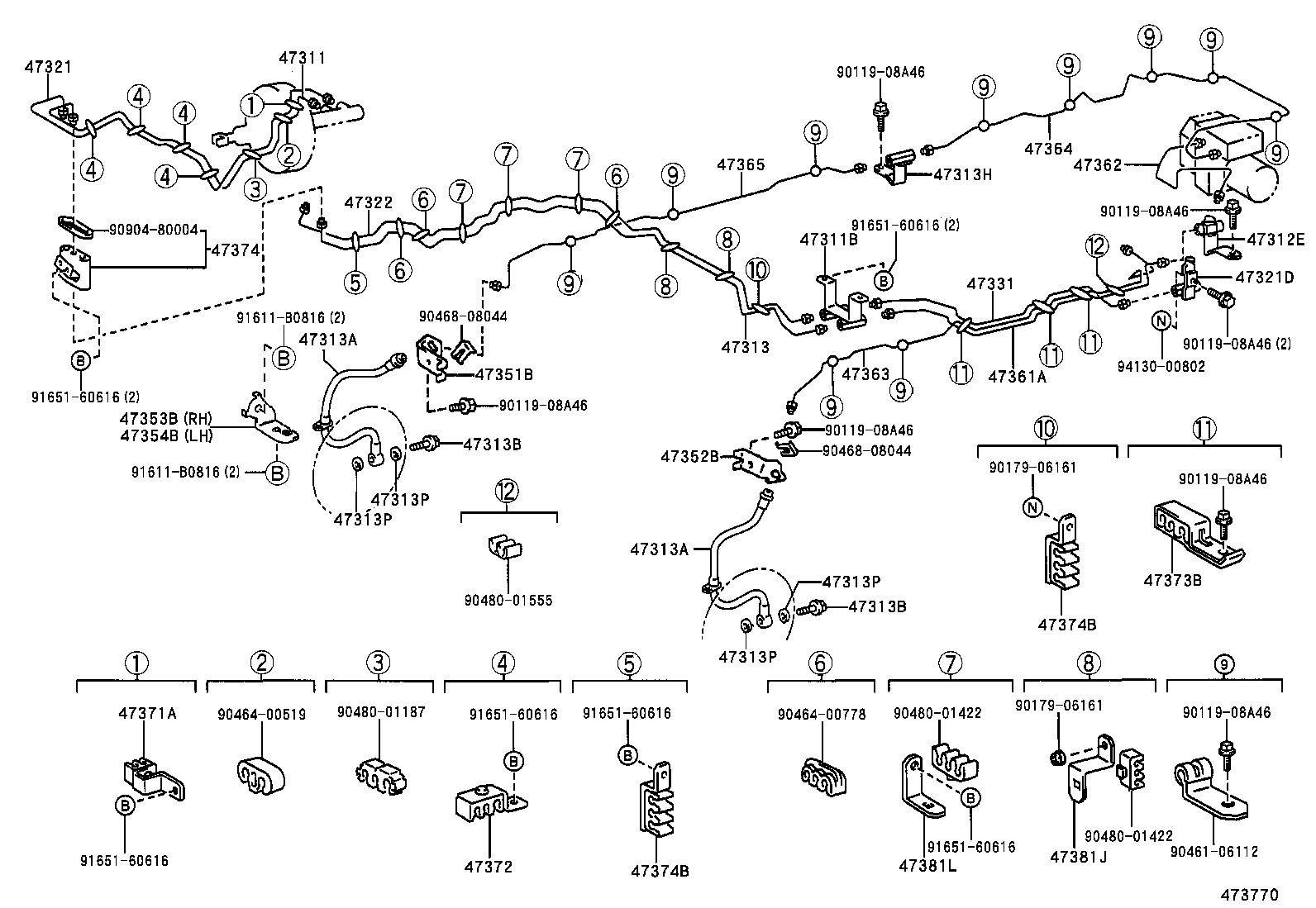

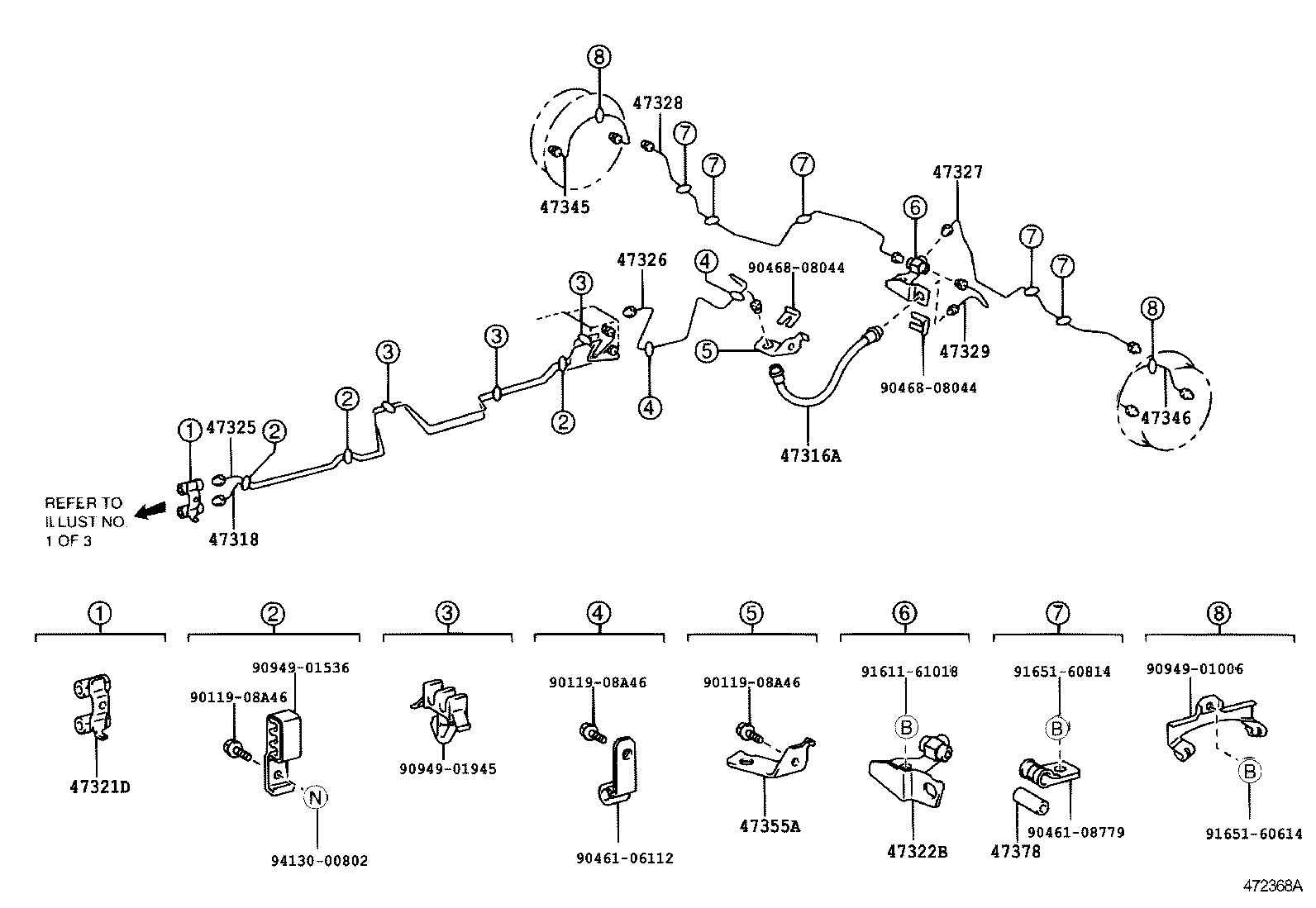

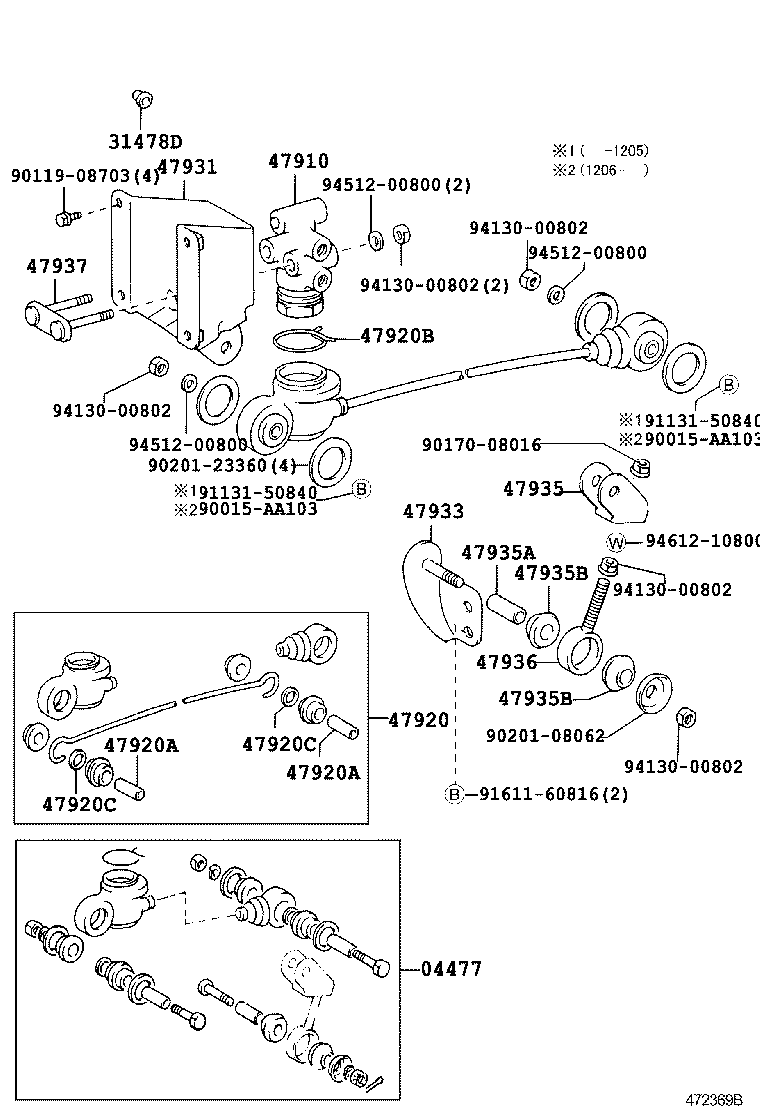

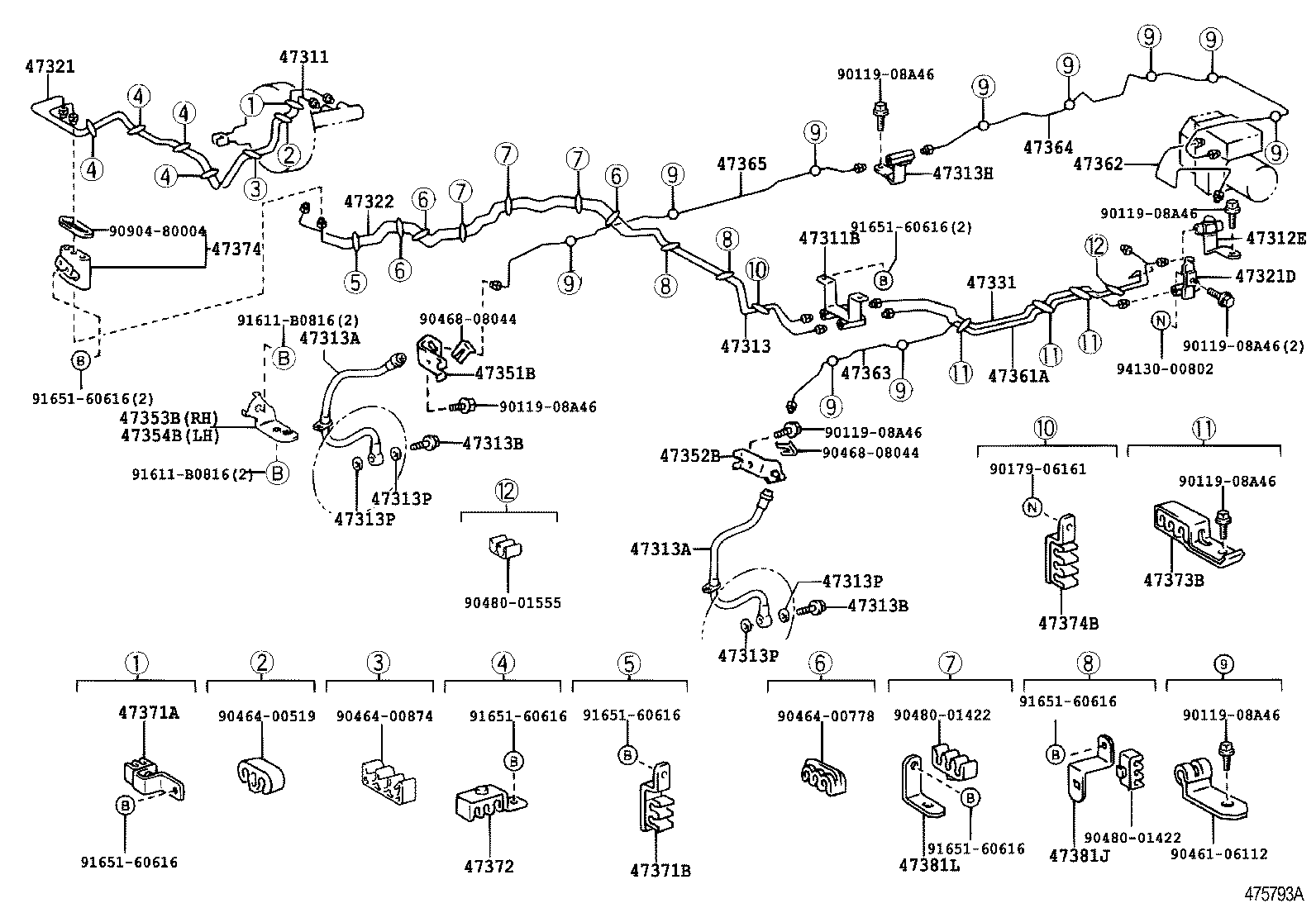

Figure 472366A 472366A 2000-12 → 2003-10 Figure 472367A 472367A 2000-12 → 2003-10 Figure 473770 473770 2003-10 → 2007-01 Figure 473771 473771 2003-10 → 2007-01 Figure 475793A 475793A 2007-01 → 2011-08 Figure 475793A 475793A 2007-01 → — Figure 478142 478142 2011-08 → — Figure 472368A 472368A 2000-12 → 2003-10 Figure 473772 473772 2003-10 → — Figure 473499 473499 2003-10 → — Figure 472369B 472369B 2000-12 → —

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
31478D Cap, Bleeder Plug(FOR LSPV)
44510 Actuator Assy, Brake
44590 Bracket Assy, Brake Actuator
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313H Way, NO.3(FOR FRONT BRAKE TUBE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47321 Tube, Rear Brake, NO.1
47321B Hose, Flexible(FOR REAR BRAKE TUBE)
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47331 Tube, Rear Brake, NO.10
47332 Tube, Rear Brake, NO.11
47333 Tube, Rear Brake, NO.12
47334 Tube, Rear Brake, NO.13
47342 Tube, Wheel Cylinder, Front RH NO.2
47344 Tube, Wheel Cylinder, Front LH NO.2
47345 Tube, Wheel Cylinder, Rear RH
47346 Tube, Wheel Cylinder, Rear LH
47351B Bracket, Flexible Hose, NO.1
47352B Bracket, Flexible Hose, NO.2
47353 Bracket, Flexible Hose(FOR REAR)
47353B Bracket, Flexible Hose, NO.3
47354B Bracket, Flexible Hose, NO.4
47355A Bracket, Flexible Hose, NO.5
47361A Tube, Front Brake, NO.10
47362 Tube, Front Brake, NO.11
47363 Tube, Front Brake, NO.12
47364 Tube, Front Brake, NO.13
47365 Tube, Front Brake, NO.14
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374 Connector, Tube
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47378 Protector, Brake Tube
47381 Bracket, Brake Tube Clamp NO.1
47381J Bracket, Brake Tube Clamp, NO.2
47381L Bracket, Brake Tube Clamp, NO.3
47910 Valve Assy, Load Sensing Proportioning
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47931 Bracket, Load Sensing Valve
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47935B Bush(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
