Toyota Coaster (CHINA)

2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Brake Tube & Clamp

8 part groups · 2 illustrations

Illustrations

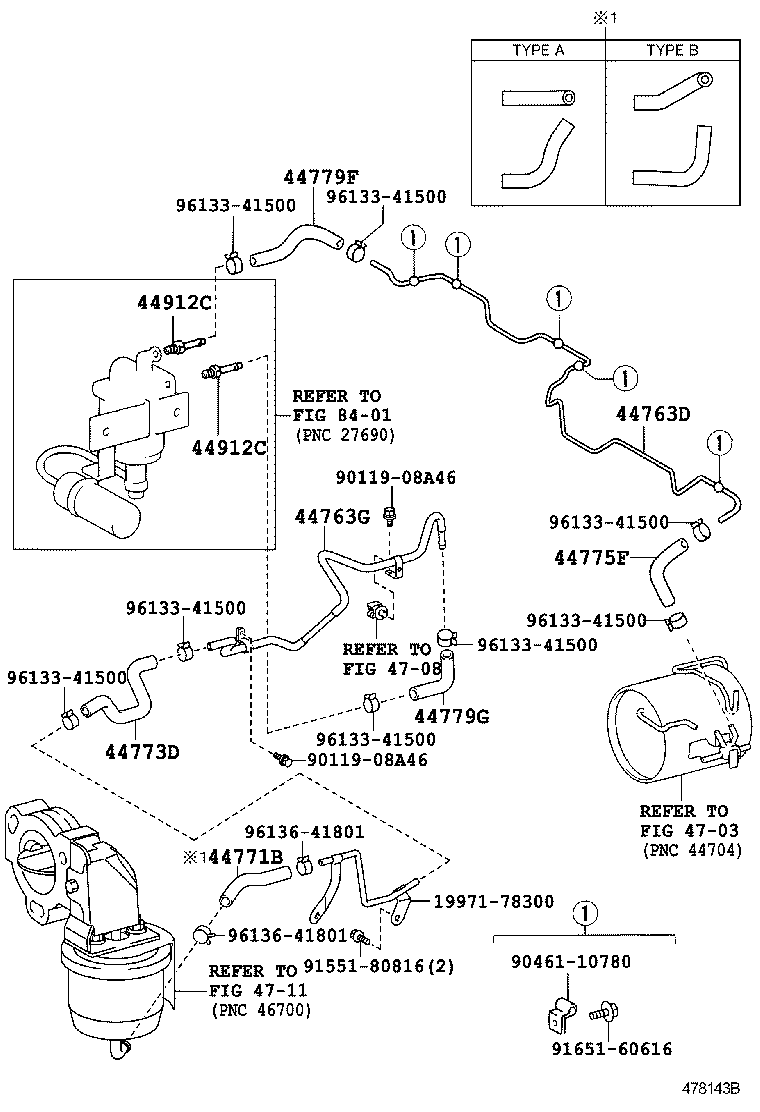

Figure 474194B 474194B 2007-01 → 2011-08 Figure 478143B 478143B 2011-08 → —

Part groups

PNCDescription
44763D Tube, Hose TO Hose, NO.1
44763G Tube, Hose TO Hose, NO.2
44771B Hose, Vacuum Tube Connector
44773D Hose, Solenoido TO Retarder
44775F Hose, Way TO Connector
44779F Hose, Connector Tube TO Solenoid, NO.1
44779G Hose, Connector Tube TO Solenoid, NO.2
44912C Union(FOR 3 WAY TO MAGNETIC VALVE TUBE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
