Toyota Coaster (CHINA)

2000-12 → 2014-03 · chassis BB5#,RZB5#,TRB53,XZB53 · catalogue 814310 · General

Discontinued model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

40 part groups · 7 illustrations

Illustrations

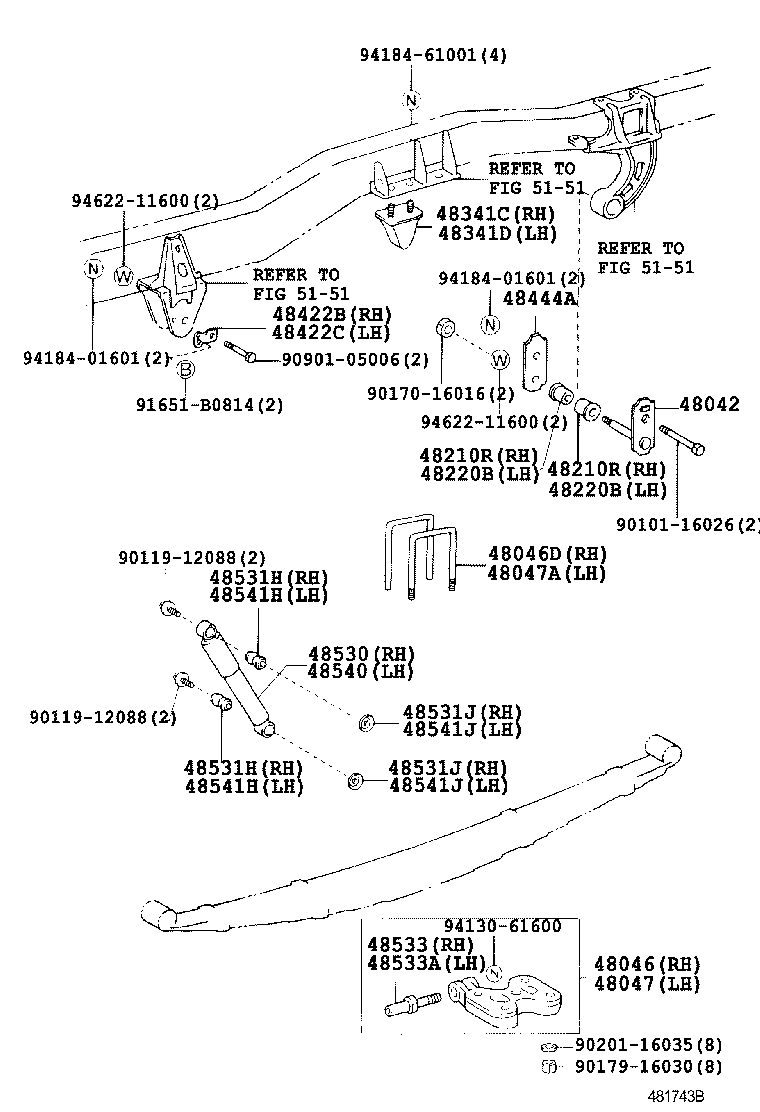

Figure 481279B 481279B 2000-12 → 2003-10 Figure 481743B 481743B 2003-10 → — Figure 482340 482340 2000-12 → 2007-01 Figure 481280A 481280A 2000-12 → 2007-01 Figure 481280A 481280A 2007-01 → — Figure 481741 481741 2000-12 → 2007-01 Figure 481281A 481281A 2000-12 → —

Part groups

PNCDescription
48042 Shackle Sub-assy, Rear Spring, NO.2
48046 Seat Sub-assy, Spring U Bolt, RH
48046D Bolt, U(FOR REAR SPRING RH)
48047 Seat Sub-assy, Spring U Bolt, LH
48047A Bolt, U(FOR REAR SPRING LH)
48210 Spring Assy, Rear RH
48210C Bush(FOR REAR SPRING LEAF)
48210R Bush(FOR REAR SPRING SHACKLE LOWER RH)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48220 Spring Assy, Rear LH
48220B Bush(FOR REAR SPRING SHACKLE LOWER LH)
48247 Bolt, Rear Spring, Center
48252 Silencer, Rear Spring
48252B Silencer, Rear Spring, NO.1
48253 Spacer, Rear Spring, NO.1
48255 Spacer, Rear Spring Leaf
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48284 Nut, Rear Spring Center Bolt
48284A Nut, Rear Spring Clip
48341C Bumper, Rear Spring, NO.2 RH
48341D Bumper, Rear Spring, NO.2 LH
48375 Damper, Leaf Spring Dynamic
48422B Support, Rear Spring Pin, RH
48422C Support, Rear Spring Pin, LH
48444A Plate, Rear Spring Shackle, Inner
48530 Absorber Assy, Shock, Rear RH
48531H Bush(FOR REAR SHOCK ABSORBER RH)
48531J Washer, Rear Shock Absorber Cushion, NO.1 RH
48533 Pin, Rear Shock Absorber Lower Pivot, RH
48533A Pin, Rear Shock Absorber Lower Pivot, LH
48540 Absorber Assy, Shock, Rear LH
48541H Bush(FOR REAR SHOCK ABSORBER LH)
48541J Washer, Rear Shock Absorber Cushion, NO.1 LH
48812 Bar, Stabilizer, Rear
48815R Bush, Stabilizer(FOR REAR)
48823C Cover, Rear Stabilizer Bracket
48830D Link Assy, Rear Stabilizer, RH
48840A Link Assy, Rear Stabilizer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
